k8s Helm部署dashboard

参考地址：

• kubernetes-dashboard 官方 Chart

环境说明：

• kubernetes-dashboard：1.10.1
• Chart 源：https://kubernetes-charts.storage.googleapis.com/

拉取 chart 镜像

$ helm search repo kubernetes-dashboard
NAME                           CHART VERSION    APP VERSION    DESCRIPTION
stable/kubernetes-dashboard    1.10.1           1.10.1         General-purpose web UI for Kubernetes clusters
$ helm pull stable/kubernetes-dashboard
$ tar zxvf kubernetes-dashboard-1.10.1.tgz

从阿里 docker hub 拉取 dashboard 镜像

$ docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kubernetes-dashboard-amd64:v1.10.1
$ docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kubernetes-dashboard-amd64:v1.10.1 k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1
$ docker save k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1 -o kubernetes-dashboard-amd64:v1.10.1.tar
$ scp ./kubernetes-dashboard-amd64\:v1.10.1.tar root@k8s-node01:~
$ docker load -i kubernetes-dashboard-amd64\:v1.10.1.tar

cat <<EOF >./kubernetes-dashboard.yaml
image:
  repository: k8s.gcr.io/kubernetes-dashboard-amd64
  tag: v1.10.1
ingress:
  enabled: true
  hosts:
    - k8s.frognew.com
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/backend-protocol: "HTTPS"
  tls:
    - secretName: frognew-com-tls-secret
      hosts:
      - k8s.frognew.com
rbac:
  clusterAdminRole: true
EOF

安装

$ helm install kubernetes-dashboard . \
--namespace kube-system \
-f kubernetes-dashboard.yaml

查看

$ kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                  AGE
kube-dns               ClusterIP   10.96.0.10     <none>        53/UDP,53/TCP,9153/TCP   32d
kubernetes-dashboard   ClusterIP   10.100.18.56   <none>        443/TCP                  22m

通过 NodePort 方式访问

$ kubectl edit svc kubernetes-dashboard -n kube-system
# 修改 ClusterIP 为 NodePort
spec:
  type: ClusterIP  ->  NodePort
$ kubectl get svc -n kube-system
NAME                   TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                  AGE
kube-dns               ClusterIP   10.96.0.10     <none>        53/UDP,53/TCP,9153/TCP   32d
kubernetes-dashboard   NodePort    10.100.18.56   <none>        443:30632/TCP            25m

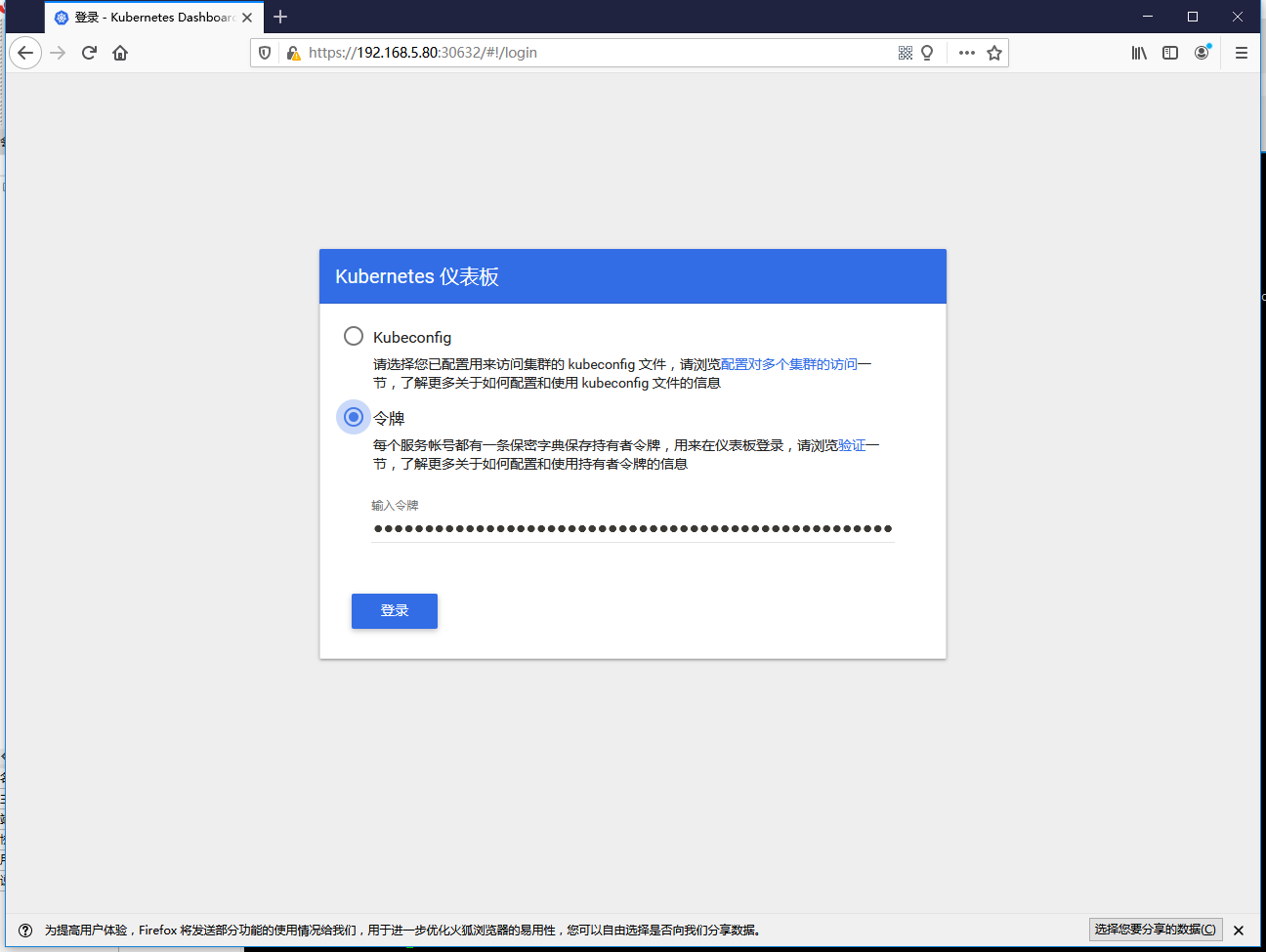

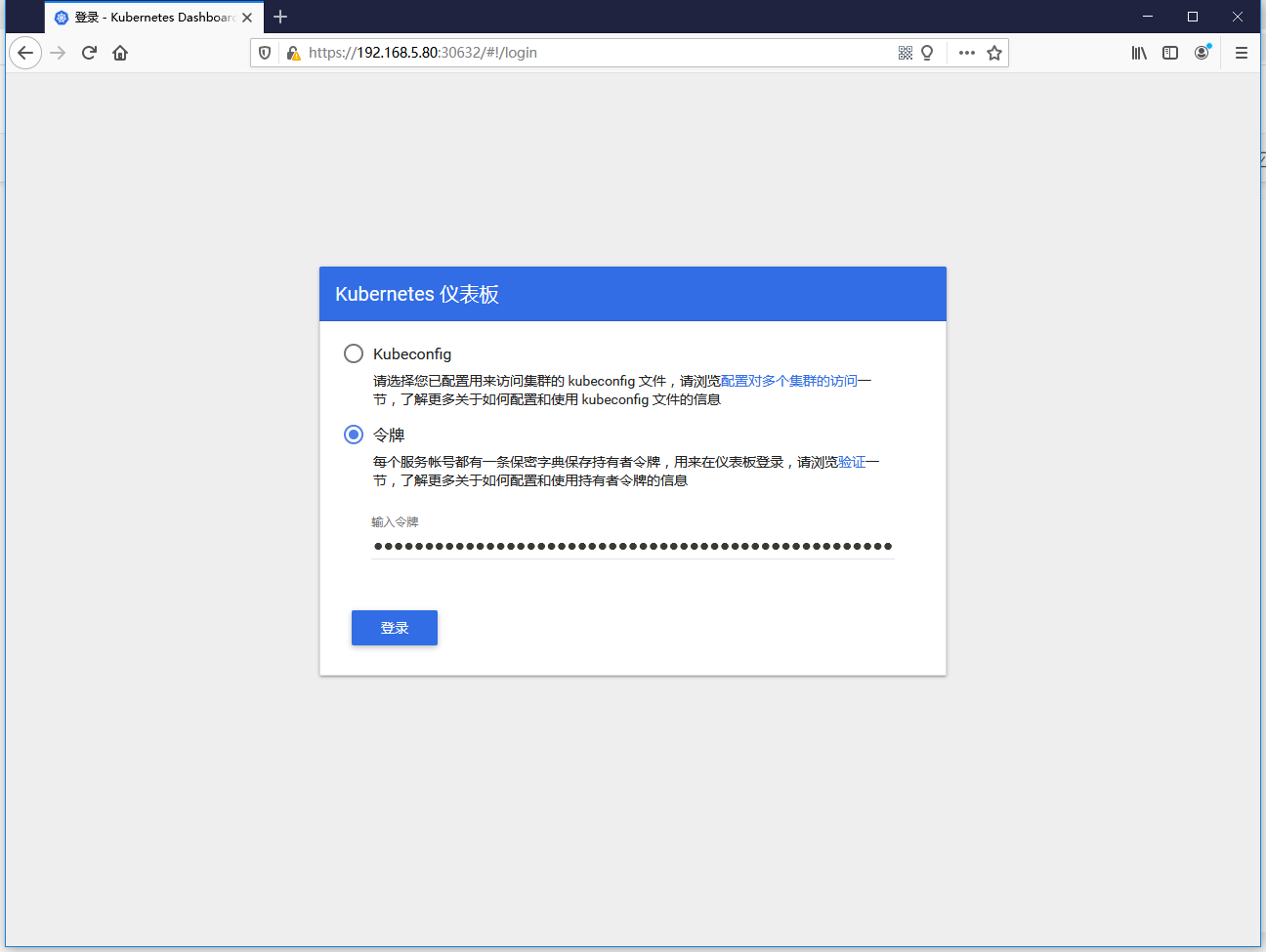

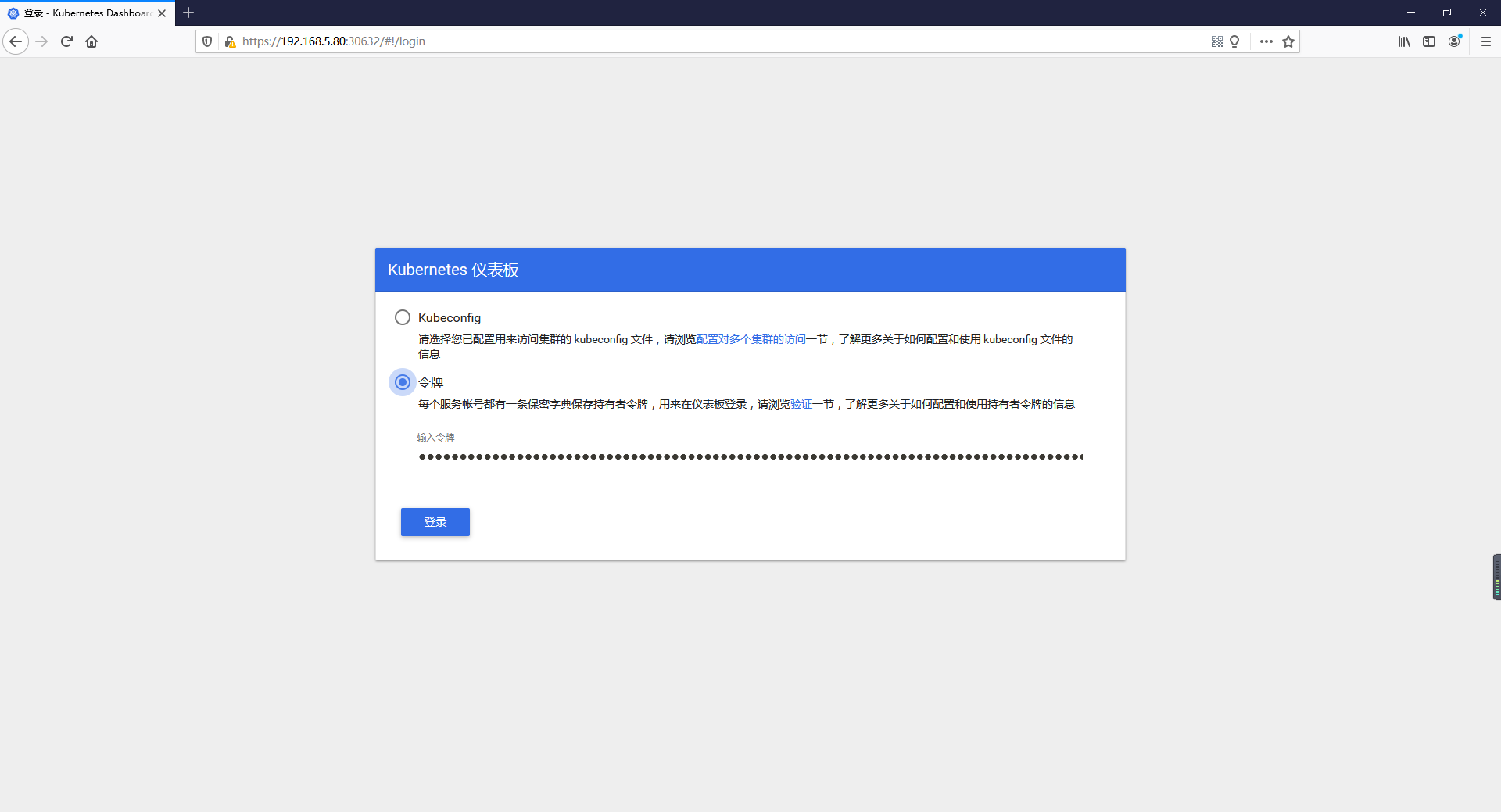

访问地址：https://192.168.5.80:30632/ 谷歌浏览器会限制访问，可以通过火狐浏览器访问。通过令牌方式登录。

获取令牌信息

$ kubectl -n kube-system get secret  | grep kubernetes-dashboard-token
kubernetes-dashboard-token-m68dk                 kubernetes.io/service-account-token   3      114m
$ kubectl describe secret kubernetes-dashboard-token-m68dk -n kube-system

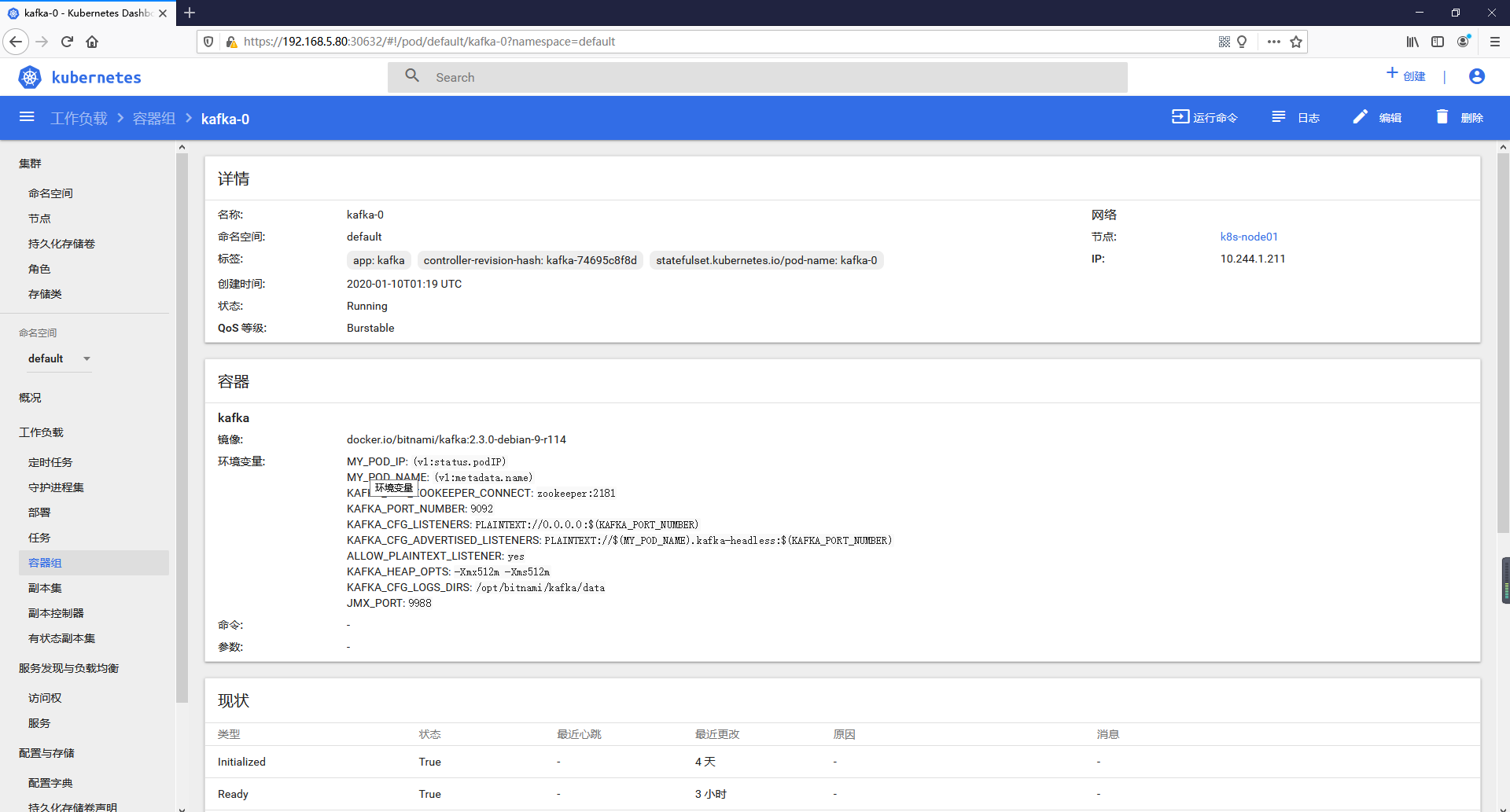

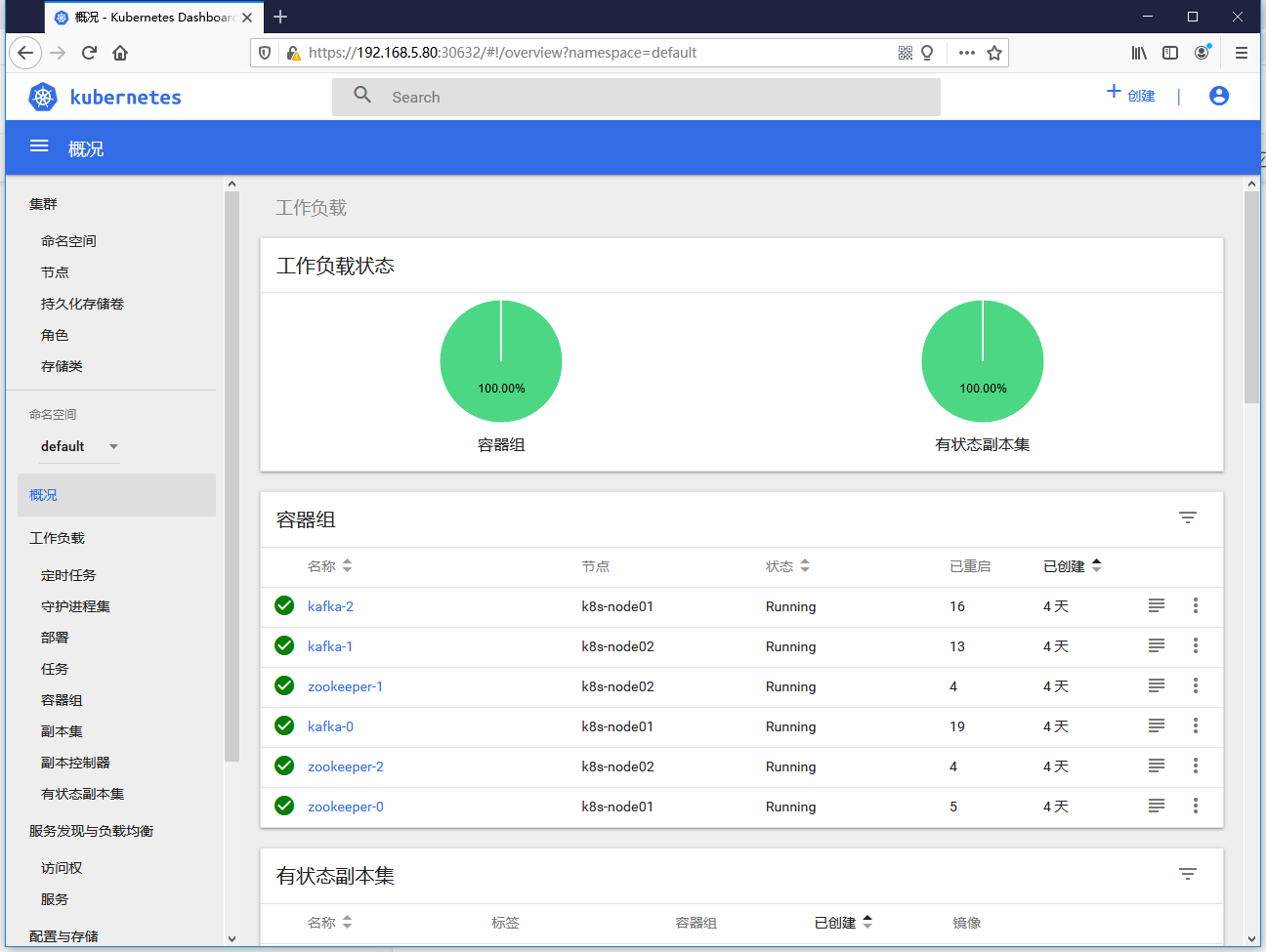

系统截图
