Module Details
Items included in the kit are as follows: mainboard BLE, light sensor, sound sensor, twin-button, buzzer, LED matrix, addressable RGB LED, servo, battery, USB cable, Starter Kit Project Invention Guide, etc. Below is an informative table about the specific module details. You can click one of the small images to see a large version of the modules, or click More Info to know more about them.
| Name | Image | Detail |
|---|---|---|
| Mainboard BLE |  |
It is a key component of your projects. Whatever programs you design, a flashing LED or an alarming buzzer, it will convert the received signals and command for the output modules to execute actions. It is available to be factory reset after the Reset button is pressed and held for 6 seconds. More Info |

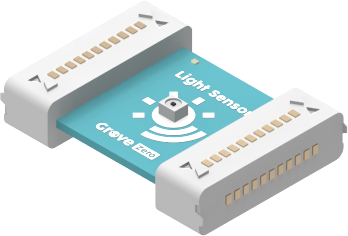

| Light Sensor |  |
It measures the light intensity in an ambient environment and tells you it is bright or dark. More Info |
| Sound Sensor |  |
It measures the sound intensity in an ambient environment. More Info |
| Twin-Button |  |
A module composed of two buttons labeled as A and B. It can detect a short press, a long press or an ongoing press-down action. More Info |
| Buzzer |  |
A buzzer is ordinarily used for creating special audio effect to alert people. But sometimes you can use it to play some relaxing and enjoyable melodies too. More Info |
| LED Matrix |  |
It features a blue 5x6 LED grid that is able to show numbers, characters, bar graphs, pixel patterns, etc. More Info |
| RGB LED |  |
A basic LED that consists of the three origin colors (red, green, blue). By adjusting their RGB value, this module is possible to show colorful and numerous light displays. More Info |
| Servo |  |
The servo is an actuator that controls the angular position of the shaft. More Info |
| Battery |  |
It provides power supply for the entire circuit system of your projects. More Info |
