设计模式

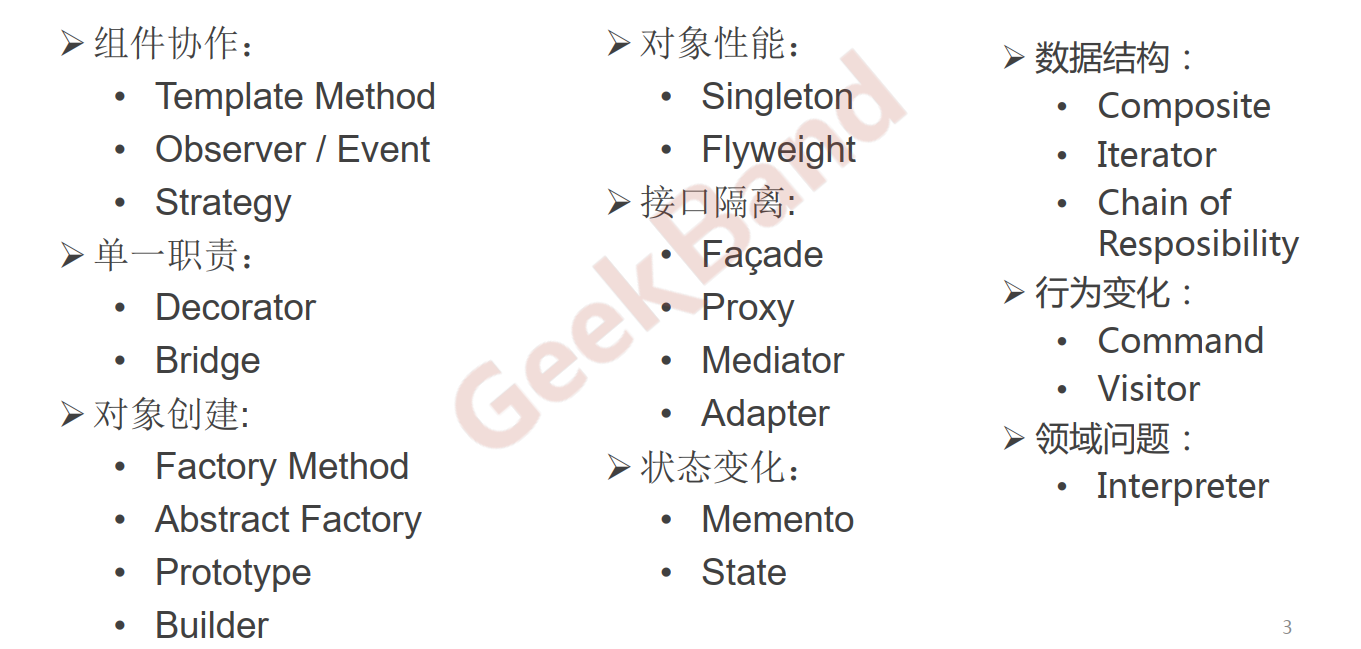

23种设计模式

1.工厂模式

工厂模式包括了三种，分别为简单工厂模式，工厂方法模式以及抽象工厂模式。

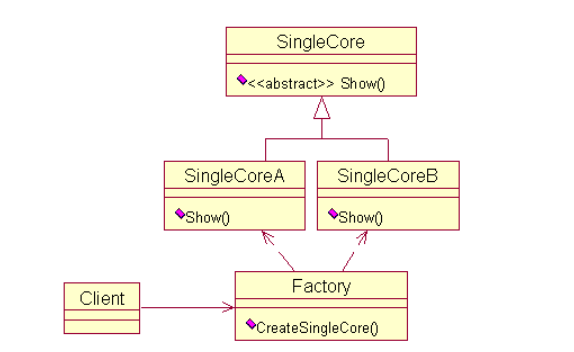

简单工厂模式：在工厂类中去做判断创建新产品，但是增加产品，需要修改工厂类

enum CTYPE {COREA, COREB};
class SingleCore
{
public:
    virtual void Show() = 0;
};
//单核A
class SingleCoreA: public SingleCore
{
public:
    void Show() { cout<<"SingleCore A"<<endl; }
};
//单核B
class SingleCoreB: public SingleCore
{
public:
    void Show() { cout<<"SingleCore B"<<endl; }
};
//唯一的工厂，可以生产两种型号的处理器核，在内部判断
class Factory
{
public:
    SingleCore* CreateSingleCore(enum CTYPE ctype)
    {
        if(ctype == COREA) //工厂内部判断
            return new SingleCoreA(); //生产核A
        else if(ctype == COREB)
            return new SingleCoreB(); //生产核B
        else
            return NULL;
    }
};

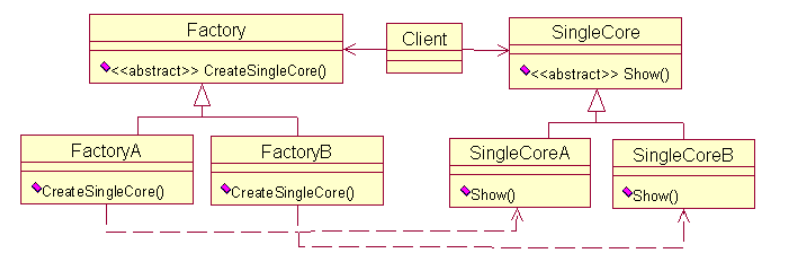

工厂方法模式：定义一个用于创建对象的接口，但是每增加一个产品，就需要增加一个对象的工厂

class SingleCore
{
public:
    virtual void Show() = 0;
};

//单核A
class SingleCoreA: public SingleCore
{
public:
    void Show() { cout<<"SingleCore A"<<endl; }
};
//单核B
class SingleCoreB: public SingleCore
{
public:
    void Show() { cout<<"SingleCore B"<<endl; }
};
class Factory  //定义一个接口父类
{
public:
    virtual SingleCore* CreateSingleCore() = 0;
};

//生产A核的工厂
class FactoryA: public Factory
{
public:
    SingleCoreA* CreateSingleCore() { return new SingleCoreA(); }
};
//生产B核的工厂
class FactoryB: public Factory
{
public:
    SingleCoreB* CreateSingleCore() { return new SingleCoreB() ; }
};

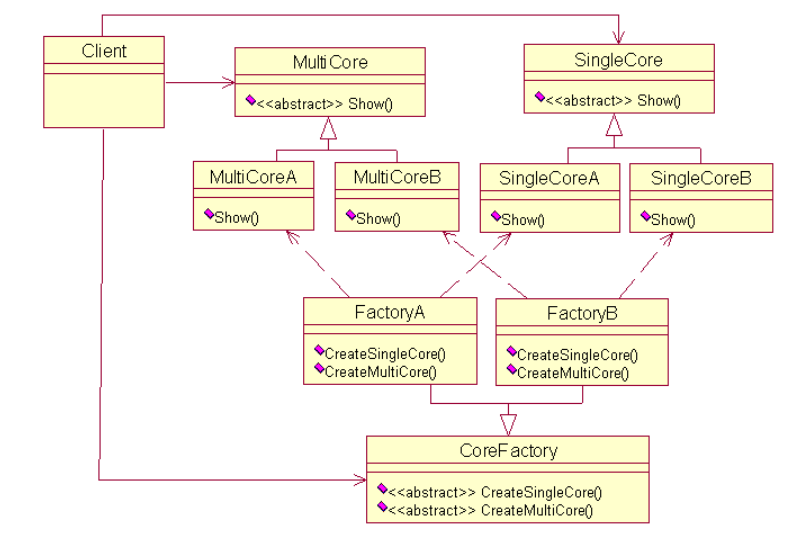

抽象工厂模式：定义为提供一个创建一系列的相互依赖对象的接口，而无需指定具体的类。本质就是用子类的对象指向父类的指针，再利用虚函数实现覆盖。

//单核
class SingleCore
{
public:
    virtual void Show() = 0;
};

class SingleCoreA: public SingleCore
{
public:
    void Show() { cout<<"Single Core A"<<endl; }
};
class SingleCoreB :public SingleCore
{
public:
    void Show() { cout<<"Single Core B"<<endl; }
};

//多核
class MultiCore
{
public:
    virtual void Show() = 0;
};
class MultiCoreA : public MultiCore
{
public:
    void Show() { cout<<"Multi Core A"<<endl; }

};
class MultiCoreB : public MultiCore
{
public:
    void Show() { cout<<"Multi Core B"<<endl; }
};

//工厂
class CoreFactory
{
public:
    virtual SingleCore* CreateSingleCore() = 0;
    virtual MultiCore* CreateMultiCore() = 0;
};

//工厂A，专门用来生产A型号的处理器
class FactoryA :public CoreFactory
{
public:
    SingleCore* CreateSingleCore() { return new SingleCoreA(); }
    MultiCore* CreateMultiCore() { return new MultiCoreA(); }
};

//工厂B，专门用来生产B型号的处理器
class FactoryB : public CoreFactory
{
public:
    SingleCore* CreateSingleCore() { return new SingleCoreB(); }
    MultiCore* CreateMultiCore() { return new MultiCoreB(); }
};

简单工厂模式	工厂方法模式	抽象工厂模式

2.Template Method

3.策略模式

原本的代码

enum TaxBase {
    CN_Tax,
    US_Tax,
    DE_Tax,
    FR_Tax       //更改
};

class SalesOrder{
    TaxBase tax;
public:
    double CalculateTax(){
        //...

        if (tax == CN_Tax){
            //CN***********
        }
        else if (tax == US_Tax){
            //US***********
        }
        else if (tax == DE_Tax){
            //DE***********
        }
        else if (tax == FR_Tax){  //更改
            //...
        }

        //....
     }

};

采用策略模式后

class TaxStrategy{
public:
    virtual double Calculate(const Context& context)=0;
    virtual ~TaxStrategy(){}
};


class CNTax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};

class USTax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};

class DETax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //***********
    }
};



//扩展
//*********************************
class FRTax : public TaxStrategy{
public:
    virtual double Calculate(const Context& context){
        //.........
    }
};


class SalesOrder{
private:
    TaxStrategy* strategy;

public:
    SalesOrder(StrategyFactory* strategyFactory){
        this->strategy = strategyFactory->NewStrategy(); //工厂模式产生的对象
    }
    ~SalesOrder(){
        delete this->strategy;
    }

    public double CalculateTax(){
        //...
        Context context();

        double val =
            strategy->Calculate(context); //多态调用
        //...
    }

};

4.观察者模式

5.装饰者模式

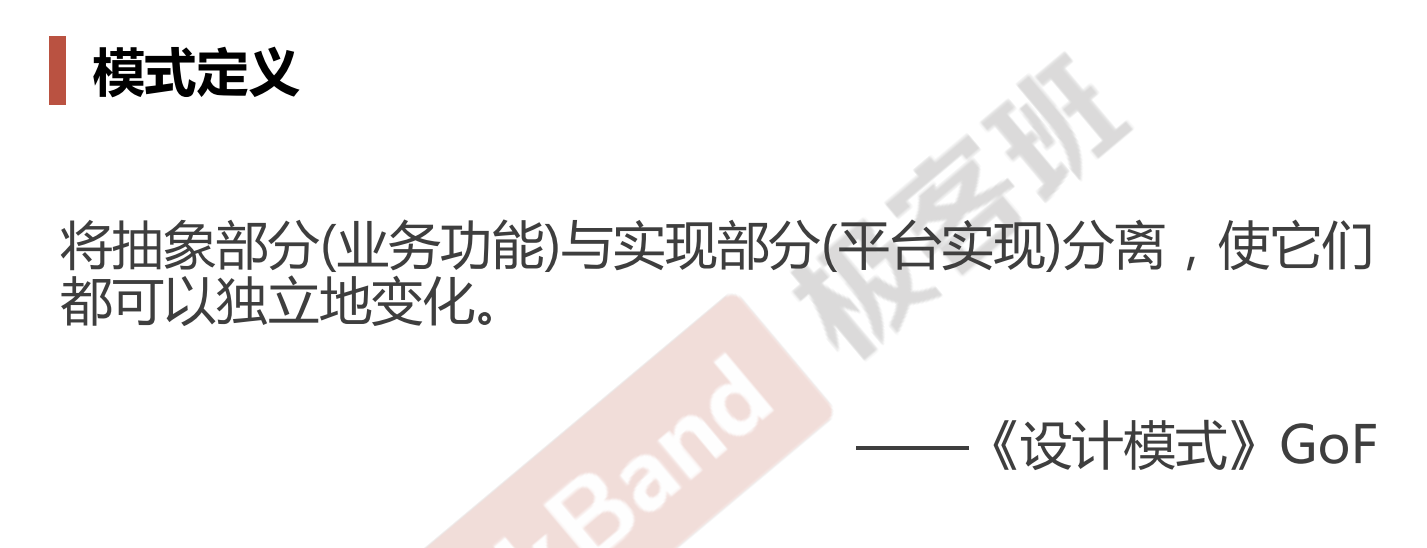

6.桥模式
