EasyTexMiner提供弹性分布式预测，可以加载EasyTransfer/EasyTexMiner/Google开源BERT训练出来的模型在PAI上进行离线分布式预测，相比标准的tensorflow的分布式推理有以下几个特征：

优化了PAI Studio上离线分布式推理速度，相比之前版本，视集群资源情况基本能提升1.5~3倍左右
PAI DSW上本地推理加速1.1x倍，相比之前GPU几乎都能打满
支持了超卖等弹性资源调度，和FailOver的处理，一个worker挂掉会重启，不影响总体任务
有效地解决了推理时快慢机的现象
支持Balde对模型进行优化，优化后单机推理性能会有20%~200%的提升
性能比较
测试数据，Tnews 数据 x2000倍：

Mean length	Max length	Count
22.11	145	100,000,000 (1亿)

测试机器：Tesla T4-16GB
测试集群：Cluster AY88G
测试参数：Sequence Length=128, Batch Size=256
测试模型：BERT-base (TF saved model)
BLADE优化是否开启：否

worker Count	标准的tensorflow的分布式推理		EasyTexMiner		Speedup
	total time (min)	time/sample (ms)	total time (min)	time/sample (ms)
50	302min	0.18ms	137 min	0.08ms	2.20x

在DSW上，推理时的GPU利用率也能打满
弹性分布式预测/Blade推理优化（含自定义） - 图1

如何使用

EasyTransfer训练的TF模型

模型下面需要包含以下文件：
弹性分布式预测/Blade推理优化（含自定义） - 图2
其中用户输入的label_mapping，按照-DenumerateValues的顺序进行如下排列，如新闻分类的label_mapping.json为，注意这里0,1 id要以int的形式：

{"教育": 0,
 "三农": 1,
 ...,
 "动漫": 27}

定义相关的环境参数

export test_table=odps://${project_name}/tables/your_test_table_name
export saved_model_dir=oss://path/to/your_model/
export oss_bucket_name=your_bucket_name
export role_arn=acs:ram::xxx
export host=your_host

然后按照如下进行调用

pai -name easytexminer
   -project algo_platform_dev
   -Dmode=predict
   -DinputTable=odps://${proj_name}/tables/your_test_table
   -DoutputTable=odps://${proj_name}/tables/your_test_table_out
   -DfirstSequence=content
   -DoutputSchema=predictions
   -DappendCols=example_id
   -DmodelName=text_classify_bert
   -DcheckpointPath=${saved_model_dir}
   -DbatchSize=32
   -DworkerCount=10
   -Dbuckets="oss://${oss_bucket_name}/?role_arn=${role_arn}&host=${host}"

EasyTexMiner训练的PyTorch模型

导出Tensorflow SavedModel（可选）

PAI团队对TF做了很多优化，因此把pytorch模型导出成TF SavedModel会加快推理速度，用户可以根据自身情况选择性导出

pai -name easy_transfer_app
  -Dmode=export
  -DexportType=app_model
  -DcheckpointPath=${saved_model_dir}/model.ckpt
  -DexportDirBase=${saved_model_dir}
  -Dbuckets="oss://${oss_bucket_name}/?role_arn=${role_arn}&host=${host}"

弹性分布式预测

pai -name easytexminer_2104
 -project algo_platform_dev
 -Dmode=predict
 -DinputTable=odps://${proj_name}/tables/your_test_table
 -DoutputTable=odps://${proj_name}/tables/your_test_table_out
 -DfirstSequence=content
 -DoutputSchema=predictions
 -DappendCols=example_id
 -DmodelName=text_classify_bert
 -DcheckpointPath=${saved_model_dir}
 -DbatchSize=32
 -DworkerCount=10
 -Dbuckets="oss://${oss_bucket_name}/?role_arn=${role_arn}&host=${host}"

自定义的Tensorflow saved model

假如我们有这样一个TF saved model：

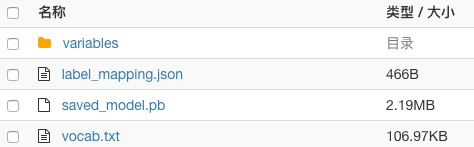

用户会有自己训练好的模型，放在一个 oss 目录中，在这个例子中，模型位置在
弹性分布式预测/Blade推理优化（含自定义） - 图3
我们可以用tensorflow官方的脚本观察这个模型的输入输出为：

这是一个标准的BERT分类模型，输入为 [-1, seq_len] 的三个向量 input_ids,input_mask,segment_ids
输出为16分类的 predictions, logits, probabilities

新建一个 main.py，写入以下代码：

import json
import os
import uuid
from easytexminer.core.predictor import Predictor, TFModelPredictor, PredictorManager
from easytexminer.applications.tokenization import Tokenizer
from easytexminer.data.bert_preprocessors import InputExample, bert_cls_convert_example_to_feature
from easytexminer.utils import io, distributed_call_main, config, init_running_envs
class UserDefinedClassifyPredictor(Predictor):
    def __init__(self, model_dir, *args, **kwargs):
        super(UserDefinedClassifyPredictor, self).__init__(*args, **kwargs)
        self.bert_tokenizer = Tokenizer(backend="bert", vocab_file=os.path.join(model_dir, "vocab.txt"))
        self.model_predictor = TFModelPredictor(saved_model_path=model_dir,
                                                input_keys=["input_ids", "input_mask", "segment_ids"],
                                                output_keys=["predictions", "probabilities", "logits"])
        self.label_path = os.path.join(model_dir, "label_mapping.json")
        with io.open(self.label_path) as f:
            self.label_mapping = json.load(f)
        self.label_id_to_name = {idx: name for name, idx in self.label_mapping.items()}
        self.first_sequence = kwargs.pop("first_sequence", "first_sequence")
        self.second_sequence = kwargs.pop("second_sequence", "second_sequence")
        self.sequence_length = kwargs.pop("sequence_length", 128)
    def preprocess(self, in_data):
        """
        Args:
            in_data (`list`): a list of dict containing raw text
        Returns:
            rst (`dict`): a dict of batched features
        """
        if not isinstance(in_data, list):
            in_data = [in_data]
        rst = {
            "input_ids": [],
            "input_mask": [],
            "segment_ids": []
        }
        for record in in_data:
            text_a = record[self.first_sequence]
            text_b = record.get(self.second_sequence, None)
            example = InputExample(text_a=text_a, text_b=text_b, label=None)
            feature = bert_cls_convert_example_to_feature(example,
                                                          self.bert_tokenizer,
                                                          self.sequence_length)
            rst["input_ids"].append(feature.input_ids)
            rst["input_mask"].append(feature.input_mask)
            rst["segment_ids"].append(feature.segment_ids)
        return rst
    def predict(self, in_data):
        return self.model_predictor.predict(in_data)
    def postprocess(self, result):
        """
        Args:
            result (`dict`): A dict of returned tensors (np.array)
        Returns:
            new_results (`list`): a list of user-defined return dict (a row)
        """
        preds = result["predictions"]
        probs = result["probabilities"]
        logits = result["logits"]
        new_results = list()
        for b, prob in enumerate(probs):
            new_results.append({
                "predictions": preds[b],
                "probabilities": ",".join([str(t) for t in probs[b]]),
                "logits":  ",".join([str(t) for t in logits[b]])
            })
        return new_results
def main_fn(gpu, cfg, *args, **kwargs):
    # Prepare seed / logging / gpu environment
    init_running_envs(gpu, cfg)
    predictor = UserDefinedClassifyPredictor(
        model_dir=cfg.checkpoint_dir,
        first_sequence=cfg.first_sequence,
        second_sequence=cfg.second_sequence,
        sequence_length=cfg.sequence_length)
    predictor_manager = PredictorManager(
        predictor=predictor,
        input_file=cfg.tables,
        output_file=cfg.outputs,
        input_schema=cfg.input_schema,
        output_schema=cfg.output_schema,
        append_cols=cfg.append_cols,
        batch_size=cfg.batch_size
    )
    predictor_manager.run()

调用PAI命令：

export config_file=./xxx.ini
export proj=xxx
export role_arn=xxx
export oss_bucket_name="xxx"
export host=cn-xxx.oss.aliyuncs.com
export model_dir=oss://path/to/your_model

if [ ! -f ./dev.tsv ]; then
  wget http://atp-modelzoo-sh.oss-cn-shanghai.aliyuncs.com/easytexminer/tutorials/distillation/classification/dev.tsv
fi

odpscmd -e --config=${config_file} "DROP TABLE IF EXISTS easytexminer_mrpc_dev;"
odpscmd -e --config=${config_file} "CREATE TABLE easytexminer_mrpc_dev(
  quality STRING, id1 STRING, id2 STRING, sent1 STRING, sent2 STRING);"
odpscmd -e --config=${config_file} "tunnel upload dev.tsv easytexminer_mrpc_dev -fd \t;"


odpscmd -e --config=${config_file} "DROP TABLE IF EXISTS easytexminer_mrpc_dev_pred"

tar -zcvf user_defined_prediction.tar.gz main.py
ossutil cp -f user_defined_prediction.tar.gz ${model_dir}/
rm -f user_defined_prediction.tar.gz

command="
pai -name easytexminer
 -project algo_platform_dev
 -Dscript=${model_dir}/user_defined_prediction.tar.gz
 -DentryFile=main.py
 -Dmode=predict
 -DinputTable=odps://${proj}/tables/easytexminer_mrpc_dev
 -DoutputTable=odps://${proj}/tables/easytexminer_mrpc_dev_pred
 -DoutputSchema=predictions,probabilities,logits
 -DappendCols=quality
 -DfirstSequence=sent1
 -DsecondSequence=sent2
 -DinputSchema=quality:str:1,id1:str1:id2:str:1,sent1:str:1,sent2:str:1
 -DappendCols=''
 -DcheckpointPath=${model_dir}/
 -DworkerCount=1
 -Dbuckets='oss://${oss_bucket_name}/?role_arn=${role_arn}&host=${host}'
"

echo "${command}"
odpscmd -e --config=${config_file} "${command}"
echo "finish..."

自定义PyTorch模型/其他预处理操作

根据上一节，通过 preprocess/predict/postprocess进行对python随意的组合，只要换掉TF预测逻辑变成pytorch预测逻辑，甚至直接用jieba分词都可以！下面是一个jieba关键词提取的predictor示例

import jieba.analyse
from easytexminer.core.predictor import Predictor

class UserDefeinedKeywordsPredictor(Predictor):
    def __init__(self, *args, **kwargs):
        super(UserDefeinedKeywordsPredictor, self).__init__()

    def preprocess(self, in_data):
        if isinstance(in_data, dict):
            in_data = [in_data]
        rst = {
            "sentence": []
        }

        for record in in_data:
            sent = record["sentence"].replace('，', '').replace('。', '').replace('？', '').replace('！', '') \
                .replace('“', '').replace('”', '').replace('：', '').replace('…', '').replace('（', '').replace('）', '') \
                .replace('—', '').replace('《', '').replace('》', '').replace('、', '').replace('‘', '') \
                .replace('’', '').replace(',', '').replace('【', '').replace('】', '').replace('"', '') \
                .replace('#', '').replace('...', '').replace('?', '').replace('『', '')
            rst["sentence"].append(sent)

        return rst

    def predict(self, in_data):
        keywords_list = list()
        for sent in in_data["sentence"]:
            keywords_list.append(list(jieba.analyse.extract_tags(sent, topK=5)))
        return {
            "keywords": keywords_list
        }

    def postprocess(self, result):
        return [{"keywords": " ".join(kw)} for kw in result["keywords"]]
