本文以 /a/, /^a/, /a$/ 三个简单正则来分析hyperscan smwr分支的匹配算法. 注意:

编译时没有加任何标志位(比如HS_FLAG_CASELESS, 不区分大小写)
3个正则的id都是8
/a/
smallwrite_nfa.txt信息: ``` mcclellan 8 report: 8, states: 3, length: 448 astart: 1, fstart: 1 single accept: 1, has_accel: 0 accel_limit: 2, accept_limit 2

Alphabet 0: a 1: [^a]

00000 [00 - ff]->0 00001 [00 - 60]->1 61->2 [62 - ff]->1 00002 [00 - 60]->1 61->2 [62 - ff]->1

Acceleration

Queue : 0 Length : 448 bytes Num Positions : 3 Scratch State : 1 bytes Stream State : 1 bytes Flags : Max Width : inf/unknown Min Width : 0 BiAnchored Width : inf/unknown Max Offset : inf/unknown Reverse Acceleration : NONE

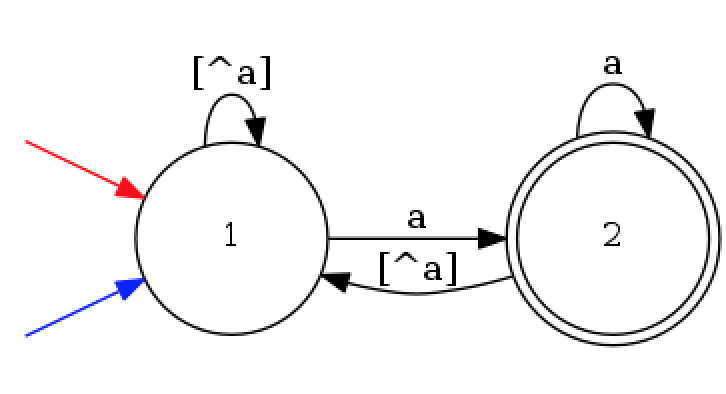

NFA图:<br />![image.png](https://cdn.nlark.com/yuque/0/2019/png/331848/1572404360952-4ef62943-b93c-4a13-b0fa-2c162f43e56c.png#align=left&display=inline&height=197&originHeight=394&originWidth=726&size=26288&status=done&width=363)
图中, 蓝色箭头表示start_anchored位置, 红色箭头表示start_floating位置. 一共3个状态, 状态0意味着MO_DEAD, 没有画出.
0-255个可能输入被归纳成2个字母表, 即信息中的Alphabet:
- 0: `a`
- 1: `[^a]`
从start_anchored开始匹配:
```c
// src/nfa/mcclellan.c
static really_inline
char nfaExecMcClellan8_Bi(const struct NFA *n, u64a offset, const u8 *buffer,
                          size_t length, NfaCallback cb, void *context,
                          char single) {
    assert(n->type == MCCLELLAN_NFA_8);
    const struct mcclellan *m = getImplNfa(n);
    u32 s = m->start_anchored;
    if (mcclellanExec8_i(m, &s, buffer, length, offset, cb, context, single,
                        NULL, CALLBACK_OUTPUT)
        == MO_DEAD) {
        return MO_DEAD;
    }
    const struct mstate_aux *aux = get_aux(m, s);
    if (aux->accept_eod) {
        doComplexReport(cb, context, m, s, offset + length, 1, NULL, NULL);
    }
    return s ? MO_ALIVE : MO_DEAD;
}

mcclellanExec8_i:

// src/nfa/mcclellan.c
static really_inline
char mcclellanExec8_i(const struct mcclellan *m, u32 *state, const u8 *buf,
                      size_t len, u64a offAdj, NfaCallback cb, void *ctxt,
                      char single, const u8 **c_final, enum MatchMode mode) {
    if (!len) {
        if (mode == STOP_AT_MATCH) {
            *c_final = buf;
        }
        return MO_ALIVE;
    }
    u32 s = *state;
    const u8 *c = buf;
    const u8 *c_end = buf + len;
    const struct mstate_aux *aux
        = (const struct mstate_aux *)((const char *)m + m->aux_offset
                                    - sizeof(struct NFA));
    u32 accept_limit = m->accept_limit_8;
    u32 cached_accept_id = 0;
    u32 cached_accept_state = 0;
    DEBUG_PRINTF("accel %hu, accept %u\n", m->accel_limit_8, accept_limit);
    DEBUG_PRINTF("s: %u, len %zu\n", s, len);
    const u8 *min_accel_offset = c;
    if (!m->has_accel || len < ACCEL_MIN_LEN) {
        min_accel_offset = c_end;
        goto without_accel;
    }
without_accel:
    do {
        assert(c < min_accel_offset);
        if (!s) {
            goto exit;
        }
        s = doNormal8(m, &c, min_accel_offset, s, 0, mode);
        if (mode != NO_MATCHES && s >= accept_limit) {
            if (mode == STOP_AT_MATCH) {
                DEBUG_PRINTF("match - pausing\n");
                *state = s;
                *c_final = c - 1;
                return MO_MATCHES_PENDING;
            }
            u64a loc = (c - 1) - buf + offAdj + 1;
            if (single) {
                DEBUG_PRINTF("reporting %u\n", m->arb_report);
                if (cb(0, loc, m->arb_report, ctxt) == MO_HALT_MATCHING) {
                    return MO_DEAD;
                }
            } else if (doComplexReport(cb, ctxt, m, s, loc, 0,
                        &cached_accept_state, &cached_accept_id)
                    == MO_HALT_MATCHING) {
                return MO_DEAD;
            }
        }
        assert(c <= min_accel_offset);
    } while (c < min_accel_offset);
    if (c == c_end) {
        goto exit;
    }
exit:
    *state = s;
    if (mode == STOP_AT_MATCH) {
        *c_final = c_end;
    }
    return MO_ALIVE;
}

doNormal8:

static really_inline
u32 doNormal8(const struct mcclellan *m, const u8 **c_inout, const u8 *end,
            u32 s, char do_accel, enum MatchMode mode) {
    const u8 *c = *c_inout;
    u32 accel_limit = m->accel_limit_8;
    u32 accept_limit = m->accept_limit_8;
    const u32 as = m->alphaShift;
    const u8 *succ_table = (const u8 *)((const char *)m
                           + sizeof(struct mcclellan));
    while (c < end && s) {
        u8 cprime = m->remap[*c];
        DEBUG_PRINTF("c: %02hhx '%c' cp:%02hhx\n", *c,
                    ourisprint(*c) ? *c : '?', cprime);
        s = succ_table[(s << as) + cprime];
        DEBUG_PRINTF("s: %u\n", s);
        c++;
        if (do_accel) {
            if (s >= accel_limit) {
                break;
            }
        } else {
            if (mode != NO_MATCHES && s >= accept_limit) {
                break;
            }
        }
    }
    *c_inout = c;
    return s;
}

输入为”xax”时的匹配过程:

初始状态, state = m->start_anchored = 1
输入x, 跳转到1
输入a, 跳转到2, 2=accept_limit, 暂时跳出状态机, 调用callback上报
上报后用户回调函数没有让停止, 继续匹配
输入x, 跳到1
所有输入数据扫描完成, 退出循环
最后的状态是1, 检查它有没有eod匹配, 有则上报
结束, 因最后状态不是0, 返回MO_ALIVE

/^a/

smallwrite_nfa.txt信息:

mcclellan 8
report: 8, states: 3, length: 448
astart: 1, fstart: 0
single accept: 1, has_accel: 0
accel_limit: 2, accept_limit 2
Alphabet
0: a
1: [^a]
00000 [00 - ff]->0
00001 [00 - 60]->0 61->2 [62 - ff]->0
00002 [00 - ff]->0
Acceleration
------------
Queue                : 0
Length               : 448 bytes
Num Positions        : 3
Scratch State        : 1 bytes
Stream State         : 1 bytes
Flags                :
Max Width            : inf/unknown
Min Width            : 0
BiAnchored Width     : inf/unknown
Max Offset           : inf/unknown
Reverse Acceleration : NONE

NFA图:

此时, mcclellan->start_anchored=1, mcclellan->start_floating: 0.

输入为”ax”时的匹配过程:

初始状态, state = m->start_anchored = 1
输入a, 跳转到2, 2=accept_limit, 暂时跳出状态机, 调用callback上报
上报后用户回调函数没有让停止, 继续匹配
输入x, 跳到0
所有输入数据扫描完成, 退出循环
最后的状态是0, 检查它有没有eod匹配, 有则上报
结束, 因此最后状态是0, 返回MO_DEAD

/a$/

smallwrite_nfa.txt信息:

mcclellan 8
report: 8, states: 4, length: 480
astart: 1, fstart: 1
single accept: 0, has_accel: 0
accel_limit: 4, accept_limit 4

Alphabet
0: a
1: \n
2: [^\na]

00000 [00 - ff]->0
00001 [00 - 60]->1 61->2 [62 - ff]->1
00002 [00 - 09]->1 0a->3 [0b - 60]->1 61->2 [62 - ff]->1
00003 [00 - 60]->1 61->2 [62 - ff]->1

Acceleration
------------
Queue                : 0
Length               : 480 bytes
Num Positions        : 4
Scratch State        : 1 bytes
Stream State         : 1 bytes
Flags                : ACCEPTS_EOD
Max Width            : inf/unknown
Min Width            : 0
BiAnchored Width     : inf/unknown
Max Offset           : inf/unknown
Reverse Acceleration : NONE

NFA图:

输入为”xa”时的匹配过程:

初始状态, state = m->start_anchored = 1
输入x, 跳转到1
输入a, 跳转到2
所有输入数据扫描完成, 退出循环
最后的状态是2, 检查它有没有eod匹配, 发现有(aux->accept_eod), 上报
结束, 因此最后状态是2, 返回MO_ALIVE
