AQS应用之Lock
ReentrantLock
AQS具备特性
同步等待队列
条件等待队列
AQS源码

连接：https://note.youdao.com/ynoteshare/index.html?id=695b21d540f1a6c8c0dae11c4d696b1f&type=note&_time=1646563634947

AQS应用之Lock

并发之父
Doug Lea(小名：李二狗)

生平不识Doug Lea，学懂并发也枉然
java并发编程核心在于java.util.concurrent包而JUC当中的大多数同步器实现都是围绕这个共同的基础行为，比如等待队列、条件队列、独占获取、共享获取等，而这个行为的抽象就是基于AbstractQueuedSynchronier简称AQS，AQS定义了一套多线程访问共享资源的同步框架，是一个依赖状态（state）的同步器。

ReentrantLock

RentrantLock是一种基于AQS框架的应用实现，是JDK中的一种线程并发访问的同步手段，他的功能类似于Synchronized的一种互斥锁，可以保证线程安全，而且它具有比synchronized更多的特性，比如它支持手动加锁与解锁，支持加锁的公平性。

使用ReentrantLock进行同步
ReentrantLock lock = new ReentrantLock(false);//false为非公平锁，true为公平锁
lock.lock() //加锁
lock.unlock() //解锁

ReentrantLock如何实现synchorized不具备的公平与非公平性呢？
在RenntrantLock内部定义了一个Sync的内部类，该类继承AbstractQueuedSynchronized，对该抽象类的部分方法做了实现，并且还定义了两个子类：

FairSync 公平锁的实现
MonfairSync 非公平锁实现

这两个类都继承自Sync，也就是间接继承了AbstractQueuedSyncronized，所以这一个RenntrantLock同时具备公平与非公平特性
以上主要涉及的设计模式：模板模式-子类根据需要做具体业务实现

AQS具备特性

阻塞等待队列
共享、独占
公平、非公平
可重入
允许中断

除了Lock外，java.util.concyrrent当同步计数器实现如Latch、Barrier、BlockingQueue等，都是基于AQS框架实现

一般通过定义内部类Sync继承AQS
将同步器所有调用都映射到Sync对应的方法

AQS内部维护属性volatile int state（32位）

state表示资源的可用状态

State三种询问方式
getState（）、setState（）、compareAndSetState（）
AQS两种资源的共享方式

Exclusive -独占，只有一个线程能够执行，如ReenrantLock
Share -共享，多个线程可以同步执行，如Semaphore/CountSownLatch

AQS的两种队列

同步等待队列
条件等待队列

不同的自定义同步器争用共享资源的方式也不同。自定义同步器在实现时只需要实现共享资源state的获取与释放方式即可，至于具体线程等待队列的维护（如获取资源失败入队/唤醒出队等），AQS已经在顶层实现好了。自定义同步器实现时主要实现以下几种方法：

isHeldExclusively()：该线程是否正在独占资源。只有用到condition才需要去实现它。
tryAcquire(int)：独占方式。尝试获取资源，成功则返回true，失败则返回false。
tryRelease(int)：独占方式。尝试释放资源，成功则返回true，失败则返回false。
tryAcquireShared(int)：共享方式。尝试获取资源。负数表示失败；0表示成功，但没有剩余可用资源；正数表示成功，且有剩余资源。
tryReleaseShared(int)：共享方式。尝试释放资源，如果释放后允许唤醒后续等待结点返回true，否则返回false。

同步等待队列

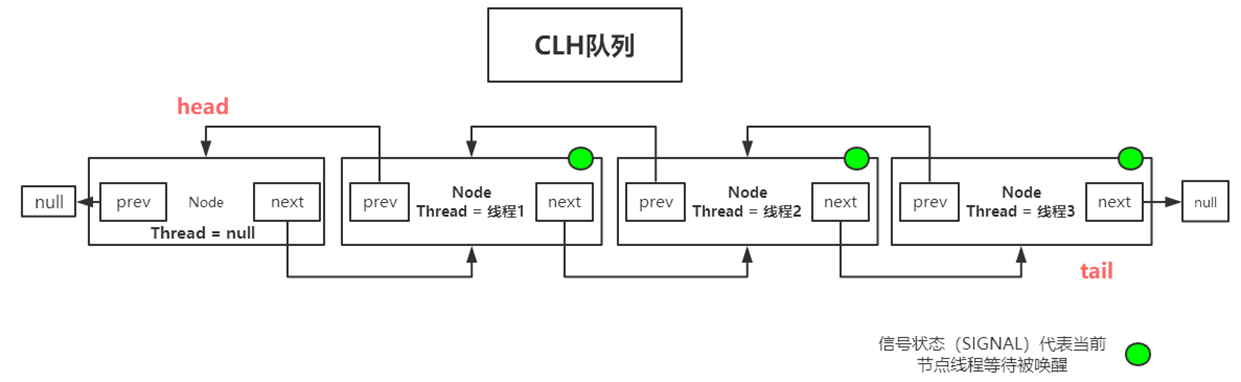

AQS当中的同步等待队列也称CLH队列，CLH队列是Craig、Landin、Hagersten三人发明的一种基于双向链表数据结构的队列，是FIFO先入先出线程等待队列，Java中的CLH队列是原CLH队列的一个变种,线程由原自旋机制改为阻塞机制。

条件等待队列

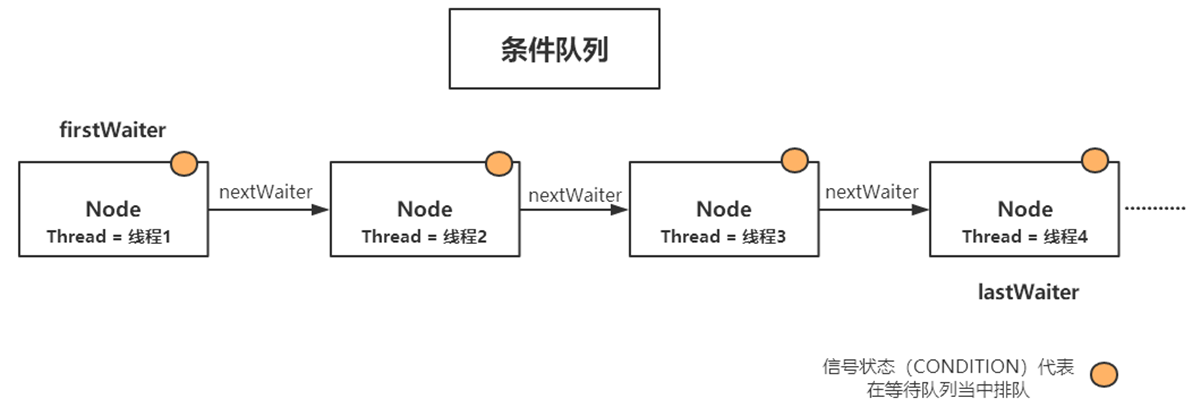

Condition是一个多线程间协调通信的工具类，使得某个，或者某些线程一起等待某个条件（Condition）,只有当该条件具备时，这些等待线程才会被唤醒，从而重新争夺锁

AQS源码
```java public abstract class AbstractQueuedSynchronizer
```
  extends AbstractOwnableSynchronizer
  implements java.io.Serializable {
```
private static final long serialVersionUID = 7373984972572414691L;

/**
- Creates a new {@code AbstractQueuedSynchronizer} instance
- with initial synchronization state of zero. */ protected AbstractQueuedSynchronizer() { }

  /**
- Wait queue node class. *
- 不管是条件队列，还是CLH等待队列
- 都是基于Node类
- AQS当中的同步等待队列也称CLH队列，CLH队列是Craig、Landin、Hagersten三人
- 发明的一种基于双向链表数据结构的队列，是FIFO先入先出线程等待队列，Java中的
- CLH队列是原CLH队列的一个变种,线程由原自旋机制改为阻塞机制。 / static final class Node { /*
  - 标记节点未共享模式
  - / static final Node SHARED = new Node(); /*
  - 标记节点为独占模式 */ static final Node EXCLUSIVE = null;

    /**
  - 在同步队列中等待的线程等待超时或者被中断，需要从同步队列中取消等待
  - / static final int CANCELLED = 1; /*
  - 后继节点的线程处于等待状态，而当前的节点如果释放了同步状态或者被取消，
  - 将会通知后继节点，使后继节点的线程得以运行。 / static final int SIGNAL = -1; /*
  - 节点在等待队列中，节点的线程等待在Condition上，当其他线程对Condition调用了signal()方法后，
  - 该节点会从等待队列中转移到同步队列中，加入到同步状态的获取中 / static final int CONDITION = -2; /*
  - 表示下一次共享式同步状态获取将会被无条件地传播下去 */ static final int PROPAGATE = -3;

    /**
  - 标记当前节点的信号量状态 (1,0,-1,-2,-3)5种状态
  - 使用CAS更改状态，volatile保证线程可见性，高并发场景下，
  - 即被一个线程修改后，状态会立马让其他线程可见。 */ volatile int waitStatus;

    /**
  - 前驱节点，当前节点加入到同步队列中被设置 */ volatile Node prev;

    /**
  - 后继节点 */ volatile Node next;

    /**
  - 节点同步状态的线程 */ volatile Thread thread;

    /**
  - 等待队列中的后继节点，如果当前节点是共享的，那么这个字段是一个SHARED常量，
  - 也就是说节点类型(独占和共享)和等待队列中的后继节点共用同一个字段。 */ Node nextWaiter;

    /**
  - Returns true if node is waiting in shared mode. */ final boolean isShared() { return nextWaiter == SHARED; }

    /**
  - 返回前驱节点 */ final Node predecessor() throws NullPointerException { Node p = prev; if (p == null)
```
 throw new NullPointerException();
```
    else
```
 return p;
```
    } //空节点，用于标记共享模式 Node() { // Used to establish initial head or SHARED marker } //用于同步队列CLH Node(Thread thread, Node mode) { // Used by addWaiter this.nextWaiter = mode; this.thread = thread; } //用于条件队列 Node(Thread thread, int waitStatus) { // Used by Condition this.waitStatus = waitStatus; this.thread = thread; } }
  /**
- 指向同步等待队列的头节点 */ private transient volatile Node head;

  /**
- 指向同步等待队列的尾节点 */ private transient volatile Node tail;

  /**
- 同步资源状态 */ private volatile int state;

  /**
- @return current state value */ protected final int getState() { return state; }

  protected final void setState(int newState) { state = newState; }

  /**
- Atomically sets synchronization state to the given updated
- value if the current state value equals the expected value.
- This operation has memory semantics of a {@code volatile} read
- and write. *
- @param expect the expected value
- @param update the new value
- @return {@code true} if successful. False return indicates that the actual
- value was not equal to the expected value. */ protected final boolean compareAndSetState(int expect, int update) { // See below for intrinsics setup to support this return unsafe.compareAndSwapInt(this, stateOffset, expect, update); }

  // Queuing utilities

  /**
- The number of nanoseconds for which it is faster to spin
- rather than to use timed park. A rough estimate suffices
- to improve responsiveness with very short timeouts. */ static final long spinForTimeoutThreshold = 1000L;

  /**
- 节点加入CLH同步队列 */ private Node enq(final Node node) { for (;;) {
```
 Node t = tail;
 if (t == null) { // Must initialize
     //队列为空需要初始化，创建空的头节点
     if (compareAndSetHead(new Node()))
         tail = head;
 } else {
     node.prev = t;
     //set尾部节点
     if (compareAndSetTail(t, node)) {//当前节点置为尾部
         t.next = node; //前驱节点的next指针指向当前节点
         return t;
     }
 }
```
  } }

  /**
- Creates and enqueues node for current thread and given mode. *
- @param mode Node.EXCLUSIVE for exclusive, Node.SHARED for shared
- @return the new node */ private Node addWaiter(Node mode) { // 1. 将当前线程构建成Node类型 Node node = new Node(Thread.currentThread(), mode); // Try the fast path of enq; backup to full enq on failure Node pred = tail; // 2. 1当前尾节点是否为null？ if (pred != null) {
```
 // 2.2 将当前节点尾插入的方式
 node.prev = pred;
 // 2.3 CAS将节点插入同步队列的尾部
 if (compareAndSetTail(pred, node)) {
     pred.next = node;
     return node;
 }
```
  } enq(node); return node; }

  /**
- Sets head of queue to be node, thus dequeuing. Called only by
- acquire methods. Also nulls out unused fields for sake of GC
- and to suppress unnecessary signals and traversals. *
- @param node the node */ private void setHead(Node node) { head = node; node.thread = null; node.prev = null; }

  /* */ private void unparkSuccessor(Node node) { //获取wait状态 int ws = node.waitStatus; if (ws < 0)
```
 compareAndSetWaitStatus(node, ws, 0);// 将等待状态waitStatus设置为初始值0
```
  /**
  - 若后继结点为空，或状态为CANCEL（已失效），则从后尾部往前遍历找到最前的一个处于正常阻塞状态的结点
  - 进行唤醒 */ Node s = node.next; //head.next = Node1 ,thread = T3 if (s == null || s.waitStatus > 0) { s = null; for (Node t = tail; t != null && t != node; t = t.prev)
```
 if (t.waitStatus <= 0)
     s = t;
```
    } if (s != null) LockSupport.unpark(s.thread);//唤醒线程,T3唤醒 }
  /**
- 把当前结点设置为SIGNAL或者PROPAGATE
- 唤醒head.next(B节点)，B节点唤醒后可以竞争锁，成功后head->B，然后又会唤醒B.next，一直重复直到共享节点都唤醒
- head节点状态为SIGNAL，重置head.waitStatus->0，唤醒head节点线程，唤醒后线程去竞争共享锁
- head节点状态为0，将head.waitStatus->Node.PROPAGATE传播状态，表示需要将状态向后继节点传播 */ private void doReleaseShared() { for (;;) {
```
 Node h = head;
 if (h != null && h != tail) {
     int ws = h.waitStatus;
     if (ws == Node.SIGNAL) {//head是SIGNAL状态
         /* head状态是SIGNAL，重置head节点waitStatus为0，E这里不直接设为Node.PROPAGAT,
          * 是因为unparkSuccessor(h)中，如果ws < 0会设置为0，所以ws先设置为0，再设置为PROPAGATE
          * 这里需要控制并发，因为入口有setHeadAndPropagate跟release两个，避免两次unpark
          */
         if (!compareAndSetWaitStatus(h, Node.SIGNAL, 0))
             continue; //设置失败，重新循环
         /* head状态为SIGNAL，且成功设置为0之后,唤醒head.next节点线程
          * 此时head、head.next的线程都唤醒了，head.next会去竞争锁，成功后head会指向获取锁的节点，
          * 也就是head发生了变化。看最底下一行代码可知，head发生变化后会重新循环，继续唤醒head的下一个节点
          */
         unparkSuccessor(h);
         /*
          * 如果本身头节点的waitStatus是出于重置状态（waitStatus==0）的，将其设置为“传播”状态。
          * 意味着需要将状态向后一个节点传播
          */
     }
     else if (ws == 0 &&
             !compareAndSetWaitStatus(h, 0, Node.PROPAGATE))
         continue;                // loop on failed CAS
 }
 if (h == head) //如果head变了，重新循环
     break;
```
  } }

  /**
- 把node节点设置成head节点，且Node.waitStatus->Node.PROPAGATE / private void setHeadAndPropagate(Node node, int propagate) { Node h = head; //h用来保存旧的head节点 setHead(node);//head引用指向node节点 / 这里意思有两种情况是需要执行唤醒操作
  - 1.propagate > 0 表示调用方指明了后继节点需要被唤醒
  - 2.头节点后面的节点需要被唤醒（waitStatus<0），不论是老的头结点还是新的头结点 */ if (propagate > 0 || h == null || h.waitStatus < 0 ||
```
 (h = head) == null || h.waitStatus < 0) {
```
    Node s = node.next; if (s == null || s.isShared())//node是最后一个节点或者 node的后继节点是共享节点
```
 /* 如果head节点状态为SIGNAL，唤醒head节点线程，重置head.waitStatus->0
  * head节点状态为0(第一次添加时是0)，设置head.waitStatus->Node.PROPAGATE表示状态需要向后继节点传播
  */
 doReleaseShared();
```
    } }
  // Utilities for various versions of acquire

  /**
- 终结掉正在尝试去获取锁的节点
- @param node the node */ private void cancelAcquire(Node node) { // Ignore if node doesn’t exist if (node == null)
```
 return;
```
  node.thread = null;

  // 剔除掉一件被cancel掉的节点 Node pred = node.prev; while (pred.waitStatus > 0)
```
 node.prev = pred = pred.prev;
```
  // predNext is the apparent node to unsplice. CASes below will // fail if not, in which case, we lost race vs another cancel // or signal, so no further action is necessary. Node predNext = pred.next;

  // Can use unconditional write instead of CAS here. // After this atomic step, other Nodes can skip past us. // Before, we are free of interference from other threads. node.waitStatus = Node.CANCELLED;

  // If we are the tail, remove ourselves. if (node == tail && compareAndSetTail(node, pred)) {
```
 compareAndSetNext(pred, predNext, null);
```
  } else {
```
 // If successor needs signal, try to set pred's next-link
 // so it will get one. Otherwise wake it up to propagate.
 int ws;
 if (pred != head &&
         ((ws = pred.waitStatus) == Node.SIGNAL ||
                 (ws <= 0 && compareAndSetWaitStatus(pred, ws, Node.SIGNAL))) &&
         pred.thread != null) {
     Node next = node.next;
     if (next != null && next.waitStatus <= 0)
         compareAndSetNext(pred, predNext, next);
 } else {
     unparkSuccessor(node);
 }

 node.next = node; // help GC
```
  } }

  /**
- */ private static boolean shouldParkAfterFailedAcquire(Node pred, Node node) { int ws = pred.waitStatus; if (ws == Node.SIGNAL)
```
 /*
  * 若前驱结点的状态是SIGNAL，意味着当前结点可以被安全地park
  */
 return true;
```
  if (ws > 0) {
```
 /*
  * 前驱节点状态如果被取消状态，将被移除出队列
  */
 do {
     node.prev = pred = pred.prev;
 } while (pred.waitStatus > 0);
 pred.next = node;
```
  } else {
```
 /*
  * 当前驱节点waitStatus为 0 or PROPAGATE状态时
  * 将其设置为SIGNAL状态，然后当前结点才可以可以被安全地park
  */
 compareAndSetWaitStatus(pred, ws, Node.SIGNAL);
```
  } return false; }

  /**
- 中断当前线程 */ static void selfInterrupt() { Thread.currentThread().interrupt(); }

  /**
- 阻塞当前节点，返回当前Thread的中断状态
- LockSupport.park 底层实现逻辑调用系统内核功能 pthread_mutex_lock 阻塞线程 */ private final boolean parkAndCheckInterrupt() { LockSupport.park(this);//阻塞 return Thread.interrupted(); }

  /**
- 已经在队列当中的Thread节点，准备阻塞等待获取锁 */ final boolean acquireQueued(final Node node, int arg) { boolean failed = true; try {
```
 boolean interrupted = false;
 for (;;) {//死循环
     final Node p = node.predecessor();//找到当前结点的前驱结点
     if (p == head && tryAcquire(arg)) {//如果前驱结点是头结点，才tryAcquire，其他结点是没有机会tryAcquire的。
         setHead(node);//获取同步状态成功，将当前结点设置为头结点。
         p.next = null; // help GC
         failed = false;
         return interrupted;
     }
     /**
      * 如果前驱节点不是Head，通过shouldParkAfterFailedAcquire判断是否应该阻塞
      * 前驱节点信号量为-1，当前线程可以安全被parkAndCheckInterrupt用来阻塞线程
      */
     if (shouldParkAfterFailedAcquire(p, node) &&
             parkAndCheckInterrupt())
         interrupted = true;
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  /**
- 与acquireQueued逻辑相似，唯一区别节点还不在队列当中需要先进行入队操作 */ private void doAcquireInterruptibly(int arg)
```
 throws InterruptedException {
```
  final Node node = addWaiter(Node.EXCLUSIVE);//以独占模式放入队列尾部 boolean failed = true; try {
```
 for (;;) {
     final Node p = node.predecessor();
     if (p == head && tryAcquire(arg)) {
         setHead(node);
         p.next = null; // help GC
         failed = false;
         return;
     }
     if (shouldParkAfterFailedAcquire(p, node) &&
             parkAndCheckInterrupt())
         throw new InterruptedException();
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  /**
- 独占模式定时获取 */ private boolean doAcquireNanos(int arg, long nanosTimeout)
```
 throws InterruptedException {
```
  if (nanosTimeout <= 0L)
```
 return false;
```
  final long deadline = System.nanoTime() + nanosTimeout; final Node node = addWaiter(Node.EXCLUSIVE);//加入队列 boolean failed = true; try {
```
 for (;;) {
     final Node p = node.predecessor();
     if (p == head && tryAcquire(arg)) {
         setHead(node);
         p.next = null; // help GC
         failed = false;
         return true;
     }
     nanosTimeout = deadline - System.nanoTime();
     if (nanosTimeout <= 0L)
         return false;//超时直接返回获取失败
     if (shouldParkAfterFailedAcquire(p, node) &&
             nanosTimeout > spinForTimeoutThreshold)
         //阻塞指定时长，超时则线程自动被唤醒
         LockSupport.parkNanos(this, nanosTimeout);
     if (Thread.interrupted())//当前线程中断状态
         throw new InterruptedException();
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  /**
- 尝试获取共享锁 */ private void doAcquireShared(int arg) { final Node node = addWaiter(Node.SHARED);//入队 boolean failed = true; try {
```
 boolean interrupted = false;
 for (;;) {
     final Node p = node.predecessor();//前驱节点
     if (p == head) {
         int r = tryAcquireShared(arg); //非公平锁实现，再尝试获取锁
         //state==0时tryAcquireShared会返回>=0(CountDownLatch中返回的是1)。
         // state为0说明共享次数已经到了，可以获取锁了
         if (r >= 0) {//r>0表示state==0,前继节点已经释放锁，锁的状态为可被获取
             //这一步设置node为head节点设置node.waitStatus->Node.PROPAGATE，然后唤醒node.thread
             setHeadAndPropagate(node, r);
             p.next = null; // help GC
             if (interrupted)
                 selfInterrupt();
             failed = false;
             return;
         }
     }
     //前继节点非head节点，将前继节点状态设置为SIGNAL，通过park挂起node节点的线程
     if (shouldParkAfterFailedAcquire(p, node) &&
             parkAndCheckInterrupt())
         interrupted = true;
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  /**
- Acquires in shared interruptible mode.
- @param arg the acquire argument */ private void doAcquireSharedInterruptibly(int arg)
```
 throws InterruptedException {
```
  final Node node = addWaiter(Node.SHARED); boolean failed = true; try {
```
 for (;;) {
     final Node p = node.predecessor();
     if (p == head) {
         int r = tryAcquireShared(arg);
         if (r >= 0) {
             setHeadAndPropagate(node, r);
             p.next = null; // help GC
             failed = false;
             return;
         }
     }
     if (shouldParkAfterFailedAcquire(p, node) &&
             parkAndCheckInterrupt())
         throw new InterruptedException();
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  /**
- Acquires in shared timed mode. *
- @param arg the acquire argument
- @param nanosTimeout max wait time
- @return {@code true} if acquired */ private boolean doAcquireSharedNanos(int arg, long nanosTimeout)
```
 throws InterruptedException {
```
  if (nanosTimeout <= 0L)
```
 return false;
```
  final long deadline = System.nanoTime() + nanosTimeout; final Node node = addWaiter(Node.SHARED); boolean failed = true; try {
```
 for (;;) {
     final Node p = node.predecessor();
     if (p == head) {
         int r = tryAcquireShared(arg);
         if (r >= 0) {
             setHeadAndPropagate(node, r);
             p.next = null; // help GC
             failed = false;
             return true;
         }
     }
     nanosTimeout = deadline - System.nanoTime();
     if (nanosTimeout <= 0L)
         return false;
     if (shouldParkAfterFailedAcquire(p, node) &&
             nanosTimeout > spinForTimeoutThreshold)
         LockSupport.parkNanos(this, nanosTimeout);
     if (Thread.interrupted())
         throw new InterruptedException();
 }
```
  } finally {
```
 if (failed)
     cancelAcquire(node);
```
  } }

  // Main exported methods

  /**
- 尝试获取独占锁，可指定锁的获取数量 */ protected boolean tryAcquire(int arg) { throw new UnsupportedOperationException(); }

  /**
- 尝试释放独占锁，在子类当中实现 */ protected boolean tryRelease(int arg) { throw new UnsupportedOperationException(); }

  /**
- 共享式：共享式地获取同步状态。对于独占式同步组件来讲，同一时刻只有一个线程能获取到同步状态，
- 其他线程都得去排队等待，其待重写的尝试获取同步状态的方法tryAcquire返回值为boolean，这很容易理解；
- 对于共享式同步组件来讲，同一时刻可以有多个线程同时获取到同步状态，这也是“共享”的意义所在。
- 本方法待被之类覆盖实现具体逻辑
- 1.当返回值大于0时，表示获取同步状态成功，同时还有剩余同步状态可供其他线程获取；　2.当返回值等于0时，表示获取同步状态成功，但没有可用同步状态了；

  　3.当返回值小于0时，表示获取同步状态失败。 / protected int tryAcquireShared(int arg) { throw new UnsupportedOperationException(); }

  /**
- 释放共享锁，具体实现在子类当中实现 */ protected boolean tryReleaseShared(int arg) { throw new UnsupportedOperationException(); }

  /**
- 当前线程是否持有独占锁 */ protected boolean isHeldExclusively() { throw new UnsupportedOperationException(); }

  /**
- 获取独占锁 */ public final void acquire(int arg) { //尝试获取锁 if (!tryAcquire(arg) &&
```
     acquireQueued(addWaiter(Node.EXCLUSIVE), arg))//独占模式
 selfInterrupt();
```
  }

  /**
- */ public final void acquireInterruptibly(int arg)
```
 throws InterruptedException {
```
  if (Thread.interrupted())
```
 throw new InterruptedException();
```
  if (!tryAcquire(arg))
```
 doAcquireInterruptibly(arg);
```
  }

  /**
- 获取独占锁，设置最大等待时间 */ public final boolean tryAcquireNanos(int arg, long nanosTimeout)
```
 throws InterruptedException {
```
  if (Thread.interrupted())
```
 throw new InterruptedException();
```
  return tryAcquire(arg) ||
```
     doAcquireNanos(arg, nanosTimeout);
```
  }

  /**
- 释放独占模式持有的锁 */ public final boolean release(int arg) { if (tryRelease(arg)) {//释放一次锁
```
 Node h = head;
 if (h != null && h.waitStatus != 0)
     unparkSuccessor(h);//唤醒后继结点
 return true;
```
  } return false; }

  /**
- 请求获取共享锁 */ public final void acquireShared(int arg) { if (tryAcquireShared(arg) < 0)//返回值小于0，获取同步状态失败，排队去；获取同步状态成功，直接返回去干自己的事儿。
```
 doAcquireShared(arg);
```
  }

/**
 * Releases in shared mode.  Implemented by unblocking one or more
 * threads if {@link #tryReleaseShared} returns true.
 *
 * @param arg the release argument.  This value is conveyed to
 *        {@link #tryReleaseShared} but is otherwise uninterpreted
 *        and can represent anything you like.
 * @return the value returned from {@link #tryReleaseShared}
 */
public final boolean releaseShared(int arg) {
    if (tryReleaseShared(arg)) {
        doReleaseShared();
        return true;
    }
    return false;
}

// Queue inspection methods

public final boolean hasQueuedThreads() {
    return head != tail;
}

public final boolean hasContended() {
    return head != null;
}

public final Thread getFirstQueuedThread() {
    // handle only fast path, else relay
    return (head == tail) ? null : fullGetFirstQueuedThread();
}

/**
 * Version of getFirstQueuedThread called when fastpath fails
 */
private Thread fullGetFirstQueuedThread() {
    Node h, s;
    Thread st;
    if (((h = head) != null && (s = h.next) != null &&
            s.prev == head && (st = s.thread) != null) ||
            ((h = head) != null && (s = h.next) != null &&
                    s.prev == head && (st = s.thread) != null))
        return st;

    Node t = tail;
    Thread firstThread = null;
    while (t != null && t != head) {
        Thread tt = t.thread;
        if (tt != null)
            firstThread = tt;
        t = t.prev;
    }
    return firstThread;
}

/**
 * 判断当前线程是否在队列当中
 */
public final boolean isQueued(Thread thread) {
    if (thread == null)
        throw new NullPointerException();
    for (Node p = tail; p != null; p = p.prev)
        if (p.thread == thread)
            return true;
    return false;
}

final boolean apparentlyFirstQueuedIsExclusive() {
    Node h, s;
    return (h = head) != null &&
            (s = h.next)  != null &&
            !s.isShared()         &&
            s.thread != null;
}

/**
 * 判断当前节点是否有前驱节点
 */
public final boolean hasQueuedPredecessors() {
    Node t = tail; // Read fields in reverse initialization order
    Node h = head;
    Node s;
    return h != t &&
            ((s = h.next) == null || s.thread != Thread.currentThread());
}


// Instrumentation and monitoring methods

/**
 * 同步队列长度
 */
public final int getQueueLength() {
    int n = 0;
    for (Node p = tail; p != null; p = p.prev) {
        if (p.thread != null)
            ++n;
    }
    return n;
}

/**
 * 获取队列等待thread集合
 */
public final Collection<Thread> getQueuedThreads() {
    ArrayList<Thread> list = new ArrayList<Thread>();
    for (Node p = tail; p != null; p = p.prev) {
        Thread t = p.thread;
        if (t != null)
            list.add(t);
    }
    return list;
}

/**
 * 获取独占模式等待thread线程集合
 */
public final Collection<Thread> getExclusiveQueuedThreads() {
    ArrayList<Thread> list = new ArrayList<Thread>();
    for (Node p = tail; p != null; p = p.prev) {
        if (!p.isShared()) {
            Thread t = p.thread;
            if (t != null)
                list.add(t);
        }
    }
    return list;
}

/**
 * 获取共享模式等待thread集合
 */
public final Collection<Thread> getSharedQueuedThreads() {
    ArrayList<Thread> list = new ArrayList<Thread>();
    for (Node p = tail; p != null; p = p.prev) {
        if (p.isShared()) {
            Thread t = p.thread;
            if (t != null)
                list.add(t);
        }
    }
    return list;
}


// Internal support methods for Conditions

/**
 * 判断节点是否在同步队列中
 */
final boolean isOnSyncQueue(Node node) {
    //快速判断1：节点状态或者节点没有前置节点
    //注：同步队列是有头节点的，而条件队列没有
    if (node.waitStatus == Node.CONDITION || node.prev == null)
        return false;
    //快速判断2：next字段只有同步队列才会使用，条件队列中使用的是nextWaiter字段
    if (node.next != null) // If has successor, it must be on queue
        return true;
    //上面如果无法判断则进入复杂判断
    return findNodeFromTail(node);
}

private boolean findNodeFromTail(Node node) {
    Node t = tail;
    for (;;) {
        if (t == node)
            return true;
        if (t == null)
            return false;
        t = t.prev;
    }
}

/**
 * 将节点从条件队列当中移动到同步队列当中，等待获取锁
 */
final boolean transferForSignal(Node node) {
    /*
     * 修改节点信号量状态为0，失败直接返回false
     */
    if (!compareAndSetWaitStatus(node, Node.CONDITION, 0))
        return false;

    /*
     * 加入同步队列尾部当中，返回前驱节点
     */
    Node p = enq(node);
    int ws = p.waitStatus;
    //前驱节点不可用 或者 修改信号量状态失败
    if (ws > 0 || !compareAndSetWaitStatus(p, ws, Node.SIGNAL))
        LockSupport.unpark(node.thread); //唤醒当前节点
    return true;
}

final boolean transferAfterCancelledWait(Node node) {
    if (compareAndSetWaitStatus(node, Node.CONDITION, 0)) {
        enq(node);
        return true;
    }
    /*
     * If we lost out to a signal(), then we can't proceed
     * until it finishes its enq().  Cancelling during an
     * incomplete transfer is both rare and transient, so just
     * spin.
     */
    while (!isOnSyncQueue(node))
        Thread.yield();
    return false;
}

/**
 * 入参就是新创建的节点，即当前节点
 */
final int fullyRelease(Node node) {
    boolean failed = true;
    try {
        //这里这个取值要注意，获取当前的state并释放，这从另一个角度说明必须是独占锁
        //可以考虑下这个逻辑放在共享锁下面会发生什么？
        int savedState = getState();
        if (release(savedState)) {
            failed = false;
            return savedState;
        } else {
            //如果这里释放失败，则抛出异常
            throw new IllegalMonitorStateException();
        }
    } finally {
        /**
         * 如果释放锁失败，则把节点取消，由这里就能看出来上面添加节点的逻辑中
         * 只需要判断最后一个节点是否被取消就可以了
         */
        if (failed)
            node.waitStatus = Node.CANCELLED;
    }
}

// Instrumentation methods for conditions

public final boolean hasWaiters(ConditionObject condition) {
    if (!owns(condition))
        throw new IllegalArgumentException("Not owner");
    return condition.hasWaiters();
}

/**
 * 获取条件队列长度
 */
public final int getWaitQueueLength(ConditionObject condition) {
    if (!owns(condition))
        throw new IllegalArgumentException("Not owner");
    return condition.getWaitQueueLength();
}

/**
 * 获取条件队列当中所有等待的thread集合
 */
public final Collection<Thread> getWaitingThreads(ConditionObject condition) {
    if (!owns(condition))
        throw new IllegalArgumentException("Not owner");
    return condition.getWaitingThreads();
}

/**
 * 条件对象，实现基于条件的具体行为
 */
public class ConditionObject implements Condition, java.io.Serializable {
    private static final long serialVersionUID = 1173984872572414699L;
    /** First node of condition queue. */
    private transient Node firstWaiter;
    /** Last node of condition queue. */
    private transient Node lastWaiter;

    /**
     * Creates a new {@code ConditionObject} instance.
     */
    public ConditionObject() { }

    // Internal methods

    /**
     * 1.与同步队列不同，条件队列头尾指针是firstWaiter跟lastWaiter
     * 2.条件队列是在获取锁之后，也就是临界区进行操作，因此很多地方不用考虑并发
     */
    private Node addConditionWaiter() {
        Node t = lastWaiter;
        //如果最后一个节点被取消，则删除队列中被取消的节点
        //至于为啥是最后一个节点后面会分析
        if (t != null && t.waitStatus != Node.CONDITION) {
            //删除所有被取消的节点
            unlinkCancelledWaiters();
            t = lastWaiter;
        }
        //创建一个类型为CONDITION的节点并加入队列，由于在临界区，所以这里不用并发控制
        Node node = new Node(Thread.currentThread(), Node.CONDITION);
        if (t == null)
            firstWaiter = node;
        else
            t.nextWaiter = node;
        lastWaiter = node;
        return node;
    }

    /**
     * 发信号，通知遍历条件队列当中的节点转移到同步队列当中，准备排队获取锁
     */
    private void doSignal(Node first) {
        do {
            if ( (firstWaiter = first.nextWaiter) == null)
                lastWaiter = null;
            first.nextWaiter = null;
        } while (!transferForSignal(first) && //转移节点
                (first = firstWaiter) != null);
    }

    /**
     * 通知所有节点移动到同步队列当中，并将节点从条件队列删除
     */
    private void doSignalAll(Node first) {
        lastWaiter = firstWaiter = null;
        do {
            Node next = first.nextWaiter;
            first.nextWaiter = null;
            transferForSignal(first);
            first = next;
        } while (first != null);
    }

    /**
     * 删除条件队列当中被取消的节点
     */
    private void unlinkCancelledWaiters() {
        Node t = firstWaiter;
        Node trail = null;
        while (t != null) {
            Node next = t.nextWaiter;
            if (t.waitStatus != Node.CONDITION) {
                t.nextWaiter = null;
                if (trail == null)
                    firstWaiter = next;
                else
                    trail.nextWaiter = next;
                if (next == null)
                    lastWaiter = trail;
            }
            else
                trail = t;
            t = next;
        }
    }

    // public methods

    /**
     * 发新号，通知条件队列当中节点到同步队列当中去排队
     */
    public final void signal() {
        if (!isHeldExclusively())//节点不能已经持有独占锁
            throw new IllegalMonitorStateException();
        Node first = firstWaiter;
        if (first != null)
            /**
             * 发信号通知条件队列的节点准备到同步队列当中去排队
             */
            doSignal(first);
    }

    /**
     * 唤醒所有条件队列的节点转移到同步队列当中
     */
        public final void signalAll() {
        if (!isHeldExclusively())
            throw new IllegalMonitorStateException();
        Node first = firstWaiter;
        if (first != null)
            doSignalAll(first);
    }

    /**
     * Implements uninterruptible condition wait.
     * <ol>
     * <li> Save lock state returned by {@link #getState}.
     * <li> Invoke {@link #release} with saved state as argument,
     *      throwing IllegalMonitorStateException if it fails.
     * <li> Block until signalled.
     * <li> Reacquire by invoking specialized version of
     *      {@link #acquire} with saved state as argument.
     * </ol>
     */
    public final void awaitUninterruptibly() {
        Node node = addConditionWaiter();
        int savedState = fullyRelease(node);
        boolean interrupted = false;
        while (!isOnSyncQueue(node)) {
            LockSupport.park(this);
            if (Thread.interrupted())
                interrupted = true;
        }
        if (acquireQueued(node, savedState) || interrupted)
            selfInterrupt();
    }

    /** 该模式表示在退出等待时重新中断 */
    private static final int REINTERRUPT =  1;
    /** 异常中断 */
    private static final int THROW_IE    = -1;

    /**
     * 这里的判断逻辑是：
     * 1.如果现在不是中断的，即正常被signal唤醒则返回0
     * 2.如果节点由中断加入同步队列则返回THROW_IE，由signal加入同步队列则返回REINTERRUPT
     */
    private int checkInterruptWhileWaiting(Node node) {
        return Thread.interrupted() ?
                (transferAfterCancelledWait(node) ? THROW_IE : REINTERRUPT) :
                0;
    }

    /**
     * 根据中断时机选择抛出异常或者设置线程中断状态
     */
    private void reportInterruptAfterWait(int interruptMode)
            throws InterruptedException {
        if (interruptMode == THROW_IE)
            throw new InterruptedException();
        else if (interruptMode == REINTERRUPT)
            selfInterrupt();
    }

    /**
     * 加入条件队列等待，条件队列入口
     */
    public final void await() throws InterruptedException {

        //T2进来
        //如果当前线程被中断则直接抛出异常
        if (Thread.interrupted())
            throw new InterruptedException();
        //把当前节点加入条件队列
        Node node = addConditionWaiter();
        //释放掉已经获取的独占锁资源
        int savedState = fullyRelease(node);//T2释放锁
        int interruptMode = 0;
        //如果不在同步队列中则不断挂起
        while (!isOnSyncQueue(node)) {
            LockSupport.park(this);//T1被阻塞
            //这里被唤醒可能是正常的signal操作也可能是中断
            if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
                break;
        }
        /**
         * 走到这里说明节点已经条件满足被加入到了同步队列中或者中断了
         * 这个方法很熟悉吧？就跟独占锁调用同样的获取锁方法，从这里可以看出条件队列只能用于独占锁
         * 在处理中断之前首先要做的是从同步队列中成功获取锁资源
         */
        if (acquireQueued(node, savedState) && interruptMode != THROW_IE)
            interruptMode = REINTERRUPT;
        //走到这里说明已经成功获取到了独占锁，接下来就做些收尾工作
        //删除条件队列中被取消的节点
        if (node.nextWaiter != null) // clean up if cancelled
            unlinkCancelledWaiters();
        //根据不同模式处理中断
        if (interruptMode != 0)
            reportInterruptAfterWait(interruptMode);
    }


    /**
     * Implements timed condition wait.
     * <ol>
     * <li> If current thread is interrupted, throw InterruptedException.
     * <li> Save lock state returned by {@link #getState}.
     * <li> Invoke {@link #release} with saved state as argument,
     *      throwing IllegalMonitorStateException if it fails.
     * <li> Block until signalled, interrupted, or timed out.
     * <li> Reacquire by invoking specialized version of
     *      {@link #acquire} with saved state as argument.
     * <li> If interrupted while blocked in step 4, throw InterruptedException.
     * <li> If timed out while blocked in step 4, return false, else true.
     * </ol>
     */
    public final boolean await(long time, TimeUnit unit)
            throws InterruptedException {
        long nanosTimeout = unit.toNanos(time);
        if (Thread.interrupted())
            throw new InterruptedException();
        Node node = addConditionWaiter();
        int savedState = fullyRelease(node);
        final long deadline = System.nanoTime() + nanosTimeout;
        boolean timedout = false;
        int interruptMode = 0;
        while (!isOnSyncQueue(node)) {
            if (nanosTimeout <= 0L) {
                timedout = transferAfterCancelledWait(node);
                break;
            }
            if (nanosTimeout >= spinForTimeoutThreshold)
                LockSupport.parkNanos(this, nanosTimeout);
            if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
                break;
            nanosTimeout = deadline - System.nanoTime();
        }
        if (acquireQueued(node, savedState) && interruptMode != THROW_IE)
            interruptMode = REINTERRUPT;
        if (node.nextWaiter != null)
            unlinkCancelledWaiters();
        if (interruptMode != 0)
            reportInterruptAfterWait(interruptMode);
        return !timedout;
    }


    final boolean isOwnedBy(AbstractQueuedSynchronizer sync) {
        return sync == AbstractQueuedSynchronizer.this;
    }

    /**
     * Queries whether any threads are waiting on this condition.
     * Implements {@link AbstractQueuedSynchronizer#hasWaiters(ConditionObject)}.
     *
     * @return {@code true} if there are any waiting threads
     * @throws IllegalMonitorStateException if {@link #isHeldExclusively}
     *         returns {@code false}
     */
    protected final boolean hasWaiters() {
        if (!isHeldExclusively())
            throw new IllegalMonitorStateException();
        for (Node w = firstWaiter; w != null; w = w.nextWaiter) {
            if (w.waitStatus == Node.CONDITION)
                return true;
        }
        return false;
    }

    /**
     * Returns an estimate of the number of threads waiting on
     * this condition.
     * Implements {@link AbstractQueuedSynchronizer#getWaitQueueLength(ConditionObject)}.
     *
     * @return the estimated number of waiting threads
     * @throws IllegalMonitorStateException if {@link #isHeldExclusively}
     *         returns {@code false}
     */
    protected final int getWaitQueueLength() {
        if (!isHeldExclusively())
            throw new IllegalMonitorStateException();
        int n = 0;
        for (Node w = firstWaiter; w != null; w = w.nextWaiter) {
            if (w.waitStatus == Node.CONDITION)
                ++n;
        }
        return n;
    }

    /**
     * 得到同步队列当中所有在等待的Thread集合
     */
    protected final Collection<Thread> getWaitingThreads() {
        if (!isHeldExclusively())
            throw new IllegalMonitorStateException();
        ArrayList<Thread> list = new ArrayList<Thread>();
        for (Node w = firstWaiter; w != null; w = w.nextWaiter) {
            if (w.waitStatus == Node.CONDITION) {
                Thread t = w.thread;
                if (t != null)
                    list.add(t);
            }
        }
        return list;
    }
}

/**
 * Setup to support compareAndSet. We need to natively implement
 * this here: For the sake of permitting future enhancements, we
 * cannot explicitly subclass AtomicInteger, which would be
 * efficient and useful otherwise. So, as the lesser of evils, we
 * natively implement using hotspot intrinsics API. And while we
 * are at it, we do the same for other CASable fields (which could
 * otherwise be done with atomic field updaters).
 * unsafe魔法类，直接绕过虚拟机内存管理机制，修改内存
 */
private static final Unsafe unsafe = Unsafe.getUnsafe();
//偏移量
private static final long stateOffset;
private static final long headOffset;
private static final long tailOffset;
private static final long waitStatusOffset;
private static final long nextOffset;

static {
    try {
        //状态偏移量
        stateOffset = unsafe.objectFieldOffset
                (AbstractQueuedSynchronizer.class.getDeclaredField("state"));
        //head指针偏移量，head指向CLH队列的头部
        headOffset = unsafe.objectFieldOffset
                (AbstractQueuedSynchronizer.class.getDeclaredField("head"));
        tailOffset = unsafe.objectFieldOffset
                (AbstractQueuedSynchronizer.class.getDeclaredField("tail"));
        waitStatusOffset = unsafe.objectFieldOffset
                (Node.class.getDeclaredField("waitStatus"));
        nextOffset = unsafe.objectFieldOffset
                (Node.class.getDeclaredField("next"));

    } catch (Exception ex) { throw new Error(ex); }
}

/**
 * CAS 修改头部节点指向. 并发入队时使用.
 */
private final boolean compareAndSetHead(Node update) {
    return unsafe.compareAndSwapObject(this, headOffset, null, update);
}

/**
 * CAS 修改尾部节点指向. 并发入队时使用.
 */
private final boolean compareAndSetTail(Node expect, Node update) {
    return unsafe.compareAndSwapObject(this, tailOffset, expect, update);
}

/**
 * CAS 修改信号量状态.
 */
private static final boolean compareAndSetWaitStatus(Node node,
                                                     int expect,
                                                     int update) {
    return unsafe.compareAndSwapInt(node, waitStatusOffset,
            expect, update);
}

/**
 * 修改节点的后继指针.
 */
private static final boolean compareAndSetNext(Node node,
                                               Node expect,
                                               Node update) {
    return unsafe.compareAndSwapObject(node, nextOffset, expect, update);
}

}

AQS框架具体实现-独占锁实现ReentrantLock

public class ReentrantLock implements Lock, java.io.Serializable { private static final long serialVersionUID = 7373984872572414699L; /**

 * 内部调用AQS的动作，都基于该成员属性实现
 */
private final Sync sync;

/**
 * ReentrantLock锁同步操作的基础类,继承自AQS框架.
 * 该类有两个继承类，1、NonfairSync 非公平锁，2、FairSync公平锁
 */
    abstract static class Sync extends AbstractQueuedSynchronizer {
    private static final long serialVersionUID = -5179523762034025860L;

    /**
     * 加锁的具体行为由子类实现
     */
    abstract void lock();

    /**
     * 尝试获取非公平锁
     */
    final boolean nonfairTryAcquire(int acquires) {
        //acquires = 1
        final Thread current = Thread.currentThread();
        int c = getState();
        /**
         * 不需要判断同步队列（CLH）中是否有排队等待线程
         * 判断state状态是否为0，不为0可以加锁
         */
        if (c == 0) {
            //unsafe操作，cas修改state状态
            if (compareAndSetState(0, acquires)) {
                //独占状态锁持有者指向当前线程
                setExclusiveOwnerThread(current);
                return true;
            }
        }
        /**
         * state状态不为0，判断锁持有者是否是当前线程，
         * 如果是当前线程持有 则state+1
         */
        else if (current == getExclusiveOwnerThread()) {
            int nextc = c + acquires;
            if (nextc < 0) // overflow
                throw new Error("Maximum lock count exceeded");
            setState(nextc);
            return true;
        }
        //加锁失败
        return false;
    }

    /**
     * 释放锁
     */
    protected final boolean tryRelease(int releases) {
        int c = getState() - releases;
        if (Thread.currentThread() != getExclusiveOwnerThread())
            throw new IllegalMonitorStateException();
        boolean free = false;
        if (c == 0) {
            free = true;
            setExclusiveOwnerThread(null);
        }
        setState(c);
        return free;
    }

    /**
     * 判断持有独占锁的线程是否是当前线程
     */
    protected final boolean isHeldExclusively() {
        return getExclusiveOwnerThread() == Thread.currentThread();
    }

    //返回条件对象
    final ConditionObject newCondition() {
        return new ConditionObject();
    }


    final Thread getOwner() {
        return getState() == 0 ? null : getExclusiveOwnerThread();
    }

    final int getHoldCount() {
        return isHeldExclusively() ? getState() : 0;
    }

    final boolean isLocked() {
        return getState() != 0;
    }

    /**
     * Reconstitutes the instance from a stream (that is, deserializes it).
     */
    private void readObject(java.io.ObjectInputStream s)
            throws java.io.IOException, ClassNotFoundException {
        s.defaultReadObject();
        setState(0); // reset to unlocked state
    }
}

/**
 * 非公平锁
 */
static final class NonfairSync extends Sync {
    private static final long serialVersionUID = 7316153563782823691L;
    /**
     * 加锁行为
     */
    final void lock() {
        /**
         * 第一步：直接尝试加锁
         * 与公平锁实现的加锁行为一个最大的区别在于，此处不会去判断同步队列(CLH队列)中
         * 是否有排队等待加锁的节点，上来直接加锁（判断state是否为0,CAS修改state为1）
         * ，并将独占锁持有者 exclusiveOwnerThread 属性指向当前线程
         * 如果当前有人占用锁，再尝试去加一次锁
         */
        if (compareAndSetState(0, 1))
            setExclusiveOwnerThread(Thread.currentThread());
        else
            //AQS定义的方法,加锁
            acquire(1);
    }

    /**
     * 父类AbstractQueuedSynchronizer.acquire()中调用本方法
     */
    protected final boolean tryAcquire(int acquires) {
        return nonfairTryAcquire(acquires);
    }
}

/**
 * 公平锁
 */
static final class FairSync extends Sync {
    private static final long serialVersionUID = -3000897897090466540L;
    final void lock() {
        acquire(1);
    }
    /**
     * 重写aqs中的方法逻辑
     * 尝试加锁，被AQS的acquire()方法调用
     */
    protected final boolean tryAcquire(int acquires) {
        final Thread current = Thread.currentThread();
        int c = getState();
        if (c == 0) {
            /**
             * 与非公平锁中的区别，需要先判断队列当中是否有等待的节点
             * 如果没有则可以尝试CAS获取锁
             */
            if (!hasQueuedPredecessors() &&
                    compareAndSetState(0, acquires)) {
                //独占线程指向当前线程
                setExclusiveOwnerThread(current);
                return true;
            }
        }
        else if (current == getExclusiveOwnerThread()) {
            int nextc = c + acquires;
            if (nextc < 0)
                throw new Error("Maximum lock count exceeded");
            setState(nextc);
            return true;
        }
        return false;
    }
}

/**
 * 默认构造函数，创建非公平锁对象
 */
public ReentrantLock() {
    sync = new NonfairSync();
}

/**
 * 根据要求创建公平锁或非公平锁
 */
public ReentrantLock(boolean fair) {
    sync = fair ? new FairSync() : new NonfairSync();
}

/**
 * 加锁
 */
public void lock() {
    sync.lock();
}

/**
 * 尝试获去取锁，获取失败被阻塞，线程被中断直接抛出异常
 */
public void lockInterruptibly() throws InterruptedException {
    sync.acquireInterruptibly(1);
}

/**
 * 尝试加锁
 */
public boolean tryLock() {
    return sync.nonfairTryAcquire(1);
}

/**
 * 指定等待时间内尝试加锁
 */
public boolean tryLock(long timeout, TimeUnit unit)
        throws InterruptedException {
    return sync.tryAcquireNanos(1, unit.toNanos(timeout));
}

/**
 * 尝试去释放锁
 */
public void unlock() {
    sync.release(1);
}

/**
 * 返回条件对象
 */
public Condition newCondition() {
    return sync.newCondition();
}

/**
 * 返回当前线程持有的state状态数量
 */
public int getHoldCount() {
    return sync.getHoldCount();
}

/**
 * 查询当前线程是否持有锁
 */
public boolean isHeldByCurrentThread() {
    return sync.isHeldExclusively();
}

/**
 * 状态表示是否被Thread加锁持有
 */
public boolean isLocked() {
    return sync.isLocked();
}

/**
 * 是否公平锁？是返回true 否则返回 false
 */
public final boolean isFair() {
    return sync instanceof FairSync;
}

/**
 * 获取持有锁的当前线程
 */
protected Thread getOwner() {
    return sync.getOwner();
}

/**
 * 判断队列当中是否有在等待获取锁的Thread节点
 */
public final boolean hasQueuedThreads() {
    return sync.hasQueuedThreads();
}

/**
 * 当前线程是否在同步队列中等待
 */
public final boolean hasQueuedThread(Thread thread) {
    return sync.isQueued(thread);
}

/**
 * 获取同步队列长度
 */
public final int getQueueLength() {
    return sync.getQueueLength();
}

/**
 * 返回Thread集合，排队中的所有节点Thread会被返回
 */
protected Collection<Thread> getQueuedThreads() {
    return sync.getQueuedThreads();
}

/**
 * 条件队列当中是否有正在等待的节点
 */
public boolean hasWaiters(Condition condition) {
    if (condition == null)
        throw new NullPointerException();
    if (!(condition instanceof AbstractQueuedSynchronizer.ConditionObject))
        throw new IllegalArgumentException("not owner");
    return sync.hasWaiters((AbstractQueuedSynchronizer.ConditionObject)condition);
}

} ```

抽象队列同步器AQS应用Lock详解

AQS应用之Lock

ReentrantLock

AQS具备特性

同步等待队列

条件等待队列

AQS源码
