一、针对之前的配置文件，对相应的功能增加相应的配置文件，实现更复杂更优化的功能配置

（配置pom.xml的时候最后面的build标签是使用自动生成的代码插件）
首先在pom.xml配置文件中添加相应的jar

  1. <dependencies>
  2.     <dependency>
  3.       <groupId>junit</groupId>
  4.       <artifactId>junit</artifactId>
  5.       <version>3.8.1</version>
  6.       <scope>test</scope>
  7.     </dependency>
  8.     <!-- spring核心框架依赖 -->
  9.     <dependency>
  10.         <groupId>org.springframework</groupId>
  11.         <artifactId>spring-context</artifactId>
  12.         <version>5.0.9.RELEASE</version>
  13.     </dependency>
  14.     <!-- spring的aop结合aspectj依赖 -->
  15.     <dependency>
  16.         <groupId>org.springframework</groupId>
  17.         <artifactId>spring-aspects</artifactId>
  18.         <version>5.0.9.RELEASE</version>
  19.     </dependency>
  20.     <!-- 引入springmvc基础依赖 -->
  21.     <dependency>
  22.         <groupId>org.springframework</groupId>
  23.         <artifactId>spring-webmvc</artifactId>
  24.         <version>5.0.9.RELEASE</version>
  25.     </dependency>
  27.     <!-- springmvc的转换支持json -->
  28.     <dependency>
  29.         <groupId>com.fasterxml.jackson.core</groupId>
  30.         <artifactId>jackson-core</artifactId>
  31.         <version>2.9.6</version>
  32.     </dependency>
  33.     <dependency>
  34.         <groupId>com.fasterxml.jackson.core</groupId>
  35.         <artifactId>jackson-databind</artifactId>
  36.         <version>2.9.6</version>
  37.     </dependency>
  38.     <dependency>
  39.         <groupId>com.fasterxml.jackson.core</groupId>
  40.         <artifactId>jackson-annotations</artifactId>
  41.         <version>2.9.6</version>
  42.     </dependency>
  43.     <!-- springmvc支持文件上传的依赖 -->
  44.     <dependency>
  45.         <groupId>commons-fileupload</groupId>
  46.         <artifactId>commons-fileupload</artifactId>
  47.         <version>1.3.3</version>
  48.     </dependency>
  50.     <!-- 引入数据库驱动依赖 -->
  51.     <dependency>
  52.         <groupId>mysql</groupId>
  53.         <artifactId>mysql-connector-java</artifactId>
  54.         <version>5.1.39</version>
  55.     </dependency>
  56.     <!-- 引入mybatis依赖 -->
  57.     <dependency>
  58.         <groupId>org.mybatis</groupId>
  59.         <artifactId>mybatis</artifactId>
  60.         <version>3.4.6</version>
  61.     </dependency>
  62.     <!-- spring统一事务管理依赖 -->
  63.     <dependency>
  64.         <groupId>org.springframework</groupId>
  65.         <artifactId>spring-tx</artifactId>
  66.         <version>5.0.9.RELEASE</version>
  67.     </dependency>
  68.     <!-- spring和mybatis的集成依赖包 -->
  69.     <dependency>
  70.         <groupId>org.mybatis</groupId>
  71.         <artifactId>mybatis-spring</artifactId>
  72.         <version>1.3.2</version>
  73.     </dependency>
  74.     <!-- 引入druid数据连接池框架 -->
  75.     <dependency>
  76.         <groupId>com.alibaba</groupId>
  77.         <artifactId>druid</artifactId>
  78.         <version>1.1.11</version>
  79.     </dependency>
  80.     <!-- 引入spring jdbc依赖 -->
  81.     <dependency>
  82.         <groupId>org.springframework</groupId>
  83.         <artifactId>spring-jdbc</artifactId>
  84.         <version>5.0.9.RELEASE</version>
  85.     </dependency>
  86.     <!-- mybatis自动分页插件依赖 -->
  87.     <dependency>
  88.         <groupId>com.github.pagehelper</groupId>
  89.         <artifactId>pagehelper</artifactId>
  90.         <version>5.1.6</version>
  91.     </dependency>
  93.     <!-- 引入log4j依赖 -->
  94.     <dependency>
  95.         <groupId>org.slf4j</groupId>
  96.         <artifactId>slf4j-log4j12</artifactId>
  97.         <version>1.7.25</version>
  98.     </dependency>
  101.     <!-- jstl的依赖包 -->
  102.     <dependency>
  103.         <groupId>javax.servlet</groupId>
  104.         <artifactId>jstl</artifactId>
  105.         <version>1.2</version>
  106.     </dependency>
  107.     <!-- servlet项目底层api依赖，一般这些依赖web服务器都具有，但是eclipse编译环境没有，所以这里scope=provided -->
  108.     <dependency>
  109.         <groupId>javax.servlet</groupId>
  110.         <artifactId>javax.servlet-api</artifactId>
  111.         <version>4.0.1</version>
  112.         <scope>provided</scope>
  113.     </dependency>
  114.     <dependency>
  115.        <groupId>javax.servlet.jsp</groupId>
  116.        <artifactId>jsp-api</artifactId>
  117.        <version>2.2</version>
  118.        <scope>provided</scope>
  119.      </dependency>
  120.      <!-- 集成tk.mybatis -->
  121.      <dependency>
  122.         <groupId>tk.mybatis</groupId>
  123.         <artifactId>mapper</artifactId>
  124.         <version>3.4.0</version>
  125.      </dependency>
  126.      <!-- ehcache支持 -->
  127.      <dependency>
  128.         <groupId>net.sf.ehcache</groupId>
  129.         <artifactId>ehcache</artifactId>
  130.         <version>2.10.5</version>
  131.     </dependency>
  132.     <dependency>
  133.         <groupId>org.springframework</groupId>
  134.         <artifactId>spring-context-support</artifactId>
  135.         <version>5.0.9.RELEASE</version>
  136.     </dependency>
  137.     <dependency>
  138.         <groupId>org.mybatis.caches</groupId>
  139.         <artifactId>mybatis-ehcache</artifactId>
  140.         <version>1.1.0</version>
  141.     </dependency>
  142.   </dependencies>
  144.   <build>
  145.       <plugins>
  146.           <plugin>
  147.             <!-- 添加插件 -->
  148.           <groupId>org.mybatis.generator</groupId>
  149.           <artifactId>mybatis-generator-maven-plugin</artifactId>
  150.           <version>1.3.2</version>
  151.           <!-- executions的作用是使得该项目具有：mvn mybatis-generator:generate启动命令 -->
  152.           <!-- 给插件添加依赖 -->
  153.           <dependencies>
  154.               <dependency>
  155.                 <groupId>mysql</groupId>
  156.                 <artifactId>mysql-connector-java</artifactId>
  157.                 <version>5.1.39</version>
  158.             </dependency>
  159.             <dependency>
  160.                 <groupId>tk.mybatis</groupId>
  161.                 <artifactId>mapper</artifactId>
  162.                 <version>3.4.0</version>
  163.              </dependency>
  164.           </dependencies>
  165.           <!-- 给插件配置参数 -->
  166.           <configuration>
  167.               <!-- 生成代码配置文件的路径 -->
  168.               <configurationFile>${basedir}/src/main/resources/generatorConfig.xml</configurationFile>
  169.               <overwrite>true</overwrite>
  170.               <verbose>true</verbose>
  171.           </configuration>
  172.         </plugin>
  173.         <!-- 内置tomcat服务器插件 -->
  174.         <plugin>
  175.           <groupId>org.apache.tomcat.maven</groupId>
  176.           <artifactId>tomcat7-maven-plugin</artifactId>
  177.           <version>2.2</version>
  178.         </plugin>
  179.       </plugins>
  180.   </build>

二、在接着配置web.xml配置文件

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <web-app xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  3.          xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
  4.          http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
  5.          version="3.0">
  7.   <display-name>Archetype Created Web Application</display-name>
  9.   <!-- 用listener的方式引入spring容器 -->
  10.   <listener>
  11.       <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  12.   </listener>
  13.   <!-- 配置spring的配置文件位置 -->
  14.   <context-param>
  15.       <param-name>contextConfigLocation</param-name>
  16.       <param-value>classpath:spring.xml</param-value>
  17.   </context-param>
  19.   <!-- 配置spring web统一字符集编码设置 -->
  20.   <filter>
  21.       <filter-name>characterEncodingFilter</filter-name>
  22.       <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
  23.       <init-param>
  24.           <param-name>encoding</param-name>
  25.           <param-value>UTF-8</param-value>
  26.       </init-param>
  27.   </filter>
  28.   <filter-mapping>
  29.       <filter-name>characterEncodingFilter</filter-name>
  30.       <url-pattern>/*</url-pattern>
  31.   </filter-mapping>
  32.   <!-- 权限校验filter -->
  33.   <filter>
  34.       <filter-name>privilageFilter</filter-name>
  35.       <filter-class>com.zhiyou.bd28.filter.PrivilageFilter</filter-class>
  36.   </filter>
  37.   <filter-mapping>
  38.       <filter-name>privilageFilter</filter-name>
  39.       <url-pattern>/*</url-pattern>
  40.   </filter-mapping>
  42.   <!-- druid监控页面设置 -->
  43.   <servlet>
  44.     <servlet-name>DruidStatView</servlet-name>
  45.     <servlet-class>com.alibaba.druid.support.http.StatViewServlet</servlet-class>
  46.       <init-param>
  47.         <param-name>profileEnable</param-name>
  48.         <param-value>true</param-value>
  49.       </init-param>
  50.       <init-param>
  51.         <param-name>resetEnable</param-name>
  52.         <param-value>false</param-value>
  53.       </init-param>
  54.       <!-- 可选项 登陆的用户名和密码 -->
  55.       <init-param>
  56.           <param-name>loginUsername</param-name>
  57.           <param-value> druid</param-value>
  58.       </init-param>
  59.       <init-param>
  60.           <param-name>loginPassword</param-name>
  61.           <param-value>druid</param-value>
  62.       </init-param>
  63.   </servlet>
  64.   <servlet-mapping>
  65.     <servlet-name>DruidStatView</servlet-name>
  66.     <url-pattern>/druid/*</url-pattern>
  67.   </servlet-mapping>
  68.   <!-- 配置springmvc里的前端控制器DispatcherServlet -->
  69.   <servlet>
  70.       <servlet-name>springmvc</servlet-name>
  71.       <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  72.       <!-- 给DispatcherServlet设置初始化参数 -->
  73.       <init-param>
  74.           <param-name>contextConfigLocation</param-name>
  75.           <param-value>classpath:springmvc.xml</param-value>
  76.       </init-param>
  77.       <!-- springmvc的容器和servlet项目一起启动 -->
  78.       <load-on-startup>1</load-on-startup>
  79.   </servlet>
  80.   <servlet-mapping>
  81.       <servlet-name>springmvc</servlet-name>
  82.       <url-pattern>/</url-pattern>  <!-- 映射所有的用户请求，都交由DispatcherServlet处理 -->
  83.   </servlet-mapping>
  84. </web-app>

三、接着配置spring.xml和springmvc.xml的相关配置文件

springmvc.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 启动servlet WebApplicationContext的包扫描，应该只有controller、viewresolver等注解 -->
    <context:component-scan base-package="com.zhiyou.bd28.controller"></context:component-scan>

    <!-- 视图模板的参数配置 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/jsp/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
    <!-- 支持文件上传视图解析器 -->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!--允许上传的文件最大大小  单位是byte-->
        <property name="maxUploadSize" value="60000000"/>
    </bean>
    <!-- 静态资源拦截配置 ： -->
    <mvc:resources mapping="/js/**" location="/js/" cache-period="31556926"/>
    <mvc:resources mapping="/css/**" location="/js/" cache-period="31556926"/>
    <mvc:resources mapping="/image/**" location="/js/" cache-period="31556926"/>

    <!-- json自动转换解析配置，如果使用mvc标签需要改句配置，否则@Controller的类会加载失败 -->
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.StringHttpMessageConverter">
            <property name="supportedMediaTypes">
                <list>
                    <value>text/plain;charset=UTF-8</value>
                </list>
            </property>
            </bean>

            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
                <property name="supportedMediaTypes">
                    <list>
                        <value>text/html;charset=UTF-8</value>
                    </list>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>
</beans>

spring.xml配置文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/aop
       http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 启动root WebApplicationContext的包扫描，dao层和service层的包应该再次被扫描 -->
    <context:component-scan base-package="com.zhiyou.bd28"></context:component-scan>

    <!-- 配置druid数据源 -->
       <context:property-placeholder location="classpath:jdbc.properties"/>
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="filters" value="stat,wall"/>
        <property name="maxActive" value="20"/>
        <property name="initialSize" value="1"/>
        <property name="maxWait" value="60000"/>
        <property name="minIdle" value="1"/>
        <property name="timeBetweenEvictionRunsMillis" value="60000"/>
        <property name="minEvictableIdleTimeMillis" value="300000"/>
        <property name="validationQuery" value="SELECT 'x'"/> <!-- 检查数据连接成功的语句 -->
        <property name="testWhileIdle" value="true"/>
        <property name="testOnBorrow" value="false"/>
        <property name="testOnReturn" value="false"/>
        <property name="proxyFilters">
            <list> <ref bean="stat-filter"/></list>
        </property>
    </bean>
    <!-- 可选项 druid监控统计bean 对应上文dataSource中的proxyFilters -->
    <bean id="stat-filter" class="com.alibaba.druid.filter.stat.StatFilter">
        <property name="slowSqlMillis" value="1000" />
        <property name="logSlowSql" value="true" />
        <property name="mergeSql" value="true" />
    </bean>
    <!-- 引入mybatis的SqlSessionFactory -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 引入druid连接池数据源 -->
        <property name="dataSource" ref="dataSource"></property>
        <property name="mapperLocations" value="classpath:com/zhiyou/bd28/dao/*Mapper.xml"/>
        <!-- 添加mybatis.xml配置文件的引入 -->
        <property name="configLocation" value="classpath:mybatis.xml"></property>
    </bean>
    <!-- 添加mapper Dao的扫描 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.zhiyou.bd28.dao"/>
    </bean>

    <!-- 事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--事务详情(事务通知/增强)， 在aop筛选基础上，确定使用什么样的事务。例如：读写、只读等
        <tx:attributes> 用于配置事务详情（属性属性）
            <tx:method name=""/> 详情具体配置
                propagation 传播行为 ， REQUIRED：必须；REQUIRES_NEW:必须是新的 read-only 是否是只读事物
                isolation 隔离级别 read-only 只读事物
    -->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
            <tx:method name="select*" read-only="true"/>
            <tx:method name="find*" read-only="true"/>
            <tx:method name="get*" read-only="true"/>
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>
    <!--支持基于注解的aspectj-->
    <aop:aspectj-autoproxy/>
    <!--AOP编程，切入点表达式 确定增强的连接器，从而获得切入点-->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.zhiyou.bd28.service..*.*(..))"/>
    </aop:config>
    <!-- 引入tk.mybatis的通用map -->
    <bean class="tk.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.zhiyou.bd28.dao"/>
    </bean>

    <!-- 引入spring-ehcache.xml -->
    <import resource="spring-ehcache.xml"/>
</beans>

四：如果使用全部别名

mybatis.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <!-- settings里面是一些mybatis的底层配置参数 -->
  <settings>
      <setting name="cacheEnabled" value="true"/> <!-- 开启mybatis的二级缓存 -->
      <setting name="logImpl" value="SLF4J"/>
      <setting name="mapUnderscoreToCamelCase" value="true"/>
      <setting name="lazyLoadingEnabled" value="true"/>
      <setting name="aggressiveLazyLoading" value="false"/>
  </settings>

  <!-- typeAliases用来配置mapper中引用的类型名称的简称(别名) -->
  <typeAliases>
      <!-- 通过包名称配置别名，该方法配置的别名就直接等于包下的类名（去掉包名称的部分）
                或者类名称首字母小写-->
      <package name="com.zhiyou.bd28.model"/>
  </typeAliases>

  <plugins>
      <!-- 添加pagehelper插件配置 -->
      <plugin interceptor="com.github.pagehelper.PageInterceptor">
          <property name="helperDialect" value="mysql"/>
      </plugin>
  </plugins>
</configuration>

五：对于相关的优化存储的话使用配置文件达到二级缓存的目的，减缓存储压力

spring-ehcache.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:cache="http://www.springframework.org/schema/cache"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/cache
        http://www.springframework.org/schema/cache/spring-cache.xsd">
    <!--配置cache -->
    <cache:annotation-driven cache-manager="cacheManager" /><!--需要引入ehcache.jar
        和 spring-context-support.jar -->
    <bean id="cacheManager" class="org.springframework.cache.ehcache.EhCacheCacheManager">
        <property name="cacheManager" ref="ehcache" />
    </bean><!-- 引入刚才的配置文件,一定要看好路径 -->
    <bean id="ehcache"
        class="org.springframework.cache.ehcache.EhCacheManagerFactoryBean">
        <property name="configLocation" value="classpath:ehcache.xml"></property>
    </bean>
</beans>

同时需要配置相关的ehcache.xml

<?xml version="1.0" encoding="UTF-8"?>
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:noNamespaceSchemaLocation="ehcache.xsd">
    <!-- java.io.tmpdir：Java临时目录。指定一个文件目录，当EhCache把数据写到硬盘上或者系统jvm内存时，将把数据写到这个文件目录下 -->
    <diskStore path="D:/cache"/>
    <!-- maxElementsInMemory：设置基于内存的缓存可存放对象的最大数目。  -->
    <!-- eternal：如果为true，表示对象永远不会过期，此时会忽略timeToIdleSeconds和timeToLiveSeconds属性，默认为false; -->
    <!-- timeToIdleSeconds： 设定允许对象处于空闲状态的最长时间，以秒为单位。当对象自从最近一次被访问后，如果处于空闲状态的时间超过了 -->
    <!-- timeToIdleSeconds属性值，这个对象就会过期。当对象过期，EHCache将把它从缓存中清空。只有当eternal属性为false，该属性才有效。 -->
    <!-- 如果该属性值为0，则表示对象可以无限期地处于空闲状态。  -->
    <!-- timeToLiveSeconds：设定对象允许存在于缓存中的最长时间，以秒为单位。当对象自从被存放到缓存中后，如果处于缓存中的时间超过了 timeToLiveSeconds属性值，这个对象就会过期。当对象过期，EHCache将把它从缓存中清除。只有当eternal属性为false，该属性才有效。如果该属性值为0，则表示对象可以无限期地存在于缓存中。timeToLiveSeconds必须大于timeToIdleSeconds属性，才有意义。  -->
    <!-- overflowToDisk：如果为true,表示当基于内存的缓存中的对象数目达到了maxElementsInMemory界限后，会把益出的对象写到基于硬盘的缓存中。 -->

    <!-- 设定缓存的默认数据过期策略 -->
    <defaultCache
            maxElementsInMemory="10000"
            eternal="false"
            overflowToDisk="true"
            timeToIdleSeconds="10"
            timeToLiveSeconds="20"
            diskPersistent="false"
            diskExpiryThreadIntervalSeconds="120"/>

    <!--  自定义缓存策略 -->
    <cache name="cachelist"
           maxElementsInMemory="1000"
           eternal="false"
           overflowToDisk="true"
           timeToIdleSeconds="10"
           timeToLiveSeconds="20"/>
</ehcache>

六、对于相应的数据库表单自动生成代码的配置文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
  <properties resource="jdbc.properties"/>
  <context id="mysqltables" targetRuntime="MyBatis3" defaultModelType="flat">
    <property name="javaFileEncoding" value="UTF-8"/>
    <property name="beginningDelimiter" value="`"/>
    <property name="endingDelimiter" value="`"/>
      <plugin type="${mapper.plugin}">
        <property name="mappers" value="${mapper.Mapper}"/>
    </plugin>
    <jdbcConnection driverClass="${jdbc.driver}"
        connectionURL="${jdbc.url}"
        userId="${jdbc.username}"
        password="${jdbc.password}">
    </jdbcConnection>
    <javaTypeResolver >
      <property name="forceBigDecimals" value="false" />
    </javaTypeResolver>

    <!-- 实体类的生成基本配置 -->
    <javaModelGenerator targetPackage="com.zhiyou.bd28.model" targetProject="src/main/java">
      <property name="enableSubPackages" value="true" />
      <property name="trimStrings" value="true" />
    </javaModelGenerator>
    <!-- mapper.xml配置文件的路径等参数配置 -->
    <sqlMapGenerator targetPackage="com.zhiyou.bd28.dao"  targetProject="src/main/resources">
      <property name="enableSubPackages" value="true" />
    </sqlMapGenerator>
    <!-- 配置mapper接口的代码生成路径 -->
    <javaClientGenerator type="XMLMAPPER" targetPackage="com.zhiyou.bd28.dao"  targetProject="src/main/java">
      <property name="enableSubPackages" value="true" />
    </javaClientGenerator>




    <!-- 每一个table标签代表着一个表的代码自动生成设置 -->
    <!--
    <table tableName="tb_user" domainObjectName="TbUser" >
      <property name="useActualColumnNames" value="false"/>
      <generatedKey column="user_id" sqlStatement="mysql" identity="true"/>
    </table>
    <table tableName="tb_role" domainObjectName="TbRole" >
      <property name="useActualColumnNames" value="false"/>
      <generatedKey column="role_id" sqlStatement="mysql" identity="true"/>
    </table>
    <table tableName="tb_function" domainObjectName="TbFunction" >
      <property name="useActualColumnNames" value="false"/>
      <generatedKey column="function_id" sqlStatement="mysql" identity="true"/>
    </table>
     -->
     <table tableName="table_test" domainObjectName="TableTest" >
      <property name="useActualColumnNames" value="false"/>
      <generatedKey column="t_id" sqlStatement="mysql" identity="true"/>
    </table>
  </context>
</generatorConfiguration>

相应的log4j.properties和jdbc.properties文件
log4j.properties

log4j.rootLogger=DEBUG, Console
#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
log4j.logger.org.apache.ibatis=INFO
log4j.logger.org.springframework.jdbc.datasource=INFO

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmtest28
jdbc.username=root
jdbc.password=123456

mapper.plugin=tk.mybatis.mapper.generator.MapperPlugin
mapper.Mapper=tk.mybatis.mapper.common.Mapper

相对应的配置文件结构图片如下：
ssm最终的配置文件 - 图1

注意：我们在加载一个bootstrap的时候配置文件里面拦截静态资源，这里的配置路径需要和你创建的项目路径保持一致：

ssm最终的配置文件 - 图2

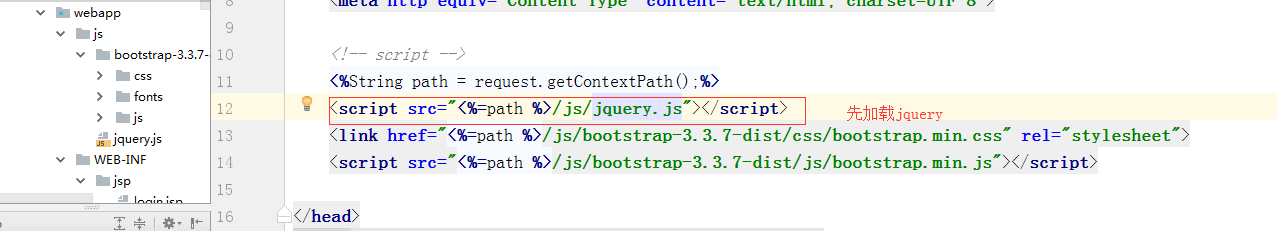

ssm最终的配置文件 - 图3

<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">

<!-- script -->
<%String path = request.getContextPath();%>
<script src="<%=path %>/js/jquery.js"></script>
<link href="<%=path %>/js/bootstrap-3.3.7-dist/css/bootstrap.min.css" rel="stylesheet">
<script src="<%=path %>/js/bootstrap-3.3.7-dist/js/bootstrap.min.js"></script>
