安装环境
- Linux机器
准备工作
安装docker
使用脚本安装docker
curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun
配置docker用户
sudo groupadd dockersudo gpasswd -a $USER dockernewgrp docker
启动docker
systemctl start docker
安装docker-compose
sudo curl -L "https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-composesudo chmod +x /usr/local/bin/docker-compose
harbor安装过程中可能出现docker-compose未安装或者权限不足，需要创建个软连接
sudo ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose
安装Harbor
下载harbor包
wget https://storage.googleapis.com/harbor-releases/release-1.8.0/harbor-online-installer-v1.8.1.tgz
解压harbor包
tar zxvf harbor-online-installer-v1.8.1.tgz
cd harbor
编辑harbor.yml
修改hostname为本机ip地址
hostname: 192.168.10.122
修改data路径
# The default data volume
data_volume: /home/zqxu/xzq/harbor_data
修改log路径
log:
# The directory on your host that store log
location: /home/zqxu/xzq/harbor/log
其它参数，可以根据实际情况修改，配置文件如下：
# Configuration file of Harbor
# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
hostname: 115.239.209.123
# http related config
http:
# port for http, default is 80. If https enabled, this port will redirect to https port
port: 80
# https related config
# https:
# # https port for harbor, default is 443
# port: 443
# # The path of cert and key files for nginx
# certificate: /your/certificate/path
# private_key: /your/private/key/path
# Uncomment external_url if you want to enable external proxy
# And when it enabled the hostname will no longer used
# external_url: https://reg.mydomain.com:8433
# The initial password of Harbor admin
# It only works in first time to install harbor
# Remember Change the admin password from UI after launching Harbor.
harbor_admin_password: Harbor12345
# Harbor DB configuration
database:
# The password for the root user of Harbor DB. Change this before any production use.
password: root123
# The default data volume
data_volume: /home/zqxu/xzq/harbor_data
# Harbor Storage settings by default is using /data dir on local filesystem
# Uncomment storage_service setting If you want to using external storage
# storage_service:
# # ca_bundle is the path to the custom root ca certificate, which will be injected into the truststore
# # of registry's and chart repository's containers. This is usually needed when the user hosts a internal storage with self signed certificate.
# ca_bundle:
# # storage backend, default is filesystem, options include filesystem, azure, gcs, s3, swift and oss
# # for more info about this configuration please refer https://docs.docker.com/registry/configuration/
# filesystem:
# maxthreads: 100
# # set disable to true when you want to disable registry redirect
# redirect:
# disabled: false
# Clair configuration
clair:
# The interval of clair updaters, the unit is hour, set to 0 to disable the updaters.
updaters_interval: 12
# Config http proxy for Clair, e.g. http://my.proxy.com:3128
# Clair doesn't need to connect to harbor internal components via http proxy.
http_proxy:
https_proxy:
no_proxy: 127.0.0.1,localhost,core,registry
jobservice:
# Maximum number of job workers in job service
max_job_workers: 10
chart:
# Change the value of absolute_url to enabled can enable absolute url in chart
absolute_url: disabled
# Log configurations
log:
# options are debug, info, warning, error, fatal
level: info
# Log files are rotated log_rotate_count times before being removed. If count is 0, old versions are removed rather than rotated.
rotate_count: 50
# Log files are rotated only if they grow bigger than log_rotate_size bytes. If size is followed by k, the size is assumed to be in kilobytes.
# If the M is used, the size is in megabytes, and if G is used, the size is in gigabytes. So size 100, size 100k, size 100M and size 100G
# are all valid.
rotate_size: 200M
# The directory on your host that store log
location: /home/zqxu/xzq/harbor/log
#This attribute is for migrator to detect the version of the .cfg file, DO NOT MODIFY!
_version: 1.8.0
# Uncomment external_database if using external database.
# external_database:
# harbor:
# host: harbor_db_host
# port: harbor_db_port
# db_name: harbor_db_name
# username: harbor_db_username
# password: harbor_db_password
# ssl_mode: disable
# clair:
# host: clair_db_host
# port: clair_db_port
# db_name: clair_db_name
# username: clair_db_username
# password: clair_db_password
# ssl_mode: disable
# notary_signer:
# host: notary_signer_db_host
# port: notary_signer_db_port
# db_name: notary_signer_db_name
# username: notary_signer_db_username
# password: notary_signer_db_password
# ssl_mode: disable
# notary_server:
# host: notary_server_db_host
# port: notary_server_db_port
# db_name: notary_server_db_name
# username: notary_server_db_username
# password: notary_server_db_password
# ssl_mode: disable
# Uncomment external_redis if using external Redis server
# external_redis:
# host: redis
# port: 6379
# password:
# # db_index 0 is for core, it's unchangeable
# registry_db_index: 1
# jobservice_db_index: 2
# chartmuseum_db_index: 3
# Uncomment uaa for trusting the certificate of uaa instance that is hosted via self-signed cert.
# uaa:
# ca_file: /path/to/ca
执行安装脚本
./install.sh
安装成功
✔ ----Harbor has been installed and started successfully.
----Now you should be able to visit the admin portal at http://192.168.10.122.
For more details, please visit https://github.com/goharbor/harbor .
之后如果你想修改某一个配置,先修改上面harbor.yaml这个文件,之后重新执行install.sh这个文件就可以了。
访问Harbor
$hostname：上文harbor.yaml中配置的hostname的值
访问harbor页面
http://$hostname/
使用默认的账号:admin,密码:Harbor12345登录验证

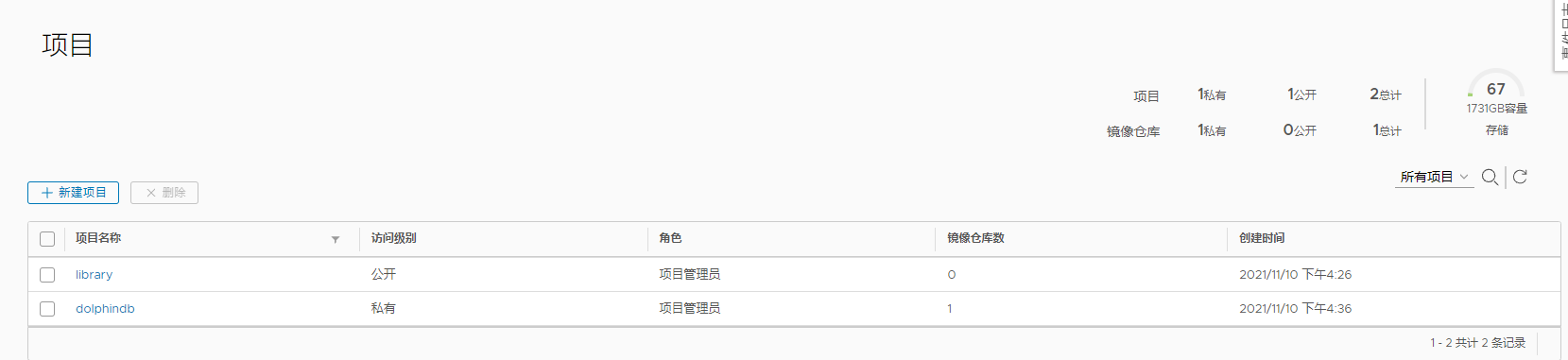

创建项目
点击创建项目，创建项目dolphindb.
Docker访问
配置docker
编辑执行docker命令的机器的/etc/docker/daemon.json文件(没有的话创建一个)
{
"insecure-registries":[
"$hostname"
]
}
注意格式，编辑错误docker会启动不起来。
重启docker
sudo systemctl restart docker
登录docker
docker login $hostname -u admin -p Harbor12345
push镜像
# 需要先登录harbor页面，创建项目dolphindb.
docker push $hostname/dolphindb/dolphindb-partner:v1.0
