入门篇

基本注解

@Configuration

Full模式及Lite模式

配置类组件之间无依赖关系，用Lite模式，加速容器启动过程，减少判断
配置类组件之间有依赖关系，方法会被调用得到之前的单实例组件，用Full模式。

1.配置类代码

/**
 * 1.配置类里面使用@Bean注解标注在方法上，给容器注册组件，默认也是单实例的
 * 2.配置类本身也是组件
 * 如果@Configuration(proxyBeanMethods=true) 则创建的MyConfig对象为代理对象
 * com.yuancheng.boot01helloworld.config.MyConfig$$EnhancerBySpringCGLIB$$2291a2b8@5f2de715
 * 下面的Bean对象，在springboot中会保持组件的单实例，如果容器中存在对象则直接从容器中拿，否则，创建新的对象
 * proxyBeanMethods ：代理bean的方法
 *  Full（proxyBeanMethods=true） Lite（proxyBeanMethods=false） 解决组件依赖的问题
 *
 *  如下所示，如果proxyBeanMethods=true,则user 中的pet和容器的中的pet就是对应的。否则就是有问题的。
 *  调成false,保证springboot不用一直去检查容器中是否有对应的组件，每次直接创建新的对象即可，启动就会加快，
 *  如果设置为true,则是为了保证组件之间的依赖问题，方法会被调用得到之前单实例的组件，
 */
@Configuration(proxyBeanMethods=false)
public class MyConfig {
    @Bean("tom")
    public Pet pet(){
        return new Pet("tom",1);
    }
    @Bean
    public User getUser(){
        User user = new User("张三", 18);
        //user组件依赖pet组件
        user.setPet(pet());
        return user;
    }
}

2.主方法类代码：

 public static void main(String[] args) {
        ConfigurableApplicationContext run = SpringApplication.run(Boot01HelloworldApplication.class, args);
        String[] names = run.getBeanDefinitionNames();
        for (String name:names) {
            System.out.println(name);
        }
        System.out.println("--------------------");
        Pet tom01 = run.getBean("tom", Pet.class);
        Pet tom02 = run.getBean("tom", Pet.class);
        System.out.println("单实例tom组件"+(tom01==tom02));
        System.out.println("=====================");
        String str01 = "helloworld";
        String str02 = "helloworld";
        System.out.println("String equals:"+(str01.equals(str02)));
        System.out.println("--------------");
        MyConfig myConfig = run.getBean(MyConfig.class);
        System.out.println(myConfig);
        // 如果@Configuration(proxyBeanMethods=true)，则创建的是代理对象的调用方法，
        // SpringBoot总会检查这个组件是否在容器中，保持组件的单实例
        User user01 = myConfig.getUser();
        User user02 = myConfig.getUser();
        System.out.println(user01.equals(user02));
        System.out.println(user01==user02);
        System.out.println("比较user中的pet和容器中的pet是否一致");
        Pet pet = user01.getPet();
        System.out.println(pet == tom01);
    }

@Import

1.配置类中引入别的对象

//给容器中创建出这两个类型的组件，默认的组件的名字就是全类名，调用的是其无参构造器
@Import({User.class, DBHelper.class})

2.主方法中测试，得到的结果：

String[] users = run.getBeanNamesForType(User.class);
for (String name:users) {
    System.out.println(name);
}
DBHelper dbHelper = run.getBean(DBHelper.class);
System.out.println(dbHelper);
/**
* 输出的结果为：
* com.yuancheng.boot01helloworld.bean.User
* getUser
* ch.qos.logback.core.db.DBHelper@3c79088e
*/

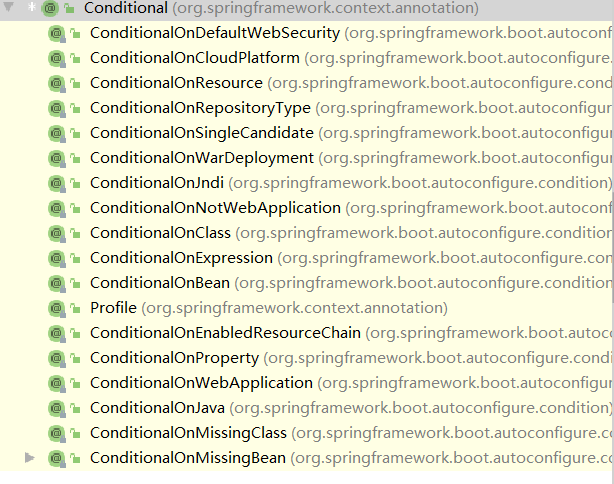

@Conditional

条件注解：
@ConditionalOnBean（name=””） ：判断容器中是否已注册该注解，有的话则初始化容器中的组件，否则不进行注册，该注解如果是放在方法上则对该方法返回的组件有作用，如果是放在类上，则本类的所有组件都会有这个判断条件。
@ConditionalOnMissingBean(name = “tom22”) 同上，但与之相反。

@ImportResource

可以导入类路径下的配置文件，这样配置文件中的组件也可以被spring加载

@ImportResource(value = "classpath:beans.xml")

@ConfigurationProperties

配置绑定，将properties文件中的内容绑定到JavaBean中，只有在容器中的组件才可以使用该注解，需要和@Component一块使用。或者直接用@EnableConfigurationProperties(Car.class)开启Car配置绑定功能，把这个Car组件自动注册到容器中。
MyConfig:

@EnableConfigurationProperties(Car.class)
public class MyConfig {
}

Car:

//@Component
@ConfigurationProperties(prefix = "mycar")
public class Car {
    private String  brand;
    private Integer price;
    public Car() {
    }
    public Car(String brand, Integer price) {
        this.brand = brand;
        this.price = price;
    }
    public String getBrand() {
        return brand;
    }
    public void setBrand(String brand) {
        this.brand = brand;
    }
    public Integer getPrice() {
        return price;
    }
    public void setPrice(Integer price) {
        this.price = price;
    }
    @Override
    public String toString() {
        return "Car{" +
                "brand='" + brand + '\'' +
                ", price=" + price +
                '}';
    }
}

application.properties:

mycar.brand=BYD
mycar.price=100000

Controller:

    @Autowired
    Car car;
    @RequestMapping("/car")
    public Car car(){
        System.out.println(car.getBrand());
        System.out.println(car.getPrice());
        return car;
    }

自动配置原理：
SpringBootApplication

@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan(
    excludeFilters = {@Filter(
    type = FilterType.CUSTOM,
    classes = {TypeExcludeFilter.class}
), @Filter(
    type = FilterType.CUSTOM,
    classes = {AutoConfigurationExcludeFilter.class}
)}
)
public @interface SpringBootApplication {

@SpringBootConfiguration

@Configuration，代表当前就是一个配置类，默认是单实例的

@ComponentScan

包扫描，指定要扫描的包

@EnableAutoConfiguration

@AutoConfigurationPackage
@Import({AutoConfigurationImportSelector.class})
public @interface EnableAutoConfiguration {
    String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";
    Class<?>[] exclude() default {};
    String[] excludeName() default {};
}

如何进行扫描的，扫描哪些文件总体概览

@AutoConfigurationPackage
//利用Registrar给容器中导入一系列组件
//将指定的一个包下的所有组件导入进来？MainApplication 所在包下。
@Import({AutoConfigurationImportSelector.class})
1、利用getAutoConfigurationEntry(annotationMetadata);给容器中批量导入一些组件
2、调用List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes)获取到所有需要导入到容器中的配置类
3、利用工厂加载 Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader)；得到所有的组件
4、从META-INF/spring.factories位置来加载一个文件。
    默认扫描我们当前系统里面所有META-INF/spring.factories位置的文件
    spring-boot-autoconfigure-2.3.4.RELEASE.jar包里面也有META-INF/spring.factories

@AutoConfigurationPackage：

@Import({Registrar.class})//给容器中导入一个组件
public @interface AutoConfigurationPackage {
//利用registrar给容器中导入一系列组件
//将指定的一个包下的所有组件导入进来。Boot01HelloworldApplication程序所在的包下的所有组件全部导入进来

 static class Registrar implements ImportBeanDefinitionRegistrar, DeterminableImports {
        Registrar() {
        }
//metadata 所指的是 class com.yuancheng.boot01helloworld.Boot01HelloworldApplication
//new AutoConfigurationPackages.PackageImports(metadata).getPackageNames() :获取到的结果是com.yuancheng.boot01helloworld
        public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry) {
            AutoConfigurationPackages.register(registry, (String[])(new AutoConfigurationPackages.PackageImports(metadata)).getPackageNames().toArray(new String[0]));
        }
        public Set<Object> determineImports(AnnotationMetadata metadata) {
            return Collections.singleton(new AutoConfigurationPackages.PackageImports(metadata));
        }
    }

@Import({AutoConfigurationImportSelector.class})

主要是看下AutoConfigurationImportSelector这个类里面的方法：

public String[] selectImports(AnnotationMetadata annotationMetadata) {
        if (!this.isEnabled(annotationMetadata)) {
            return NO_IMPORTS;
        } else {
            AutoConfigurationImportSelector.AutoConfigurationEntry autoConfigurationEntry = this.getAutoConfigurationEntry(annotationMetadata);//给容器中批量导入一些组件
            return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
        }
}

 protected AutoConfigurationImportSelector.AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
        if (!this.isEnabled(annotationMetadata)) {
            return EMPTY_ENTRY;
        } else {
            AnnotationAttributes attributes = this.getAttributes(annotationMetadata);
             //通过这个方法来获取所有的组件信息
            List<String> configurations = this.getCandidateConfigurations(annotationMetadata, attributes);
            configurations = this.removeDuplicates(configurations);
            Set<String> exclusions = this.getExclusions(annotationMetadata, attributes);
            this.checkExcludedClasses(configurations, exclusions);
            configurations.removeAll(exclusions);
            configurations = this.getConfigurationClassFilter().filter(configurations);
            this.fireAutoConfigurationImportEvents(configurations, exclusions);
            return new AutoConfigurationImportSelector.AutoConfigurationEntry(configurations, exclusions);
        }
    }

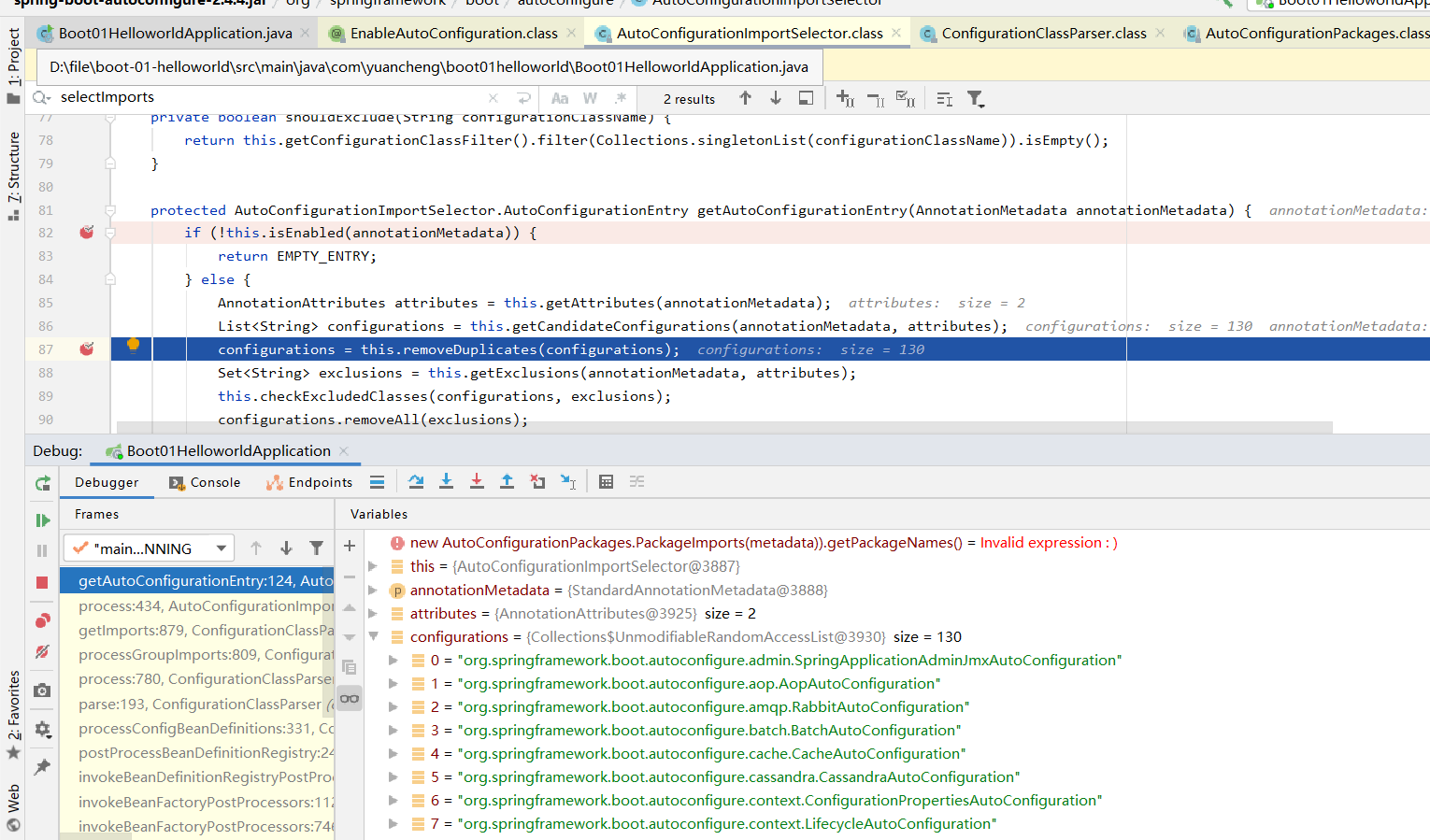

对应的configurations所有的组件信息如下图：

getCandidateConfigurations：

protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
    List<String> configurations = SpringFactoriesLoader.loadFactoryNames(this.getSpringFactoriesLoaderFactoryClass(), this.getBeanClassLoader());//通过该方法进行获取所有需要加载的组件信息
    Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you are using a custom packaging, make sure that file is correct.");
    return configurations;
}

public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
        ClassLoader classLoaderToUse = classLoader;
        if (classLoader == null) {
            classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
        }
        String factoryTypeName = factoryType.getName();
    //下面的方法，将会得到需要的组件
        return (List)loadSpringFactories(classLoaderToUse).getOrDefault(factoryTypeName, Collections.emptyList());
 }

private static Map<String, List<String>> loadSpringFactories(ClassLoader classLoader) {
    Map<String, List<String>> result = (Map)cache.get(classLoader);
    if (result != null) {
        return result;
    } else {
        HashMap result = new HashMap();
        try {
            //写死在文件中 ，从下面的文件中获取到需要加载的配置类
            Enumeration urls = classLoader.getResources("META-INF/spring.factories");
            while(urls.hasMoreElements()) {
                URL url = (URL)urls.nextElement();
                UrlResource resource = new UrlResource(url);
                Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                Iterator var6 = properties.entrySet().iterator();
                while(var6.hasNext()) {
                    Entry<?, ?> entry = (Entry)var6.next();
                    String factoryTypeName = ((String)entry.getKey()).trim();
                    String[] factoryImplementationNames = StringUtils.commaDelimitedListToStringArray((String)entry.getValue());
                    String[] var10 = factoryImplementationNames;
                    int var11 = factoryImplementationNames.length;
                    for(int var12 = 0; var12 < var11; ++var12) {
                        String factoryImplementationName = var10[var12];
                        ((List)result.computeIfAbsent(factoryTypeName, (key) -> {
                            return new ArrayList();
                        })).add(factoryImplementationName.trim());
                    }
                }
            }
            result.replaceAll((factoryType, implementations) -> {
                return (List)implementations.stream().distinct().collect(Collectors.collectingAndThen(Collectors.toList(), Collections::unmodifiableList));
            });
            cache.put(classLoader, result);
            return result;
        } catch (IOException var14) {
            throw new IllegalArgumentException("Unable to load factories from location [META-INF/spring.factories]", var14);
        }
    }
}

在spring-boot-autoconfigure-2.4.4.jar中的META-INF/spring.factories文件下有如下的配置文件信息（即所有需要加载的组件）：

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.boot.autoconfigure.admin.SpringApplicationAdminJmxAutoConfiguration,\
org.springframework.boot.autoconfigure.aop.AopAutoConfiguration,\
org.springframework.boot.autoconfigure.amqp.RabbitAutoConfiguration,\
org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration,\
org.springframework.boot.autoconfigure.cache.CacheAutoConfiguration,\
org.springframework.boot.autoconfigure.cassandra.CassandraAutoConfiguration,\
org.springframework.boot.autoconfigure.context.ConfigurationPropertiesAutoConfiguration,\
org.springframework.boot.autoconfigure.context.LifecycleAutoConfiguration,\
org.springframework.boot.autoconfigure.context.MessageSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.context.PropertyPlaceholderAutoConfiguration,\
org.springframework.boot.autoconfigure.couchbase.CouchbaseAutoConfiguration,\
org.springframework.boot.autoconfigure.dao.PersistenceExceptionTranslationAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ReactiveElasticsearchRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ReactiveElasticsearchRestClientAutoConfiguration,\
org.springframework.boot.autoconfigure.data.jdbc.JdbcRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.jpa.JpaRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.ldap.LdapRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.solr.SolrRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.r2dbc.R2dbcDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.r2dbc.R2dbcRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.rest.RepositoryRestMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.data.web.SpringDataWebAutoConfiguration,\
org.springframework.boot.autoconfigure.elasticsearch.ElasticsearchRestClientAutoConfiguration,\
org.springframework.boot.autoconfigure.flyway.FlywayAutoConfiguration,\
org.springframework.boot.autoconfigure.freemarker.FreeMarkerAutoConfiguration,\
org.springframework.boot.autoconfigure.groovy.template.GroovyTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.gson.GsonAutoConfiguration,\
org.springframework.boot.autoconfigure.h2.H2ConsoleAutoConfiguration,\
org.springframework.boot.autoconfigure.hateoas.HypermediaAutoConfiguration,\
org.springframework.boot.autoconfigure.hazelcast.HazelcastAutoConfiguration,\
org.springframework.boot.autoconfigure.hazelcast.HazelcastJpaDependencyAutoConfiguration,\
org.springframework.boot.autoconfigure.http.HttpMessageConvertersAutoConfiguration,\
org.springframework.boot.autoconfigure.http.codec.CodecsAutoConfiguration,\
org.springframework.boot.autoconfigure.influx.InfluxDbAutoConfiguration,\
org.springframework.boot.autoconfigure.info.ProjectInfoAutoConfiguration,\
org.springframework.boot.autoconfigure.integration.IntegrationAutoConfiguration,\
org.springframework.boot.autoconfigure.jackson.JacksonAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.JdbcTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.JndiDataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.XADataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.DataSourceTransactionManagerAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.JmsAutoConfiguration,\
org.springframework.boot.autoconfigure.jmx.JmxAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.JndiConnectionFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.activemq.ActiveMQAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.artemis.ArtemisAutoConfiguration,\
org.springframework.boot.autoconfigure.jersey.JerseyAutoConfiguration,\
org.springframework.boot.autoconfigure.jooq.JooqAutoConfiguration,\
org.springframework.boot.autoconfigure.jsonb.JsonbAutoConfiguration,\
org.springframework.boot.autoconfigure.kafka.KafkaAutoConfiguration,\
org.springframework.boot.autoconfigure.availability.ApplicationAvailabilityAutoConfiguration,\
org.springframework.boot.autoconfigure.ldap.embedded.EmbeddedLdapAutoConfiguration,\
org.springframework.boot.autoconfigure.ldap.LdapAutoConfiguration,\
org.springframework.boot.autoconfigure.liquibase.LiquibaseAutoConfiguration,\
org.springframework.boot.autoconfigure.mail.MailSenderAutoConfiguration,\
org.springframework.boot.autoconfigure.mail.MailSenderValidatorAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.embedded.EmbeddedMongoAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.MongoAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.MongoReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.mustache.MustacheAutoConfiguration,\
org.springframework.boot.autoconfigure.neo4j.Neo4jAutoConfiguration,\
org.springframework.boot.autoconfigure.orm.jpa.HibernateJpaAutoConfiguration,\
org.springframework.boot.autoconfigure.quartz.QuartzAutoConfiguration,\
org.springframework.boot.autoconfigure.r2dbc.R2dbcAutoConfiguration,\
org.springframework.boot.autoconfigure.r2dbc.R2dbcTransactionManagerAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketMessagingAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketRequesterAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketServerAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketStrategiesAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.UserDetailsServiceAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration,\
org.springframework.boot.autoconfigure.security.reactive.ReactiveSecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.reactive.ReactiveUserDetailsServiceAutoConfiguration,\
org.springframework.boot.autoconfigure.security.rsocket.RSocketSecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.saml2.Saml2RelyingPartyAutoConfiguration,\
org.springframework.boot.autoconfigure.sendgrid.SendGridAutoConfiguration,\
org.springframework.boot.autoconfigure.session.SessionAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.client.servlet.OAuth2ClientAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.client.reactive.ReactiveOAuth2ClientAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.resource.servlet.OAuth2ResourceServerAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.resource.reactive.ReactiveOAuth2ResourceServerAutoConfiguration,\
org.springframework.boot.autoconfigure.solr.SolrAutoConfiguration,\
org.springframework.boot.autoconfigure.task.TaskExecutionAutoConfiguration,\
org.springframework.boot.autoconfigure.task.TaskSchedulingAutoConfiguration,\
org.springframework.boot.autoconfigure.thymeleaf.ThymeleafAutoConfiguration,\
org.springframework.boot.autoconfigure.transaction.TransactionAutoConfiguration,\
org.springframework.boot.autoconfigure.transaction.jta.JtaAutoConfiguration,\
org.springframework.boot.autoconfigure.validation.ValidationAutoConfiguration,\
org.springframework.boot.autoconfigure.web.client.RestTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.web.embedded.EmbeddedWebServerFactoryCustomizerAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.HttpHandlerAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.ReactiveWebServerFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.WebFluxAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.error.ErrorWebFluxAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.function.client.ClientHttpConnectorAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.function.client.WebClientAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.DispatcherServletAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.ServletWebServerFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.error.ErrorMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.HttpEncodingAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.MultipartAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.reactive.WebSocketReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.servlet.WebSocketServletAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.servlet.WebSocketMessagingAutoConfiguration,\
org.springframework.boot.autoconfigure.webservices.WebServicesAutoConfiguration,\
org.springframework.boot.autoconfigure.webservices.client.WebServiceTemplateAutoConfiguration

按需开启自动配置项
虽然上面的130个场景的所有自动配置启动的时候全部都会默认加载，xxxAutoConfiguration
但是每个文件中会用到（@Conditional）,最终会按需进行配置。
例：

@Bean
@ConditionalOnBean(MultipartResolver.class)//容器中有这个类型的组件，
@ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME)//容器中没有名字为"multipartResolver"的组件
public MultipartResolver multipartResolver(MultipartResolver resolver) {
    //给@Bean方法传入了参数，这个参数的值就会从容器中找
    // Detect if the user has created a MultipartResolver but named it incorrectly
    return resolver;
}

SpringBoot默认会在地层配好所有的组件，但是如果用户配置了自己的组件则使用自己的

总结
SpringBoot先加载所有的自动配置类 XXXXAutoConfiguration
每个自动配置类按照条件进行生效，默认都会绑定配置文件指定的值，从xxxxProperties 中去拿值，xxxxProperties 和配置文件进行了绑定
生效的配置类就会给容器中装配很多组件
只要容器中有这些组件，相当于这些功能就有了
定制化配置
用户直接自己@Bean替换掉底层的组件
用户去看这个组件是获取的配置文件什么值直接进行修改。
xxxxAutoConfiguration —->组件 ——> xxxxProperties里面拿值 —->applicationProperties

最佳实践

application.properties中设置
debug=true
开启自动配置报告：(Positive matches/Negative matches)
可以看到哪些组件被注册，哪些没有被注册

开发技巧：

1.Lombok

引入依赖

<dependency>
  <groupId>org.projectlombok</groupId>
  <artifactId>lombok</artifactId>
</dependency>

安装插件。使用方法

@NoArgsConstructor//无参构造器
@AllArgsConstructor//全参构造器
@ToString//toString 方法
@Data//getter setter方法
@EqualsAndHashCode//equals和hashcode方法
@Slf4j  //用来记录日志
 log.info("请求进来了");

2.dev-tools

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-devtools</artifactId>
</dependency>

Ctrl+F9;
