行为型

观察者模式(Observer)

观察者模式也被称为发布订阅模式，在对象之间定义一个一对多的依赖，被依赖对象状态改变的时候，所有依赖的对象都会自动收到通知。下面我们通过一个例子来感受一下。

@AllArgsConstructor
@Getter
class Message{
    String msg;
}
interface Publisher{
    void register(Subscriber subscriber);
    void remove(Subscriber subscriber);
    void publish(Message msg);
}
interface Subscriber{
    void subscribe(Message msg);
}
class AnyPublisher implements Publisher{
    private final Map<Integer,Subscriber> subMap=new HashMap<>();
    @Override
    public void register(Subscriber subscriber) {
        subMap.putIfAbsent(subscriber.hashCode(),subscriber);
    }
    @Override
    public void remove(Subscriber subscriber) {
        subMap.remove(subscriber.hashCode());
    }
    @Override
    public void publish(Message msg) {
        subMap.forEach((k,v) -> {
            v.subscribe(msg);
        });
    }
}
@AllArgsConstructor
class EmailSubscriber implements Subscriber{
    private final String emailAddr;
    @Override
    public void subscribe(Message msg) {
        System.out.println(emailAddr+": "+msg.getMsg());
    }
    @Override
    public boolean equals(Object o) {
        if (this == o) return true;
        if (o == null || getClass() != o.getClass()) return false;
        EmailSubscriber that = (EmailSubscriber) o;
        return Objects.equals(emailAddr, that.emailAddr);
    }
    @Override
    public int hashCode() {
        return Objects.hash(emailAddr);
    }
}

我们再来看一下使用方法。

Publisher publisher=new AnyPublisher();
publisher.register(new EmailSubscriber("LiLei"));
publisher.register(new EmailSubscriber("HanMeiMei"));
publisher.publish(new Message("Fake News"));

假如以后我们还想通过手机短信订阅消息，那么只需要创建一个TelSubscriber对象并将其注册到Publisher中即可，至于怎样才能将消息发送到用户那儿Publisher根本不关心，它只提供消息，Subscriber对消息发送方式拥有绝对的控制权，这样一来系统的可扩展性就得到了极大的提高。

模板模式(Template)

模板方法在一个方法中定义一个算法骨架，并将某些步骤推迟到子类实现。模板方法可以让子类在不改变算法整体结构的情况下，重新定义算法中的某些步骤。例如，在JDK AbstractList类中，addAll()函数可以看作模板方法，add()方法是子类中需要重写的方法。这样一来，add()方法如何变化，都不需要重写addAll()方法，从而无论是ArrayList还是LinkedList都无需重写addAll()方法。

public abstract class AbstractList<E> extends AbstractCollection<E> implements List<E>{
    public void add(int index, E element) {
        throw new UnsupportedOperationException();
    }
    public boolean addAll(int index, Collection<? extends E> c) {
        rangeCheckForAdd(index);
        boolean modified = false;
        for (E e : c) {
            add(index++, e);
            modified = true;
        }
        return modified;
    }
}

策略模式(Strategy)

待补充

职责链模式(Chain)

待补充

状态模式

对于状态多，状态转移复杂的状态机而言，推荐使用查表法。而状态少，状态转移简单但是业务逻辑复杂的场景推荐使用状态机模式。

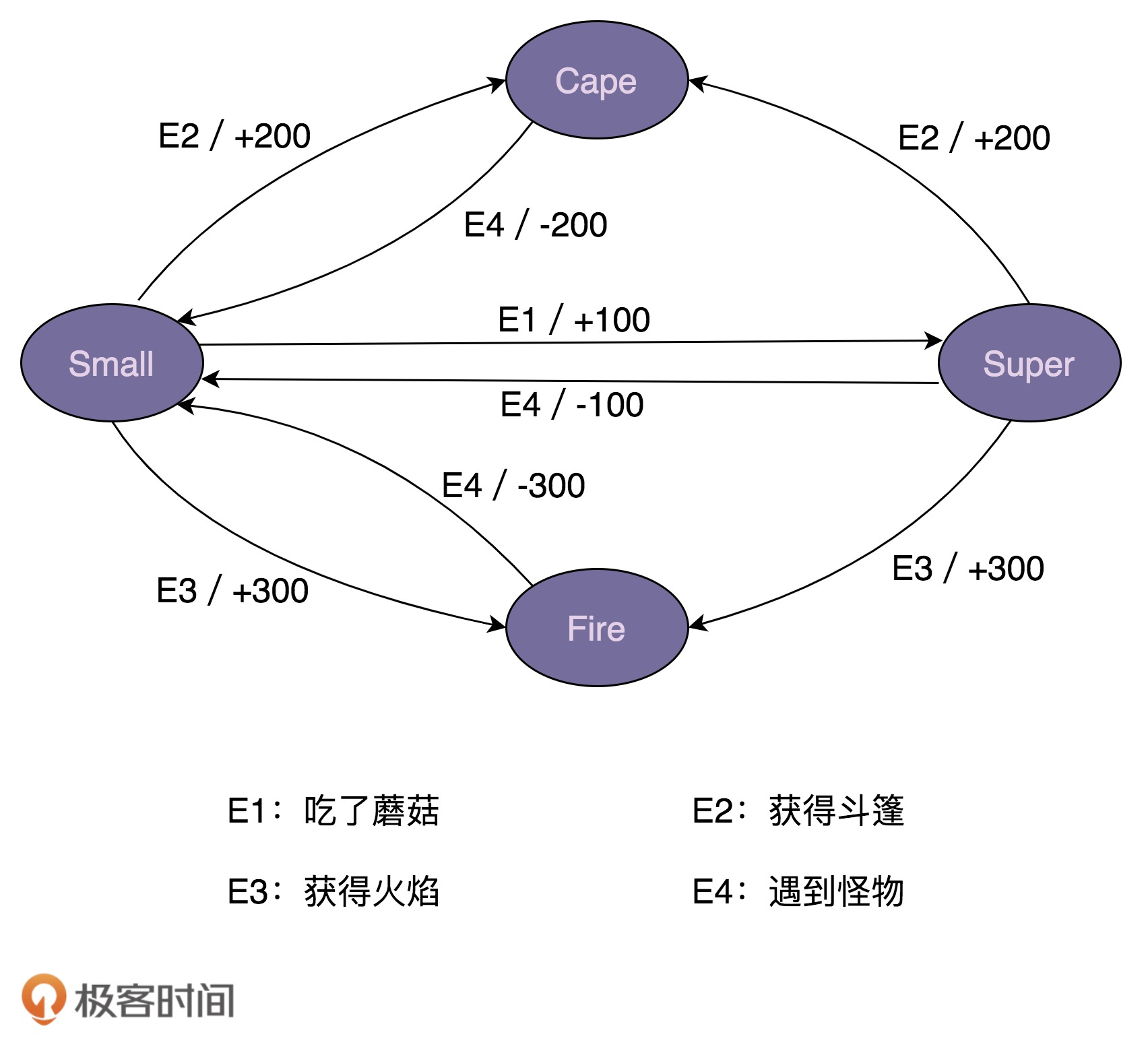

以如下的状态机为例。

enum State{
    SMALL,
    SUPER,
    FIRE,
    CAPE;
}
abstract class AbstractMario{
    State getName(){
        return State.SMALL;
    }
    void obtainMushRoom(){}
    void obtainCape(){}
    void obtainFireFlower(){}
    void meetMonster(){}
}
@AllArgsConstructor
class SmallMario extends AbstractMario{
    private final MarioStateMachine stateMachine;
    @Override
    public State getName() {
        return State.SMALL;
    }
    @Override
    public void obtainMushRoom() {
        stateMachine.setCurrentState(new SuperMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()+100);
    }
    @Override
    public void obtainCape() {
        stateMachine.setCurrentState(new CapeMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()+200);
    }
    @Override
    public void obtainFireFlower() {
        stateMachine.setCurrentState(new FireMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()+300);
    }
}
@AllArgsConstructor
class SuperMario extends AbstractMario{
    private final MarioStateMachine stateMachine;
    @Override
    public State getName() {
        return State.SUPER;
    }
    @Override
    public void obtainCape() {
        stateMachine.setCurrentState(new CapeMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()+200);
    }
    @Override
    public void obtainFireFlower() {
        stateMachine.setCurrentState(new FireMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()+300);
    }
    @Override
    public void meetMonster() {
        stateMachine.setCurrentState(new SmallMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()-100);
    }
}
@AllArgsConstructor
class FireMario extends AbstractMario{
    private final MarioStateMachine stateMachine;
    @Override
    public State getName() {
        return State.FIRE;
    }
    @Override
    public void meetMonster() {
        stateMachine.setCurrentState(new SmallMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()-300);
    }
}
@AllArgsConstructor
class CapeMario extends AbstractMario{
    private final MarioStateMachine stateMachine;
    @Override
    public State getName() {
        return State.CAPE;
    }
    @Override
    public void meetMonster() {
        stateMachine.setCurrentState(new SmallMario(stateMachine));
        stateMachine.setScore(stateMachine.getScore()-200);
    }
}
class MarioStateMachine{
    private int score;
    private AbstractMario currentState;
    public MarioStateMachine(){
        this.score=0;
        this.currentState=new SmallMario(this);
    }
    public void obtainMushRoom(){
        currentState.obtainMushRoom();
    }
    public void obtainCape(){
        currentState.obtainCape();
    }
    public void obtainFireFlower(){
        currentState.obtainFireFlower();
    }
    public void meetMonster(){
        currentState.meetMonster();
    }
    public int getScore() {
        return score;
    }
    public State getCurrentState() {
        return currentState.getName();
    }
    public void setScore(int score) {
        this.score = score;
    }
    public void setCurrentState(AbstractMario currentState) {
        this.currentState = currentState;
    }
}
