1. 镜像的结构


  • docker镜像是一个典型的分层结构
  • 只有最上面一层是可写的 其他都是只读的固化到镜像的
  • 每次推送都是增量的


镜像名称的结构

  1. ${registry_name}/${repository_name}/${image_name}:${tag_name}
  2. # 远端仓库地址/仓库名字/镜像名:镜像标签(即版本号)

例如:

  1. docker.io/library/alpine:3.10.3

2. 注册DockerHub

dockerhub：全球最大的docker官方镜像仓库，开源免费。

地址：https://hub.docker.com/

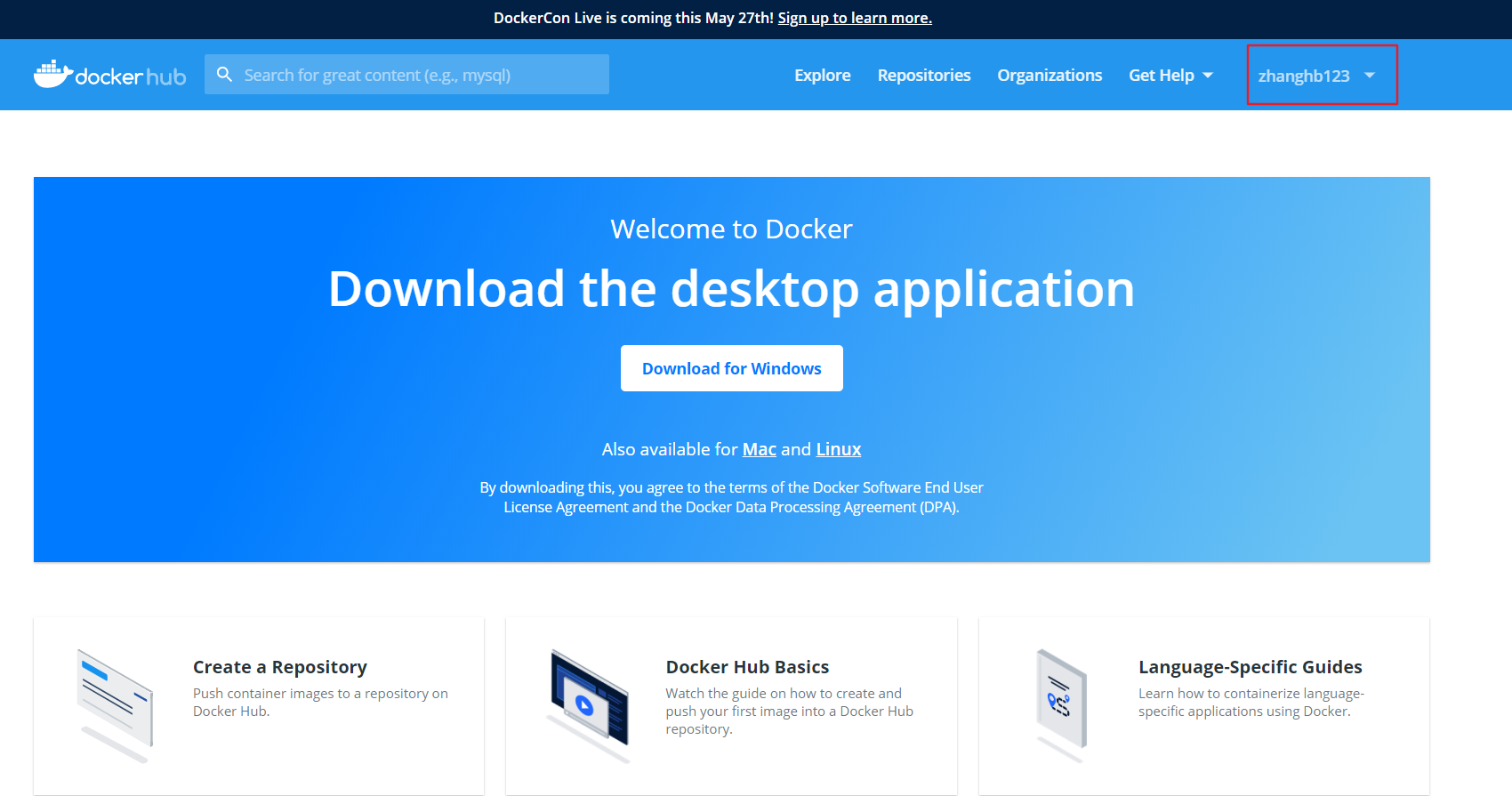

邮箱验证 —-> 登录

2.1 docker登录dockerhub：

登录到docker.io

  1. [root@localhost ~]# docker login docker.io
  2. Login with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to https://hub.docker.com to create one.
  3. Username: zhanghb123
  4. Password:
  5. WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
  6. Configure a credential helper to remove this warning. See
  7. https://docs.docker.com/engine/reference/commandline/login/#credentials-store
  9. Login Succeeded
  10. [root@localhost ~]#

2.2 查看已登录信息

  1. [root@localhost ~]# cat /root/.docker/config.json
  2. {
  3.     "auths": {
  4.             "https://index.docker.io/v1/": {
  5.                     "auth": "emhhbmdoYjEyMzpaaGIxMjMzMjFA"
  6.             }
  7.     }
  8. }[root@localhost ~]#
  9. 注: 此处的密码可以用echo "5bCP5LiR56uf5Zyo5oiR6Lqr6L65" |base64 -d 进行解码

3. 搜索镜像

dockerhub 官方镜像，也可以在浏览器登录dockerhub网页搜索

Alpine 操作系统是一个面向安全的轻型 Linux 发行版。

  1. [root@localhost ~]# docker search alpine
  2. NAME                                   DESCRIPTION                                     STARS     OFFICIAL   AUTOMATED
  3. alpine                                 A minimal Docker image based on Alpine Linux…   7337      [OK]
  4. mhart/alpine-node                      Minimal Node.js built on Alpine Linux           483
  5. anapsix/alpine-java                    Oracle Java 8 (and 7) with GLIBC 2.28 over A…   468                  [OK]
  6. frolvlad/alpine-glibc                  Alpine Docker image with glibc (~12MB)          259                  [OK]
  7. gliderlabs/alpine                      Image based on Alpine Linux will help you wi…   183
  8. alpine/git                             A  simple git container running in alpine li…   175                  [OK]
  9. yobasystems/alpine-mariadb             MariaDB running on Alpine Linux [docker] [am…   86                   [OK]
  10. alpine/socat                           Run socat command in alpine container           68                   [OK]
  11. kiasaki/alpine-postgres                PostgreSQL docker image based on Alpine Linux   44                   [OK]
  12. davidcaste/alpine-tomcat               Apache Tomcat 7/8 using Oracle Java 7/8 with…   44                   [OK]
  13. jfloff/alpine-python                   A small, more complete, Python Docker image …   40                   [OK]
  14. byrnedo/alpine-curl                    Alpine linux with curl installed and set as …   34                   [OK]
  15. hermsi/alpine-sshd                     Dockerize your OpenSSH-server with rsync and…   33                   [OK]
  16. zenika/alpine-chrome                   Chrome running in headless mode in a tiny Al…   31                   [OK]
  17. hermsi/alpine-fpm-php                  FPM-PHP 7.0 to 8.0, shipped along with tons …   25                   [OK]
  18. etopian/alpine-php-wordpress           Alpine WordPress Nginx PHP-FPM WP-CLI           24                   [OK]
  19. bashell/alpine-bash                    Alpine Linux with /bin/bash as a default she…   18                   [OK]
  20. davidcaste/alpine-java-unlimited-jce   Oracle Java 8 (and 7) with GLIBC 2.21 over A…   13                   [OK]
  21. roribio16/alpine-sqs                   Dockerized ElasticMQ server + web UI over Al…   12                   [OK]
  22. spotify/alpine                         Alpine image with `bash` and `curl`.            11                   [OK]
  23. cfmanteiga/alpine-bash-curl-jq         Docker Alpine image with Bash, curl and jq p…   6                    [OK]
  24. bushrangers/alpine-caddy               Alpine Linux Docker Container running Caddys…   1                    [OK]
  25. ellerbrock/alpine-mysql-client         MySQL Client based on Alpine Linux              1                    [OK]
  26. dwdraju/alpine-curl-jq                 Alpine Docker Image with curl, jq, bash         1                    [OK]
  27. goodguykoi/alpine-curl-internal        simple alpine image with curl installed no C…   1                    [OK]
  28. [root@localhost ~]#

4. 拉取镜像

如果不指定tag 默认下载最新版本 latest

  1. [root@localhost ~]# docker pull alpine
  2. Using default tag: latest
  3. latest: Pulling from library/alpine
  4. 540db60ca938: Pull complete
  5. Digest: sha256:69e70a79f2d41ab5d637de98c1e0b055206ba40a8145e7bddb55ccc04e13cf8f
  6. Status: Downloaded newer image for alpine:latest
  7. docker.io/library/alpine:latest  # 仓库地址/仓库/镜像名:标签(版本)
  8. [root@localhost ~]#

指定下载版本：

  1. [root@localhost ~]# docker pull alpine:3.10.3
  2. 3.10.3: Pulling from library/alpine
  3. 89d9c30c1d48: Pull complete
  4. Digest: sha256:c19173c5ada610a5989151111163d28a67368362762534d8a8121ce95cf2bd5a
  5. Status: Downloaded newer image for alpine:3.10.3
  6. docker.io/library/alpine:3.10.3
  7. [root@localhost ~]#
  9. # 如果使用官方的docker.io 可以不写前面的docker.io/library/ 因为默认就是公开的  如果是自己的或者其他仓库 需要写全

5. 镜像打标签

  1. [root@localhost ~]# docker images
  2. REPOSITORY   TAG       IMAGE ID       CREATED         SIZE
  3. alpine       latest    6dbb9cc54074   2 days ago      5.61MB
  4. alpine       3.10.3    965ea09ff2eb   18 months ago   5.55MB
  5. [root@localhost ~]# docker tag 965ea09ff2eb docker.io/zhanghb123/alpine:v3.10.3
  6. [root@localhost ~]# docker images
  7. REPOSITORY          TAG       IMAGE ID       CREATED         SIZE
  8. alpine              latest    6dbb9cc54074   2 days ago      5.61MB
  9. alpine              3.10.3    965ea09ff2eb   18 months ago   5.55MB
  10. zhanghb123/alpine   v3.10.3   965ea09ff2eb   18 months ago   5.55MB
  11. [root@localhost ~]#
  13. # IMAGE ID相同的话说明镜像是一样的 前面的tag只是一个指针 就像软链接

6. 推送至远程仓库

  1. [root@localhost ~]# docker push docker.io/zhanghb123/alpine:v3.10.3
  2. The push refers to repository [docker.io/zhanghb123/alpine]
  3. 77cae8ab23bf: Mounted from library/alpine
  4. v3.10.3: digest: sha256:e4355b66995c96b4b468159fc5c7e3540fcef961189ca13fee877798649f531a size: 528
  5. [root@localhost ~]#

推送后可以在网页看到对应的镜像

7. 删除镜像

  1. [root@localhost ~]# docker images
  2. REPOSITORY          TAG       IMAGE ID       CREATED         SIZE
  3. alpine              latest    6dbb9cc54074   2 days ago      5.61MB
  4. zhanghb123/alpine   v3.10.3   965ea09ff2eb   18 months ago   5.55MB
  5. alpine              3.10.3    965ea09ff2eb   18 months ago   5.55MB
  6. [root@localhost ~]# docker rmi 965ea09ff2eb
  7. Error response from daemon: conflict: unable to delete 965ea09ff2eb (must be forced) - image is referenced in multiple repositories  # #这个ID有多个tag 所以需要用-f 来删除
  8. [root@localhost ~]# docker rmi -f 965ea09ff2eb
  9. Untagged: alpine:3.10.3
  10. Untagged: alpine@sha256:c19173c5ada610a5989151111163d28a67368362762534d8a8121ce95cf2bd5a  # 先去掉tag再删除
  11. Untagged: zhanghb123/alpine:v3.10.3
  12. Untagged: zhanghb123/alpine@sha256:e4355b66995c96b4b468159fc5c7e3540fcef961189ca13fee877798649f531a
  13. Deleted: sha256:965ea09ff2ebd2b9eeec88cd822ce156f6674c7e99be082c7efac3c62f3ff652
  14. Deleted: sha256:77cae8ab23bf486355d1b3191259705374f4a11d483b24964d2f729dd8c076a0
  15. [root@localhost ~]# docker images
  16. REPOSITORY   TAG       IMAGE ID       CREATED      SIZE
  17. alpine       latest    6dbb9cc54074   2 days ago   5.61MB
  18. [root@localhost ~]#
  20. # 上面的删除操作只是删除了本地的镜像，不会对远程仓库的镜像产生影响
