1. Mach-O
Mach-O(Mach Object)是macOS、iOS、iPadOS 存储程序（可执行文件）、库（动态库和静态库）或者目标文件（.o）的文件格式，是一个可读可写的二进制文件。对应系统通过应用二进制接口(application binary interface，缩写为ABI)来运行该格式的文件。
Mach-O格式用来替代BSD系统的a.out格式。Mach-O文件格式保存了在 编译过程和链接过程中产生的机器代码和数据，从而为静态链接和动态链接的代码提供了单一文件格式。
2. 可执行文件的调用过程：
- 调用
fork函数，创建一个process
2. 调用execve或其衍生函数，在该进程上加载Mach-O文件到虚拟内存中
3. 开始分析Mach-O中的Mach Header，以确认它是有效可执行的Mach-O文件，即文件类型为EXCUTE的。3. mach-o内部的格式

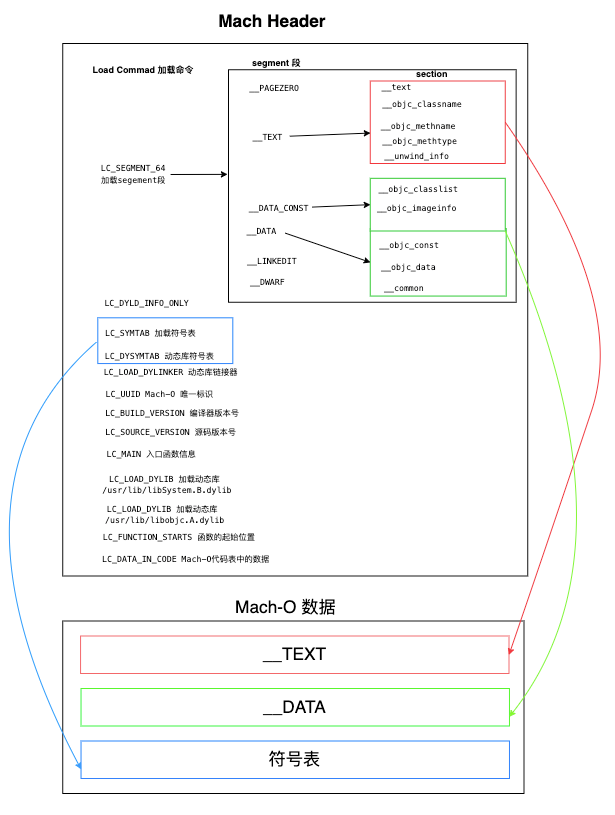

Mach-O = Mach Header + 二进制代码. 如下图所示：
header 中存放的是Mach-O的配置信息，包含Mach-O文件的类型，动态库信息，静态库信息，代码段的大小及偏移，main函数的位置，链接器等信息。3.1 Mach-O 可读
3.1.1 读取 Mach Header
objdump和otool命令，均可读取 Mach-O 内部数据。1. 读取 Mach Header 总览信息
获取 Mach-O 的一些基础信息，如支持的CPU架构、文件的类型、Load Commond数量及大小等。 ``` // 读取 Mach Header（可读性比较好） // —macho 可缩写为 -m objdump —macho -private-header ${MACH-PATH}
// 显示整个文件头的内容， 缩写为 -f —file-headers - Display the contents of the overall file header

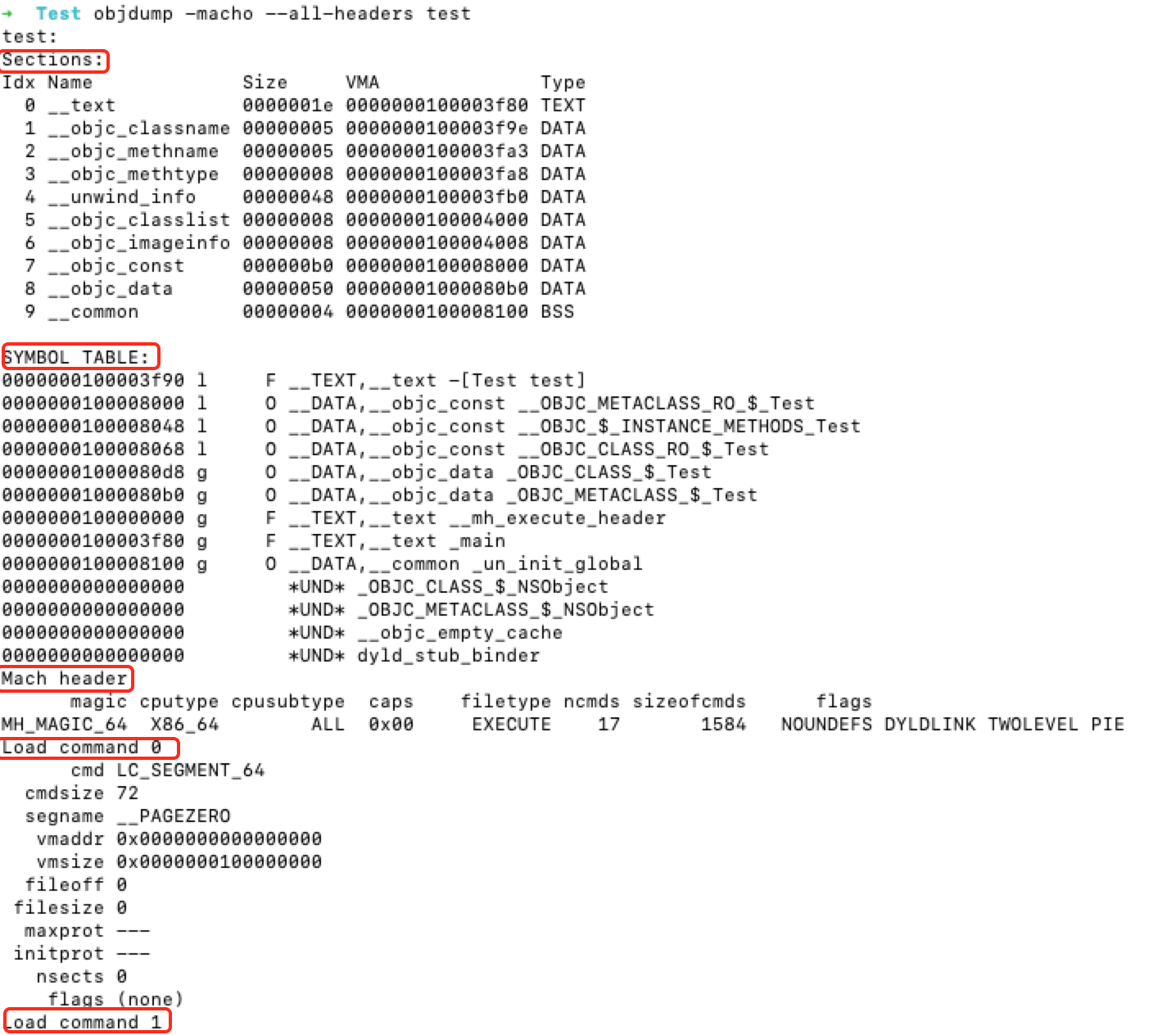

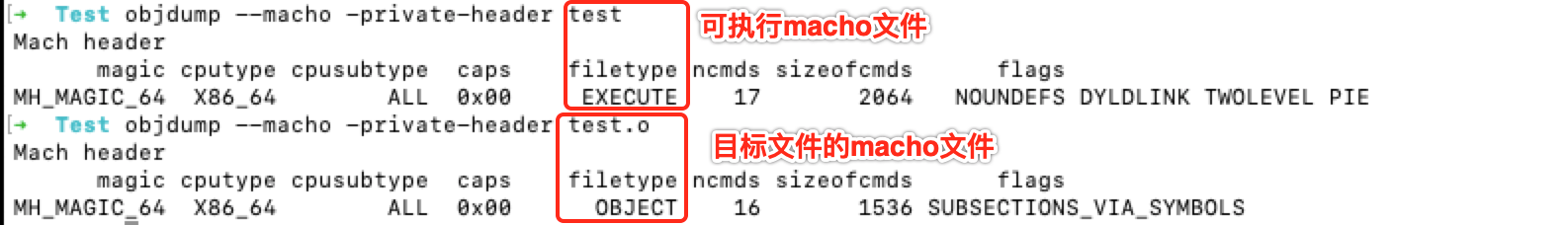

随便找一个 Mach-O 文件，执行一下：<br /><br />**与目标文件的格式一样，动态库与静态库的类型为OBJECT ,只能被链接，不能被执行。**<a name="Rzsdy"></a>#### 2.读取 Mach Header 的所有信息
// —all-headers 可缩写为-x objdump -macho —all-headers test
<a name="NGTu7"></a>

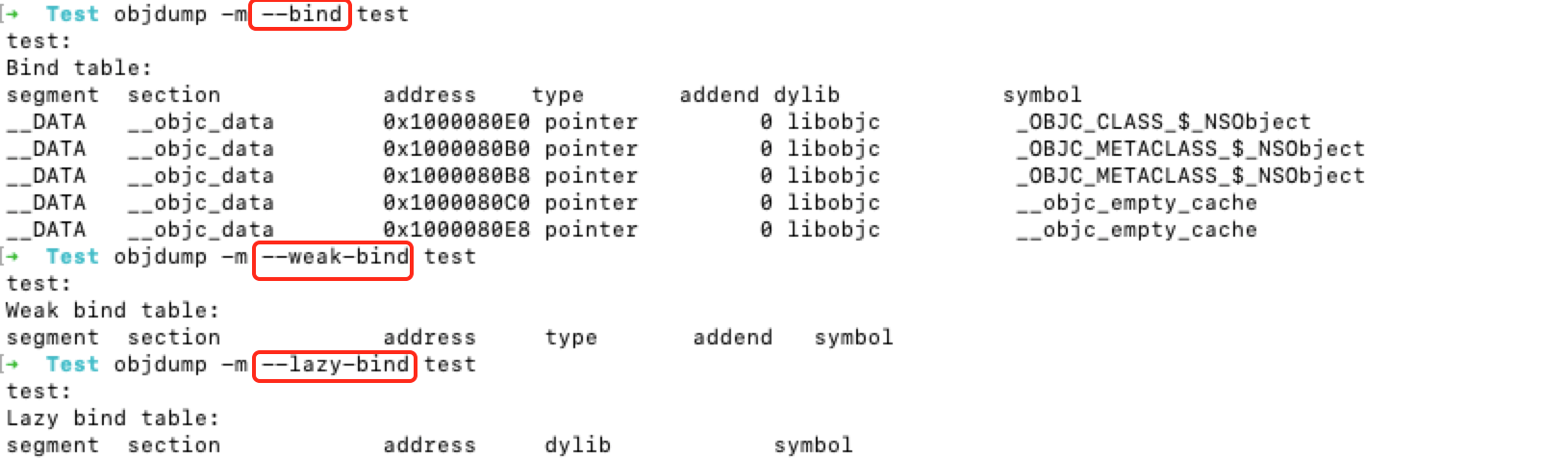

### 3.1.2 读取Mach-O绑定信息
—bind - Display mach-o binding inf —lazy-bind - Display mach-o lazy binding info —weak-bind - Display mach-o weak binding info
<a name="Aitlp"></a>
###
<a name="nTZaE"></a>
### 3.1.4 显示机器指令的汇编助记符
// -d - Alias for —disassemble
—disassemble - Display assembler mnemonics for the machine instructions
// -D - Alias for —disassemble-all
—disassemble-all - Display assembler mnemonics for the machine instructions
—disassemble-functions=
```

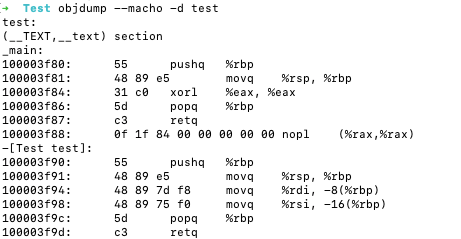

// 读取__TEXT段机器指令的汇编助记符
objdump --macho -d ${MACH-PATH}
__text 中存储的代码：
3.1.5 读取 section 信息

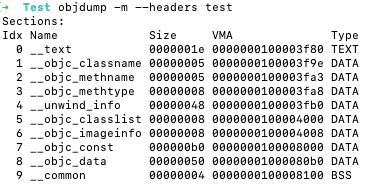

1.读取 section header 的信息
// --section-headers可缩写为 --headers 或者 -h
objdump -m --section-headers test
2. 读取section 全部信息
// 缩写为-s
objdump -m --full-contents test.o
3.1.6 objdump所有参数
objdump --help查看帮助文档，或者man objdump
USAGE: objdump [options] <input object files>
OPTIONS:
Generic Options:
--help - Display available options (--help-hidden for more)
--help-list - Display list of available options (--help-list-hidden for more)
--version - Display the version of this program
llvm-objdump MachO Specific Options:
--arch=<string> - architecture(s) from a Mach-O file to dump
--archive-member-offsets - Print the offset to each archive member for Mach-O archives (requires -macho and -archive-headers)
--bind - Display mach-o binding info
--data-in-code - Print the data in code table for Mach-O objects (requires -macho)
--dis-symname=<string> - disassemble just this symbol's instructions (requires -macho)
--dsym=<string> - Use .dSYM file for debug info
--dylib-id - Print the shared library's id for the dylib Mach-O file (requires -macho)
--dylibs-used - Print the shared libraries used for linked Mach-O files (requires -macho)
--exports-trie - Display mach-o exported symbols
--full-leading-addr - Print full leading address
-g - Print line information from debug info if available
--indirect-symbols - Print indirect symbol table for Mach-O objects (requires -macho)
--info-plist - Print the info plist section as strings for Mach-O objects (requires -macho)
--lazy-bind - Display mach-o lazy binding info
--link-opt-hints - Print the linker optimization hints for Mach-O objects (requires -macho)
--no-leading-headers - Print no leading headers
--no-symbolic-operands - do not symbolic operands when disassembling (requires -macho)
--non-verbose - Print the info for Mach-O objects in non-verbose or numeric form (requires -macho)
--objc-meta-data - Print the Objective-C runtime meta data for Mach-O files (requires -macho)
--private-header - Display only the first format specific file header
--rebase - Display mach-o rebasing info
--universal-headers - Print Mach-O universal headers (requires -macho)
--weak-bind - Display mach-o weak binding info
llvm-objdump Options:
-C - Alias for --demangle
-D - Alias for --disassemble-all
-M - Alias for --disassembler-options
-R - Alias for --dynamic-reloc
-S - Alias for -source
-a - Alias for --archive-headers
--adjust-vma=<offset> - Increase the displayed address by the specified offset
--all-headers - Display all available header information
--arch-name=<string> - Target arch to disassemble for, see -version for available targets
--archive-headers - Display archive header information
-d - Alias for --disassemble
--demangle - Demangle symbols names
--disassemble - Display assembler mnemonics for the machine instructions
--disassemble-all - Display assembler mnemonics for the machine instructions
--disassemble-functions=<string> - List of functions to disassemble. Accept demangled names when --demangle is specified, otherwise accept mangled names
--disassemble-zeroes - Do not skip blocks of zeroes when disassembling
--disassembler-options=<options> - Pass target specific disassembler options
--dwarf=<value> - Dump of dwarf debug sections:
=frames - .debug_frame
--dynamic-reloc - Display the dynamic relocation entries in the file
-f - Alias for --file-headers
--fault-map-section - Display contents of faultmap section
--file-headers - Display the contents of the overall file header
--full-contents - Display the content of each section
-h - Alias for --section-headers
--headers - Alias for --section-headers
-j - Alias for --section
-l - Alias for --line-numbers
--line-numbers - Display source line numbers with disassembly. Implies disassemble object
-m - Alias for --macho
--macho - Use MachO specific object file parser
--mattr=<a1,+a2,-a3,...> - Target specific attributes
--mcpu=<cpu-name> - Target a specific cpu type (-mcpu=help for details)
--no-leading-addr - Print no leading address
--no-show-raw-insn - When disassembling instructions, do not print the instruction bytes.
-p - Alias for --private-headers
--print-imm-hex - Use hex format for immediate values
--private-headers - Display format specific file headers
-r - Alias for --reloc
--raw-clang-ast - Dump the raw binary contents of the clang AST section
--reloc - Display the relocation entries in the file
-s - Alias for --full-contents
--section=<string> - Operate on the specified sections only. With -macho dump segment,section
--section-headers - Display summaries of the headers for each section.
--show-lma - Display LMA column when dumping ELF section headers
--source - Display source inlined with disassembly. Implies disassemble object
--start-address=<address> - Disassemble beginning at address
--stop-address=<address> - Stop disassembly at address
--syms - Display the symbol table
-t - Alias for --syms
--triple=<string> - Target triple to disassemble for, see -version for available targets
-u - Alias for --unwind-info
--unwind-info - Display unwind information
--wide - Ignored for compatibility with GNU objdump
-x - Alias for --all-headers
-z - Alias for --disassemble-zeroes
3.1.7 otool

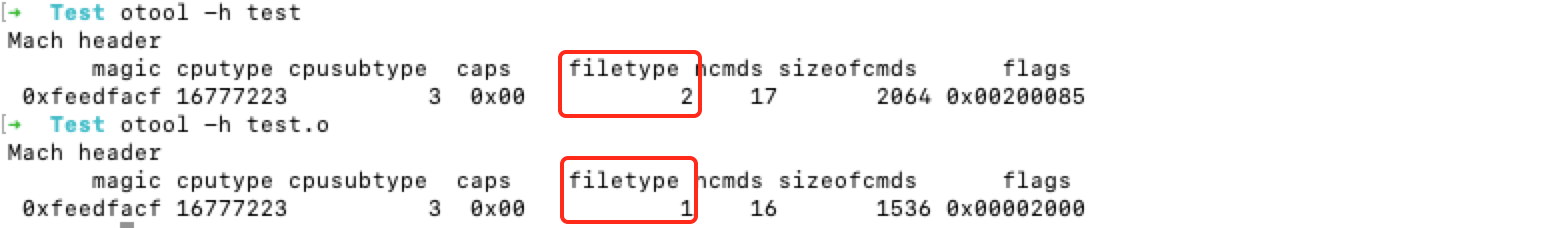

// 读取 Mach Header 所有原始信息（可读性比较差）
otool -h ${MACH-PATH}

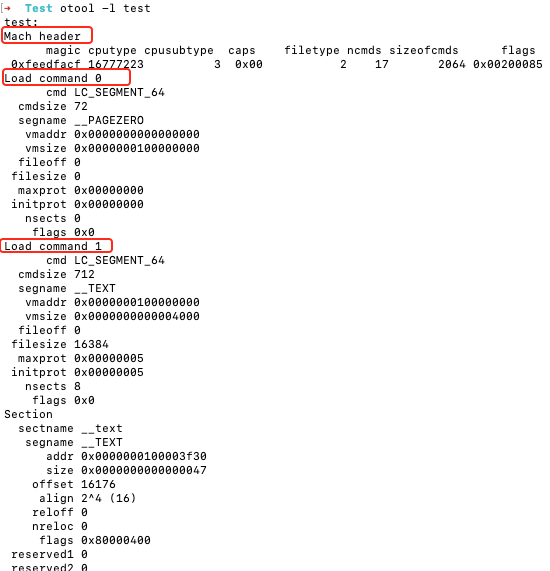

// 读取 Mach-O load commad 信息
otool -l ${MACH-PATH}
otool 所有命令：man otool
otool [-arch arch_type] [-fahlLDtdorSTMRIHGvVcXmqQjCP] [-mcpu=arg] [--version] <object file> ...
-f print the fat headers
-a print the archive header
-h print the mach header
-l print the load commands
-L print shared libraries used
-D print shared library id name
-t print the text section (disassemble with -v)
-x print all text sections (disassemble with -v)
-p <routine name> start dissassemble from routine name
-s <segname> <sectname> print contents of section
-d print the data section
-o print the Objective-C segment
-r print the relocation entries
-S print the table of contents of a library (obsolete)
-T print the table of contents of a dynamic shared library (obsolete)
-M print the module table of a dynamic shared library (obsolete)
-R print the reference table of a dynamic shared library (obsolete)
-I print the indirect symbol table
-H print the two-level hints table (obsolete)
-G print the data in code table
-v print verbosely (symbolically) when possible
-V print disassembled operands symbolically
-c print argument strings of a core file
-X print no leading addresses or headers
-m don't use archive(member) syntax
-B force Thumb disassembly (ARM objects only)
-q use llvm's disassembler (the default)
-Q use otool(1)'s disassembler
-mcpu=arg use `arg' as the cpu for disassembly
-j print opcode bytes
-P print the info plist section as strings
-C print linker optimization hints
--version print the version of /Applications/Xcode.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/otool
2. Mach-O 可写
macho可修改，修改后需要重新签名。 2016年，iphone7,8的时候，限制TEXT.text 段最大60M，现在改成500M了，有项目比较大的人，为了符合苹果规定，将text 移到别的段，同时对应修改了 Mach Header 中指向text 的 LOAD Commad __TEXT ，然后重新签名上架。
