ssm 整合

新建一个maven项目

1. 导入依赖

  1. <dependencies>
  2.     <!--数据库连接池-->
  3.     <dependency>
  4.       <groupId>com.mchange</groupId>
  5.       <artifactId>c3p0</artifactId>
  6.       <version>0.9.5.2</version>
  7.     </dependency>
  8.     <dependency>
  9.       <groupId>mysql</groupId>
  10.       <artifactId>mysql-connector-java</artifactId>
  11.       <version>8.0.25</version>
  12.     </dependency>
  13.     <!--spring-->
  14.     <dependency>
  15.       <groupId>org.springframework</groupId>
  16.       <artifactId>spring-context</artifactId>
  17.       <version>5.1.5.RELEASE</version>
  18.     </dependency>
  19.     <dependency>
  20.       <groupId>org.springframework</groupId>
  21.       <artifactId>spring-jdbc</artifactId>
  22.       <version>5.1.5.RELEASE</version>
  23.     </dependency>
  24.     <dependency>
  25.       <groupId>org.springframework</groupId>
  26.       <artifactId>spring-aspects</artifactId>
  27.       <version>5.1.5.RELEASE</version>
  28.     </dependency>
  29.     <dependency>
  30.       <groupId>org.springframework</groupId>
  31.       <artifactId>spring-webmvc</artifactId>
  32.       <version>5.1.5.RELEASE</version>
  33.     </dependency>
  34.     <!--mybatis-->
  35.     <dependency>
  36.       <groupId>org.mybatis</groupId>
  37.       <artifactId>mybatis</artifactId>
  38.       <version>3.5.0</version>
  39.     </dependency>
  40.     <!--整合中间包-->
  41.     <dependency>
  42.       <groupId>org.mybatis</groupId>
  43.       <artifactId>mybatis-spring</artifactId>
  44.       <version>2.0.6</version>
  45.     </dependency>
  46.     <dependency>
  47.       <groupId>com.alibaba</groupId>
  48.       <artifactId>fastjson</artifactId>
  49.       <version>1.2.75</version>
  50.     </dependency>
  51.   </dependencies>

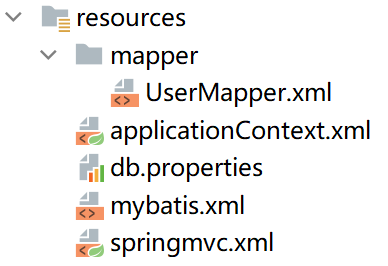

2. 准备配置文件

先从其他项目中弄这些配置文件过来即可，里面的内容后面再改，先凑齐文件
SSM框架整合 - 图1

3. 配置分发器和监听器

  1. <?xml version="1.0" encoding="UTF-8"?>
  2. <web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
  3.          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4.          xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
  5.                   http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
  6.          version="4.0">
  7.     <display-name>Archetype Created Web Application</display-name>
  9.     <!--spring监听器-->
  10.     <context-param>
  11.         <param-name>contextConfigLocation</param-name>
  12.         <param-value>classpath:applicationContext.xml</param-value>
  13.     </context-param>
  14.     <listener>
  15.         <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  16.     </listener>
  18.     <!--springmvc分发器-->
  19.     <servlet>
  20.         <servlet-name>springmvc</servlet-name>
  21.         <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
  22.         <init-param>
  23.             <param-name>contextConfigLocation</param-name>
  24.             <param-value>classpath:springmvc.xml</param-value>
  25.         </init-param>
  26.     </servlet>
  27.     <servlet-mapping>
  28.         <servlet-name>springmvc</servlet-name>
  29.         <url-pattern>/</url-pattern>
  30.     </servlet-mapping>
  32. </web-app>

4. 建表，写实体类，接口

SSM框架整合 - 图2SSM框架整合 - 图3SSM框架整合 - 图4

5. 开始所有配置文件

mybatis.xml

  1. <?xml version="1.0" encoding="UTF-8" ?>
  2. <!DOCTYPE configuration
  3.         PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  4.         "http://mybatis.org/dtd/mybatis-3-config.dtd">
  5. <configuration>
  7.     <settings>
  8.         <setting name="logImpl" value="STDOUT_LOGGING"/>
  9.     </settings>
  11. </configuration>

db.properties

  1. driver=com.mysql.cj.jdbc.Driver
  2. url=jdbc:mysql:///test?serverTimezone=Asia/Shanghai
  3. user=root
  4. password=root

applicationContext.xml

  1. 包扫描
  2. 引入 db.properties 文件
  3. 配置数据源
  4. 配置 SqlSessionFactoryBean
  5. 配置接口扫描

  6. 事务管理器

    1. <?xml version="1.0" encoding="UTF-8"?>
    2. <beans xmlns="http://www.springframework.org/schema/beans"
    3.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.     xmlns:context="http://www.springframework.org/schema/context"
    5.     xmlns:aop="http://www.springframework.org/schema/aop"
    6.     xsi:schemaLocation="http://www.springframework.org/schema/beans
    7.     http://www.springframework.org/schema/beans/spring-beans.xsd
    8.     http://www.springframework.org/schema/context
    9.     http://www.springframework.org/schema/context/spring-context.xsd
    10.     http://www.springframework.org/schema/aop
    11.     http://www.springframework.org/schema/aop/spring-aop.xsd">
    13.  <context:component-scan base-package="com.bdqn"/>
    15.  <context:property-placeholder location="classpath:db.properties"/>
    17.  <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
    18.      <property name="driverClass" value="${driver}"/>
    19.      <property name="jdbcUrl" value="${url}"/>
    20.      <property name="user" value="${user}"/>
    21.      <property name="password" value="${password}"/>
    22.  </bean>
    24.  <bean id="factoryBean" class="org.mybatis.spring.SqlSessionFactoryBean">
    25.      <property name="dataSource" ref="dataSource"/>
    26.      <property name="configLocation" value="classpath:mybatis.xml"/>
    27.      <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    28.      <property name="typeAliasesPackage" value="com.bdqn.entity"/>
    29.  </bean>
    31.  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    32.      <property name="sqlSessionFactoryBeanName" value="factoryBean"/>
    33.      <property name="basePackage" value="com.bdqn.dao"/>
    34.  </bean>
    36.  <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    37.      <property name="dataSource" ref="dataSource"/>
    38.  </bean>
    40.  <aop:aspectj-autoproxy/><!--注解aop-->
    41. </beans>

    springmvc.xml

  7. 包扫描

  8. 视图解析器
  9. json数据转换器

  10. 静态资源拦截配置 ```c <?xml version=”1.0” encoding=”UTF-8”?>

    1.  <mvc:message-converters>
    2.      <bean class="com.alibaba.fastjson.support.spring.FastJsonHttpMessageConverter">
    3.          <property name="supportedMediaTypes">
    4.              <list>
    5.                  <value>application/json;charset=utf-8</value>
    6.              </list>
    7.          </property>
    8.          <property name="features">
    9.              <list>
    10.                  <value>WriteDateUseDateFormat</value>
    11.              </list>
    12.          </property>
    13.      </bean>
    14.  </mvc:message-converters>

<a name="cdHTJ"></a>
## 6. mybatis 映射文件
mapper/UserMapper.xml
```c
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.bdqn.dao.UserDao">

    <select id="findAll" resultType="user">
        select * from user
    </select>

</mapper>

7. 测试代码

@Service
public class UserService {

    @Autowired
    UserDao dao;

    public List<User> findAll(){
        return dao.findAll();
    }
}

@Controller
public class UserController {

    @Autowired
    UserService service;

    @ResponseBody
    @GetMapping("/list")
    public List<User> list() {
        return service.findAll();
    }
}

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
    <script src="/static/jquery-3.4.1.min.js"></script>
</head>
<body>

<script>
    $.getJSON("/list", function (data) {
        console.log(data)
    })
</script>

</body>
</html>

SSM框架整合 - 图5

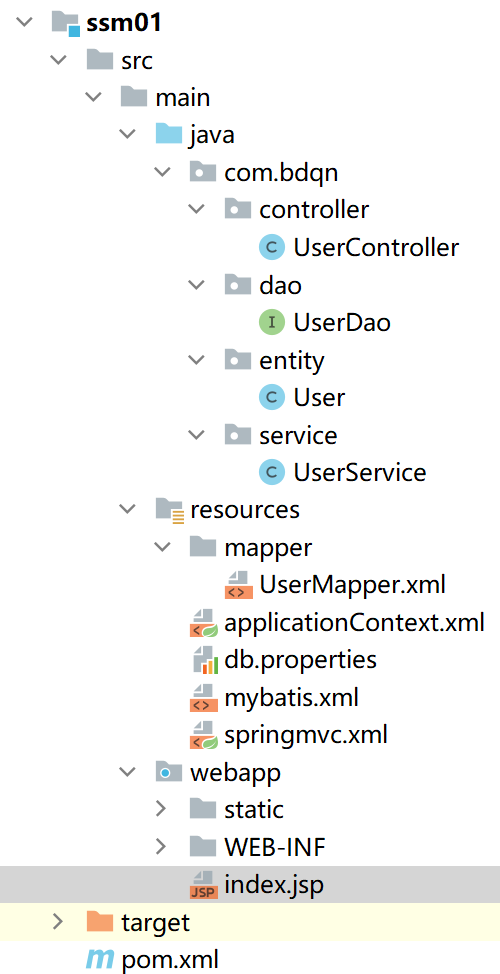

项目结构如下：
SSM框架整合 - 图6
