在kubectl命令服务器上找到当初配置连接集群时的 config 文件，位置在 ~/.kube/config

    1. [root@master1 ~]# cd .kube/
    2. [root@master1 .kube]# ls
    3. cache  config  http-cache
    4. [root@master1 .kube]# cat config
    5. apiVersion: v1
    6. clusters:
    7. - cluster:
    8.     certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURsRENDQW55Z0F3SUJBZ0lVYmgxTHNvR1BqUXcxclc0OEY4ZGM5c1pnZlFFd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1lURUxNQWtHQTFVRUJoTUNRMDR4RVRBUEJnTlZCQWdUQ0VoaGJtZGFhRzkxTVFzd0NRWURWUVFIRXdKWQpVekVNTUFvR0ExVUVDaE1EYXpoek1ROHdEUVlEVlFRTEV3WlRlWE4wWlcweEV6QVJCZ05WQkFNVENtdDFZbVZ5CmJtVjBaWE13SUJjTk1qSXdNekUxTURnd05qQXdXaGdQTWpFeU1qQXlNVGt3T0RBMk1EQmFNR0V4Q3pBSkJnTlYKQkFZVEFrTk9NUkV3RHdZRFZRUUlFd2hJWVc1bldtaHZkVEVMTUFrR0ExVUVCeE1DV0ZNeEREQUtCZ05WQkFvVApBMnM0Y3pFUE1BMEdBMVVFQ3hNR1UzbHpkR1Z0TVJNd0VRWURWUVFERXdwcmRXSmxjbTVsZEdWek1JSUJJakFOCkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQTFnOVprOE5tMks4NVRYMjVlemVidWMyL1lYZUUKeHhTdVFXVkdPMk42R2I2OXV0SWIxRTk5ckxHRHJKcVY3SnN2M2tVanhpWElVVElhdWxtaXRXNDdBN1lOVmVvbQpPSDFvdmNVaGtBUHJ2MG1qMDE4Ui91dDBXZGdWR20ySmtzTVpoVHhXOFBkSDk1S0dTSVBBdERiWDdub0I4TFdQCnloQ1BSWHcrbTdkWXJ2N3FHS1d0SlJXTjY0azhzMm4weWFMb0luMUhhUFdRSFZvR2d1bFg5NlEyak1VWFlxY1MKWkZMbG9GaDN4cThVK3RlM1NZZklOU1J1UFFMYjZzQ3dYU3BZRnRCMWx0M3ZKNlh0YUV2TkVOeER4ZUltTlBOLwpoMEh5WmVGM29NZ1o2cSsyeS85M0JQeTlkN3lDNGJIRVl6VTFBUnBpb1BiMEdQVHVla1VXREJMMXd3SURBUUFCCm8wSXdRREFPQmdOVkhROEJBZjhFQkFNQ0FRWXdEd1lEVlIwVEFRSC9CQVV3QXdFQi96QWRCZ05WSFE0RUZnUVUKaktNNGJaT1dzRy9MWXRYVW5Dd0JkZExHeFJRd0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFIekI2L3h6Y0tYTQpjY2xhclZSV0hrK3BEVGtLcEZNdENwK1JEUEJEK3JqYzNaNFJlTW0vYlY2ak1sVTcvYVYxTm05aklNNGJpZVNGCjlKaGhySjlhK1F0MTQyV1QxRmZESnkyUGdxZVNMZk5pM1pveG5mOEF0bmVsZEVNMTFvbU1rczc5V0NDTFp2bWsKM1VIM1lrM05HSHF4enRxTEJvQTA0M2lqZ1NidnhGNDNMTUZIaGhXOHR5eU1wRktRMS9GdjY5QWtOclAwTXpiOApDbXd1NFZkWFhud1gvQ2dpandydTFxV0hnRGRWQVV6UTdYeGpCMVl4Qm5YanFLb01wL05WeW14QWQvVXdEQVZzCnppR0NIaTlQbzJBVmcyc213MWY0REVKbE1rMEZBV1VVbGQxT0VFT1BVTG5xbUpjSU5OSzgrUnIyRWdaOFZMbzAKQ1QxZGxhK0lkUTQ9Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
    9.     server: https://127.0.0.1:6443
    10.   name: cluster1
    11. contexts:
    12. - context:
    13.     cluster: cluster1
    14.     user: admin
    15.   name: context-cluster1
    16. current-context: context-cluster1
    17. kind: Config
    18. preferences: {}
    19. users:
    20. - name: admin
    21.   user:
    22.     client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQxekNDQXIrZ0F3SUJBZ0lVSkNheVRFZ3JCbm14TG11WVZCZ2pQV2ZPZ1BRd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1lURUxNQWtHQTFVRUJoTUNRMDR4RVRBUEJnTlZCQWdUQ0VoaGJtZGFhRzkxTVFzd0NRWURWUVFIRXdKWQpVekVNTUFvR0ExVUVDaE1EYXpoek1ROHdEUVlEVlFRTEV3WlRlWE4wWlcweEV6QVJCZ05WQkFNVENtdDFZbVZ5CmJtVjBaWE13SUJjTk1qSXdNekUxTURnek5EQXdXaGdQTWpBM01qQXpNREl3T0RNME1EQmFNR2N4Q3pBSkJnTlYKQkFZVEFrTk9NUkV3RHdZRFZRUUlFd2hJWVc1bldtaHZkVEVMTUFrR0ExVUVCeE1DV0ZNeEZ6QVZCZ05WQkFvVApEbk41YzNSbGJUcHRZWE4wWlhKek1ROHdEUVlEVlFRTEV3WlRlWE4wWlcweERqQU1CZ05WQkFNVEJXRmtiV2x1Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBK0NDQ2FoUGEvWGhTdFloRmVXYkoKSGxpeFUvQ1pFWi9MMzVLTUdGN3ZqNWcvWURYSlkzSzd6eDZ1WUI2WDhJTFYzL3VpRGZxWUpNWGtTVkxFeEF4YQp2OXJ1MW85Z05JZkc1cnRuNVE3V2RRaFpOV3pBQ3dPbWlIYzVDSkptbU1rVU1Gb0VQaDI4N1hvV2lzVWNoRGttCjBwUVdwUktVcENUelJndy9xRkJCMStPZWExV0gyc2V0THRnbmhkNlpkaTgvV0ZYMHM5ZzBKUGVXWE9adFdxU0IKQXNOcmtrTlZYK3RYRzBBUzU2Vk5xZTIvOHg5UFdrK2VKSTFCZ0lWbmN5S3ROY1ZTL0EvUWNkN3RYZms3dnFxSAo4THYwQTBJY3FqdU1TTlJ3UklNZTc1dnFGTHUzVlBSY0VxenZnejNiekN6MlIwZmY4ak1zNnQzOUVoNXZSd3hZCmx3SURBUUFCbzM4d2ZUQU9CZ05WSFE4QkFmOEVCQU1DQmFBd0hRWURWUjBsQkJZd0ZBWUlLd1lCQlFVSEF3RUcKQ0NzR0FRVUZCd01DTUF3R0ExVWRFd0VCL3dRQ01BQXdIUVlEVlIwT0JCWUVGRlFWMklodnZsNm9XY2pqNk83RApzMlg3OHlVTU1COEdBMVVkSXdRWU1CYUFGSXlqT0cyVGxyQnZ5MkxWMUp3c0FYWFN4c1VVTUEwR0NTcUdTSWIzCkRRRUJDd1VBQTRJQkFRQUxDdHo1MFJ1d2Q1aWs4MFlmWWVyUlphbHBzczhZVzgwT1VnN3E3R2lNMEdMZGZUTUoKcXVDT0drM1NjZ0RQNmFuZWFGN3BFcEVWN0UzbVRFd0FYR0NNVGMyTlZiYTVNVTViaW51RElVTHdybUMybFhGNQo1aFpXZVNOYmdxTVlGMkgydk5JeHlDT2s1YzhtVllUVEZNRTh1cVVnbVpnOW8rK2UyNzEwTnNQa01waG5uQjloCjIrLzVqWjNweG53VmhRaGloNGVnQUlVTDFNUWJXbkZMT1V4TlhpRlpmSnoyK2V2YnFTSnQ4QWdVeE5SL0hzMloKYTdYdHQxWXd1VDRTSDM3MjBGOXE1Y216OHhJQ1A5REVyNzVkajlmT1Z0RnNPUEpmMFlNWGtGSTZBdkh4NTE5NAoxM254RG9ZRUZtNEZ4NEpxb3k5NVdodDE1bFIwMEJETEpFOHUKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
    23.     client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBK0NDQ2FoUGEvWGhTdFloRmVXYkpIbGl4VS9DWkVaL0wzNUtNR0Y3dmo1Zy9ZRFhKClkzSzd6eDZ1WUI2WDhJTFYzL3VpRGZxWUpNWGtTVkxFeEF4YXY5cnUxbzlnTklmRzVydG41UTdXZFFoWk5XekEKQ3dPbWlIYzVDSkptbU1rVU1Gb0VQaDI4N1hvV2lzVWNoRGttMHBRV3BSS1VwQ1R6Umd3L3FGQkIxK09lYTFXSAoyc2V0THRnbmhkNlpkaTgvV0ZYMHM5ZzBKUGVXWE9adFdxU0JBc05ya2tOVlgrdFhHMEFTNTZWTnFlMi84eDlQCldrK2VKSTFCZ0lWbmN5S3ROY1ZTL0EvUWNkN3RYZms3dnFxSDhMdjBBMEljcWp1TVNOUndSSU1lNzV2cUZMdTMKVlBSY0VxenZnejNiekN6MlIwZmY4ak1zNnQzOUVoNXZSd3hZbHdJREFRQUJBb0lCQVFEZXpGb3VJL3dNZzJGSgpEYjdNWHVZU2NMTngydVduTktSYzhYc0lXeDZqQXFOTm9aNWV4T1FzKzdDNk1GNWdJU3NvZnd1cG42M0R2MG5ZCktSRHp0T0E3eTd1UVA1ZTBNNEwvSmFJSnhNUCt2R3RXRkh0d3FHdDl1QWduVVVYOHhQbHkzVEZZRVYzV296emcKaUZPdHlwKzRrQzZ4TkxqeGx4ZzJlc01pUUVhUE1WZ2lmL2taMnk1eVZyQUJDREJheXh5RW5vRGRZb1NLQTdRTgpDTGY3UHl6NThCZnRzUmpNejBLd24xSkFyNDd4d21KSGhEQmsyWC9RWXhQYzRQZ012OGZHblBnMHdtemQ0azk3CkdQMzFLRDh0NVVxejhPNUpGWkUwa25FeTBmNDRyT05NNnhIQjVLMm8yb2FrTFA5bE15VW9PZjJxMFNhV1FDOFIKdkhuK2FjNHhBb0dCQVBpU1c3eWdwZyt4MjFiUVJ6QncrcUNiNzBkMCtsLzBGKzRYZnV6ZVRldmlMQ0lyNHNQSQpiU3ZqRzdYb2xQb0R5NUNFcFRSNmN4S1oza1FDQitYNXllOGlaZGt2QTNSaGF4cVNaOXpHcGN5Sis0N2ZPbmNqClVGbHBodHJCRlFURm9ubFlNM0dXRnZoekpxTXk4NDVTUFVQNEx4d2EybE1lMUNPL0ZZV0ZHN1Z2QW9HQkFQK0sKdjdQQStJc0R4b3RTNTZVVGFEblVFUUUvNmN2NXJTd1YwNU5RVkl1dXNTbWsxN0c0Q0ZYY2NWbTJQS0NKMnZyZwpYb1FZR1F1eE8xSG9KVmJaOGV2MHlZL215QjFETTZ3KzU0UEJCcUd6QzErbVVtYUtHNjVnTENjN3FiYTBqMjNMCjZLejdXblBXcjJXeHdtMm9vVFFCa2UzVXJtQU5takIxNHdLc0NZdFpBb0dCQVBNNFVtY0pVak85TmYrR0lJSTMKcWlTSkwrSmRoYmRwNGhob0NSdkFrY0lqTmtmaFpTdG82OW1yaVN1L2ZqWDhqS3pGL2RpUmtCTTlWNHgzNkQ2UQo0WlFKdGxxQ2RBRG1hYVJBYVR4UGExL3VDNlZLcTZ4emMyVnBxamhXQVRrQUlQQlc2MDlUS3ZyRHdhU2ljRXBzCkVlSjE3N0t5VzdwRlNoSUlJUWphcTdnbEFvR0JBS1dEYU1jMHBjYmtteVNDZmljZGV0UjUxc25JYTlZQjBYaE0KYXMxdnFsTU93eEVHQSs3SUZCNEl1aUl4TnZPRVZxRkgwZkFjNjV2M0gwVGQ1OUZwT0pocjVHR2dTTjByT2J6Rwp3WTFFNk5heThScnl6MHc3QjlMWjE3OVJsWXNSU0JVRmpaNzg3b2s0OUVJWjhLUzJKRE5iRVBuS1YyYy9hQzhiCksvMy9EKytCQW9HQUxxclVoRXhyNFErbjUzQ2cyckJBRDg4cHk0cSt1MnhJWUgzMUV4aTUrS0c5bVJOcm1QemUKTlM3U29xV0M0NENzdjdGNGV1bE5FK0U1bHQ0NG1obFJBUmt1UUwwRHZFSTFpM2dhc1MzUkZ0UVFxSk52MFlGUgpFQUd4M3dUYXBaRi9UZkxSczhPSzZ5OVZobE0vbEVrZmlPckVmZEgrNy9wWjR3ZTM5Z1RHN25BPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo=

    使上面的内容生产证书

    1. 复制certificate-authority-data冒号后的内容生成client.crt
    2. # echo "<certificate-authority-data>" | base64 -d > ca.crt
    4. 复制client-certificate-data冒号后的内容生成client.crt
    5. # echo "<client-certificate-data>" | base64 -d > client.crt
    7. 复制client-key-data冒号后的内容生成client.key
    8. # echo "<client-key-data>" | base64 -d > client.key
    10. 再生成jenkins使用的PKCS12格式的cert.pfx文件，需要设置密码，注意密码后期jenkins需要
    12. # openssl pkcs12 -export -out cert.pfx -inkey client.key -in client.crt -certfile ca.crt
    13. Enter Export Password:        #输入自定义密码
    14. Verifying - Enter Export Password:        #验证密码

    jenkins使用证书创建凭证
    系统管理 > Manage Credentials（凭证）

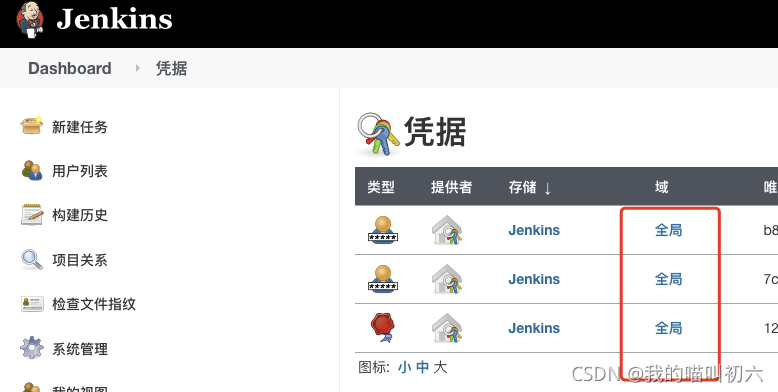

    会看到如下页面，随便点击一个全局

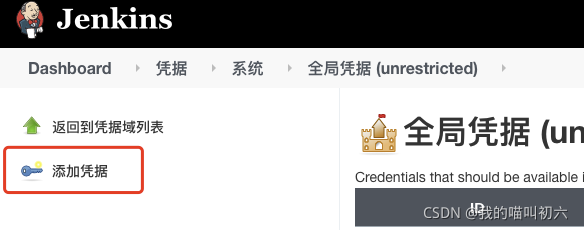

    添加凭证

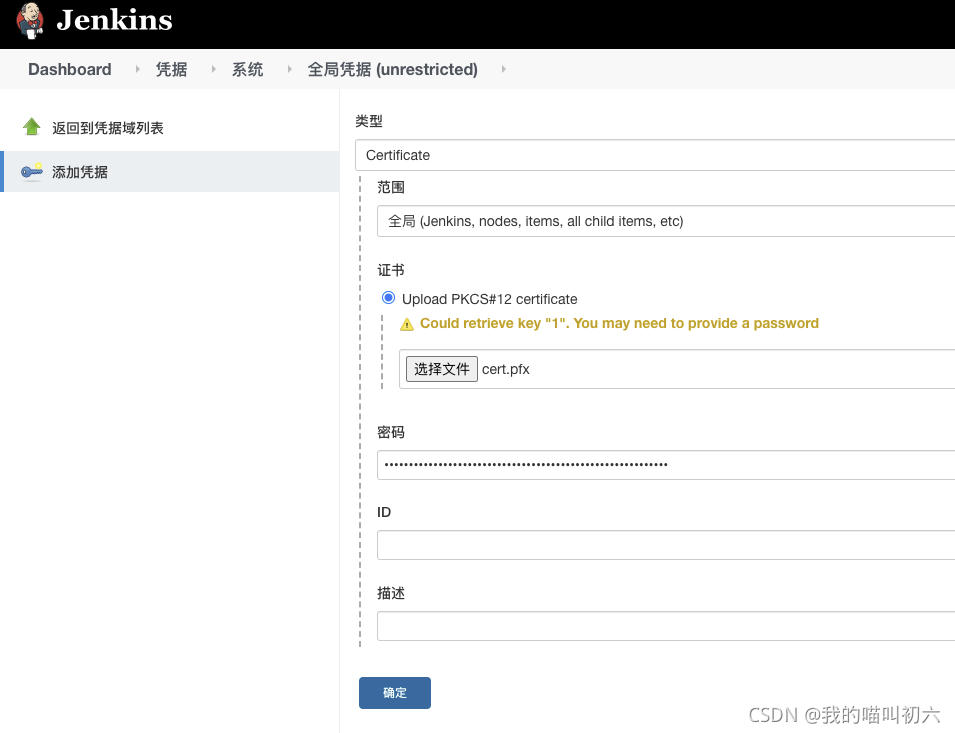

    按下图操作，类型注意选择为 Certificate，然后上传证书，输入当时生成证书的密码，最后确定，此时连接k8s集群的凭证就添加完成了fb72b79b-61d9-4757-9320-c73ce264f407.png

    jenkins下先安装kubernetes插件，名字就叫kubernetes

    安装期间可能有几个是失败的，没关系继续重启

    安装完成后到 系统管理 >jenkins管理>Configure Clouds

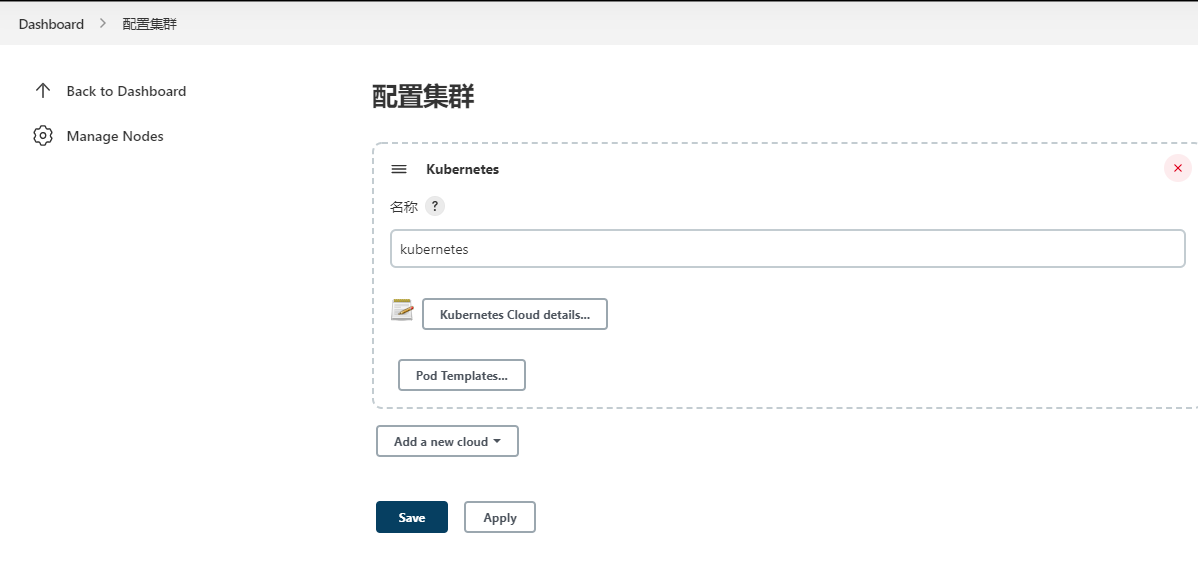

    点 Configure Clouds 配置一个集群

    地址也在最开始生成证书的 config 文件中

    kubernetes 服务证书 key 下是 ca.crt 中内容

    凭证选择上面创建的凭证

    配置完成后点击凭证下的测试连接

    出现你的集群版本信息表示配置成功了
    ————————————————
