一、 环境描述

系统版本：Ubuntu20.04.2LTS
Tshark：thark_3.2.3-1
Logstash：logstash-7.12.0-amd64.deb
Elasticsearch：elasticsearch-7.12.0-amd64.deb
Kibana：kibana-7.12.0-amd64.deb

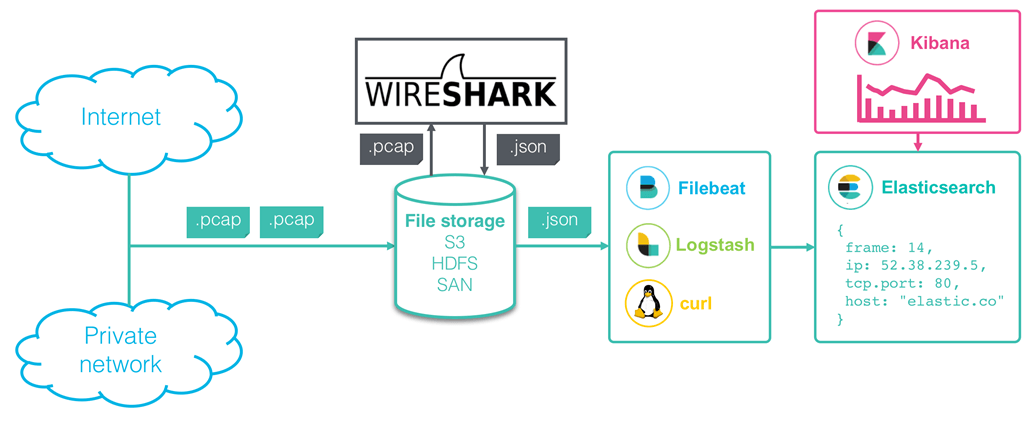

系统结构图参考：

二、 软件准备

1. 下载logstash；
   # wget https://artifacts.elastic.co/downloads/logstash/logstash-7.12.0-amd64.deb
   2. 下载elasticsearch；
   # wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.12.0-amd64.deb
   3. 下载kibana；
   # wget https://artifacts.elastic.co/downloads/kibana/kibana-7.12.0-amd64.deb
   4. 下载tsharkVM git包（主要用到里面一个处理脚本）；
   # git clone https://github.com/H21lab/tsharkVM.git
   5. 修改Ubuntu的source源为国内镜像源； ```bash

   cd /etc/apt/

   mv sources.list sources.list-

   vim sources.list

   cat sources.list

   deb https://mirrors.ustc.edu.cn/ubuntu/ focal main restricted universe multiverse deb-src https://mirrors.ustc.edu.cn/ubuntu/ focal main restricted universe multiverse

deb https://mirrors.ustc.edu.cn/ubuntu/ focal-security main restricted universe multiverse deb-src https://mirrors.ustc.edu.cn/ubuntu/ focal-security main restricted universe multiverse

deb https://mirrors.ustc.edu.cn/ubuntu/ focal-updates main restricted universe multiverse deb-src https://mirrors.ustc.edu.cn/ubuntu/ focal-updates main restricted universe multiverse

deb https://mirrors.ustc.edu.cn/ubuntu/ focal-backports main restricted universe multiverse deb-src https://mirrors.ustc.edu.cn/ubuntu/ focal-backports main restricted universe multiverse

Not recommended

deb https://mirrors.ustc.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse

deb-src https://mirrors.ustc.edu.cn/ubuntu/ focal-proposed main restricted universe multiverse

6.   更新系统;<br /># apt update && apt upgrade && reboot
<a name="oA2Fz"></a>
## 三、 软件安装
1、 安装tshark和java
```bash
# apt install tshark
The following packages were automatically installed and are no longer required:
  eatmydata libeatmydata1 python3-importlib-metadata python3-jinja2 python3-json-pointer python3-jsonpatch python3-jsonschema python3-markupsafe
  python3-more-itertools python3-pyrsistent python3-zipp
Use 'apt autoremove' to remove them.
The following additional packages will be installed:
  libc-ares2 libjbig0 libjpeg-turbo8 libjpeg8 liblua5.2-0 libsbc1 libsmi2ldbl libsnappy1v5 libspandsp2 libspeexdsp1 libssh-gcrypt-4 libtiff5
  libwebp6 libwireshark-data libwireshark13 libwiretap10 libwsutil11 wireshark-common
Suggested packages:
  snmp-mibs-downloader geoipupdate geoip-database geoip-database-extra libjs-leaflet libjs-leaflet.markercluster wireshark-doc
The following NEW packages will be installed:
  libc-ares2 libjbig0 libjpeg-turbo8 libjpeg8 liblua5.2-0 libsbc1 libsmi2ldbl libsnappy1v5 libspandsp2 libspeexdsp1 libssh-gcrypt-4 libtiff5
  libwebp6 libwireshark-data libwireshark13 libwiretap10 libwsutil11 tshark wireshark-common
0 upgraded, 19 newly installed, 0 to remove and 0 not upgraded.
Need to get 18.8 MB of archives.
After this operation, 109 MB of additional disk space will be used.
Do you want to continue? [Y/n] y
# apt install openjdk-11-jre-headless
The following packages were automatically installed and are no longer required:
  eatmydata libeatmydata1 python3-importlib-metadata python3-jinja2 python3-json-pointer python3-jsonpatch python3-jsonschema python3-markupsafe
  python3-more-itertools python3-pyrsistent python3-zipp
Use 'apt autoremove' to remove them.
The following additional packages will be installed:
  ca-certificates-java fontconfig-config fonts-dejavu-core java-common libavahi-client3 libavahi-common-data libavahi-common3 libcups2
  libfontconfig1 libgraphite2-3 libharfbuzz0b liblcms2-2 libpcsclite1
Suggested packages:
  default-jre cups-common liblcms2-utils pcscd libnss-mdns fonts-dejavu-extra fonts-ipafont-gothic fonts-ipafont-mincho fonts-wqy-microhei
  | fonts-wqy-zenhei fonts-indic
The following NEW packages will be installed:
  ca-certificates-java fontconfig-config fonts-dejavu-core java-common libavahi-client3 libavahi-common-data libavahi-common3 libcups2
  libfontconfig1 libgraphite2-3 libharfbuzz0b liblcms2-2 libpcsclite1 openjdk-11-jre-headless
0 upgraded, 14 newly installed, 0 to remove and 0 not upgraded.
Need to get 39.4 MB of archives.
After this operation, 177 MB of additional disk space will be used.
Do you want to continue? [Y/n] y

2、 安装ELK

# dpkg -i elasticsearch-7.12.0-amd64.deb kibana-7.12.0-amd64.deb logstash-7.12.0-amd64.deb
Preparing to unpack elasticsearch-7.12.0-amd64.deb ...
Creating elasticsearch group... OK
Creating elasticsearch user... OK
Unpacking elasticsearch (7.12.0) ...
Selecting previously unselected package kibana.
Preparing to unpack kibana-7.12.0-amd64.deb ...
Unpacking kibana (7.12.0) ...
Selecting previously unselected package logstash.
Preparing to unpack logstash-7.12.0-amd64.deb ...
Unpacking logstash (1:7.12.0-1) ...
Setting up elasticsearch (7.12.0) ...
Created elasticsearch keystore in /etc/elasticsearch/elasticsearch.keystore
Setting up kibana (7.12.0) ...
Creating kibana group... OK
Creating kibana user... OK
Created Kibana keystore in /etc/kibana/kibana.keystore
Setting up logstash (1:7.12.0-1) ...
Using bundled JDK: /usr/share/logstash/jdk
Using provided startup.options file: /etc/logstash/startup.options
OpenJDK 64-Bit Server VM warning: Option UseConcMarkSweepGC was deprecated in version 9.0 and will likely be removed in a future release.
/usr/share/logstash/vendor/bundle/jruby/2.5.0/gems/pleaserun-0.0.31/lib/pleaserun/platform/base.rb:112: warning: constant ::Fixnum is deprecated
Successfully created system startup script for Logstash

四、 ELK配置

1、 elasticsearch配置
# cd /etc/elasticsearch/

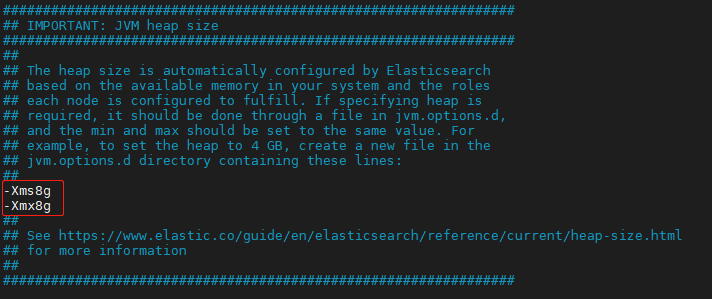

# vim jvm.options

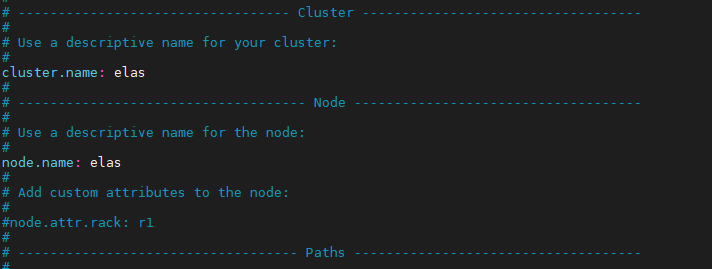

# vim elasticsearch.yml


# systemctl daemon-reload
重启服务；
# systemctl restart elasticsearch.service
查看服务状态；
# systemctl status elasticsearch.service
●elasticsearch.service - Elasticsearch
Loaded: loaded (/lib/systemd/system/elasticsearch.service; enabled; vendor preset: enabled)
Active: active (running) since Fri 2021-08-13 02:55:08 UTC; 4h 7min ago
Docs: https://www.elastic.co
Main PID: 271265 (java)
Tasks: 99 (limit: 19109)
Memory: 8.6G
CGroup: /system.slice/elasticsearch.service
├─271265 /usr/share/elasticsearch/jdk/bin/java -Xshare:auto -Des.networkaddress.cache.ttl=60 -Des.networkaddress.cache.negative.ttl=10 -XX:+AlwaysPreT>
└─271470 /usr/share/elasticsearch/modules/x-pack-ml/platform/linux-x86_64/bin/controller

Aug 13 02:54:48 elas systemd[1]: Starting Elasticsearch…
Aug 13 02:55:08 elas systemd[1]: Started Elasticsearch.

查看服务监听端口；
# netstat -tlunp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.53:53 0.0.0.0: LISTEN 661/systemd-resolve
tcp 0 0 0.0.0.0:22 0.0.0.0: LISTEN 780/sshd: /usr/sbin
tcp 0 0 127.0.0.1:6010 0.0.0.0: LISTEN 265188/sshd: root@p
tcp 0 0 0.0.0.0:5601 0.0.0.0: LISTEN 270722/node
tcp6 0 0 :::9300 ::: LISTEN 271265/java
tcp6 0 0 :::22 ::: LISTEN 780/sshd: /usr/sbin
tcp6 0 0 ::1:6010 ::: LISTEN 265188/sshd: root@p
tcp6 0 0 127.0.0.1:9600 ::: LISTEN 270442/java
tcp6 0 0 :::9200 ::: LISTEN 271265/java
udp 0 0 127.0.0.53:53 0.0.0.0: 661/systemd-resolve

2、 logstash配置
# cd /etc/logstash/

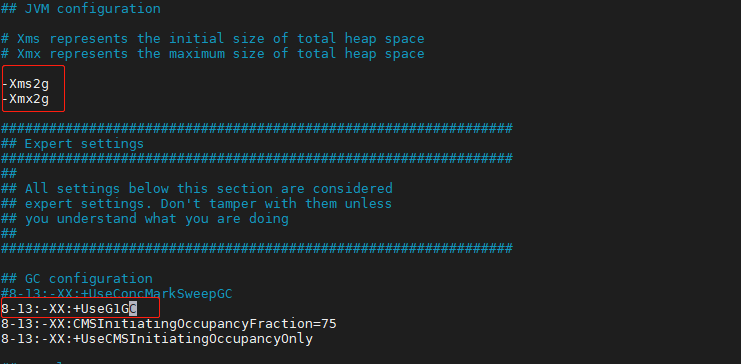

# vim jvm.options

# cd conf.d/
增加tshark数据输入到elasticsearch配置文件；

# vim tshark-elas.conf
# cat tshark-elas.conf
input {
  file {
    path => "/data/packets.json"
    start_position => "beginning"
  }
}
filter {
    # Drop Elasticsearch Bulk API control lines
    if ([message] =~ "{\"index") {
        drop {}
    }
    json {
        source => "message"
        remove_field => "message"
    }
    # Extract innermost network protocol
    grok {
        match => {
           "[layers][frame][frame_frame_protocols]" => "%{WORD:protocol}$"
        }
    }
    date {
        match => [ "timestamp", "UNIX_MS" ]
    }
}
output {
  elasticsearch {
    hosts => "localhost:9200"
    index => "packets-%{+YYYY-MM-dd}"
#    document_type => "pcap_file"
    manage_template => false
  }
}

systemctl daemon-reload
重启服务
# systemctl restart logstash.service
查看服务器状态
# systemctl status logstash.service
● logstash.service - logstash
Loaded: loaded (/etc/systemd/system/logstash.service; enabled; vendor preset: enabled)
Active: active (running) since Fri 2021-08-13 02:10:24 UTC; 5h 17min ago
Main PID: 270442 (java)
Tasks: 72 (limit: 19109)
Memory: 2.6G
CGroup: /system.slice/logstash.service
└─270442 /usr/share/logstash/jdk/bin/java -Xms2g -Xmx2g -XX:+UseG1GC -XX:CMSInitiatingOccupancyFraction=75 -XX:+UseCMSInitiatingOccupancyOnly -Djava.a>

Aug 13 02:10:46 elas logstash[270442]: [2021-08-13T02:10:46,739][WARN ][logstash.outputs.elasticsearch][main] Restored connection to ES instance {:url=>”http://loc>
Aug 13 02:10:46 elas logstash[270442]: [2021-08-13T02:10:46,798][INFO ][logstash.outputs.elasticsearch][main] ES Output version determined {:esversion=>7}
Aug 13 02:10:46 elas logstash[270442]: [2021-08-13T02:10:46,802][WARN ][logstash.outputs.elasticsearch][main] Detected a 6.x and above cluster: the type event fi>
Aug 13 02:10:46 elas logstash[270442]: [2021-08-13T02:10:46,857][INFO ][logstash.outputs.elasticsearch][main] New Elasticsearch output {:class=>”LogStash::Outputs:>
Aug 13 02:10:47 elas logstash[270442]: [2021-08-13T02:10:47,110][INFO ][logstash.javapipeline ][main] Starting pipeline {:pipeline_id=>”main”, “pipeline.workers>
Aug 13 02:10:48 elas logstash[270442]: [2021-08-13T02:10:48,070][INFO ][logstash.javapipeline ][main] Pipeline Java execution initialization time {“seconds”=>0.>
Aug 13 02:10:48 elas logstash[270442]: [2021-08-13T02:10:48,325][INFO ][logstash.inputs.file ][main] No sincedb_path set, generating one based on the “path” se>
Aug 13 02:10:48 elas logstash[270442]: [2021-08-13T02:10:48,352][INFO ][logstash.javapipeline ][main] Pipeline started {“pipeline.id”=>”main”}
Aug 13 02:10:48 elas logstash[270442]: [2021-08-13T02:10:48,409][INFO ][filewatch.observingtail ][main][6efc126c2ab1b0e66a90b494d9a18ae7dc55003ac5f9addc874a5130d9>
Aug 13 02:10:48 elas logstash[270442]: [2021-08-13T02:10:48,417][INFO ][logstash.agent ] Pipelines running {:count=>1, :running_pipelines=>[:main], :non>

3、 kibana配置
# cd /etc/kibana/
# vim kibana.yml

# systemctl daemon-reload
重启服务；
# systemctl restart kibana.service
查看服务状态；
# systemctl status kibana.service
● kibana.service - Kibana
Loaded: loaded (/etc/systemd/system/kibana.service; enabled; vendor preset: enabled)
Active: active (running) since Fri 2021-08-13 02:19:08 UTC; 5h 16min ago
Docs: https://www.elastic.co
Main PID: 270722 (node)
Tasks: 11 (limit: 19109)
Memory: 267.2M
CGroup: /system.slice/kibana.service
└─270722 /usr/share/kibana/bin/../node/bin/node /usr/share/kibana/bin/../src/cli/dist —logging.dest=/var/log/kibana/kibana.log —pid.file=/run/kibana>

Aug 13 02:19:08 elas systemd[1]: Started Kibana.

查看服务监听端口
# netstat -tlunp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 127.0.0.53:53 0.0.0.0: LISTEN 661/systemd-resolve
tcp 0 0 0.0.0.0:22 0.0.0.0: LISTEN 780/sshd: /usr/sbin
tcp 0 0 127.0.0.1:6010 0.0.0.0: LISTEN 265188/sshd: root@p
tcp 0 0 0.0.0.0:5601 0.0.0.0: LISTEN 270722/node
tcp6 0 0 :::9300 ::: LISTEN 271265/java
tcp6 0 0 :::22 ::: LISTEN 780/sshd: /usr/sbin
tcp6 0 0 ::1:6010 ::: LISTEN 265188/sshd: root@p
tcp6 0 0 127.0.0.1:9600 ::: LISTEN 270442/java
tcp6 0 0 :::9200 ::: LISTEN 271265/java
udp 0 0 127.0.0.53:53 0.0.0.0: 661/systemd-resolve

五、 配置Tshark数据包模板

1、 导出elastic-mapping；
# cd tsharkVM/Kibana
# tshark -G elastic-mapping —elastic-mapping-filter frame,eth,ip,udp,tcp,dns > custom_tshark_mapping.json
2、 处理重复字段和类型；(脚本处理完后，还有一些字段类型不匹配，在logstash导入数据时会有提示，根据提示，修改后再重新导入)；
# ruby ./Public/process_tshark_mapping_json.rb
下面是我处理过的mapping文件示例
custom_tshark_mapping_deduplicated.json
3、 导入模板文件；
# curl -X PUT “localhost:9200/_index_template/packets_template” -H ‘Content-Type: application/json’ \
-d@custom_tshark_mapping_deduplicated.json

{“acknowledged”:true}
#

六、 导入数据

1、 使用tshark将数据包转换为elasticsearch格式，由logstacsh输出到elasticsearch；
# tshark –T ek –x –r 1030.pcap > /data/packets.json

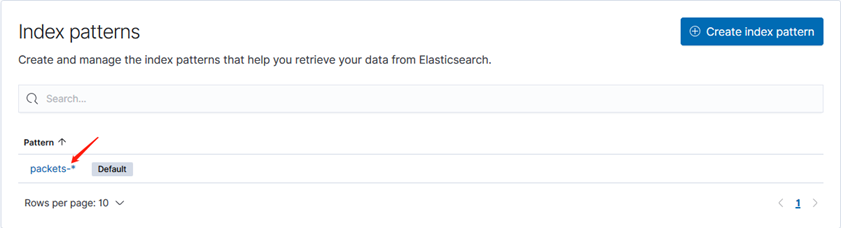

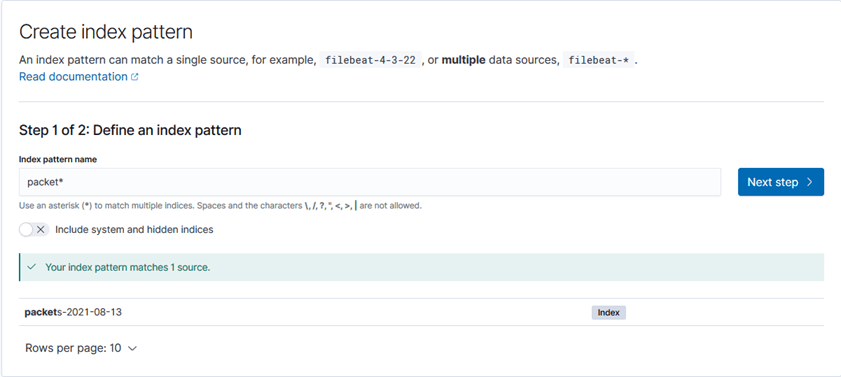

2、 在kibana上创建index patterns;

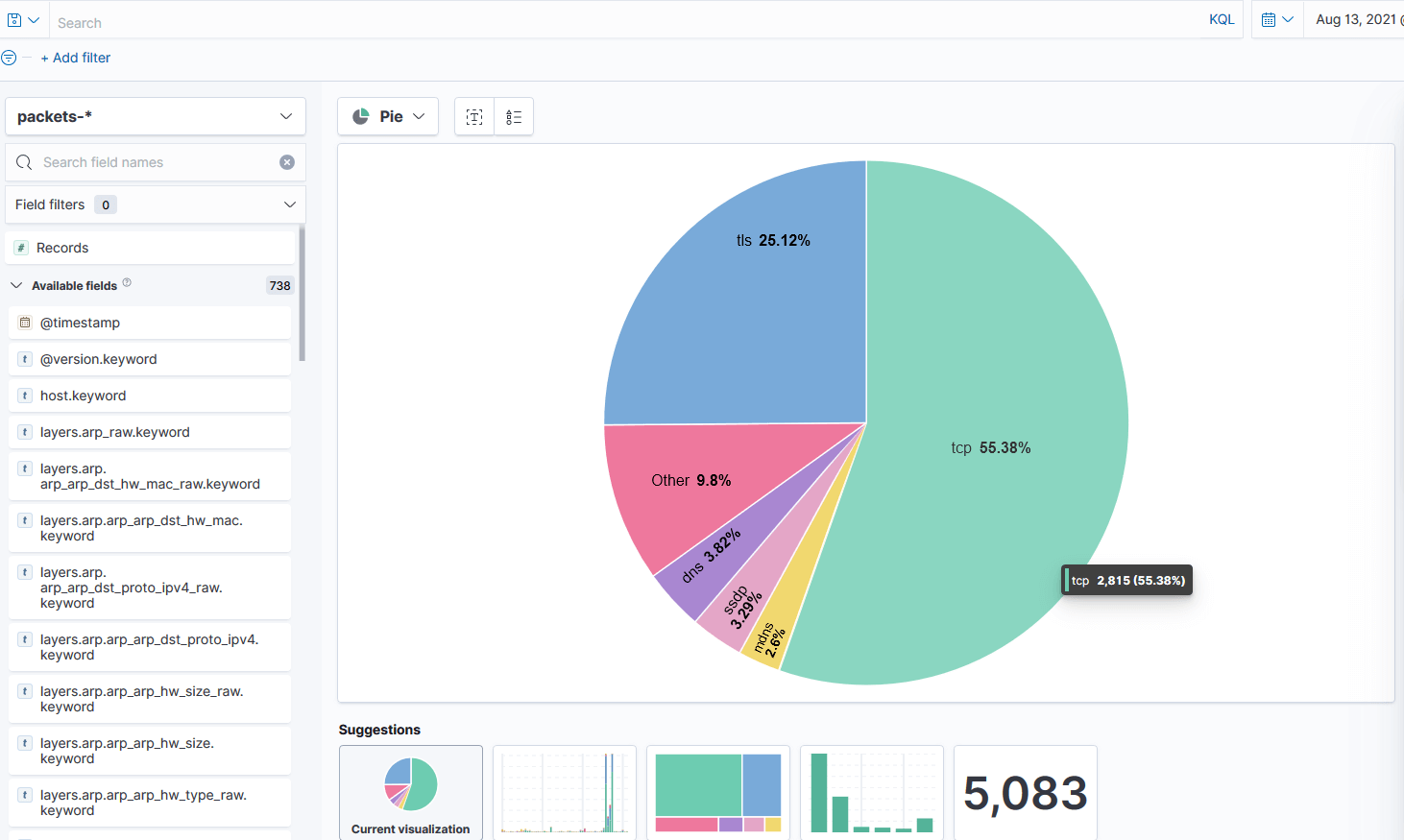

自定义展示;

七、 完成。
