一、HPA (Horizontal Pod Autoscaling)

1、HPA 须知：

  • HPA 通过监控分析一些控制器控制的所有 Pod 的负载变化情况来确定是否需要调整 Pod 的副本数量。
  • 创建 HPA 资源对象后，HPA Controller 默认 30s 轮询一次，查询 & 将负载与设定的值做对比，进而实现自动伸缩的功能。
  • 轮询间隔、缩容冷却时间窗口长度可以通过 kube-controller-manager 的参数 --horizontal-pod-autoscaler-sync-period, --horizontal-pod-autoscaler-downscale-stabilization 进行设置。

Pod 水平自动扩缩 | Kubernetes
Kubernetes HPA 使用详解-阳明的博客
The Guide To Kubernetes HPA by Example
k8s 监控（三）prometheus-adapter - 掘金 （这里包含对 HPA 规则的解释）

2、custom metrics 须知：

  • Aggregator，Kubernetes 聚合层扩展 API

  • APIService 资源：

    1. $ kubectl get apiservice | grep metrics
    2. v1beta1.custom.metrics.k8s.io          monitoring/prometheus-adapter   True
    3. v1beta1.metrics.k8s.io                 kube-system/metrics-server      True

  • apiserver -> prometheus-adapter -> prometheus

  • HPA 规则

二、基于 CPU/内存的 HPA

0、部署 metrics-server

kube-apiserver 开启 Aggregator，部署 metrics-server。

1、CPU:

部署应用：

  1. apiVersion: apps/v1
  2. kind: Deployment
  3. metadata:
  4.   name: hpa-demo
  5. spec:
  6.   selector:
  7.     matchLabels:
  8.       app: nginx
  9.   template:
  10.     metadata:
  11.       labels:
  12.         app: nginx
  13.     spec:
  14.       containers:
  15.       - name: nginx
  16.         image: nginx
  17.         ports:
  18.         - containerPort: 80
  19.         resources:
  20.           requests:  # (required) requests 资源申明
  21.             memory: 50Mi
  22.             cpu: 50m

创建 HPA 对象：

  1. kubectl autoscale deployment hpa-demo --cpu-percent=10 --min=1 --max=10

2、内存：

部署应用，使用 configmap 挂载一个脚本，用于增大容器内存负载：

  1. apiVersion: v1
  2. kind: ConfigMap
  3. metadata:
  4.   name: increase-mem-config
  5. data:
  6.   increase-mem.sh: |
  7.     #!/bin/bash
  8.     mkdir /tmp/memory
  9.     mount -t tmpfs -o size=40M tmpfs /tmp/memory
  10.     dd if=/dev/zero of=/tmp/memory/block
  11.     sleep 60
  12.     rm /tmp/memory/block
  13.     umount /tmp/memory
  14.     rmdir /tmp/memory
  16. ---
  17. apiVersion: apps/v1
  18. kind: Deployment
  19. metadata:
  20.   name: hpa-mem-demo
  21. spec:
  22.   selector:
  23.     matchLabels:
  24.       app: nginx
  25.   template:
  26.     metadata:
  27.       labels:
  28.         app: nginx
  29.     spec:
  30.       volumes:
  31.       - name: increase-mem-script
  32.         configMap:
  33.           name: increase-mem-config
  34.       containers:
  35.       - name: nginx
  36.         image: nginx
  37.         ports:
  38.         - containerPort: 80
  39.         volumeMounts:
  40.         - name: increase-mem-script
  41.           mountPath: /etc/script
  42.         resources:
  43.           requests:
  44.             memory: 50Mi
  45.             cpu: 50m
  46.         securityContext:  # 容器脚本中用到了 mount 命令，需要这个配置
  47.           privileged: true

创建 HPA 对象：

  1. apiVersion: autoscaling/v2beta1
  2. kind: HorizontalPodAutoscaler
  3. metadata:
  4.   name: nginx-hpa
  5. spec:
  6.   scaleTargetRef:
  7.     apiVersion: apps/v1
  8.     kind: Deployment
  9.     name: hpa-mem-demo
  10.   minReplicas: 1
  11.   maxReplicas: 5
  12.   metrics:
  13.   - type: Resource
  14.     resource:
  15.       name: memory
  16.       targetAverageUtilization: 60

三、基于自定义指标的 HPA

1、应用的 http 请求数/tcp连接数：

说明：
单独在 k8s 集群中部署了一套 cAdvisor（由于负载过大，kubelet 中集成的 cAdvisor 关闭了一些指标的采集。这里仅做测试用，实际没必要再单独部署一套 cAdvisor），并打开采集 tcp 指标的开关，才会有下面用到的 container_network_tcp_usage_total 指标。

(1) 部署测试应用：
部署 nginx-vts，暴露 http_request 相关指标：

  1. apiVersion: apps/v1
  2. kind: Deployment
  3. metadata:
  4.   name: hpa-nginx
  5.   namespace: default
  6. spec:
  7.   selector:
  8.     matchLabels:
  9.       app: nginx-server
  10.   template:
  11.     metadata:
  12.       labels:
  13.         app: nginx-server
  14.     spec:
  15.       containers:
  16.       - name: nginx-vts
  17.         image: cnych/nginx-vts:v1.0
  18.         resources:
  19.           limits:
  20.             cpu: 50m
  21.           requests:
  22.             cpu: 50m
  23.         ports:
  24.         - containerPort: 80
  25.           name: http
  27. ---
  28. apiVersion: v1
  29. kind: Service
  30. metadata:
  31.   name: hpa-nginx
  32.   namespace: default
  33.   annotations:
  34.     prometheus.io/scrape: "true"
  35.     prometheus.io/port: "80"
  36.     prometheus.io/path: "/status/format/prometheus"
  37.   labels:
  38.     app: nginx-server
  39. spec:
  40.   ports:
  41.   - port: 80
  42.     targetPort: 80
  43.     name: http
  44.   selector:
  45.     app: nginx-server
  46.     type: NodePort
  48. ---
  49. apiVersion: monitoring.coreos.com/v1
  50. kind: ServiceMonitor
  51. metadata:
  52.   name: ngx-vts-ends
  53.   labels:
  54.     release: prom
  55. spec:
  56.   namespaceSelector:
  57.     matchNames:
  58.     - default
  59.   selector:
  60.     matchLabels:
  61.       app: nginx-server
  62.   endpoints:
  63.   - port: http
  64.     path: "/status/format/prometheus"

(2) 在 prometheus 控制台调试查询语句：

  1. #####
  2. # 说明：
  3. # 这里只是简单测试，语句不一定完全正确 ⊙﹏⊙∥
  4. ####
  6. # http request:
  7. sum(rate(nginx_vts_server_requests_total{code="total"}[1m])) by (namespace, pod)
  9. # tcp connection:
  10. container_network_tcp_usage_total{container_label_io_kubernetes_pod_name="hpa-ngx-bbb6c65bb-lzdkw",tcp_state!~"clos.*",tcp_state!~".*wait.*"}

(3) 创建 HPA 规则：

  1. rules:
  2.   custom:
  3.   - seriesQuery: 'container_network_tcp_usage_total'
  4.         resources:
  5.           overrides:
  6.             container_label_io_kubernetes_pod_namespace:
  7.               resource: namespace
  8.             container_label_io_kubernetes_pod_name:
  9.               resource: pod
  10.             tcp_state:
  11.               resource: tcp_state
  12.         name:
  13.           matches: "^(.*)_total"
  14.           as: "${1}"
  15.         metricsQuery: <<.Series>>{<<.LabelMatchers>>}
  16.     - seriesQuery: 'nginx_vts_server_requests_total'
  17.         resources:
  18.           overrides:
  19.             namespace:
  20.               resource: namespace
  21.             pod:
  22.               resource: pods
  23.         name:
  24.           matches: "^(.*)_total"
  25.           as: "${1}_per_second"
  26.         metricsQuery: (sum(rate(<<.Series>>{<<.LabelMatchers>>}[1m])) by (<<.GroupBy>>))

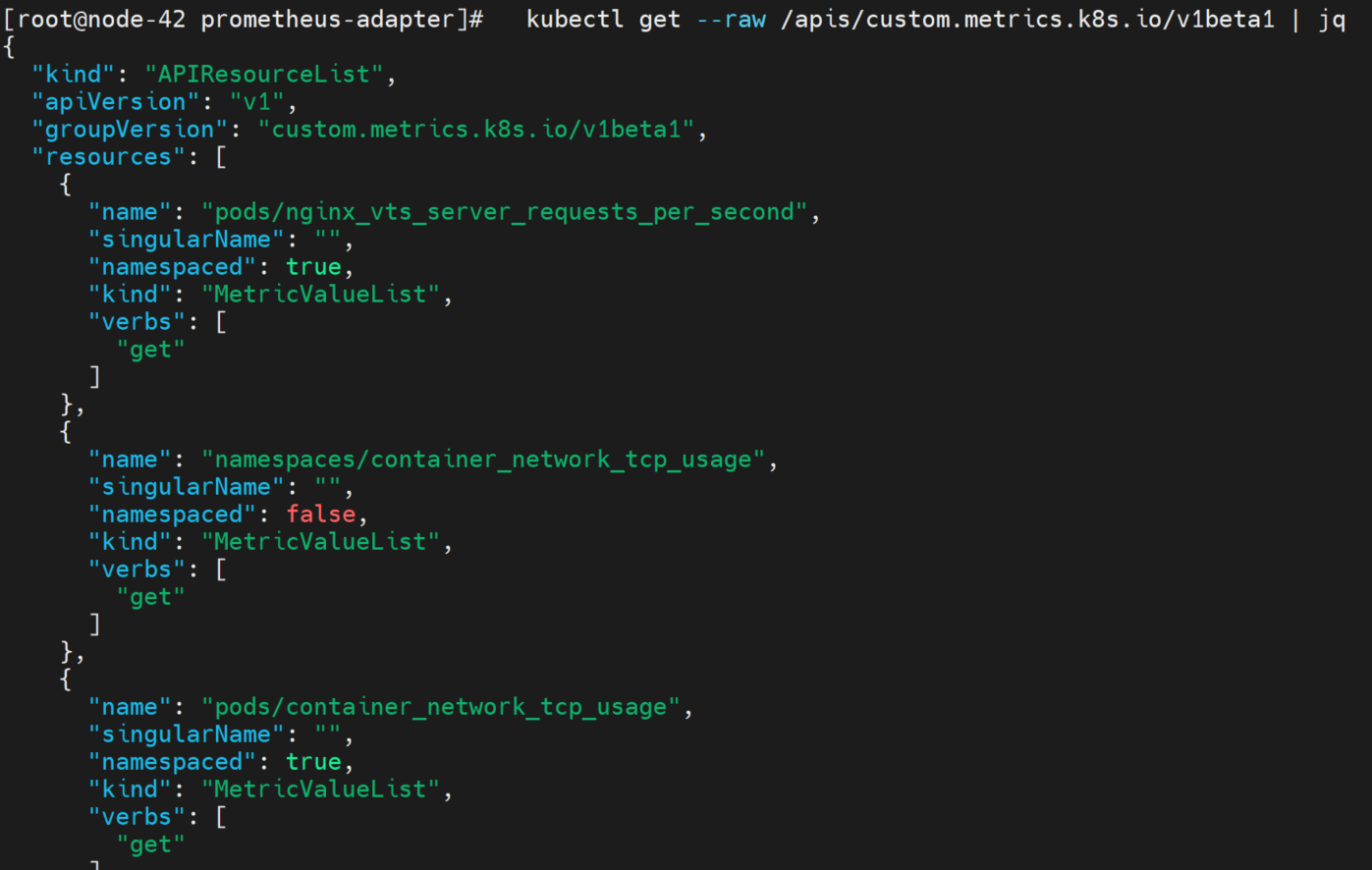

确认规则生效：

(4) 创建 HPA 资源：

  1. apiVersion: autoscaling/v2beta1
  2. kind: HorizontalPodAutoscaler
  3. metadata:
  4.   name: custom-hpa-nginx
  5. spec:
  6.   scaleTargetRef:
  7.     apiVersion: apps/v1
  8.     kind: Deployment
  9.     name: hpa-nginx
  10.   minReplicas: 1
  11.   maxReplicas: 3
  12.   metrics:
  13.   - type: Pods
  14.     pods:
  15.       metricName: nginx_vts_server_requests_per_second
  16.       targetAverageValue: 500
  17.   ## 这个未实际测试
  18.   #- type: Pods
  19.   #  pods:
  20.   #    metricName: container_network_tcp_usage
  21.   #    targetAverageValue: 100

(3) 测试：
wrk 发送请求（按需调整并发参数）：
在扩容了（这里是指标 nginx_vts_server_requests_per_second的结果）：
