<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <fork>true</fork>
                <addResources>true</addResources>
            </configuration>
        </plugin>
    </plugins>
</build>

<a name="be9a9cdc"></a>
##
<a name="fXrki"></a>
## 2、支付模块构建
> 约定>配置>编码
<a name="ogFrv"></a>
### 2.1 改module
创建一个module，cloud-provider-payment8001<br />因为是在父工程下创建的，所以自动继承了父工程，<br />同时 父工程中也多出来这个:
```xml
<modules>
  <module>cloud-provider-payment8001</module>
</modules>

2.2 改pom

<dependencies>
  <!-- web -->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <!-- 图形化监控 -->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
  </dependency>
  <!-- mybatis 和SpringBoot 整合-->
  <dependency>
    <groupId>org.mybatis.spring.boot</groupId>
    <artifactId>mybatis-spring-boot-starter</artifactId>
  </dependency>
  <!-- druid 数据库连接池 -->
  <dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>druid-spring-boot-starter</artifactId>
  </dependency>
  <!-- MySQL 驱动 -->
  <dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
  </dependency>
  <!-- jdbc -->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jdbc</artifactId>
  </dependency>
  <!--热部署-->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-devtools</artifactId>
    <scope>runtime</scope>
    <optional>true</optional>
  </dependency>
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
  </dependency>
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <scope>test</scope>
  </dependency>

2.3 写yaml

server:
  port: 8001
spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/db2019?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456
mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.atguigu.springcloud.entities

2.4 主启动类

@SpringBootApplication
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class,args);
    }
}

2.5 业务类

CREATE TABLE `payment`(
  `id` BIGINT(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `serial` VARCHAR(200) DEFAULT'',
    PRIMARY KEY(`id`)
)ENGINE=INNODB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

entities
支付表实体类

@NoArgsConstructor
@AllArgsConstructor
@Data
public class Payment implements Serializable {
    private Long id;
    private String serial;
}

通用 结果集实体类

@NoArgsConstructor
@AllArgsConstructor
@Data
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;
    public CommonResult(Integer code, String message) {
        this.code = code;
        this.message = message;
    }
}

dao

/**
 * @date: 2021/4/5   0:55
 * @author: 易学习
 * @Mapper: 推荐使用@Mapper注解
 */
@Mapper
public interface PaymentDao {
    int create(Payment payment);
    Payment getPaymentById(@Param("id") Long id);
}

mapper

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.yixuexi.springcloud.dao.PaymentDao">
    <resultMap id="BaseResultMap" type="com.yixuexi.springcloud.entities.Payment">
        <id property="id" column="id"></id>
        <result property="serial" column="serial" jdbcType="VARCHAR"></result>
    </resultMap>
    <select id="getPaymentById" resultMap="BaseResultMap">
        select * from payment where id = #{id}
    </select>
    <!-- userGeneratedKeys=true 说明把插入的值返回回来,回填到对象中
        keyProperty="id" 说明主键是id
     -->
    <insert id="create" parameterType="com.yixuexi.springcloud.entities.Payment"
            useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial) values(#{serial})
    </insert>
</mapper>

service

@Service
public class PaymentServiceImpl implements PaymentService {
    @Autowired
    private PaymentDao paymentDao;
    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }
    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

controller

@Slf4j
@RestController
public class PaymentController {
    @Autowired
    private PaymentService paymentService;
    @PostMapping("/create/payment")
    public CommonResult<Payment> create(@RequestBody Payment payment) {
        log.info(payment.toString());
        int i = paymentService.create(payment);
        if (i > 0) {
            return new CommonResult<>(200, "创建成功");
        } else{
            return new CommonResult<>(444,"创建失败");
        }
    }
    @GetMapping("/get/payment/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id){
        Payment paymentById = paymentService.getPaymentById(id);
        if (paymentById != null){
            return new CommonResult<>(200,"查询成功",paymentById);
        }else{
            return new CommonResult<>(444,"未查询到");
        }
    }
}

三、Devtools 热部署

添加devtools 依赖和pom插件

<!-- devtools 依赖 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-devtools</artifactId>
   <scope>runtime</scope>
    <optional>true</optional>
</dependency>
<!-- devtools 插件 -->
<build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
      <configuration>
        <fork>true</fork>
        <addResources>true</addResources>
      </configuration>
    </plugin>
  </plugins>
</build>

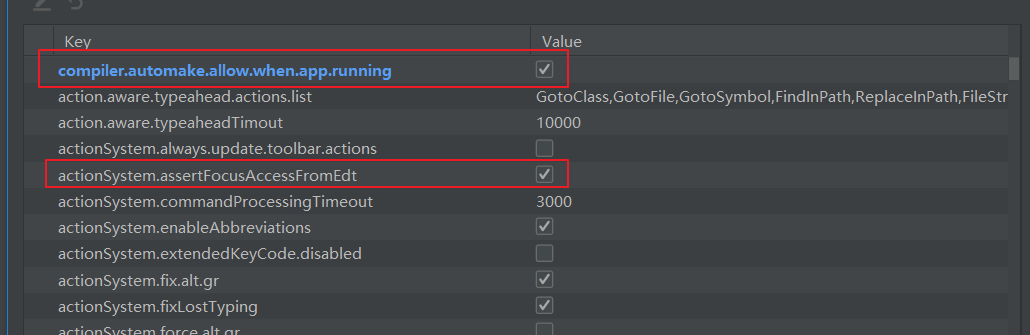

Ctrl+Alt+Shift+/ —->registry——>打勾

重启IDEA ——- 热部署OK!

四、消费者工程

1、使用RestTemplate来进行远程调用

• RedisTemplate 提供了多种便捷的访问远程HTTP服务的方法
• 是一种简单轻便的访问restful服务模板类，是Spring提供的用户访问Rest服务的客户端模板工具集。

2、使用RestTemplate

• （url ，requestMap，ResponseBean.class） 这三个参数分别代表了（Rest请求地址、请求参数、Http响应转换被转换成的对象类型）

3、将RestTemplate添加到容器中

@Configuration
public class WebConfig {
    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

4、使用RestTemplate 调用8001端口

@RestController
public class OrderController {
    @Autowired
    private RestTemplate restTemplate;
    @PostMapping("/consumer/create/payment")
    public CommonResult<Payment> create(@RequestBody Payment payment){
        String url = "http://localhost:8001/create/payment";
        //使用 postForEntity 内部发的是post请求
        ResponseEntity<CommonResult> commonResultResponseEntity =
                restTemplate.postForEntity(url, payment, CommonResult.class);
         return commonResultResponseEntity.getBody();
    }
    @GetMapping("/consumer/get/payment/{id}")
    public CommonResult<Payment> get(@PathVariable Long id){
        String url = "http://localhost:8001/get/payment/";
        // getForObject() 内部发get 请求
        return restTemplate.getForObject(url+id,CommonResult.class);
    }
}

五、实体类工程

为了更简洁的代码，减少冗余

<dependencies>
  <!--热部署-->
  <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-devtools</artifactId>
    <scope>runtime</scope>
    <optional>true</optional>
  </dependency>
  <dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
  </dependency>
  <dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>5.1.0</version>
  </dependency>
</dependencies>

maven执行命令 clean install
把其余工程中的实体类删除即可，然后把80 和8001的pom中加入commons工程依赖
