• 需求背景

    • 禅道开源版本对线上问题处理流程支持不是很友好，有很多限制，公司决定投入人力进行二次开发。

      需求清单

  • Bug Status 扩容

    • 禅道原生只有 已激活，已解决，已关闭三种状态。无法满足线上问题扭转需求。
    • 扩容后为
      • active，resolved，closed，fixed，in_process，postpone

        二开思路

        DB 方面

  • -> 找到 维护bug信息的表，在禅道中为 zt_bug 。观察 status字段，发现其为enum，即枚举格式，需要对其进行修改，就是需要增加枚举的值。 ``sql -- 测试环境集成 增量sql 2021.1.29 ALTER tablezt_bug` modify column status ENUM (“active”,”resolved”,”closed”,”postpone”,”in process”,”fixed”) default ‘active’;

  1. <a name="H1BXw"></a>
  2. ## 后端方面
  4. - 首先要根据url访问路径大致确认要修改的代码在源代码的 module所处位置。

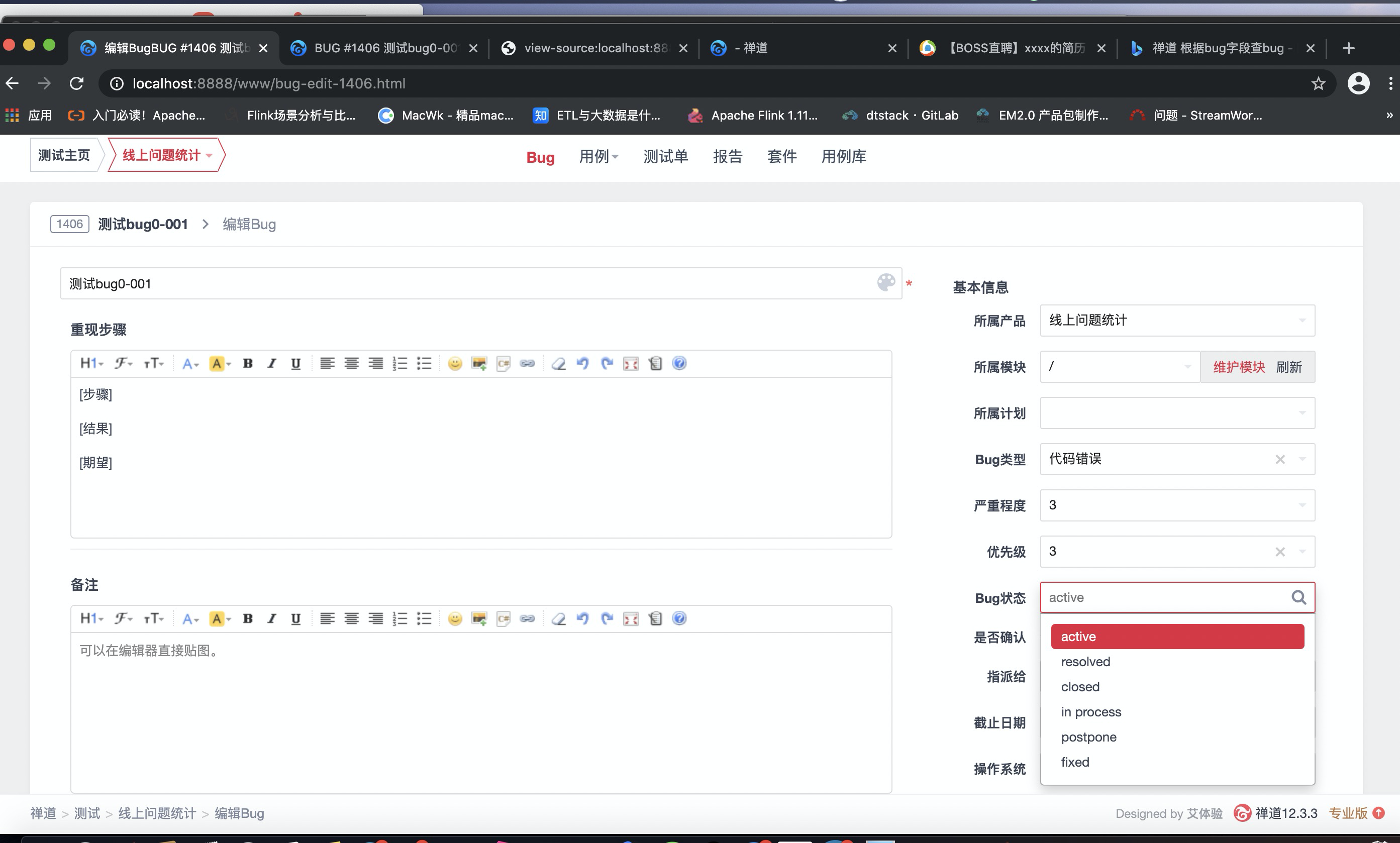

  5. - 直接看实例
  6. - ![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612442940853-d5eb9383-17fd-42ba-a546-348f129b9282.png#align=left&display=inline&height=1678&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1678&originWidth=2786&size=1160216&status=done&style=none&width=2786)
  8. [http://localhost:8888/www/bug-edit-1406.html](http://localhost:8888/www/bug-edit-1406.html)<br />这样一个链接，首先可以确定到 module 为 bug，涉及到的视图文件名为 edit 。
  9. <a name="b5xmS"></a>

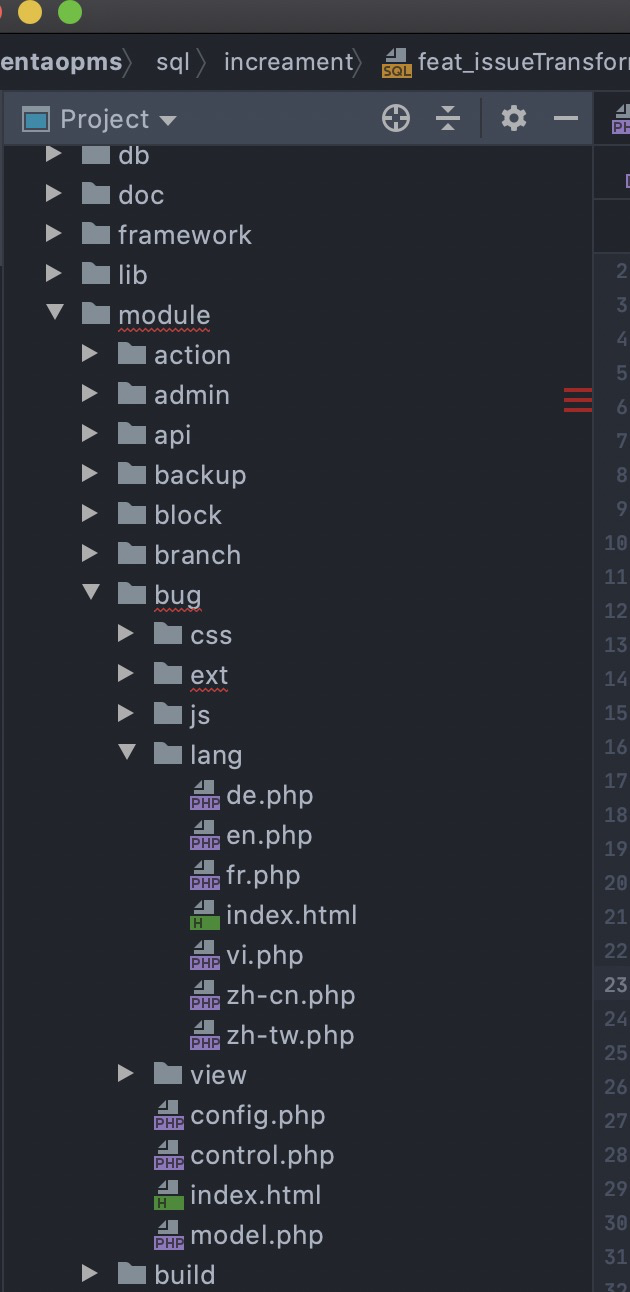

  10. ### 找到模块
  12. - 进入到源码目录下，找bug module
  13. - ![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612442314067-34c1e170-3911-4341-bb7b-aebd47d0efed.png#align=left&display=inline&height=646&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1292&originWidth=630&size=354173&status=done&style=none&width=315)
  14. - 目录解释
  15.    - bug - > module 名
  16.    - css - > 层叠样式表文件
  17.    - js -> js方法代码
  18.    - lang -> 该模块主要使用的字段存放
  19.    - view -> 该模块的视图文件存放
  20.    - model -> 该模块主要的后端方法存放
  21. <a name="lyYy5"></a>

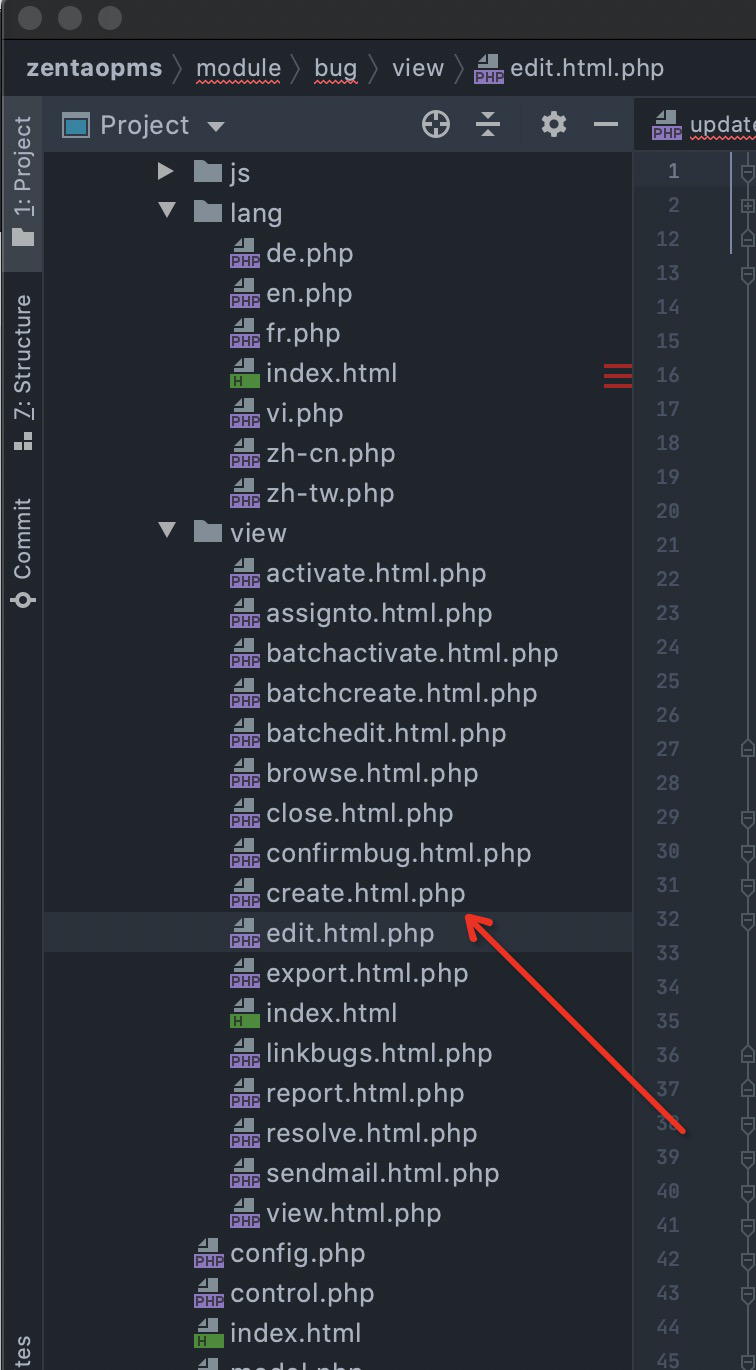

  22. ### 找到视图文件
  23. ![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612443053403-853fa51b-716b-451a-9973-cfe03bc0b959.png#align=left&display=inline&height=685&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1370&originWidth=756&size=689026&status=done&style=none&width=378)

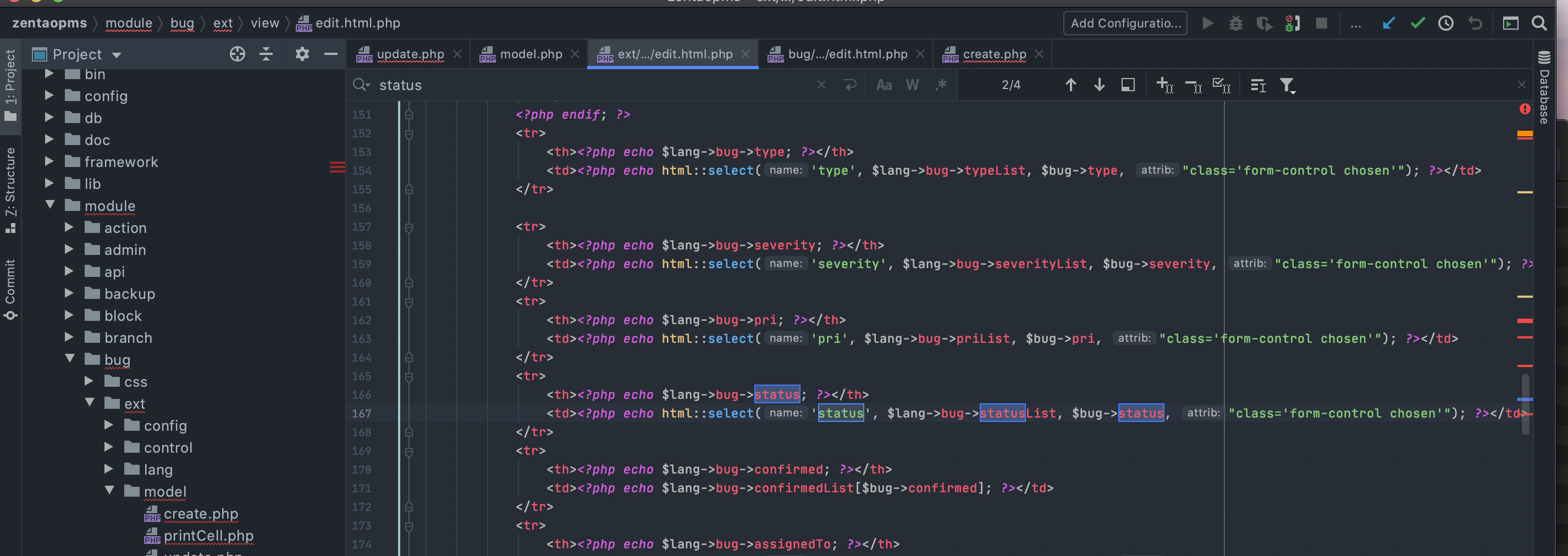

  25. - 在视图文件中去寻找自己要修改的目标字段，比如本例中的bug_status
  26. - ![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612443220588-588a400a-e346-4f86-8b7b-814b7cc39939.png#align=left&display=inline&height=1012&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1012&originWidth=2852&size=1730946&status=done&style=none&width=2852)
  27. <a name="hE17C"></a>

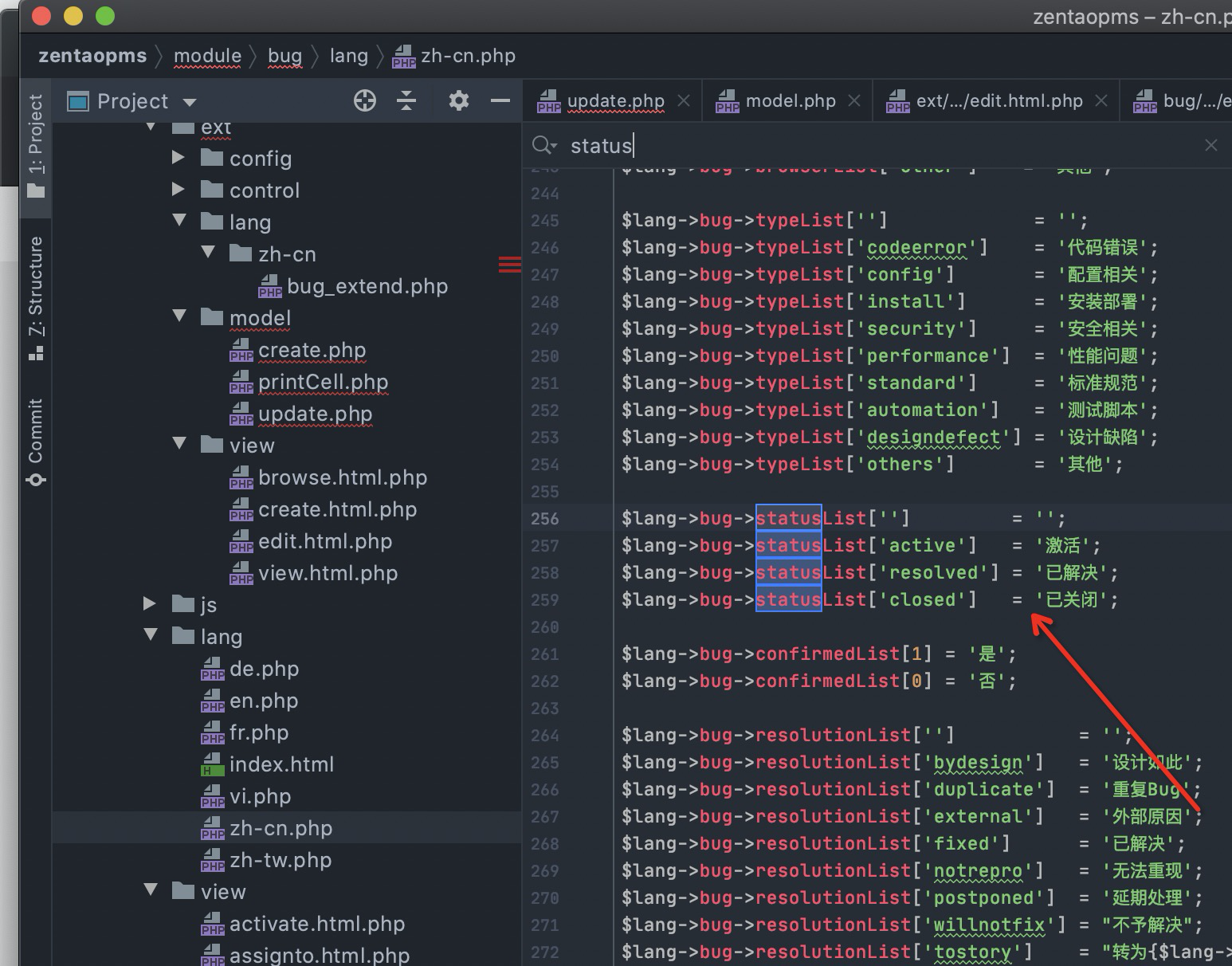

  28. ### 修改字库
  30. - 找到这蹩脚的bug状态字段支持，按照扩展的规则另起目录文件进行编辑。
  32. ![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612443312567-510f5d6b-e806-4d4f-b0c1-4349312b4f84.png#align=left&display=inline&height=1212&margin=%5Bobject%20Object%5D&name=image.png&originHeight=1212&originWidth=1546&size=1865820&status=done&style=none&width=1546)<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/1608527/1612443356329-2f03f150-b70c-48db-a46d-6de9ac0bcc3f.png#align=left&display=inline&height=480&margin=%5Bobject%20Object%5D&name=image.png&originHeight=480&originWidth=1742&size=587213&status=done&style=none&width=1742)
  33. <a name="W0py1"></a>
  34. ### 修改方法
  36. - 因为是对bug的状态进行修改，也就是通常后端中常见的update方法。
  37. - 找到方法之后，就需要研读代码。读懂代码最好的方式是打断点进行debug，一个bug D上一天，虽愚也会有所闻的。
  38. - 按照 规定 在 zentaopms/module/bug/ext/model/update.php 下进行修改，没有的话请创建，这是前面几张文章提到的开发规范
  39. ```php
  40. <?php
  42. // 对 bug/model.php 中的update方法进行拓展
  43. /**
  44.  * Update a bug.
  45.  *
  46.  * @param  int    $bugID
  47.  * @access public
  48.  * @return void
  49.  */
  50. public function update($bugID)
  51. {
  52.     // get oldBugInfo
  53.     $oldBug = $this->dao->select('*')->from(TABLE_BUG)->where('id')->eq((int)$bugID)->fetch();
  54.     if(!empty($_POST['lastEditedDate']) and $oldBug->lastEditedDate != $this->post->lastEditedDate)
  55.     {
  56.         dao::$errors[] = $this->lang->error->editedByOther;
  57.         return false;
  58.     }
  60.     $now = helper::now();
  61.     $bug = fixer::input('post')
  62.         ->cleanInt('product,module,severity,project,story,task,branch')
  63.         ->stripTags($this->config->bug->editor->edit['id'], $this->config->allowedTags)
  64.         ->setDefault('product,module,project,story,task,duplicateBug,branch', 0)
  65.         ->setDefault('openedBuild', '')
  66.         ->setDefault('plan', 0)
  67.         ->setDefault('deadline', '0000-00-00')
  68.         ->setDefault('resolvedDate', '0000-00-00 00:00:00')
  69.         ->setDefault('lastEditedBy',   $this->app->user->account)
  70.         ->add('lastEditedDate', $now)
  71.         ->setIF(strpos($this->config->bug->edit->requiredFields, 'deadline') !== false, 'deadline', $this->post->deadline)
  72.         ->join('openedBuild', ',')
  73.         ->join('mailto', ',')
  74.         ->join('linkBug', ',')
  75.         ->setIF($this->post->assignedTo  != $oldBug->assignedTo, 'assignedDate', $now)
  76.         ->setIF($this->post->resolvedBy  != '' and $this->post->resolvedDate == '', 'resolvedDate', $now)
  77.         ->setIF($this->post->resolution  != '' and $this->post->resolvedDate == '', 'resolvedDate', $now)
  78.         ->setIF($this->post->resolution  != '' and $this->post->resolvedBy   == '', 'resolvedBy',   $this->app->user->account)
  79.         ->setIF($this->post->closedBy    != '' and $this->post->closedDate   == '', 'closedDate',   $now)
  80.         ->setIF($this->post->closedDate  != '' and $this->post->closedBy     == '', 'closedBy',     $this->app->user->account)
  81.         ->setIF($this->post->closedBy    != '' or  $this->post->closedDate   != '', 'assignedTo',   'closed')
  82.         ->setIF($this->post->closedBy    != '' or  $this->post->closedDate   != '', 'assignedDate', $now)
  83.         ->setIF($this->post->resolution  != '' or  $this->post->resolvedDate != '', 'status',       'resolved')
  84.         ->setIF($this->post->closedBy    != '' or  $this->post->closedDate   != '', 'status',       'closed')
  85.         ->setIF(($this->post->resolution != '' or  $this->post->resolvedDate != '') and $this->post->assignedTo == '', 'assignedTo', $oldBug->openedBy)
  86.         ->setIF(($this->post->resolution != '' or  $this->post->resolvedDate != '') and $this->post->assignedTo == '', 'assignedDate', $now)
  87.         ->setIF($this->post->resolution  == '' and $this->post->resolvedDate =='', 'status', 'active')
  88.         ->setIF($this->post->resolution  != '', 'confirmed', 1)
  90. //  对原有的update方法进行拓展，支持新增的两个bug_status
  91.         ->setIF($this->post->status  == 'in process', 'status', 'in process')
  92.         ->setIF($this->post->status  == 'postpone', 'status', 'postpone')
  93.         ->setIF($this->post->status  == 'fixed', 'status', 'fixed')
  94. //   FIXME  支持修改新增的字段
  95.         ->setIF($this->post->story != false and $this->post->story != $oldBug->story, 'storyVersion', $this->loadModel('story')->getVersion($this->post->story))
  96.         ->setIF(!$this->post->linkBug, 'linkBug', '')
  97.         ->remove('comment,files,labels,uid,contactListMenu')
  98.         ->get();
  100.     $bug = $this->loadModel('file')->processImgURL($bug, $this->config->bug->editor->edit['id'], $this->post->uid);
  101.     $this->dao->update(TABLE_BUG)->data($bug)
  102.         ->autoCheck()
  103.         ->batchCheck($this->config->bug->edit->requiredFields, 'notempty')
  104.         ->checkIF($bug->resolvedBy, 'resolution', 'notempty')
  105.         ->checkIF($bug->closedBy,   'resolution', 'notempty')
  106.         ->checkIF($bug->resolution == 'duplicate', 'duplicateBug', 'notempty')
  107.         ->where('id')->eq((int)$bugID)
  108.         ->exec();
  110.     if(!dao::isError())
  111.     {
  112.         if(!empty($bug->resolvedBy)) $this->loadModel('score')->create('bug', 'resolve', $bugID);
  113.         $this->file->updateObjectID($this->post->uid, $bugID, 'bug');
  114.         return common::createChanges($oldBug, $bug);
  115.     }
  116. }

  • 上面的代码是已经修改了的代码，其中 this->post->status 是前端页面发送回来的bug_status 相关信息，因为php的语法有些特殊，所以看起来有些奇怪。

    前端方面

    思路

  • 从思路上来讲

    • 前端发送给后端的数据
    • 前端需要进行展示的字段支持 — 也就是模块下的lang文件。
    • 前端需要进行控制的字段，涉及到php控制的一些方法，这些在后续文章中陆续分享。
    • 本篇中涉及到前端的部分比较简单，所以略述，详细的爬坑记录等待下次

      涉及修改文件总结

  • 前端 module/bug/ext/view/edit.html.php

  • 后端 module/bug/ext/model/update.php
  • 字库 module/bug/lang/zh-cn.php
