1）Flink CDC 同步数据

1. Mysql 添加以下配置（cdc部分）

# 添加 cdc 配置
server-id = 1
log-bin = mysql-bin
binlog_format = row
binlog-do-db = cdcservice
#设置mysql的安装目录
basedir = /opt/solfware/mysql-5.7.34
#设置mysql数据库的数据存放目录
datadir = /opt/solfware/mysql-5.7.34/data
#设置端口
port = 3306
socket = /tmp/mysql.sock
#设置字符集
character-set-server = utf8
#日志存放目录
log-error = /opt/solfware/mysql-5.7.34/data/mysqld.log
pid-file = /opt/solfware/mysql-5.7.34/data/mysqld.pid
#允许时间类型的数据为零(去掉NO_ZERO_IN_DATE,NO_ZERO_DATE)
sql_mode=ONLY_FULL_GROUP_BY,STRICT_TRANS_TABLES,ERROR_FOR_DIVISION_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION

2. 重启 Mysql

sudo systemctl restart mysqld

3. 创建测试表

DROP TABLE IF EXISTS `stuinfo`;
CREATE TABLE IF NOT EXISTS `stuinfo`(
    `stuid` BIGINT(20) UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    `stuname` VARCHAR(32) NOT NULL,
    `birthday` DATETIME,
    `subtime` TIMESTAMP
)ENGINE=InnoDB DEFAULT CHARSET=utf8;
insert into `stuinfo` values(101, "zhangsan", "2020-10-01", "2020-10-01 10:10:10");
insert into `stuinfo` values(102, "lisi", "2020-10-01", "2020-10-01 10:10:10");
insert into `stuinfo` values(103, "wangwu", "2020-10-01", "2020-10-01 10:10:10");
SELECT * FROM `stuinfo`;
insert into `stuinfo` values(104, "zhaoliu", "2020-10-01", "2020-10-01 10:10:10");
update `stuinfo` set stuname = "abc" where stuid = 104;
delete from `stuinfo` where stuid = 104;

4. 创建服务引入以下坐标

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>org.example</groupId>
    <artifactId>cdcservice</artifactId>
    <version>1.0-SNAPSHOT</version>
    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <flink.version>1.12.0</flink.version>
        <flink-connector-mysql-cdc.version>2.0.0</flink-connector-mysql-cdc.version>
        <hadoop-client.version>3.3.1</hadoop-client.version>
        <mysql-connector-java.version>8.0.19</mysql-connector-java.version>
        <fastjson.version>1.2.75</fastjson.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <!-- #flink的客户端 -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner_2.12</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>com.ververica</groupId>
            <artifactId>flink-connector-mysql-cdc</artifactId>
            <version>${flink-connector-mysql-cdc.version}</version>
        </dependency>
        <!-- hadoop客户端，checkpoin 需要用到 -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>${hadoop-client.version}</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql-connector-java.version}</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.0.0</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

5. 使用 DataStream 操作

package com.example;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import com.ververica.cdc.connectors.mysql.MySqlSource;
import java.util.Properties;
public class FlinkCDC {
    public static void main(String[] args) throws Exception {
        // 1. 获取执行环境
        StreamExecutionEnvironment environment = StreamExecutionEnvironment.getExecutionEnvironment();
        environment.setParallelism(1);
        // 2. 获取 CK（我还没安装 HDFS，所以此处注释）
//        System.setProperty("HADOOP_USER_NAME", "alibaba" );    // 权限设置
//        environment.enableCheckpointing(5000L);  // 设置间隔,多久开启一次 checkpoint.
//        environment.setStateBackend(new FsStateBackend("hdfs://hadoop102:8020/flink1109/ck"));
        // 3. 获取 mysql cdc source
        Properties properties = new Properties();
        properties.setProperty("scan.startup.mode", "initial");
        SourceFunction<String> sourceFunction = MySqlSource.<String>builder()
                .hostname("1.15.115.151")
                .port(3306)
                .username("root")
                .password("123456")
                .databaseList("cdcservice")    // 监控的database
                .tableList("cdcservice.stuinfo", "cdcservice.stuinfo_bar")    // 监控的table
                .deserializer(new MyDebeziumDeserializationSchema())    // 自定义返回数据格式
                .debeziumProperties(properties)
                .build();
        // 4. 获取 mysql 数据
        DataStreamSource<String> streamSource = environment.addSource(sourceFunction);
        // 5. 算子操作（在这里进行业务处理）
        BusinessProcess businessProcess = new BusinessProcess();
        streamSource.map(new MapFunction<String, Object>() {
            @Override
            public Object map(String dataStr) throws Exception {
                // 进行业务处理
                businessProcess.processing(dataStr);
                return null;
            }
        });
        // 6. 打印
        streamSource.print();
        // 7. 执行任务
        environment.execute();
    }
}

6. 自定义返回数据格式

package com.example;
import com.alibaba.fastjson.JSONObject;
import com.ververica.cdc.debezium.DebeziumDeserializationSchema;
import io.debezium.data.Envelope;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.util.Collector;
import org.apache.kafka.connect.data.Field;
import org.apache.kafka.connect.data.Schema;
import org.apache.kafka.connect.data.Struct;
import org.apache.kafka.connect.source.SourceRecord;
public class MyDebeziumDeserializationSchema implements DebeziumDeserializationSchema<String> {
    /**
     * 反序列化
     * @param sourceRecord
     * @param collector
     * @throws Exception
     */
    @Override
    public void deserialize(SourceRecord sourceRecord, Collector<String> collector) throws Exception {
        // 1.数据快照
        JSONObject snapshot = getSnapshot(sourceRecord);
        // 2.输出结果
        collector.collect(snapshot.toString());
    }
    /**
     * 数据类型
     * @return
     */
    @Override
    public TypeInformation<String> getProducedType() {
        return TypeInformation.of(String.class);
    }
    /**
     * 获取数据快照
     * @param sourceRecord
     * @return
     */
    private JSONObject getSnapshot(SourceRecord sourceRecord) {
        // 数据快照
        JSONObject result = new JSONObject();
        // 1.获取操作的 database 与 table 名称
        String topic = sourceRecord.topic();
        String[] split = topic.split("\\.");
        String dataBaseName = split[1];
        String tableName = split[2];
        // 2.获取 SQL 操作类型
        Envelope.Operation operation = Envelope.operationFor(sourceRecord);
        // 3.获取变更前后的数据
        Struct value = (Struct) sourceRecord.value();
        // 变更前的数据
        Struct beforeStruct = value.getStruct("before");
        // 变更后的数据
        Struct afterStruct = value.getStruct("after");
        // 自定义操作最终返回的数据：变更前的数据
        JSONObject beforeJSONData = new JSONObject();
        // 自定义操作最终返回的数据：变更后的数据
        JSONObject afterJSONData = new JSONObject();
        if (null != beforeStruct && null != afterStruct) {    // update 操作
            // update 前的数据
            Schema beforeSchema = beforeStruct.schema();
            for (Field field : beforeSchema.fields()) {
                beforeJSONData.put(field.name(), beforeStruct.get(field));
            }
            // update 后的数据
            Schema afterSchema = afterStruct.schema();
            for (Field field : afterSchema.fields()) {
                afterJSONData.put(field.name(), afterStruct.get(field));
            }
        }else if (null != afterStruct) {    // insert 操作
            Schema afterSchema = afterStruct.schema();
            for (Field field : afterSchema.fields()) {
                afterJSONData.put(field.name(), afterStruct.get(field));
            }
        }else if (null != beforeStruct) {    // 删除操作
            Schema beforeSchema = beforeStruct.schema();
            for (Field field : beforeSchema.fields()) {
                beforeJSONData.put(field.name(), beforeStruct.get(field));
            }
        }else {
            System.out.println("异常情况");
        }
        // 4. 封装数据快照
        result.put("dataBaseName", dataBaseName);
        result.put("tableName", tableName);
        result.put("operation", operation.toString().toLowerCase());
        result.put("beforeJSONData", beforeJSONData);
        result.put("afterJSONData", afterJSONData);
        return result;
    }
}

7. 业务处理

package com.example;
import com.alibaba.fastjson.JSONObject;
import org.apache.commons.lang3.StringUtils;
import java.io.Serializable;
public class BusinessProcess implements Serializable {
    /**
     * 每次数据同步过来之后，进入当前方法进行业务处理
     */
    public void processing(String dataStr) {
        // 1.将 String 转为 JSON
        JSONObject jsonObject = JSONObject.parseObject(dataStr);
        // 2.获取 tableName
        String tableName = (String) jsonObject.get("tableName");
        // 3.根据不同的 tableName 进行不同的业务处理操作
        businessTableProcessing(tableName);
    }
    /**
     * 不同的 table 进行不同的 business Process
     * @param tableName
     */
    private void businessTableProcessing(String tableName) {
        if (StringUtils.isEmpty(tableName)) {
            throw new IllegalArgumentException("table name is null");
        }else if ("stuinfo".equals(tableName)) {
            new StuInfoHandler().businessTableProcessing();
        }else if ("stuinfo_bar".equals(tableName)) {
            new StuInfoBarHandler().businessTableProcessing();
        }
    }
}

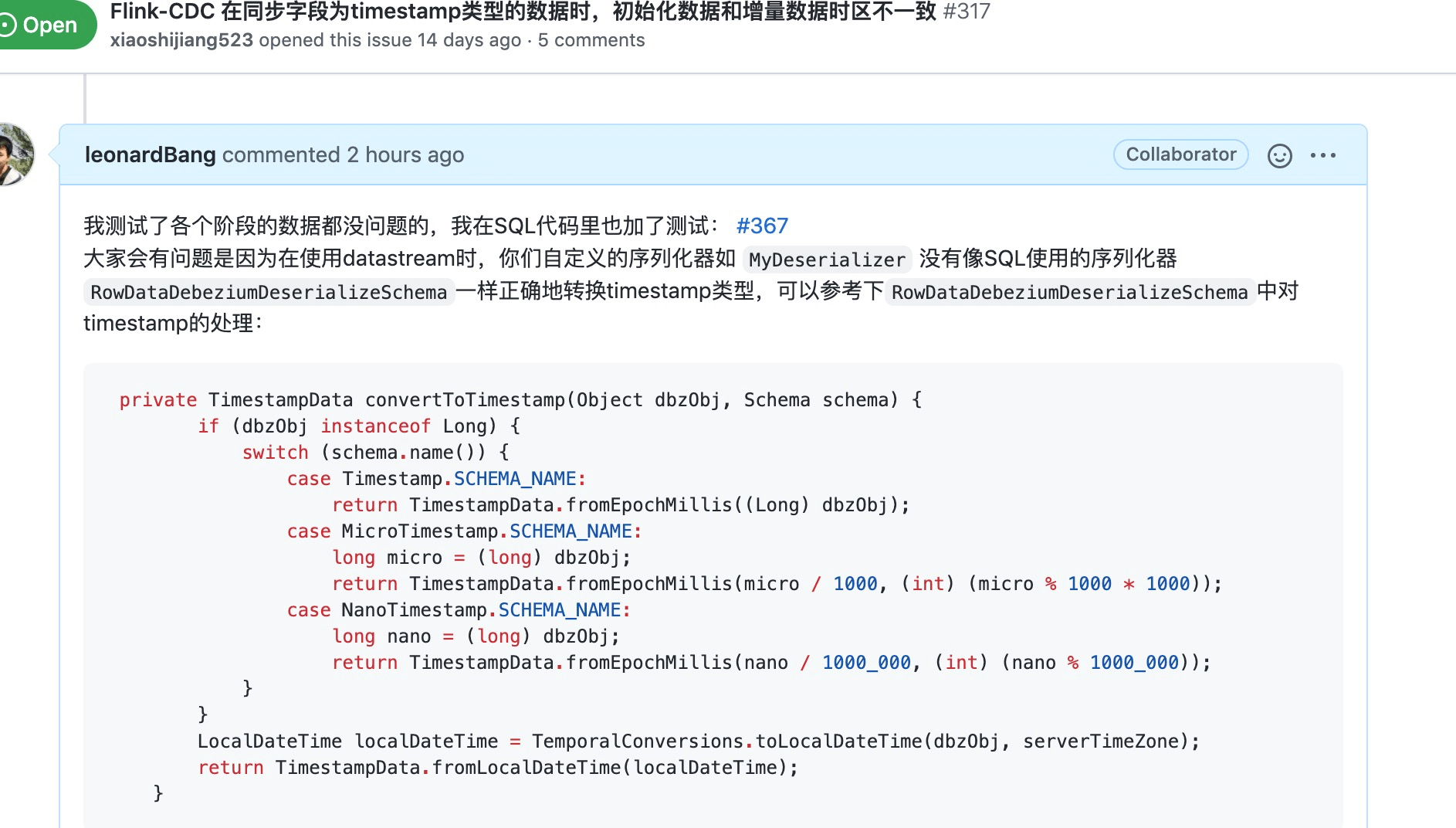

https://github.com/ververica/flink-cdc-connectors/issues/317
