AQS是jdk并发包java.util.concurrent下绝大部分工具类实现的基础，比如条件队列，阻塞队列，独占锁，共享锁等。
    AQS具备特性

    • 独占/共享
    • 可重入
    • 允许中断
    • 公平/非公平
    • 阻塞等待

    ReentrantLock使用方法非常简单 只需要在需要加锁的逻辑前调用lock() unlock() 即可进行加减锁。

    1. ReentrantLock lock = new ReentrantLock();
    3. new Thread(() -> {
    4.   lock.lock(); // 加锁
    5.   try {
    6.         todo();
    7.   }catch (Exception e) {
    8.         log.error();
    9.   }finally {
    10.       lock.unlock(); // 解锁
    11.   }
    13. }).start();
    15. new Thread(() -> {
    16.   lock.lock();
    17.   try {
    18.         todo();
    19.   }catch (Exception e) {
    20.         log.error();
    21.   }finally {
    22.       lock.unlock(); // 解锁
    23.   }
    25. }).start();

    ReentrantLock对比synchronized

    • �synchronized是JVM层面实现的，ReentrantLock是JDK层面的锁。
    • synchronized只有非公平，ReentrantLock有公平/非公平两种。
    • synchronized不可被中断，ReentrantLock#lockInterruptibly()是可中断的。
    • synchronized不可获取加锁状态，ReentrantLock#isLocked()是可以获取锁状态的。
    • 发生异常时synchronized会自动释放锁，ReentrantLock需通过finally来显示释放。
    • synchronized加锁方式单一，ReentrantLock可通过tryLock()快速获取锁加锁结构，以及设置可等待时长等更为灵活。

    既然ReentrantLock这么强大 那我们来看看他是怎么实现的吧
    看源码呢 带着问题去读 会更有效果

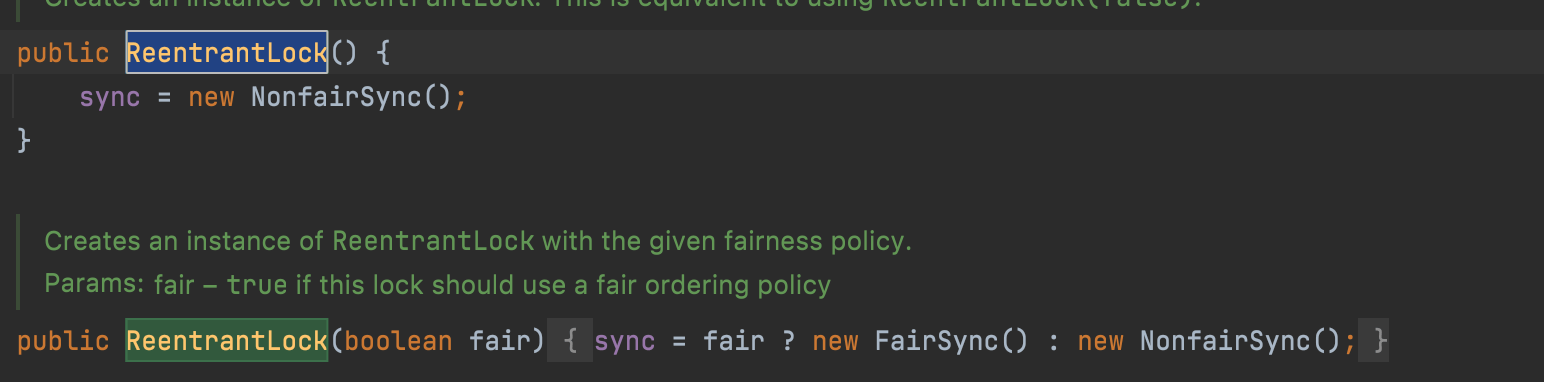

    ReentrantLock构造方法有两种，通过构造方法我们可以获取公平/非公平锁，默认为非公平。

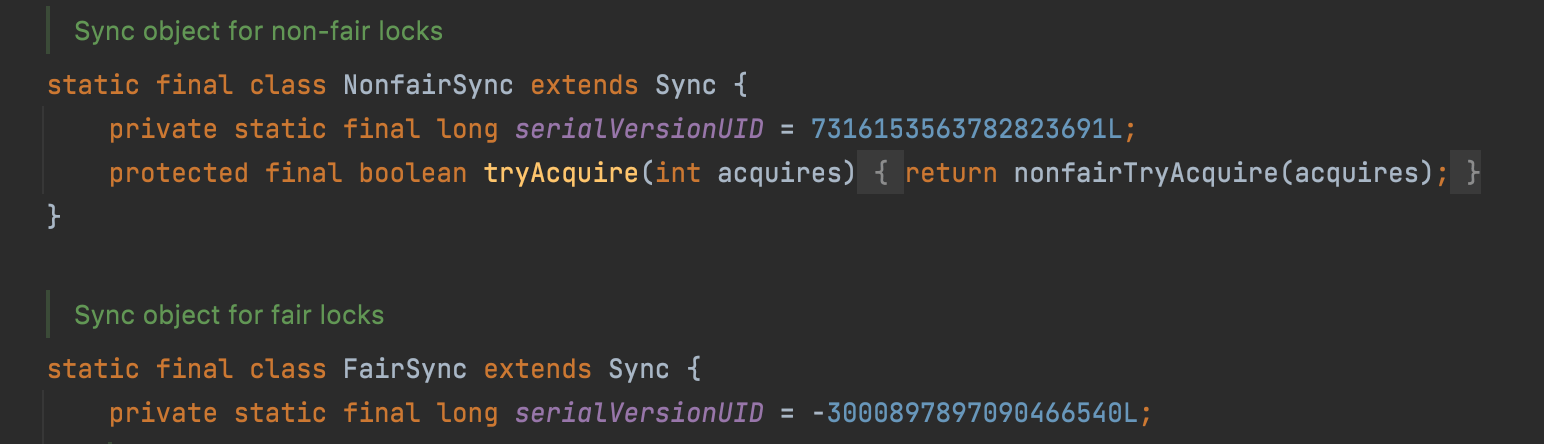

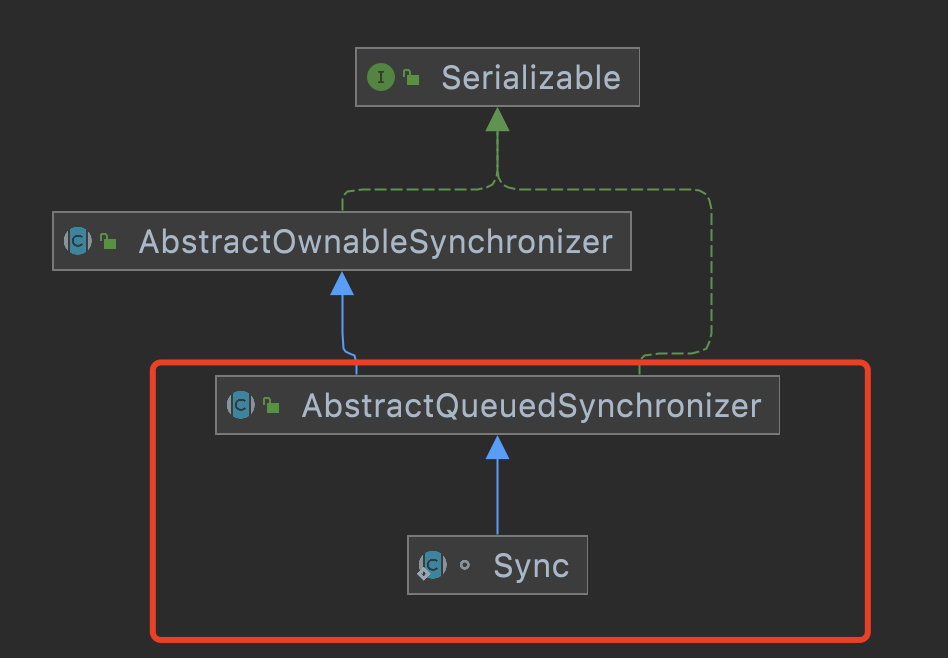

    AbstractQueuedSynchronizer（简称AQS）实现的，AQS是一个抽象同步框架，可以用来实现一个依赖状态的同步器。公平锁与非公平锁都是基于AQS实现的。

    图1

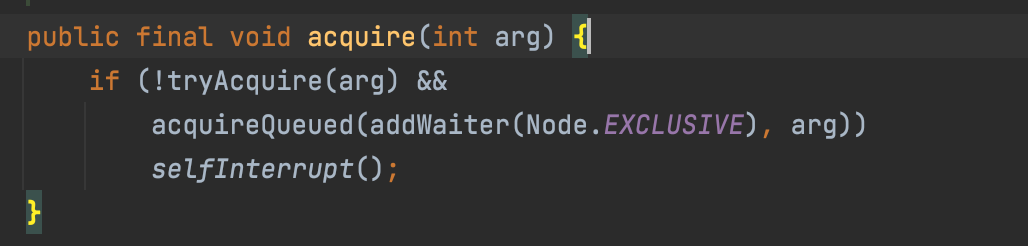

    加锁时首先会调用一个acquire()

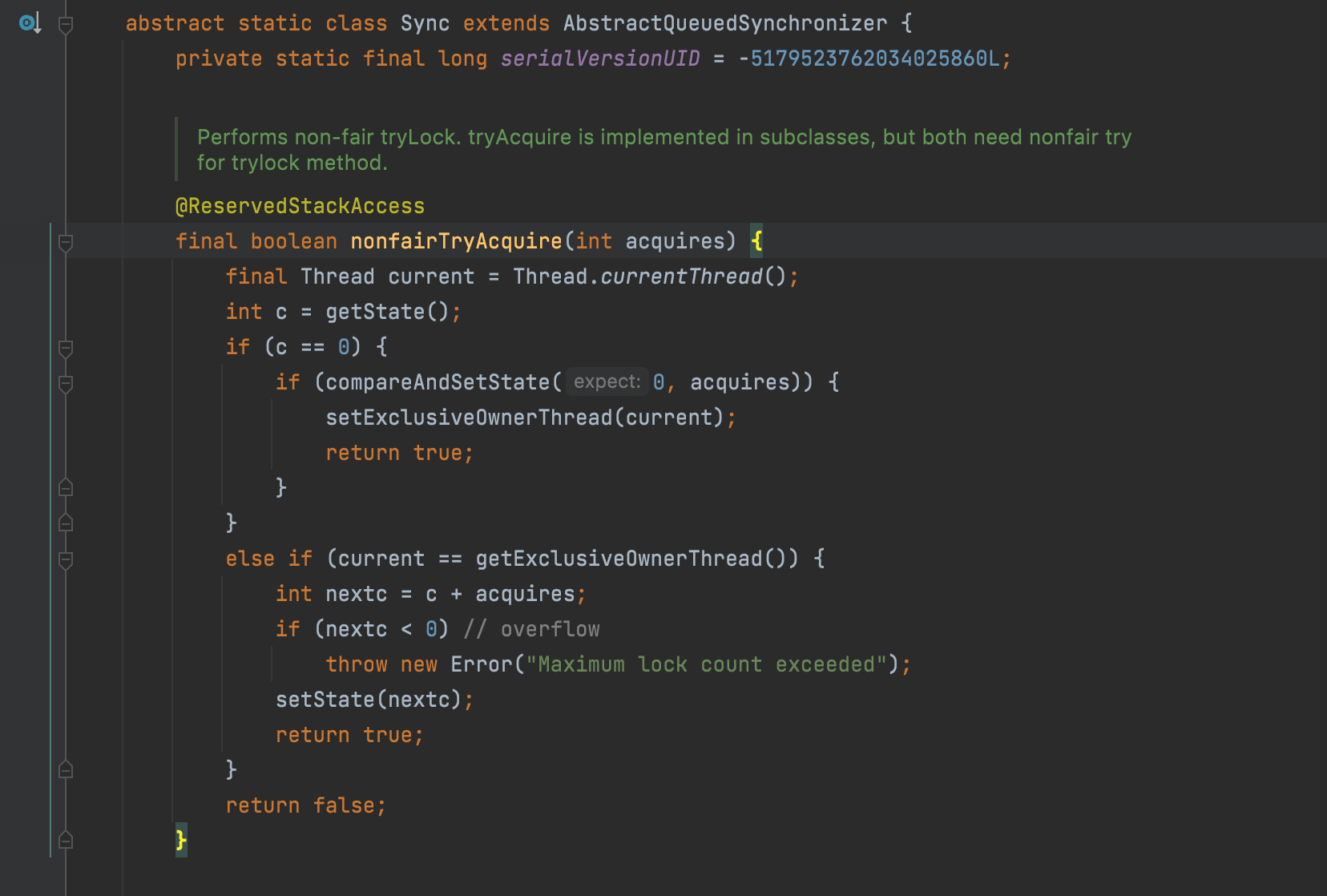

    通过tryAcquire()我们会找到父类AQS的实现方法nonfairTryAcquire()
    图2

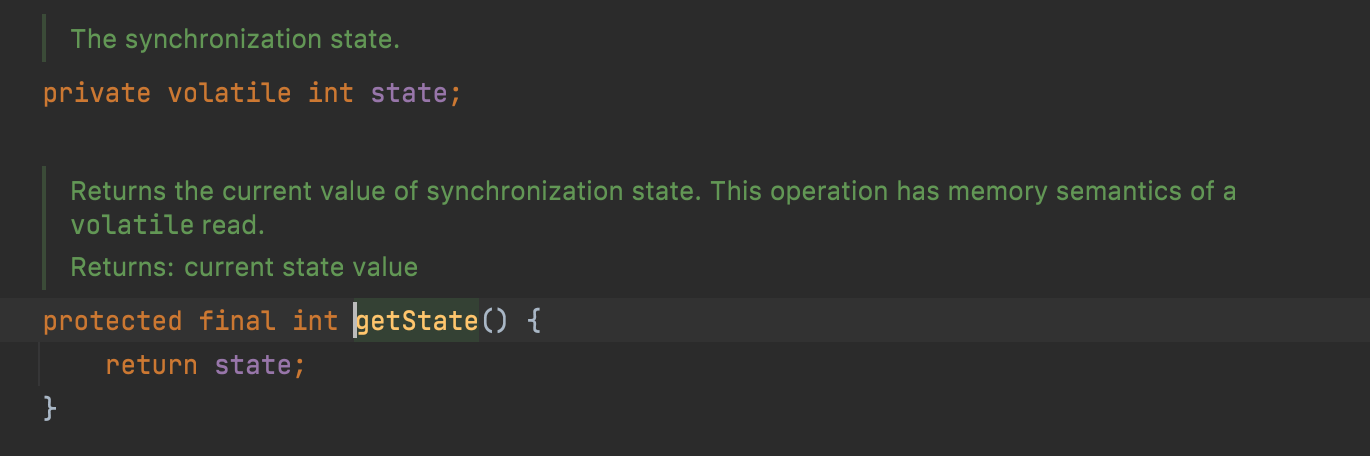

    �首先会获取我们的线程与state。
    这个state是我们需要关注的点。它也是可ReentrantLock实现可重入、共享锁的关键。
    �state初始化为0 所以上边的逻辑我们只需要先关注 == 0的逻辑即可
    -》图2。compareAndSetState即为我们常见的CAS逻辑。CAS可以通过JVM层面来保证我们操作的原子性。这个方法可以把acquires赋值给state并返回boolean，即如果state当前状态为0（没有被其他线程所修改的情况）则当前线程可将其更改为1。
    此时我们假设当前线程为thread1且修改state状态成功。

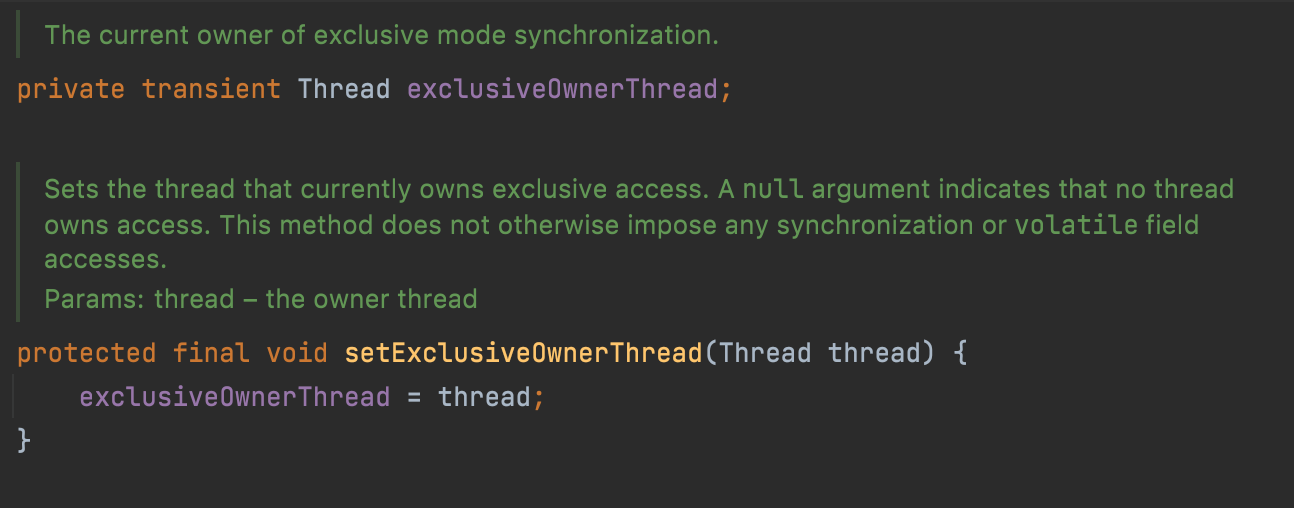

    则可通过setExclusiveOwnerThread()设置当前锁拥有者为此线程。
    -》图2。所示此时thread1 获取锁并返回true。持有锁并加锁成功。
    如果thread1再次进入另一个加锁逻辑会怎样呢。此时state会进行+1来记录thread1 进行了两次加锁。通过state
    的状态我们可以看出state与ReentrantLock的可重入特性紧密相关。

    -》图2。如果此时thread2进入加锁逻辑，由于之前thread1先对state进行了状态的更改。此时只能返回false。
    -》图1。此时会执行addWaiter(Node.EXCLUSIVE)方法
    在看后边逻辑之前，我们先了解下AQS
    AQS有两种资源模式

    • Exclusive-独占，只有一个线程能执行，如ReentrantLock
    • Share-共享，多个线程可以同时执行，如Semaphore/CountDownLatch

    基于MESA管程模型AQS还有两种队列

    • 同步等待队列：主要用于维护获取锁失败的线程。同步队列为双向链表。
    • 条件等待队列：用于维护调研await()释放锁后的线程，当调用signal()唤醒后会把条件队列的线程节点全部移动到同步队列中，等待再次获取锁。条件队列为单向链表。

    此Node为AQS实现的同步队列

    1. static final class Node {
    2.         /** Marker to indicate a node is waiting in shared mode */
    3.         // 共享
    4.         static final Node SHARED = new Node();
    5.         /** Marker to indicate a node is waiting in exclusive mode */
    6.         // 独占
    7.         static final Node EXCLUSIVE = null;
    9.         /** waitStatus value to indicate thread has cancelled. */
    10.         static final int CANCELLED =  1;
    11.         /** waitStatus value to indicate successor's thread needs unparking. */
    12.         static final int SIGNAL    = -1;
    13.         /** waitStatus value to indicate thread is waiting on condition. */
    14.         static final int CONDITION = -2;
    15.         /**
    16.          * waitStatus value to indicate the next acquireShared should
    17.          * unconditionally propagate.
    18.          */
    19.         static final int PROPAGATE = -3;
    21.         /**
    22.          * Status field, taking on only the values:
    23.          *   SIGNAL:     The successor of this node is (or will soon be)
    24.          *               blocked (via park), so the current node must
    25.          *               unpark its successor when it releases or
    26.          *               cancels. To avoid races, acquire methods must
    27.          *               first indicate they need a signal,
    28.          *               then retry the atomic acquire, and then,
    29.          *               on failure, block.
    30.          *   CANCELLED:  This node is cancelled due to timeout or interrupt.
    31.          *               Nodes never leave this state. In particular,
    32.          *               a thread with cancelled node never again blocks.
    33.          *   CONDITION:  This node is currently on a condition queue.
    34.          *               It will not be used as a sync queue node
    35.          *               until transferred, at which time the status
    36.          *               will be set to 0. (Use of this value here has
    37.          *               nothing to do with the other uses of the
    38.          *               field, but simplifies mechanics.)
    39.          *   PROPAGATE:  A releaseShared should be propagated to other
    40.          *               nodes. This is set (for head node only) in
    41.          *               doReleaseShared to ensure propagation
    42.          *               continues, even if other operations have
    43.          *               since intervened.
    44.          *   0:          None of the above
    45.          *
    46.          * The values are arranged numerically to simplify use.
    47.          * Non-negative values mean that a node doesn't need to
    48.          * signal. So, most code doesn't need to check for particular
    49.          * values, just for sign.
    50.          *
    51.          * The field is initialized to 0 for normal sync nodes, and
    52.          * CONDITION for condition nodes.  It is modified using CAS
    53.          * (or when possible, unconditional volatile writes).
    54.          */
    55.         volatile int waitStatus;
    57.         /**
    58.          * Link to predecessor node that current node/thread relies on
    59.          * for checking waitStatus. Assigned during enqueuing, and nulled
    60.          * out (for sake of GC) only upon dequeuing.  Also, upon
    61.          * cancellation of a predecessor, we short-circuit while
    62.          * finding a non-cancelled one, which will always exist
    63.          * because the head node is never cancelled: A node becomes
    64.          * head only as a result of successful acquire. A
    65.          * cancelled thread never succeeds in acquiring, and a thread only
    66.          * cancels itself, not any other node.
    67.          */
    68.         volatile Node prev;
    70.         /**
    71.          * Link to the successor node that the current node/thread
    72.          * unparks upon release. Assigned during enqueuing, adjusted
    73.          * when bypassing cancelled predecessors, and nulled out (for
    74.          * sake of GC) when dequeued.  The enq operation does not
    75.          * assign next field of a predecessor until after attachment,
    76.          * so seeing a null next field does not necessarily mean that
    77.          * node is at end of queue. However, if a next field appears
    78.          * to be null, we can scan prev's from the tail to
    79.          * double-check.  The next field of cancelled nodes is set to
    80.          * point to the node itself instead of null, to make life
    81.          * easier for isOnSyncQueue.
    82.          */
    83.         volatile Node next;
    85.         /**
    86.          * The thread that enqueued this node.  Initialized on
    87.          * construction and nulled out after use.
    88.          */
    89.         volatile Thread thread;
    90. }

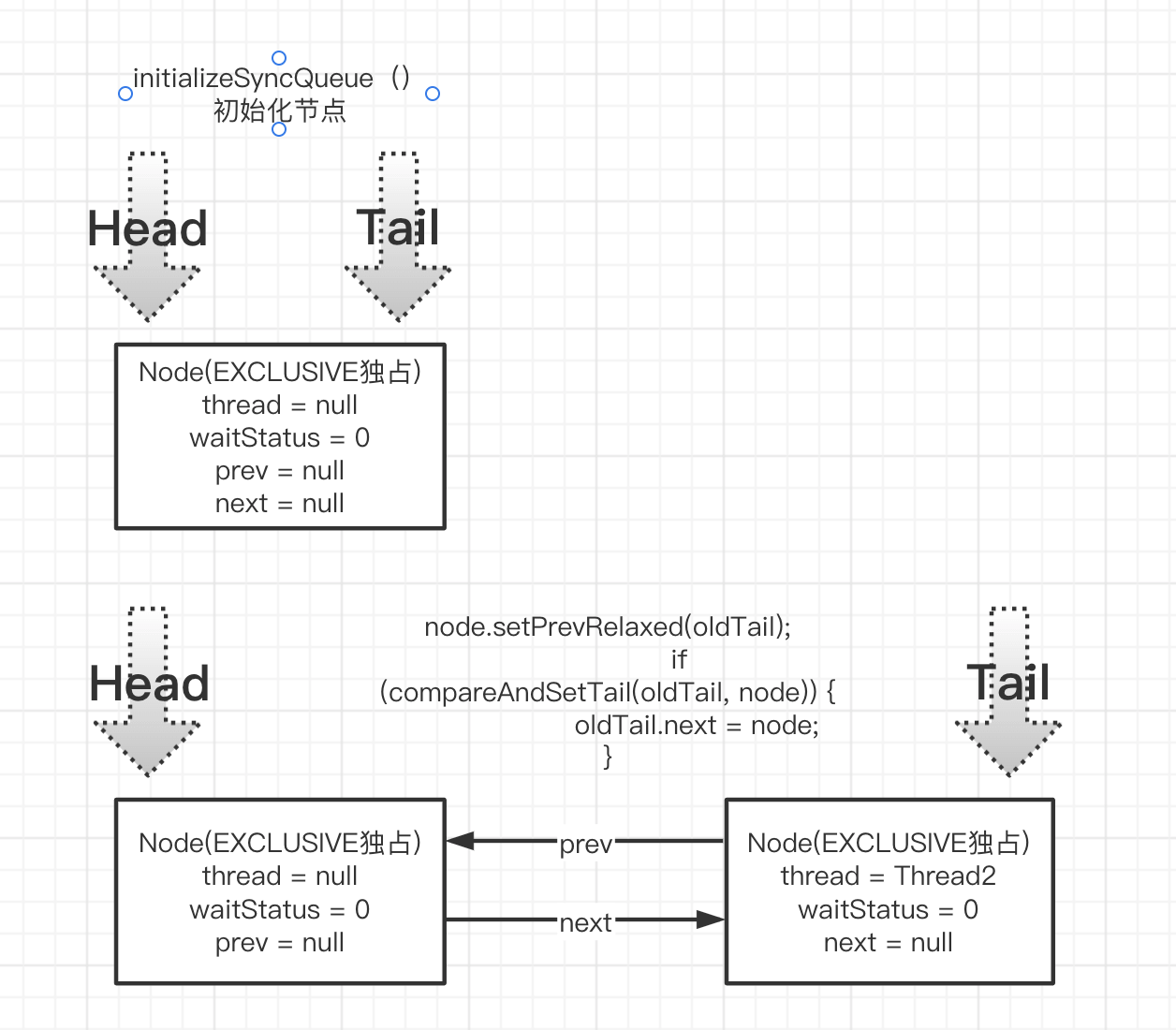

    �创建节点后 会通过循环来初始化同步等待队列，并使thread2入队返回当前node节点
    此时生成的队列状态为

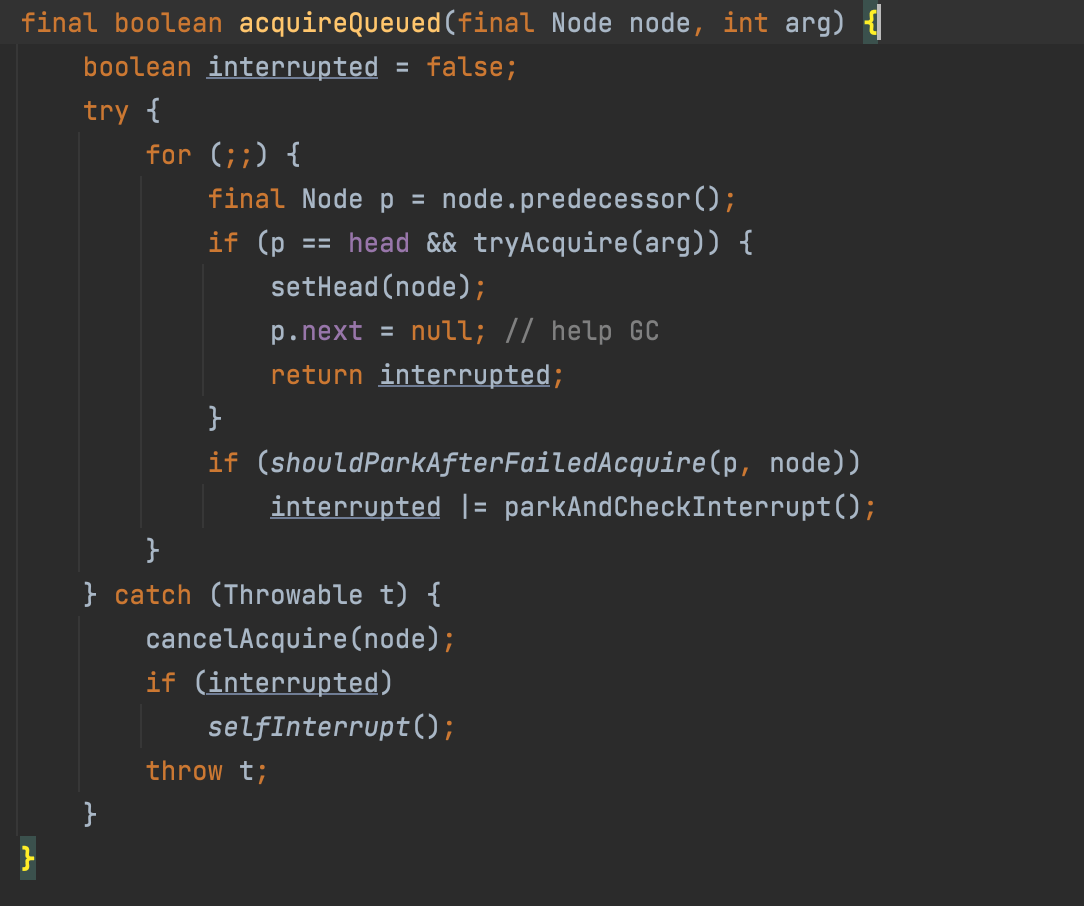

    �之后会调用acquireQueued（）首先进行判断当前thread2节点的prev是否为Head节点。如果是Head节点，则会再次进行获取锁逻辑。因为此时刚入队的thread2还未被park。可以再次尝试来降低线程切换带来的性能损耗。
    �图3

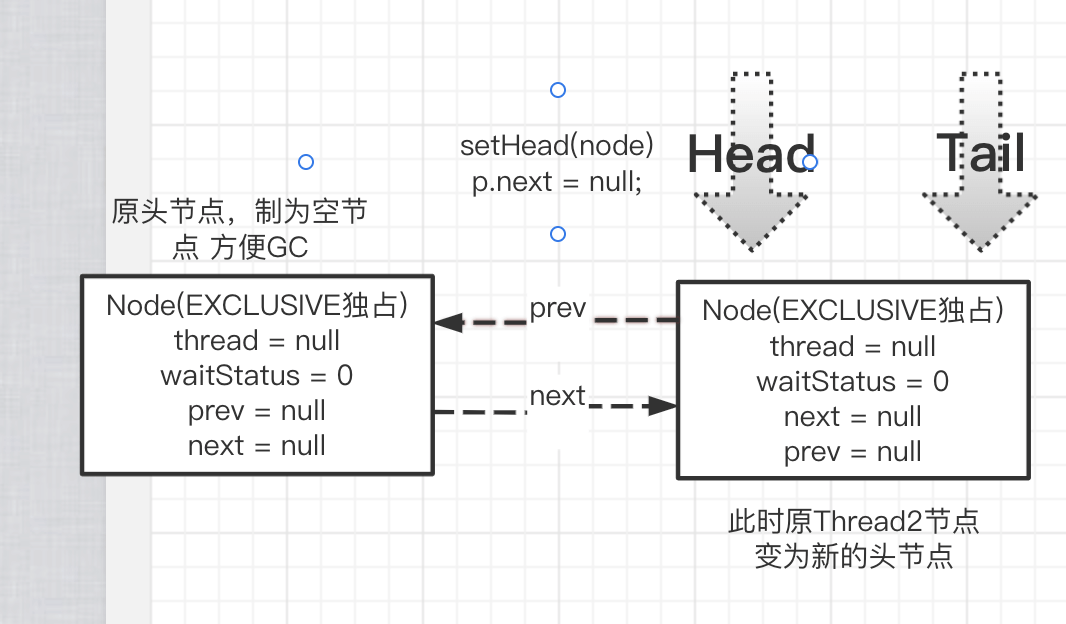

    此时如果获取锁成功则会把头节点制空，然后当前thread2节点变为新的Head节点
    如果加锁失败则shouldParkAfterFailedAcquire(p, node)使Head节点的waitStatus变为-1，表示后边的下一个节点为可唤醒状态。并通过parkAndCheckInterrupt()对thread2进行park。

    至此加锁逻辑分析完毕。
