如果使用docker安装，无需关注erlang版本适配

1. 单机

docker pull rabbitmq:management
docker run --name rabbitmq -p 5672:5672 -p 15672:15672 -d rabbitmq:management

2. 集群

2.1 第1台主机

docker-compose.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit1
    image: rabbitmq:management
    restart: always
    hostname: rabbit1
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    ports:
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

docker-compose-plugins.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit1
    image: rabbitmq:3.11.2-management
    restart: always
    hostname: rabbit1
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    volumes:
      - "./plugins.erl:/etc/rabbitmq/enabled_plugins"
    ports:
      - "1883:1883"
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

plugins.erl

[rabbitmq_delayed_message_exchange, rabbitmq_management, rabbitmq_mqtt, rabbitmq_stomp, rabbitmq_web_stomp, rabbitmq_web_stomp_examples].

2.2 第2台主机

docker-compose.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit2
    image: rabbitmq:3.11.2-management
    restart: always
    hostname: rabbit2
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    ports:
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

docker-compose-plugins.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit2
    image: rabbitmq:3.11.2-management
    restart: always
    hostname: rabbit2
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    volumes:
      - "./plugins.erl:/etc/rabbitmq/enabled_plugins"
    ports:
      - "1883:1883"
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

plugins.erl

[rabbitmq_delayed_message_exchange, rabbitmq_management, rabbitmq_mqtt, rabbitmq_stomp, rabbitmq_web_stomp, rabbitmq_web_stomp_examples].

2.3 第3台主机

docker-compose.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit3
    image: rabbitmq:management
    restart: always
    hostname: rabbit3
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    ports:
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

docker-compose-plugins.yml

version: '3'
services:
  rabbit1:
    container_name: rabbit3
    image: rabbitmq:management
    restart: always
    hostname: rabbit3
    extra_hosts:
      - "rabbit1:192.168.95.36"
      - "rabbit2:192.168.95.37"
      - "rabbit3:192.168.95.38"
    environment:
      - RABBITMQ_ERLANG_COOKIE=rabbitmq_cookie
      - RABBITMQ_DEFAULT_USER=admin
      - RABBITMQ_DEFAULT_PASS=passw0rd
    volumes:
      - "./plugins.erl:/etc/rabbitmq/enabled_plugins"
    ports:
      - "1883:1883"
      - "4369:4369"
      - "5671:5671"
      - "5672:5672"
      - "15670:15670"
      - "15671:15671"
      - "15672:15672"
      - "15674:15674"
      - "15692:15692"
      - "25672:25672"
      - "61613:61613"

plugins.erl

[rabbitmq_delayed_message_exchange, rabbitmq_management, rabbitmq_mqtt, rabbitmq_stomp, rabbitmq_web_stomp, rabbitmq_web_stomp_examples].

分别启动

cd /usr/local/docker/rabbitmq
docker-compose up -d

分别启动(插件版)

cd /usr/local/docker/rabbitmq
docker-compose -f docker-compose-plugins.yml up -d

加入集群

如果将 rabbit1 作为主节点的话，需要在 rabbit2 上执行命令，将其加入到集群，如下：

# docker exec -it rabbit2 /bin/bash
rabbit2# rabbitmqctl stop_app
rabbit2# rabbitmqctl reset
rabbit2# rabbitmqctl join_cluster rabbit@rabbit1
rabbit2# rabbitmqctl start_app

默认情况下，RabbitMQ 启动后是磁盘节点，如果想以内存节点方式加入，可以加 —ram 参数。如果想要修改节点类型，可以使用命令：

rabbitmqctl change_cluster_node_type disc(ram)

修改节点类型之前需要先<font style="color:rgb(36, 41, 47);"> rabbitmqctl stop_app</font>。通过下面命令来查看集群状态：

rabbitmqctl cluster_status

注意，由于 RAM 节点仅将内部数据库表存储在内存中，因此在内存节点启动时必须从其他节点同步这些数据，所以一个集群必须至少包含一个磁盘节点。

集群模式（镜像集群）

在我们使用 rabbitmq 作为消息服务时，在服务负载不是很大的情况下，一般我们只需要一个 rabbitmq 节点便能为我们提供服务，可这难免会发生单点故障，要解决这个问题，我们便需要配置 rabbitmq 的集群和镜像。

:::info

镜像模式参数

rabbitmqctl set_policy [-p Vhost] Name Pattern Definition [Priority]

[-p Vhost] ：可选参数，针对指定vhost下的queue进行设置 Name: policy的名称 Pattern: exchanges或queue的匹配模式(正则表达式) Definition：镜像定义，包括三个部分ha-mode, ha-params, ha-sync-mode
ha-mode:指明镜像队列的模式，有效值为 all/exactly/nodes
- [x] all：表示在集群中所有的节点上进行镜像
- [x] exactly：表示在指定个数的节点上进行镜像，节点的个数由ha-params指定
- [x] nodes：表示在指定的节点上进行镜像，节点名称通过ha-params指定 ha-params：ha-mode模式需要用到的参数

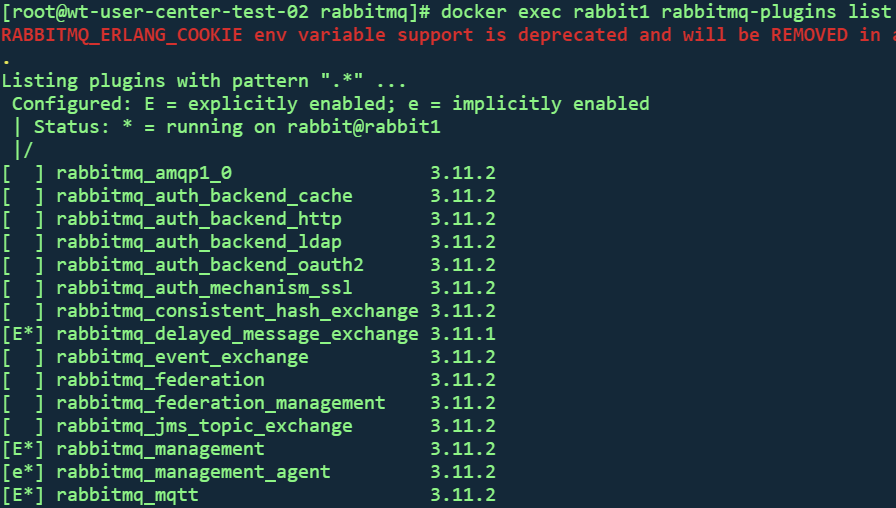

ha-sync-mode：进行队列中消息的同步方式，有效值为automatic和manual。 - [x] automatic:新增加节点自动同步全量数据。 - [x] manual: 新增节点只同步新增数据，全量数据需要手工同步。 [Priority] ：可选参数，policy的优先级 ::: :::color5 进入任意一个RabbitMQ节点，执行如下命令： rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all"}' 可以设置镜像队列，”^”表示匹配所有队列，即所有队列在各个节点上都会有备份。在集群中，只需要在一个节点上设置镜像队列，设置操作会同步到其他节点**。 + 查看当前策略 rabbitmqctl list_policies + 删除策略** rabbitmqctl clear_policy ha-all ::: #### 3. 插件 ##### 3.1 不进入容器 erlang 查看安装的插件 docker exec rabbit1 rabbitmq-plugins list :::color4 有 E 或* e 标志的则为启用的插件

E 显式启用
e 隐式启用

:::

启用插件
docker exec rabbit1 rabbitmq-plugins enable rabbitmq_delayed_message_exchange
禁用插件
docker exec rabbit1 rabbitmq-plugins disable rabbitmq_delayed_message_exchange
部署在容器中，需重启容器生效
docker exec -it rabbit1

3.2 进入容器

docker exec -it rabbit1 bash
或者
docker exec -it rabbit1 /bin/bash

rabbitmq - 图2

查看安装的插件
rabbitmq-plugins list
启用插件
rabbitmq-plugins enable rabbitmq_delayed_message_exchange
禁用插件
rabbitmq-plugins disable rabbitmq_delayed_message_exchange
重启生效
rabbitmqctl stop ：因为rabbitmqctl是没有restart命令的，所以重启rabbitmq服务需要这么两步
rabbitmq-server restart : 重启rabbitmq

如果需安装对应版本的插件，比如mq的延时队列插件（rabbitmq_delayed_message_exchange）

cd ./plugins
wget https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/download/3.11.1/rabbitmq_delayed_message_exchange-3.11.1.ez

rabbitmq - 图3

4. 负载均衡

ha 同样采用 Docker 方式来部署，先看一下 haproxy.cfg 配置文件：

# Simple configuration for an HTTP proxy listening on port 80 on all
# interfaces and forwarding requests to a single backend "servers" with a
# single server "server1" listening on 127.0.0.1:8000
global
    daemon
    maxconn 256
defaults
    mode http
    timeout connect 5000ms
    timeout client 5000ms
    timeout server 5000ms
listen rabbitmq_cluster
    bind *:5672
    option tcplog
    mode tcp
    balance leastconn
    server  rabbit1 192.168.95.36:5672 weight 1 check inter 2s rise 2 fall 3
    server  rabbit2 192.168.95.37:5672 weight 1 check inter 2s rise 2 fall 3
    server  rabbit3 192.168.95.38:5672 weight 1 check inter 2s rise 2 fall 3
listen http_front
    bind 0.0.0.0:8002
    stats uri /haproxy?stats
listen rabbitmq_admin
    bind *:8001
    server rabbit1 192.168.95.36:15672
    server rabbit2 192.168.95.37:15672
    server rabbit3 192.168.95.38:15672

docker-compose.yml

version: '3'
services:
  haproxy:
    container_name: haproxy
    image: haproxy:latest
    restart: always
    network_mode: host
    volumes:
      - ./haproxy.cfg:/usr/local/etc/haproxy/haproxy.cfg:ro
    ports:
      - "5672:5672"
      - "8001:8001"
      - "8002:8002"

启动之后，就可以通过 ha 的地址来访问 RabbitMQ 集群管理页面了。

http://192.168.95.28:8001/

如果公司内部有现成的负载均衡，比如 LVS，那么也可以省略这一步。
