1. 界面排布

KSvgEditor开发文档 - 图1

  1. m_pVLayout->addWidget(m_pMenuBar);
  3. m_pHLayout->addWidget(m_pToolBar);
  4. m_pHLayout->addWidget(m_pSvgMainWin);
  5. m_pHLayout->addWidget(m_pCanvasParamsBar);
  7. m_pVLayout->addLayout(m_pHLayout);
  8. m_pVLayout->addWidget(m_pColorBar);
  10. ui.centralWidget->setLayout(m_pVLayout);

m_pToolBar 工具栏类垂直布局了KToolButton类；

m_pCanvasParamsBar 属性框类列表布局了KColorBox（颜色选择框）、 KValueBox（属性设置框）、KCanvasScaleBox（画布比例框）。

其中 KValueBox采用了正则表达式，对用户输入数据进行判断。

  1. //正则表达式
  2. QRegExp reg("[1-9][0-9]+$");
  3. QValidator* validator = new QRegExpValidator(reg, m_pParamEdit);
  4. m_pParamEdit->setValidator(validator);
  6. m_pVLayout->addWidget(m_pParamEdit);
  7. }

2. 基本图形绘制

pen画笔类

判断绘画类型，如果是画笔类，调用addPos，记录每一个路径点。

  1. else if (flag == KGlobalData::KDrawFlag::PenFlag)
  2. {
  3.     m_isSelected = false;
  4.     m_pCurrentShape = KShapeFactory::createShape(KGlobalData::getGlobalDataIntance()->getDrawFlag());
  5.     if (m_pCurrentShape != NULL)
  6.     {
  7.         qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  8.         static_cast<KPen*>(m_pCurrentShape)->addPos(event->pos() / scale);
  9.     }
  11.         }
  1. void KPen::addPos(QPoint pos)
  2. {
  3.     if (m_posVector.isEmpty())
  4.     {
  5.         m_startPoint = pos;
  6.         m_endPoint = pos;
  7.     }
  8.     else
  9.     {
  10.         if (pos.x() < m_startPoint.x())
  11.             m_startPoint.rx() = pos.x();
  13.         if (pos.y() < m_startPoint.y())
  14.             m_startPoint.ry() = pos.y();
  16.         if (pos.x() > m_endPoint.x())
  17.             m_endPoint.rx() = pos.x();
  19.         if (pos.y() > m_endPoint.y())
  20.             m_endPoint.ry() = pos.y();
  21.     }
  23.     m_posVector.append(pos);
  25. }

绘制画笔时，使用drawPath( )画出每一个点

  1. void KPen::drawShape(QPaintDevice* parent)
  2. {
  4.     QPainter painter(parent);
  5.     QPainterPath path;
  7.     QVector<QPoint>::iterator pos = m_posVector.begin();
  9.     path.moveTo(*pos);
  11.     while (pos != m_posVector.end())
  12.     {
  13.         path.lineTo(*pos);
  14.         pos++;
  15.     }
  17.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  18.     painter.scale(scale, scale);
  19.     painter.setRenderHint(QPainter::Antialiasing);
  21.     QPen pen;
  22.     pen.setColor(QColor("#" + m_borderColor));
  23.     pen.setWidthF(m_borderWidth);
  24.     painter.setPen(pen);
  26.     painter.drawPath(path);
  27. }

line直线类

记录起始点，并绘制线条

  1. void KLine::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  8.     QPen pen;
  9.     pen.setColor(QColor("#" + m_borderColor));
  10.     pen.setWidth(m_borderWidth);
  11.     painter.setPen(pen);
  12.     painter.drawLine(getStartPoint(), getEndPoint());
  13. }

circle圆类

记录鼠标起始点，绘制椭圆（正圆）。

  1. void KCircle::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  8.     QPen pen;
  9.     pen.setColor(QColor("#" + m_borderColor));
  10.     pen.setWidth(m_borderWidth);
  11.     painter.setPen(pen);
  12.     painter.setBrush(QColor("#" + m_fillColor));
  13.     painter.drawEllipse(QRect(getStartPoint(), getEndPoint()));
  14. }

rect矩形

记录鼠标起始点，绘制图形。

  1. void KRect::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  7.     QPen pen;
  8.     pen.setColor(QColor("#" + m_borderColor));
  9.     pen.setWidth(m_borderWidth);
  10.     painter.setPen(pen);
  11.     painter.setBrush(QColor("#" + m_fillColor));
  12.     painter.drawRect(QRect(getStartPoint(), getEndPoint()));
  13. }

pent五边形类

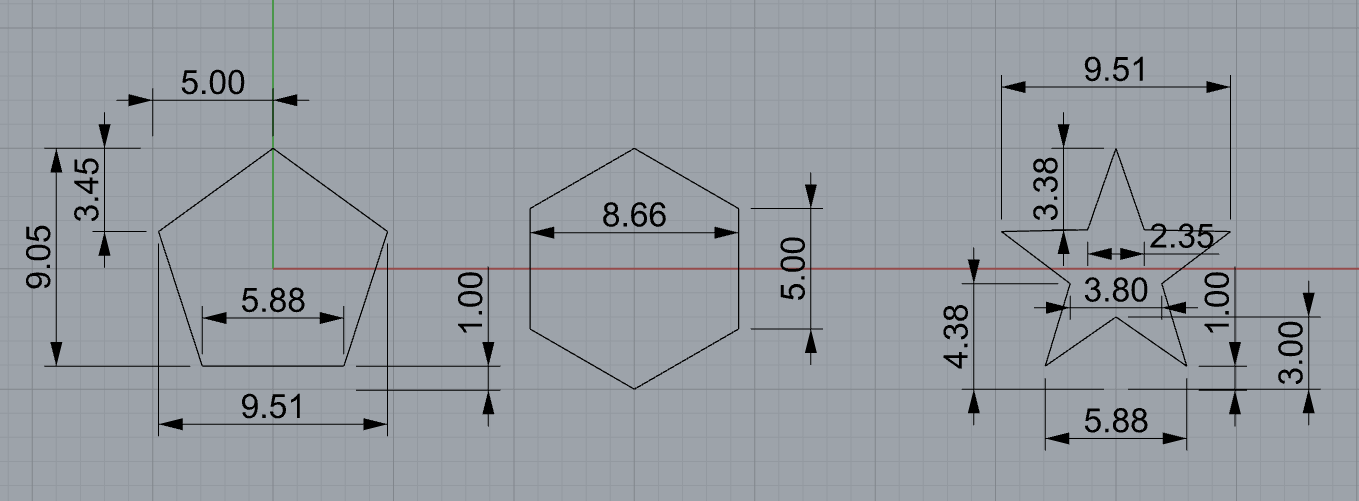

记录起始点，配合我自己计算出的比例，算出五个顶点相对坐标，数组记录并绘图。

KSvgEditor开发文档 - 图2

  1. void KPent::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  7.     // 绘制五边形
  8.     int l = getEndPoint().x() - getStartPoint().x();
  9.     int h = getEndPoint().y() - getStartPoint().y();
  10.     int x1 = getStartPoint().x();
  11.     int y1 = getStartPoint().y();
  12.     int x2 = getEndPoint().x();
  13.     int y2 = getEndPoint().y();
  15.     QPoint p1(x1 + (l / 2), y1);
  16.     QPoint p2(x1 + (0.206 * l), y2 );
  17.     QPoint p3(x1 + (0.794 * l), y2 );
  18.     QPoint p4(x1 + 0.05 * l, y1 + (h * 0.383));
  19.     QPoint p5(x2 - 0.05 * l, y1 + (h * 0.383));
  21.     m_polygon[0] = p1;
  22.     m_polygon[1] = p4;
  23.     m_polygon[2] = p2;
  24.     m_polygon[3] = p3;
  25.     m_polygon[4] = p5;
  27.     QPen pen;
  28.     pen.setColor(QColor("#" + m_borderColor));
  29.     pen.setWidth(m_borderWidth);
  30.     painter.setPen(pen);
  31.     painter.setBrush(QColor("#" + m_fillColor));
  32.     painter.drawPolygon(m_polygon,5);
  33. }

hexa六边形类

记录起始点，配合我自己计算出的比例，算出六个顶点相对坐标，数组记录并绘图。

  1. void KHexa::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  7.     // 绘制六边形
  8.     int l = getEndPoint().x() - getStartPoint().x();
  9.     int h = getEndPoint().y() - getStartPoint().y();
  10.     int x1 = getStartPoint().x();
  11.     int y1 = getStartPoint().y();
  12.     int x2 = getEndPoint().x();
  13.     int y2 = getEndPoint().y();
  14.     //top
  15.     QPoint p1(x1 + (l / 2), y1);
  16.     //bottom
  17.     QPoint p2(x2 - (l / 2), y2);
  18.     //others
  19.     QPoint p3(x2 - 0.067 * l, y1 + (h * 0.25));
  20.     QPoint p4(x2 - 0.067 * l, y1 + (h * 0.75));
  21.     QPoint p5(x1 + 0.067 * l, y1 + (h * 0.75));
  22.     QPoint p6(x1 + 0.067 * l, y1 + (h * 0.25));
  24.     m_polygon[0] = p1;
  25.     m_polygon[1] = p3;
  26.     m_polygon[2] = p4;
  27.     m_polygon[3] = p2;
  28.     m_polygon[4] = p5;
  29.     m_polygon[5] = p6;
  31.     QPen pen;
  32.     pen.setColor(QColor("#" + m_borderColor));
  33.     pen.setWidth(m_borderWidth);
  34.     painter.setPen(pen);
  35.     painter.setBrush(QColor("#" + m_fillColor));
  36.     painter.drawPolygon(m_polygon, 6);
  37. }

star 五角星类

记录起始点，配合我自己计算出的比例，算出10个顶点相对坐标，数组记录并绘图。

  1. void KStar::drawShape(QPaintDevice* parent)
  2. {
  3.     QPainter painter(parent);
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     painter.scale(scale, scale);
  6.     painter.setRenderHint(QPainter::Antialiasing);
  7.     int l = getEndPoint().x() - getStartPoint().x();
  8.     int h = getEndPoint().y() - getStartPoint().y();
  9.     int x1 = getStartPoint().x();
  10.     int y1 = getStartPoint().y();
  11.     int x2 = getEndPoint().x();
  12.     int y2 = getEndPoint().y();
  13.     //top
  14.     QPoint p1(x1 + (l / 2), y1);
  15.     QPoint p2(x1 + (l * 0.618), y1 + (h * 0.338));
  16.     QPoint p3(x2 - (l * 0.05), y1 + (h * 0.338));
  17.     QPoint p4(x2 - 0.31 * l, y2 - (h * 0.438));
  18.     QPoint p5(x2 - 0.206 * l, y2 - (h * 0.1));
  19.     QPoint p6(x1 + (l / 2), y2 - (h * 0.3));
  20.     QPoint p7(x1 + 0.206 * l, y2 - (h * 0.1));
  21.     QPoint p8(x1 + 0.31 * l, y2 - (h * 0.438));
  22.     QPoint p9(x1 + (l * 0.05), y1 + (h * 0.338));
  23.     QPoint p10(x2 - (l * 0.618), y1 + (h * 0.338));
  25.     m_polygon[0] = p1;
  26.     m_polygon[1] = p2;
  27.     m_polygon[2] = p3;
  28.     m_polygon[3] = p4;
  29.     m_polygon[4] = p5;
  30.     m_polygon[5] = p6;
  31.     m_polygon[6] = p7;
  32.     m_polygon[7] = p8;
  33.     m_polygon[8] = p9;
  34.     m_polygon[9] = p10;
  36.     QPen pen;
  37.     pen.setColor(QColor("#" + m_borderColor));
  38.     pen.setWidth(m_borderWidth);
  39.     painter.setPen(pen);
  40.     painter.setBrush(QColor("#" + m_fillColor));
  41.     painter.drawPolygon(m_polygon, 10);
  42. }

text文字类

在主画布调用该函数，设置lineeditor父窗口为主画布

  1. else if (flag == KGlobalData::KDrawFlag::TextFlag)
  2.         {
  3.             m_isSelected = false;
  4.             m_pCurrentShape = KShapeFactory::createShape(
  5.                 KGlobalData::getGlobalDataIntance()->getDrawFlag());
  6.             KText* temp = (KText*)m_pCurrentShape;
  7.             temp->setParent(this);
  8.             temp = NULL;
  9.             delete temp;
  10.             if (m_pCurrentShape != NULL)
  11.             {
  12.                 qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  13.                 m_pCurrentShape->setStartPoint(event->pos() / scale);
  14.             }
  15.         }
  1. void KText::setParent(QWidget *parent)
  2. {
  3.     m_textLine->setParent(parent);
  4. }

对m_text判断，关闭编辑框，否则会形成二重叠加态。

  1. KText::KText()
  2. {
  3.     m_textLine = new QLineEdit;
  4.     m_textLine->setFrame(false);
  5.     m_textLine->setPlaceholderText("Please enter text");
  7.     m_borderColor = "000000";
  8. }
  9. KText::~KText()
  10. {
  12. }
  13. void KText::drawShape(QPaintDevice* parent)
  14. {
  15.     QPainter painter(parent);
  16.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  17.     painter.scale(scale, scale);
  18.     painter.setRenderHint(QPainter::Antialiasing);
  19.     QPen pen;
  20.     pen.setColor(QColor("#" + m_borderColor));
  21.     painter.setPen(pen);
  22.     QRectF r1(getStartPoint(), getEndPoint());
  23.     setEndPoint(QPoint(getStartPoint().x() + 100, getStartPoint().y() + 50));
  25.     if (m_text == "")
  26.     {
  27.         m_textLine->move(getStartPoint() * scale);
  28.         m_text = m_textLine->text();
  29.         painter.drawText(r1, m_text);
  30.         m_textLine->show();
  31.     }
  32.     if (m_text != "")
  33.     {
  34.         m_textLine->close();
  35.         painter.drawText(r1, m_text);
  36.     }
  37. }

3. 信号与槽

详见注释。

  1. void KSvgEditor::initConnection()
  2. {
  3.     (void)connect(m_pMenuBar->m_pSaveFileAction, SIGNAL(triggered()), m_pSvgMainWin->m_pCanvas, SLOT(saveSvg())); //保存
  4.     (void)connect(m_pCanvasParamsBar->m_pWidthBox->m_pParamEdit, SIGNAL(editingFinished()), this, SLOT(validateCanvasParams())); //设置画布宽度
  5.     (void)connect(m_pCanvasParamsBar->m_pHeightBox->m_pParamEdit, SIGNAL(editingFinished()), this, SLOT(validateCanvasParams())); //设置画布高度
  6.     (void)connect(m_pCanvasParamsBar->m_pColorBox, SIGNAL(pickedColor()), this, SLOT(validateCanvasParams())); //设置画布颜色
  7.     (void)connect(m_pCanvasParamsBar->m_pfillColorBox, SIGNAL(pickedColor()), this, SLOT(fillColor())); //设置填充颜色
  8.     (void)connect(m_pCanvasParamsBar->m_pBorderColorBox, SIGNAL(pickedColor()), this, SLOT(borderColor())); //设置边框颜色（pen，line颜色）
  9.     (void)connect(m_pCanvasParamsBar->m_pBorderWidthBox->m_pParamEdit, SIGNAL(editingFinished()), this, SLOT(borderWidth())); //设置边框宽度（pen，line线宽）
  10.     (void)connect(m_pCanvasParamsBar->m_pScaleBox->m_pParamEdit, SIGNAL(editingFinished()), this, SLOT(validateCanvasParams())); //设置缩放比例修改
  11.     (void)connect(m_pSvgMainWin, SIGNAL(changeScale(qreal)), this, SLOT(setScale(qreal))); //设置缩放比例显示
  12.     (void)connect(m_pToolBar->m_pZoomBtn, SIGNAL(showParam()), this, SLOT(closeParamsbar())); //属性栏选择性显示
  13.     (void)connect(m_pSvgMainWin->m_pCanvas, SIGNAL(mouseChange()), this, SLOT(showItemParambar()));//属性栏选择性显示
  14.     (void)connect(m_pSvgMainWin->m_pCanvas, SIGNAL(penChange()), this, SLOT(showLineParamsbar()));//属性栏选择性显示
  15.     (void)connect(m_pSvgMainWin->m_pCanvas, SIGNAL(textChange()), this, SLOT(showTextParamsbar()));//属性栏选择性显示
  16.     (void)connect(m_pSvgMainWin->m_pCanvas, SIGNAL(paramChange()), this, SLOT(showParamsbar()));//属性栏选择性显示
  17. }

4. 重写滚轮事件

通过重写滚轮事件，设置图形和画布的缩放。

  1. void KSvgMainWindow::wheelEvent(QWheelEvent* event)
  2. {
  3.     KGlobalData::KDrawFlag flag = KGlobalData::getGlobalDataIntance()->getDrawFlag();
  4.     qreal scale = KGlobalData::getGlobalDataIntance()->getCanvasScale();
  5.     if (flag != KGlobalData::KDrawFlag::ZoomFlag)
  6.     {
  7.         return;
  8.     }
  9.     if (event->delta() > 0) //若delta大于0，则表示滚轮向前（远离用户的方向），小于零则表明向后
  10.     {
  11.         scale += 0.05;
  12.         int width = KGlobalData::getGlobalDataIntance()->getCanvasWidth();
  13.         int height = KGlobalData::getGlobalDataIntance()->getCanvasHeight();
  14.         m_pCanvas->resize(width * scale, height * scale);
  15.         KGlobalData::getGlobalDataIntance()->setCanvasScale(scale);
  16.     }
  17.     else
  18.     {
  19.         scale -= 0.05;
  20.         if (scale < 0.05)
  21.             return;
  22.         int width = KGlobalData::getGlobalDataIntance()->getCanvasWidth();
  23.         int height = KGlobalData::getGlobalDataIntance()->getCanvasHeight();
  24.         m_pCanvas->resize(width * scale, height * scale);
  25.         KGlobalData::getGlobalDataIntance()->setCanvasScale(scale);
  26.     }
  27.     QScrollArea::wheelEvent(event);
  28.     emit changeScale(scale);
  29. }

5. 删除图形

  1. void KSvgMainWindow::keyPressEvent(QKeyEvent* event)
  2. {
  3.     if (event->key() == Qt::Key_Delete || event->key() == Qt::Key_Backspace )
  4.     {
  5.         for (QList<KShape*>::iterator it = m_pCanvas->m_pShapeList->begin(); it != m_pCanvas->m_pShapeList->end(); it++)
  6.         {
  7.             if ((*it)->getShapeRect().contains(m_pCanvas->m_lastPos))
  8.             {
  9.                 m_pCanvas->m_pShapeList->erase(it);
  10.                 break;
  11.             }
  12.         }
  13.     }
  14.     update();
  15. }

6. 单例模式析构，及QShapeList析构

单例模式析构，采取了嵌套类方式，自动释放堆区内存。

  1. class KGlobalData
  2. {
  3. public:
  5.     class KAutoDestory
  6.     {
  7.     public:
  8.         KAutoDestory() {}
  9.         ~KAutoDestory()
  10.         {
  11.             if (s_globalDataObj != NULL)
  12.             {
  13.                 delete s_globalDataObj;
  14.                 s_globalDataObj = NULL;
  15.             }
  16.         }
  17.     };
  19.     static KGlobalData* getGlobalDataIntance();
  20. private:
  21.     static KGlobalData* s_globalDataObj;
  22.     static KAutoDestory m_autoDestory;
  23. };
  1. #include "kglobaldata.h"
  3. KGlobalData* KGlobalData::s_globalDataObj = NULL;
  4. KGlobalData::KAutoDestory KGlobalData::m_autoDestory;

QShapeList析构

不只要释放QShapeList本身，还要释放其内部存储的数据（new 的各种图形）。

  1. KSvgCanvas::~KSvgCanvas()
  2. {
  3.     if (m_pShapeList != NULL)
  4.     {
  5.         for (QList<KShape*>::iterator it = m_pShapeList->begin(); it != m_pShapeList->end(); it++)
  6.         {
  7.             delete(*it);
  8.         }
  9.     }
  10.     delete m_pShapeList;
  11.     m_pShapeList = NULL;
  12. }
