集群证书更新说明

https://help.aliyun.com/document_detail/122584.html

执行版本

[root@k8s-master pki]# kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"15", GitVersion:"v1.15.11", GitCommit:"d94a81c724ea8e1ccc9002d89b7fe81d58f89ede", GitTreeState:"clean", BuildDate:"2020-03-12T21:06:11Z", GoVersion:"go1.12.17", Compiler:"gc", Platform:"linux/amd64"}
[root@k8s-master pki]#

查看证书过期时间

[root@k8s-master pki]# kubeadm alpha certs check-expiration
CERTIFICATE                EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
admin.conf                 Jul 27, 2022 10:24 UTC   131d            no
apiserver                  Jul 27, 2022 10:24 UTC   131d            no
apiserver-etcd-client      Jul 27, 2022 10:24 UTC   131d            no
apiserver-kubelet-client   Jul 27, 2022 10:24 UTC   131d            no
controller-manager.conf    Jul 27, 2022 10:24 UTC   131d            no
etcd-healthcheck-client    Jul 27, 2022 10:24 UTC   131d            no
etcd-peer                  Jul 27, 2022 10:24 UTC   131d            no
etcd-server                Jul 27, 2022 10:24 UTC   131d            no
front-proxy-client         Jul 27, 2022 10:24 UTC   131d            no
scheduler.conf             Jul 27, 2022 10:24 UTC   131d            no

每个Master操作

更新步骤

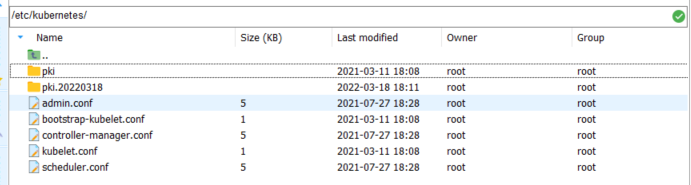

1、备份原有证书

cp -r /etc/kubernetes/pki /etc/kubernetes/pki.20220318

cp -r /etc/kubernetes /etc/kubernetes.back20220630

2、生成集群配置的yaml文件

kubeadm config view > /root/kubeadm_0708.yaml

3、更新操作

[root@k8s-master pki]# kubeadm alpha certs renew all --config=/root/kubeadm_0708.yaml
certificate embedded in the kubeconfig file for the admin to use and for kubeadm itself renewed
certificate for serving the Kubernetes API renewed
certificate the apiserver uses to access etcd renewed
certificate for the API server to connect to kubelet renewed
certificate embedded in the kubeconfig file for the controller manager to use renewed
certificate for liveness probes to healtcheck etcd renewed
certificate for etcd nodes to communicate with each other renewed
certificate for serving etcd renewed
certificate for the front proxy client renewed
certificate embedded in the kubeconfig file for the scheduler manager to use renewed
[root@k8s-master pki]#

4、再次查询证书期限

[root@k8s-master pki]# kubeadm alpha certs check-expiration
CERTIFICATE                EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
admin.conf                 Mar 18, 2023 10:08 UTC   364d            no
apiserver                  Mar 18, 2023 10:08 UTC   364d            no
apiserver-etcd-client      Mar 18, 2023 10:08 UTC   364d            no
apiserver-kubelet-client   Mar 18, 2023 10:08 UTC   364d            no
controller-manager.conf    Mar 18, 2023 10:08 UTC   364d            no
etcd-healthcheck-client    Mar 18, 2023 10:08 UTC   364d            no
etcd-peer                  Mar 18, 2023 10:08 UTC   364d            no
etcd-server                Mar 18, 2023 10:08 UTC   364d            no
front-proxy-client         Mar 18, 2023 10:08 UTC   364d            no
scheduler.conf             Mar 18, 2023 10:08 UTC   364d            no

5、在三台Master上执行重启kube-apiserver,kube-controller,kube-scheduler,etcd这4个容器，使证书生效

[root@k8s-master pki]# docker ps |grep -E 'k8s_kube-apiserver|k8s_kube-controller-manager|k8s_kube-scheduler|k8s_etcd_etcd' | awk -F ' ' '{print $1}' |xargs docker restart
63946d594a6a
006ff0dea49f
af8568a9831c
b82de88427bf
[root@k8s-master pki]#

每个node

Node节点可能不用进行操作。。。再查查资料

1、备份原有pki文件

[root@k8s-node1 pki]# cp -r /etc/kubernetes/pki /etc/kubernetes/pki.20220318

2、查看当前node 有效期

参考资料
使用 kubeadm 进行证书管理：https://kubernetes.io/zh/docs/tasks/administer-cluster/kubeadm/kubeadm-certs/
k8s（kubernetes）证书续期：https://blog.csdn.net/qq_40954652/article/details/123226272

48-k8s-高可用集群-集群搭建PKI：https://www.jianshu.com/p/7ddca1939b80

kubeadm安装集群系列-4.证书更新：https://www.cnblogs.com/dolphintwo/p/11388644.html

kubeadm1.17安装的K8S集群证书续期：https://www.cnblogs.com/shiji888/p/12620305.html

Kubernetes kubeadm 证书到期，更新证书：https://blog.csdn.net/wo18237095579/article/details/119956018

更新kubernetes 过期证书：https://my.oschina.net/hgfdoing/blog/3163487

附025.kubeadm部署Kubernetes更新证书：https://www.cnblogs.com/itzgr/p/13370185.html

证书轮换：https://feisky.gitbooks.io/kubernetes/content/practice/certificate-rotation.html

https://blog.csdn.net/beer_do/article/details/119635278
