教程四 集成electron

点个star在看

官网

自动集成

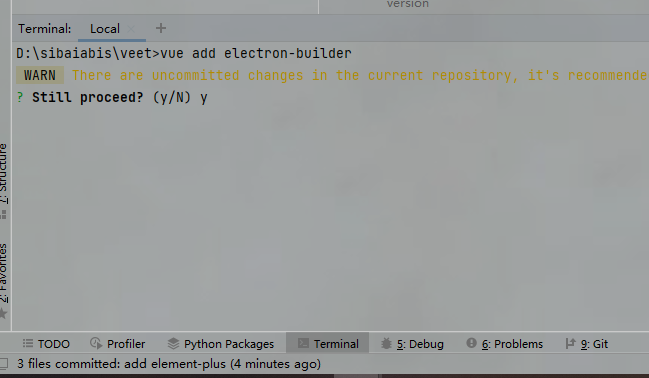

安装

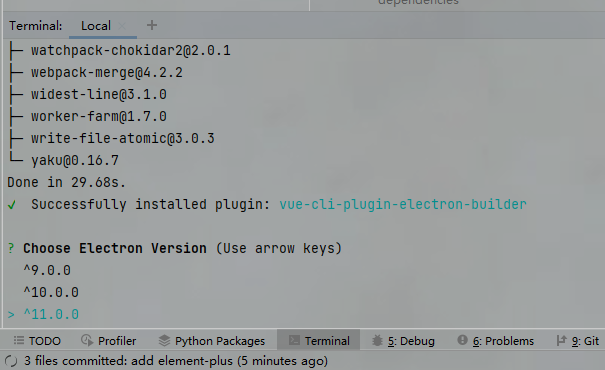

选择electron版本，这里先选v11，后面改为v13

看一下变化

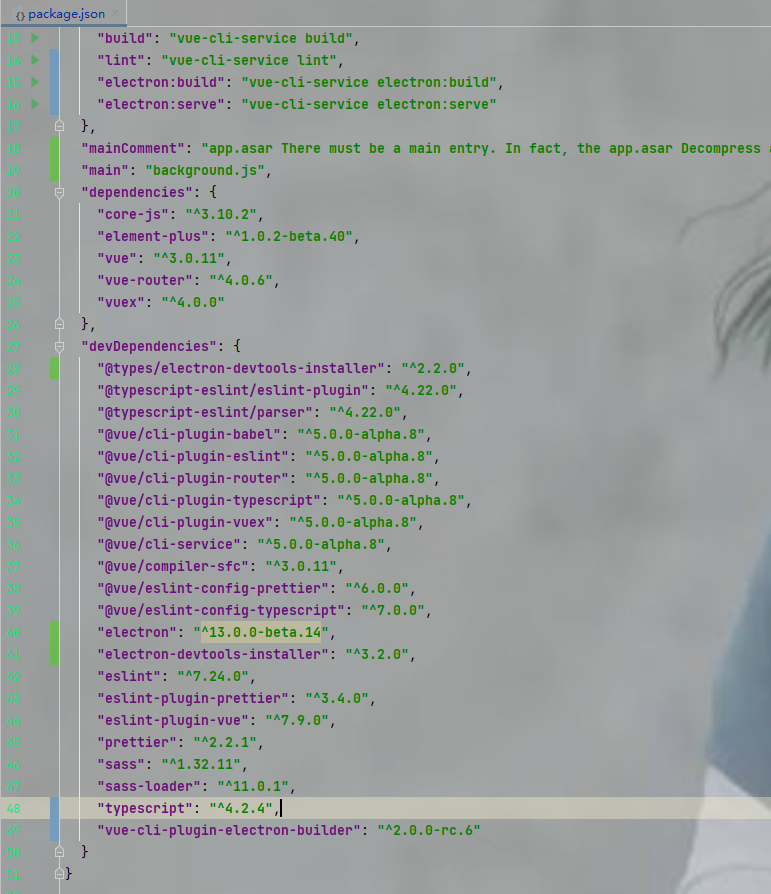

package.json

多了一些依赖与启动命令

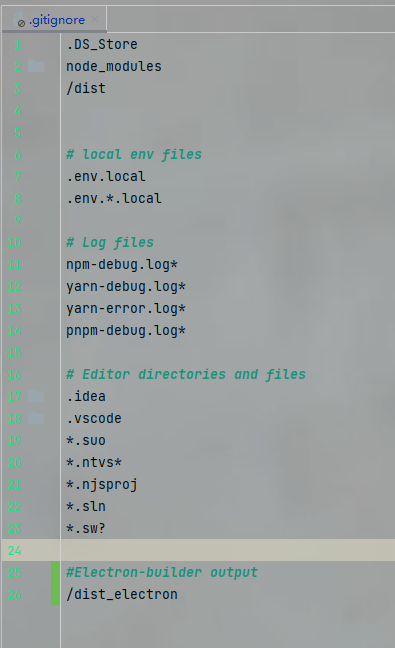

.gitinore

多了一个electron输出文件夹

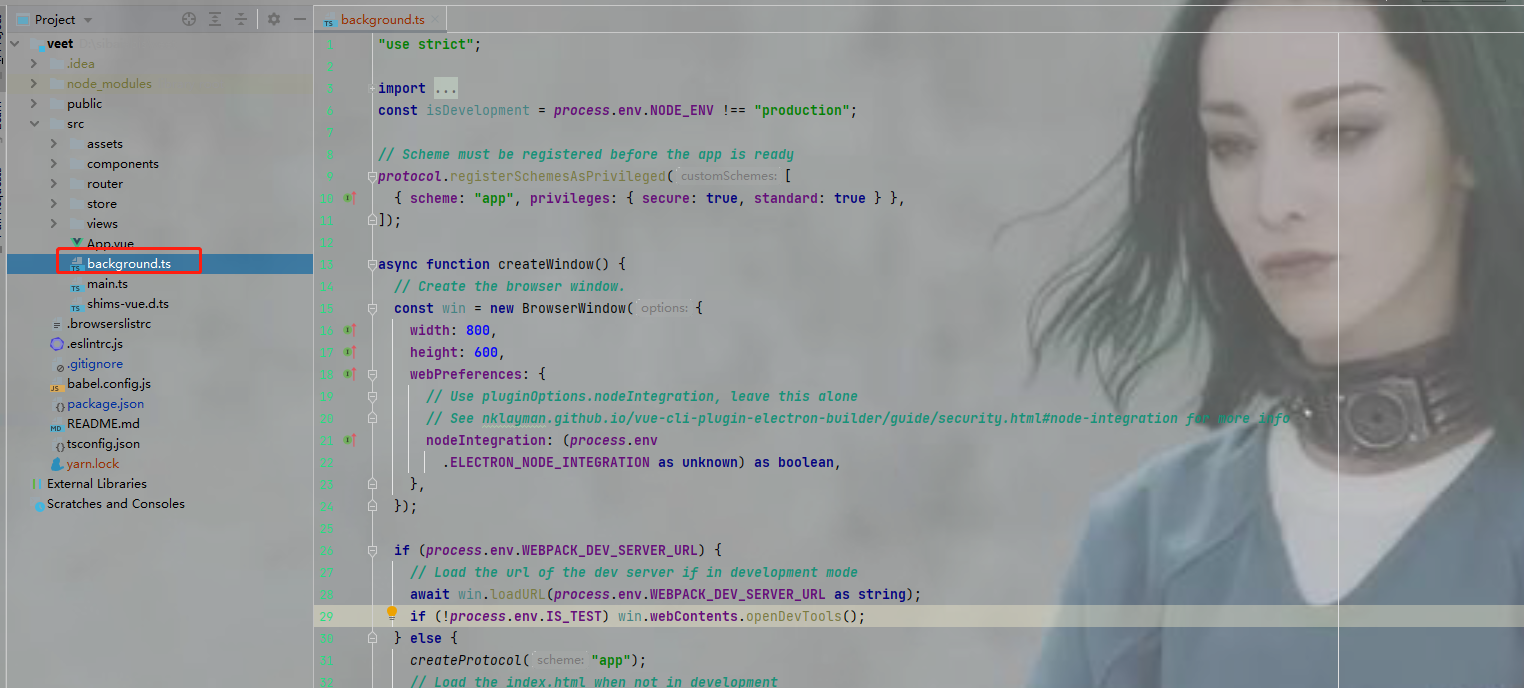

background.ts

多了这么个主进程文件

"use strict";
import { app, protocol, BrowserWindow } from "electron";
import { createProtocol } from "vue-cli-plugin-electron-builder/lib";
import installExtension, { VUEJS_DEVTOOLS } from "electron-devtools-installer";
const isDevelopment = process.env.NODE_ENV !== "production";
// Scheme must be registered before the app is ready
protocol.registerSchemesAsPrivileged([
  { scheme: "app", privileges: { secure: true, standard: true } },
]);
async function createWindow() {
  // Create the browser window.
  const win = new BrowserWindow({
    width: 800,
    height: 600,
    webPreferences: {
      // Use pluginOptions.nodeIntegration, leave this alone
      // See nklayman.github.io/vue-cli-plugin-electron-builder/guide/security.html#node-integration for more info
      nodeIntegration: (process.env.ELECTRON_NODE_INTEGRATION as unknown) as boolean,
    },
  });
  if (process.env.WEBPACK_DEV_SERVER_URL) {
    // Load the url of the dev server if in development mode
    await win.loadURL(process.env.WEBPACK_DEV_SERVER_URL as string);
    if (!process.env.IS_TEST) win.webContents.openDevTools();
  } else {
    createProtocol("app");
    // Load the index.html when not in development
    win.loadURL("app://./index.html");
  }
}
// Quit when all windows are closed.
app.on("window-all-closed", () => {
  // On macOS it is common for applications and their menu bar
  // to stay active until the user quits explicitly with Cmd + Q
  if (process.platform !== "darwin") {
    app.quit();
  }
});
app.on("activate", () => {
  // On macOS it's common to re-create a window in the app when the
  // dock icon is clicked and there are no other windows open.
  if (BrowserWindow.getAllWindows().length === 0) createWindow();
});
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on("ready", async () => {
  if (isDevelopment && !process.env.IS_TEST) {
    // Install Vue Devtools
    try {
      await installExtension(VUEJS_DEVTOOLS);
    } catch (e) {
      console.error("Vue Devtools failed to install:", e.toString());
    }
  }
  createWindow();
});
// Exit cleanly on request from parent process in development mode.
if (isDevelopment) {
  if (process.platform === "win32") {
    process.on("message", (data) => {
      if (data === "graceful-exit") {
        app.quit();
      }
    });
  } else {
    process.on("SIGTERM", () => {
      app.quit();
    });
  }
}

优缺点

优点

省事

缺点

不能自定义，且文件位置不可修改，不够灵活

手动集成

这里使用electron v13.0.0

修改package.json

{
  "name": "veet",
  "description": "vue3+electron+element-plus+ts手把手搭建教程",
  "version": "0.1.2",
  "homepage": "https://github.com/sibaiabis/veet",
  "author": {
    "name": "siBai",
    "url": "https://github.com/sibaiabis"
  },
  "private": true,
  "scripts": {
    "serve": "vue-cli-service serve",
    "build": "vue-cli-service build",
    "lint": "vue-cli-service lint",
    "electron:build": "vue-cli-service electron:build",
    "electron:serve": "vue-cli-service electron:serve"
  },
  "mainComment": "app.asar There must be a main entry. In fact, the app.asar Decompress and you'll find that there are background.js So our package.json To set the entry in, that is, main: background.js",
  "main": "background.js",
  "dependencies": {
    "core-js": "^3.10.2",
    "element-plus": "^1.0.2-beta.40",
    "vue": "^3.0.11",
    "vue-router": "^4.0.6",
    "vuex": "^4.0.0"
  },
  "devDependencies": {
    "@types/electron-devtools-installer": "^2.2.0",
    "@typescript-eslint/eslint-plugin": "^4.22.0",
    "@typescript-eslint/parser": "^4.22.0",
    "@vue/cli-plugin-babel": "^5.0.0-alpha.8",
    "@vue/cli-plugin-eslint": "^5.0.0-alpha.8",
    "@vue/cli-plugin-router": "^5.0.0-alpha.8",
    "@vue/cli-plugin-typescript": "^5.0.0-alpha.8",
    "@vue/cli-plugin-vuex": "^5.0.0-alpha.8",
    "@vue/cli-service": "^5.0.0-alpha.8",
    "@vue/compiler-sfc": "^3.0.11",
    "@vue/eslint-config-prettier": "^6.0.0",
    "@vue/eslint-config-typescript": "^7.0.0",
    "electron": "^13.0.0-beta.14",
    "electron-devtools-installer": "^3.2.0",
    "eslint": "^7.24.0",
    "eslint-plugin-prettier": "^3.4.0",
    "eslint-plugin-vue": "^7.9.0",
    "prettier": "^2.2.1",
    "sass": "^1.32.11",
    "sass-loader": "^11.0.1",
    "typescript": "^4.2.4",
    "vue-cli-plugin-electron-builder": "^2.0.0-rc.6"
  }
}

说明：
“main”: “background.js”, 不可修改，给我镶死这里！！！
“mainComment“: “xxxx“, 可以不加，非必须。这是一种在package.json里加注释的方式，俗称siBai式

修改.gitignore

yarn.lock
/veet_electron
/veet_dist

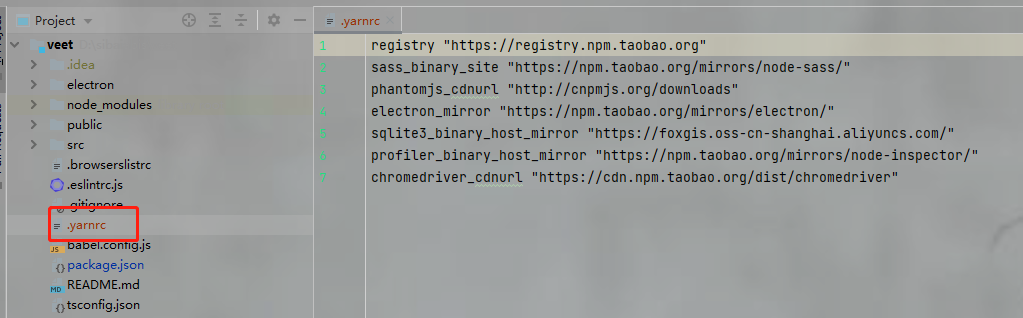

新增.yarnrc

registry "https://registry.npm.taobao.org"
sass_binary_site "https://npm.taobao.org/mirrors/node-sass/"
phantomjs_cdnurl "http://cnpmjs.org/downloads"
electron_mirror "https://npm.taobao.org/mirrors/electron/"
sqlite3_binary_host_mirror "https://foxgis.oss-cn-shanghai.aliyuncs.com/"
profiler_binary_host_mirror "https://npm.taobao.org/mirrors/node-inspector/"
chromedriver_cdnurl "https://cdn.npm.taobao.org/dist/chromedriver"

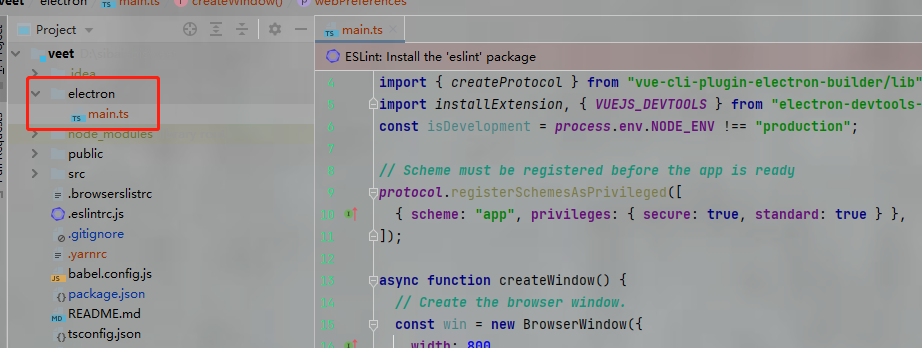

新增main.ts

"use strict";
import { app, protocol, BrowserWindow } from "electron";
import { createProtocol } from "vue-cli-plugin-electron-builder/lib";
import installExtension, { VUEJS_DEVTOOLS } from "electron-devtools-installer";
const isDevelopment = process.env.NODE_ENV !== "production";
// Scheme must be registered before the app is ready
protocol.registerSchemesAsPrivileged([
  { scheme: "app", privileges: { secure: true, standard: true } },
]);
async function createWindow() {
  // Create the browser window.
  const win = new BrowserWindow({
    width: 800,
    height: 600,
    webPreferences: {
      // Use pluginOptions.nodeIntegration, leave this alone
      // See nklayman.github.io/vue-cli-plugin-electron-builder/guide/security.html#node-integration for more info
      nodeIntegration: (process.env.ELECTRON_NODE_INTEGRATION as unknown) as boolean,
    },
  });
  if (process.env.WEBPACK_DEV_SERVER_URL) {
    // Load the url of the dev server if in development mode
    await win.loadURL(process.env.WEBPACK_DEV_SERVER_URL as string);
    if (!process.env.IS_TEST) win.webContents.openDevTools();
  } else {
    createProtocol("app");
    // Load the index.html when not in development
    win.loadURL("app://./index.html");
  }
}
// Quit when all windows are closed.
app.on("window-all-closed", () => {
  // On macOS it is common for applications and their menu bar
  // to stay active until the user quits explicitly with Cmd + Q
  if (process.platform !== "darwin") {
    app.quit();
  }
});
app.on("activate", () => {
  // On macOS it's common to re-create a window in the app when the
  // dock icon is clicked and there are no other windows open.
  if (BrowserWindow.getAllWindows().length === 0) createWindow();
});
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on("ready", async () => {
  if (isDevelopment && !process.env.IS_TEST) {
    // Install Vue Devtools
    try {
      await installExtension(VUEJS_DEVTOOLS);
    } catch (e) {
      console.error("Vue Devtools failed to install:", e.toString());
    }
  }
  createWindow();
});
// Exit cleanly on request from parent process in development mode.
if (isDevelopment) {
  if (process.platform === "win32") {
    process.on("message", (data) => {
      if (data === "graceful-exit") {
        app.quit();
      }
    });
  } else {
    process.on("SIGTERM", () => {
      app.quit();
    });
  }
}

新增vue.config.js

module.exports = {
  pluginOptions: {
    electronBuilder: {
      mainProcessFile: 'electron/main.ts',
      outputDir: 'veet_electron',
      nodeIntegration: true,
      builderOptions: {
        appId: 'cn.siBai.veet',
        productName: 'veet',
        copyright: 'Copyright © 2021 siBai',
        directories: {
          output: './veet_dist',
        },
        win: {
          icon: './electron/ico/install 256x256.ico',
          target: [
            {
              target: 'nsis',
              arch: ['x64', 'ia32'],
            },
          ],
        },
        nsis: {
          // https://www.jianshu.com/p/1701baa240fd
          oneClick: false,
          perMachine: true,
          allowElevation: true,
          allowToChangeInstallationDirectory: true,
          installerIcon: './electron/ico/install 256x256.ico',
          uninstallerIcon: './electron/ico/uninstall 256x256.ico',
          installerHeaderIcon: './electron/ico/install 256x256.ico',
          createDesktopShortcut: true,
          createStartMenuShortcut: true,
          shortcutName: 'veet',
        },
      },
    },
  },
}

优缺点

优点

完全自定义呐

缺点

不适合初学者，配置起来比较麻烦一些

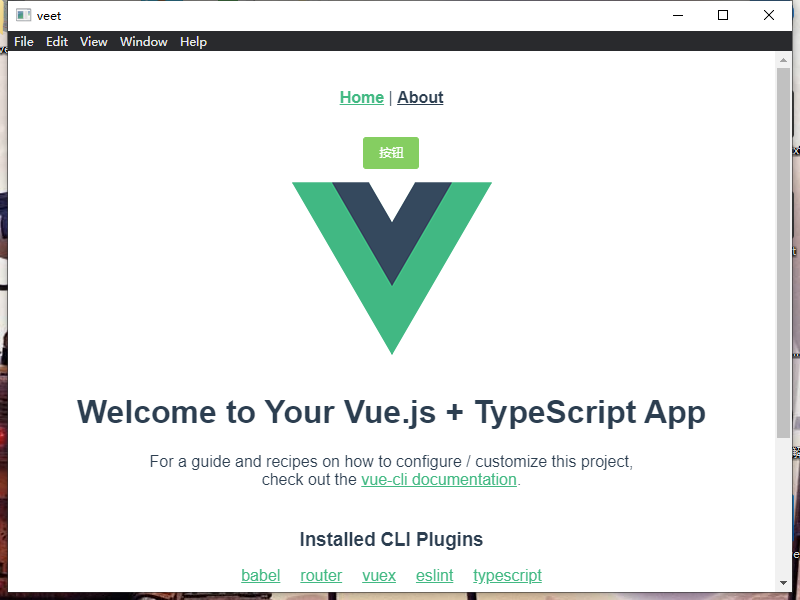

启动查看

查看

棒！

打包构建

构建产物

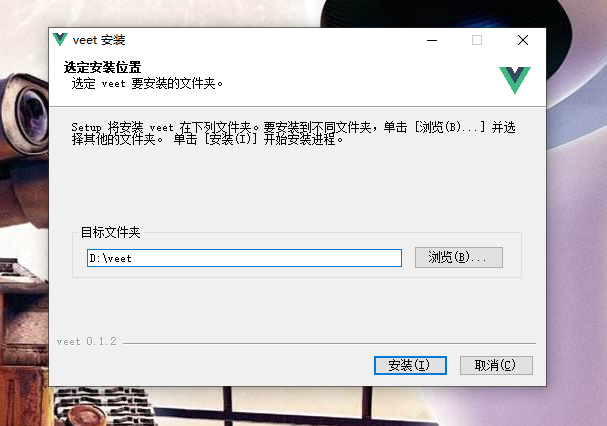

安装

启动
