未实操只是熟悉一下各个组件和部署过程。。

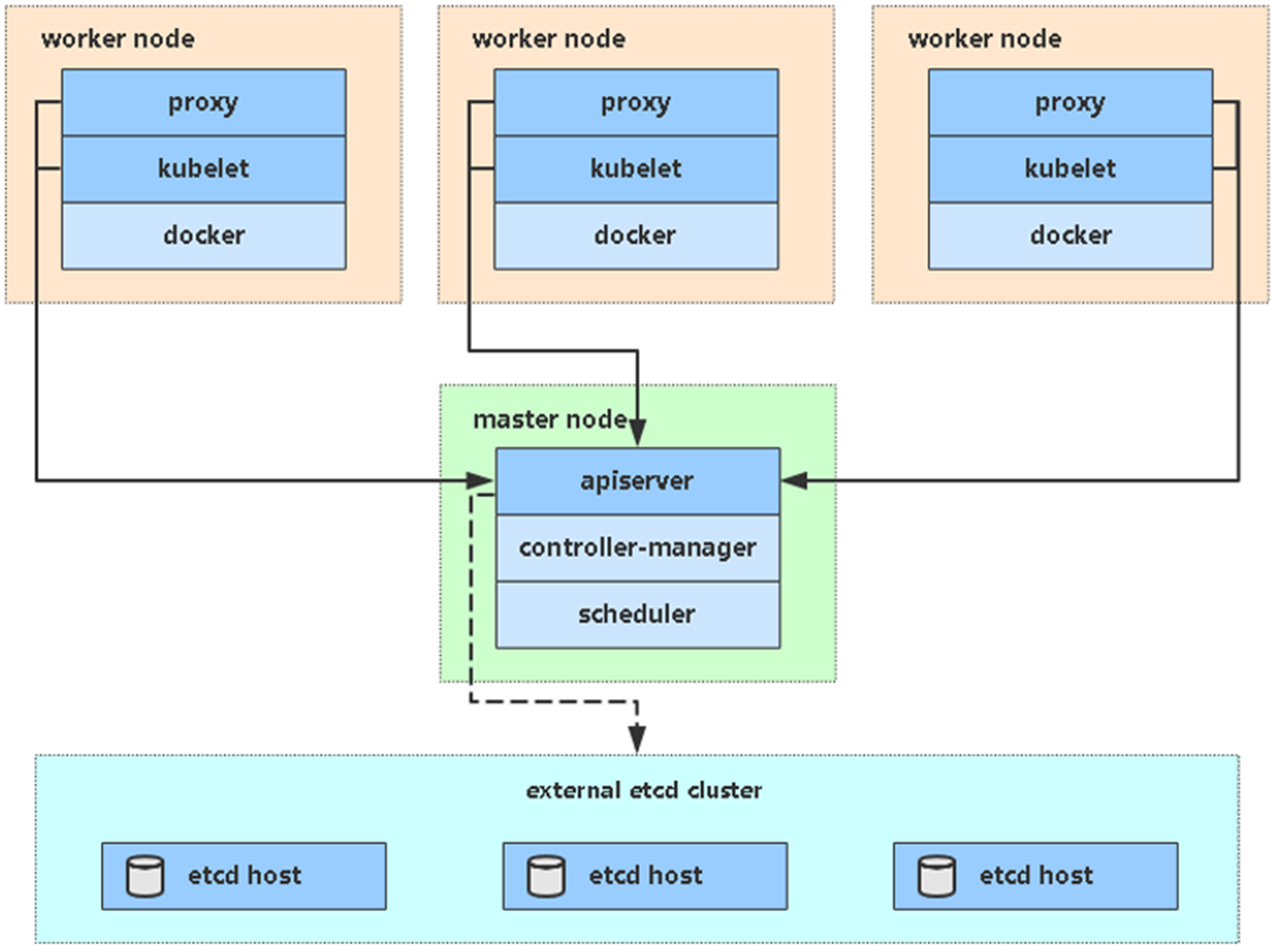

单master集群架构

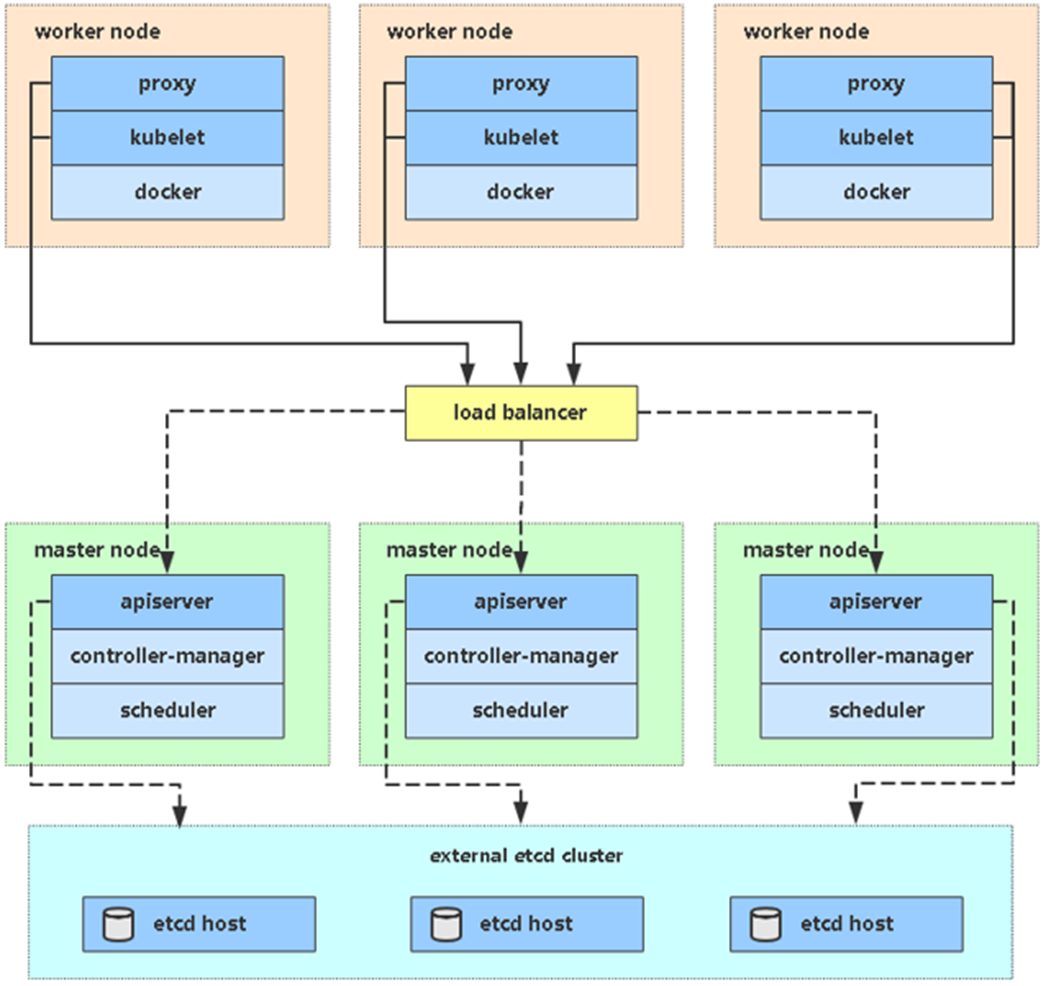

多master集群架构
部署:（单master测试用）
1. 初始化服务器
1 关闭防火墙【所有主节点都执行】[root@k8s-master1 ~]# systemctl stop firewalld[root@k8s-master1 ~]# systemctl disable firewalld2 关闭selinux【所有主节点都执行】# setenforce 0# vim /etc/selinux/config修改SELINUX=enforcing 为 SELINUX=disabled3 配置主机名【所有主节点都执行】hostnamectl set-hostname 主机名4 配置名称解析【所有主节点都执行】# vi /etc/hosts5 配置时间同步6 关闭交换分区【所有主节点都执行】[root@k8s-master1 ~]# swapoff -a[root@k8s-master1 ~]# vim /etc/fstab删除一行:检查是否关闭成功[root@k8s-master1 ~]# free -m
2. 给etcd颁发证书
1）创建证书颁发机构
2）填写表单--写明etcd所在节点的IP
3）向证书颁发机构申请证书
第一步：上传TLS安装包
传到/root下
略
第二步：
# tar xvf /root/TLS.tar.gz
# cd /root/TLS
# vim server-csr.json
修改host中的IP地址，这里的IP是etcd所在节点的IP地址
{
"CN": "etcd",
"hosts": [
"192.168.31.63",
"192.168.31.65",
"192.168.31.66"
],
"key": {
"algo": "rsa",
"size": 2048
},
"names": [
{
"C": "CN",
"L": "BeiJing",
"ST": "BeiJing"
}
]
}
# ./generate_etcd_cert.sh
# ls *pem
ca-key.pem ca.pem server-key.pem server.pem
3. 部署etcd
etcd需要三台虚拟机
在master、node1、node2上分别安装一个etcd
注意：
解压之后会生成一个文件和一个目录
# tar xvf etcd.tar.gz
# mv etcd.service /usr/lib/systemd/system
# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.31.63:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.31.63:2379"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.31.63:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.31.63:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.31.63:2380,etcd-2=https://192.168.31.65:2380,etcd-3=https://192.168.31.66:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
# rm -rf /opt/etcd/ssl/*
# \cp -fv ca.pem server.pem server-key.pem /opt/etcd/ssl/
将etc管理程序和程序目录发送到node1 和node2
# scp /usr/lib/systemd/system/etcd.service root@k8s-node1:/usr/lib/systemd/system/
# scp /usr/lib/systemd/system/etcd.service root@k8s-node2:/usr/lib/systemd/system/
# scp -r /opt/etcd/ root@k8s-node2:/opt/
# scp -r /opt/etcd/ root@k8s-node1:/opt/
在node1上修改etcd的配置文件
# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-2"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.31.65:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.31.65:2379"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.31.65:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.31.65:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.31.63:2380,etcd-2=https://192.168.31.65:2380,etcd-3=https://192.168.31.66:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
在node2上修改etcd的配置文件
# vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-3"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.31.66:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.31.66:2379"
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.31.66:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.31.66:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.31.63:2380,etcd-2=https://192.168.31.65:2380,etcd-3=https://192.168.31.66:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
在三个节点一次启动etcd服务
# systemctl start etcd
# systemctl enable etcd
检查是否启动成功
# /opt/etcd/bin/etcdctl --ca-file=/opt/etcd/ssl/ca.pem --cert-file=/opt/etcd/ssl/server.pem --key-file=/opt/etcd/ssl/server-key.pem --endpoints="https://192.168.31.63:2379,https://192.168.31.65:2379,https://192.168.31.66:2379" cluster-health
4. 为api server签发证书
# cd /root/TLS/k8s/
# ./generate_k8s_cert.sh
5. 部署master服务
# tar xvf k8s-master.tar.gz
# mv kube-apiserver.service kube-controller-manager.service kube-scheduler.service /usr/lib/systemd/system/
# mv kubernetes /opt/
# cp /root/TLS/k8s/{ca*pem,server.pem,server-key.pem} /opt/kubernetes/ssl/ -rvf
修改apiserver的配置文件
# vim /opt/kubernetes/cfg/kube-apiserver.conf
KUBE_APISERVER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--etcd-servers=https://192.168.31.63:2379,https://192.168.31.65:2379,https://192.168.31.66:2379 \
--bind-address=192.168.31.63 \
--secure-port=6443 \
--advertise-address=192.168.31.63 \
--allow-privileged=true \
--service-cluster-ip-range=10.0.0.0/24 \
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \
--authorization-mode=RBAC,Node \
--enable-bootstrap-token-auth=true \
--token-auth-file=/opt/kubernetes/cfg/token.csv \
--service-node-port-range=30000-32767 \
--kubelet-client-certificate=/opt/kubernetes/ssl/server.pem \
--kubelet-client-key=/opt/kubernetes/ssl/server-key.pem \
--tls-cert-file=/opt/kubernetes/ssl/server.pem \
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \
--client-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \
--etcd-cafile=/opt/etcd/ssl/ca.pem \
--etcd-certfile=/opt/etcd/ssl/server.pem \
--etcd-keyfile=/opt/etcd/ssl/server-key.pem \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--audit-log-path=/opt/kubernetes/logs/k8s-audit.log"
启动master
# systemctl start kube-apiserver
# systemctl enable kube-apiserver
# systemctl enable kube-scheduler
# systemctl start kube-scheduler
# systemctl start kube-controller-manager
# systemctl start kube-scheduler
# systemctl enable kube-controller-manager
# cp /opt/kubernetes/bin/kubectl /bin/
检查启动结果
# ps aux |grep kube
# ps aux |grep kube | wc -4
# kubectl get cs
NAME AGE
controller-manager <unknown>
scheduler <unknown>
etcd-1 <unknown>
etcd-2 <unknown>
etcd-0 <unknown>
配置tls 基于bootstrap自动颁发证书
# kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap
6.安装worker node节点
七、安装worker node节点
docker：启动容器
kubelet：接受apiserver的指令，然后控制docker容器
kube-proxy：为worker上的容器配置网络工作
第一步：安装配置docker
[root@k8s-node1 ~]# tar xvf k8s-node.tar.gz
[root@k8s-node1 ~]# mv docker.service /usr/lib/systemd/system
[root@k8s-node1 ~]# mkdir /etc/docker
[root@k8s-node1 ~]# cp daemon.json /etc/docker
[root@k8s-node1 ~]# tar xf docker-18.09.6.tgz
[root@k8s-node1 ~]# mv docker/* /bin/
[root@k8s-node1 ~]# systemctl start docker
[root@k8s-node1 ~]# systemctl enable docker
[root@k8s-node1 ~]# docker info
第二步：安装kubelet和kube-proxy
1）生成程序目录和管理脚本
[root@k8s-node1 ~]# tar xvf k8s-node.tar.gz
[root@k8s-node1 ~]# mv kubelet.service kube-proxy.service /usr/lib/systemd/system/
[root@k8s-node1 ~]# mv kubernetes /opt/
2）修改配置文件（4个）
[root@k8s-node1 ~]# vim /opt/kubernetes/cfg/kube-proxy.kubeconfig
修改一行：server: https://192.168.31.63:6443
这里指定的是master的ip地址
[root@k8s-node1 ~]# vi /opt/kubernetes/cfg/bootstrap.kubeconfig
修改一行：server: https://192.168.31.63:6443
这里指定的是master的ip地址
[root@k8s-node1 ~]# vim /opt/kubernetes/cfg/kube-proxy-config.yml
修改一行：hostnameOverride: k8s-node1
这里是指定当前主机的主机名
[root@k8s-node1 ~]# vim /opt/kubernetes/cfg/kubelet.conf
修改一行：--hostname-override=k8s-node1 \
这里是指定当前主机的主机名
3）从master节点复制证书到worker节点
[root@k8s-master1 ~]# cd /root/TLS/k8s/
[root@k8s-master1 k8s]# scp ca.pem kube-proxy.pem kube-proxy-key.pem root@k8s-node1:/opt/kubernetes/ssl/
4）启动kubelet和kube-proxy服务
[root@k8s-node1 ~]# systemctl start kube-proxy
[root@k8s-node1 ~]# systemctl start kubelet
[root@k8s-node1 ~]# systemctl enable kubelet
[root@k8s-node1 ~]# systemctl enable kube-proxy
[root@k8s-node1 ~]# tail -f /opt/kubernetes/logs/kubelet.INFO
如果看到最后一行信息是如下内容，就表示启动服务政策：
No valid private key and/or certificate found, reusing existing private key or creating a new one
5）在master节点为worker节点颁发证书
[root@k8s-master1 k8s]# kubectl get csr
NAME AGE REQUESTOR CONDITION
node-csr-Uu61q1J1nAJ0AprrHc9rcSPVU0qSsD-Z4qDdapDvsWo 6m6s kubelet-bootstrap Pending
[root@k8s-master1 k8s]# kubectl certificate approve node-csr-Uu61q1J1nAJ0AprrHc9rcSPVU0qSsD-Z4qDdapDvsWo
注意：名称必须用自己的名称，不要抄我的
6）给worker节点颁发证书之后，就可以在master上看到worker节点了
[root@k8s-master1 k8s]# kubectl get node
NAME STATUS ROLES AGE VERSION
k8s-node1 NotReady <none> 5h13m v1.16.0
k8s-node2 NotReady <none> 3s v1.16.0
第三步：安装网络插件
1）确认启用CNI
[root@k8s-node1 ~]# grep "cni" /opt/kubernetes/cfg/kubelet.conf
--network-plugin=cni \
2）安装CNI
[root@k8s-node1 ~]# mkdir -pv /opt/cni/bin /etc/cni/net.d
[root@k8s-node1 ~]# tar xf k8s-node.tar.gz
[root@k8s-node1 ~]# tar xf cni-plugins-linux-amd64-v0.8.2.tgz -C /opt/cni/bin
3）在master上执行yaml脚本，实现在worker节点安装启动网络插件功能
[root@k8s-master1 YAML]# kubectl apply -f kube-flannel.yaml
注意：
这个操作受限于网络，可能会需要5~10分钟才能执行成功
如果网上太慢，会导致超时
[root@k8s-master1 YAML]# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
kube-flannel-ds-amd64-6h5dg 1/1 Running 0 2m29s
kube-flannel-ds-amd64-cgbqj 1/1 Running 0 2m29s
查看worker节点的状态
[root@k8s-master1 YAML]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-node1 Ready <none> 5h33m v1.16.0
k8s-node2 Ready <none> 19m v1.16.0
第四步：授权apiserver可以访问kubelet
[root@k8s-master1 YAML]# kubectl apply -f apiserver-to-kubelet-rbac.yaml
