Struts2-s01漏洞复现分析

Struts2-s01漏洞复现分析

漏洞描述

该漏洞因为用户提交表单数据并且验证失败时，后端会将用户之前提交的参数值使用 OGNL 表达式 %{value} 进行解析，然后重新填充到对应的表单数据中。例如注册或登录页面，提交失败后端一般会默认返回之前提交的数据，由于后端使用 %{value} 对提交的数据执行了一次 OGNL 表达式解析，所以可以直接构造 Payload 进行命令执行。

受影响版本

WebWork 2.1 (with altSyntax enabled), WebWork 2.2.0 - WebWork 2.2.5, Struts 2.0.0 - Struts 2.0.8

复现环境

maven(struts-2.0.8)+tomcat7

漏洞缺陷位置

TextParseUtil.translateVariables

public static Object translateVariables(char open, String expression, ValueStack stack, Class asType, ParsedValueEvaluator evaluator) {
        // deal with the "pure" expressions first!
        //expression = expression.trim();
        Object result = expression;
                //漏洞根本原因，未设置合理退出条件，导致ognl表达式递归解析
        while (true) {
            int start = expression.indexOf(open + "{");
            int length = expression.length();
            int x = start + 2;
            int end;
            char c;
            int count = 1;
            while (start != -1 && x < length && count != 0) {
                c = expression.charAt(x++);
                if (c == '{') {
                    count++;
                } else if (c == '}') {
                    count--;
                }
            }
            end = x - 1;
                        //该if条件是唯一退出循环条件
            if ((start != -1) && (end != -1) && (count == 0)) {
                String var = expression.substring(start + 2, end);
                Object o = stack.findValue(var, asType);
                if (evaluator != null) {
                    o = evaluator.evaluate(o);
                }
                String left = expression.substring(0, start);
                String right = expression.substring(end + 1);
                if (o != null) {
                    if (TextUtils.stringSet(left)) {
                        result = left + o;
                    } else {
                        result = o;
                    }
                    if (TextUtils.stringSet(right)) {
                        result = result + right;
                    }
                    expression = left + o + right;
                } else {
                    // the variable doesn't exist, so don't display anything
                    result = left + right;
                    expression = left + right;
                }
            } else {
                break;
            }
        }
        return XWorkConverter.getInstance().convertValue(stack.getContext(), result, asType);
    }

审计分析

流程分析

ognl

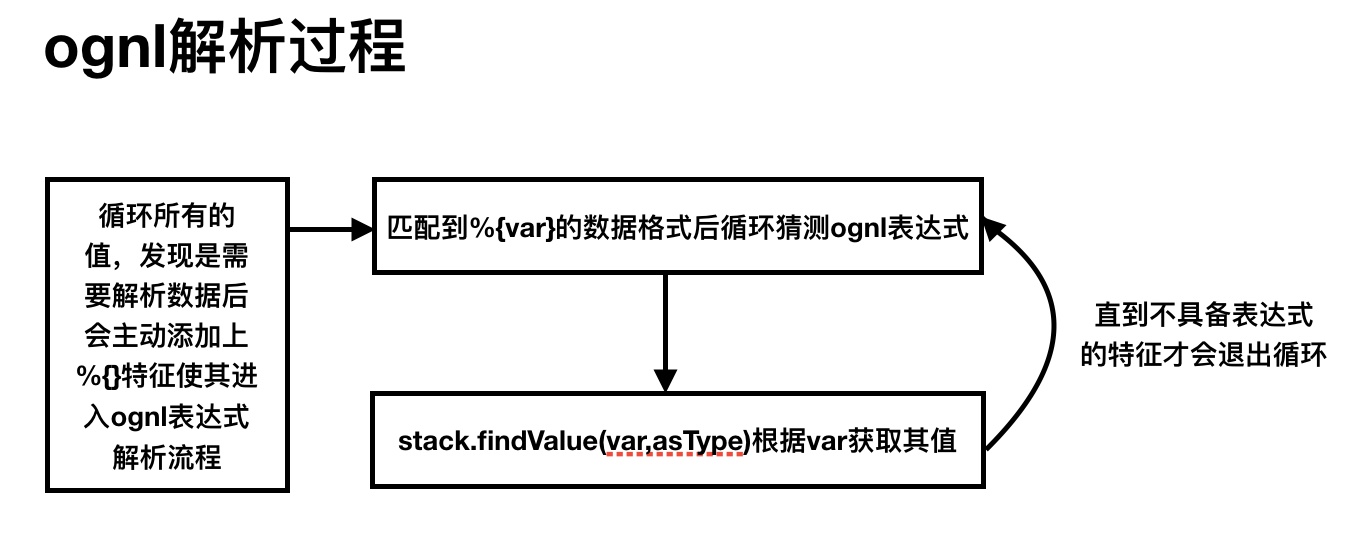

该ognl流程图对应漏洞缺陷行位置贴图代码块

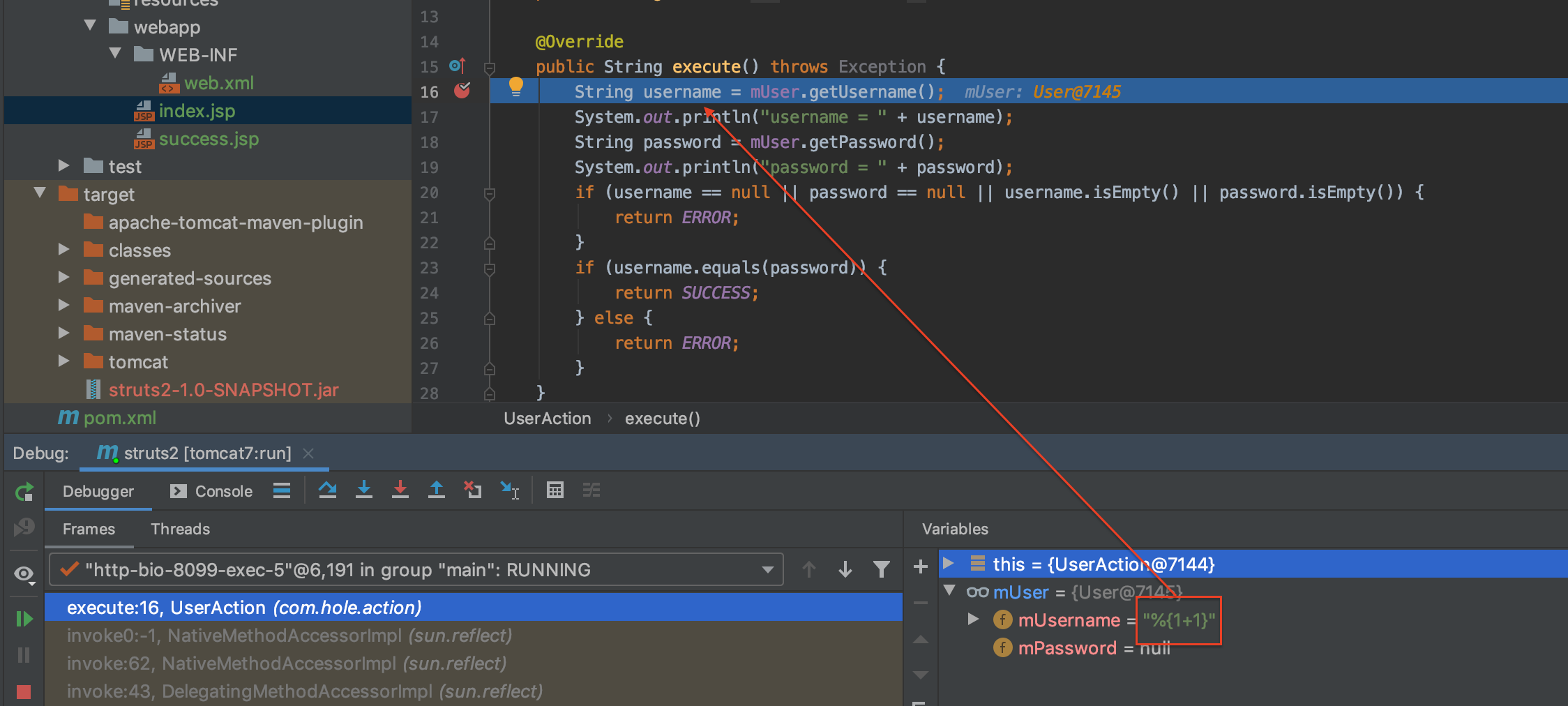

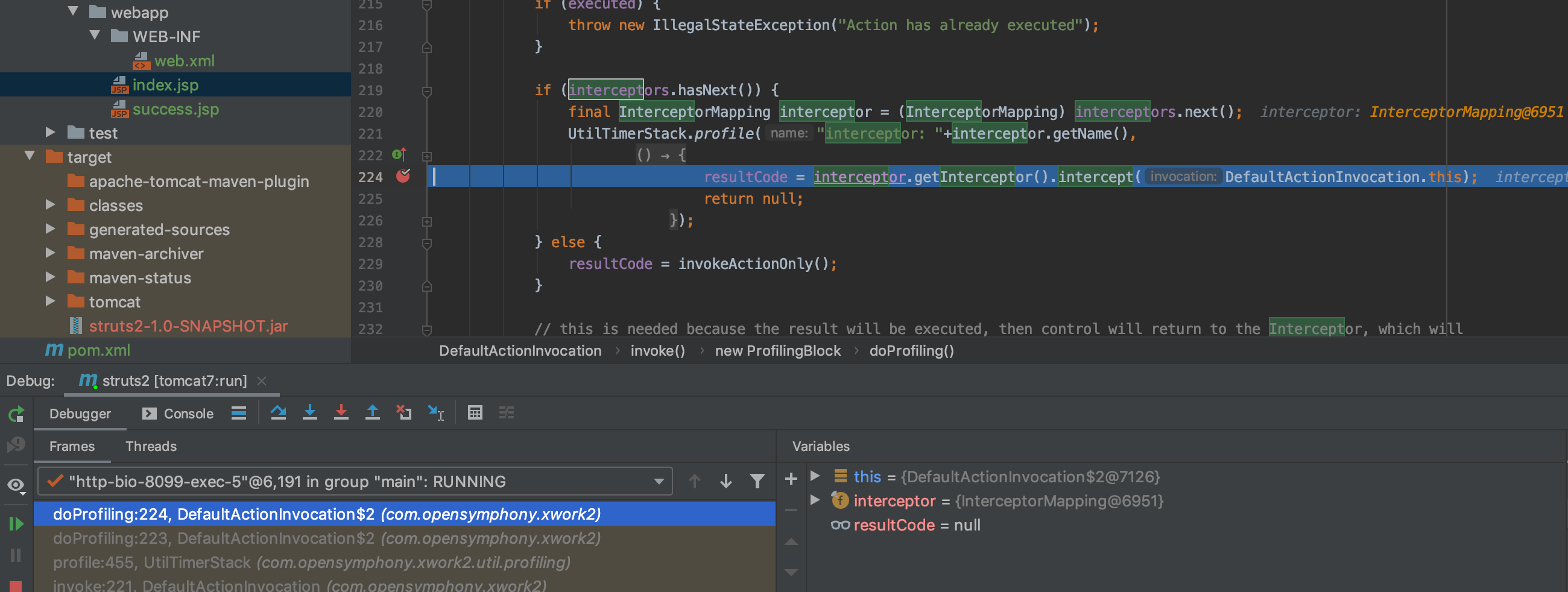

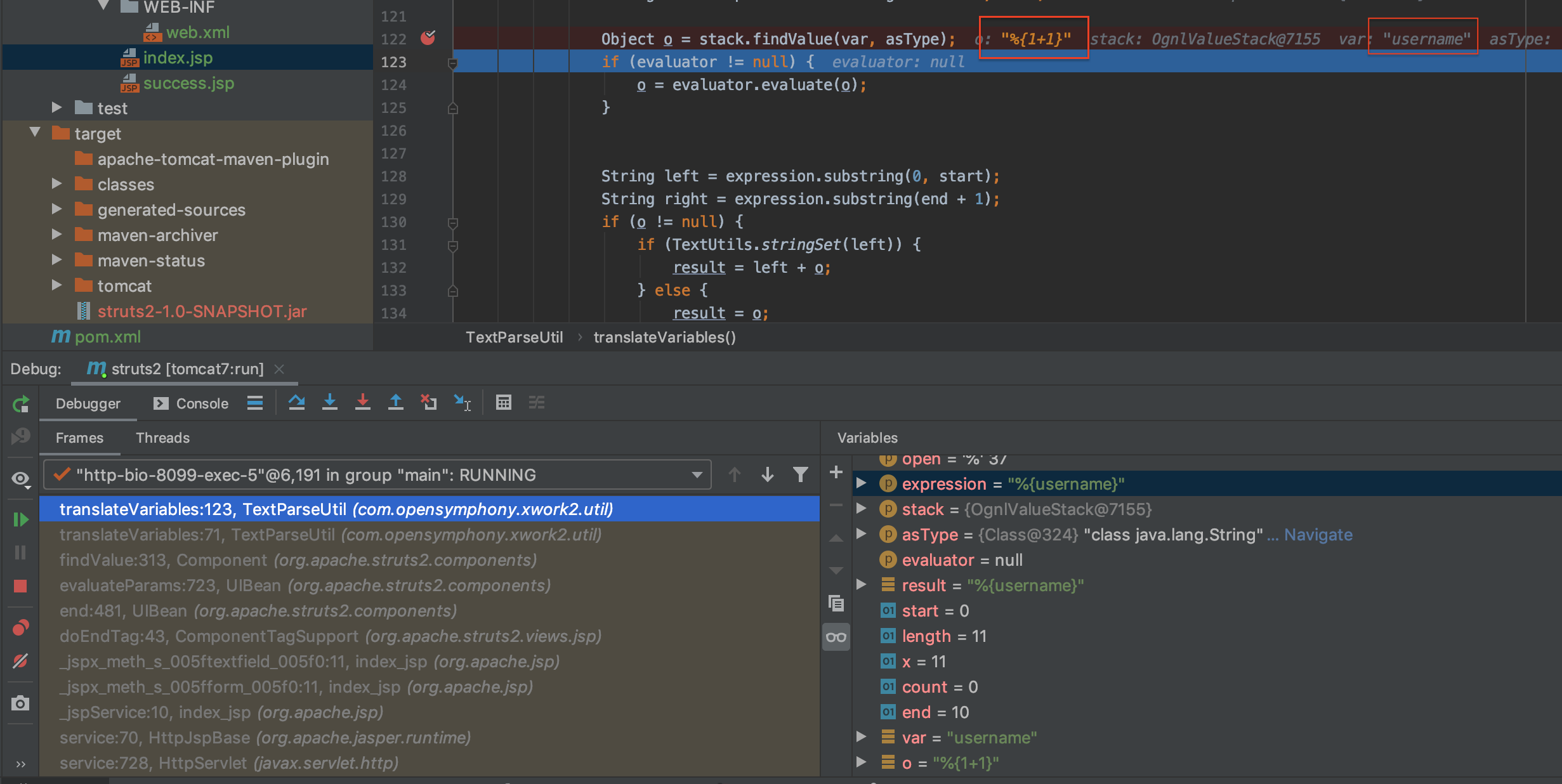

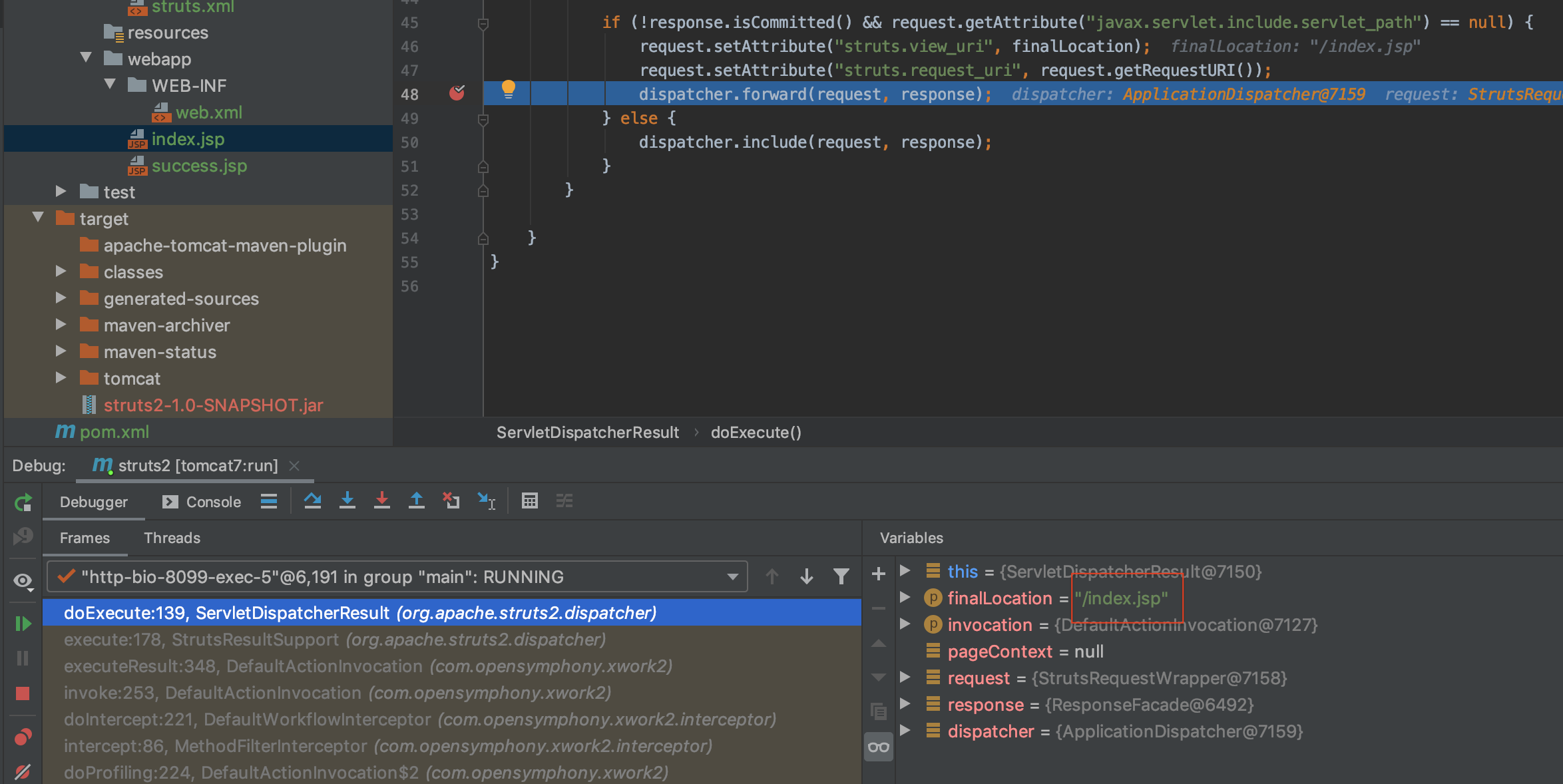

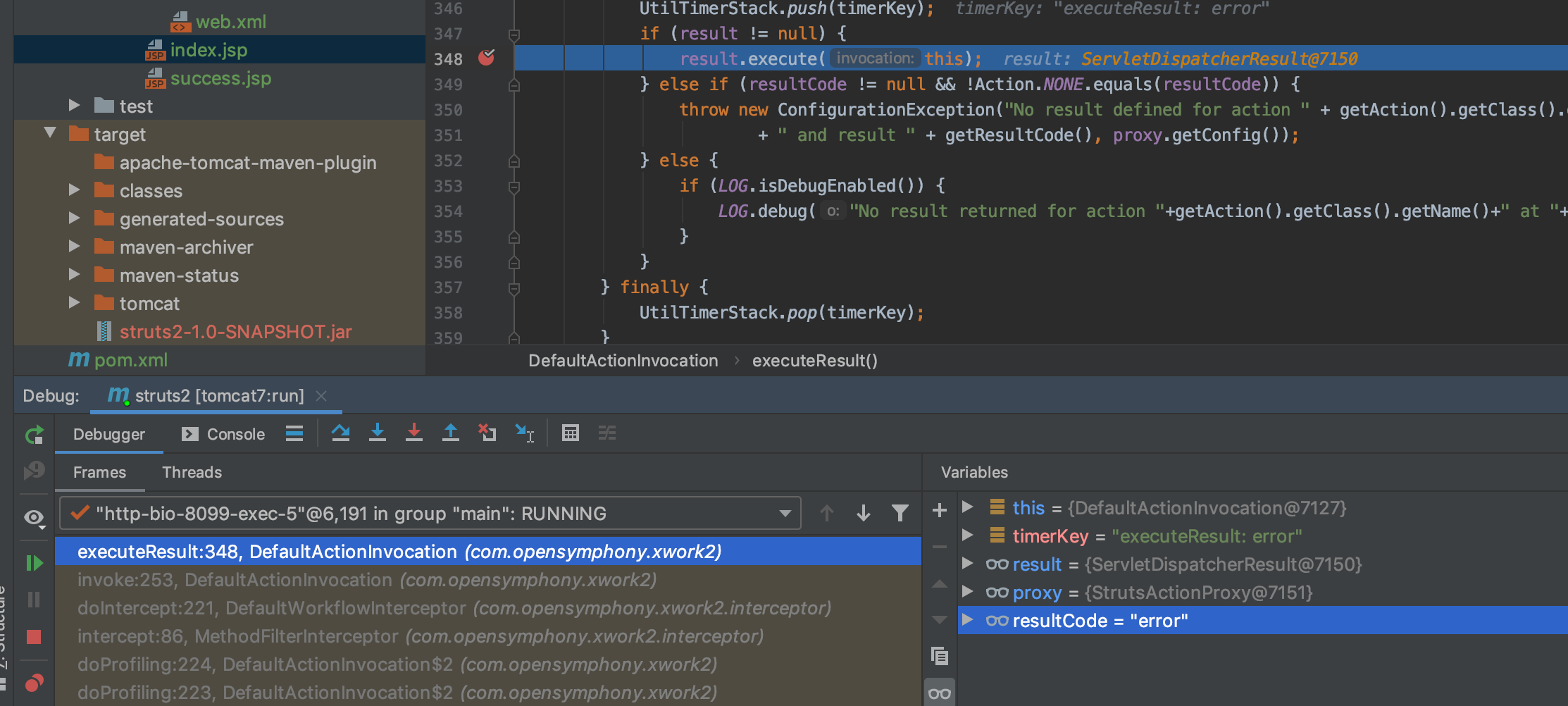

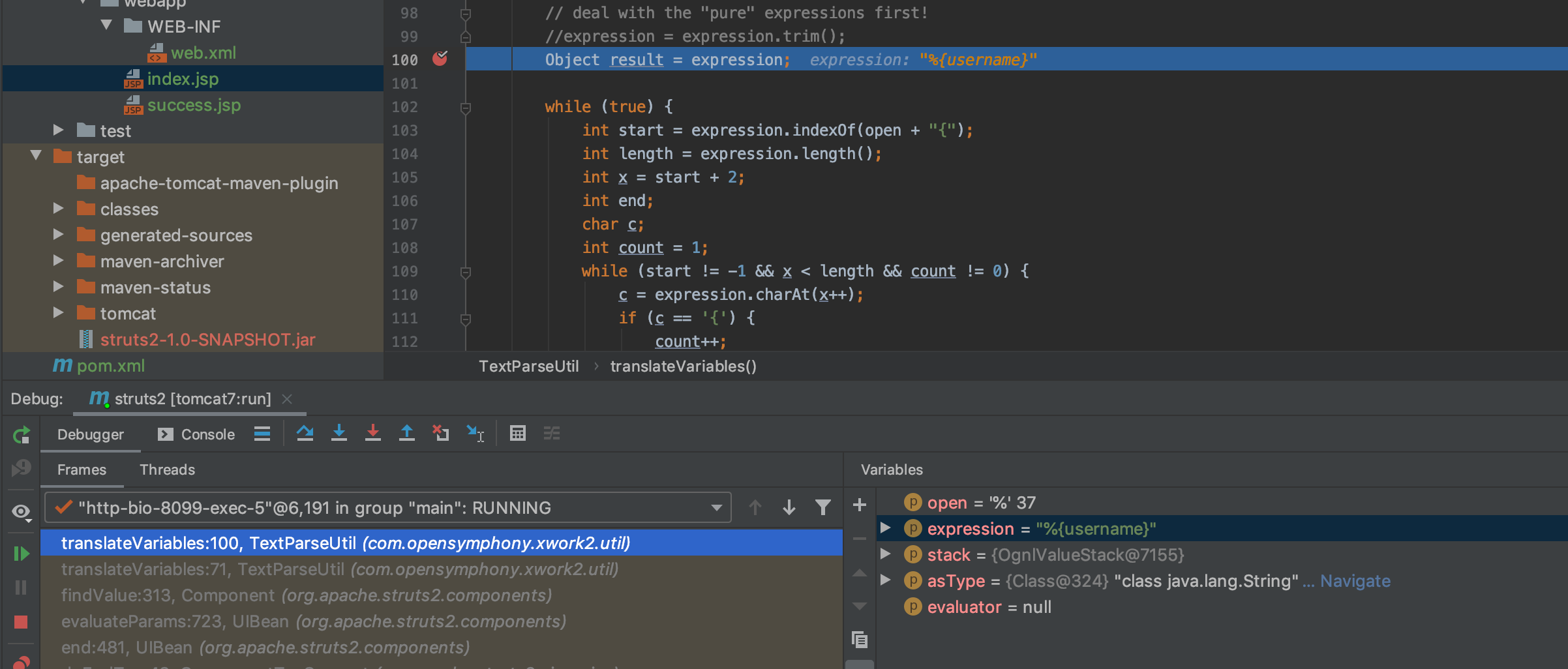

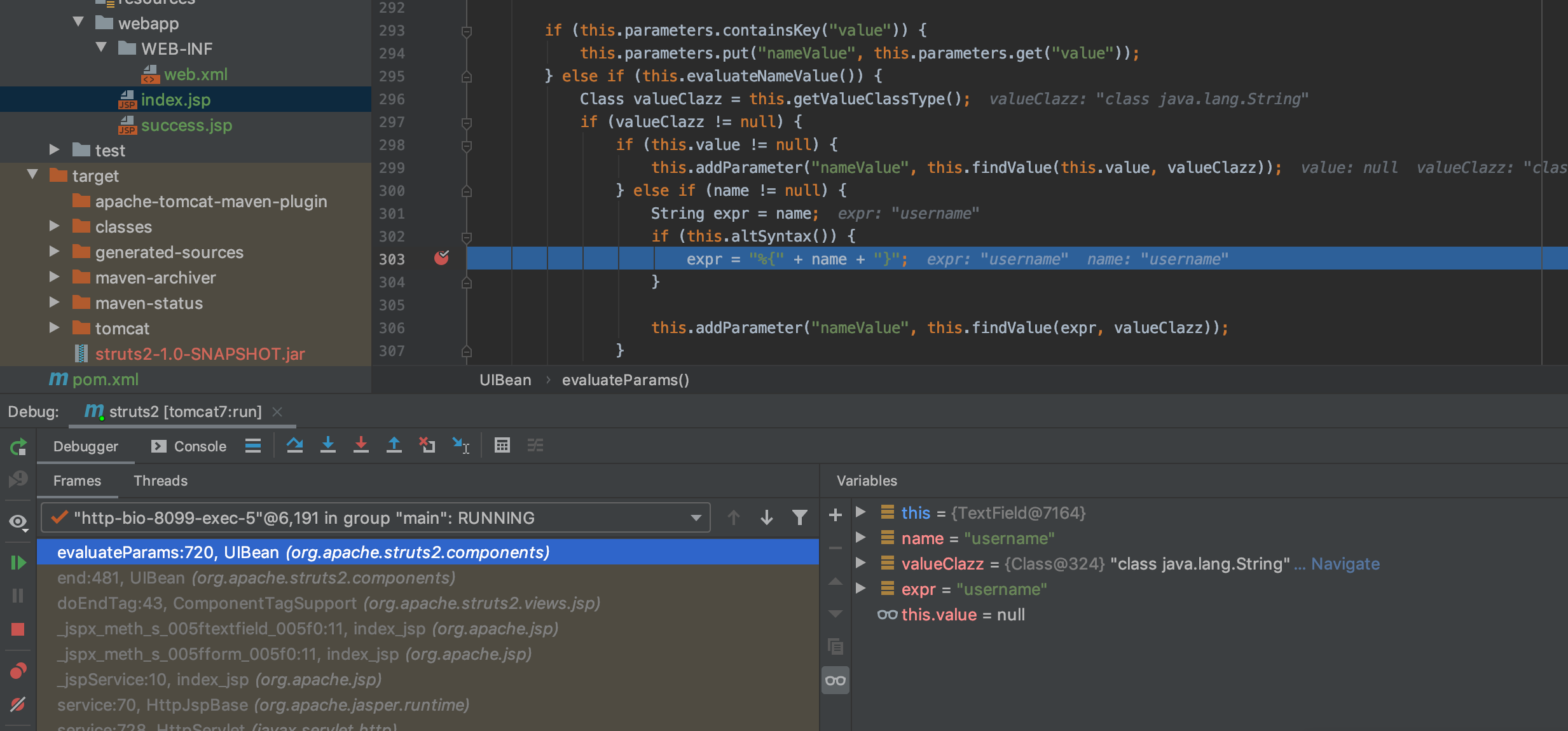

代码分析及漏洞复现

漏洞核心

struts2存在ognl递归解析缺陷
ognl能执行代码

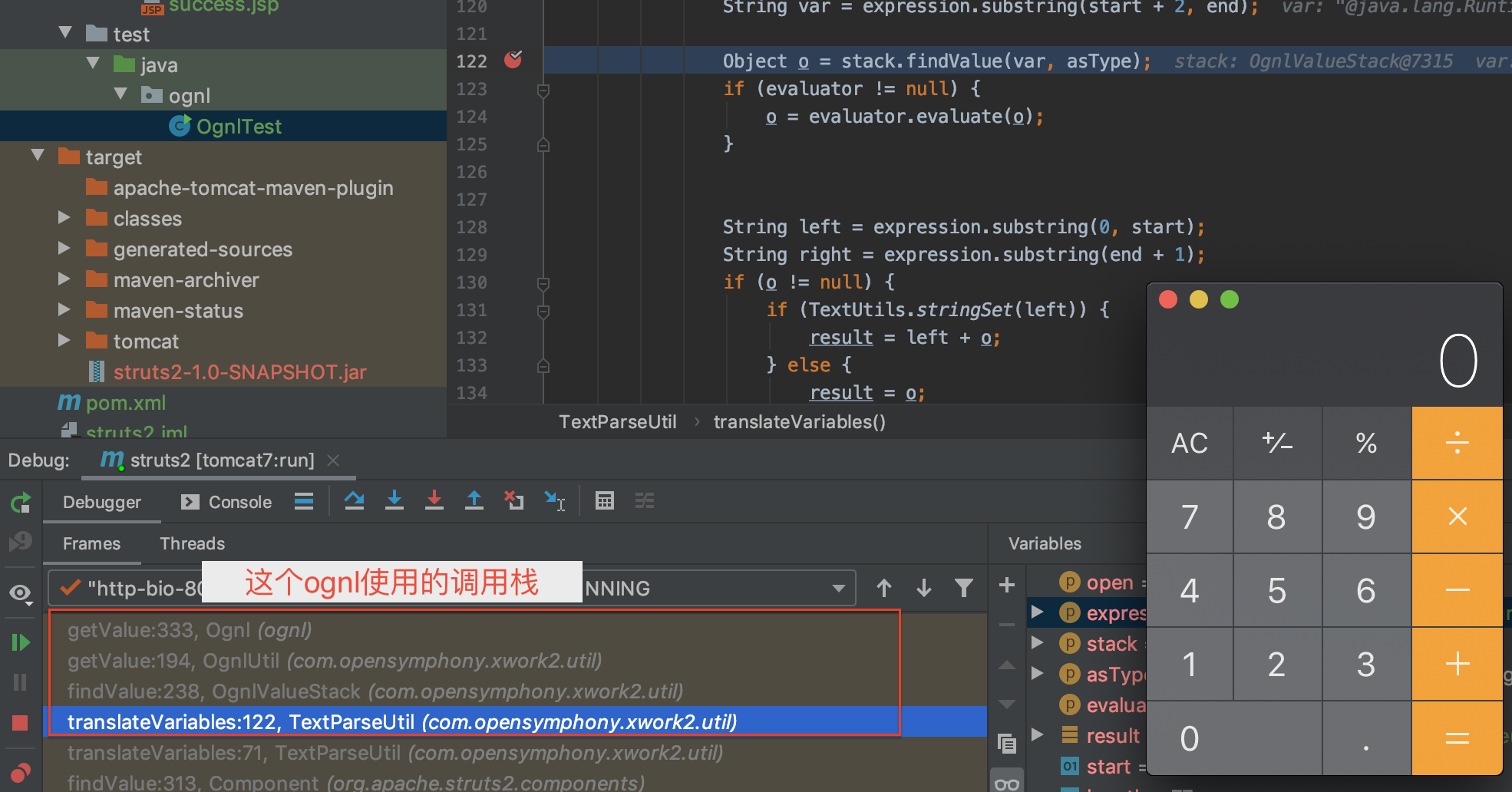

这个是ognl简单实用的测试代码

OgnlContext context = new OgnlContext();
Object obj = Ognl.getValue("'helloworld'.length()",context);
System.out.println(obj);
Object obj1 = Ognl.getValue("@java.lang.String@format('foo %s','bar')",context);
System.out.println(obj1);
Object obj2 = Ognl.getValue("@java.lang.Runtime@getRuntime().exec('open /Applications/Calculator.app/')",context);
