【Junit5】Jupiter 源码分析 流程（一）

参考链接

• https://blog.csdn.net/qq_27009225/article/details/108448937
• https://junit.org/junit5/docs/current/user-guide/
• http://maven.apache.org/surefire/maven-surefire-report-plugin/usage.html
• https://blog.csdn.net/u012260238/article/details/89575617

源码分析

概览

• JUnit 5 = JUnit Platform + JUnit Jupiter + JUnit Vintage

从运行分析源码

打印调用链

index: 0 ClassName: java.lang.Thread Method Name : getStackTrace
index: 1 ClassName: com.example.project.FirstTest Method Name : myFirstTest
index: 2 ClassName: sun.reflect.NativeMethodAccessorImpl Method Name : invoke0
index: 3 ClassName: sun.reflect.NativeMethodAccessorImpl Method Name : invoke
index: 4 ClassName: sun.reflect.DelegatingMethodAccessorImpl Method Name : invoke
index: 5 ClassName: java.lang.reflect.Method Method Name : invoke
index: 6 ClassName: org.junit.platform.commons.util.ReflectionUtils Method Name : invokeMethod
index: 7 ClassName: org.junit.jupiter.engine.execution.MethodInvocation Method Name : proceed
index: 8 ClassName: org.junit.jupiter.engine.execution.InvocationInterceptorChain$ValidatingInvocation Method Name : proceed
index: 9 ClassName: org.junit.jupiter.engine.extension.TimeoutExtension Method Name : intercept
index: 10 ClassName: org.junit.jupiter.engine.extension.TimeoutExtension Method Name : interceptTestableMethod
index: 11 ClassName: org.junit.jupiter.engine.extension.TimeoutExtension Method Name : interceptTestMethod
index: 12 ClassName: org.junit.jupiter.engine.execution.ExecutableInvoker$ReflectiveInterceptorCall Method Name : lambda$ofVoidMethod$0
index: 13 ClassName: org.junit.jupiter.engine.execution.ExecutableInvoker Method Name : lambda$invoke$0
index: 14 ClassName: org.junit.jupiter.engine.execution.InvocationInterceptorChain$InterceptedInvocation Method Name : proceed
index: 15 ClassName: org.junit.jupiter.engine.execution.InvocationInterceptorChain Method Name : proceed
index: 16 ClassName: org.junit.jupiter.engine.execution.InvocationInterceptorChain Method Name : chainAndInvoke
index: 17 ClassName: org.junit.jupiter.engine.execution.InvocationInterceptorChain Method Name : invoke
index: 18 ClassName: org.junit.jupiter.engine.execution.ExecutableInvoker Method Name : invoke
index: 19 ClassName: org.junit.jupiter.engine.execution.ExecutableInvoker Method Name : invoke
index: 20 ClassName: org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor Method Name : lambda$invokeTestMethod$7
index: 21 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 22 ClassName: org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor Method Name : invokeTestMethod
index: 23 ClassName: org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor Method Name : execute
index: 24 ClassName: org.junit.jupiter.engine.descriptor.TestMethodTestDescriptor Method Name : execute
index: 25 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$6
index: 26 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 27 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$8
index: 28 ClassName: org.junit.platform.engine.support.hierarchical.Node Method Name : around
index: 29 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$9
index: 30 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 31 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : executeRecursively
index: 32 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : execute
index: 33 ClassName: java.util.ArrayList Method Name : forEach
index: 34 ClassName: org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService Method Name : invokeAll
index: 35 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$6
index: 36 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 37 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$8
index: 38 ClassName: org.junit.platform.engine.support.hierarchical.Node Method Name : around
index: 39 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$9
index: 40 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 41 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : executeRecursively
index: 42 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : execute
index: 43 ClassName: java.util.ArrayList Method Name : forEach
index: 44 ClassName: org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService Method Name : invokeAll
index: 45 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$6
index: 46 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 47 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$8
index: 48 ClassName: org.junit.platform.engine.support.hierarchical.Node Method Name : around
index: 49 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : lambda$executeRecursively$9
index: 50 ClassName: org.junit.platform.engine.support.hierarchical.ThrowableCollector Method Name : execute
index: 51 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : executeRecursively
index: 52 ClassName: org.junit.platform.engine.support.hierarchical.NodeTestTask Method Name : execute
index: 53 ClassName: org.junit.platform.engine.support.hierarchical.SameThreadHierarchicalTestExecutorService Method Name : submit
index: 54 ClassName: org.junit.platform.engine.support.hierarchical.HierarchicalTestExecutor Method Name : execute
index: 55 ClassName: org.junit.platform.engine.support.hierarchical.HierarchicalTestEngine Method Name : execute
index: 56 ClassName: org.junit.platform.launcher.core.EngineExecutionOrchestrator Method Name : execute
index: 57 ClassName: org.junit.platform.launcher.core.EngineExecutionOrchestrator Method Name : execute
index: 58 ClassName: org.junit.platform.launcher.core.EngineExecutionOrchestrator Method Name : lambda$execute$0
index: 59 ClassName: org.junit.platform.launcher.core.EngineExecutionOrchestrator Method Name : withInterceptedStreams
index: 60 ClassName: org.junit.platform.launcher.core.EngineExecutionOrchestrator Method Name : execute
index: 61 ClassName: org.junit.platform.launcher.core.DefaultLauncher Method Name : execute
index: 62 ClassName: org.junit.platform.launcher.core.DefaultLauncher Method Name : execute
index: 63 ClassName: org.junit.platform.launcher.core.DefaultLauncherSession$DelegatingLauncher Method Name : execute
index: 64 ClassName: org.junit.platform.launcher.core.SessionPerRequestLauncher Method Name : execute
index: 65 ClassName: org.gradle.api.internal.tasks.testing.junitplatform.JUnitPlatformTestClassProcessor$CollectAllTestClassesExecutor Method Name : processAllTestClasses
index: 66 ClassName: org.gradle.api.internal.tasks.testing.junitplatform.JUnitPlatformTestClassProcessor$CollectAllTestClassesExecutor Method Name : access$000
index: 67 ClassName: org.gradle.api.internal.tasks.testing.junitplatform.JUnitPlatformTestClassProcessor Method Name : stop
index: 68 ClassName: org.gradle.api.internal.tasks.testing.SuiteTestClassProcessor Method Name : stop
index: 69 ClassName: sun.reflect.NativeMethodAccessorImpl Method Name : invoke0
index: 70 ClassName: sun.reflect.NativeMethodAccessorImpl Method Name : invoke
index: 71 ClassName: sun.reflect.DelegatingMethodAccessorImpl Method Name : invoke
index: 72 ClassName: java.lang.reflect.Method Method Name : invoke
index: 73 ClassName: org.gradle.internal.dispatch.ReflectionDispatch Method Name : dispatch
index: 74 ClassName: org.gradle.internal.dispatch.ReflectionDispatch Method Name : dispatch
index: 75 ClassName: org.gradle.internal.dispatch.ContextClassLoaderDispatch Method Name : dispatch
index: 76 ClassName: org.gradle.internal.dispatch.ProxyDispatchAdapter$DispatchingInvocationHandler Method Name : invoke
index: 77 ClassName: com.sun.proxy.$Proxy2 Method Name : stop
index: 78 ClassName: org.gradle.api.internal.tasks.testing.worker.TestWorker$3 Method Name : run
index: 79 ClassName: org.gradle.api.internal.tasks.testing.worker.TestWorker Method Name : executeAndMaintainThreadName
index: 80 ClassName: org.gradle.api.internal.tasks.testing.worker.TestWorker Method Name : execute
index: 81 ClassName: org.gradle.api.internal.tasks.testing.worker.TestWorker Method Name : execute
index: 82 ClassName: org.gradle.process.internal.worker.child.ActionExecutionWorker Method Name : execute
index: 83 ClassName: org.gradle.process.internal.worker.child.SystemApplicationClassLoaderWorker Method Name : call
index: 84 ClassName: org.gradle.process.internal.worker.child.SystemApplicationClassLoaderWorker Method Name : call
index: 85 ClassName: worker.org.gradle.process.internal.worker.GradleWorkerMain Method Name : run
index: 86 ClassName: worker.org.gradle.process.internal.worker.GradleWorkerMain Method Name : main

SessionPerRequestLauncher

public void execute(LauncherDiscoveryRequest launcherDiscoveryRequest, TestExecutionListener... listeners) {
        try (LauncherSession session = createSession()) {
            session.getLauncher().execute(launcherDiscoveryRequest, listeners);
        }
    }

• LauncherDiscoveryRequest 接口
• DefaultDiscoveryRequest
  •

• TestExecutionListener 空的

DefaultLauncherSession

• getLauncher

  DefaultLauncher

  ```java public void execute(LauncherDiscoveryRequest discoveryRequest, TestExecutionListener… listeners) {

    Preconditions.notNull(discoveryRequest, "LauncherDiscoveryRequest must not be null");
    Preconditions.notNull(listeners, "TestExecutionListener array must not be null");
    Preconditions.containsNoNullElements(listeners, "individual listeners must not be null");
    execute(InternalTestPlan.from(discover(discoveryRequest, EXECUTION)), listeners);


  }

private void execute(InternalTestPlan internalTestPlan, TestExecutionListener[] listeners) { executionOrchestrator.execute(internalTestPlan, listeners); }

<a name="TBbR8"></a>
#### EngineExecutionOrchestrator
```java
void execute(InternalTestPlan internalTestPlan, TestExecutionListener... listeners) {
        internalTestPlan.markStarted();
        LauncherDiscoveryResult discoveryResult = internalTestPlan.getDiscoveryResult();
        ConfigurationParameters configurationParameters = discoveryResult.getConfigurationParameters();
        ListenerRegistry<TestExecutionListener> listenerRegistry = buildListenerRegistryForExecution(listeners);
        withInterceptedStreams(configurationParameters, listenerRegistry, testExecutionListener -> {
            testExecutionListener.testPlanExecutionStarted(internalTestPlan);
            execute(discoveryResult, new ExecutionListenerAdapter(internalTestPlan, testExecutionListener));
            testExecutionListener.testPlanExecutionFinished(internalTestPlan);
        });
    }

....
public void execute(LauncherDiscoveryResult discoveryResult, EngineExecutionListener listener) {
        for (TestEngine testEngine : discoveryResult.getTestEngines()) {
            TestDescriptor engineDescriptor = discoveryResult.getEngineTestDescriptor(testEngine);
            if (engineDescriptor instanceof EngineDiscoveryErrorDescriptor) {
                listener.executionStarted(engineDescriptor);
                listener.executionFinished(engineDescriptor,
                    TestExecutionResult.failed(((EngineDiscoveryErrorDescriptor) engineDescriptor).getCause()));
            }
            else {
                execute(engineDescriptor, listener, discoveryResult.getConfigurationParameters(), testEngine);
            }
        }
    }
.....
private void execute(TestDescriptor engineDescriptor, EngineExecutionListener listener,
            ConfigurationParameters configurationParameters, TestEngine testEngine) {

        OutcomeDelayingEngineExecutionListener delayingListener = new OutcomeDelayingEngineExecutionListener(listener,
            engineDescriptor);
        try {
            testEngine.execute(new ExecutionRequest(engineDescriptor, delayingListener, configurationParameters));
            delayingListener.reportEngineOutcome();
        }
        catch (Throwable throwable) {
            UnrecoverableExceptions.rethrowIfUnrecoverable(throwable);
            delayingListener.reportEngineFailure(new JUnitException(
                String.format("TestEngine with ID '%s' failed to execute tests", testEngine.getId()), throwable));
        }
    }

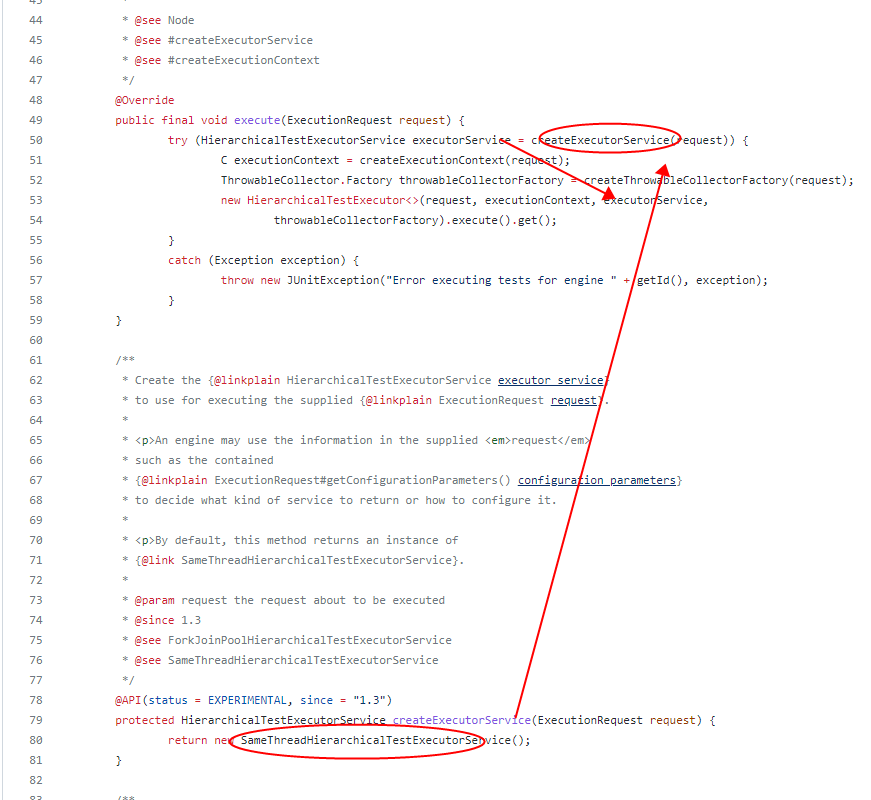

HierarchicalTestEngine

HierarchicalTestExecutor

• 执行请求 ExecutionReuqest
• 上下文 rootContext
• 执行服务， executorService
• 异常收集器的工厂

HierarchicalTestExecutorService //是一个接口

• 这里看他的实现类 SameThreadHierarchicalTestExecutorService

TestTask 相关有TestTaskContext 与 TestDescriptor 是个接口

NodeTeskTask

• execute主流程

• executeRecursively

  private void executeRecursively() {
        taskContext.getListener().executionStarted(testDescriptor);
        started = true;

        throwableCollector.execute(() -> {

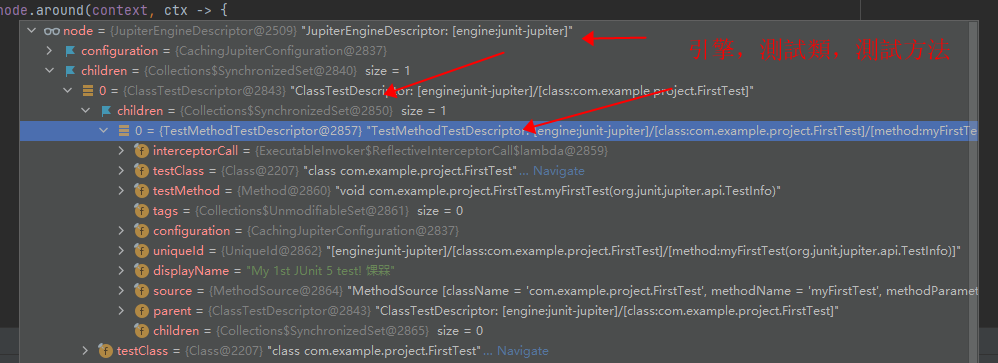

            node.around(context, ctx -> {
                context = ctx;
                throwableCollector.execute(() -> {
                    // @formatter:off
                    List<NodeTestTask<C>> children = testDescriptor.getChildren().stream()
                            .map(descriptor -> new NodeTestTask<C>(taskContext, descriptor))
                            .collect(toCollection(ArrayList::new));
                    // @formatter:on

                    context = node.before(context);

                    final DynamicTestExecutor dynamicTestExecutor = new DefaultDynamicTestExecutor();
                    context = node.execute(context, dynamicTestExecutor);

                    if (!children.isEmpty()) {
                        children.forEach(child -> child.setParentContext(context));
                        taskContext.getExecutorService().invokeAll(children);
                    }

                    throwableCollector.execute(dynamicTestExecutor::awaitFinished);
                });

                throwableCollector.execute(() -> node.after(context));
            });
        });
    }


• Node 接口

• TestMethodTestDescriptor 实现了Node接口
  • invokeTestMethod
• ExecutableInvoker
  •

• InvocationInterceptorChain
• MethodInvocation

自上而下的梳理

Node ， TestDescriptor， TestEngine， TestTask ， ExecutionRequest 与重要的实现类

Node 接口

• 是有关本节点的运行控制逻辑，如是否skip，运行 before和after 的代码等

  TestDescriptor 接口

• 有Test 和Container两种类型 或两中都是，有很多树状结构数据维护的方法，

  TestEngine 接口

• 主要是下面两个重要方法

• TestDescriptor discover(EngineDiscoveryRequest discoveryRequest, UniqueId uniqueId);

• void execute(ExecutionRequest request);

  HierarchicalTestEngine

• 实现TestEngine 接口

• 主要就是实现execute 方法，
• 根据传入的ExecutionRequest 类型参数 创建了HierarchicalTestExecutorService的实现类SameThreadHierarchicalTestExecutorService 实例来执行
• new 了一个 HierarchicalTestExecutor 实例，把所有相关参数包括 HierarchicalTestExecutorService实例都传了进去
• HierarchicalTestExecutor 实例里面又调了HierarchicalTestExecutorService的 submit 来执行，入参是一个TeskTask实例，

HierarchicalTestExecutorService 是一个接口 主要三个方法

• Future submit(TestTask testTask);
• void invokeAll(List<? extends TestTask> testTasks);
• void close();
• 实现类

ForkJoinPoolHierarchicalTestExecutorService, SameThreadHierarchicalTestExecutorService

SameThreadHierarchicalTestExecutorService

• 实现 submit 和 invokeAll方法主要是调用 TestTask的execute 实现

TestTask

• HierarchicalTestExecutorService的内部接口
• 定义了getExecutionMode getResourceLock execute 方法

NodeTestTask 实现了 TestTask

• 实现了execute方法

• 主要逻辑在 executeRecursively 这个方法内

  ExecutionRequest

• 三个属性

    private final TestDescriptor rootTestDescriptor;

    private final EngineExecutionListener engineExecutionListener;

    private final ConfigurationParameters configurationParameters;


  AbstractTestDescriptor 实现 TestDescriptor

  • TestSource 类型的属性，TestSource是个接口
  • TestDescriptor 类型的 parent 和children属性， 是一个树的结构

  • 其它是displayName 与 uniqueId ， UniqueID 这个类型的意义？ //TODO

    JupiterTestDescriptor 继承AbstractTestDescriptor也实现了Node接口

  • 公有方法，

    • getExecutionMode
    • toExecutionMode
    • shouldBeSkipped
    • prepare //没实现
    • cleanUp

      ClassBasedTestDescriptor 继承自JupiterTestDescriptor

  • 属性 ```java private final Class<?> testClass; protected final Set tags; protected final Lifecycle lifecycle;

    private ExecutionMode defaultChildExecutionMode; private TestInstanceFactory testInstanceFactory; private List beforeAllMethods; private List afterAllMethods;

   - 主要是三个public方法实现，
      - prepare
         - 注册extensions  // extension 这个后面再仔细分析下
         - 主要是构建一个 JupiterEngineExecutionContext 实例
```java
    return context.extend()
                .withTestInstancesProvider(testInstancesProvider(context, extensionContext))
                .withExtensionRegistry(registry)
                .withExtensionContext(extensionContext)
                .withThrowableCollector(throwableCollector)
                .build();

  - before
  - after

JupiterEngineExecutionContext

• 一个内部类 保存的重要属性 //调试时看下这些东西是什么东西

  private static final class State implements Cloneable {

     final EngineExecutionListener executionListener;
     final JupiterConfiguration configuration;
     TestInstancesProvider testInstancesProvider;
     MutableExtensionRegistry extensionRegistry;
     ExtensionContext extensionContext;
     ThrowableCollector throwableCollector;
  ....


  Node实现类

  ClassBasedTestDescriptor, ClassTestDescriptor, JupiterEngineDescriptor, JupiterTestDescriptor, MethodBasedTestDescriptor, NestedClassTestDescriptor, TestFactoryTestDescriptor, TestMethodTestDescriptor, TestTemplateInvocationTestDescriptor, TestTemplateTestDescriptor

  TestDescirptor 实现类

  AbstractTestDescriptor, ClassBasedTestDescriptor, ClassTestDescriptor, EngineDescriptor, JupiterEngineDescriptor, JupiterTestDescriptor, MethodBasedTestDescriptor, NestedClassTestDescriptor, RunnerTestDescriptor, TestFactoryTestDescriptor, TestMethodTestDescriptor, TestTemplateInvocationTestDescriptor, TestTemplateTestDescriptor, VintageEngineDescriptor, VintageTestDescriptor

TestEngine的实现类

HierarchicalTestEngine, JupiterTestEngine, SuiteTestEngine, VintageTestEngine
[

](https://junit.org/junit5/docs/current/api/org.junit.jupiter.engine/org/junit/jupiter/engine/descriptor/TestTemplateTestDescriptor.html)
�
