源代码

  1. //导入printf函数，用于输出
  2. #include <stdio.h>
  3. //导入assert函数,断言，用于获取内存是否异常
  4. #include <assert.h>
  5. //导入malloc函数，用于内存分配, Allocate SIZE bytes of memory
  6. #include <stdlib.h>
  7. //导入strdup函数，用于字符串的复制
  8. #include <string.h>
  10. struct Person {
  11.     char *name;
  12.     int age;
  13.     int height;
  14.     int weight;
  15. };
  18. //从方法的声明上可以看出，该方法的返回值是一个struct Person*，指向Person结构体的指针
  19. struct Person* Person_create(char *name, int age, int height, int weight)
  20. {
  21.     //申请指定长度的内存
  22.     //sizeof获取的长度是 8 + 4 + 4 + 4 = 20个字节
  23.     //name*是一个地址，长度是8个字节，也就是64位的地址
  24.     //每个int占用4个字节
  25.     struct Person *who = malloc(sizeof(struct Person));
  26.     //判断malloc返回是否成功，成功的话，who指针不为空，肯定会指向一个内存块的首地址
  27.     //NULL是一个特殊常量，表示“unset or invalid pointer"
  28.     assert(who != NULL);
  30.     //使用->语法为结构体赋值
  31.     //strdup其实和malloc差不多，都是分配一段内存，不过区别是strdup另外还需要将字符串复制到新内存空间中
  32.     //strdup在此处的目的是该struct真正的用于该字符串，而不是其他地方也引用，防止被其他地方修改或者释放
  33.     who->name = strdup(name);
  34.     who->age = age;
  35.     who->height = height;
  36.     who->weight = weight;
  38.     return who;
  39. }
  41. //良好编程习惯：有create的地方，肯定会有释放的地方
  42. void Person_destroy(struct Person *who)
  43. {
  44.     //良好编程习惯：在释放前，同样要判断指针是否合法
  45.     assert(who != NULL);
  47.     //释放字符串和Person对象占用的内容空间
  48.     //如果不释放的话，会造成内存泄漏
  49.     //free(who->name);
  50.     free(who);
  51. }
  53. void Person_print(struct Person *who)
  54. {
  55.     printf("Joe-inner function is at memory location %p: \n", &who);
  56.     //结构体成员，使用->来访问
  57.     printf("Name: %s\n", who->name);
  58.     printf("\tAge: %d\n", who->age);
  59.     printf("\tHeight: %d\n", who->height);
  60.     printf("\tWeight: %d\n", who->weight);
  61. }
  63. int main(int argc, char *argv[])
  64. {
  65.     // make two people structures
  66.     struct Person *joe = Person_create("Joe Alex", 32, 64, 140);
  67.     struct Person *frank = Person_create("Frank Blank", 20, 72, 180);
  69.     // print them out and where they are in memory
  70.     printf("Joe is at memory location %p: \n", joe);
  71.     printf("Joe is at memory location %p: \n", &joe);
  72.     Person_print(joe);
  74.     printf("Frank is at memory location %p: \n", frank);
  75.     Person_print(frank);
  77.     // make everyone agr 20 years and print them again
  78.     joe->age +=20;
  79.     joe->height -=2;
  80.     joe->weight +=40;
  81.     Person_print(joe);
  83.     frank->age +=20;
  84.     frank->height +=20;
  85.     Person_print(frank);
  87.     // destroy them both so we clean up
  88.     Person_destroy(joe);
  89.     Person_destroy(frank);
  91.     return 0;
  92. }

安装valgrind

apt update apt install valgrind

编译程序，并使用valgrind执行

valgrind --leak-check=full ./ex16
输出结果如下：

==11300==
==11300== HEAP SUMMARY:
==11300== in use at exit: 21 bytes in 2 blocks
==11300== total heap usage: 5 allocs, 3 frees, 1,093 bytes allocated
==11300==
==11300== 9 bytes in 1 blocks are definitely lost in loss record 1 of 2
==11300== at 0x4C31B0F: malloc (in /usr/lib/valgrind/vgpreload_memcheck-amd64-linux.so)
==11300== by 0x4EDBAF9: strdup (strdup.c:42)
==11300== by 0x10882E: Person_create (ex16.c:33)
==11300== by 0x108966: main (ex16.c:66)
==11300==
==11300== 12 bytes in 1 blocks are definitely lost in loss record 2 of 2
==11300== at 0x4C31B0F: malloc (in /usr/lib/valgrind/vgpreload_memcheck-amd64-linux.so)
==11300== by 0x4EDBAF9: strdup (strdup.c:42)
==11300== by 0x10882E: Person_create (ex16.c:33)
==11300== by 0x108985: main (ex16.c:67)
==11300==
==11300== LEAK SUMMARY:
==11300== definitely lost: 21 bytes in 2 blocks
==11300== indirectly lost: 0 bytes in 0 blocks
==11300== possibly lost: 0 bytes in 0 blocks
==11300== still reachable: 0 bytes in 0 blocks
==11300== suppressed: 0 bytes in 0 blocks
==11300==
==11300== For counts of detected and suppressed errors, rerun with: -v
==11300== ERROR SUMMARY: 2 errors from 2 contexts (suppressed: 0 from 0)

分析

从下面可以看出：

total heap usage: 5 allocs, 3 frees, 1,093 bytes allocated

分配了5次内存，但是只释放3次。
说明有两次没有释放。

==11300== 9 bytes in 1 blocks are definitely lost in loss record 1 of 2 ==11300== at 0x4C31B0F: malloc (in /usr/lib/valgrind/vgpreload_memcheck-amd64-linux.so)

==11300== by 0x4EDBAF9: strdup (strdup.c:42)

==11300== by 0x10882E: Person_create (ex16.c:33)

==11300== by 0x108966: main (ex16.c:66)

此处泄漏了9个字节，是由strdup申请未释放的。

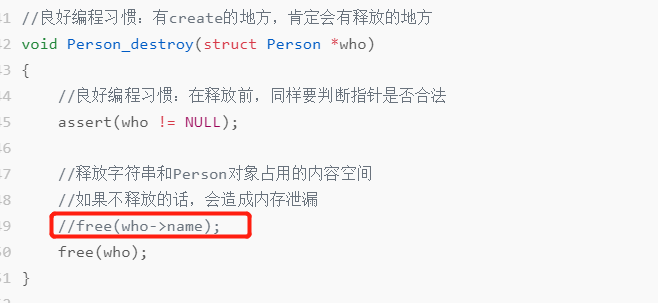

再综合代码，就可以找到未释放的位置，如下：
