:::info 开源示例参考：https://github.com/jboner/lagom-service-locator-consul :::

添加consul依赖

在build.sbt文件中，添加consul的相关依赖，GitHub示例中的时间较早，版本API已经废弃，本例中使用较新的版本，并调整了API的新用法。

  1. val consulApi = "com.ecwid.consul" % "consul-api" % "1.4.5"

Consul组件

ConsulConfig

用于读取配置文件中，配置的consul中心地址，希望将自身服务注册到哪个consul服务，需要配置必要的信息，包括Consul服务的IP地址和服务端口，uri方式和路由策略。代码如下：

  1. trait ConsulConfig {
  2.   def agentHostname: String
  3.   def agentPort: Int
  4.   def scheme: String
  5.   def routingPolicy: RoutingPolicy
  6. }
  8. object ConsulConfig {
  9.   class ConsulConfigImpl  (config: Configuration) extends ConsulConfig {
  10.     override val agentHostname = config.get[String]("server.discovery.consul.agent-hostname")
  11.     override val agentPort = config.get[Int]("server.discovery.consul.agent-port")
  12.     override val scheme = config.get[String]("server.discovery.consul.uri-scheme")
  13.     override val routingPolicy = RoutingPolicy(config.get[String]("server.discovery.consul.routing-policy"))
  14.   }
  15. }

对应的需要在resource/application.conf文件中，添加对应的服务信息，配置信息如下：

  1. ##服务发现使用consul机制,用于表示consul集群地址信息
  2. lagom {
  3.   discovery {
  4.     consul {
  5.       agent-hostname = "127.0.0.1"   # hostname or IP-address for the Consul agent
  6.       agent-port     = 8500          # port for the Consul agent
  7.       uri-scheme     = "http"        # for example: http or https
  8.       routing-policy = "round-robin" # valid routing policies: first, random, round-robin
  9.     }
  10.   }
  11. }

路由策略

一般在consul服务中心注册的业务服务一般由多个实例构成的一个集群服务，对外统一暴露一个服务名称，但可能存在多个不同的服务实例节点，来响应服务请求。对于一个服务的不同实例的选取过程称为路由，路由策略有多种，不同的路由策略来不同程度的来保障不同实例之间的负载均衡，这里简单实现以下三种：

  1. object RoutingPolicy {
  2.   def apply(policy: String): RoutingPolicy = policy match {
  3.     case "first" => First
  4.     case "random" => Random
  5.     case "round-robin" => RoundRobin
  6.     case unknown => throw new IllegalArgumentException(s"discovery.consul.routing-policy, [${unknown}] is not a valid routing algorithm")
  7.   }
  8. }
  9. sealed trait RoutingPolicy
  10. case object First extends RoutingPolicy
  11. case object Random extends RoutingPolicy
  12. case object RoundRobin extends RoutingPolicy

Consul组件定义

主要能力定义：

  • 将当前的服务注册到Consul服务中心
  • 将当前服务从Consul服务中心注销
  • 验证查看服务名在Consul是否已经注册

Consul组件代码如下所示：

  1. trait ConsulOpsComponents {
  2.   private final val log: Logger = LoggerFactory.getLogger("ConsulOpsComponents")
  3.   private val roundRobinIndexFor: Map[String, Int] = TrieMap.empty[String, Int]
  5.   private val config = Configuration.load(Environment.simple())
  6.   val appConfig = config
  7.   val consulClient = new ConsulClient(consulAgentHost, consulAgentPort)
  8.   final lazy val consulConfig = new ConsulConfig.ConsulConfigImpl(appConfig)
  10.   /**
  11.    * 根据配置文件参数获取Consul主机地址
  12.    *
  13.    * @return
  14.    */
  15.   def consulAgentHost = consulConfig.agentHostname
  17.   /**
  18.    * 根据配置文件参数获取Consul服务端口
  19.    *
  20.    * @return
  21.    */
  22.   def consulAgentPort = consulConfig.agentPort
  24.   /**
  25.    * 向Consul中心注册服务
  26.    *
  27.    * @param service 想要注册的服务信息
  28.    * @return
  29.    */
  30.   def registerService(service: NewService) = {
  31.     consulClient.agentServiceRegister(service)
  32.   }
  34.   def registerServiceToConsul = registerService(getSelfServiceInfo)
  36.   /**
  37.    * 向Consul中心取消注册的服务
  38.    *
  39.    * @param serviceId 注册时使用的服务标识
  40.    * @return
  41.    */
  42.   def deregisterService(serviceId: String) = consulClient.agentServiceDeregister(serviceId)
  44.   /**
  45.    * 根据服务名获取Consul注册中心对应的URI
  46.    *
  47.    * @param serviceName 服务名称
  48.    * @return serviceURI
  49.    */
  50.   def getURI(serviceName: String) = {
  51.     val service = consulClient.getCatalogService(serviceName, CatalogServiceRequest.newBuilder().setQueryParams(QueryParams.DEFAULT).build()).getValue.asScala.toList
  52.     val serviceURI = pickRoundRobinInstance(serviceName, service)
  53.     serviceURI
  54.   }
  56.   /**
  57.    * 验证查看服务名在Consul是否已经注册，并打印服务URI
  58.    */
  59.   def lookRegisterServiceInConsul = {
  60.     val name = config.get[String]("service.registry.service-name")
  61.     val uri = getURI(name).toString
  62.     log.info(s"[${name}] service has registered,the uri is {}", uri)
  63.   }
  65.   /**
  66.    * 构造服务信息
  67.    *
  68.    * @return
  69.    */
  70.   def getSelfServiceInfo: NewService = {
  71.     val id = config.get[String]("service.registry.service-id")
  72.     val name = config.get[String]("service.registry.service-name")
  73.     val port = config.get[Int]("service.registry.service-port")
  74.     val hostIp = config.get[String]("service.registry.service-ip")
  75.     val service = new NewService
  76.     service.setName(name)
  77.     service.setPort(port)
  78.     service.setId(id)
  79.     service.setAddress(hostIp)
  80.     service
  81.   }
  83.   private[consul] def pickRoundRobinInstance(name: String, services: List[CatalogService]): URI = {
  84.     if (services.isEmpty) throw new IllegalStateException("List of services should not be empty")
  85.     roundRobinIndexFor.putIfAbsent(name, 0)
  86.     val sortedServices = toURIs(services).sorted
  87.     val currentIndex = roundRobinIndexFor(name)
  88.     val nextIndex =
  89.       if (sortedServices.size > currentIndex + 1) currentIndex + 1
  90.       else 0
  91.     roundRobinIndexFor.replace(name, nextIndex)
  92.     sortedServices.apply(currentIndex)
  93.   }
  95.   private[consul] def pickFirstInstance(services: List[CatalogService]): URI = {
  96.     if (services.isEmpty) throw new IllegalStateException("List of services should not be empty")
  97.     toURIs(services).sorted.head
  98.   }
  100.   private[consul] def pickRandomInstance(services: List[CatalogService]): URI = {
  101.     if (services.isEmpty) throw new IllegalStateException("List of services should not be empty")
  102.     toURIs(services).sorted.apply(ThreadLocalRandom.current.nextInt(services.size - 1))
  103.   }
  105.   private[consul] def toURIs(services: List[CatalogService]): List[URI] =
  106.     services.map { service =>
  107.       val address = service.getServiceAddress
  108.       val serviceAddress =
  109.         if (address.trim.isEmpty || address == "localhost") InetAddress.getLoopbackAddress.getHostAddress
  110.         else address
  111.       new URI(s"${consulConfig.scheme}://$serviceAddress:${service.getServicePort}")
  112.     }
  114. }

将自身服务注册到Consul服务中心，需要在配置文件中添加自身服务的名称等信息，需要在resource/application.conf文件中，添加服务配置信息如下：

  1. #自身服务要注册的信息
  2. service {
  3.    registry {
  4.       service-id = "service-test"
  5.       service-name = "service-test"
  6.       service-port = 9000
  7.       service-ip = "127.0.0.1"
  8.    }
  9. }

Consul组件使用

需要将定义好的Consul组件特征混入到ServiceLoader中，如果以ShoppingCart为例，需要将上述定义的ConsulOpsComponents特质混入到ShoppingCartComponents中，并在ShoppingCartComponents内增加服务注册的方法，以便在服务启动时自动将自身服务注册到Consul服务中心。

  1. trait ShoppingCartComponents
  2.     extends LagomServerComponents
  3.     with SlickPersistenceComponents
  4.     with HikariCPComponents
  5.     with AhcWSComponents
  6.     with ConsulOpsComponents{
  7.       ......
  9.     //增加Consul服务注册
  10.     registerServiceToConsul
  11.     lookRegisterServiceInConsul
  12.     }

Consul测试用例

我们如果希望单独测试一下Consul服务注册的能力，可以单独写测试用例来测试服务注册、服务查看、服务注销的能力。
为了使用组件能力方便，我们新建一个Consul的操作类ConsulOps，用于方便的获取ConsulOpsComponents组件实例，代码如下：

  1. private[consul] class ConsulOps extends ConsulOpsComponents
  2. object ConsulOps {
  3.   final val instance = new ConsulOps()
  4. }

测试用例可以使用ScalaTest包，使用should断言语法，但本例为了方便，直接使用main函数来进行测试，Consul主要功能的测试用例如下所示：

  1. object ConsulTest {
  2.   def main(args: Array[String]): Unit = {
  3.     val consulOps = ConsulOps.instance
  4.     val id = consulOps.appConfig.get[String]("service.registry.service-id")
  5.     val name = consulOps.appConfig.get[String]("service.registry.service-name")
  6.     val hostIp = consulOps.appConfig.get[String]("service.registry.service-ip")
  7.     //将自身服务注册到Consul中心
  8.     consulOps.registerServiceToConsul
  9.     //使用组件方法查看上述的服务是否存在
  10.     consulOps.lookRegisterServiceInConsul
  11.     //测试内部方法获取指定服务名的uri信息
  12.     val uri = consulOps.getURI(name)
  13.     println(s"Test-Uri is {}",uri)
  14.     //服务注销
  15.     consulOps.deregisterService(id)
  16.     println(hostIp)
  17.   }
  18. }

测试用例运行日志信息如下：

  1. 2022-04-21 11:18:13,760 INFO  ConsulOpsComponents - [service-test] service has registered,the uri is http://127.0.0.1:9000
  2. (Test-Uri is {},http://127.0.0.1:9000)
  3. 127.0.0.1

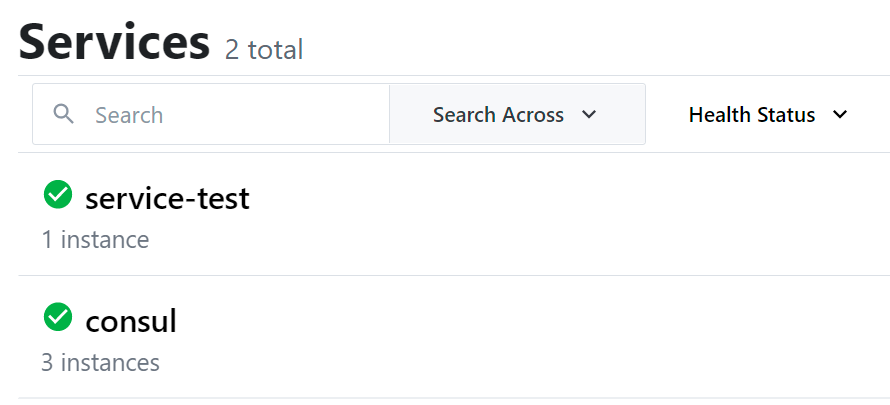

访问Consul中心查看服务注册情况，如果服务注销方法一起运行，无法查看到对应的服务信息，如要查看需要暂时屏蔽掉服务注销方法的调用。
