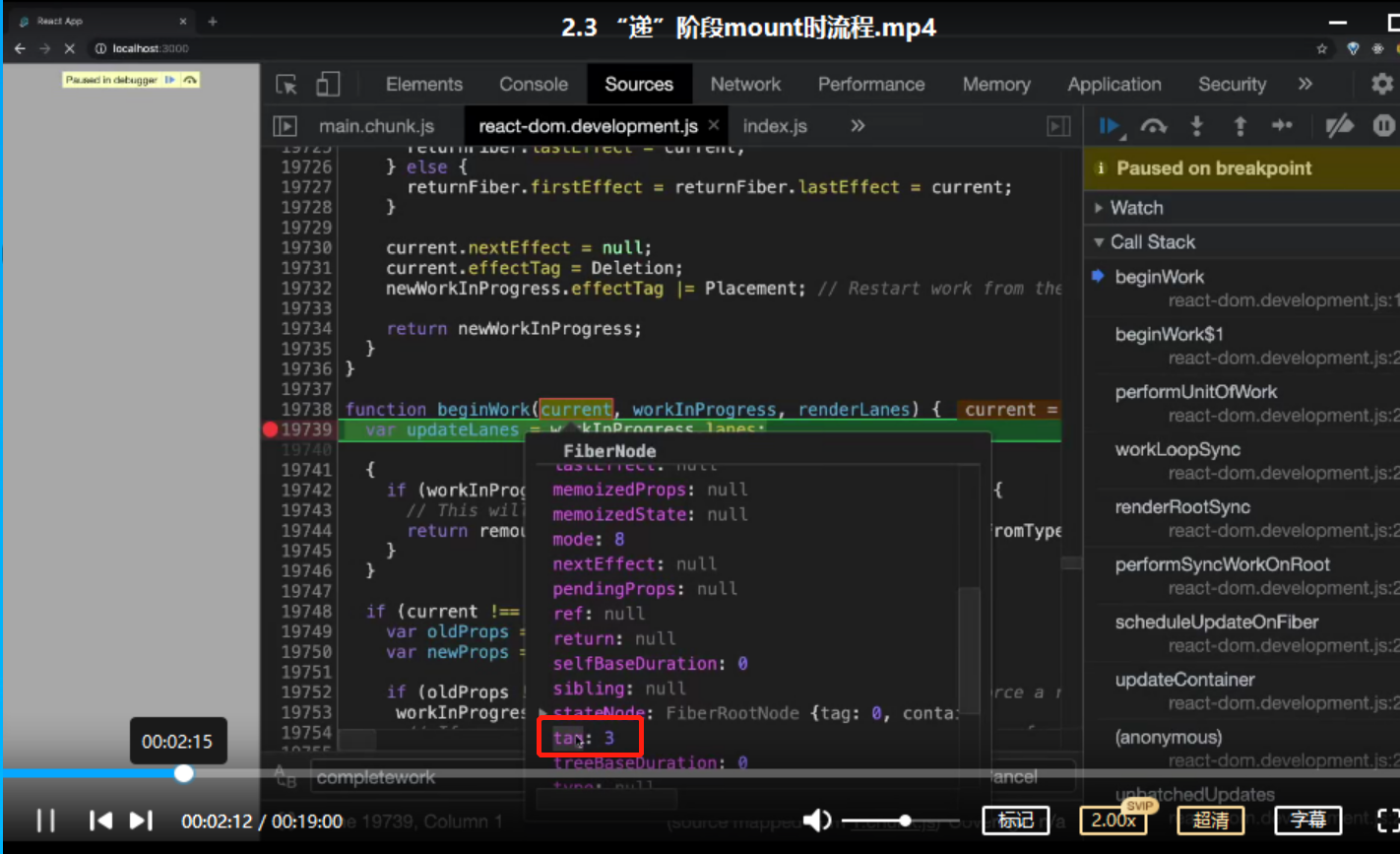

BeginWork的作用 —传入当前Fiber节点，创建子Fiber节点,并将者两个Fiber节点连接起来。当遍历到叶子节点（即没有子节点的组件)时，就会进入”归”阶段。

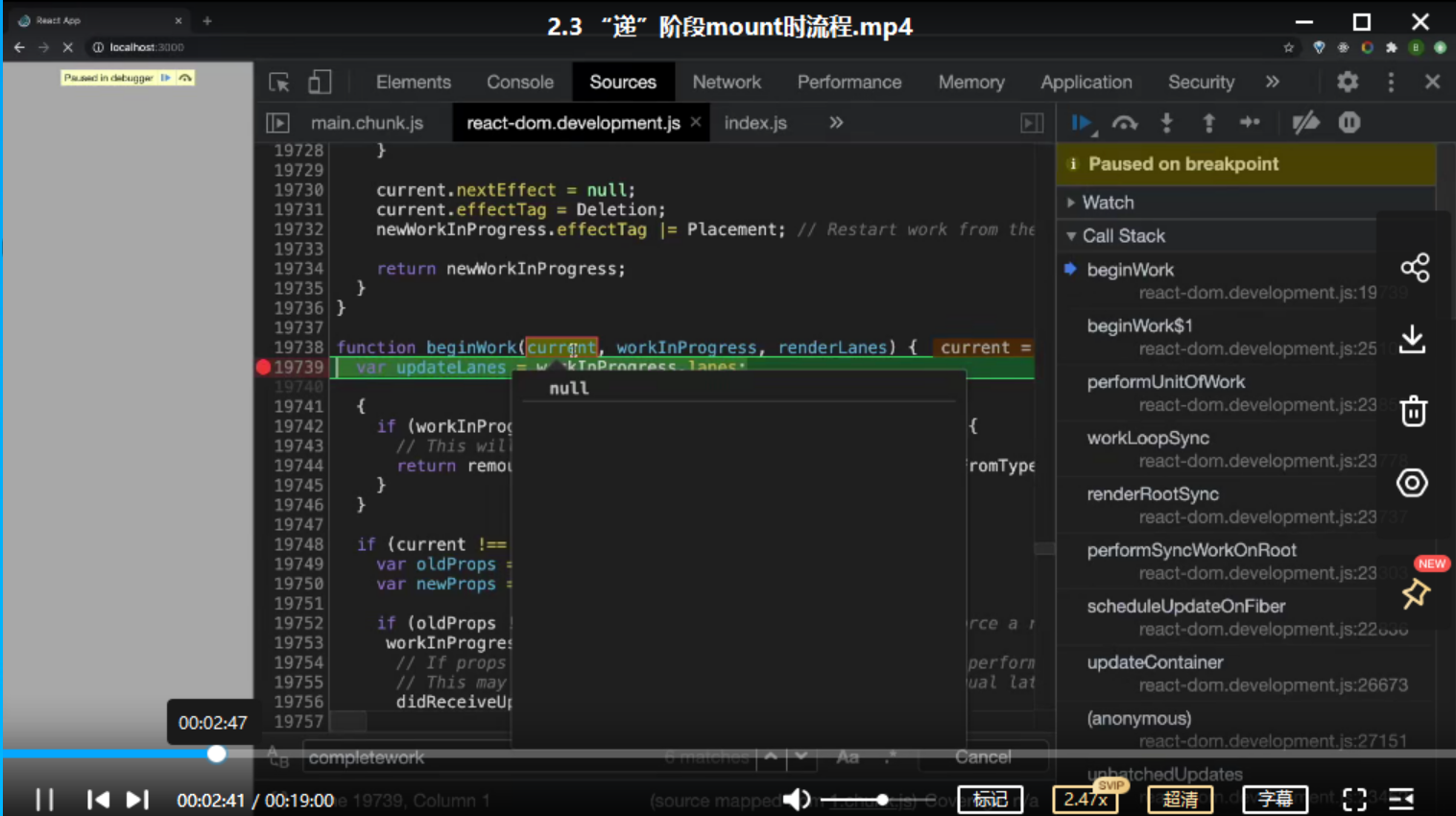

function beginWork(current$$1, workInProgress, renderExpirationTime) {
  var updateExpirationTime = workInProgress.expirationTime;
  ...
  // 根据不同的tag，进入不同的case
  workInProgress.expirationTime = NoWork;
  switch (workInProgress.tag) {
    case IndeterminateComponent:
      ...
      case LazyComponent:
      ...
      case FunctionComponent:
      ...
      case ClassComponent:
      ...
      case HostRoot:
      return updateHostRoot(current$$1, workInProgress, renderExpirationTime);
    case HostComponent:
      return updateHostComponent(current$$1, workInProgress, renderExpirationTime);
    case HostText:
      return updateHostText(current$$1, workInProgress);
    case SuspenseComponent:
      return updateSuspenseComponent(current$$1, workInProgress, renderExpirationTime);
    case HostPortal:
      return updatePortalComponent(current$$1, workInProgress, renderExpirationTime);
    case ForwardRef:
      ...
  }
}

updateHostComponent

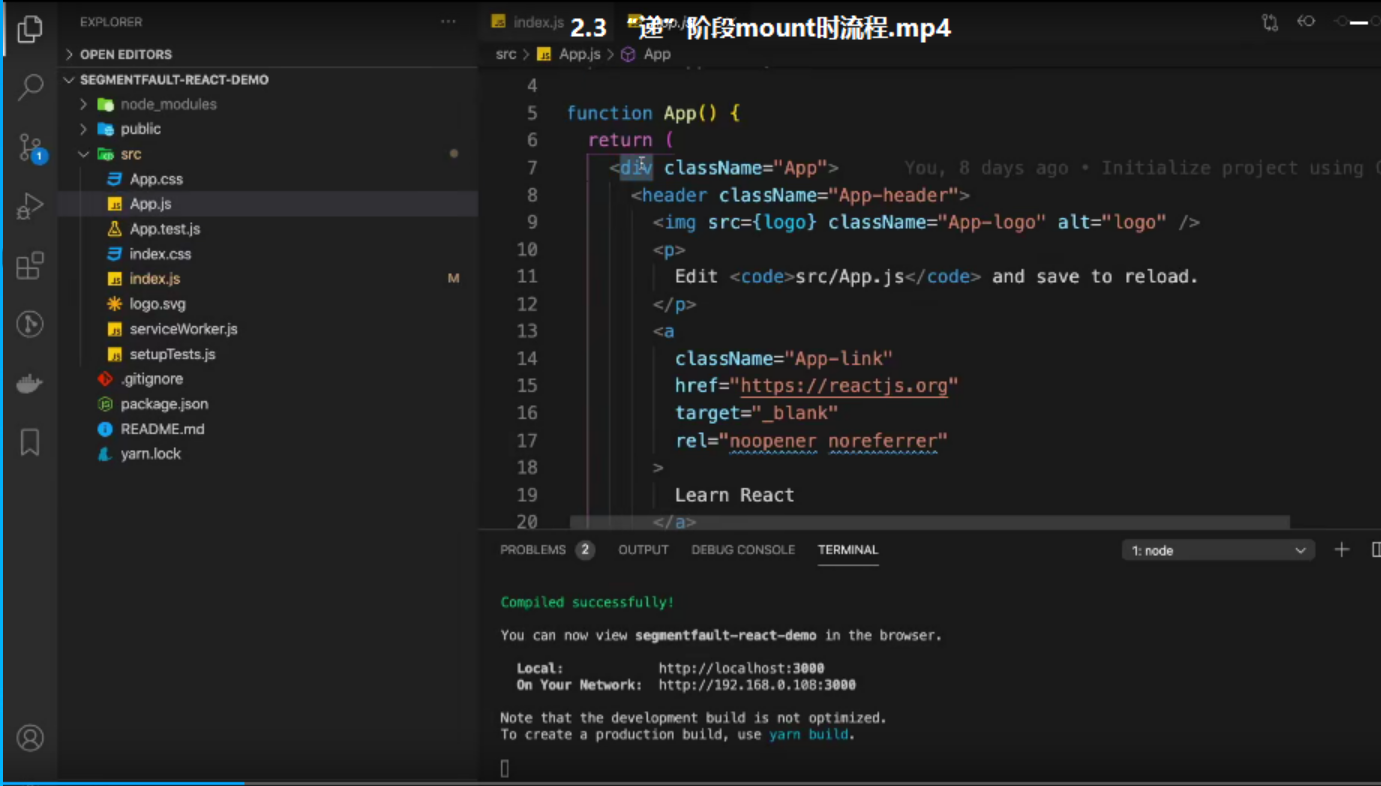

以div举例，div是HostComponent，进入updateHostComponent

function updateHostComponent(current$$1, workInProgress, renderExpirationTime) {
  pushHostContext(workInProgress);
  if (current$$1 === null) {
    tryToClaimNextHydratableInstance(workInProgress);
  }
  //先赋值
  var type = workInProgress.type;
  var nextProps = workInProgress.pendingProps;
  var prevProps = current$$1 !== null ? current$$1.memoizedProps : null;
  var nextChildren = nextProps.children;
  //检查当前的fiber节点，是否只有一个唯一的文本子节点，比如a标签，
  //如果是唯一的文本子节点，react不会创建fiber节点（优化点）
  var isDirectTextChild = shouldSetTextContent(type, nextProps);
  if (isDirectTextChild) {
    nextChildren = null;
  } else if (prevProps !== null && shouldSetTextContent(type, prevProps)) {
    workInProgress.effectTag |= ContentReset;
  }
  markRef(current$$1, workInProgress);
  // Check the host config to see if the children are offscreen/hidden.
  if (renderExpirationTime !== Never && workInProgress.mode & ConcurrentMode && shouldDeprioritizeSubtree(type, nextProps)) {
    // Schedule this fiber to re-render at offscreen priority. Then bailout.
    workInProgress.expirationTime = workInProgress.childExpirationTime = Never;
    return null;
  }
  //进入reconcileChildren方法
  reconcileChildren(current$$1, workInProgress, nextChildren, renderExpirationTime);
  return workInProgress.child;
}

reconcileChildren

再执行reconcileChildren之前，当前的workInProgress.child是null

function reconcileChildren(current$$1, workInProgress, nextChildren, renderExpirationTime) {
  if (current$$1 === null) {
    /*如果这是一个尚未渲染的全新组件，我们
    不会通过应用最小的副作用来更新其子集。相反
    在渲染之前，我们会将它们全部添加到子级中。这意味着
    我们可以通过不跟踪副作用来优化这种对账传递。*/
    workInProgress.child = mountChildFibers(workInProgress, null, nextChildren, renderExpirationTime);
  } else {
  /* 如果当前子项与正在进行的工作相同，则意味着
    我们还没有开始对这些孩子进行任何研究。因此，我们使用
    克隆算法以创建所有当前子级的副本。
    如果我们已经有任何进展，那么在这一点上是无效的，所以
    让我们把它扔掉。*/
    workInProgress.child = reconcileChildFibers(workInProgress, current$$1.child, nextChildren, renderExpirationTime);
  }
}

mountChildFibers与mountChildFiber都是ChildReconciler方法根据不同的Boolean值处理的。

export const reconcileChildFibers = ChildReconciler(true);
export const mountChildFibers = ChildReconciler(false);

查看Placement的值，
ReactFiberFlags.js保存了所有的副作用，render阶段不会进行具体dom操作，具体dom操作是在commit阶段执行的，render阶段为需要执行操作的fiber节点打上标记。

/**
* Copyright (c) Facebook, Inc. and its affiliates.
*
* This source code is licensed under the MIT license found in the
* LICENSE file in the root directory of this source tree.
*
* @flow
*/
import {enableCreateEventHandleAPI} from 'shared/ReactFeatureFlags';
export type Flags = number;
// Don't change these two values. They're used by React Dev Tools.
export const NoFlags = /*                      */ 0b00000000000000000000000000;
export const PerformedWork = /*                */ 0b00000000000000000000000001;
// You can change the rest (and add more).
export const Placement = /*                    */ 0b00000000000000000000000010;
export const Update = /*                       */ 0b00000000000000000000000100;
export const Deletion = /*                     */ 0b00000000000000000000001000;
export const ChildDeletion = /*                */ 0b00000000000000000000010000;
export const ContentReset = /*                 */ 0b00000000000000000000100000;
export const Callback = /*                     */ 0b00000000000000000001000000;
export const DidCapture = /*                   */ 0b00000000000000000010000000;
export const ForceClientRender = /*            */ 0b00000000000000000100000000;
export const Ref = /*                          */ 0b00000000000000001000000000;
export const Snapshot = /*                     */ 0b00000000000000010000000000;
export const Passive = /*                      */ 0b00000000000000100000000000;
export const Hydrating = /*                    */ 0b00000000000001000000000000;
export const Visibility = /*                   */ 0b00000000000010000000000000;
export const StoreConsistency = /*             */ 0b00000000000100000000000000;
export const LifecycleEffectMask =
      Passive | Update | Callback | Ref | Snapshot | StoreConsistency;
// Union of all commit flags (flags with the lifetime of a particular commit)
export const HostEffectMask = /*               */ 0b00000000000111111111111111;
// These are not really side effects, but we still reuse this field.
export const Incomplete = /*                   */ 0b00000000001000000000000000;
export const ShouldCapture = /*                */ 0b00000000010000000000000000;
export const ForceUpdateForLegacySuspense = /* */ 0b00000000100000000000000000;
export const DidPropagateContext = /*          */ 0b00000001000000000000000000;
export const NeedsPropagation = /*             */ 0b00000010000000000000000000;
export const Forked = /*                       */ 0b00000100000000000000000000;
// Static tags describe aspects of a fiber that are not specific to a render,
// e.g. a fiber uses a passive effect (even if there are no updates on this particular render).
// This enables us to defer more work in the unmount case,
// since we can defer traversing the tree during layout to look for Passive effects,
// and instead rely on the static flag as a signal that there may be cleanup work.
export const RefStatic = /*                    */ 0b00001000000000000000000000;
export const LayoutStatic = /*                 */ 0b00010000000000000000000000;
export const PassiveStatic = /*                */ 0b00100000000000000000000000;
// These flags allow us to traverse to fibers that have effects on mount
// without traversing the entire tree after every commit for
// double invoking
export const MountLayoutDev = /*               */ 0b01000000000000000000000000;
export const MountPassiveDev = /*              */ 0b10000000000000000000000000;
// Groups of flags that are used in the commit phase to skip over trees that
// don't contain effects, by checking subtreeFlags.
export const BeforeMutationMask =
      // TODO: Remove Update flag from before mutation phase by re-landing Visibility
      // flag logic (see #20043)
      Update |
      Snapshot |
      (enableCreateEventHandleAPI
       ? // createEventHandle needs to visit deleted and hidden trees to
       // fire beforeblur
       // TODO: Only need to visit Deletions during BeforeMutation phase if an
       // element is focused.
       ChildDeletion | Visibility
       : 0);
export const MutationMask =
      Placement |
      Update |
      ChildDeletion |
      ContentReset |
      Ref |
      Hydrating |
      Visibility;
export const LayoutMask = Update | Callback | Ref | Visibility;
// TODO: Split into PassiveMountMask and PassiveUnmountMask
export const PassiveMask = Passive | ChildDeletion;
// Union of tags that don't get reset on clones.
// This allows certain concepts to persist without recalculating them,
// e.g. whether a subtree contains passive effects or portals.
export const StaticMask = LayoutStatic | PassiveStatic | RefStatic;

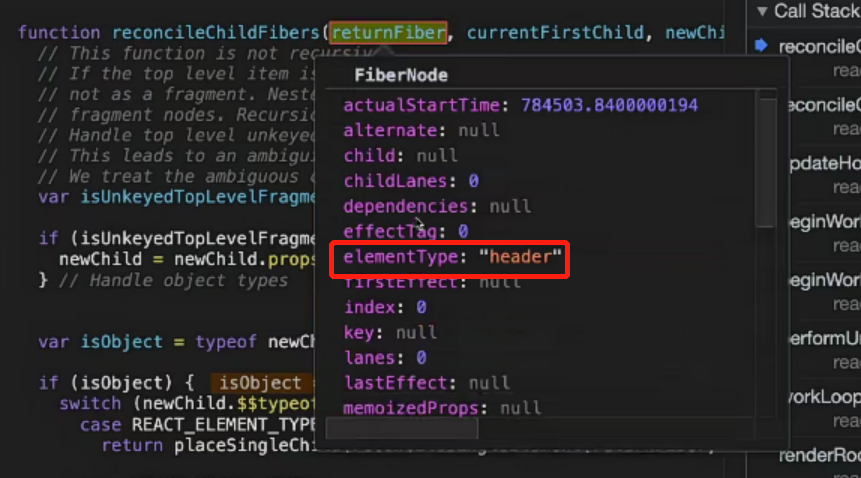

reconcileChildFibers

进入reconcileChildFibers，

    function reconcileChildFibers(returnFiber, currentFirstChild, newChild, expirationTime) {
      var isUnkeyedTopLevelFragment =
        typeof newChild === "object" && newChild !== null && newChild.type === REACT_FRAGMENT_TYPE && newChild.key === null
      if (isUnkeyedTopLevelFragment) {
        newChild = newChild.props.children
      }
      // 判断child类型，对不同类型，进入不同处理逻辑
      var isObject = typeof newChild === "object" && newChild !== null
      if (isObject) {
        switch (newChild.$$typeof) {
          //如果值是REACT_ELEMENT_TYPE，被当作一个单一的react_elment来处理
          case REACT_ELEMENT_TYPE:
            return placeSingleChild(reconcileSingleElement(returnFiber, currentFirstChild, newChild, expirationTime))
          case REACT_PORTAL_TYPE:
            return placeSingleChild(reconcileSinglePortal(returnFiber, currentFirstChild, newChild, expirationTime))
        }
      }
      //如果当前的newChild是string或者number类型，会当作一个文本节点处理
      if (typeof newChild === "string" || typeof newChild === "number") {
        return placeSingleChild(reconcileSingleTextNode(returnFiber, currentFirstChild, "" + newChild, expirationTime))
      }

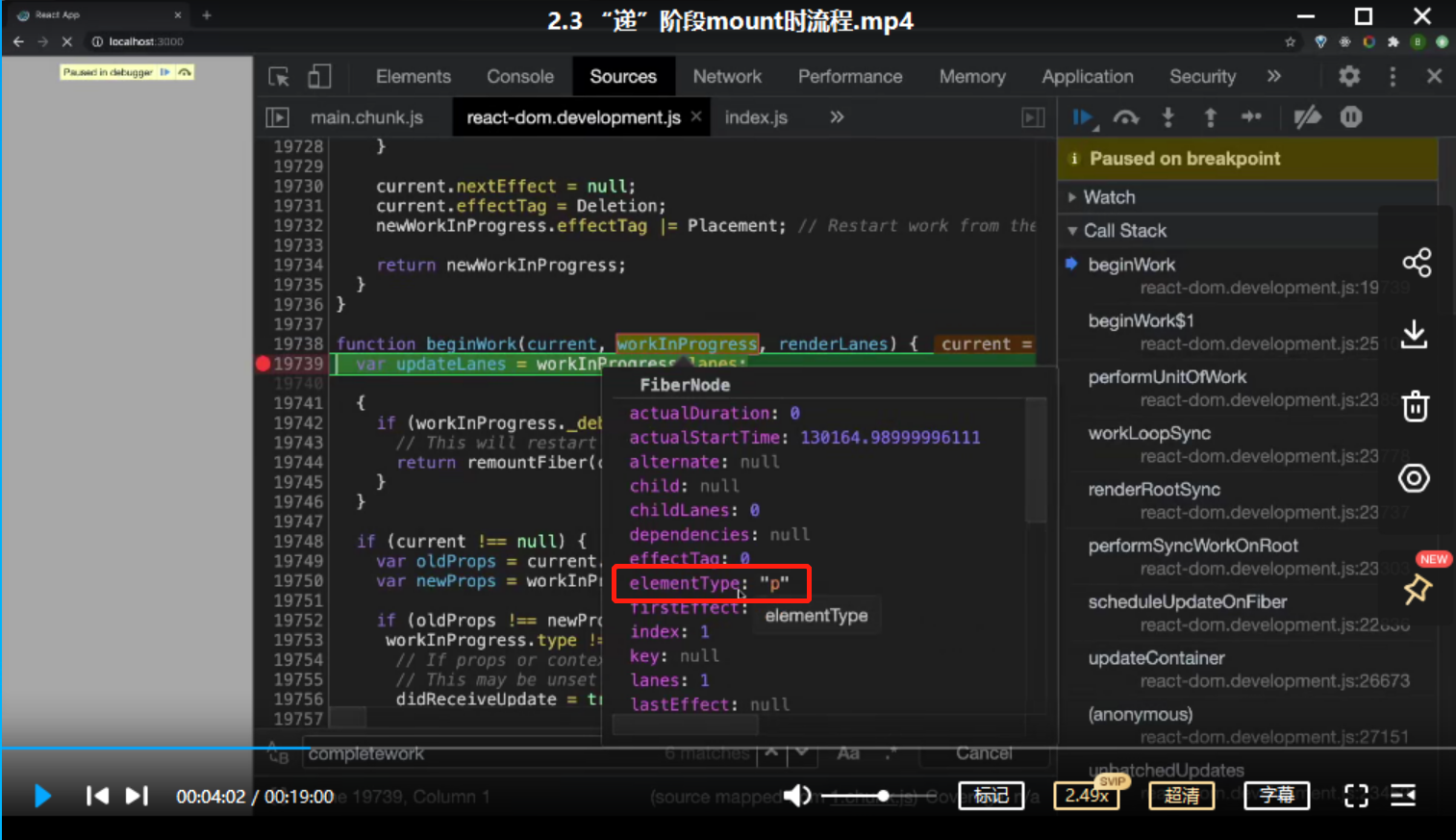

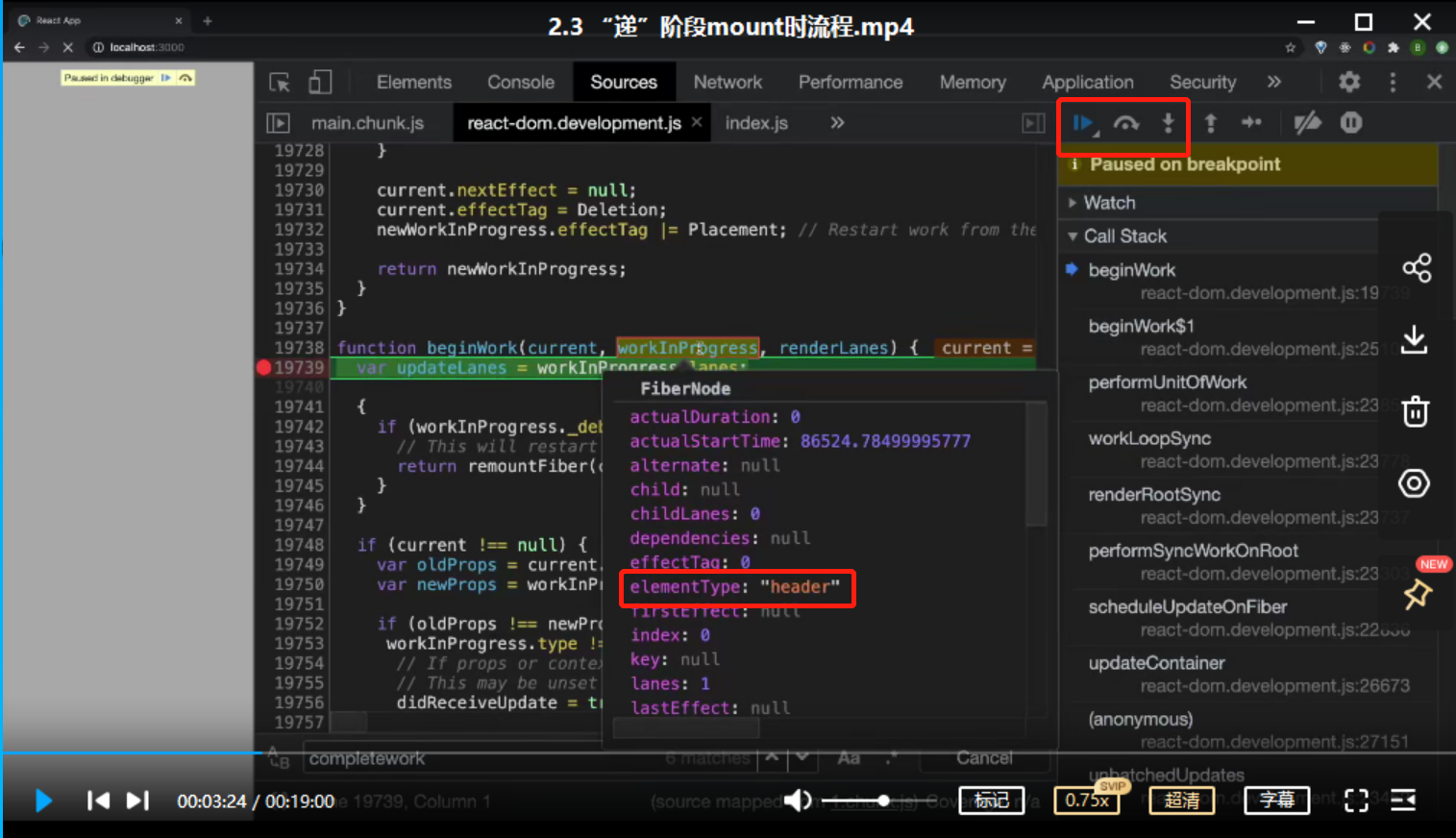

      //如果当前的newChild是数组，会当作一个数组处理。数组情况，例如header中有img,p,a三个子节点，即会被当作数组处理。
      if (isArray(newChild)) {
        return reconcileChildrenArray(returnFiber, currentFirstChild, newChild, expirationTime)
      }
      ...
    }

reconcileSingleElement

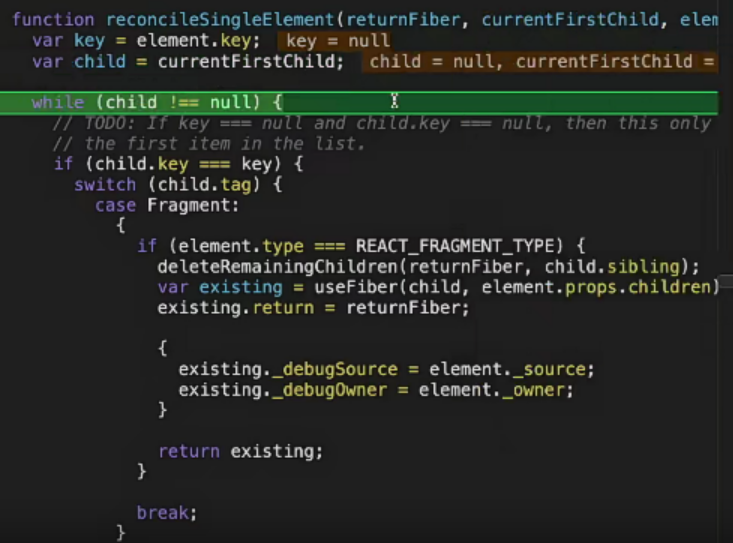

进入reconcileSingleElement，

 function reconcileSingleElement(returnFiber, currentFirstChild, element, expirationTime) {
      var key = element.key
      var child = currentFirstChild
      while (child !== null) {
        // TODO: If key === null and child.key === null, then this only applies to
        // the first item in the list.
        if (child.key === key) {
          if (child.tag === Fragment ? element.type === REACT_FRAGMENT_TYPE : child.elementType === element.type) {
            deleteRemainingChildren(returnFiber, child.sibling)
            var existing = useFiber(child, element.type === REACT_FRAGMENT_TYPE ? element.props.children : element.props, expirationTime)
            existing.ref = coerceRef(returnFiber, child, element)
            existing.return = returnFiber
            {
              existing._debugSource = element._source
              existing._debugOwner = element._owner
            }
            return existing
          } else {
            deleteRemainingChildren(returnFiber, child)
            break
          }
        } else {
          deleteChild(returnFiber, child)
        }
        child = child.sibling
      }
      if (element.type === REACT_FRAGMENT_TYPE) {
        var created = createFiberFromFragment(element.props.children, returnFiber.mode, expirationTime, element.key)
        created.return = returnFiber
        return created
      } else {
        //最终进入这里
        var _created4 = createFiberFromElement(element, returnFiber.mode, expirationTime)
        _created4.ref = coerceRef(returnFiber, currentFirstChild, element)
        _created4.return = returnFiber
        return _created4
      }
    }

createFiberFromElement

进入createFiberFromElement

export function createFiberFromElement(
  element: ReactElement,
  mode: TypeOfMode,
  lanes: Lanes,
): Fiber {
  let owner = null;
  ...
  const type = element.type;
  const key = element.key;
  const pendingProps = element.props;
  const fiber = createFiberFromTypeAndProps(
    type,
    key,
    pendingProps,
    owner,
    mode,
    lanes,
  );
   ...
  return fiber;
}

createFiberFromTypeAndProps

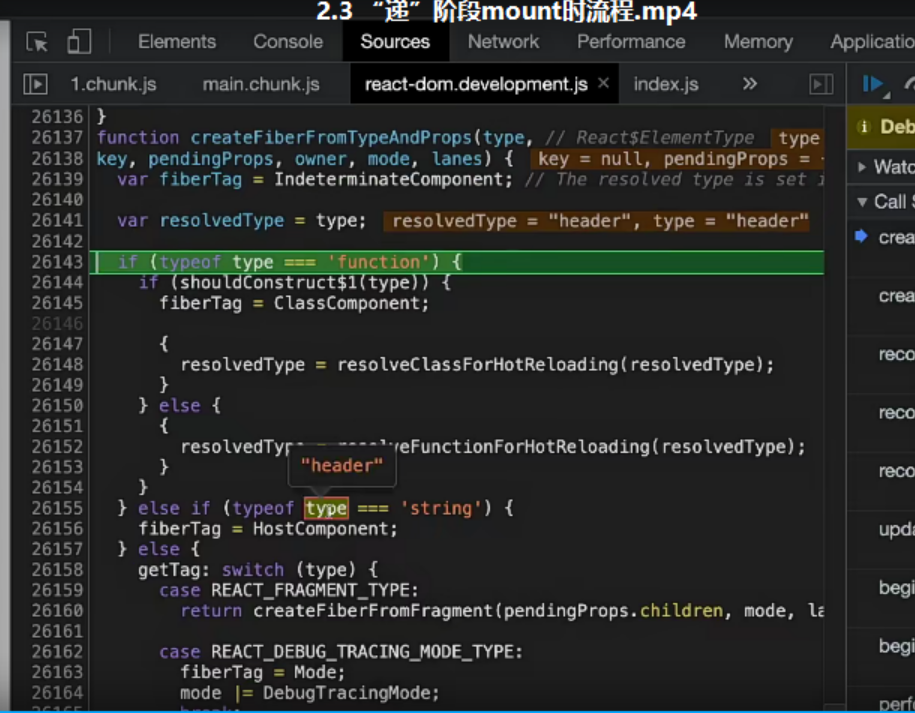

进入createFiberFromTypeAndProps

createFiberFromTypeAndProps

判断type类型，当前type类型为string，于是fiberTag = HostComponent;

export function createFiberFromTypeAndProps(
  type: any, // React$ElementType
  key: null | string,
  pendingProps: any,
  owner: null | Fiber,
  mode: TypeOfMode,
  lanes: Lanes,
): Fiber {
  let fiberTag = IndeterminateComponent;
  //判断type类型
  let resolvedType = type;
  if (typeof type === 'function') {
    if (shouldConstruct(type)) {
      fiberTag = ClassComponent;
    }
  } else if (typeof type === 'string') {
    fiberTag = HostComponent;
  } else {
    ...
  }
  const fiber = createFiber(fiberTag, pendingProps, key, mode);
  fiber.elementType = type;
  fiber.type = resolvedType;
  fiber.lanes = lanes;
  return fiber;
}

createFiber

进入createFiber，创建对应的fiber节点

const createFiber = function(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
): Fiber {
  //创建Fiber节点
  return new FiberNode(tag, pendingProps, key, mode);
};

FiberNode

进入FiberNode，有很多的属性

function FiberNode(
  tag: WorkTag,
  pendingProps: mixed,
  key: null | string,
  mode: TypeOfMode,
) {
  // Instance
  this.tag = tag;
  this.key = key;
  this.elementType = null;
  this.type = null;
  this.stateNode = null;
  // Fiber
  this.return = null;
  this.child = null;
  this.sibling = null;
  this.index = 0;
  this.ref = null;
  this.pendingProps = pendingProps;
  this.memoizedProps = null;
  this.updateQueue = null;
  this.memoizedState = null;
  this.dependencies = null;
  this.mode = mode;
  // Effects
  this.flags = NoFlags;
  this.subtreeFlags = NoFlags;
  this.deletions = null;
  this.lanes = NoLanes;
  this.childLanes = NoLanes;
  this.alternate = null;
  if (enableProfilerTimer) {
    this.actualDuration = Number.NaN;
    this.actualStartTime = Number.NaN;
    this.selfBaseDuration = Number.NaN;
    this.treeBaseDuration = Number.NaN;
    this.actualDuration = 0;
    this.actualStartTime = -1;
    this.selfBaseDuration = 0;
    this.treeBaseDuration = 0;
  }
  ...
}

总结

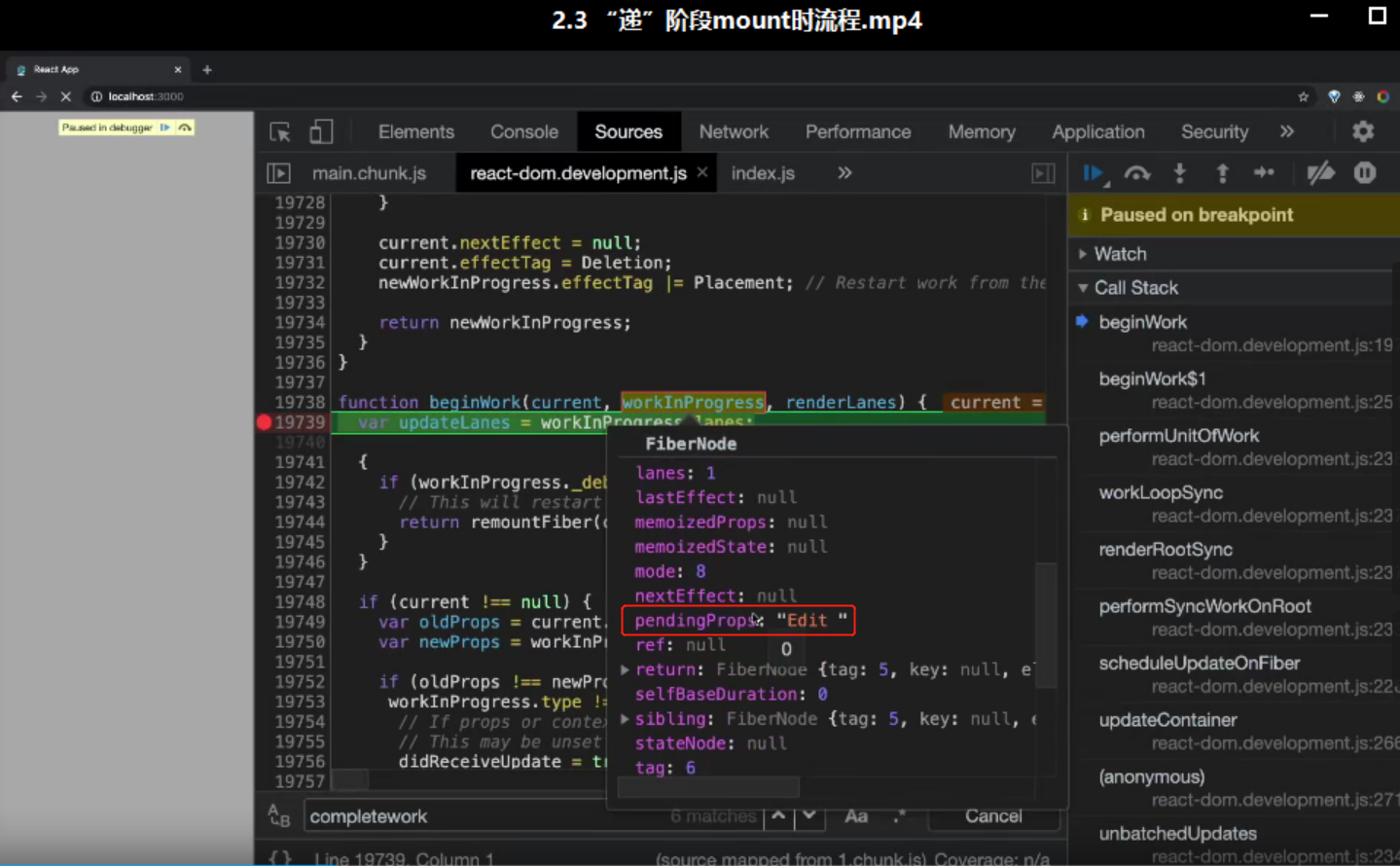

当某一个Fiber进入beginWork时，他最终的目的是为了创建当前Fiber节点的第一个子Fiber节点
首先，进入UpdateHostComponent，判断当前Fiber节点的类型，进入不同update的逻辑
在reconcileChildren逻辑中，判断workInProgressFiber是否存在对应的currentFiber来决定是否标记effectTag
reconcileChildFibers：根据child节点的类型执行创建操作
最终进入createFiber，创建一个Fiber树。
当进入reconcileChildrenArray，该函数创建当前Fiber节点的子节点

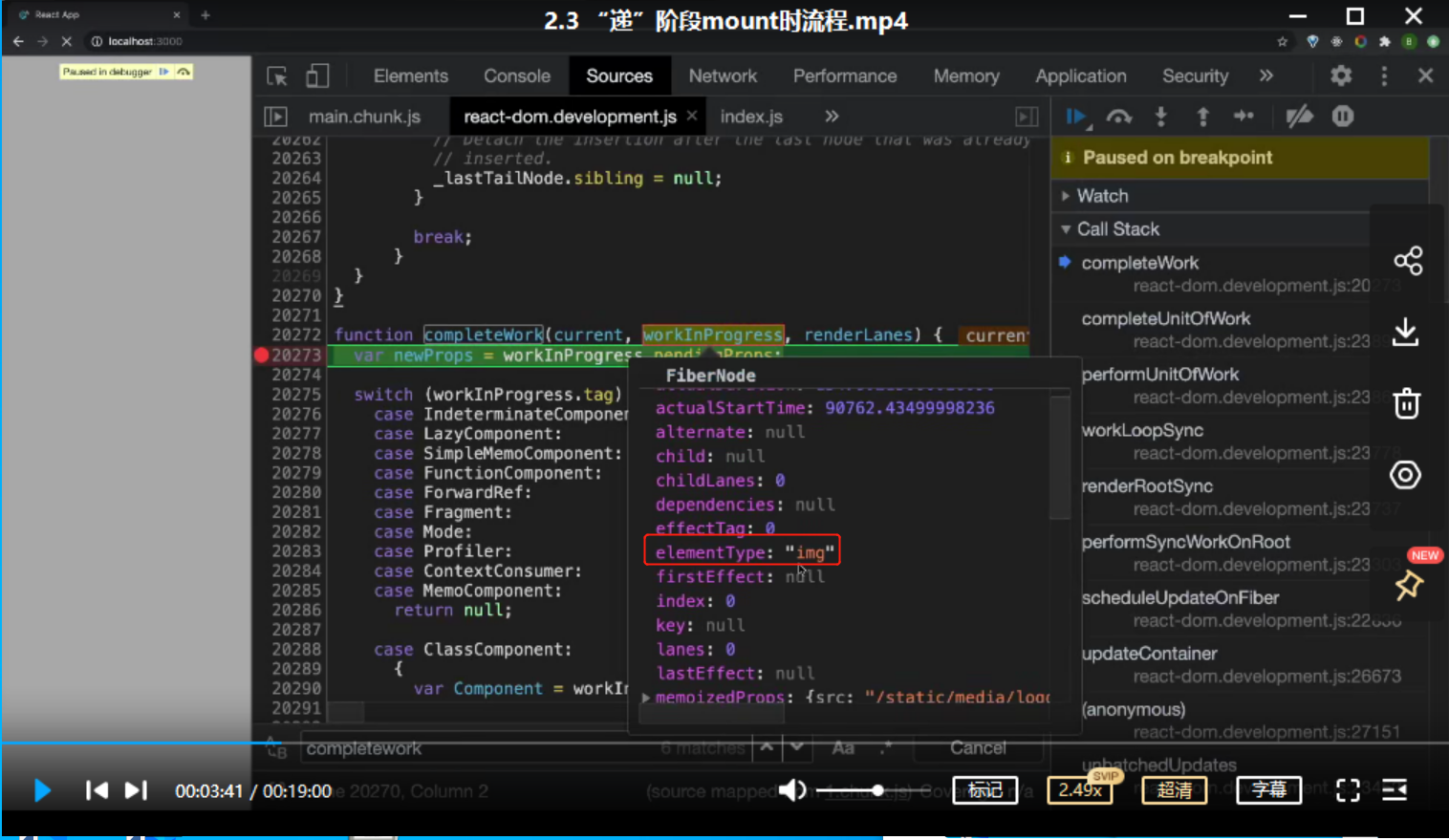

此时，returnFiber指的是header，即创建img节点，而不是img,p,a子Fiber节点
