基于docker安装rocketmq

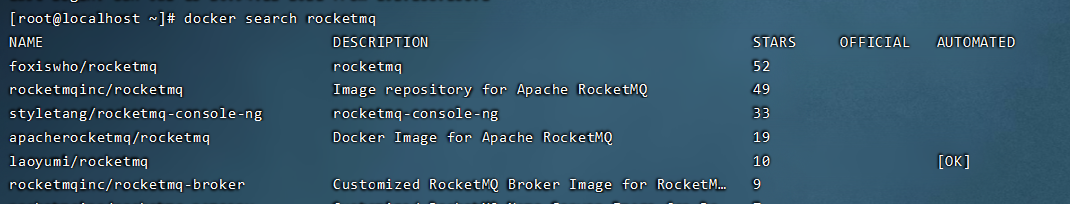

    docker search rocketmq

    添加文件夹和配置文件

    whereis docker

    查找docker目录，我自己的docker配置文件目录是在/etc/docker下
    1.进入etc/docker目录下创建rocketmq文件夹
    2.进入rocketmq文件夹内创建data文件夹和docker-compose.yml文件
    docker-compose.yml

    1. version: '3.5'
    2. services:
    3.   rmqnamesrv:
    4.     image: foxiswho/rocketmq:server
    5.     container_name: rmqnamesrv
    6.     ports:
    7.       - 9876:9876
    8.     volumes:
    9.       - ./data/logs:/opt/logs
    10.       - ./data/store:/opt/store
    11.     networks:
    12.         rmq:
    13.           aliases:
    14.             - rmqnamesrv
    16.   rmqbroker:
    17.     image: foxiswho/rocketmq:broker
    18.     container_name: rmqbroker
    19.     ports:
    20.       - 10909:10909
    21.       - 10911:10911
    22.     volumes:
    23.       - ./data/logs:/opt/logs
    24.       - ./data/store:/opt/store
    25.       - ./data/brokerconf/broker.conf:/etc/rocketmq/broker.conf
    26.     environment:
    27.         NAMESRV_ADDR: "rmqnamesrv:9876"
    28.         JAVA_OPTS: " -Duser.home=/opt"
    29.         JAVA_OPT_EXT: "-server -Xms128m -Xmx128m -Xmn128m"
    30.     command: mqbroker -c /etc/rocketmq/broker.conf
    31.     depends_on:
    32.       - rmqnamesrv
    33.     networks:
    34.       rmq:
    35.         aliases:
    36.           - rmqbroker
    38.   rmqconsole:
    39.     image: styletang/rocketmq-console-ng
    40.     container_name: rmqconsole
    41.     ports:
    42.       - 18081:8080
    43.     environment:
    44.         JAVA_OPTS: "-Drocketmq.namesrv.addr=rmqnamesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
    45.     depends_on:
    46.       - rmqnamesrv
    47.     networks:
    48.       rmq:
    49.         aliases:
    50.           - rmqconsole
    52. networks:
    53.   rmq:
    54.     name: rmq
    55.     driver: bridge

    3.进入data文件夹创建brokerconf文件夹，并在文件夹中创建文件broker.conf文件
    broker.conf

    1. # Licensed to the Apache Software Foundation (ASF) under one or more
    2. # contributor license agreements.  See the NOTICE file distributed with
    3. # this work for additional information regarding copyright ownership.
    4. # The ASF licenses this file to You under the Apache License, Version 2.0
    5. # (the "License"); you may not use this file except in compliance with
    6. # the License.  You may obtain a copy of the License at
    7. #
    8. #     http://www.apache.org/licenses/LICENSE-2.0
    9. #
    10. #  Unless required by applicable law or agreed to in writing, software
    11. #  distributed under the License is distributed on an "AS IS" BASIS,
    12. #  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    13. #  See the License for the specific language governing permissions and
    14. #  limitations under the License.
    17. # 所属集群名字
    18. brokerClusterName=DefaultCluster
    20. # broker 名字，注意此处不同的配置文件填写的不一样，如果在 broker-a.properties 使用: broker-a,
    21. # 在 broker-b.properties 使用: broker-b
    22. brokerName=broker-a
    24. # 0 表示 Master，> 0 表示 Slave
    25. brokerId=0
    27. # nameServer地址，分号分割
    28. # namesrvAddr=rocketmq-nameserver1:9876;rocketmq-nameserver2:9876
    30. # 启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
    31. # 解决方式1 加上一句 producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
    32. brokerIP1=39.103.173.206
    34. # 在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
    35. defaultTopicQueueNums=4
    37. # 是否允许 Broker 自动创建 Topic，建议线下开启，线上关闭 ！！！这里仔细看是 false，false，false
    38. autoCreateTopicEnable=true
    40. # 是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
    41. autoCreateSubscriptionGroup=true
    43. # Broker 对外服务的监听端口
    44. listenPort=10911
    46. # 删除文件时间点，默认凌晨4点
    47. deleteWhen=04
    49. # 文件保留时间，默认48小时
    50. fileReservedTime=120
    52. # commitLog 每个文件的大小默认1G
    53. mapedFileSizeCommitLog=1073741824
    55. # ConsumeQueue 每个文件默认存 30W 条，根据业务情况调整
    56. mapedFileSizeConsumeQueue=300000
    58. # destroyMapedFileIntervalForcibly=120000
    59. # redeleteHangedFileInterval=120000
    60. # 检测物理文件磁盘空间
    61. diskMaxUsedSpaceRatio=88
    62. # 存储路径
    63. # storePathRootDir=/home/ztztdata/rocketmq-all-4.1.0-incubating/store
    64. # commitLog 存储路径
    65. # storePathCommitLog=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/commitlog
    66. # 消费队列存储
    67. # storePathConsumeQueue=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/consumequeue
    68. # 消息索引存储路径
    69. # storePathIndex=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/index
    70. # checkpoint 文件存储路径
    71. # storeCheckpoint=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/checkpoint
    72. # abort 文件存储路径
    73. # abortFile=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/abort
    74. # 限制的消息大小
    75. maxMessageSize=65536
    77. # flushCommitLogLeastPages=4
    78. # flushConsumeQueueLeastPages=2
    79. # flushCommitLogThoroughInterval=10000
    80. # flushConsumeQueueThoroughInterval=60000
    82. # Broker 的角色
    83. # - ASYNC_MASTER 异步复制Master
    84. # - SYNC_MASTER 同步双写Master
    85. # - SLAVE
    86. brokerRole=ASYNC_MASTER
    88. # 刷盘方式
    89. # - ASYNC_FLUSH 异步刷盘
    90. # - SYNC_FLUSH 同步刷盘
    91. flushDiskType=ASYNC_FLUSH
    93. # 发消息线程池数量
    94. # sendMessageThreadPoolNums=128
    95. # 拉消息线程池数量
    96. # pullMessageThreadPoolNums=128

    三：启动查看
    启动,安装docker-compose 需要服务器支持python，pip等命令

    docker-compose up -d

    启动需进入etc/docker/rocketmq目录下执行命令
    docker-compose.yml同级目录下执行docker-compose命令

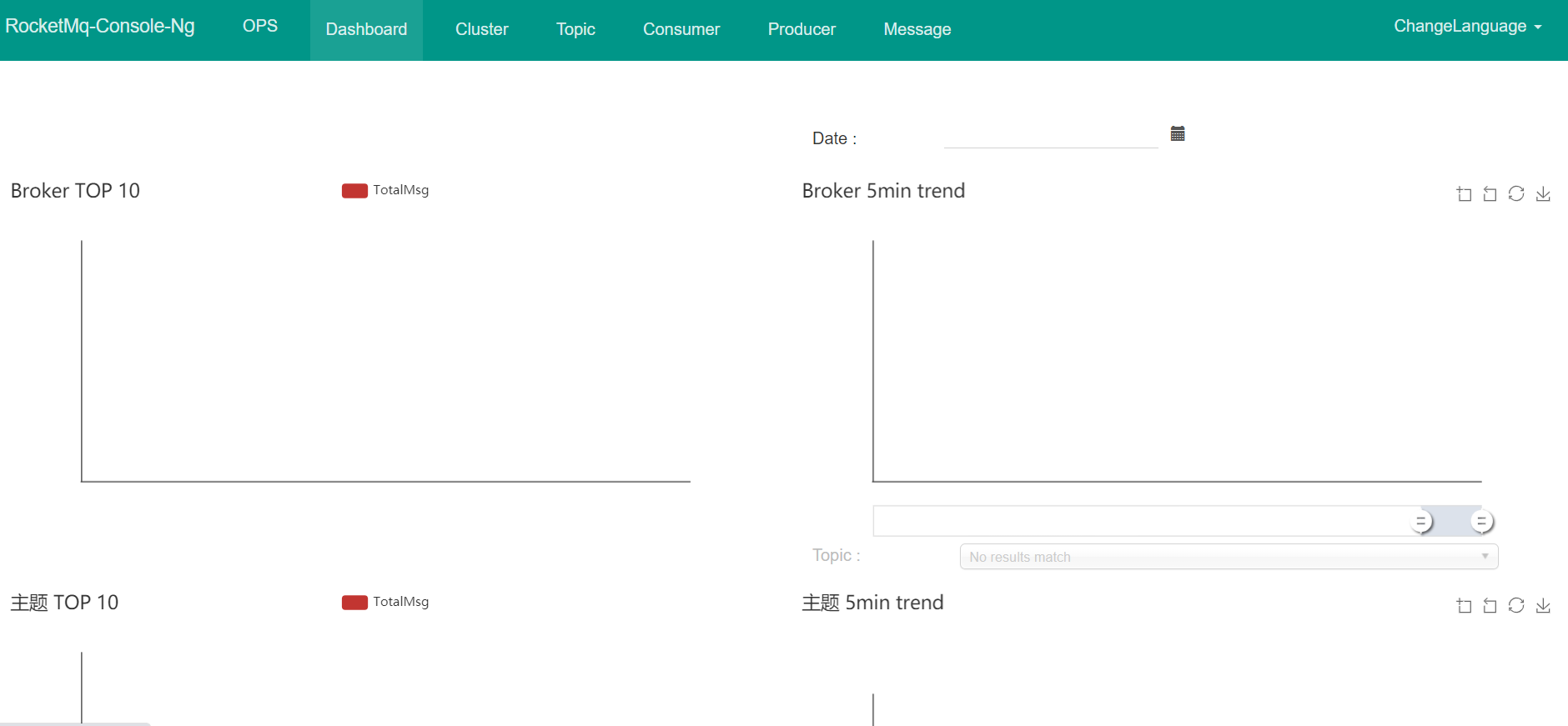

    http://rmqIP:8080 登入控制台

    2. docker create -p 10911:10911 -p 10909:10909 --name rmqbroker1 \
    3. -e "JAVA_OPTS=-Duser.home=/opt" \
    4. -e "JAVA_OPT_EXT=-server -Xms128m -Xmx128m -Xmn128m" \
    5. -v /haoke/rmq/rmqbroker/conf/broker.conf:/etc/rocketmq/broker.conf \
    6. -v /haoke/rmq/rmqbroker/logs:/opt/logs \
    7. -v /haoke/rmq/rmqbroker/store:/opt/store \
    8. foxiswho/rocketmq:broker
