UML图（帮助我们了解整个系统）

类图
序列图
usecase图

PowerDesigner（设计表工具PD）
PD里工具图标
- Globale View 工具，全局预览
- 放大镜，点击放大
- 缩写镜，点击缩小
- Table 工具，创建表，单击右键结束
操作步骤
1. new model 新建模型
2. 选择 model types 模型类型
3. 选择 Physical Data Model PDM物理数据模型
4. 选择DBMS（database manage system）数据库管理系统
5. 选择mysql 5.0
作用
- 可视化工具，可以看出表的字段、字段类型，长度。通过绘制的表和表之间的连线，可以看出系统的表与表之间一对一、一对多、多对多的关系，从表蓝色线指向主表。
- 该工具直接将绘制的图形生成对应的建立表的SQL语句（preview）
- 消除不同语法支持，消除不同数据库之间大部分差异，方便开发
生成.sql
1. PD中选择“数据库”
2. 再选择“generate database”
3. 再选择 preview
4. 不拷贝外键的语句，其他复制
5. 粘贴到SqlYog中执行即可
6. 生成sql脚本，里面有的有表外键关联，不要外键创建的SQL语句，不设置外键，开发更加灵活，不会有外键来干扰，开发者输入前后顺序，没有顺序性，外键约束的数据一致性就需要开发者自己手工维护
  Mysql与Oracle对比

表名mysql习惯小写，oracle习惯大写
字段名称mysql小写，oracle习惯大写
constraint 约束，主键语法不同
字符串类型mysql叫varchar，oracle叫VARCHAR2
日期类型，mysql叫datatime，oracle叫TIMESTAMP 时间戳
浮点数类型，mysql叫decimal，oracle叫number，NUMERIC ```sql drop table if exists tb_student;
mysql
/==============================================================/ / Table: tb_student / /==============================================================/ create table tb_student ( id int not null, name varchar(30), birthday datetime, salary decimal(8,2), primary key (id) );

drop table TB_STUDENT cascade constraints;

Oracle

/==============================================================/ / Table: TB_STUDENT / /==============================================================/ create table TB_STUDENT ( ID INT not null, NAME VARCHAR2(30), BIRTHDAY TIMESTAMP, SALARY NUMERIC(8, 2), constraint PK_TB_STUDENT primary key (ID) ); ```

SQL面试语句

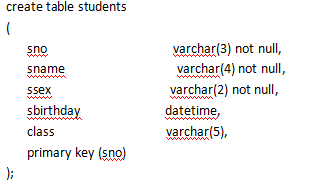

1. 查询students表的所有记录

select sno,sname,ssex,sbirthday,class
from students;

查询students表中的所有记录的sname、ssex和class列

select sname,ssex,class
from students;

查询编号为101的同学记录

select sno,sname,ssex,sbirthday,class
from students
where sno = ‘101’;

查询姓“王”的同学记录

select sno,sname,ssex,sbirthday,class
from students
where sname like ‘王%’;

查询不姓“王”的同学记录

select sno,sname,ssex,sbirthday,class
from students
where sname not like ‘王%’;
查询scores表中成绩在60到80之间的所有记录
select sno,cno,degree
from scores
where degree between 60 and 80;
select sno,cno,degree
from scores
where degree >= 60 and degree <=80;

查询scores表中成绩为85，86或88的记录

select sno,cno,degree
from scores
where degree in (85,86,88);
select sno,cno,degree
from scores
where degree = 85 or degree = 86 or degree = 88;

查询“95031”班的“男”同学的记录

select sno,sname,ssex,sbirthday,class
from students
where sno = ‘95031’ and ssex = ‘男’;

查询“95031”班或性别为“女”的同学记录

select sno,sname,ssex,sbirthday,class
from students
where sno = ‘95031’ or ssex = ‘女’;

查询teachers表所有的系即不重复的depart列

select distinct depart
from teachers;

以班级class降序查询students表的所有记录

select sno,sname,ssex,sbirthday,class
from students
order by class desc;

以cno升序、degree降序查询scores表的所有记录

selct sno,cno,degree
from scores
order by cno asc,degree desc;

查询“95031”班的学生人数

select count(*)
from students
where class = ‘95031’;

查询每个班的学生人数

select class,count(*) ‘人数’
from students
group by class;

查询至少有2名男生的班号

select class
from students
where ssex = ‘男’ #先判断为男生
group by class
having count(*) >=2 #分组后筛选每个班级男生个数

查询最高分

select max(degree)
from scores;

查询最低分

select max(degree)
from scores;

查询scores表中的最高分的学生学号和课程号

select sno,cno
from scores
where degree = #2、单行子查询
(
- select max(degree) #1、先找到最高分
- from scores
);

查询‘3-105’号课程的平均分

select cno,round(avg(degree),1) ‘平均分’ #round对结果进行处理，保留1位小数
from scores
group by cno #平均必定需要分组,聚合函数可能需要分组
having cno = ‘3-105’; #分组之后进行筛选操作

查询各科的平均分

select cno,round(avg(degree),2) #round对结果进行处理，保留2位小数)
from degree
group by cno;

查询最低分大于70，最高分小于90的sno

select sno
from socres
group by sno
having min(degree)>70 and max(degree) <90

查询95033班和95031班全体学生的记录

select sno,sname,ssex,sbirthday,class
from students
where class = ‘98033’ or class = ‘95031’;

查询存在有85分以上成绩的课程cno

select distinct cno
from scores
where degree>85;

查询所有教师和同学的name、sex和birthday #union联合查询，类似字段的连接，列名以前面查询为主

(select sname sname,ssex sex,sbirthday birthday
from students)
union
(select tname,tsex,tbirthday
from teachers);

查询所有“女”教师和“女”同学的name、sex和birthday

(select sname sname,ssex sex,sbirthday birthday
from students
where ssex = ‘女’)
union
(select tname,tsex,tbirthday
from teachers
where tsex = ‘女’);

查询所有任课教师的tname和depart

select tname,depart #课程表courses中有老师编号tno的就算任课
from teachers
where tno in
(
select distinct tno
from courses
);

查询所有未讲课的教师的tname和depart

select tname,depart
from teachers
where tno not in
(
select distinct tno
from courses
);

查询同名的同学记录

select sno,sname,ssex,sbirthday,class
from students
where sname in
(
select sname #对名字分组函数，利用count（*）得出重名的名字
from students
group by sname
having count(*) >=2
);

查询学生的姓名和年龄

select sname,(year(now()) - year(sbirthday)) ‘age’
from students;

查询学生中最大和最小的出生年月

select min(year(sbirthday)),max(year(sbirthday)) #数字最小的出生年月就是我们日常生活中理解的最大的出生年月
from students;

以班号和年龄从大到小的顺序查询student表中的全部记录

select sno,sname,ssex,sbirthday,class
from students
order by class desc,year(now()) - year(sbirthday) desc; #年龄：当前年的年份减去出生年的年份

查询男教师及其所上的课程,教师名和对应的课程名课程名

select t.name,c.cname
from courses c
inner join
teachers t
on c.tno = t.tno
where tsex = ‘男’;

查询各门课程的最高分同学的sno、cno和degree列

selct sno,cno,degree
from scores
where degree in
select max(degree)
from scores
group by cno #不用它，如果课程a和b都有99分，但是课程a的最大值是100分，那么就把课程a的不是最大值查出来了

SELECT
s.sno,g.cno,s.degree
FROM
(SELECT cno,MAX(degree) maxx from scores group by cno) g
LEFT JOIN
(SELECT sno,cno,degree FROM scores) s
ON g.cno=s.cno AND g.maxx=s.degree; #自连接

查询课程对应的老师姓名、职称、所属系

select tname,cname,prof,depart
from (select tno,cname from courses) c
left join
select (tno,tname,prof,depart from teacher) t
on t.tno = c.tno #连接查询效率要比子查询高，子查询会有构建、销毁子表的过程

查询课程对应的女老师姓名、职称、所属系

select tname,cname,prof,depart
from (select tno,cname from courses) c
left join
select (tno,tname,prof,depart from teacher where tsex = ‘女’) t
on t.tno = c.tno

行列转置：各科最好成绩

分组方式：
SELECT cno,MAX(degree) degree FROM scores
GROUP BY cno;
执行结果：6-106,6-166
SELECT
MAX(CASE cno WHEN ‘3-105’ THEN degree ELSE 0 END) ‘3-105’,
MAX(CASE cno WHEN ‘3-245’ THEN degree ELSE 0 END) ‘3-245’,
MAX(CASE cno WHEN ‘6-106’ THEN degree ELSE 0 END) ‘6-106’,
MAX(CASE cno WHEN ‘6-166’ THEN degree ELSE 0 END) ‘6-166’
FROM scores
行列转置(有点像switch语句)：
SELECT
MAX(CASE cno WHEN ‘3-105’ THEN degree ELSE 0 END) ‘3-105’,
MAX(CASE cno WHEN ‘3-245’ THEN degree ELSE 0 END) ‘3-245’,
MAX(CASE cno WHEN ‘6-106’ THEN degree ELSE 0 END) ‘6-106’,
MAX(CASE cno WHEN ‘6-166’ THEN degree ELSE 0 END) ‘6-166’
FROM scores;

行列转置：每个学员各科最好成绩

每个学员（分组）；各科成绩（行列转置）；最好成绩（MAX函数）
SELECT
sno,
MAX(CASE cno WHEN ‘3-105’ THEN degree ELSE 0 END) ‘3-105’,
MAX(CASE cno WHEN ‘3-245’ THEN degree ELSE 0 END) ‘3-245’,
MAX(CASE cno WHEN ‘6-106’ THEN degree ELSE 0 END) ‘6-106’,
MAX(CASE cno WHEN ‘6-166’ THEN degree ELSE 0 END) ‘6-166’
FROM scores
GROUP BY sno;

行列转置：课程编号和课程名称

SELECT cno,cname FROM courses;
group_concat
SELECT
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘3-105’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘3-105’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘3-245’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘3-245’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘6-106’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘6-106’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘6-166’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘6-166’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘9-888’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘9-888’
FROM courses;
SELECT DISTINCT
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘3-105’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘3-105’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘3-245’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘3-245’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘6-106’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘6-106’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘6-166’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘6-166’,
REPLACE(GROUP_CONCAT(CASE cno WHEN ‘9-888’ THEN cname ELSE ‘’ END),’,’,’’) AS ‘9-888’
FROM courses;

课程号“3-105”的前3名学员成绩排行

select sno,cno,degree
from scores
where cno = ‘3-105’
order by degree desc
limit 3;

课程“计算机导论”的前3名学员排行

select cno,sno,degree
from scores
where cno =
(
select cno
from courses
where cname = ‘计算机导论’
)
order by degree desc
limit 3;

课程号“3-105”的倒数最后3名学员排行

select sno,cno,degree
from degrees
where sno in
(
select sno
from scores
where cno = ‘3-105’
order degree asc
limit 3
)
order by degree desc; #升序选出前3位然后对他们降序排序

SELECT * FROM
(SELECT * FROM scores WHERE cno=’3-105’ ORDER BY degree LIMIT 3) t #查询结果相当于是一个表
ORDER BY degree desc

总结

SQL语句书写、执行顺序

SQL语句书写
- select 【distinct】查询列表
- from 表名别名
- join 表名别名
- on 连接条件
- where 筛选条件
- group by 分组条件
- having 分组后晒选
- order by 排序列表【asc/desc】 #升序、降序，默认升序asc
- limit 条目数
SQL语句执行顺序
- from子句
- on子句
- join 表名别名
- where子句
- group by子句
- having子句
- select子句
- order by子句
- limit子句
  SQL语句书写法则
采用填空法，先写出SQL框架，一张表用select from，两张表用select from left join on(万能连接)
执行select语句时，尤其是子查询里的内查询需要注意是否需要用distinct
出现每各字样、聚合函数的使用就要考虑是否需要分组group by，分组后筛选用 having
出现用排序 order by，asc升序，desc降序
出现查询的记录数就要考虑用 limit

注意事项
能用多表联查就不要用子查询，子查询会有创建新子表、销毁新子表的消耗
