Modbus 驱动

Protocol

Read Coils (FC1)

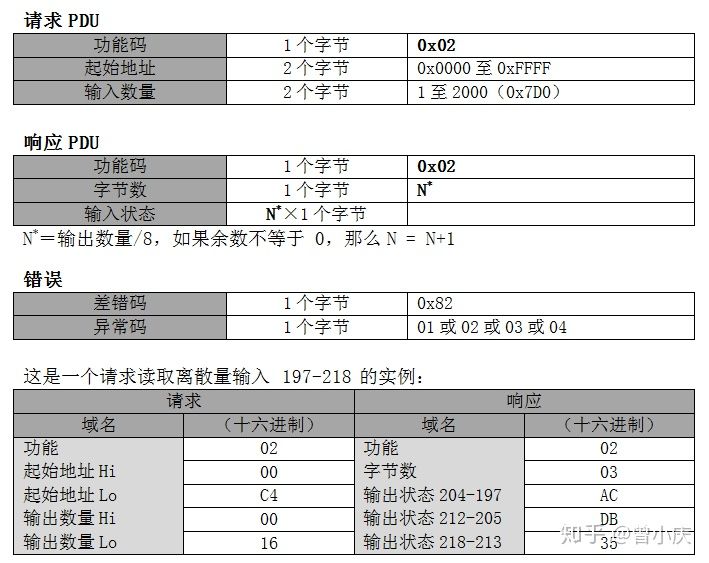

Read Discrete Inputs (FC2)
Read Holding Registers (FC3)
Read Input Registers (FC4)
Write Single Coil (FC5)
Write Single Register (FC6)
Write Multiple Coils (FC15)
Write Multiple Registers (FC16)
Read/Write Multiple Registers (FC23)

TCP/IP Modbus Channel配置表

网关SN自动生成，也可以收入输入。 对于TCP/IP Modbus协议只需要输入IP、Port；

读写配置

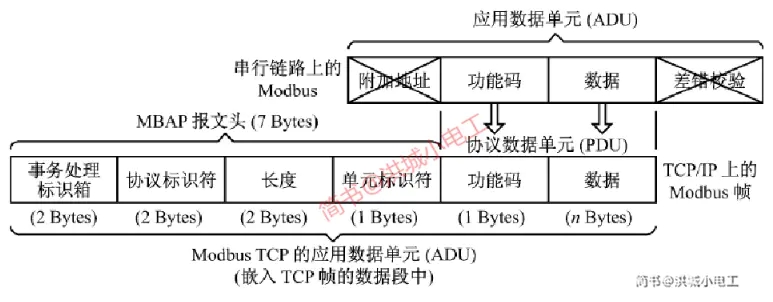

Modbus 协议数据格式

点位表

逻辑关系

1. 创建TCP/IP 驱动，输入网关IP，Port，自动生成网关SN或者可输入，网关名称。
2. 网关建立成功后，配置读写对应的协议内容：寄存器类型、起始地址、读取多少路等；
3. 读写协议定义成功后，为每路创建一个点位；
4. 驱动点位表中的别名，点位名称，点位类型，点位单位，点位精度 可由用户自由输入 ```csharp bool[] ReadCoils(byte slaveAddress, ushort startAddress, ushort numberOfPoints); Task ReadCoilsAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints); bool[] ReadInputs(byte slaveAddress, ushort startAddress, ushort numberOfPoints); Task ReadInputsAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints); ushort[] ReadHoldingRegisters(byte slaveAddress, ushort startAddress, ushort numberOfPoints); ushort[] ReadInputRegisters(byte slaveAddress, ushort startAddress, ushort numberOfPoints); void WriteSingleCoil(byte slaveAddress, ushort coilAddress, bool value); void WriteSingleRegister(byte slaveAddress, ushort registerAddress, ushort value); void WriteMultipleRegisters(byte slaveAddress, ushort startAddress, ushort[] data); void WriteMultipleCoils(byte slaveAddress, ushort startAddress, bool[] data); ushort[] ReadWriteMultipleRegisters(byte slaveAddress,

        ushort startReadAddress,
        ushort numberOfPointsToRead,
        ushort startWriteAddress,
        ushort[] writeData);

```c
float getFloat(quint16 value1, quint16 value2)
{
    float fTemp;
    uint *pTemp=(uint *)&fTemp;
    unsigned int chTemp[4];//a,b,c,d
    chTemp[0]=value1&0xff;
    chTemp[1]=(value1>>8)&0xff;
    chTemp[2]=value2&0xff;
    chTemp[3]=(value2>>8)&0xff;
    //这是ABCD
    *pTemp=((chTemp[1]<<24)&0xff000000)|((chTemp[0]<<16)&0xff0000)|((chTemp[3]<<8)&0xff00)|(chTemp[2]&0xff);
    //这是CDAB
    //*pTemp=((chTemp[3]<<24)&0xff000000)|((chTemp[2]<<16)&0xff0000)|((chTemp[1]<<8)&0xff00)|(chTemp[0]&0xff);
    //这是BADC
    //*pTemp=((chTemp[0]<<24)&0xff000000)|((chTemp[1]<<16)&0xff0000)|((chTemp[2]<<8)&0xff00)|(chTemp[3]&0xff);
    //这是DCBA
    //*pTemp=((chTemp[2]<<24)&0xff000000)|((chTemp[3]<<16)&0xff0000)|((chTemp[0]<<8)&0xff00)|(chTemp[1]&0xff);
    return fTemp;
}

namespace Modbus.Device
{
    using System;
    using System.Threading.Tasks;
    using IO;
    /// <summary>
    ///     Modbus master device.
    /// </summary>
    public interface IModbusMaster : IDisposable
    {
        /// <summary>
        ///     Transport used by this master.
        /// </summary>
        ModbusTransport Transport { get; }
        /// <summary>
        ///    Reads from 1 to 2000 contiguous coils status.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of coils to read.</param>
        /// <returns>Coils status.</returns>
        bool[] ReadCoils(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Asynchronously reads from 1 to 2000 contiguous coils status.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of coils to read.</param>
        /// <returns>A task that represents the asynchronous read operation.</returns>
        Task<bool[]> ReadCoilsAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Reads from 1 to 2000 contiguous discrete input status.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of discrete inputs to read.</param>
        /// <returns>Discrete inputs status.</returns>
        bool[] ReadInputs(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Asynchronously reads from 1 to 2000 contiguous discrete input status.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of discrete inputs to read.</param>
        /// <returns>A task that represents the asynchronous read operation.</returns>
        Task<bool[]> ReadInputsAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Reads contiguous block of holding registers.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of holding registers to read.</param>
        /// <returns>Holding registers status.</returns>
        ushort[] ReadHoldingRegisters(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Asynchronously reads contiguous block of holding registers.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of holding registers to read.</param>
        /// <returns>A task that represents the asynchronous read operation.</returns>
        Task<ushort[]> ReadHoldingRegistersAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Reads contiguous block of input registers.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of holding registers to read.</param>
        /// <returns>Input registers status.</returns>
        ushort[] ReadInputRegisters(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Asynchronously reads contiguous block of input registers.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startAddress">Address to begin reading.</param>
        /// <param name="numberOfPoints">Number of holding registers to read.</param>
        /// <returns>A task that represents the asynchronous read operation.</returns>
        Task<ushort[]> ReadInputRegistersAsync(byte slaveAddress, ushort startAddress, ushort numberOfPoints);
        /// <summary>
        ///    Writes a single coil value.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="coilAddress">Address to write value to.</param>
        /// <param name="value">Value to write.</param>
        void WriteSingleCoil(byte slaveAddress, ushort coilAddress, bool value);
        /// <summary>
        ///    Asynchronously writes a single coil value.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="coilAddress">Address to write value to.</param>
        /// <param name="value">Value to write.</param>
        /// <returns>A task that represents the asynchronous write operation.</returns>
        Task WriteSingleCoilAsync(byte slaveAddress, ushort coilAddress, bool value);
        /// <summary>
        ///    Writes a single holding register.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="registerAddress">Address to write.</param>
        /// <param name="value">Value to write.</param>
        void WriteSingleRegister(byte slaveAddress, ushort registerAddress, ushort value);
        /// <summary>
        ///    Asynchronously writes a single holding register.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="registerAddress">Address to write.</param>
        /// <param name="value">Value to write.</param>
        /// <returns>A task that represents the asynchronous write operation.</returns>
        Task WriteSingleRegisterAsync(byte slaveAddress, ushort registerAddress, ushort value);
        /// <summary>
        ///    Writes a block of 1 to 123 contiguous registers.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="startAddress">Address to begin writing values.</param>
        /// <param name="data">Values to write.</param>
        void WriteMultipleRegisters(byte slaveAddress, ushort startAddress, ushort[] data);
        /// <summary>
        ///    Asynchronously writes a block of 1 to 123 contiguous registers.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="startAddress">Address to begin writing values.</param>
        /// <param name="data">Values to write.</param>
        /// <returns>A task that represents the asynchronous write operation.</returns>
        Task WriteMultipleRegistersAsync(byte slaveAddress, ushort startAddress, ushort[] data);
        /// <summary>
        ///    Writes a sequence of coils.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="startAddress">Address to begin writing values.</param>
        /// <param name="data">Values to write.</param>
        void WriteMultipleCoils(byte slaveAddress, ushort startAddress, bool[] data);
        /// <summary>
        ///    Asynchronously writes a sequence of coils.
        /// </summary>
        /// <param name="slaveAddress">Address of the device to write to.</param>
        /// <param name="startAddress">Address to begin writing values.</param>
        /// <param name="data">Values to write.</param>
        /// <returns>A task that represents the asynchronous write operation.</returns>
        Task WriteMultipleCoilsAsync(byte slaveAddress, ushort startAddress, bool[] data);
        /// <summary>
        ///    Performs a combination of one read operation and one write operation in a single Modbus transaction.
        ///    The write operation is performed before the read.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startReadAddress">Address to begin reading (Holding registers are addressed starting at 0).</param>
        /// <param name="numberOfPointsToRead">Number of registers to read.</param>
        /// <param name="startWriteAddress">Address to begin writing (Holding registers are addressed starting at 0).</param>
        /// <param name="writeData">Register values to write.</param>
        ushort[] ReadWriteMultipleRegisters(
            byte slaveAddress,
            ushort startReadAddress,
            ushort numberOfPointsToRead,
            ushort startWriteAddress,
            ushort[] writeData);
        /// <summary>
        ///    Asynchronously performs a combination of one read operation and one write operation in a single Modbus transaction.
        ///    The write operation is performed before the read.
        /// </summary>
        /// <param name="slaveAddress">Address of device to read values from.</param>
        /// <param name="startReadAddress">Address to begin reading (Holding registers are addressed starting at 0).</param>
        /// <param name="numberOfPointsToRead">Number of registers to read.</param>
        /// <param name="startWriteAddress">Address to begin writing (Holding registers are addressed starting at 0).</param>
        /// <param name="writeData">Register values to write.</param>
        /// <returns>A task that represents the asynchronous operation</returns>
        Task<ushort[]> ReadWriteMultipleRegistersAsync(
            byte slaveAddress,
            ushort startReadAddress,
            ushort numberOfPointsToRead,
            ushort startWriteAddress,
            ushort[] writeData);
    }
}
