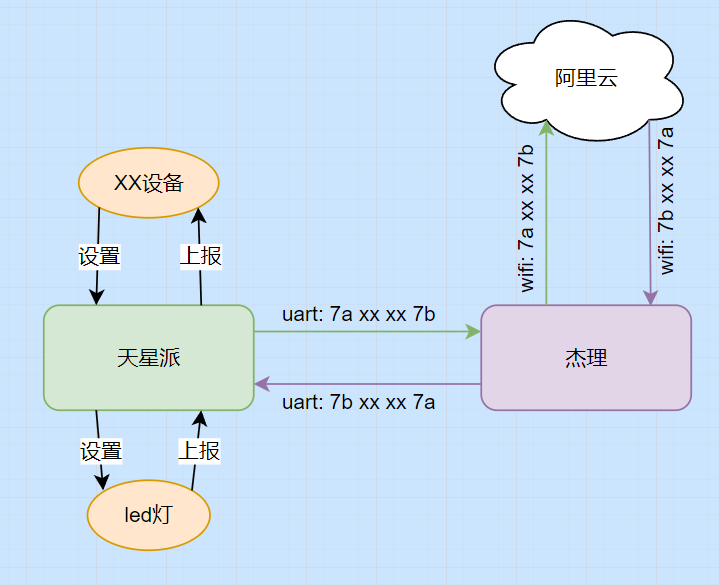

3. 物联网开发

wifi配置
TCP通讯
MQTT协议
阿里云配置
- 开通公共实例
- 新建产品
Python设备
杰理设备

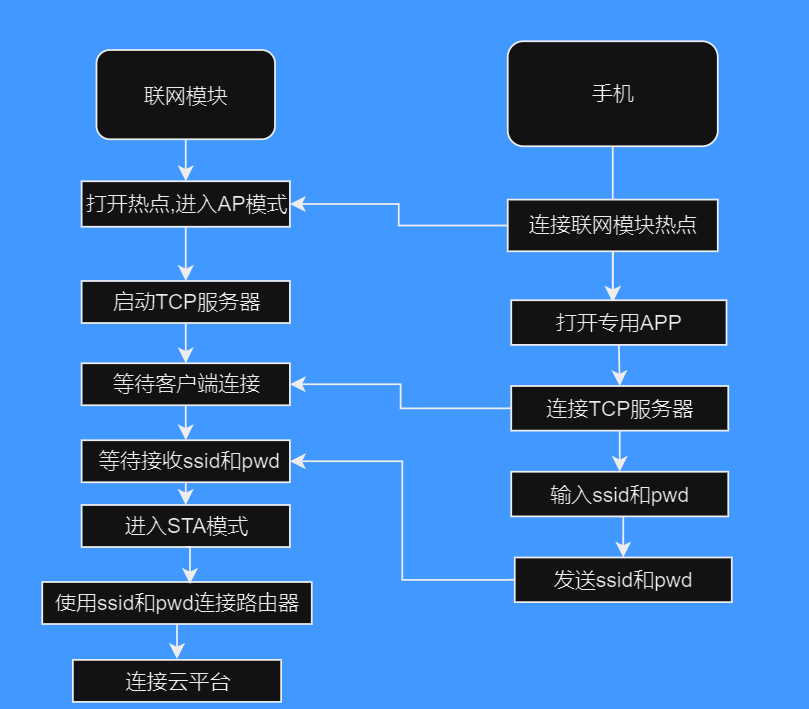

wifi配置

需要在app_config.h文件中定义USE_DEMO_WIFI_TEST，工程会在wifi_demo_task.c文件中自动启动wifi相关的任务，我们将工程配置为连接外部网络STA模式

默认工程会使用如下账号密码

当wifi任务启动之后，我们可以通过调用如下函数，让芯片连接上外部的网络

 wifi_enter_sta_mode(str_ssid, str_pwd);

TCP通讯

socket初始化

首先需要初始化socket，并指定协议

#define SERVER_TCP_IP "192.168.3.100"   //服务端ip
#define SERVER_TCP_PORT 9090           //服务端端口号
static int tcp_client_init(const char *server_ip, const int server_port)
{
    //struct sockaddr_in local;
    struct sockaddr_in dest;
    //创建socket
    sock = sock_reg(AF_INET, SOCK_STREAM, 0, NULL, NULL);
    if (sock == NULL) {
        printf("sock_reg fail.\n");
        return -1;
    }
    //连接指定地址服务端
    dest.sin_family = AF_INET;
    dest.sin_addr.s_addr = inet_addr(server_ip);
    dest.sin_port = htons(server_port);
    if (0 != sock_connect(sock, (struct sockaddr *)&dest, sizeof(struct sockaddr_in))) {
        printf("sock_connect fail.\n");
        sock_unreg(sock);
        return -1;
    }
    return 0;
}

初始化调用的逻辑，很简单，只需要指定IP地址和端口号即可

 err = tcp_client_init(SERVER_TCP_IP, SERVER_TCP_PORT);
    if (err) {
        printf("tcp_client_init err!");
        return;
    }

发送数据

//发送数据
static int tcp_send_data(const void *sock_hdl, const void *buf, const u32 len)
{
    return sock_send(sock_hdl, buf, len, 0);
}

接收数据

//接收数据
static int tcp_recv_data(const void *sock_hdl, void *buf, u32 len)
{
    return sock_recvfrom(sock_hdl, buf, len, 0, NULL, NULL);
}

接收数据代码

 for (;;) {
        recv_len = tcp_recv_data(sock, recv_buf, sizeof(recv_buf));
        if ((recv_len != -1) && (recv_len != 0)) {
            recv_buf[recv_len] = '\0';
            printf("Received %d bytes, data: %s\n\r", recv_len, recv_buf);
            tcp_send_data(sock, "Data received successfully!", strlen("Data received successfully!"));
        } else {
            printf("sock_recvfrom err!");
            break;
        }
    }

完整示例代码：
客户端：

#include "sock_api/sock_api.h"
#include "app_config.h"
#include "system/includes.h"
#include "wifi/wifi_connect.h"
#include "lwip.h"
#include "lwip/sockets.h"
#include "lwip/netdb.h"
#ifdef USE_ICHEIMA_WIFI
#include "itheima.h"
static void *sock = NULL;
#define SERVER_TCP_IP "192.168.3.100"   //服务端ip
#define SERVER_TCP_PORT 9090           //服务端端口号
static int tcp_client_init(const char *server_ip, const int server_port)
{
    //struct sockaddr_in local;
    struct sockaddr_in dest;
    //创建socket
    sock = sock_reg(AF_INET, SOCK_STREAM, 0, NULL, NULL);
    if (sock == NULL) {
        printf("sock_reg fail.\n");
        return -1;
    }
    //连接指定地址服务端
    dest.sin_family = AF_INET;
    dest.sin_addr.s_addr = inet_addr(server_ip);
    dest.sin_port = htons(server_port);
    if (0 != sock_connect(sock, (struct sockaddr *)&dest, sizeof(struct sockaddr_in))) {
        printf("sock_connect fail.\n");
        sock_unreg(sock);
        return -1;
    }
    return 0;
}
//发送数据
static int tcp_send_data(const void *sock_hdl, const void *buf, const u32 len)
{
    return sock_send(sock_hdl, buf, len, 0);
}
//接收数据
static int tcp_recv_data(const void *sock_hdl, void *buf, u32 len)
{
    return sock_recvfrom(sock_hdl, buf, len, 0, NULL, NULL);
}
//tcp client任务
static void tcp_client_task(void *priv)
{
    int  err;
    char *payload = "Please send me some data!";
    char recv_buf[1024];
    int  recv_len;
    int  send_len;
    err = tcp_client_init(SERVER_TCP_IP, SERVER_TCP_PORT);
    if (err) {
        printf("tcp_client_init err!");
        return;
    }
    send_len = tcp_send_data(sock, payload, strlen(payload));
    if (send_len == -1) {
        printf("sock_sendto err!");
        sock_unreg(sock);
        return;
    }
    for (;;) {
        recv_len = tcp_recv_data(sock, recv_buf, sizeof(recv_buf));
        if ((recv_len != -1) && (recv_len != 0)) {
            recv_buf[recv_len] = '\0';
            printf("Received %d bytes, data: %s\n\r", recv_len, recv_buf);
            tcp_send_data(sock, "Data received successfully!", strlen("Data received successfully!"));
        } else {
            printf("sock_recvfrom err!");
            break;
        }
    }
    if (sock) {
        sock_unreg(sock);
        sock = NULL;
    }
}
// 将串口接收到的数据通过串口发送出去
static void tcp_client_uart2wifi_task(void *priv){
    int len=0;
    uint8_t recv_buf[1024];
    printf("tcp_client_uart2wifi_task start>>>>>>>>>>>>>>>>>\r\n");
    while(1){
        len=icheima_uart_read_data(recv_buf);
        printf("\n uart recv len = %d\n", len);
        if(len > 0){
            printf("\n uart recv len = %d\n", len);
            recv_buf[len] = '\0';
            //把串口接收到的数据发送回去
            tcp_send_data(sock,recv_buf,len);
            memset(recv_buf, 0, sizeof(recv_buf));
        }else{
             //printf("uart recv error len = %d\n", len);
        }
    }
}
// 将wifi接收到的数据，发送给串口
static void tcp_client_wifi2uart_task(void *priv)
{
    int  err;
    char *payload = "Please send me some data!";
    char recv_buf[1024];
    int  recv_len;
    if(!sock){
        printf("tcp_client_wifi2uart_task sock error>>>>>>>>>>>>>>\r\n");
    }
    int send_len = tcp_send_data(sock, payload, strlen(payload));
    if (send_len == -1) {
        printf("sock_sendto err!");
        sock_unreg(sock);
        return;
    }
    printf("tcp_client_wifi2uart_task start>>>>>>>>>>>>>>\r\n");
    while(1){
        recv_len = tcp_recv_data(sock, recv_buf, sizeof(recv_buf));
        if ((recv_len != -1) && (recv_len != 0)) {
            recv_buf[recv_len] = '\0';
            // 将数据发送给串口
            icheima_uart_send_data(recv_buf, recv_len);
            printf("Received %d bytes, data:%s\n", recv_len, recv_buf);
            memset(recv_buf, 0, sizeof(recv_buf));
        } else {
            printf("sock_recvfrom err!");
            break;
        }
    }
    if (sock) {
        sock_unreg(sock);
        sock = NULL;
    }
}
static void tcp_client_start(void *priv)
{
    enum wifi_sta_connect_state state;
    while (1) {
        printf("Connecting to the network...\n");
        state = wifi_get_sta_connect_state() ;
        if (WIFI_STA_NETWORK_STACK_DHCP_SUCC == state) {
            printf("Network connection is successful!\n");
            break;
        }
        os_time_dly(1000);
    }
    // wifi 初始化
    int err = tcp_client_init(SERVER_TCP_IP, SERVER_TCP_PORT);
    if (err) {
        printf("tcp_client_init err!");
        return;
    }
    // 初始化串口
    icheima_uart_init("uart1");
    os_task_create(tcp_client_wifi2uart_task, NULL, 1, 1000, 0, "tcp_client_wifi2uart_task");
    os_task_create(tcp_client_uart2wifi_task, NULL, 1, 1000, 0, "tcp_client_uart2wifi_task");
    /*
    if (thread_fork("tcp_client_uart2wifi_task", 10, 1024, 0, NULL, tcp_client_uart2wifi_task, NULL) != OS_NO_ERR) {
        printf("thread fork fail\n");
    }
    */
}
//应用程序入口,需要运行在STA模式下
void c_main(void *priv)
{
    if (thread_fork("tcp_client_start", 10, 512, 0, NULL, tcp_client_start, NULL) != OS_NO_ERR) {
        printf("thread fork fail\n");
    }
}
late_initcall(c_main);
#endif

服务器端：

import socket
import threading
import time
# 处理客户端的请求操作
def handle_client_request(service_client_socket, ip_port):
    # 循环接收客户端发送的数据
    while True:
        # 接收客户端发送的数据
        recv_data = service_client_socket.recv(1024)
        # 容器类型判断是否有数据可以直接使用if语句进行判断，如果容器类型里面有数据表示条件成立，否则条件失败
        # 容器类型: 列表、字典、元组、字符串、set、range、二进制数据
        if recv_data:
            print(recv_data.decode("utf8"), ip_port)
            # 回复
            service_client_socket.send("ok,hello...".encode("utf8"))
            time.sleep(3)
        else:
            print("客户端下线了:", ip_port)
            break
    # 终止和客户端进行通信
    service_client_socket.close()
if __name__ == '__main__':
    # 创建tcp服务端套接字
    tcp_server_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    # 设置端口号复用，让程序退出端口号立即释放
    tcp_server_socket.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, True)
    # 绑定端口号
    tcp_server_socket.bind(("", 9090))
    # 设置监听, listen后的套接字是被动套接字，只负责接收客户端的连接请求
    tcp_server_socket.listen(128)
    # 循环等待接收客户端的连接请求
    while True:
        # 等待接收客户端的连接请求
        service_client_socket, ip_port = tcp_server_socket.accept()
        print("客户端连接成功:", ip_port)
        # 当客户端和服务端建立连接成功以后，需要创建一个子线程，不同子线程负责接收不同客户端的消息
        sub_thread = threading.Thread(target=handle_client_request, args=(service_client_socket, ip_port))
        # 设置守护主线程
        sub_thread.setDaemon(True)
        # 启动子线程
        sub_thread.start()
    # tcp服务端套接字可以不需要关闭，因为服务端程序需要一直运行
    # tcp_server_socket.close()

MQTT协议

MQTT（Message Queuing Telemetry Transport）是一种轻量级的消息传输协议，设计用于在低带宽和不稳定网络环境下进行高效的通信。以下是MQTT协议的主要特点：

发布/订阅模式：MQTT采用发布/订阅模式，其中客户端可以订阅一个或多个主题（Topic），而服务器则负责将消息发布到这些主题。这种模式使得多个客户端可以同时接收到感兴趣的消息。

轻量级：MQTT协议非常轻量级，协议头部信息很小，有效减少了网络传输的开销和数据流量。这使得MQTT非常适合在低带宽和有限资源的设备上使用，例如物联网设备。

QoS级别：MQTT支持三个不同的消息传输质量（QoS）级别：0、1和2。QoS级别决定了消息传输的可靠性和保证程度。较高的QoS级别会增加通信开销，但可以提供更可靠的消息传输。

可靠性和持久性：MQTT协议具有可靠性和持久性机制。客户端可以选择是否要求服务器保留未传递的消息，以便在客户端重新连接时重新发送。这确保了即使在网络中断或重新连接时，消息也不会丢失。

安全性：MQTT协议支持使用TLS/SSL进行加密和身份验证，以确保通信的安全性。这对于保护敏感数据和防止未经授权的访问非常重要。

总结而言，MQTT协议是一种灵活、可靠且适用于物联网应用的通信协议。它具有低开销、轻量级和可扩展等特点，使得它成为物联网设备之间进行高效通信的理想选择。

阿里云配置

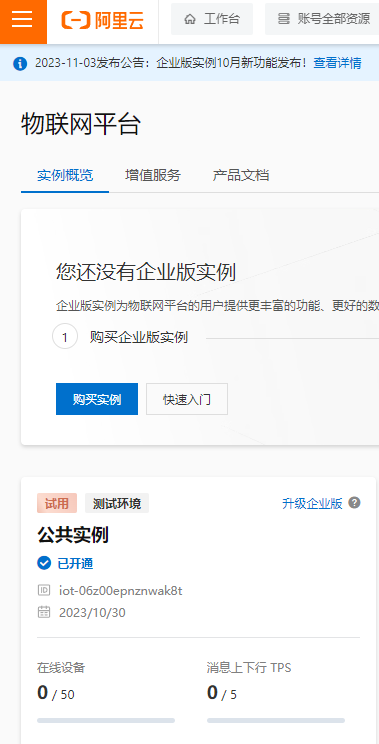

开通公共实例

新建产品

单击创建产品

填入产品名称

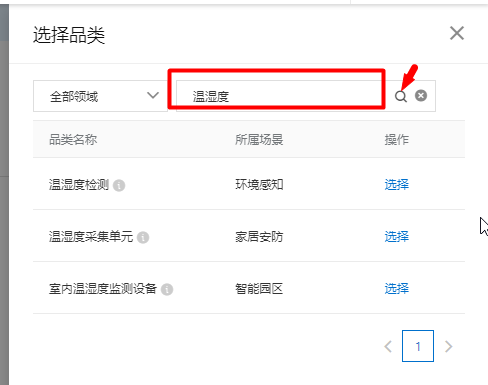

选择产品类别

Python设备

参考文档:
https://help.aliyun.com/zh/iot/developer-reference/configure-tsl-models-2?spm=a2c4g.11186623.0.0.47e03475UYpVCc
https://help.aliyun.com/zh/iot/use-cases/use-the-paho-mqtt-library-for-python-to-connect-a-device-to-iot-platform

参数定义

productKey="k0ejuKHBeSm"
deviceName="Dx2loZ2kr3e7EnhzBKZD"
deviceSecret="7b62a2dbb171a55b0a3cb29c1427de2a"
clientId = "Dx2loZ2kr3e7EnhzBKZD"
subTopic = f"/sys/{productKey}/{deviceName}/thing/event/property/post_reply"
pubTopic = f"/sys/{productKey}/{deviceName}/thing/event/property/post"

python发布

def publish_message():
    # publish 5 messages to pubTopic("/a1LhUsK****/python***/user/update")
    data = {"id": "123",
            "version": "1.0",
            "params": {
                        "PowerSwitch": 1,
                       "CurrentTemperature": 27.6
                       },
            "method": "thing.event.property.post"
            }
    for i in range(5):
        data["params"]["CurrentTemperature"] = 23.6+i
        message = json.dumps(data)
        client.publish(pubTopic, message)
        print("publish msg: " + str(i))
        print("publish msg: " + message)
        time.sleep(2)

python订阅

def subscribe_topic():
    # subscribe to subTopic("/a1LhUsK****/python***/user/get") and request messages to be delivered
    client.subscribe(subTopic)
    print("subscribe topic: " + subTopic)

完整示例

import json
import time
import paho.mqtt.client as mqtt
from MqttSign import AuthIfo
# set the device info, include product key, device name, and device secret
productKey="k0ejuKHBeSm"
deviceName="Dx2loZ2kr3e7EnhzBKZD"
deviceSecret="7b62a2dbb171a55b0a3cb29c1427de2a"
clientId = "Dx2loZ2kr3e7EnhzBKZD"
# set timestamp, clientid, subscribe topic and publish topic
timeStamp = str((int(round(time.time() * 1000))))
subTopic = f"/sys/{productKey}/{deviceName}/thing/event/property/post_reply"
subTopic1 = f"/sys/{productKey}/{deviceName}/thing/service/property/set"
pubTopic = f"/sys/{productKey}/{deviceName}/thing/event/property/post"
# set host, port
host = productKey + ".iot-as-mqtt.cn-shanghai.aliyuncs.com"
# instanceId = "***"
# host = instanceId + ".mqtt.iothub.aliyuncs.com"
port = 1883
# set tls crt, keepalive
tls_crt = "root.crt"
keepAlive = 300
# calculate the login auth info, and set it into the connection options
m = AuthIfo()
m.calculate_sign_time(productKey, deviceName, deviceSecret, clientId, timeStamp)
m.calculate_sign(productKey,deviceName,deviceSecret,clientId)
client = mqtt.Client(m.mqttClientId)
client.username_pw_set(username=m.mqttUsername, password=m.mqttPassword)
client.tls_set(tls_crt)
print(f"clientid:{m.mqttClientId}")
print(f"username:{m.mqttUsername}")
print(f"password:{m.mqttPassword}")
print(f"pub_topic:{pubTopic}")
print(f"subTopic:{subTopic}")
print(f"subTopic1:{subTopic1}")
def on_connect(client, userdata, flags, rc):
    if rc == 0:
        print("Connect aliyun IoT Cloud Sucess")
    else:
        print("Connect failed...  error code is:" + str(rc))
def on_message(client, userdata, msg):
    topic = msg.topic
    payload = msg.payload.decode()
    print("receive message ---------- topic is : " + topic)
    print("receive message ---------- payload is : " + payload)
    if ("thing/service/property/set" in topic):
        on_thing_prop_changed(client, msg.topic, msg.payload)
def on_thing_prop_changed(client, topic, payload):
    post_topic = topic.replace("service","event")
    post_topic = post_topic.replace("set","post")
    Msg = json.loads(payload)
    params = Msg['params']
    post_payload = "{\"params\":" + json.dumps(params) + "}"
    print("reveice property_set command, need to post ---------- topic is: " + post_topic)
    print("reveice property_set command, need to post ---------- payload is: " + post_payload)
    client.publish(post_topic, post_payload)
def connect_mqtt():
    client.connect(host, port, keepAlive)
    return client
def publish_message():
    # publish 5 messages to pubTopic("/a1LhUsK****/python***/user/update")
    data = {"id": "123",
            "version": "1.0",
            "params": {
                        "PowerSwitch": 1,
                       "CurrentTemperature": 27.6
                       },
            "method": "thing.event.property.post"
            }
    for i in range(5):
        data["params"]["CurrentTemperature"] = 23.6+i
        message = json.dumps(data)
        client.publish(pubTopic, message)
        print("publish msg: " + str(i))
        print("publish msg: " + message)
        time.sleep(2)
def subscribe_topic():
    # subscribe to subTopic("/a1LhUsK****/python***/user/get") and request messages to be delivered
    client.subscribe(subTopic)
    print("subscribe topic: " + subTopic)
client.on_connect = on_connect
client.on_message = on_message
client = connect_mqtt()
client.loop_start()
time.sleep(2)
subscribe_topic()
publish_message()
while True:
    time.sleep(1)

杰理设备

mqtt初始化

static int mqtt_start(void* config)
{
    Network network;
    MQTTPacket_connectData connectData = MQTTPacket_connectData_initializer;
    MQTTMessage message;
    int err;
    int loop_cnt = 0;
    int temperature = 0;
    int humidity = 0;
    struct icheima_iot_data* config_data = config;
    char *address = config_data->address;
    char *username = config_data->username;
    char *password = config_data->password;
    char *subscribeTopic = config_data->sub_topic;                      //订阅的主题
    char *publishTopic = config_data->pub_topic;   //发布消息的主题
    char *clientID = config_data->clientId;
    printf("address=====>%s\r\n",address);
    printf("username=====>%s\r\n",username);
    printf("password=====>%s\r\n",password);
    printf("subscribeTopic=====>%s\r\n",subscribeTopic);
    printf("publishTopic=====>%s\r\n",publishTopic);
    printf("clientID=====>%s\r\n",clientID);
_reconnect:
    //初始化网络接口
    NewNetwork(&network);
    SetNetworkRecvTimeout(&network, 1000);
    //初始化客户端
    MQTTClient(&client, &network, COMMAND_TIMEOUT_MS, send_buf, sizeof(send_buf), read_buf, sizeof(read_buf));
    //tcp层连接服务器
    err = ConnectNetwork(&network, address, 1883);
    if (err != 0) {
        printf("ConnectNetwork fail\n");
        return -1;
    }
    connectData.willFlag = 0;
    connectData.MQTTVersion = 3;                                   //mqtt版本号
    connectData.clientID.cstring = clientID;                       //客户端id
    connectData.username.cstring = username;                       //连接时的用户名
    connectData.password.cstring = password;                       //连接时的密码
    connectData.keepAliveInterval = MQTT_KEEPALIVE_TIME / 1000;    //心跳时间
    connectData.cleansession = 1;                                  //是否使能服务器的cleansession，0:禁止, 1:使能
    //mqtt层连接,向服务器发送连接请求
    err = MQTTConnect(&client, &connectData);
    if (err != 0) {
        network.disconnect(&network);
        printf("MQTTConnect fail, err : 0x%x\n", err);
        return -1;
    }
    //订阅主题
    err = MQTTSubscribe(&client, subscribeTopic, QOS1, messageArrived);
    if (err != 0) {
        MQTTDisconnect(&client);
        network.disconnect(&network);
        printf("MQTTSubscribe fail, err : 0x%x\n", err);
        return -1;
    }
    message.qos = QOS1;
    message.retained = 0;
    #ifdef CONFIG_MP3_DEC_ENABLE
            post_msg_play_flash_mp3("NetConnting.mp3", 55);
    #endif
    // 如果当前是正常连接的状态,那么呼吸灯就开始工作
    extern void icheima_test_led_main();
    icheima_test_led_main();
    user_printf("{\"icheima_mqtt_connect\":1}\r\n");
    while (1) {
        os_time_dly(100);
        err = MQTTYield(&client, MQTT_TIMEOUT_MS);
        if (err != 0) {
            if (client.isconnected) {
                //断开mqtt层连接
                err = MQTTDisconnect(&client);
                if (err != 0) {
                    user_printf("MQTTDisconnect fail\n");
                }
                //断开tcp层连接
                network.disconnect(&network);
            }
            user_printf("MQTT : Reconnecting\n");
            //重新连接
            goto _reconnect;
        }
    }
    return 0;
}

mqtt发布


int icheima_iot_pub_topic(char* topic,char* sendbuf){
    MQTTMessage message;
    message.qos = QOS1;
    message.retained = 0;
    message.payload = sendbuf;
    message.payloadlen = strlen(sendbuf) + 1;
     //发布消息
    int err = MQTTPublish(&client, topic, &message);
    if (err != 0) {
        printf("MQTTPublish fail, err : 0x%x\n", err);
    }
    printf("MQTTPublish payload:(%s)\n", sendbuf);
}

mqtt订阅

static void messageArrived(MessageData *data)
{
    char temp[512] = {0};
    strncpy(temp, data->topicName->lenstring.data, data->topicName->lenstring.len);
    temp[data->topicName->lenstring.len] = '\0';
    printf("Message arrived on topic (len : %d, topic : %s)\n", data->topicName->lenstring.len, temp);
    memset(temp, 0, sizeof(temp));
    strncpy(temp, data->message->payload, data->message->payloadlen);
    temp[data->message->payloadlen] = '\0';
    //user_printf("message (len : %d, payload : %s)\n", data->message->payloadlen, temp);
    user_printf("%s",temp);
    //char fmt_str[512] = "{\"topic\":\"%s\",\"data\":\"%s\"}";
    //sprintf(temp,fmt_str,data->topicName->lenstring.data,data->message->payload);
    //printf("result:%s \n",temp);
}
