创建 Topic

首先得启动 Broker 和 NameServer 服务，然后启动 RocketMQ dashboard，启动方式见 RocketMQ 集群可视化监控，启动后可视化界面如下：
接着进入 Topic 菜单，新建一个名为 TopicTest 的 Topic，其实不手动创建该 Topic 也可以，在运行 Producer 时会自动创建该 Topic。

运行 Example

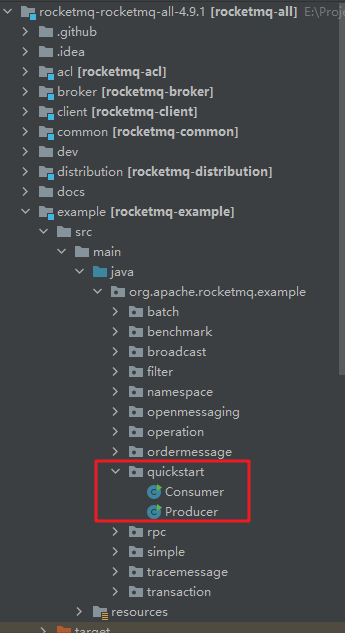

可以用 RocketMQ 自带的例子来测试发送和消费消息，找到 example 模块下的 quickstart 包

运行 Producer

修改下自带的 Producer 示例程序，如下所示：

  1. public class Producer {
  3.     public static void main(String[] args) throws MQClientException, InterruptedException {
  4.         DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");
  5.         // 设置 NameServer 地址，Producer 通过 NameServer 去获取 Broker 地址
  6.         producer.setNamesrvAddr("127.0.0.1:9876");
  7.         producer.start();
  9.         for (int i = 0; i < 1; i++) {
  10.             try {
  11.                 Message msg = new Message("TopicTest", "TagA", ("Hello RocketMQ " + i).getBytes(RemotingHelper.DEFAULT_CHARSET));
  12.                 SendResult sendResult = producer.send(msg);
  13.                 System.out.printf("%s%n", sendResult);
  14.             } catch (Exception e) {
  15.                 e.printStackTrace();
  16.                 Thread.sleep(1000);
  17.             }
  18.         }
  20.         producer.shutdown();
  21.     }
  22. }

然后运行程序，控制台输出结果如下，此时说明已经成功的把消息发送到 Broker 去了。

  1. SendResult [sendStatus=SEND_OK, msgId=7F00000172CC18B4AAC237F7A40A0000, offsetMsgId=7F00000100002A9F000000000002ECD4, messageQueue=MessageQueue [topic=TopicTest, brokerName=broker-a, queueId=7], queueOffset=0]

运行 Consumer

修改下自带的 Consumer示例程序，如下所示：

  1. public class Consumer {
  3.     public static void main(String[] args) throws InterruptedException, MQClientException {
  4.         DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("please_rename_unique_group_name_4");
  5.         consumer.setNamesrvAddr("127.0.0.1:9876");
  6.         consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_FIRST_OFFSET);
  7.         consumer.subscribe("TopicTest", "*");
  9.         /*
  10.          *  Register callback to execute on arrival of messages fetched from brokers.
  11.          */
  12.         consumer.registerMessageListener(new MessageListenerConcurrently() {
  14.             @Override
  15.             public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs,
  16.                 ConsumeConcurrentlyContext context) {
  17.                 System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
  18.                 return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
  19.             }
  20.         });
  22.         /*
  23.          *  Launch the consumer instance.
  24.          */
  25.         consumer.start();
  26.         System.out.printf("Consumer Started.%n");
  27.     }
  28. }

运行上述程序，结果如下，可以看下消费了 1 条消息。

  1. ConsumeMessageThread_1 Receive New Messages: [MessageExt [brokerName=broker-a, queueId=7, storeSize=190, queueOffset=0, sysFlag=0, bornTimestamp=1633956576368, bornHost=/127.0.0.1:14743, storeTimestamp=1633956576430, storeHost=/127.0.0.1:10911, msgId=7F00000100002A9F000000000002ECD4, commitLogOffset=191700, bodyCRC=613185359, reconsumeTimes=0, preparedTransactionOffset=0, toString()=Message{topic='TopicTest', flag=0, properties={MIN_OFFSET=0, MAX_OFFSET=1, CONSUME_START_TIME=1633956735681, UNIQ_KEY=7F00000172CC18B4AAC237F7A40A0000, CLUSTER=DefaultCluster, TAGS=TagA}, body=[72, 101, 108, 108, 111, 32, 82, 111, 99, 107, 101, 116, 77, 81, 32, 48], transactionId='null'}]]
