01 简单入门

一、 新建项目

1 建父工程

2 建生产者和消费者

二、代码整合

1 父工程依赖管理

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.flame</groupId>
    <artifactId>demo-base</artifactId>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>service-api</module>
        <module>service-provider</module>
        <module>service-consumer</module>
    </modules>
    <packaging>pom</packaging>
    <properties>
        <dubbo.version>3.0.2.1</dubbo.version>
    </properties>
    <dependencies>
        <!-- 日志配置 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.5</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.5</version>
        </dependency>
        <!-- json数据化转换 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo</artifactId>
                <version>${dubbo.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-common</artifactId>
                <version>2.7.9-SNAPSHOT</version>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-registry-zookeeper</artifactId>
                <version>${dubbo.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-remoting-api</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-common</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-registry-nacos</artifactId>
                <version>3.0.2.1</version>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-rpc-dubbo</artifactId>
                <version>${dubbo.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-remoting-api</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-common</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-remoting-netty4</artifactId>
                <version>${dubbo.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-remoting-api</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>org.apache.dubbo</groupId>
                <artifactId>dubbo-serialization-hessian2</artifactId>
                <version>${dubbo.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.apache.dubbo</groupId>
                        <artifactId>dubbo-common</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
        </dependencies>
    </dependencyManagement>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.3</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

2 编写API

3 provider

1依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>demo-base</artifactId>
        <groupId>com.flame</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>service-provider</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.flame</groupId>
            <artifactId>service-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.0.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-registry-zookeeper</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-rpc-dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-remoting-netty4</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-serialization-hessian2</artifactId>
        </dependency>
    </dependencies>
</project>

2 配置

dubbo.application.name=service-provider
dubbo.protocol.name=dubbo
dubbo.protocol.port=20882

log4j.rootCategory=INFO,CONSOLE
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{HH:mm:ss.SSS} [%t] %-5p %c.%M\(%F:%L\) - %m%n

3 服务提供实现类

4 配置 和容器启动类

System.in.read(); 防止系统退出

4 Consumer

1 依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>demo-base</artifactId>
        <groupId>com.flame</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>service-consumer</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.flame</groupId>
            <artifactId>service-api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.0.1</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-registry-zookeeper</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-rpc-dubbo</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-remoting-netty4</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-serialization-hessian2</artifactId>
        </dependency>
    </dependencies>
</project>

2 配置

dubbo.application.name=service-consumer
dubbo.registry.address=zookeeper://127.0.0.1:2181
dubbo.metadata-report.address=zookeeper://127.0.0.1:2181

log4j.rootCategory=INFO,CONSOLE
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{HH:mm:ss.SSS} [%t] %-5p %c.%M\(%F:%L\) - %m%n

3 消费者调用类

4 配置和容器启动类

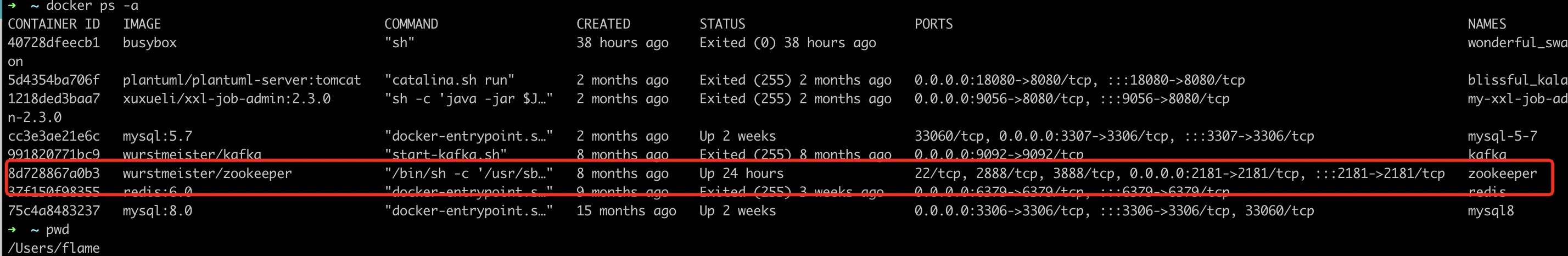

5 需要依赖组册中心

6 test
