客户端工作流程
- 服务注册
- 服务发现
  - NamingService.getAllInstances

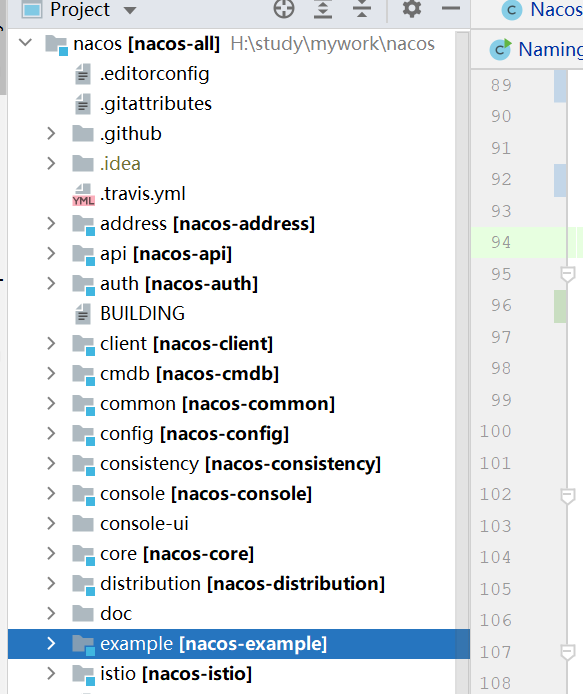

首先搭建Nacos源码环境，源码环境搭建起来比较轻松，几乎不会报什么错误

客户端与注册中心服务端的交互，主要集中在服务注册、服务下线、服务发现、订阅某个服务，其实使
用最多的就是服务注册和服务发现在Nacos源码中 nacos-example 中com.alibaba.nacos.example.NamingExample 类分别演示了这4个功能的操作，可以把它当做入口，代码如下：

public class NamingExample {
    public static void main(String[] args) throws NacosException {
        Properties properties = new Properties();
        properties.setProperty("serverAddr", System.getProperty("serverAddr"));
        properties.setProperty("namespace", System.getProperty("namespace"));
        NamingService naming = NamingFactory.createNamingService(properties);
        //服务注册
        naming.registerInstance("nacos.test.3", "11.11.11.11", 8888, "DEFAULT");
        naming.registerInstance("nacos.test.3", "2.2.2.2", 9999, "DEFAULT");
        //服务发现
        System.out.println(naming.getAllInstances("nacos.test.3"));
        //服务下线
        naming.deregisterInstance("nacos.test.3", "2.2.2.2", 9999, "DEFAULT");
        System.out.println(naming.getAllInstances("nacos.test.3"));
        //服务订阅
        Executor executor = new ThreadPoolExecutor(1, 1, 0L, TimeUnit.MILLISECONDS, new LinkedBlockingQueue<Runnable>(),
                new ThreadFactory() {
                    @Override
                    public Thread newThread(Runnable r) {
                        Thread thread = new Thread(r);
                        thread.setName("test-thread");
                        return thread;
                    }
                });
        naming.subscribe("nacos.test.3", new AbstractEventListener() {
            //EventListener onEvent is sync to handle, If process too low in onEvent, maybe block other onEvent callback.
            //So you can override getExecutor() to async handle event.
            @Override
            public Executor getExecutor() {
                return executor;
            }
            @Override
            public void onEvent(Event event) {
                System.out.println(((NamingEvent) event).getServiceName());
                System.out.println(((NamingEvent) event).getInstances());
            }
        });
    }
}

客户端工作流程

服务注册

沿着案例中的服务注册方法调用找到 nacos-api 中的 NamingService.registerInstance() 并找到它的实现类和方法 com.alibaba.nacos.client.naming.NacosNamingService ，代码如下：

NacosNamingService.registerInstance

    /***
     * 服务注册
     * @param serviceName 服务名字
     * @param ip 服务IP
     * @param port 服务端口
     * @param clusterName 集群名字
     * @throws NacosException
     */
    @Override
    public void registerInstance(String serviceName, String ip, int port, String clusterName) throws NacosException {
        //调用重载方法
        registerInstance(serviceName, Constants.DEFAULT_GROUP, ip, port, clusterName);
    }

    @Override
    public void registerInstance(String serviceName, String groupName, String ip, int port, String clusterName)
            throws NacosException {
        //设置实例IP：Port，默认权重为1.0
        Instance instance = new Instance();
        instance.setIp(ip);
        instance.setPort(port);
        instance.setWeight(1.0);
        instance.setClusterName(clusterName);
        registerInstance(serviceName, groupName, instance);
    }

    /**
     * 实例注册
     */
    @Override
    public void registerInstance(String serviceName, String groupName, Instance instance) throws NacosException {
        NamingUtils.checkInstanceIsLegal(instance);
        String groupedServiceName = NamingUtils.getGroupedName(serviceName, groupName);
        //该字段表示注册的实例是否是临时实例还是持久化实例。
        // 如果是临时实例，则不会在 Nacos 服务端持久化存储，需要通过上报心跳的方式进行包活，
        // 如果一段时间内没有上报心跳，则会被 Nacos 服务端摘除。
        if (instance.isEphemeral()) {
            //为注册服务设置一个定时任务获取心跳信息，默认为5s汇报一次
            BeatInfo beatInfo = beatReactor.buildBeatInfo(groupedServiceName, instance);
            beatReactor.addBeatInfo(groupedServiceName, beatInfo);
        }
        //服务注册
        serverProxy.registerService(groupedServiceName, groupName, instance);
    }

注册主要做了两件事，第一件事：为注册的服务设置一个定时任务，定时拉去服务信息。第二件事：将
服务注册到服务端。

1:启动一个定时任务，定时拉取服务信息，时间间隔为5s,如果拉下来服务正常，不做处理，如果不正常，
重新注册
2:发送http请求给注册中心服务端，调用服务注册接口，注册服务

上面代码我们可以看到定时任务添加，但并未完全看到远程请求， serverProxy.registerService()方法如下，会先封装请求参数，接下来调用 reqApi() 而 reqApi() 最后会调用 callServer() ，代码如下：

NamingProxy.registerService

    public void registerService(String serviceName, String groupName, Instance instance) throws NacosException {
        NAMING_LOGGER.info("[REGISTER-SERVICE] {} registering service {} with instance: {}", namespaceId, serviceName,
                instance);
        //参数封装-
        final Map<String, String> params = new HashMap<String, String>(16);
        params.put(CommonParams.NAMESPACE_ID, namespaceId);
        params.put(CommonParams.SERVICE_NAME, serviceName);
        params.put(CommonParams.GROUP_NAME, groupName);
        params.put(CommonParams.CLUSTER_NAME, instance.getClusterName());
        params.put("ip", instance.getIp());
        params.put("port", String.valueOf(instance.getPort()));
        params.put("weight", String.valueOf(instance.getWeight()));
        params.put("enable", String.valueOf(instance.isEnabled()));
        params.put("healthy", String.valueOf(instance.isHealthy()));
        params.put("ephemeral", String.valueOf(instance.isEphemeral()));
        params.put("metadata", JacksonUtils.toJson(instance.getMetadata()));
        //执行http请求
        reqApi(UtilAndComs.nacosUrlInstance, params, HttpMethod.POST);
    }

NamingProxy.reqApi

    public String reqApi(String api, Map<String, String> params, String method) throws NacosException {
       //调用重载方法
        return reqApi(api, params, Collections.EMPTY_MAP, method);
    }
    public String reqApi(String api, Map<String, String> params, Map<String, String> body, String method)
            throws NacosException {
        return reqApi(api, params, body, getServerList(), method);
    }
    public String reqApi(String api, Map<String, String> params, Map<String, String> body, List<String> servers,
            String method) throws NacosException {
        params.put(CommonParams.NAMESPACE_ID, getNamespaceId());
        if (CollectionUtils.isEmpty(servers) && StringUtils.isBlank(nacosDomain)) {
            throw new NacosException(NacosException.INVALID_PARAM, "no server available");
        }
        NacosException exception = new NacosException();
        if (StringUtils.isNotBlank(nacosDomain)) {
            for (int i = 0; i < maxRetry; i++) {
                try {
                    return callServer(api, params, body, nacosDomain, method);
                } catch (NacosException e) {
                    exception = e;
                    if (NAMING_LOGGER.isDebugEnabled()) {
                        NAMING_LOGGER.debug("request {} failed.", nacosDomain, e);
                    }
                }
            }
        } else {
            Random random = new Random(System.currentTimeMillis());
            int index = random.nextInt(servers.size());
            for (int i = 0; i < servers.size(); i++) {
                String server = servers.get(index);
                try {
                    //执行远程调用
                    return callServer(api, params, body, server, method);
                } catch (NacosException e) {
                    exception = e;
                    if (NAMING_LOGGER.isDebugEnabled()) {
                        NAMING_LOGGER.debug("request {} failed.", server, e);
                    }
                }
                index = (index + 1) % servers.size();
            }
        }
        NAMING_LOGGER.error("request: {} failed, servers: {}, code: {}, msg: {}", api, servers, exception.getErrCode(),
                exception.getErrMsg());
        throw new NacosException(exception.getErrCode(),
                "failed to req API:" + api + " after all servers(" + servers + ") tried: " + exception.getMessage());
    }

NamingProxy.callServer

    /**
     * 执行远程调用
     *
     * @param api       api
     * @param params    parameters
     * @param body      body
     * @param curServer ?
     * @param method    http method
     * @return result
     * @throws NacosException nacos exception
     */
    public String callServer(String api, Map<String, String> params, Map<String, String> body, String curServer,
            String method) throws NacosException {
        long start = System.currentTimeMillis();
        long end = 0;
        injectSecurityInfo(params);
        //封装请求头
        Header header = builderHeader();
        //请求头是http还是https协议
        String url;
        if (curServer.startsWith(UtilAndComs.HTTPS) || curServer.startsWith(UtilAndComs.HTTP)) {
            url = curServer + api;
        } else {
            if (!IPUtil.containsPort(curServer)) {
                curServer = curServer + IPUtil.IP_PORT_SPLITER + serverPort;
            }
            url = NamingHttpClientManager.getInstance().getPrefix() + curServer + api;
        }
        try {
            //执行远程请求,并获取结果集
            HttpRestResult<String> restResult = nacosRestTemplate
                    .exchangeForm(url, header, Query.newInstance().initParams(params), body, method, String.class);
            end = System.currentTimeMillis();
            MetricsMonitor.getNamingRequestMonitor(method, url, String.valueOf(restResult.getCode()))
                    .observe(end - start);
            //结果解析
            if (restResult.ok()) {
                return restResult.getData();
            }
            if (HttpStatus.SC_NOT_MODIFIED == restResult.getCode()) {
                return StringUtils.EMPTY;
            }
            throw new NacosException(restResult.getCode(), restResult.getMessage());
        } catch (Exception e) {
            NAMING_LOGGER.error("[NA] failed to request", e);
            throw new NacosException(NacosException.SERVER_ERROR, e);
        }
    }

服务发现

案例中的服务发现方法调用找到 nacos-api 中的 NamingService.getAllInstances() 并找到它的实现类和方法
