SEH

/SAFESEH

vs2019需要打开此选项才可以正常进行异常处理
https://docs.microsoft.com/en-us/cpp/build/reference/safeseh-image-has-safe-exception-handlers?redirectedfrom=MSDN&view=msvc-170
https://docs.microsoft.com/en-us/windows/win32/dxtecharts/best-security-practices-in-game-development

回调函数

// SEH handler
#if defined(_M_IX86) && !defined(_CHPE_X86_ARM64_EH_)
    struct _EXCEPTION_RECORD;
    struct _CONTEXT;
    EXCEPTION_DISPOSITION __cdecl _except_handler(
        _In_ struct _EXCEPTION_RECORD* _ExceptionRecord,
        _In_ void*                     _EstablisherFrame,
        _Inout_ struct _CONTEXT*       _ContextRecord,
        _Inout_ void*                  _DispatcherContext
        );
#elif defined _M_X64 || defined _M_ARM || defined _M_ARM64 || defined _CHPE_X86_ARM64_EH_
    #ifndef _M_CEE_PURE
        struct _EXCEPTION_RECORD;
        struct _CONTEXT;
        struct _DISPATCHER_CONTEXT;
        _VCRTIMP EXCEPTION_DISPOSITION __cdecl __C_specific_handler(
            _In_    struct _EXCEPTION_RECORD*   ExceptionRecord,
            _In_    void*                       EstablisherFrame,
            _Inout_ struct _CONTEXT*            ContextRecord,
            _Inout_ struct _DISPATCHER_CONTEXT* DispatcherContext
            );
    #endif
#endif

可以在vs2019include\excpt.h此头文件下找到。此处分为x86和x64。
第一个参数**_EXCEPTION_RECORD**结构体内容为

typedef struct _EXCEPTION_RECORD {
    DWORD    ExceptionCode; // 异常代码
    DWORD ExceptionFlags;
    struct _EXCEPTION_RECORD *ExceptionRecord;
    PVOID ExceptionAddress;
    DWORD NumberParameters;
    ULONG_PTR ExceptionInformation[EXCEPTION_MAXIMUM_PARAMETERS];
    } EXCEPTION_RECORD;

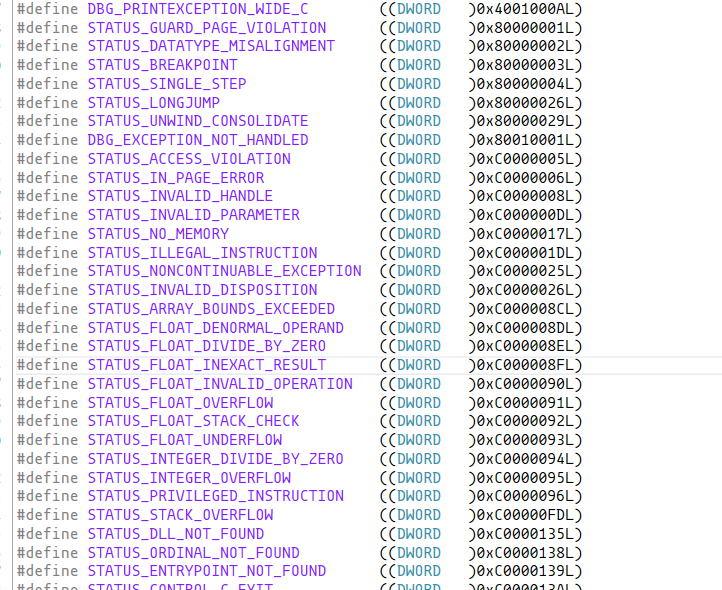

可以在winnt.h文件中搜索到错误代码

更详细在Windows NT DDK的NTSTATUS.H中。

调试也可以看到

第二个参数**EstablisherFrame**
文档原文
The address of the base of the fixed stack allocation for this function.
一个指向Establisher帧结构的指针。
第三个参数 **_CONTEXT**结构

typedef struct DECLSPEC_NOINITALL _CONTEXT {
    //
    // The flags values within this flag control the contents of
    // a CONTEXT record.
    //
    // If the context record is used as an input parameter, then
    // for each portion of the context record controlled by a flag
    // whose value is set, it is assumed that that portion of the
    // context record contains valid context. If the context record
    // is being used to modify a threads context, then only that
    // portion of the threads context will be modified.
    //
    // If the context record is used as an IN OUT parameter to capture
    // the context of a thread, then only those portions of the thread's
    // context corresponding to set flags will be returned.
    //
    // The context record is never used as an OUT only parameter.
    //
    DWORD ContextFlags;
    //
    // This section is specified/returned if CONTEXT_DEBUG_REGISTERS is
    // set in ContextFlags.  Note that CONTEXT_DEBUG_REGISTERS is NOT
    // included in CONTEXT_FULL.
    //
    DWORD   Dr0;
    DWORD   Dr1;
    DWORD   Dr2;
    DWORD   Dr3;
    DWORD   Dr6;
    DWORD   Dr7;
    //
    // This section is specified/returned if the
    // ContextFlags word contians the flag CONTEXT_FLOATING_POINT.
    //
    FLOATING_SAVE_AREA FloatSave;
    //
    // This section is specified/returned if the
    // ContextFlags word contians the flag CONTEXT_SEGMENTS.
    //
    DWORD   SegGs;
    DWORD   SegFs;
    DWORD   SegEs;
    DWORD   SegDs;
    //
    // This section is specified/returned if the
    // ContextFlags word contians the flag CONTEXT_INTEGER.
    //
    DWORD   Edi;
    DWORD   Esi;
    DWORD   Ebx;
    DWORD   Edx;
    DWORD   Ecx;
    DWORD   Eax;
    //
    // This section is specified/returned if the
    // ContextFlags word contians the flag CONTEXT_CONTROL.
    //
    DWORD   Ebp;
    DWORD   Eip;
    DWORD   SegCs;              // MUST BE SANITIZED
    DWORD   EFlags;             // MUST BE SANITIZED
    DWORD   Esp;
    DWORD   SegSs;
    //
    // This section is specified/returned if the ContextFlags word
    // contains the flag CONTEXT_EXTENDED_REGISTERS.
    // The format and contexts are processor specific
    //
    BYTE    ExtendedRegisters[MAXIMUM_SUPPORTED_EXTENSION];
} CONTEXT;

此结构存放异常发生时，寄存器中的值。
第四个参数**DispatcherContext**
文档原文
Points to the exception context at the time the exception was raised (in the exception handler case) or the current “unwind” context (in the termination handler case).

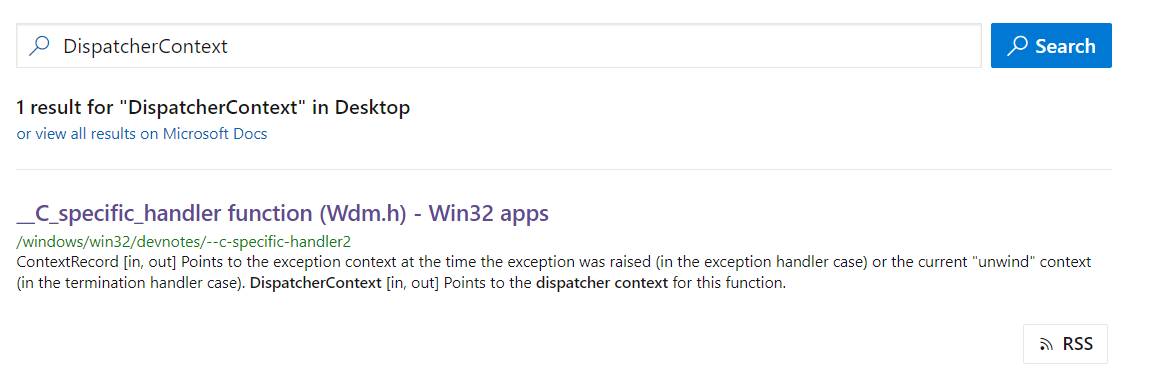

文档只搜到一个定义。（寄）

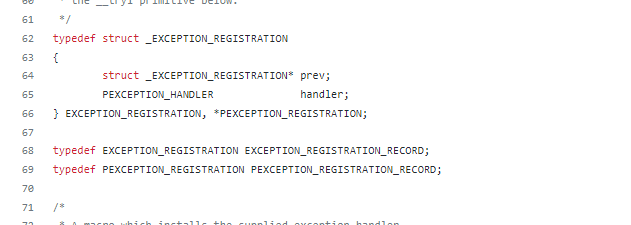

_EXCEPTION_DISPOSITION 结构
此结构指明异常发生时调用的callback函数的位置

typedef struct _EXCEPTION_REGISTRATION
{
    struct _EXCEPTION_REGISTRATION*    prev;
    PEXCEPTION_HANDLER        handler;
} EXCEPTION_REGISTRATION, *PEXCEPTION_REGISTRATION;
typedef EXCEPTION_REGISTRATION EXCEPTION_REGISTRATION_RECORD;
typedef PEXCEPTION_REGISTRATION PEXCEPTION_REGISTRATION_RECORD;

此结构位于fs:[00000000h]处。

形成

单个异常

//==================================================
// MYSEH - Matt Pietrek 1997
// Microsoft Systems Journal, January 1997
// FILE: MYSEH.CPP
// 用命令行CL MYSEH.CPP编译
//==================================================
#define _CRT_SECURE_NO_WARNINGS
#define WIN32_LEAN_AND_MEAN
#include <windows.h>
#include <stdio.h>
DWORD scratch;
EXCEPTION_DISPOSITION
__cdecl
_except_handler(struct _EXCEPTION_RECORD* ExceptionRecord,
    void* EstablisherFrame,
    struct _CONTEXT* ContextRecord,
    void* DispatcherContext)
{
    unsigned i;
    // 指明是我们让流程转到我们的异常处理程序的
    printf("Hello from an exception handler\n");
    // 改变CONTEXT结构中EAX的值，以便它指向可以成功进写操作的位置
    ContextRecord->Eax = (DWORD)&scratch;
    // 告诉操作系统重新执行出错的指令
    return ExceptionContinueExecution;
}
int main()
{
    DWORD handler = (DWORD)_except_handler;
    __asm
    {
        // 创建EXCEPTION_REGISTRATION结构：
        push handler // handler函数的地址
        push FS : [0] // 前一个handler函数的地址
        mov FS : [0] , ESP // 安装新的EXECEPTION_REGISTRATION结构
    }

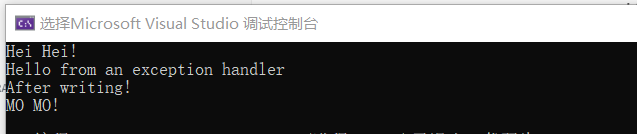

    printf("Hei Hei!\n");
    __asm
    {
        mov eax, 0     // 将EAX清零
        mov[eax], 1 // 写EAX指向的内存从而故意引发一个错误
    }
    printf("After writing!\n");
    __asm
    {
        // 移去我们的EXECEPTION_REGISTRATION结构
        mov eax, [ESP]    // 获取前一个结构
        mov FS : [0] , EAX // 安装前一个结构
        add esp, 8       // 将我们的EXECEPTION_REGISTRATION弹出堆栈
    }
    printf("MO MO!\n");
    return 0;
}

多个异常
