1. 实验环境

2. 安装前准备

2.1. 环境准备

所有机器都需要执行

[root@hdss7-11 ~]# systemctl stop firewalld
[root@hdss7-11 ~]# systemctl disable firewalld
[root@hdss7-11 ~]# setenforce 0
[root@hdss7-11 ~]# sed -ir '/^SELINUX=/s/=.+/=disabled/' /etc/selinux/config
[root@hdss7-11 ~]# yum install -y epel-release
[root@hdss7-11 ~]# yum install -y wget net-tools telnet tree nmap sysstat lrzsz dos2unix bind-utils vim less

2.2. bind安装

2.2.1. hdss7-11 安装bind

[root@hdss7-11 ~]# yum install -y bind

2.2.2. hdss7-11 配置bind

主配置文件

[root@hdss7-11 ~]# vim /etc/named.conf  # 确保以下配置正确
listen-on port 53 { 10.4.7.11; };
  directory     "/var/named";
  allow-query     { any; };
forwarders      { 10.4.7.254; };
recursion yes;
dnssec-enable no;
dnssec-validation no;

在 hdss7-11.host.com 配置区域文件 ```

增加两个zone配置，od.com为业务域，host.com.zone为主机域
[root@hdss7-11 ~]# vim /etc/named.rfc1912.zones
zone “host.com” IN {
```
  type  master;
  file  "host.com.zone";
  allow-update { 10.4.7.11; };
```
};

zone “od.com” IN { type master; file “od.com.zone”; allow-update { 10.4.7.11; }; };


- 在 hdss7-11.host.com 配置主机域文件

line6中时间需要修改

[root@hdss7-11 ~]# vim /var/named/host.com.zone $ORIGIN host.com. $TTL 600 ; 10 minutes @ IN SOA dns.host.com. dnsadmin.host.com. ( 2020010501 ; serial 10800 ; refresh (3 hours) 900 ; retry (15 minutes) 604800 ; expire (1 week) 86400 ; minimum (1 day) ) NS dns.host.com. $TTL 60 ; 1 minute dns A 10.4.7.11 HDSS7-11 A 10.4.7.11 HDSS7-12 A 10.4.7.12 HDSS7-21 A 10.4.7.21 HDSS7-22 A 10.4.7.22 HDSS7-200 A 10.4.7.200


- 在 hdss7-11.host.com 配置业务域文件

[root@hdss7-11 ~]# vim /var/named/od.com.zone $ORIGIN od.com. $TTL 600 ; 10 minutes @ IN SOA dns.od.com. dnsadmin.od.com. ( 2020010501 ; serial 10800 ; refresh (3 hours) 900 ; retry (15 minutes) 604800 ; expire (1 week) 86400 ; minimum (1 day) ) NS dns.od.com. $TTL 60 ; 1 minute dns A 10.4.7.11


- 在 hdss7-11.host.com 启动bind服务，并测试

[root@hdss7-11 ~]# named-checkconf # 检查配置文件 [root@hdss7-11 ~]# systemctl start named ; systemctl enable named [root@hdss7-11 ~]# host HDSS7-200 10.4.7.11 Using domain server: Name: 10.4.7.11 Address: 10.4.7.11#53 Aliases:

HDSS7-200.host.com has address 10.4.7.200

<a name="cFVOU"></a>
#### 2.2.3. 修改主机DNS

- 修改**所有主机**的dns服务器地址

[root@hdss7-11 ~]# sed -i ‘/DNS1/s/10.4.7.254/10.4.7.11/‘ /etc/sysconfig/network-scripts/ifcfg-ens32 [root@hdss7-11 ~]# systemctl restart network [root@hdss7-11 ~]# cat /etc/resolv.conf

Generated by NetworkManager

search host.com nameserver 10.4.7.11

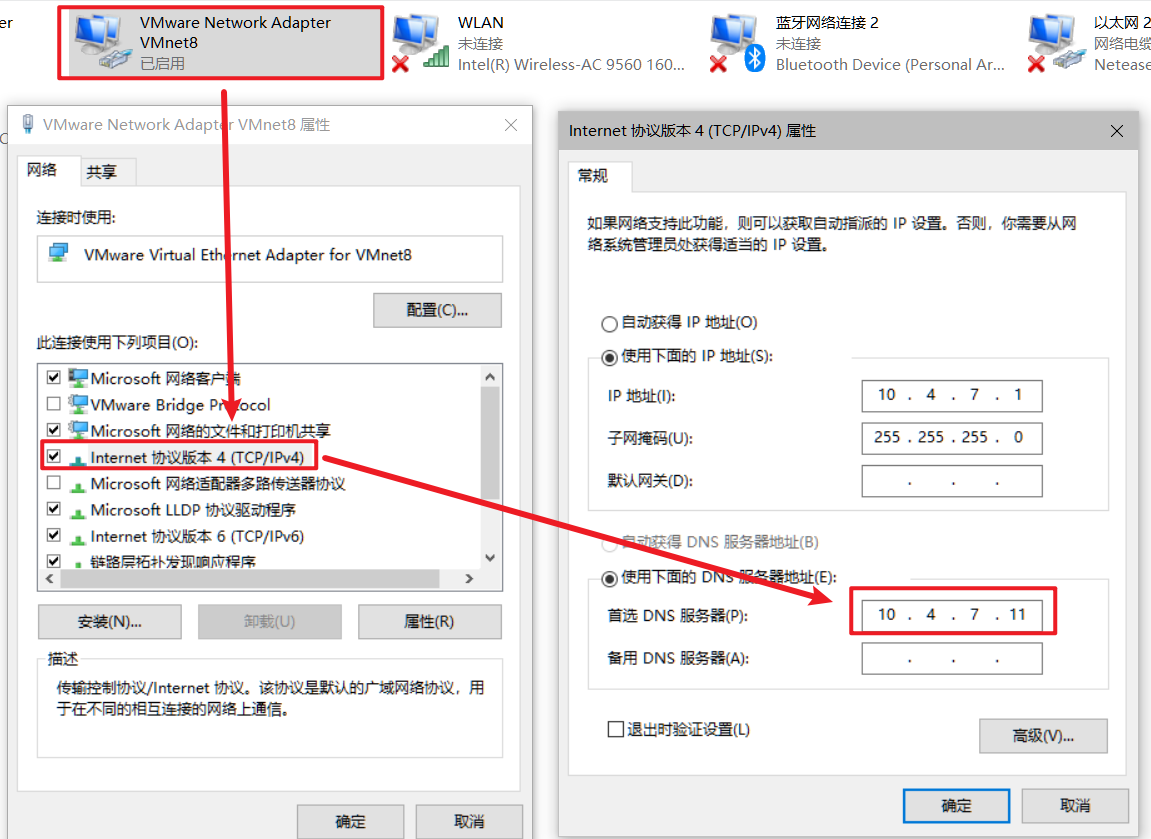

- 本次实验环境使用的是虚拟机，因此也要对windows宿主机NAT网卡DNS进行修改

![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1578191000752-ee694f22-a6bc-4d70-b703-d0d4232bdc3d.png#height=420&id=gWW2i&name=image.png&originHeight=839&originWidth=1151&originalType=binary&ratio=1&size=289617&status=done&style=none&width=575.5)<br />![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1578191049317-c2cba50a-82ec-41db-8a88-203fbf20630b.png#height=102&id=DGMj1&name=image.png&originHeight=116&originWidth=654&originalType=binary&ratio=1&size=16441&status=done&style=none&width=575)
<a name="jNeJp"></a>
### 2.3. 根证书准备

- 在 hdss7-200 下载工具

[root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -O /usr/local/bin/cfssl [root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -O /usr/local/bin/cfssl-json [root@hdss7-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -O /usr/local/bin/cfssl-certinfo [root@hdss7-200 ~]# chmod u+x /usr/local/bin/cfssl*


- 在 hdss7-200 签发根证书

[root@hdss7-200 ~]# mkdir /opt/certs/ ; cd /opt/certs/

根证书配置：

CN 一般写域名，浏览器会校验

names 为地区和公司信息

expiry 为过期时间

[root@hdss7-200 certs]# vim /opt/certs/ca-csr.json { “CN”: “OldboyEdu”, “hosts”: [ ], “key”: { “algo”: “rsa”, “size”: 2048 }, “names”: [ { “C”: “CN”, “ST”: “beijing”, “L”: “beijing”, “O”: “od”, “OU”: “ops” } ], “ca”: { “expiry”: “175200h” } } [root@hdss7-200 certs]# cfssl gencert -initca ca-csr.json | cfssl-json -bare ca 2020/01/05 10:42:07 [INFO] generating a new CA key and certificate from CSR 2020/01/05 10:42:07 [INFO] generate received request 2020/01/05 10:42:07 [INFO] received CSR 2020/01/05 10:42:07 [INFO] generating key: rsa-2048 2020/01/05 10:42:08 [INFO] encoded CSR 2020/01/05 10:42:08 [INFO] signed certificate with serial number 451005524427475354617025362003367427117323539780 [root@hdss7-200 certs]# ls -l ca* -rw-r—r— 1 root root 993 Jan 5 10:42 ca.csr -rw-r—r— 1 root root 328 Jan 5 10:39 ca-csr.json -rw———- 1 root root 1675 Jan 5 10:42 ca-key.pem -rw-r—r— 1 root root 1346 Jan 5 10:42 ca.pem

<a name="MIabG"></a>
### 2.4. docker环境准备
需要安装docker的机器：hdss7-21 hdss7-22 hdss7-200，以hdss7-21为例

[root@hdss7-21 ~]# wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo [root@hdss7-21 ~]# yum install -y docker-ce [root@hdss7-21 ~]# mkdir /etc/docker/

不安全的registry中增加了harbor地址

各个机器上bip网段不一致，bip中间两段与宿主机最后两段相同，目的是方便定位问题

[root@hdss7-21 ~]# vim /etc/docker/daemon.json { “graph”: “/data/docker”, “storage-driver”: “overlay2”, “insecure-registries”: [“registry.access.redhat.com”,”quay.io”,”harbor.od.com”], “registry-mirrors”: [“https://registry.docker-cn.com“], “bip”: “172.7.21.1/24”, “exec-opts”: [“native.cgroupdriver=systemd”], “live-restore”: true } [root@hdss7-21 ~]# mkdir /data/docker [root@hdss7-21 ~]# systemctl start docker ; systemctl enable docker

<a name="gTsoj"></a>
### 2.5. harbor安装
参考地址：[https://www.yuque.com/duduniao/trp3ic/ohrxds#9Zpxx](https://www.yuque.com/duduniao/trp3ic/ohrxds#9Zpxx)<br />官方地址：[https://goharbor.io/](https://goharbor.io/)<br />下载地址：[https://github.com/goharbor/harbor/releases](https://github.com/goharbor/harbor/releases)
<a name="7VZYN"></a>
#### 2.5.1. hdss7-200 安装harbor

目录说明：

/opt/src : 源码、文件下载目录

/opt/release : 各个版本软件存放位置

/opt/apps : 各个软件当前版本的软链接

[root@hdss7-200 ~]# cd /opt/src [root@hdss7-200 src]# wget https://github.com/goharbor/harbor/releases/download/v1.9.4/harbor-offline-installer-v1.9.4.tgz [root@hdss7-200 src]# mv harbor /opt/release/harbor-v1.9.4 [root@hdss7-200 src]# ln -s /opt/release/harbor-v1.9.4 /opt/apps/harbor [root@hdss7-200 src]# ll /opt/apps/ total 0 lrwxrwxrwx 1 root root 26 Jan 5 11:13 harbor -> /opt/release/harbor-v1.9.4

实验环境仅修改以下配置项，生产环境还得修改密码

[root@hdss7-200 src]# vim /opt/apps/harbor/harbor.yml hostname: harbor.od.com http: port: 180 data_volume: /data/harbor location: /data/harbor/logs [root@hdss7-200 src]# yum install -y docker-compose [root@hdss7-200 src]# cd /opt/apps/harbor/ [root@hdss7-200 harbor]# ./install.sh …… ✔ ——Harbor has been installed and started successfully.—— [root@hdss7-200 harbor]# docker-compose ps

  Name                     Command               State             Ports

harbor-core /harbor/harbor_core Up
harbor-db /docker-entrypoint.sh Up 5432/tcp
harbor-jobservice /harbor/harbor_jobservice … Up
harbor-log /bin/sh -c /usr/local/bin/ … Up 127.0.0.1:1514->10514/tcp harbor-portal nginx -g daemon off; Up 8080/tcp
nginx nginx -g daemon off; Up 0.0.0.0:180->8080/tcp
redis redis-server /etc/redis.conf Up 6379/tcp
registry /entrypoint.sh /etc/regist … Up 5000/tcp
registryctl /harbor/start.sh Up


- 设置harbor开机启动

[root@hdss7-200 harbor]# vim /etc/rc.d/rc.local # 增加以下内容

start harbor

cd /opt/apps/harbor /usr/bin/docker-compose stop /usr/bin/docker-compose start

<a name="DQMU7"></a>
#### 2.5.2. hdss7-200 安装nginx

- 安装Nginx反向代理harbor

当前机器中Nginx功能较少，使用yum安装即可。如有多个harbor考虑源码编译且配置健康检查

nginx配置此处忽略，仅仅使用最简单的配置。

[root@hdss7-200 harbor]# vim /etc/nginx/conf.d/harbor.conf [root@hdss7-200 harbor]# cat /etc/nginx/conf.d/harbor.conf server { listen 80; server_name harbor.od.com;

# 避免出现上传失败的情况
client_max_body_size 1000m;

location / {
    proxy_pass http://127.0.0.1:180;
}

} [root@hdss7-200 harbor]# systemctl start nginx ; systemctl enable nginx

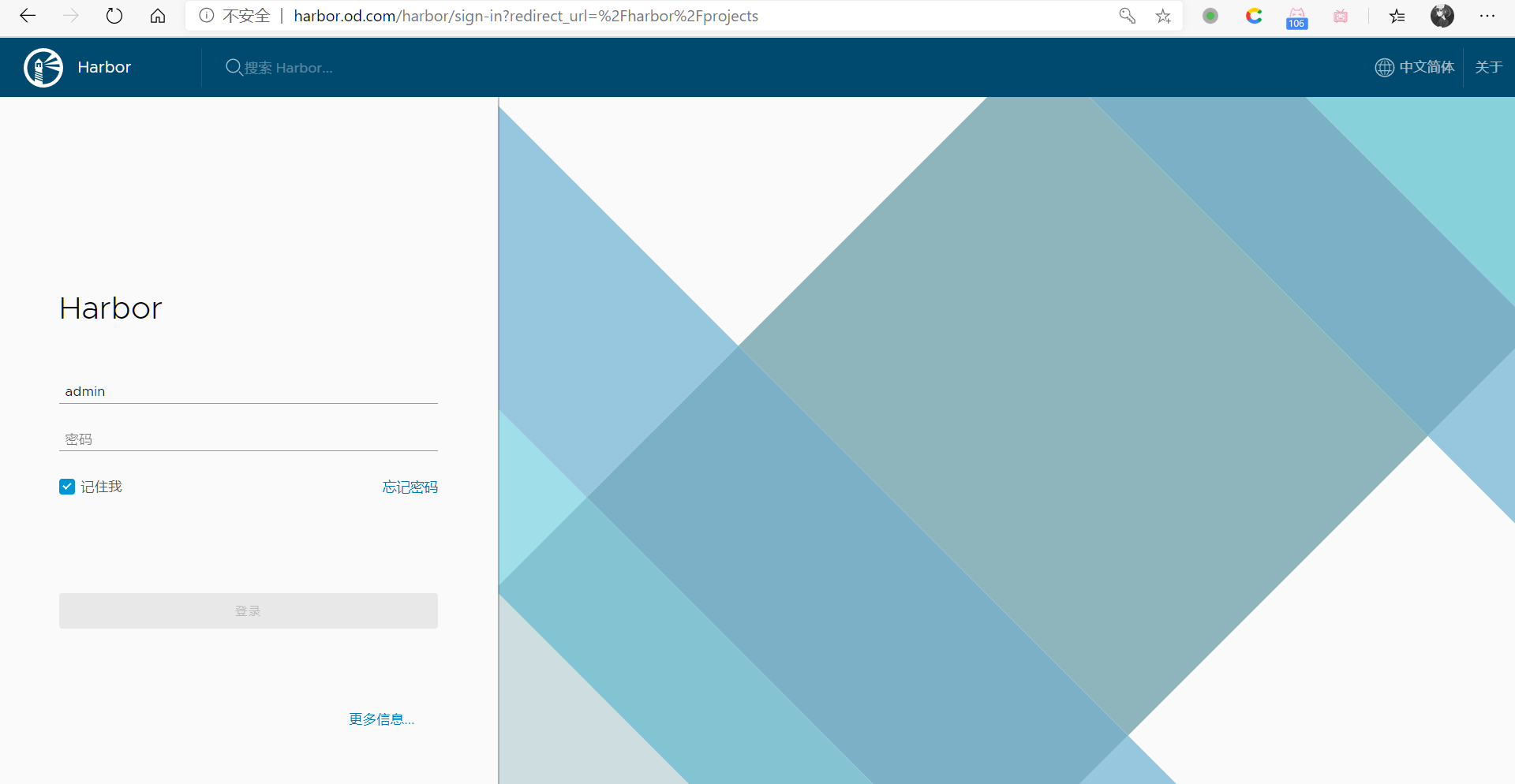

- hdss7-11 配置DNS解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone # 序列号需要滚动一个 $ORIGIN od.com. $TTL 600 ; 10 minutes @ IN SOA dns.od.com. dnsadmin.od.com. ( 2020010502 ; serial 10800 ; refresh (3 hours) 900 ; retry (15 minutes) 604800 ; expire (1 week) 86400 ; minimum (1 day) ) NS dns.od.com. $TTL 60 ; 1 minute dns A 10.4.7.11 harbor A 10.4.7.200 [root@hdss7-11 ~]# systemctl restart named.service # reload 无法使得配置生效 [root@hdss7-11 ~]# host harbor.od.com harbor.od.com has address 10.4.7.200

![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1578196190538-98be4e80-c8be-47fe-892b-835a57efa7d9.png#height=497&id=M6sMF&name=image.png&originHeight=994&originWidth=1920&originalType=binary&ratio=1&size=104822&status=done&style=none&width=960)

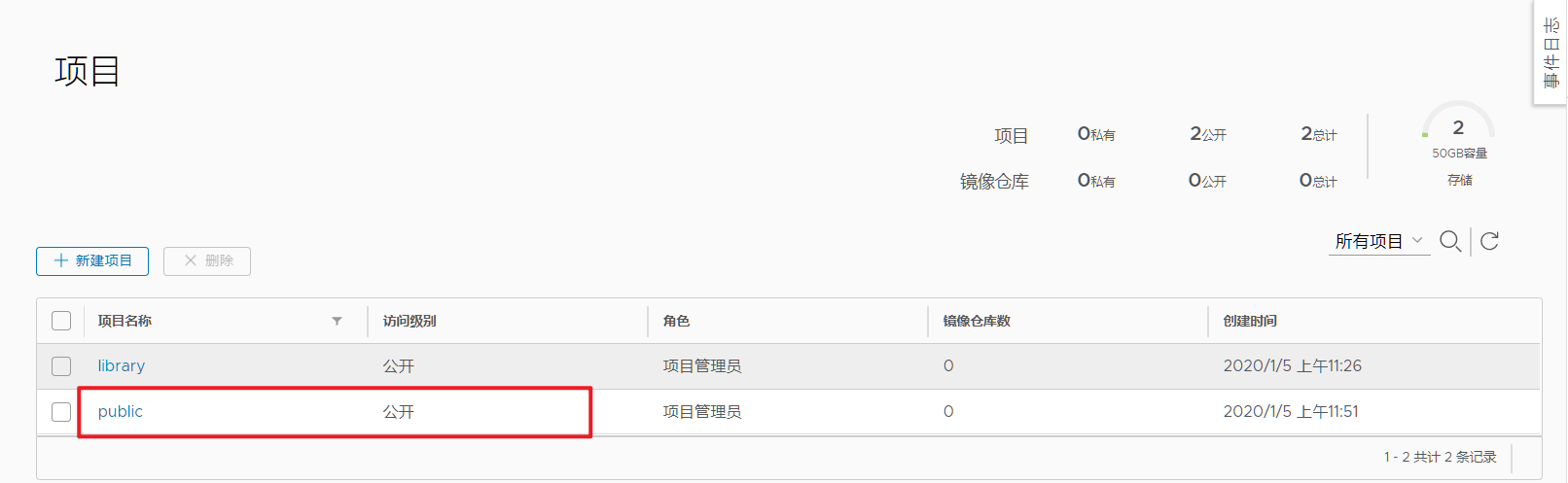

- 新建项目: public

![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1578196302808-de051172-d76a-4f94-b765-30fa5a169eee.png#height=249&id=bqogW&name=image.png&originHeight=497&originWidth=1612&originalType=binary&ratio=1&size=47293&status=done&style=none&width=806)

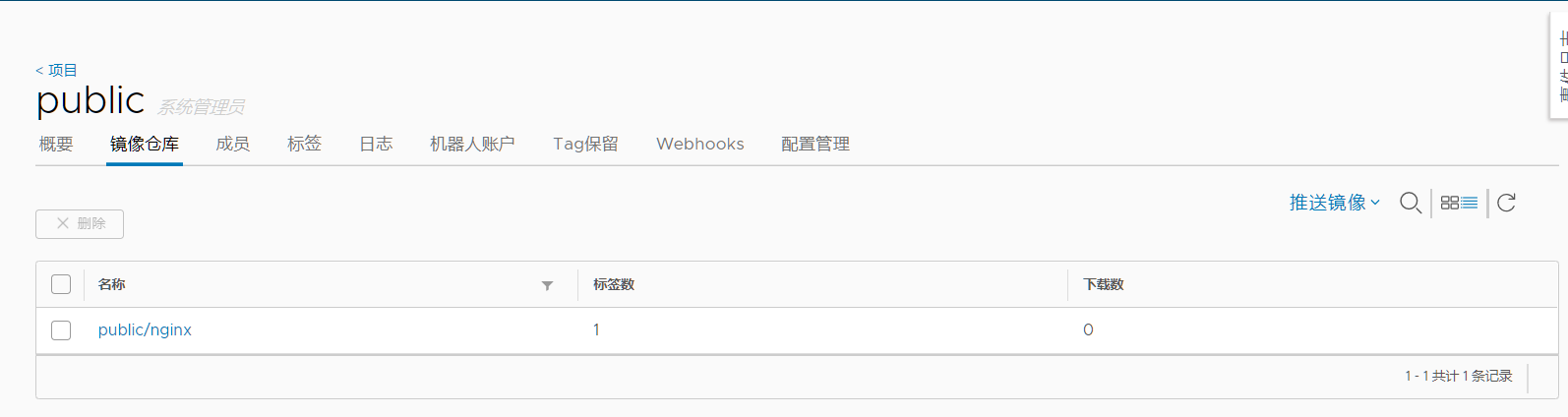

- 测试harbor

[root@hdss7-21 ~]# docker image tag nginx:latest harbor.od.com/public/nginx:latest [root@hdss7-21 ~]# docker login -u admin harbor.od.com [root@hdss7-21 ~]# docker image push harbor.od.com/public/nginx:latest [root@hdss7-21 ~]# docker logout

![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1578196995824-ed4883e6-25ba-4f8b-9ba3-f50f5fbcd187.png#height=212&id=MKaqW&name=image.png&originHeight=424&originWidth=1594&originalType=binary&ratio=1&size=37945&status=done&style=none&width=797)

<a name="XkUtC"></a>
## 3. 主控节点安装
<a name="hhjbf"></a>
### 3.1. etcd安装
etcd 的leader选举机制，要求至少为3台或以上的奇数台。本次安装涉及：hdss7-12，hdss7-21，hdss7-22
<a name="fOrYn"></a>
#### 3.1.1. 签发etcd证书
证书签发服务器 hdss7-200:

- 创建ca的json配置: /opt/certs/ca-config.json
   - server 表示服务端连接客户端时携带的证书，用于客户端验证服务端身份
   - client 表示客户端连接服务端时携带的证书，用于服务端验证客户端身份
   - peer 表示相互之间连接时使用的证书，如etcd节点之间验证
```json
{
    "signing": {
        "default": {
            "expiry": "175200h"
        },
        "profiles": {
            "server": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth"
                ]
            },
            "client": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "client auth"
                ]
            },
            "peer": {
                "expiry": "175200h",
                "usages": [
                    "signing",
                    "key encipherment",
                    "server auth",
                    "client auth"
                ]
            }
        }
    }
}

创建etcd证书配置：/opt/certs/etcd-peer-csr.json

重点在hosts上，将所有可能的etcd服务器添加到host列表，不能使用网段，新增etcd服务器需要重新签发证书

{
    "CN": "k8s-etcd",
    "hosts": [
        "10.4.7.11",
        "10.4.7.12",
        "10.4.7.21",
        "10.4.7.22"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}

签发证书

[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=peer etcd-peer-csr.json |cfssl-json -bare etcd-peer
[root@hdss7-200 certs]# ll etcd-peer*
-rw-r--r-- 1 root root 1062 Jan  5 17:01 etcd-peer.csr
-rw-r--r-- 1 root root  363 Jan  5 16:59 etcd-peer-csr.json
-rw------- 1 root root 1675 Jan  5 17:01 etcd-peer-key.pem
-rw-r--r-- 1 root root 1428 Jan  5 17:01 etcd-peer.pem

3.1.2. 安装etcd

etcd地址：https://github.com/etcd-io/etcd/
实验使用版本: etcd-v3.1.20-linux-amd64.tar.gz
本次安装涉及：hdss7-12，hdss7-21，hdss7-22

下载etcd

[root@hdss7-12 ~]# useradd -s /sbin/nologin -M etcd
[root@hdss7-12 ~]# cd /opt/src/
[root@hdss7-12 src]# wget https://github.com/etcd-io/etcd/releases/download/v3.1.20/etcd-v3.1.20-linux-amd64.tar.gz
[root@hdss7-12 src]# tar -xf etcd-v3.1.20-linux-amd64.tar.gz
[root@hdss7-12 src]# mv etcd-v3.1.20-linux-amd64 /opt/release/etcd-v3.1.20
[root@hdss7-12 src]# ln -s /opt/release/etcd-v3.1.20 /opt/apps/etcd
[root@hdss7-12 src]# ll /opt/apps/etcd
lrwxrwxrwx 1 root root 25 Jan  5 17:56 /opt/apps/etcd -> /opt/release/etcd-v3.1.20
[root@hdss7-12 src]# mkdir -p /opt/apps/etcd/certs /data/etcd /data/logs/etcd-server

下发证书到各个etcd上

[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# for i in 12 21 22;do scp ca.pem etcd-peer.pem etcd-peer-key.pem hdss7-${i}:/opt/apps/etcd/certs/ ;done

[root@hdss7-12 src]# md5sum /opt/apps/etcd/certs/*
8778d0c3411891af61a287e49a70c89a  /opt/apps/etcd/certs/ca.pem
7918783c2f6bf69e96edf03e67d04983  /opt/apps/etcd/certs/etcd-peer-key.pem
d4d849751a834c7727d42324fdedf92d  /opt/apps/etcd/certs/etcd-peer.pem

创建启动脚本(部分参数每台机器不同) ```bash [root@hdss7-12 ~]# vim /opt/apps/etcd/etcd-server-startup.sh
!/bin/sh
listen-peer-urls etcd节点之间通信端口
listen-client-urls 客户端与etcd通信端口
quota-backend-bytes 配额大小
需要修改的参数：name,listen-peer-urls,listen-client-urls,initial-advertise-peer-urls

WORK_DIR=$(dirname $(readlink -f $0)) [ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/etcd/etcd —name etcd-server-7-12 \ —data-dir /data/etcd/etcd-server \ —listen-peer-urls https://10.4.7.12:2380 \ —listen-client-urls https://10.4.7.12:2379,http://127.0.0.1:2379 \ —quota-backend-bytes 8000000000 \ —initial-advertise-peer-urls https://10.4.7.12:2380 \ —advertise-client-urls https://10.4.7.12:2379,http://127.0.0.1:2379 \ —initial-cluster etcd-server-7-12=https://10.4.7.12:2380,etcd-server-7-21=https://10.4.7.21:2380,etcd-server-7-22=https://10.4.7.22:2380 \ —ca-file ./certs/ca.pem \ —cert-file ./certs/etcd-peer.pem \ —key-file ./certs/etcd-peer-key.pem \ —client-cert-auth \ —trusted-ca-file ./certs/ca.pem \ —peer-ca-file ./certs/ca.pem \ —peer-cert-file ./certs/etcd-peer.pem \ —peer-key-file ./certs/etcd-peer-key.pem \ —peer-client-cert-auth \ —peer-trusted-ca-file ./certs/ca.pem \ —log-output stdout

[root@hdss7-12 ~]# chmod u+x /opt/apps/etcd/etcd-server-startup.sh [root@hdss7-12 ~]# chown -R etcd.etcd /opt/apps/etcd/ /data/etcd /data/logs/etcd-server

<a name="UGdjQ"></a>
#### 3.1.3. 启动etcd
因为这些进程都是要启动为后台进程，要么手动启动，要么采用后台进程管理工具，实验中使用后台管理工具

[root@hdss7-12 ~]# yum install -y supervisor [root@hdss7-12 ~]# systemctl start supervisord ; systemctl enable supervisord [root@hdss7-12 ~]# vim /etc/supervisord.d/etcd-server.ini [program:etcd-server-7-12] command=/opt/apps/etcd/etcd-server-startup.sh ; the program (relative uses PATH, can take args) numprocs=1 ; number of processes copies to start (def 1) directory=/opt/apps/etcd ; directory to cwd to before exec (def no cwd) autostart=true ; start at supervisord start (default: true) autorestart=true ; retstart at unexpected quit (default: true) startsecs=30 ; number of secs prog must stay running (def. 1) startretries=3 ; max # of serial start failures (default 3) exitcodes=0,2 ; ‘expected’ exit codes for process (default 0,2) stopsignal=QUIT ; signal used to kill process (default TERM) stopwaitsecs=10 ; max num secs to wait b4 SIGKILL (default 10) user=etcd ; setuid to this UNIX account to run the program redirect_stderr=true ; redirect proc stderr to stdout (default false) stdout_logfile=/data/logs/etcd-server/etcd.stdout.log ; stdout log path, NONE for none; default AUTO stdout_logfile_maxbytes=64MB ; max # logfile bytes b4 rotation (default 50MB) stdout_logfile_backups=5 ; # of stdout logfile backups (default 10) stdout_capture_maxbytes=1MB ; number of bytes in ‘capturemode’ (default 0) stdout_events_enabled=false ; emit events on stdout writes (default false) [root@hdss7-12 ~]# supervisorctl update etcd-server-7-12: added process group


- etcd 进程状态查看

[root@hdss7-12 ~]# supervisorctl status # supervisorctl 状态 etcd-server-7-12 RUNNING pid 22375, uptime 0:00:39

[root@hdss7-12 ~]# netstat -lntp|grep etcd tcp 0 0 10.4.7.12:2379 0.0.0.0: LISTEN 22379/etcd
tcp 0 0 127.0.0.1:2379 0.0.0.0: LISTEN 22379/etcd
tcp 0 0 10.4.7.12:2380 0.0.0.0:* LISTEN 22379/etcd

[root@hdss7-12 ~]# /opt/apps/etcd/etcdctl member list # 随着etcd重启，leader会变化 988139385f78284: name=etcd-server-7-22 peerURLs=https://10.4.7.22:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.22:2379 isLeader=false 5a0ef2a004fc4349: name=etcd-server-7-21 peerURLs=https://10.4.7.21:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.21:2379 isLeader=true f4a0cb0a765574a8: name=etcd-server-7-12 peerURLs=https://10.4.7.12:2380 clientURLs=http://127.0.0.1:2379,https://10.4.7.12:2379 isLeader=false

[root@hdss7-12 ~]# /opt/apps/etcd/etcdctl cluster-health member 988139385f78284 is healthy: got healthy result from http://127.0.0.1:2379 member 5a0ef2a004fc4349 is healthy: got healthy result from http://127.0.0.1:2379 member f4a0cb0a765574a8 is healthy: got healthy result from http://127.0.0.1:2379 cluster is healthy


- etcd 启停方式

[root@hdss7-12 ~]# supervisorctl start etcd-server-7-12 [root@hdss7-12 ~]# supervisorctl stop etcd-server-7-12 [root@hdss7-12 ~]# supervisorctl restart etcd-server-7-12 [root@hdss7-12 ~]# supervisorctl status etcd-server-7-12

<a name="zic0e"></a>
### 3.2. apiserver 安装
<a name="G9D3U"></a>
#### 3.2.1. 下载kubernetes服务端
aipserver 涉及的服务器：hdss7-21，hdss7-22<br />下载 kubernetes 二进制版本包需要科学上网工具

- 进入kubernetes的github页面: [https://github.com/kubernetes/kubernetes](https://github.com/kubernetes/kubernetes)
- 进入tags页签: [https://github.com/kubernetes/kubernetes/tags](https://github.com/kubernetes/kubernetes/tags)
- 选择要下载的版本: [https://github.com/kubernetes/kubernetes/releases/tag/v1.15.2](https://github.com/kubernetes/kubernetes/releases/tag/v1.15.2)
- 点击 CHANGELOG-${version}.md  进入说明页面: [https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG-1.15.md#downloads-for-v1152](https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG-1.15.md#downloads-for-v1152)
- 下载Server Binaries: [https://dl.k8s.io/v1.15.2/kubernetes-server-linux-amd64.tar.gz](https://dl.k8s.io/v1.15.2/kubernetes-server-linux-amd64.tar.gz)

[root@hdss7-21 ~]# cd /opt/src [root@hdss7-21 src]# wget https://dl.k8s.io/v1.15.2/kubernetes-server-linux-amd64.tar.gz

[root@hdss7-21 src]# tar -xf kubernetes-server-linux-amd64.tar.gz [root@hdss7-21 src]# mv kubernetes /opt/release/kubernetes-v1.15.2 [root@hdss7-21 src]# ln -s /opt/release/kubernetes-v1.15.2 /opt/apps/kubernetes [root@hdss7-21 src]# ll /opt/apps/kubernetes lrwxrwxrwx 1 root root 31 Jan 6 12:59 /opt/apps/kubernetes -> /opt/release/kubernetes-v1.15.2

[root@hdss7-21 src]# cd /opt/apps/kubernetes [root@hdss7-21 kubernetes]# rm -f kubernetes-src.tar.gz [root@hdss7-21 kubernetes]# cd server/bin/ [root@hdss7-21 bin]# rm -f .tar _tag # .tar _tag 镜像文件 [root@hdss7-21 bin]# ll total 884636 -rwxr-xr-x 1 root root 43534816 Aug 5 18:01 apiextensions-apiserver -rwxr-xr-x 1 root root 100548640 Aug 5 18:01 cloud-controller-manager -rwxr-xr-x 1 root root 200648416 Aug 5 18:01 hyperkube -rwxr-xr-x 1 root root 40182208 Aug 5 18:01 kubeadm -rwxr-xr-x 1 root root 164501920 Aug 5 18:01 kube-apiserver -rwxr-xr-x 1 root root 116397088 Aug 5 18:01 kube-controller-manager -rwxr-xr-x 1 root root 42985504 Aug 5 18:01 kubectl -rwxr-xr-x 1 root root 119616640 Aug 5 18:01 kubelet -rwxr-xr-x 1 root root 36987488 Aug 5 18:01 kube-proxy -rwxr-xr-x 1 root root 38786144 Aug 5 18:01 kube-scheduler -rwxr-xr-x 1 root root 1648224 Aug 5 18:01 mounter

<a name="ChFxb"></a>
#### 3.2.2. 签发证书
签发证书 涉及的服务器：hdss7-200

- 签发client证书（apiserver和etcd通信证书）

[root@hdss7-200 ~]# cd /opt/certs/ [root@hdss7-200 certs]# vim /opt/certs/client-csr.json { “CN”: “k8s-node”, “hosts”: [ ], “key”: { “algo”: “rsa”, “size”: 2048 }, “names”: [ { “C”: “CN”, “ST”: “beijing”, “L”: “beijing”, “O”: “od”, “OU”: “ops” } ] } [root@hdss7-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client client-csr.json |cfssl-json -bare client 2020/01/06 13:42:47 [INFO] generate received request 2020/01/06 13:42:47 [INFO] received CSR 2020/01/06 13:42:47 [INFO] generating key: rsa-2048 2020/01/06 13:42:47 [INFO] encoded CSR 2020/01/06 13:42:47 [INFO] signed certificate with serial number 268276380983442021656020268926931973684313260543 2020/01/06 13:42:47 [WARNING] This certificate lacks a “hosts” field. This makes it unsuitable for websites. For more information see the Baseline Requirements for the Issuance and Management of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org); specifically, section 10.2.3 (“Information Requirements”). [root@hdss7-200 certs]# ls client* -l -rw-r—r— 1 root root 993 Jan 6 13:42 client.csr -rw-r—r— 1 root root 280 Jan 6 13:42 client-csr.json -rw———- 1 root root 1679 Jan 6 13:42 client-key.pem -rw-r—r— 1 root root 1363 Jan 6 13:42 client.pem


- 签发server证书（apiserver和其它k8s组件通信使用）

hosts中将所有可能作为apiserver的ip添加进去，VIP 10.4.7.10 也要加入

[root@hdss7-200 certs]# vim /opt/certs/apiserver-csr.json { “CN”: “k8s-apiserver”, “hosts”: [ “127.0.0.1”, “192.168.0.1”, “kubernetes.default”, “kubernetes.default.svc”, “kubernetes.default.svc.cluster”, “kubernetes.default.svc.cluster.local”, “10.4.7.10”, “10.4.7.21”, “10.4.7.22”, “10.4.7.23” ], “key”: { “algo”: “rsa”, “size”: 2048 }, “names”: [ { “C”: “CN”, “ST”: “beijing”, “L”: “beijing”, “O”: “od”, “OU”: “ops” } ] } [root@hdss7-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=server apiserver-csr.json |cfssl-json -bare apiserver 2020/01/06 13:46:56 [INFO] generate received request 2020/01/06 13:46:56 [INFO] received CSR 2020/01/06 13:46:56 [INFO] generating key: rsa-2048 2020/01/06 13:46:56 [INFO] encoded CSR 2020/01/06 13:46:56 [INFO] signed certificate with serial number 573076691386375893093727554861295529219004473872 2020/01/06 13:46:56 [WARNING] This certificate lacks a “hosts” field. This makes it unsuitable for websites. For more information see the Baseline Requirements for the Issuance and Management of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org); specifically, section 10.2.3 (“Information Requirements”). [root@hdss7-200 certs]# ls apiserver* -l -rw-r—r— 1 root root 1249 Jan 6 13:46 apiserver.csr -rw-r—r— 1 root root 566 Jan 6 13:45 apiserver-csr.json -rw———- 1 root root 1675 Jan 6 13:46 apiserver-key.pem -rw-r—r— 1 root root 1598 Jan 6 13:46 apiserver.pem


- 证书下发

[root@hdss7-200 certs]# for i in 21 22;do echo hdss7-$i;ssh hdss7-$i “mkdir /opt/apps/kubernetes/server/bin/certs”;scp apiserver-key.pem apiserver.pem ca-key.pem ca.pem client-key.pem client.pem hdss7-$i:/opt/apps/kubernetes/server/bin/certs/;done

<a name="ya6eY"></a>
#### 3.2.3. 配置apiserver日志审计
aipserver 涉及的服务器：hdss7-21，hdss7-22

[root@hdss7-21 bin]# mkdir /opt/apps/kubernetes/conf [root@hdss7-21 bin]# vim /opt/apps/kubernetes/conf/audit.yaml # 打开文件后，设置 :set paste，避免自动缩进 apiVersion: audit.k8s.io/v1beta1 # This is required. kind: Policy

Don’t generate audit events for all requests in RequestReceived stage.

omitStages:

“RequestReceived” rules:
Log pod changes at RequestResponse level
level: RequestResponse resources:
- group: “”
  Resource “pods” doesn’t match requests to any subresource of pods,
  which is consistent with the RBAC policy.
  resources: [“pods”]
  Log “pods/log”, “pods/status” at Metadata level
level: Metadata resources:
- group: “” resources: [“pods/log”, “pods/status”]
Don’t log requests to a configmap called “controller-leader”
level: None resources:
- group: “” resources: [“configmaps”] resourceNames: [“controller-leader”]
Don’t log watch requests by the “system:kube-proxy” on endpoints or services
level: None users: [“system:kube-proxy”] verbs: [“watch”] resources:
- group: “” # core API group resources: [“endpoints”, “services”]
Don’t log authenticated requests to certain non-resource URL paths.
level: None userGroups: [“system:authenticated”] nonResourceURLs:
- “/api*” # Wildcard matching.
- “/version”
Log the request body of configmap changes in kube-system.
level: Request resources:
- group: “” # core API group resources: [“configmaps”]
  This rule only applies to resources in the “kube-system” namespace.
  The empty string “” can be used to select non-namespaced resources.
  namespaces: [“kube-system”]
Log configmap and secret changes in all other namespaces at the Metadata level.
level: Metadata resources:
- group: “” # core API group resources: [“secrets”, “configmaps”]
Log all other resources in core and extensions at the Request level.
level: Request resources:
- group: “” # core API group
- group: “extensions” # Version of group should NOT be included.
A catch-all rule to log all other requests at the Metadata level.
level: Metadata
Long-running requests like watches that fall under this rule will not
generate an audit event in RequestReceived.
omitStages:
- “RequestReceived” ```
  3.2.4. 配置启动脚本
  aipserver 涉及的服务器：hdss7-21，hdss7-22

创建启动脚本 ```bash [root@hdss7-21 bin]# vim /opt/apps/kubernetes/server/bin/kube-apiserver-startup.sh
!/bin/bash

WORK_DIR=$(dirname $(readlink -f $0)) [ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/kubernetes/server/bin/kube-apiserver \ —apiserver-count 2 \ —audit-log-path /data/logs/kubernetes/kube-apiserver/audit-log \ —audit-policy-file ../../conf/audit.yaml \ —authorization-mode RBAC \ —client-ca-file ./certs/ca.pem \ —requestheader-client-ca-file ./certs/ca.pem \ —enable-admission-plugins NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota \ —etcd-cafile ./certs/ca.pem \ —etcd-certfile ./certs/client.pem \ —etcd-keyfile ./certs/client-key.pem \ —etcd-servers https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 \ —service-account-key-file ./certs/ca-key.pem \ —service-cluster-ip-range 192.168.0.0/16 \ —service-node-port-range 3000-29999 \ —target-ram-mb=1024 \ —kubelet-client-certificate ./certs/client.pem \ —kubelet-client-key ./certs/client-key.pem \ —log-dir /data/logs/kubernetes/kube-apiserver \ —tls-cert-file ./certs/apiserver.pem \ —tls-private-key-file ./certs/apiserver-key.pem \ —v 2


- 配置supervisor启动配置

[root@hdss7-21 bin]# vim /etc/supervisord.d/kube-apiserver.ini [program:kube-apiserver-7-21] command=/opt/apps/kubernetes/server/bin/kube-apiserver-startup.sh numprocs=1 directory=/opt/apps/kubernetes/server/bin autostart=true autorestart=true startsecs=30 startretries=3 exitcodes=0,2 stopsignal=QUIT stopwaitsecs=10 user=root redirect_stderr=true stdout_logfile=/data/logs/kubernetes/kube-apiserver/apiserver.stdout.log stdout_logfile_maxbytes=64MB stdout_logfile_backups=5 stdout_capture_maxbytes=1MB stdout_events_enabled=false [root@hdss7-21 bin]# supervisorctl update [root@hdss7-21 bin]# supervisorctl status etcd-server-7-21 RUNNING pid 23637, uptime 22:26:08 kube-apiserver-7-21 RUNNING pid 32591, uptime 0:05:37


- 启停apiserver

[root@hdss7-12 ~]# supervisorctl start kube-apiserver-7-21 [root@hdss7-12 ~]# supervisorctl stop kube-apiserver-7-21 [root@hdss7-12 ~]# supervisorctl restart kube-apiserver-7-21 [root@hdss7-12 ~]# supervisorctl status kube-apiserver-7-21


- 查看进程

[root@hdss7-21 bin]# netstat -lntp|grep api tcp 0 0 127.0.0.1:8080 0.0.0.0: LISTEN 32595/kube-apiserve tcp6 0 0 :::6443 ::: LISTEN 32595/kube-apiserve [root@hdss7-21 bin]# ps uax|grep kube-apiserver|grep -v grep root 32591 0.0 0.0 115296 1476 ? S 20:17 0:00 /bin/bash /opt/apps/kubernetes/server/bin/kube-apiserver-startup.sh root 32595 3.0 2.3 402720 184892 ? Sl 20:17 0:16 /opt/apps/kubernetes/server/bin/kube-apiserver —apiserver-count 2 —audit-log-path /data/logs/kubernetes/kube-apiserver/audit-log —audit-policy-file ../../conf/audit.yaml —authorization-mode RBAC —client-ca-file ./certs/ca.pem —requestheader-client-ca-file ./certs/ca.pem —enable-admission-plugins NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota —etcd-cafile ./certs/ca.pem —etcd-certfile ./certs/client.pem —etcd-keyfile ./certs/client-key.pem —etcd-servers https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 —service-account-key-file ./certs/ca-key.pem —service-cluster-ip-range 192.168.0.0/16 —service-node-port-range 3000-29999 —target-ram-mb=1024 —kubelet-client-certificate ./certs/client.pem —kubelet-client-key ./certs/client-key.pem —log-dir /data/logs/kubernetes/kube-apiserver —tls-cert-file ./certs/apiserver.pem —tls-private-key-file ./certs/apiserver-key.pem —v 2

<a name="ziHTp"></a>
### 3.3. 配置apiserver L4代理
<a name="y1e4G"></a>
#### 3.3.1. nginx配置
L4 代理涉及的服务器：hdss7-11，hdss7-12

[root@hdss7-11 ~]# yum install -y nginx [root@hdss7-11 ~]# vim /etc/nginx/nginx.conf

末尾加上以下内容，stream 只能加在 main 中

此处只是简单配置下nginx，实际生产中，建议进行更合理的配置

stream { log_format proxy ‘$time_local|$remote_addr|$upstream_addr|$protocol|$status|’ ‘$session_time|$upstream_connect_time|$bytes_sent|$bytes_received|’ ‘$upstream_bytes_sent|$upstream_bytes_received’ ;

upstream kube-apiserver {
    server 10.4.7.21:6443     max_fails=3 fail_timeout=30s;
    server 10.4.7.22:6443     max_fails=3 fail_timeout=30s;
}
server {
    listen 7443;
    proxy_connect_timeout 2s;
    proxy_timeout 900s;
    proxy_pass kube-apiserver;
    access_log /var/log/nginx/proxy.log proxy;
}

} [root@hdss7-11 ~]# systemctl start nginx; systemctl enable nginx [root@hdss7-11 ~]# curl 127.0.0.1:7443 # 测试几次 Client sent an HTTP request to an HTTPS server. [root@hdss7-11 ~]# cat /var/log/nginx/proxy.log 06/Jan/2020:21:00:27 +0800|127.0.0.1|10.4.7.21:6443|TCP|200|0.001|0.000|76|78|78|76 06/Jan/2020:21:05:03 +0800|127.0.0.1|10.4.7.22:6443|TCP|200|0.020|0.019|76|78|78|76 06/Jan/2020:21:05:04 +0800|127.0.0.1|10.4.7.21:6443|TCP|200|0.001|0.001|76|78|78|76

<a name="x7G2U"></a>
#### 3.3.2. keepalived配置
aipserver L4 代理涉及的服务器：hdss7-11，hdss7-12

- 安装keepalive

[root@hdss7-11 ~]# yum install -y keepalived [root@hdss7-11 ~]# vim /etc/keepalived/check_port.sh # 配置检查脚本

!/bin/bash

if [ $# -eq 1 ] && [[ $1 =~ ^[0-9]+ ]];then [ $(netstat -lntp|grep “:$1 “ |wc -l) -eq 0 ] && echo “[ERROR] nginx may be not running!” && exit 1 || exit 0 else echo “[ERROR] need one port!” exit 1 fi [root@hdss7-11 ~]# chmod +x /etc/keepalived/check_port.sh


- 配置主节点：/etc/keepalived/keepalived.conf

**主节点中，必须加上 nopreempt**<br />因为一旦因为网络抖动导致VIP漂移，不能让它自动飘回来，必须要分析原因后手动迁移VIP到主节点！如主节点确认正常后，重启备节点的keepalive，让VIP飘到主节点.<br />keepalived 的日志输出配置此处省略，生产中需要进行处理。

! Configuration File for keepalived global_defs { router_id 10.4.7.11 } vrrp_script chk_nginx { script “/etc/keepalived/check_port.sh 7443” interval 2 weight -20 } vrrp_instance VI_1 { state MASTER interface ens32 virtual_router_id 251 priority 100 advert_int 1 mcast_src_ip 10.4.7.11 nopreempt

authentication {
    auth_type PASS
    auth_pass 11111111
}
track_script {
     chk_nginx
}
virtual_ipaddress {
    10.4.7.10
}

}


- 配置备节点：/etc/keepalived/keepalived.conf

! Configuration File for keepalived global_defs { router_id 10.4.7.12 } vrrp_script chk_nginx { script “/etc/keepalived/check_port.sh 7443” interval 2 weight -20 } vrrp_instance VI_1 { state BACKUP interface ens32 virtual_router_id 251 mcast_src_ip 10.4.7.12 priority 90 advert_int 1 authentication { auth_type PASS auth_pass 11111111 } track_script { chk_nginx } virtual_ipaddress { 10.4.7.10 } }


- 启动keepalived

[root@hdss7-11 ~]# systemctl start keepalived ; systemctl enable keepalived [root@hdss7-11 ~]# ip addr show ens32 2: ens32: mtu 1500 qdisc pfifo_fast state UP group default qlen 1000 link/ether 00:0c:29:6d:b8:82 brd ff:ff:ff:ff:ff:ff inet 10.4.7.11/24 brd 10.4.7.255 scope global noprefixroute ens32 valid_lft forever preferred_lft forever inet 10.4.7.10/32 scope global ens32 valid_lft forever preferred_lft forever ……

<a name="NMhVM"></a>
### 3.4. controller-manager 安装
controller-manager 涉及的服务器：hdss7-21，hdss7-22<br />controller-manager 设置为只调用当前机器的 apiserver，走127.0.0.1网卡，因此不配制SSL证书
```bash
[root@hdss7-21 ~]# vim /opt/apps/kubernetes/server/bin/kube-controller-manager-startup.sh
#!/bin/sh
WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/kubernetes/server/bin/kube-controller-manager \
    --cluster-cidr 172.7.0.0/16 \
    --leader-elect true \
    --log-dir /data/logs/kubernetes/kube-controller-manager \
    --master http://127.0.0.1:8080 \
    --service-account-private-key-file ./certs/ca-key.pem \
    --service-cluster-ip-range 192.168.0.0/16 \
    --root-ca-file ./certs/ca.pem \
    --v 2
[root@hdss7-21 ~]# chmod u+x /opt/apps/kubernetes/server/bin/kube-controller-manager-startup.sh

[root@hdss7-21 ~]# vim /etc/supervisord.d/kube-controller-manager.ini
[program:kube-controller-manager-7-21]
command=/opt/apps/kubernetes/server/bin/kube-controller-manager-startup.sh                     ; the program (relative uses PATH, can take args)
numprocs=1                                                                        ; number of processes copies to start (def 1)
directory=/opt/apps/kubernetes/server/bin                                              ; directory to cwd to before exec (def no cwd)
autostart=true                                                                    ; start at supervisord start (default: true)
autorestart=true                                                                  ; retstart at unexpected quit (default: true)
startsecs=30                                                                      ; number of secs prog must stay running (def. 1)
startretries=3                                                                    ; max # of serial start failures (default 3)
exitcodes=0,2                                                                     ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                                   ; signal used to kill process (default TERM)
stopwaitsecs=10                                                                   ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                                         ; setuid to this UNIX account to run the program
redirect_stderr=true                                                              ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-controller-manager/controller.stdout.log  ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                                      ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                                          ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                                       ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                                                       ; emit events on stdout writes (default false)

[root@hdss7-21 ~]# supervisorctl update
kube-controller-manager-7-21: stopped
kube-controller-manager-7-21: updated process group
[root@hdss7-21 ~]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 23637, uptime 1 day, 0:16:54
kube-apiserver-7-21              RUNNING   pid 32591, uptime 1:56:23
kube-controller-manager-7-21     RUNNING   pid 33357, uptime 0:00:38

3.5. kube-scheduler安装

kube-scheduler 涉及的服务器：hdss7-21，hdss7-22
kube-scheduler 设置为只调用当前机器的 apiserver，走127.0.0.1网卡，因此不配制SSL证书

[root@hdss7-21 ~]# vim /opt/apps/kubernetes/server/bin/kube-scheduler-startup.sh
#!/bin/sh
WORK_DIR=$(dirname $(readlink -f $0))
[ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/kubernetes/server/bin/kube-scheduler \
    --leader-elect  \
    --log-dir /data/logs/kubernetes/kube-scheduler \
    --master http://127.0.0.1:8080 \
    --v 2
[root@hdss7-21 ~]# chmod u+x /opt/apps/kubernetes/server/bin/kube-scheduler-startup.sh
[root@hdss7-21 ~]# mkdir -p /data/logs/kubernetes/kube-scheduler

[root@hdss7-21 ~]# vim /etc/supervisord.d/kube-scheduler.ini
[program:kube-scheduler-7-21]
command=/opt/apps/kubernetes/server/bin/kube-scheduler-startup.sh
numprocs=1
directory=/opt/apps/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-scheduler/scheduler.stdout.log
stdout_logfile_maxbytes=64MB
stdout_logfile_backups=4
stdout_capture_maxbytes=1MB
stdout_events_enabled=false

[root@hdss7-21 ~]# supervisorctl update
kube-scheduler-7-21: stopped
kube-scheduler-7-21: updated process group
[root@hdss7-21 ~]# supervisorctl status
etcd-server-7-21                 RUNNING   pid 23637, uptime 1 day, 0:26:53
kube-apiserver-7-21              RUNNING   pid 32591, uptime 2:06:22
kube-controller-manager-7-21     RUNNING   pid 33357, uptime 0:10:37
kube-scheduler-7-21              RUNNING   pid 33450, uptime 0:01:18

3.6. 检查主控节点状态

[root@hdss7-21 ~]# ln -s /opt/apps/kubernetes/server/bin/kubectl /usr/local/bin/
[root@hdss7-21 ~]# kubectl get cs
NAME                 STATUS    MESSAGE              ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-1               Healthy   {"health": "true"}
etcd-0               Healthy   {"health": "true"}
etcd-2               Healthy   {"health": "true"}

[root@hdss7-22 ~]# ln -s /opt/apps/kubernetes/server/bin/kubectl /usr/local/bin/
[root@hdss7-22 ~]# kubectl get cs
NAME                 STATUS    MESSAGE              ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-2               Healthy   {"health": "true"}
etcd-1               Healthy   {"health": "true"}
etcd-0               Healthy   {"health": "true"}

4. 运算节点部署

4.1. kubelet 部署

4.1.1. 签发证书

证书签发在 hdss7-200 操作

[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# vim kubelet-csr.json # 将所有可能的kubelet机器IP添加到hosts中
{
    "CN": "k8s-kubelet",
    "hosts": [
    "127.0.0.1",
    "10.4.7.10",
    "10.4.7.21",
    "10.4.7.22",
    "10.4.7.23",
    "10.4.7.24",
    "10.4.7.25",
    "10.4.7.26",
    "10.4.7.27",
    "10.4.7.28"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "beijing",
            "L": "beijing",
            "O": "od",
            "OU": "ops"
        }
    ]
}
[root@hdss7-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=server kubelet-csr.json | cfssl-json -bare kubelet
2020/01/06 23:10:56 [INFO] generate received request
2020/01/06 23:10:56 [INFO] received CSR
2020/01/06 23:10:56 [INFO] generating key: rsa-2048
2020/01/06 23:10:56 [INFO] encoded CSR
2020/01/06 23:10:56 [INFO] signed certificate with serial number 61221942784856969738771370531559555767101820379
2020/01/06 23:10:56 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
[root@hdss7-200 certs]# ls kubelet* -l
-rw-r--r-- 1 root root 1115 Jan  6 23:10 kubelet.csr
-rw-r--r-- 1 root root  452 Jan  6 23:10 kubelet-csr.json
-rw------- 1 root root 1675 Jan  6 23:10 kubelet-key.pem
-rw-r--r-- 1 root root 1468 Jan  6 23:10 kubelet.pem

[root@hdss7-200 certs]# scp kubelet.pem kubelet-key.pem hdss7-21:/opt/apps/kubernetes/server/bin/certs/
[root@hdss7-200 certs]# scp kubelet.pem kubelet-key.pem hdss7-22:/opt/apps/kubernetes/server/bin/certs/

4.1.2. 创建kubelet配置

kubelet配置在 hdss7-21 hdss7-22 操作

set-cluster # 创建需要连接的集群信息，可以创建多个k8s集群信息

[root@hdss7-21 ~]# kubectl config set-cluster myk8s \
--certificate-authority=/opt/apps/kubernetes/server/bin/certs/ca.pem \
--embed-certs=true \
--server=https://10.4.7.10:7443 \
--kubeconfig=/opt/apps/kubernetes/conf/kubelet.kubeconfig

set-credentials # 创建用户账号，即用户登陆使用的客户端私有和证书，可以创建多个证书

[root@hdss7-21 ~]# kubectl config set-credentials k8s-node \
--client-certificate=/opt/apps/kubernetes/server/bin/certs/client.pem \
--client-key=/opt/apps/kubernetes/server/bin/certs/client-key.pem \
--embed-certs=true \
--kubeconfig=/opt/apps/kubernetes/conf/kubelet.kubeconfig

set-context # 设置context，即确定账号和集群对应关系

[root@hdss7-21 ~]# kubectl config set-context myk8s-context \
--cluster=myk8s \
--user=k8s-node \
--kubeconfig=/opt/apps/kubernetes/conf/kubelet.kubeconfig

use-context # 设置当前使用哪个context
```
[root@hdss7-21 ~]# kubectl config use-context myk8s-context --kubeconfig=/opt/apps/kubernetes/conf/kubelet.kubeconfig
```
4.1.3. 授权k8s-node用户
此步骤只需要在一台master节点执行
授权 k8s-node 用户绑定集群角色 system:node ，让 k8s-node 成为具备运算节点的权限。 ``` [root@hdss7-21 ~]# vim k8s-node.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: k8s-node roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: system:node subjects:
apiGroup: rbac.authorization.k8s.io kind: User name: k8s-node [root@hdss7-21 ~]# kubectl create -f k8s-node.yaml clusterrolebinding.rbac.authorization.k8s.io/k8s-node created [root@hdss7-21 ~]# kubectl get clusterrolebinding k8s-node NAME AGE k8s-node 36s
```
<a name="RChx7"></a>
#### 4.1.4. 装备pause镜像
将pause镜像放入到harbor私有仓库中，仅在 hdss7-200 操作：
```
[root@hdss7-200 ~]# docker image pull kubernetes/pause [root@hdss7-200 ~]# docker image tag kubernetes/pause:latest harbor.od.com/public/pause:latest [root@hdss7-200 ~]# docker login -u admin harbor.od.com [root@hdss7-200 ~]# docker image push harbor.od.com/public/pause:latest
```
<a name="DkJ3g"></a>
#### 4.1.5. 创建启动脚本
在node节点创建脚本并启动kubelet，涉及服务器： hdss7-21  hdss7-22
```
[root@hdss7-21 ~]# vim /opt/apps/kubernetes/server/bin/kubelet-startup.sh
!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0)) [ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/kubernetes/server/bin/kubelet \ —anonymous-auth=false \ —cgroup-driver systemd \ —cluster-dns 192.168.0.2 \ —cluster-domain cluster.local \ —runtime-cgroups=/systemd/system.slice \ —kubelet-cgroups=/systemd/system.slice \ —fail-swap-on=”false” \ —client-ca-file ./certs/ca.pem \ —tls-cert-file ./certs/kubelet.pem \ —tls-private-key-file ./certs/kubelet-key.pem \ —hostname-override hdss7-21.host.com \ —image-gc-high-threshold 20 \ —image-gc-low-threshold 10 \ —kubeconfig ../../conf/kubelet.kubeconfig \ —log-dir /data/logs/kubernetes/kube-kubelet \ —pod-infra-container-image harbor.od.com/public/pause:latest \ —root-dir /data/kubelet [root@hdss7-21 ~]# chmod u+x /opt/apps/kubernetes/server/bin/kubelet-startup.sh [root@hdss7-21 ~]# mkdir -p /data/logs/kubernetes/kube-kubelet /data/kubelet

[root@hdss7-21 ~]# vim /etc/supervisord.d/kube-kubelet.ini [program:kube-kubelet-7-21] command=/opt/apps/kubernetes/server/bin/kubelet-startup.sh numprocs=1 directory=/opt/apps/kubernetes/server/bin autostart=true autorestart=true startsecs=30 startretries=3 exitcodes=0,2 stopsignal=QUIT stopwaitsecs=10 user=root redirect_stderr=true stdout_logfile=/data/logs/kubernetes/kube-kubelet/kubelet.stdout.log stdout_logfile_maxbytes=64MB stdout_logfile_backups=5 stdout_capture_maxbytes=1MB stdout_events_enabled=false

[root@hdss7-21 ~]# supervisorctl update [root@hdss7-21 ~]# supervisorctl status etcd-server-7-21 RUNNING pid 23637, uptime 1 day, 14:56:25 kube-apiserver-7-21 RUNNING pid 32591, uptime 16:35:54 kube-controller-manager-7-21 RUNNING pid 33357, uptime 14:40:09 kube-kubelet-7-21 RUNNING pid 37232, uptime 0:01:08 kube-scheduler-7-21 RUNNING pid 33450, uptime 14:30:50 [root@hdss7-21 ~]# kubectl get node NAME STATUS ROLES AGE VERSION hdss7-21.host.com Ready 3m13s v1.15.2 hdss7-22.host.com Ready 3m13s v1.15.2

<a name="uzNPY"></a>
#### 4.1.6. 修改节点角色
使用 kubectl get nodes 获取的Node节点角色为空，可以按照以下方式修改

[root@hdss7-21 ~]# kubectl get node NAME STATUS ROLES AGE VERSION hdss7-21.host.com Ready 3m13s v1.15.2 hdss7-22.host.com Ready 3m13s v1.15.2 [root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/node= node/hdss7-21.host.com labeled [root@hdss7-21 ~]# kubectl label node hdss7-21.host.com node-role.kubernetes.io/master= node/hdss7-21.host.com labeled [root@hdss7-21 ~]# kubectl label node hdss7-22.host.com node-role.kubernetes.io/master= node/hdss7-22.host.com labeled [root@hdss7-21 ~]# kubectl label node hdss7-22.host.com node-role.kubernetes.io/node= node/hdss7-22.host.com labeled [root@hdss7-21 ~]# kubectl get node NAME STATUS ROLES AGE VERSION hdss7-21.host.com Ready master,node 7m44s v1.15.2 hdss7-22.host.com Ready master,node 7m44s v1.15.2

<a name="F0OWJ"></a>
### 4.2. kube-proxy部署
<a name="oUoud"></a>
#### 4.2.1. 签发证书
证书签发在 hdss7-200 操作

[root@hdss7-200 ~]# cd /opt/certs/ [root@hdss7-200 certs]# vim kube-proxy-csr.json # CN 其实是k8s中的角色 { “CN”: “system:kube-proxy”, “key”: { “algo”: “rsa”, “size”: 2048 }, “names”: [ { “C”: “CN”, “ST”: “beijing”, “L”: “beijing”, “O”: “od”, “OU”: “ops” } ] } [root@hdss7-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client kube-proxy-csr.json |cfssl-json -bare kube-proxy-client 2020/01/07 21:45:53 [INFO] generate received request 2020/01/07 21:45:53 [INFO] received CSR 2020/01/07 21:45:53 [INFO] generating key: rsa-2048 2020/01/07 21:45:53 [INFO] encoded CSR 2020/01/07 21:45:53 [INFO] signed certificate with serial number 620191685968917036075463174423999296907693104226 2020/01/07 21:45:53 [WARNING] This certificate lacks a “hosts” field. This makes it unsuitable for websites. For more information see the Baseline Requirements for the Issuance and Management of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org); [root@hdss7-200 certs]# ls kube-proxy-c* -l # 因为kube-proxy使用的用户是kube-proxy，不能使用client证书，必须要重新签发自己的证书 -rw-r—r— 1 root root 1005 Jan 7 21:45 kube-proxy-client.csr -rw———- 1 root root 1675 Jan 7 21:45 kube-proxy-client-key.pem -rw-r—r— 1 root root 1375 Jan 7 21:45 kube-proxy-client.pem -rw-r—r— 1 root root 267 Jan 7 21:45 kube-proxy-csr.json

[root@hdss7-200 certs]# scp kube-proxy-client-key.pem kube-proxy-client.pem hdss7-21:/opt/apps/kubernetes/server/bin/certs/ 100% 1375 870.6KB/s 00:00
[root@hdss7-200 certs]# scp kube-proxy-client-key.pem kube-proxy-client.pem hdss7-22:/opt/apps/kubernetes/server/bin/certs/

<a name="LDq8L"></a>
#### 4.2.2. 创建kube-proxy配置
在所有node节点创建，涉及服务器：hdss7-21 ，hdss7-22

[root@hdss7-21 ~]# kubectl config set-cluster myk8s \ —certificate-authority=/opt/apps/kubernetes/server/bin/certs/ca.pem \ —embed-certs=true \ —server=https://10.4.7.10:7443 \ —kubeconfig=/opt/apps/kubernetes/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config set-credentials kube-proxy \ —client-certificate=/opt/apps/kubernetes/server/bin/certs/kube-proxy-client.pem \ —client-key=/opt/apps/kubernetes/server/bin/certs/kube-proxy-client-key.pem \ —embed-certs=true \ —kubeconfig=/opt/apps/kubernetes/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config set-context myk8s-context \ —cluster=myk8s \ —user=kube-proxy \ —kubeconfig=/opt/apps/kubernetes/conf/kube-proxy.kubeconfig

[root@hdss7-21 ~]# kubectl config use-context myk8s-context —kubeconfig=/opt/apps/kubernetes/conf/kube-proxy.kubeconfig

<a name="8AiXM"></a>
#### 4.2.3. 加载ipvs模块
kube-proxy 共有3种流量调度模式，分别是 namespace，iptables，ipvs，其中ipvs性能最好。

[root@hdss7-21 ~]# for i in $(ls /usr/lib/modules/$(uname -r)/kernel/net/netfilter/ipvs|grep -o “^[^.]*”);do echo $i; /sbin/modinfo -F filename $i >/dev/null 2>&1 && /sbin/modprobe $i;done [root@hdss7-21 ~]# lsmod | grep ip_vs # 查看ipvs模块

<a name="oTBhP"></a>
#### 4.2.4. 创建启动脚本

[root@hdss7-21 ~]# vim /opt/apps/kubernetes/server/bin/kube-proxy-startup.sh

!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0)) [ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/kubernetes/server/bin/kube-proxy \ —cluster-cidr 172.7.0.0/16 \ —hostname-override hdss7-21.host.com \ —proxy-mode=ipvs \ —ipvs-scheduler=nq \ —kubeconfig ../../conf/kube-proxy.kubeconfig [root@hdss7-21 ~]# chmod u+x /opt/apps/kubernetes/server/bin/kube-proxy-startup.sh [root@hdss7-21 ~]# mkdir -p /data/logs/kubernetes/kube-proxy [root@hdss7-21 ~]# vim /etc/supervisord.d/kube-proxy.ini [program:kube-proxy-7-21] command=/opt/apps/kubernetes/server/bin/kube-proxy-startup.sh
numprocs=1
directory=/opt/apps/kubernetes/server/bin
autostart=true
autorestart=true
startsecs=30
startretries=3
exitcodes=0,2
stopsignal=QUIT
stopwaitsecs=10
user=root
redirect_stderr=true
stdout_logfile=/data/logs/kubernetes/kube-proxy/proxy.stdout.log stdout_logfile_maxbytes=64MB
stdout_logfile_backups=5
stdout_capture_maxbytes=1MB
stdout_events_enabled=false

[root@hdss7-21 ~]# supervisorctl update

<a name="GtBRc"></a>
#### 4.2.5. 验证集群

[root@hdss7-21 ~]# supervisorctl status etcd-server-7-21 RUNNING pid 23637, uptime 2 days, 0:27:18 kube-apiserver-7-21 RUNNING pid 32591, uptime 1 day, 2:06:47 kube-controller-manager-7-21 RUNNING pid 33357, uptime 1 day, 0:11:02 kube-kubelet-7-21 RUNNING pid 37232, uptime 9:32:01 kube-proxy-7-21 RUNNING pid 47088, uptime 0:06:19 kube-scheduler-7-21 RUNNING pid 33450, uptime 1 day, 0:01:43

[root@hdss7-21 ~]# yum install -y ipvsadm [root@hdss7-21 ~]# ipvsadm -Ln IP Virtual Server version 1.2.1 (size=4096) Prot LocalAddress:Port Scheduler Flags -> RemoteAddress:Port Forward Weight ActiveConn InActConn TCP 192.168.0.1:443 nq -> 10.4.7.21:6443 Masq 1 0 0
-> 10.4.7.22:6443 Masq 1 0 0

[root@hdss7-21 ~]# curl -I 172.7.21.2 HTTP/1.1 200 OK Server: nginx/1.17.6 Date: Tue, 07 Jan 2020 14:28:46 GMT Content-Type: text/html Content-Length: 612 Last-Modified: Tue, 19 Nov 2019 12:50:08 GMT Connection: keep-alive ETag: “5dd3e500-264” Accept-Ranges: bytes

[root@hdss7-21 ~]# curl -I 172.7.22.2 # 缺少网络插件，无法跨节点通信


---

<a name="bYSH8"></a>
## 5. 核心插件部署
<a name="boFnZ"></a>
### 5.1. CNI网络插件
kubernetes设计了网络模型，但是pod之间通信的具体实现交给了CNI往插件。常用的CNI网络插件有：Flannel 、Calico、Canal、Contiv等，其中Flannel和Calico占比接近80%，Flannel占比略多于Calico。本次部署使用Flannel作为网络插件。涉及的机器 hdss7-21,hdss7-22
<a name="lyiRM"></a>
#### 5.1.1. 安装Flannel
github地址：[https://github.com/coreos/flannel/releases](https://github.com/coreos/flannel/releases)<br />涉及的机器 hdss7-21,hdss7-22

[root@hdss7-21 ~]# cd /opt/src/ [root@hdss7-21 src]# wget https://github.com/coreos/flannel/releases/download/v0.11.0/flannel-v0.11.0-linux-amd64.tar.gz [root@hdss7-21 src]# mkdir /opt/release/flannel-v0.11.0 # 因为flannel压缩包内部没有套目录 [root@hdss7-21 src]# tar -xf flannel-v0.11.0-linux-amd64.tar.gz -C /opt/release/flannel-v0.11.0 [root@hdss7-21 src]# ln -s /opt/release/flannel-v0.11.0 /opt/apps/flannel [root@hdss7-21 src]# ll /opt/apps/flannel lrwxrwxrwx 1 root root 28 Jan 9 22:33 /opt/apps/flannel -> /opt/release/flannel-v0.11.0

<a name="jXPlR"></a>
#### 5.1.2. 拷贝证书

flannel 需要以客户端的身份访问etcd，需要相关证书

[root@hdss7-21 src]# mkdir /opt/apps/flannel/certs [root@hdss7-200 ~]# cd /opt/certs/ [root@hdss7-200 certs]# scp ca.pem client-key.pem client.pem hdss7-21:/opt/apps/flannel/certs/

<a name="rQASb"></a>
#### 5.1.3. 创建启动脚本
涉及的机器 hdss7-21,hdss7-22

[root@hdss7-21 src]# vim /opt/apps/flannel/subnet.env # 创建子网信息，7-22的subnet需要修改 FLANNEL_NETWORK=172.7.0.0/16 FLANNEL_SUBNET=172.7.21.1/24 FLANNEL_MTU=1500 FLANNEL_IPMASQ=false [root@hdss7-21 src]# /opt/apps/etcd/etcdctl set /coreos.com/network/config ‘{“Network”: “172.7.0.0/16”, “Backend”: {“Type”: “host-gw”}}’ [root@hdss7-21 src]# /opt/apps/etcd/etcdctl get /coreos.com/network/config # 只需要在一台etcd机器上设置就可以了 {“Network”: “172.7.0.0/16”, “Backend”: {“Type”: “host-gw”}}

public-ip 为本机IP，iface 为当前宿主机对外网卡

[root@hdss7-21 src]# vim /opt/apps/flannel/flannel-startup.sh

!/bin/sh

WORK_DIR=$(dirname $(readlink -f $0)) [ $? -eq 0 ] && cd $WORK_DIR || exit

/opt/apps/flannel/flanneld \ —public-ip=10.4.7.21 \ —etcd-endpoints=https://10.4.7.12:2379,https://10.4.7.21:2379,https://10.4.7.22:2379 \ —etcd-keyfile=./certs/client-key.pem \ —etcd-certfile=./certs/client.pem \ —etcd-cafile=./certs/ca.pem \ —iface=ens32 \ —subnet-file=./subnet.env \ —healthz-port=2401 [root@hdss7-21 src]# chmod u+x /opt/apps/flannel/flannel-startup.sh

[root@hdss7-21 src]# vim /etc/supervisord.d/flannel.ini [program:flanneld-7-21] command=/opt/apps/flannel/flannel-startup.sh ; the program (relative uses PATH, can take args) numprocs=1 ; number of processes copies to start (def 1) directory=/opt/apps/flannel ; directory to cwd to before exec (def no cwd) autostart=true ; start at supervisord start (default: true) autorestart=true ; retstart at unexpected quit (default: true) startsecs=30 ; number of secs prog must stay running (def. 1) startretries=3 ; max # of serial start failures (default 3) exitcodes=0,2 ; ‘expected’ exit codes for process (default 0,2) stopsignal=QUIT ; signal used to kill process (default TERM) stopwaitsecs=10 ; max num secs to wait b4 SIGKILL (default 10) user=root ; setuid to this UNIX account to run the program redirect_stderr=true ; redirect proc stderr to stdout (default false) stdout_logfile=/data/logs/flanneld/flanneld.stdout.log ; stderr log path, NONE for none; default AUTO stdout_logfile_maxbytes=64MB ; max # logfile bytes b4 rotation (default 50MB) stdout_logfile_backups=5 ; # of stdout logfile backups (default 10) stdout_capture_maxbytes=1MB ; number of bytes in ‘capturemode’ (default 0) stdout_events_enabled=false ; emit events on stdout writes (default false) [root@hdss7-21 src]# mkdir -p /data/logs/flanneld/ [root@hdss7-21 src]# supervisorctl update flanneld-7-21: added process group [root@hdss7-21 src]# supervisorctl status etcd-server-7-21 RUNNING pid 1058, uptime -1 day, 16:33:25 flanneld-7-21 RUNNING pid 13154, uptime 0:00:30 kube-apiserver-7-21 RUNNING pid 1061, uptime -1 day, 16:33:25 kube-controller-manager-7-21 RUNNING pid 1068, uptime -1 day, 16:33:25 kube-kubelet-7-21 RUNNING pid 1052, uptime -1 day, 16:33:25 kube-proxy-7-21 RUNNING pid 1082, uptime -1 day, 16:33:25 kube-scheduler-7-21 RUNNING pid 1089, uptime -1 day, 16:33:25

<a name="6K0kl"></a>
#### 5.1.4. 验证跨网络访问

[root@hdss7-21 src]# kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES nginx-ds-7db29 1/1 Running 1 2d 172.7.22.2 hdss7-22.host.com nginx-ds-vvsz7 1/1 Running 1 2d 172.7.21.2 hdss7-21.host.com [root@hdss7-21 src]# curl -I 172.7.22.2 HTTP/1.1 200 OK Server: nginx/1.17.6 Date: Thu, 09 Jan 2020 14:55:21 GMT Content-Type: text/html Content-Length: 612 Last-Modified: Tue, 19 Nov 2019 12:50:08 GMT Connection: keep-alive ETag: “5dd3e500-264” Accept-Ranges: bytes

<a name="XKCDQ"></a>
#### 5.1.5. 解决pod间IP透传问题
所有Node上操作，即优化NAT网络

从pod a跨宿主机访问pod b时，在pod b中能看到的地址为 pod a 宿主机地址

[root@nginx-ds-jdp7q /]# tail -f /usr/local/nginx/logs/access.log 10.4.7.22 - - [13/Jan/2020:13:13:39 +0000] “GET / HTTP/1.1” 200 12 “-“ “curl/7.29.0” 10.4.7.22 - - [13/Jan/2020:13:14:27 +0000] “GET / HTTP/1.1” 200 12 “-“ “curl/7.29.0” 10.4.7.22 - - [13/Jan/2020:13:54:20 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0” 10.4.7.22 - - [13/Jan/2020:13:54:25 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0” [root@hdss7-21 ~]# iptables-save |grep POSTROUTING|grep docker # 引发问题的规则 -A POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE

[root@hdss7-21 ~]# yum install -y iptables-services [root@hdss7-21 ~]# systemctl start iptables.service ; systemctl enable iptables.service

需要处理的规则：

[root@hdss7-21 ~]# iptables-save |grep POSTROUTING|grep docker -A POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE [root@hdss7-21 ~]# iptables-save | grep -i reject -A INPUT -j REJECT —reject-with icmp-host-prohibited -A FORWARD -j REJECT —reject-with icmp-host-prohibited

处理方式：

[root@hdss7-21 ~]# iptables -t nat -D POSTROUTING -s 172.7.21.0/24 ! -o docker0 -j MASQUERADE [root@hdss7-21 ~]# iptables -t nat -I POSTROUTING -s 172.7.21.0/24 ! -d 172.7.0.0/16 ! -o docker0 -j MASQUERADE

[root@hdss7-21 ~]# iptables -t filter -D INPUT -j REJECT —reject-with icmp-host-prohibited [root@hdss7-21 ~]# iptables -t filter -D FORWARD -j REJECT —reject-with icmp-host-prohibited

[root@hdss7-21 ~]# iptables-save > /etc/sysconfig/iptables

此时跨宿主机访问pod时，显示pod的IP

[root@nginx-ds-jdp7q /]# tail -f /usr/local/nginx/logs/access.log
172.7.22.2 - - [13/Jan/2020:14:15:39 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0” 172.7.22.2 - - [13/Jan/2020:14:15:47 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0” 172.7.22.2 - - [13/Jan/2020:14:15:48 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0” 172.7.22.2 - - [13/Jan/2020:14:15:48 +0000] “HEAD / HTTP/1.1” 200 0 “-“ “curl/7.29.0”

<a name="XtoAm"></a>
### 5.2. CoreDNS
CoreDNS用于实现 service --> cluster IP 的DNS解析。以容器的方式交付到k8s集群，由k8s自行管理，降低人为操作的复杂度。
<a name="8TqRI"></a>
#### 5.2.1. 配置yaml文件库
在hdss7-200中配置yaml文件库，后期通过Http方式去使用yaml清单文件。

- 配置nginx虚拟主机( hdss7-200 )

[root@hdss7-200 ~]# vim /etc/nginx/conf.d/k8s-yaml.od.com.conf server { listen 80; server_name k8s-yaml.od.com;

location / {
    autoindex on;
    default_type text/plain;
    root /data/k8s-yaml;
}

} [root@hdss7-200 ~]# mkdir /data/k8s-yaml; [root@hdss7-200 ~]# nginx -qt && nginx -s reload


- 配置dns解析(hdss7-11)

[root@hdss7-11 ~]# vim /var/named/od.com.zone [root@hdss7-11 ~]# cat /var/named/od.com.zone $ORIGIN od.com. $TTL 600 ; 10 minutes @ IN SOA dns.od.com. dnsadmin.od.com. ( 2020011301 ; serial 10800 ; refresh (3 hours) 900 ; retry (15 minutes) 604800 ; expire (1 week) 86400 ; minimum (1 day) ) NS dns.od.com. $TTL 60 ; 1 minute dns A 10.4.7.11 harbor A 10.4.7.200 k8s-yaml A 10.4.7.200 [root@hdss7-11 ~]# systemctl restart named

<a name="s8fGt"></a>
#### 5.2.2. coredns的资源清单文件
清单文件存放到 hdss7-200:/data/k8s-yaml/coredns/coredns_1.6.1/

- rabc.yaml
```yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
  labels:
      kubernetes.io/cluster-service: "true"
      addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: Reconcile
  name: system:coredns
rules:
- apiGroups:
  - ""
  resources:
  - endpoints
  - services
  - pods
  - namespaces
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: EnsureExists
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system

configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
name: coredns
namespace: kube-system
data:
Corefile: |
  .:53 {
      errors
      log
      health
      ready
      kubernetes cluster.local 192.168.0.0/16
      forward . 10.4.7.11
      cache 30
      loop
      reload
      loadbalance
  }

deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
name: coredns
namespace: kube-system
labels:
  k8s-app: coredns
  kubernetes.io/name: "CoreDNS"
spec:
replicas: 1
selector:
  matchLabels:
    k8s-app: coredns
template:
  metadata:
    labels:
      k8s-app: coredns
  spec:
    priorityClassName: system-cluster-critical
    serviceAccountName: coredns
    containers:
    - name: coredns
      image: harbor.od.com/public/coredns:v1.6.1
      args:
      - -conf
      - /etc/coredns/Corefile
      volumeMounts:
      - name: config-volume
        mountPath: /etc/coredns
      ports:
      - containerPort: 53
        name: dns
        protocol: UDP
      - containerPort: 53
        name: dns-tcp
        protocol: TCP
      - containerPort: 9153
        name: metrics
        protocol: TCP
      livenessProbe:
        httpGet:
          path: /health
          port: 8080
          scheme: HTTP
        initialDelaySeconds: 60
        timeoutSeconds: 5
        successThreshold: 1
        failureThreshold: 5
    dnsPolicy: Default
    volumes:
      - name: config-volume
        configMap:
          name: coredns
          items:
          - key: Corefile
            path: Corefile

service.yaml

apiVersion: v1
kind: Service
metadata:
name: coredns
namespace: kube-system
labels:
  k8s-app: coredns
  kubernetes.io/cluster-service: "true"
  kubernetes.io/name: "CoreDNS"
spec:
selector:
  k8s-app: coredns
clusterIP: 192.168.0.2
ports:
- name: dns
  port: 53
  protocol: UDP
- name: dns-tcp
  port: 53
- name: metrics
  port: 9153
  protocol: TCP

5.2.3. 交付coredns到K8s

# 准备镜像
[root@hdss7-200 ~]# docker pull coredns/coredns:1.6.1
[root@hdss7-200 ~]# docker image tag coredns/coredns:1.6.1 harbor.od.com/public/coredns:v1.6.1
[root@hdss7-200 ~]# docker image push harbor.od.com/public/coredns:v1.6.1

# 交付coredns
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/coredns/coredns_1.6.1/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/coredns/coredns_1.6.1/configmap.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/coredns/coredns_1.6.1/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/coredns/coredns_1.6.1/service.yaml
[root@hdss7-21 ~]# kubectl get all -n kube-system -o wide
NAME                           READY   STATUS    RESTARTS   AGE   IP           NODE                NOMINATED NODE   READINESS GATES
pod/coredns-6b6c4f9648-4vtcl   1/1     Running   0          38s   172.7.21.3   hdss7-21.host.com   <none>           <none>

NAME              TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)                  AGE   SELECTOR
service/coredns   ClusterIP   192.168.0.2   <none>        53/UDP,53/TCP,9153/TCP   29s   k8s-app=coredns

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES                                SELECTOR
deployment.apps/coredns   1/1     1            1           39s   coredns      harbor.od.com/public/coredns:v1.6.1   k8s-app=coredns

NAME                                 DESIRED   CURRENT   READY   AGE   CONTAINERS   IMAGES                                SELECTOR
replicaset.apps/coredns-6b6c4f9648   1         1         1       39s   coredns      harbor.od.com/public/coredns:v1.6.1   k8s-app=coredns,pod-template-hash=6b6c4f9648

5.2.4. 测试dns

# 创建service
[root@hdss7-21 ~]# kubectl create deployment nginx-web --image=harbor.od.com/public/nginx:src_1.14.2
[root@hdss7-21 ~]# kubectl expose deployment nginx-web --port=80 --target-port=80
[root@hdss7-21 ~]# kubectl get svc
NAME         TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   192.168.0.1       <none>        443/TCP   8d
nginx-web    ClusterIP   192.168.164.230   <none>        80/TCP    8s
# 测试DNS，集群外必须使用FQDN(Fully Qualified Domain Name)，全域名
[root@hdss7-21 ~]# dig -t A nginx-web.default.svc.cluster.local @192.168.0.2 +short # 内网解析OK
192.168.164.230
[root@hdss7-21 ~]# dig -t A www.baidu.com @192.168.0.2 +short # 外网解析OK
www.a.shifen.com.
180.101.49.11
180.101.49.12

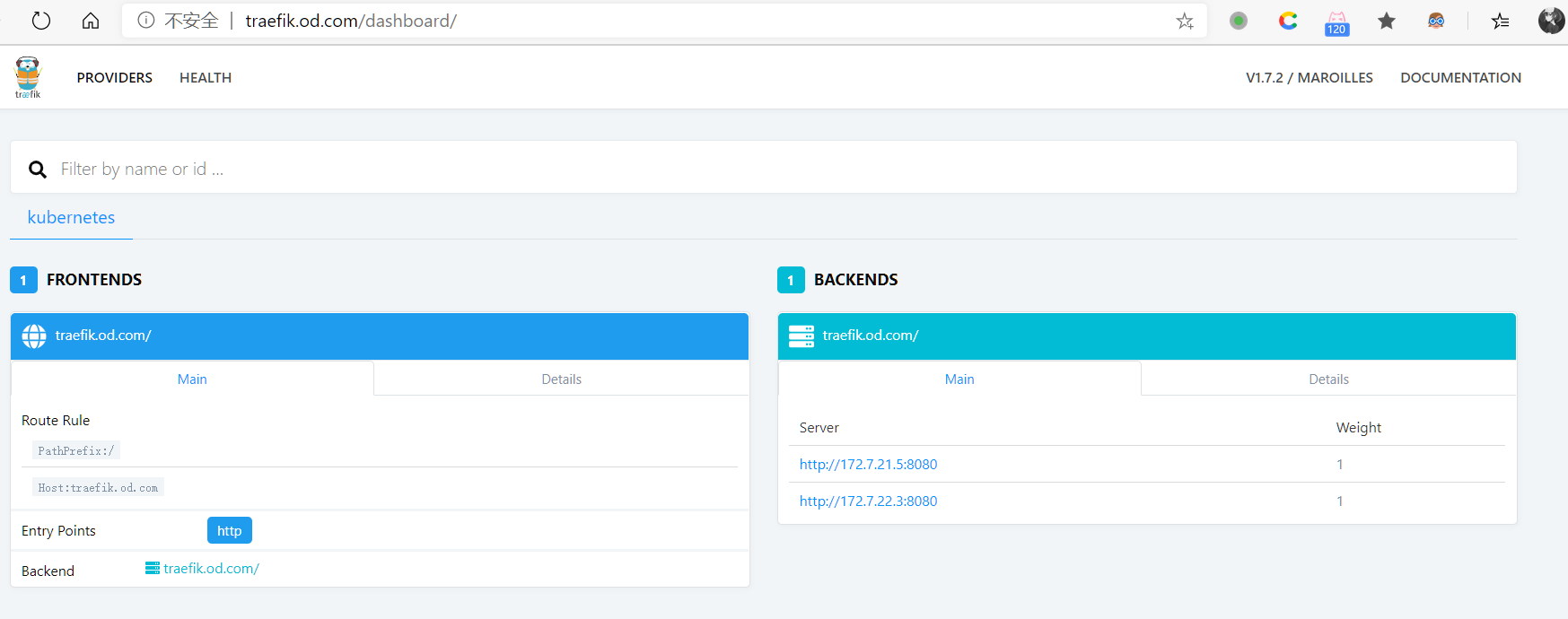

5.3. Ingress-Controller

service是将一组pod管理起来，提供了一个cluster ip和service name的统一访问入口，屏蔽了pod的ip变化。 ingress 是一种基于七层的流量转发策略，即将符合条件的域名或者location流量转发到特定的service上，而ingress仅仅是一种规则，k8s内部并没有自带代理程序完成这种规则转发。
ingress-controller 是一个代理服务器，将ingress的规则能真正实现的方式，常用的有 nginx,traefik,haproxy。但是在k8s集群中，建议使用traefik，性能比haroxy强大，更新配置不需要重载服务，是首选的ingress-controller。github地址：https://github.com/containous/traefik

5.3.1. 配置traefik资源清单

清单文件存放到 hdss7-200:/data/k8s-yaml/traefik/traefik_1.7.2

rbac.yaml ```yaml apiVersion: v1 kind: ServiceAccount metadata: name: traefik-ingress-controller namespace: kube-system

apiVersion: rbac.authorization.k8s.io/v1beta1 kind: ClusterRole metadata: name: traefik-ingress-controller rules:

apiGroups:
- “” resources:
- services
- endpoints
- secrets verbs:
- get
- list
- watch
apiGroups:
- extensions resources:
- ingresses verbs:
- get
- list
- watch

kind: ClusterRoleBinding apiVersion: rbac.authorization.k8s.io/v1beta1 metadata: name: traefik-ingress-controller roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: traefik-ingress-controller subjects:

kind: ServiceAccount name: traefik-ingress-controller namespace: kube-system ```

daemonset.yaml

apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
name: traefik-ingress
namespace: kube-system
labels:
  k8s-app: traefik-ingress
spec:
template:
  metadata:
    labels:
      k8s-app: traefik-ingress
      name: traefik-ingress
  spec:
    serviceAccountName: traefik-ingress-controller
    terminationGracePeriodSeconds: 60
    containers:
    - image: harbor.od.com/public/traefik:v1.7.2
      name: traefik-ingress
      ports:
      - name: controller
        containerPort: 80
        hostPort: 81
      - name: admin-web
        containerPort: 8080
      securityContext:
        capabilities:
          drop:
          - ALL
          add:
          - NET_BIND_SERVICE
      args:
      - --api
      - --kubernetes
      - --logLevel=INFO
      - --insecureskipverify=true
      - --kubernetes.endpoint=https://10.4.7.10:7443
      - --accesslog
      - --accesslog.filepath=/var/log/traefik_access.log
      - --traefiklog
      - --traefiklog.filepath=/var/log/traefik.log
      - --metrics.prometheus

service.yaml

kind: Service
apiVersion: v1
metadata:
name: traefik-ingress-service
namespace: kube-system
spec:
selector:
  k8s-app: traefik-ingress
ports:
  - protocol: TCP
    port: 80
    name: controller
  - protocol: TCP
    port: 8080
    name: admin-web

ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: traefik-web-ui
namespace: kube-system
annotations:
  kubernetes.io/ingress.class: traefik
spec:
rules:
- host: traefik.od.com
  http:
    paths:
      - path: /
      backend:
        serviceName: traefik-ingress-service
        servicePort: 8080

准备镜像

[root@hdss7-200 traefik_1.7.2]# docker pull traefik:v1.7.2-alpine
[root@hdss7-200 traefik_1.7.2]# docker image tag traefik:v1.7.2-alpine harbor.od.com/public/traefik:v1.7.2
[root@hdss7-200 traefik_1.7.2]# docker push harbor.od.com/public/traefik:v1.7.2

5.3.2. 交付traefik到k8s

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/daemonset.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/traefik/traefik_1.7.2/ingress.yaml

[root@hdss7-21 ~]# kubectl get pods -n kube-system -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP           NODE                NOMINATED NODE   READINESS GATES
coredns-6b6c4f9648-4vtcl   1/1     Running   1          24h   172.7.21.3   hdss7-21.host.com   <none>           <none>
traefik-ingress-4gm4w      1/1     Running   0          77s   172.7.21.5   hdss7-21.host.com   <none>           <none>
traefik-ingress-hwr2j      1/1     Running   0          77s   172.7.22.3   hdss7-22.host.com   <none>           <none>
[root@hdss7-21 ~]# kubectl get ds -n kube-system
NAME              DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR   AGE
traefik-ingress   2         2         2       2            2           <none>          107s

5.3.3. 配置外部nginx负载均衡

在hdss7-11,hdss7-12 配置nginx L7转发 ``` [root@hdss7-11 ~]# vim /etc/nginx/conf.d/od.com.conf server { server_name *.od.com;

location / {

  proxy_pass http://default_backend_traefik;
  proxy_set_header Host       $http_host;
  proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;

} }

upstream default_backend_traefik {

# 所有的nodes都放到upstream中
server 10.4.7.21:81    max_fails=3 fail_timeout=10s;
server 10.4.7.22:81    max_fails=3 fail_timeout=10s;

} [root@hdss7-11 ~]# nginx -tq && nginx -s reload


- 配置dns解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone $ORIGIN od.com. $TTL 600 ; 10 minutes @ IN SOA dns.od.com. dnsadmin.od.com. ( 2020011302 ; serial 10800 ; refresh (3 hours) 900 ; retry (15 minutes) 604800 ; expire (1 week) 86400 ; minimum (1 day) ) NS dns.od.com. $TTL 60 ; 1 minute dns A 10.4.7.11 harbor A 10.4.7.200 k8s-yaml A 10.4.7.200 traefik A 10.4.7.10 [root@hdss7-11 ~]# systemctl restart named


- 查看traefik网页

![image.png](https://cdn.nlark.com/yuque/0/2020/png/378176/1579050755390-6876047c-614f-4f23-8c47-6c5f35c58897.png#height=345&id=vY3fP&name=image.png&originHeight=690&originWidth=1747&originalType=binary&ratio=1&size=75781&status=done&style=none&width=873.5)
<a name="B15Nw"></a>
### 5.4. dashboard
<a name="70Jyb"></a>
#### 5.4.1. 配置资源清单
清单文件存放到 hdss7-200:/data/k8s-yaml/dashboard/dashboard_1.10.1

- 准备镜像
```yaml
# 镜像准备
# 因不可描述原因，无法访问k8s.gcr.io，改成registry.aliyuncs.com/google_containers
[root@hdss7-200 ~]# docker image pull registry.aliyuncs.com/google_containers/kubernetes-dashboard-amd64:v1.10.1
[root@hdss7-200 ~]# docker image tag f9aed6605b81 harbor.od.com/public/kubernetes-dashboard-amd64:v1.10.1
[root@hdss7-200 ~]# docker image push harbor.od.com/public/kubernetes-dashboard-amd64:v1.10.1

rbac.yaml ```yaml apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard addonmanager.kubernetes.io/mode: Reconcile name: kubernetes-dashboard-admin namespace: kube-system

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: kubernetes-dashboard-admin namespace: kube-system labels: k8s-app: kubernetes-dashboard addonmanager.kubernetes.io/mode: Reconcile roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects:

kind: ServiceAccount name: kubernetes-dashboard-admin namespace: kube-system ```

deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
name: kubernetes-dashboard
namespace: kube-system
labels:
  k8s-app: kubernetes-dashboard
  kubernetes.io/cluster-service: "true"
  addonmanager.kubernetes.io/mode: Reconcile
spec:
selector:
  matchLabels:
    k8s-app: kubernetes-dashboard
template:
  metadata:
    labels:
      k8s-app: kubernetes-dashboard
    annotations:
      scheduler.alpha.kubernetes.io/critical-pod: ''
  spec:
    priorityClassName: system-cluster-critical
    containers:
    - name: kubernetes-dashboard
      image: harbor.od.com/public/kubernetes-dashboard-amd64:v1.10.1
      resources:
        limits:
          cpu: 100m
          memory: 300Mi
        requests:
          cpu: 50m
          memory: 100Mi
      ports:
      - containerPort: 8443
        protocol: TCP
      args:
        # PLATFORM-SPECIFIC ARGS HERE
        - --auto-generate-certificates
      volumeMounts:
      - name: tmp-volume
        mountPath: /tmp
      livenessProbe:
        httpGet:
          scheme: HTTPS
          path: /
          port: 8443
        initialDelaySeconds: 30
        timeoutSeconds: 30
    volumes:
    - name: tmp-volume
      emptyDir: {}
    serviceAccountName: kubernetes-dashboard-admin
    tolerations:
    - key: "CriticalAddonsOnly"
      operator: "Exists"

service.yaml

apiVersion: v1
kind: Service
metadata:
name: kubernetes-dashboard
namespace: kube-system
labels:
  k8s-app: kubernetes-dashboard
  kubernetes.io/cluster-service: "true"
  addonmanager.kubernetes.io/mode: Reconcile
spec:
selector:
  k8s-app: kubernetes-dashboard
ports:
- port: 443
  targetPort: 8443

ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
name: kubernetes-dashboard
namespace: kube-system
annotations:
  kubernetes.io/ingress.class: traefik
spec:
rules:
- host: dashboard.od.com
  http:
    paths:
    - backend:
        serviceName: kubernetes-dashboard
        servicePort: 443

5.4.2. 交付dashboard到k8s

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_1.10.1/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_1.10.1/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_1.10.1/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.od.com/dashboard/dashboard_1.10.1/ingress.yaml

5.4.3. 配置DNS解析

[root@hdss7-11 ~]# vim /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600    ; 10 minutes
@           IN SOA    dns.od.com. dnsadmin.od.com. (
                2020011303 ; serial
                10800      ; refresh (3 hours)
                900        ; retry (15 minutes)
                604800     ; expire (1 week)
                86400      ; minimum (1 day)
                )
                NS   dns.od.com.
$TTL 60    ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200
traefik            A    10.4.7.10
dashboard          A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named.service

5.4.4. 签发SSL证书

[root@hdss7-200 ~]# cd /opt/certs/
[root@hdss7-200 certs]# (umask 077; openssl genrsa -out dashboard.od.com.key 2048)
[root@hdss7-200 certs]# openssl req -new -key dashboard.od.com.key -out dashboard.od.com.csr -subj "/CN=dashboard.od.com/C=CN/ST=BJ/L=Beijing/O=OldboyEdu/OU=ops"
[root@hdss7-200 certs]# openssl x509 -req -in dashboard.od.com.csr -CA ca.pem -CAkey ca-key.pem -CAcreateserial -out dashboard.od.com.crt -days 3650
[root@hdss7-200 certs]# ll dashboard.od.com.*
-rw-r--r-- 1 root root 1196 Jan 29 20:52 dashboard.od.com.crt
-rw-r--r-- 1 root root 1005 Jan 29 20:51 dashboard.od.com.csr
-rw------- 1 root root 1675 Jan 29 20:51 dashboard.od.com.key
[root@hdss7-200 certs]# scp dashboard.od.com.key dashboard.od.com.crt hdss7-11:/etc/nginx/certs/
[root@hdss7-200 certs]# scp dashboard.od.com.key dashboard.od.com.crt hdss7-12:/etc/nginx/certs/

5.4.5. 配置Nginx

# hdss7-11和hdss7-12都需要操作
[root@hdss7-11 ~]# vim /etc/nginx/conf.d/dashborad.conf
server {
    listen       80;
    server_name  dashboard.od.com;
    rewrite ^(.*)$ https://${server_name}$1 permanent;
}

server {
    listen       443 ssl;
    server_name  dashboard.od.com;

    ssl_certificate "certs/dashboard.od.com.crt";
    ssl_certificate_key "certs/dashboard.od.com.key";
    ssl_session_cache shared:SSL:1m;
    ssl_session_timeout  10m;
    ssl_ciphers HIGH:!aNULL:!MD5;
    ssl_prefer_server_ciphers on;

    location / {
        proxy_pass http://default_backend_traefik;
        proxy_set_header Host       $http_host;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
    }
}
[root@hdss7-11 ~]# nginx -t && nginx -s reload

5.4.6. 测试token登陆

[root@hdss7-21 ~]# kubectl get secret -n kube-system|grep kubernetes-dashboard-token
kubernetes-dashboard-token-hr5rj         kubernetes.io/service-account-token   3      17m
[root@hdss7-21 ~]# kubectl describe secret kubernetes-dashboard-token-hr5rj -n kube-system|grep ^token
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC10b2tlbi1ocjVyaiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImZhNzAxZTRmLWVjMGItNDFkNS04NjdmLWY0MGEwYmFkMjFmNSIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlLXN5c3RlbTprdWJlcm5ldGVzLWRhc2hib2FyZCJ9.SDUZEkH_N0B6rjm6bW_jN03F4pHCPafL3uKD2HU0ksM0oenB2425jxvfi16rUbTRCsfcGqYXRrE2x15gpb03fb3jJy-IhnInUnPrw6ZwEdqWagen_Z4tdFhUgCpdjdShHy40ZPfql_iuVKbvv7ASt8w8v13Ar3FxztyDyLScVO3rNEezT7JUqMI4yj5LYQ0IgpSXoH12tlDSTyX8Rk2a_3QlOM_yT5GB_GEZkwIESttQKVr7HXSCrQ2tEdYA4cYO2AbF1NgAo_CVBNNvZLvdDukWiQ_b5zwOiO0cUbbiu46x_p6gjNWzVb7zHNro4gh0Shr4hIhiRQot2DJ-sq94Ag

01-1-v1.15二进制安装(废弃)

1. 实验环境

2. 安装前准备

2.1. 环境准备

2.2. bind安装

2.2.1. hdss7-11 安装bind

2.2.2. hdss7-11 配置bind

增加两个zone配置，od.com为业务域，host.com.zone为主机域

line6中时间需要修改

Generated by NetworkManager

根证书配置：

CN 一般写域名，浏览器会校验

names 为地区和公司信息

expiry 为过期时间

不安全的registry中增加了harbor地址

各个机器上bip网段不一致，bip中间两段与宿主机最后两段相同，目的是方便定位问题

目录说明：

/opt/src : 源码、文件下载目录

/opt/release : 各个版本软件存放位置

/opt/apps : 各个软件当前版本的软链接

实验环境仅修改以下配置项，生产环境还得修改密码

start harbor

当前机器中Nginx功能较少，使用yum安装即可。如有多个harbor考虑源码编译且配置健康检查

nginx配置此处忽略，仅仅使用最简单的配置。

3.1.2. 安装etcd

!/bin/sh

listen-peer-urls etcd节点之间通信端口

listen-client-urls 客户端与etcd通信端口

quota-backend-bytes 配额大小

需要修改的参数：name,listen-peer-urls,listen-client-urls,initial-advertise-peer-urls

hosts中将所有可能作为apiserver的ip添加进去，VIP 10.4.7.10 也要加入

Don’t generate audit events for all requests in RequestReceived stage.

Log pod changes at RequestResponse level

Resource “pods” doesn’t match requests to any subresource of pods,

which is consistent with the RBAC policy.

Log “pods/log”, “pods/status” at Metadata level

Don’t log requests to a configmap called “controller-leader”

Don’t log watch requests by the “system:kube-proxy” on endpoints or services

Don’t log authenticated requests to certain non-resource URL paths.

Log the request body of configmap changes in kube-system.

This rule only applies to resources in the “kube-system” namespace.

The empty string “” can be used to select non-namespaced resources.

Log configmap and secret changes in all other namespaces at the Metadata level.

Log all other resources in core and extensions at the Request level.

A catch-all rule to log all other requests at the Metadata level.

Long-running requests like watches that fall under this rule will not

generate an audit event in RequestReceived.

3.2.4. 配置启动脚本

!/bin/bash

末尾加上以下内容，stream 只能加在 main 中

此处只是简单配置下nginx，实际生产中，建议进行更合理的配置

!/bin/bash

3.5. kube-scheduler安装

3.6. 检查主控节点状态

4. 运算节点部署

4.1. kubelet 部署

4.1.1. 签发证书

4.1.2. 创建kubelet配置

4.1.3. 授权k8s-node用户

!/bin/sh

!/bin/sh

flannel 需要以客户端的身份访问etcd，需要相关证书

public-ip 为本机IP，iface 为当前宿主机对外网卡

!/bin/sh

从pod a跨宿主机访问pod b时，在pod b中能看到的地址为 pod a 宿主机地址

需要处理的规则：

处理方式：

此时跨宿主机访问pod时，显示pod的IP

5.2.3. 交付coredns到K8s

5.2.4. 测试dns

5.3. Ingress-Controller

5.3.1. 配置traefik资源清单

5.3.2. 交付traefik到k8s

5.3.3. 配置外部nginx负载均衡

5.4.2. 交付dashboard到k8s

5.4.3. 配置DNS解析

5.4.4. 签发SSL证书

5.4.5. 配置Nginx

5.4.6. 测试token登陆
