spring cloud 整合knife4j 增强swagger

一. 介绍

Knife4j一直致力于将目前的Ui提供给更多的平台或者别的语言使用而努力，经过这么长时间的发展，Knife4j提供的轻量级聚合中间件终于诞生了，自2.0.8版本开始，Knife4j 提供了knife4j-aggregation-spring-boot-starter组件，该组件是一个基于Spring Boot系统的starter，他提供了以下几种能力：

• 最轻量级、最简单、最方便的聚合OpenApi规范的中间件
• 让所有的基于Spring Boot的Web体系拥有了轻松聚合OpenApi的能力
• 提供4种模式供开发者选择
  • 基于本地静态JSON文件的方式聚合OpenAPI
  • 基于云端HTTP接口的方式聚合
  • 基于Eureka注册中心的方式聚合
  • 基于Nacos注册中心的方式聚合

• 基于该starter发布了Docker镜像，跨平台与语言让开发者基于此Docker镜像轻松进行聚合OpenAPI规范
• 完美兼容所有Spring Boot版本，没有兼容性问题
• 开发者可以彻底放弃基于Zuul、Spring Cloud Gateway等复杂的聚合方式
• 兼容OpenAPI2规范以及OpenAPI3规范

二. 实际使用

1. 普通微服务引入

• 只需要引入knife4j 核心包，不需要引入ui

       <dependency>
           <groupId>com.github.xiaoymin</groupId>
           <artifactId>knife4j-micro-spring-boot-starter</artifactId>
       </dependency>

2. 网关层引入

• 网关层引入knife4j 核心 + ui 进行统一管理

       <dependency>
           <groupId>com.github.xiaoymin</groupId>
           <artifactId>knife4j-spring-boot-starter</artifactId>
       </dependency>

3. 普通微服务配置

• micro-cloud项目通过 micro-starter-web 统一引入配置，减少不需要的操作，请求头根据实际项目进行修改
  ```java /**

  • @ClassName SwaggerConfig
  • TODO: 类文件简单描述
  • @Author: 小白
  • @UpdateUser: 小白

  • @Version: 1.0.0 */ @Configuration @AllArgsConstructor //@Profile({“!prod”}) @EnableSwagger2 @EnableConfigurationProperties(SwaggerProperty.class) public class SwaggerConfig {

    private final SwaggerProperty swaggerProperties;

    // 定义分隔符 private static final String splitor = “;”; @Bean public Docket createRestApi() { /**

    * 这是为了我们在用 swagger 测试接口的时候添加头部信息
    */

    List pars = new ArrayList(); ParameterBuilder tokenPar = new ParameterBuilder(); tokenPar.name(“Access-Token”).description(“swagger测试用(模拟Access-Token传入)非必填 header”).modelRef(new ModelRef(“string”)).parameterType(“header”).required(false); /**

    * 多个的时候 就直接添加到 pars 就可以了
    */

    pars.add(tokenPar.build()); return new Docket(DocumentationType.SWAGGER_2)

           .apiInfo(apiInfo())
           .select()
           .apis(RequestHandlerSelectors.withClassAnnotation(Api.class))
           .paths(PathSelectors.any())
           .build()
           .globalOperationParameters(pars)
           .enable(swaggerProperties.isEnabled())
           ;

    }

    private ApiInfo apiInfo() { return new ApiInfoBuilder()

           .title(swaggerProperties.getTitle())
           .description(swaggerProperties.getDescription())
           .termsOfServiceUrl("")
           .version(swaggerProperties.getApiVersion())
           .build();

    }

public static Predicate<RequestHandler> basePackage(final String basePackage) {
    return input -> declaringClass(input).transform(handlerPackage(basePackage)).or(true);
}
private static Function<Class<?>, Boolean> handlerPackage(final String basePackage)     {
    return input -> {
        // 循环判断匹配
        for (String strPackage : basePackage.split(splitor)) {
            boolean isMatch = input.getPackage().getName().startsWith(strPackage);
            if (isMatch) {
                return true;
            }
        }
        return false;
    };
}
private static Optional<? extends Class<?>> declaringClass(RequestHandler input) {
    return Optional.fromNullable(input.declaringClass());
}

}

-  swagger 配置文件
```java
/**
 * @ClassName SwaggerProperty
 * TODO:    自定义swagger配置
 * @Author: 小白
 * @UpdateUser: 小白
 * @Version: 1.0.0
 */
@Data
@ConfigurationProperties(prefix = "micro.swagger2")
public class SwaggerProperty {
    /**
     * 是否启用swagger,生产环境建议关闭
     */
    private boolean enabled;
    /**
     * 文档标题
     */
    private String title;
    /**
     * 文档描述
     */
    private String description;
    /**
     * 客户端ID
     */
    private String clientId;
    /**
     * 客户端密钥
     */
    private String clientSecret;
    /**
     * 客户端授权范围
     */
    private String scope;
    /**
     * 获取token
     */
    private String accessTokenUri;
    /**
     * 认证地址
     */
    private String userAuthorizationUri;
    /**
     * 文档版本
     * */
    private String apiVersion;
}

• 项目配置文件中，写入配置参数

  micro:
  swagger2:
   enabled: true
   title: 用户后台管理
   api-version: v1
   description: 用户后台管理

4. 网关层统一配置

• SwaggerHandler
  ```java /**

  • @author xianrui
  • @Date 2021-02-25 16:34
  • @Version 1.0.0

  • @ https://gitee.com/xiaoym/swagger-bootstrap-ui-demo/blob/master/knife4j-spring-cloud-gateway/service-doc/src/main/java/com/xiaominfo/swagger/service/doc/handler/SwaggerHandler.java */ @RestController public class SwaggerHandler {

    @Autowired(required = false) private SecurityConfiguration securityConfiguration;

    @Autowired(required = false) private UiConfiguration uiConfiguration;

    private final SwaggerResourcesProvider swaggerResources;

    @Autowired public SwaggerHandler(SwaggerResourcesProvider swaggerResources) { this.swaggerResources = swaggerResources; }

@GetMapping("/swagger-resources/configuration/security")
public Mono<ResponseEntity<SecurityConfiguration>> securityConfiguration() {
    return Mono.just(new ResponseEntity<>(
            Optional.ofNullable(securityConfiguration).orElse(SecurityConfigurationBuilder.builder().build()), HttpStatus.OK));
}
@GetMapping("/swagger-resources/configuration/ui")
public Mono<ResponseEntity<UiConfiguration>> uiConfiguration() {
    return Mono.just(new ResponseEntity<>(
            Optional.ofNullable(uiConfiguration).orElse(UiConfigurationBuilder.builder().build()), HttpStatus.OK));
}
@GetMapping("/swagger-resources")
public Mono<ResponseEntity> swaggerResources() {
    return Mono.just((new ResponseEntity<>(swaggerResources.get(), HttpStatus.OK)));
}

}

-  SwaggerHeaderFilter
```java
/**
 *  @link https://gitee.com/xiaoym/swagger-bootstrap-ui-demo/blob/master/knife4j-spring-cloud-gateway/service-doc/src/main/java/com/xiaominfo/swagger/service/doc/config/SwaggerHeaderFilter.java
 * @auth xianrui
 * @date 2021-02-25 16:29
 */
@Component
public class SwaggerHeaderFilter  extends AbstractGatewayFilterFactory {
    private static final String HEADER_NAME = "X-Forwarded-Prefix";
    private static final String URI = "/v2/api-docs";
    @Override
    public GatewayFilter apply(Object config) {
        return (exchange, chain) -> {
            ServerHttpRequest request = exchange.getRequest();
            String path = request.getURI().getPath();
            if (!StringUtils.endsWithIgnoreCase(path,URI )) {
                return chain.filter(exchange);
            }
            String basePath = path.substring(0, path.lastIndexOf(URI));
            ServerHttpRequest newRequest = request.mutate().header(HEADER_NAME, basePath).build();
            ServerWebExchange newExchange = exchange.mutate().request(newRequest).build();
            return chain.filter(newExchange);
        };
    }
}

• SwaggerResourceConfig
  ```java /**
  • @Author haoxr
  • @Date 2021-02-25 16:21
  • @Version 1.0.0
  • @ https://gitee.com/xiaoym/swagger-bootstrap-ui-demo/blob/master/knife4j-spring-cloud-gateway/service-doc/src/main/java/com/xiaominfo/swagger/service/doc/config/SwaggerResourceConfig.java */

@Slf4j @Component @Primary @AllArgsConstructor public class SwaggerResourceConfig implements SwaggerResourcesProvider {

private final RouteLocator routeLocator;
private final GatewayProperties gatewayProperties;
@Override
public List<SwaggerResource> get() {
    List<SwaggerResource> resources = new ArrayList<>();
    List<String> routes = new ArrayList<>();
    routeLocator.getRoutes().subscribe(route -> routes.add(route.getId()));
    gatewayProperties.getRoutes().stream().filter(routeDefinition -> routes.contains(routeDefinition.getId())).forEach(route -> {
        route.getPredicates().stream()
                .filter(predicateDefinition -> ("Path").equalsIgnoreCase(predicateDefinition.getName()))
                .forEach(predicateDefinition -> resources.add(swaggerResource(route.getId(),
                        predicateDefinition.getArgs().get(NameUtils.GENERATED_NAME_PREFIX + "0")
                                .replace("**", "v2/api-docs"))));
    });
    return resources;
}
private SwaggerResource swaggerResource(String name, String location) {
    log.info("name:{},location:{}",name,location);
    SwaggerResource swaggerResource = new SwaggerResource();
    swaggerResource.setName(name);
    swaggerResource.setLocation(location);
    swaggerResource.setSwaggerVersion("2.0");
    return swaggerResource;
}

} ```

5. 效果

接口文档

请求参数、响应参数指定

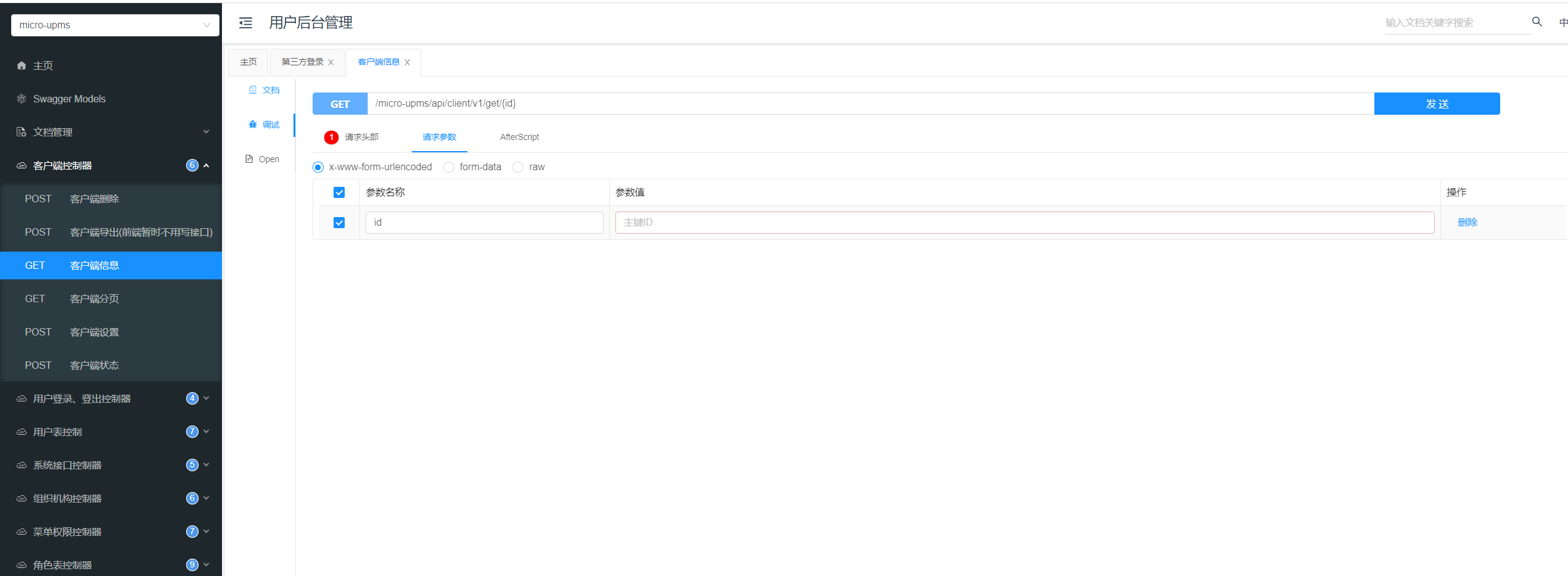

接口调试

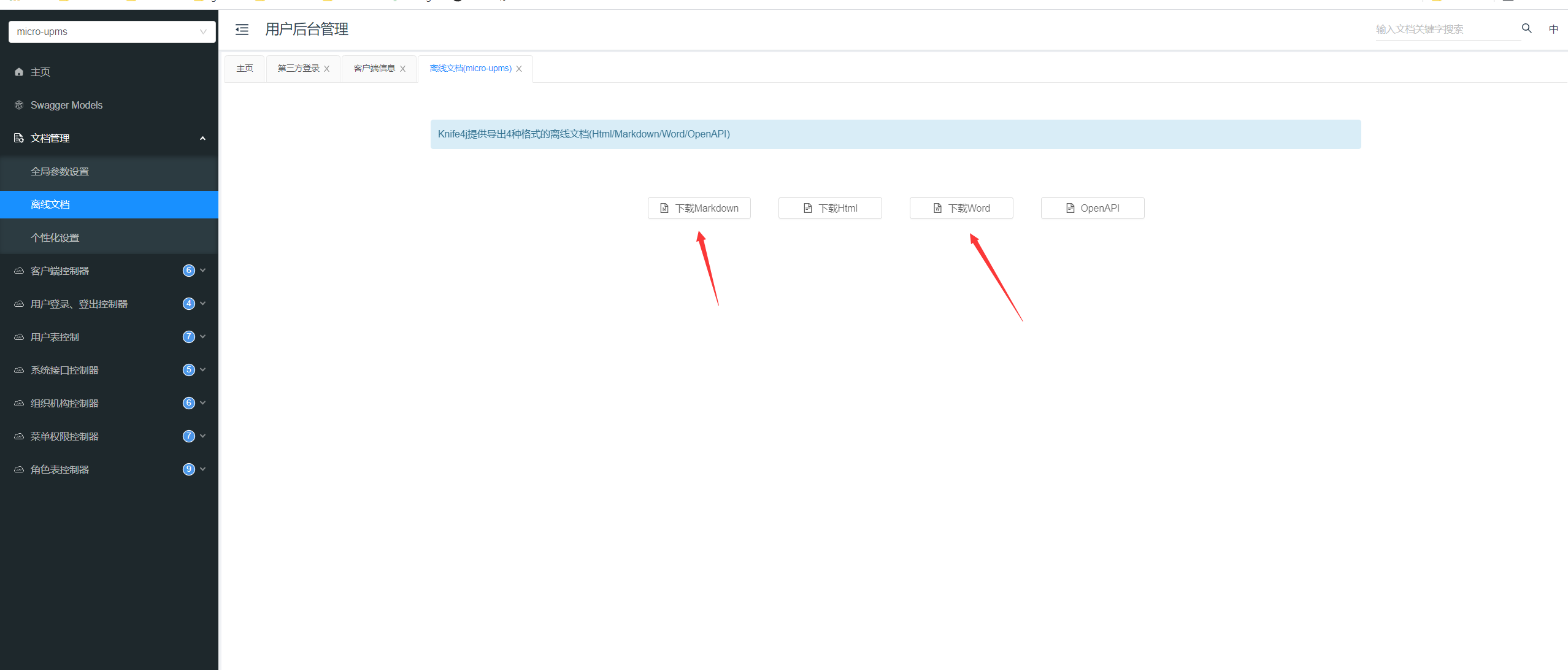

离线文档导出，可选择不同格式
