Reflector监控指定类型的资源,使得所有的变化都能被反射到指定的store中 代码版本:https://github.com/kubernetes/client-go/tree/release-1.18 代码位置:https://github.com/kubernetes/client-go/blob/release-1.18/tools/cache/reflector.go
类
- name:reflector名称
- expectedTypeName:期望的监控资源名称,为空则使用expectedType的字符串
- expectedType:期望的监控资源类型
- expectedGVK:期望的监控资源组类别
- store:存储从k8s-apiserver中获取的obj,一般为DeltaFIFO
- listerWatcher:从k8s-apiserver中监控并获取资源变动
- backoffManager:退避算法,用于处理k8s-apiserver不稳定时的重试间隔
- resyncPeriod:同步时间间隔
- ShouldResync:是否执行Resync(),即是否在初始同步后,持续同步
- lastSyncResourceVersion:最后一次sync的resourceversion
// Reflector watches a specified resource and causes all changes to be reflected in the given store.
type Reflector struct {
// name identifies this reflector. By default it will be a file:line if possible.
name string
// The name of the type we expect to place in the store. The name
// will be the stringification of expectedGVK if provided, and the
// stringification of expectedType otherwise. It is for display
// only, and should not be used for parsing or comparison.
expectedTypeName string
// An example object of the type we expect to place in the store.
// Only the type needs to be right, except that when that is
// `unstructured.Unstructured` the object's `"apiVersion"` and
// `"kind"` must also be right.
expectedType reflect.Type
// The GVK of the object we expect to place in the store if unstructured.
expectedGVK *schema.GroupVersionKind
// The destination to sync up with the watch source
store Store
// listerWatcher is used to perform lists and watches.
listerWatcher ListerWatcher
// backoff manages backoff of ListWatch
backoffManager wait.BackoffManager
resyncPeriod time.Duration
// ShouldResync is invoked periodically and whenever it returns `true` the Store's Resync operation is invoked
ShouldResync func() bool
// clock allows tests to manipulate time
clock clock.Clock
// paginatedResult defines whether pagination should be forced for list calls.
// It is set based on the result of the initial list call.
paginatedResult bool
// lastSyncResourceVersion is the resource version token last
// observed when doing a sync with the underlying store
// it is thread safe, but not synchronized with the underlying store
lastSyncResourceVersion string
// isLastSyncResourceVersionGone is true if the previous list or watch request with lastSyncResourceVersion
// failed with an HTTP 410 (Gone) status code.
isLastSyncResourceVersionGone bool
// lastSyncResourceVersionMutex guards read/write access to lastSyncResourceVersion
lastSyncResourceVersionMutex sync.RWMutex
// WatchListPageSize is the requested chunk size of initial and resync watch lists.
// If unset, for consistent reads (RV="") or reads that opt-into arbitrarily old data
// (RV="0") it will default to pager.PageSize, for the rest (RV != "" && RV != "0")
// it will turn off pagination to allow serving them from watch cache.
// NOTE: It should be used carefully as paginated lists are always served directly from
// etcd, which is significantly less efficient and may lead to serious performance and
// scalability problems.
WatchListPageSize int64
}
方法
NewReflector&NewNamedReflector
NewReflector
- 概述
- 创建一个新的
Reflector
,并保持store
中的数据与给定服务器中数据同步Reflector
仅将类型为ExpectedType
的东西放入store
,除非ExpectedType
为nil- 如果resyncPeriod不为零,则
Reflector
将定期查阅其ShouldResync
函数,以确定是否调用商店的Resync
操作;否则,Reflector
将重新调用它的ShouldResync
函数。ShouldResync == nil
总是true。 这使您可以使用ShouldResync
来定期处理所有事物,并逐步处理变化的事物。- 调用NewNamedReflector
NewNamedReflector
- 根据传入的参数构建
Reflector
// NewReflector creates a new Reflector object which will keep the
// given store up to date with the server's contents for the given
// resource. Reflector promises to only put things in the store that
// have the type of expectedType, unless expectedType is nil. If
// resyncPeriod is non-zero, then the reflector will periodically
// consult its ShouldResync function to determine whether to invoke
// the Store's Resync operation; `ShouldResync==nil` means always
// "yes". This enables you to use reflectors to periodically process
// everything as well as incrementally processing the things that
// change.
func NewReflector(lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {
return NewNamedReflector(naming.GetNameFromCallsite(internalPackages...), lw, expectedType, store, resyncPeriod)
}
// NewNamedReflector same as NewReflector, but with a specified name for logging
func NewNamedReflector(name string, lw ListerWatcher, expectedType interface{}, store Store, resyncPeriod time.Duration) *Reflector {
realClock := &clock.RealClock{}
r := &Reflector{
name: name,
listerWatcher: lw,
store: store,
// We used to make the call every 1sec (1 QPS), the goal here is to achieve ~98% traffic reduction when
// API server is not healthy. With these parameters, backoff will stop at [30,60) sec interval which is
// 0.22 QPS. If we don't backoff for 2min, assume API server is healthy and we reset the backoff.
backoffManager: wait.NewExponentialBackoffManager(800*time.Millisecond, 30*time.Second, 2*time.Minute, 2.0, 1.0, realClock),
resyncPeriod: resyncPeriod,
clock: realClock,
}
r.setExpectedType(expectedType)
return r
}
Run
概述**
每隔
backoffManager
计算出的时间间隔,调用一次ListAndWatch
源码分析
Run
- 调用wait.BackoffUntil与ListAndWatch
wait.BackoffUntil
- 当
stopCh
关闭时推出- 若
sliding
为false,则在执行f
之前重新计算backoff时间,若sliding
为true,则在执行f
之后重新计算backoff时间
// Run repeatedly uses the reflector's ListAndWatch to fetch all the
// objects and subsequent deltas.
// Run will exit when stopCh is closed.
func (r *Reflector) Run(stopCh <-chan struct{}) {
klog.V(2).Infof("Starting reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
wait.BackoffUntil(func() {
if err := r.ListAndWatch(stopCh); err != nil {
utilruntime.HandleError(err)
}
}, r.backoffManager, true, stopCh)
klog.V(2).Infof("Stopping reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
}
// BackoffUntil loops until stop channel is closed, run f every duration given by BackoffManager.
//
// If sliding is true, the period is computed after f runs. If it is false then
// period includes the runtime for f.
func BackoffUntil(f func(), backoff BackoffManager, sliding bool, stopCh <-chan struct{}) {
var t clock.Timer
for {
select {
case <-stopCh:
return
default:
}
if !sliding {
t = backoff.Backoff()
}
func() {
defer runtime.HandleCrash()
f()
}()
if sliding {
t = backoff.Backoff()
}
// NOTE: b/c there is no priority selection in golang
// it is possible for this to race, meaning we could
// trigger t.C and stopCh, and t.C select falls through.
// In order to mitigate we re-check stopCh at the beginning
// of every loop to prevent extra executions of f().
select {
case <-stopCh:
return
case <-t.C():
}
}
}
ListAndWatch
概述

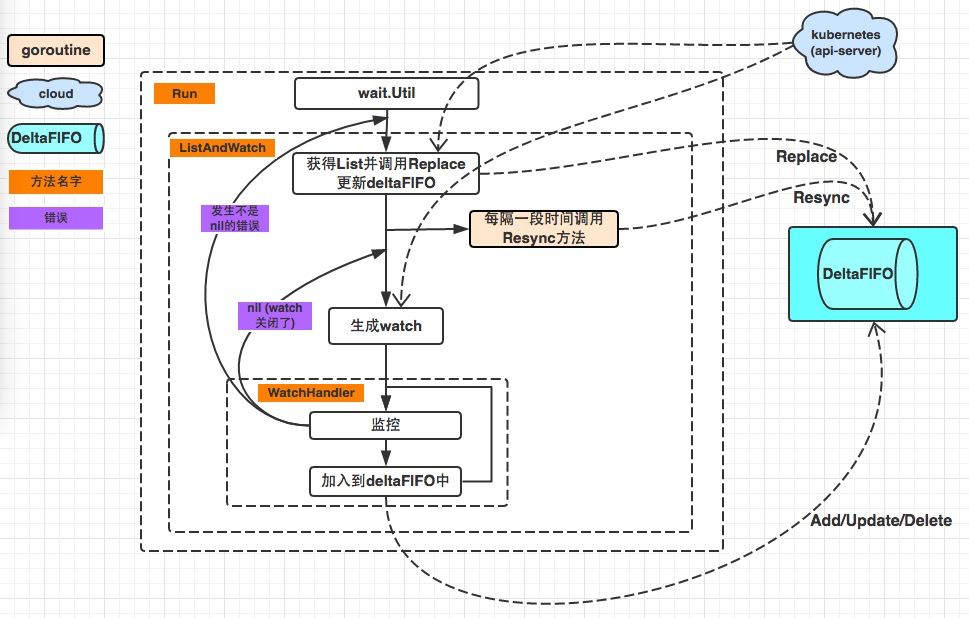

ListAndWatch首先列出所有项目,并在调用时获取资源版本,然后对当前资源版本后的所有指定资源进行监控,根据间隔时间对store添加同步Sync变更,最后调用watchHandler方法处理获取到的资源
源码分析
- 从k8s-apiserver获取指定类型资源的所有数据list
- 对list中的obj进行处理
- 检查是否实现list接口
- 获取版本号
- 返回obj数组
- 调用syncWith
- syncWith中循环obj数组,组成新的
items
数组,并调用store
的Replace
方法把items
放入store
中- 设置最中同步版本号
- 启动一个线程,根据resyncChan所生成的timer,以
resyncPeriod
为时间间隔对store中所有的obj执行Resync方法
- 调用store.Resync,对store中的obj增加Sync变更
- 循环watch
resourceVersion
版本之后的资源变动并调用watchHandler方法
- 调用r.listerWatcher.Watch方法获取资源数组
- 调用watchHandler方法对资源进行处理
// ListAndWatch first lists all items and get the resource version at the moment of call,
// and then use the resource version to watch.
// It returns error if ListAndWatch didn't even try to initialize watch.
func (r *Reflector) ListAndWatch(stopCh <-chan struct{}) error {
klog.V(3).Infof("Listing and watching %v from %s", r.expectedTypeName, r.name)
var resourceVersion string
options := metav1.ListOptions{ResourceVersion: r.relistResourceVersion()}
if err := func() error {
initTrace := trace.New("Reflector ListAndWatch", trace.Field{"name", r.name})
defer initTrace.LogIfLong(10 * time.Second)
var list runtime.Object
var paginatedResult bool
var err error
listCh := make(chan struct{}, 1)
panicCh := make(chan interface{}, 1)
go func() {
defer func() {
if r := recover(); r != nil {
panicCh <- r
}
}()
// == 1
// Attempt to gather list in chunks, if supported by listerWatcher, if not, the first
// list request will return the full response.
pager := pager.New(pager.SimplePageFunc(func(opts metav1.ListOptions) (runtime.Object, error) {
return r.listerWatcher.List(opts)
}))
switch {
case r.WatchListPageSize != 0:
pager.PageSize = r.WatchListPageSize
case r.paginatedResult:
// We got a paginated result initially. Assume this resource and server honor
// paging requests (i.e. watch cache is probably disabled) and leave the default
// pager size set.
case options.ResourceVersion != "" && options.ResourceVersion != "0":
// User didn't explicitly request pagination.
//
// With ResourceVersion != "", we have a possibility to list from watch cache,
// but we do that (for ResourceVersion != "0") only if Limit is unset.
// To avoid thundering herd on etcd (e.g. on master upgrades), we explicitly
// switch off pagination to force listing from watch cache (if enabled).
// With the existing semantic of RV (result is at least as fresh as provided RV),
// this is correct and doesn't lead to going back in time.
//
// We also don't turn off pagination for ResourceVersion="0", since watch cache
// is ignoring Limit in that case anyway, and if watch cache is not enabled
// we don't introduce regression.
pager.PageSize = 0
}
list, paginatedResult, err = pager.List(context.Background(), options)
if isExpiredError(err) {
r.setIsLastSyncResourceVersionExpired(true)
// Retry immediately if the resource version used to list is expired.
// The pager already falls back to full list if paginated list calls fail due to an "Expired" error on
// continuation pages, but the pager might not be enabled, or the full list might fail because the
// resource version it is listing at is expired, so we need to fallback to resourceVersion="" in all
// to recover and ensure the reflector makes forward progress.
list, paginatedResult, err = pager.List(context.Background(), metav1.ListOptions{ResourceVersion: r.relistResourceVersion()})
}
close(listCh)
}()
select {
case <-stopCh:
return nil
case r := <-panicCh:
panic(r)
case <-listCh:
}
if err != nil {
return fmt.Errorf("%s: Failed to list %v: %v", r.name, r.expectedTypeName, err)
}
// We check if the list was paginated and if so set the paginatedResult based on that.
// However, we want to do that only for the initial list (which is the only case
// when we set ResourceVersion="0"). The reasoning behind it is that later, in some
// situations we may force listing directly from etcd (by setting ResourceVersion="")
// which will return paginated result, even if watch cache is enabled. However, in
// that case, we still want to prefer sending requests to watch cache if possible.
//
// Paginated result returned for request with ResourceVersion="0" mean that watch
// cache is disabled and there are a lot of objects of a given type. In such case,
// there is no need to prefer listing from watch cache.
if options.ResourceVersion == "0" && paginatedResult {
r.paginatedResult = true
}
// == 2
r.setIsLastSyncResourceVersionExpired(false) // list was successful
initTrace.Step("Objects listed")
// == 2.a
listMetaInterface, err := meta.ListAccessor(list)
if err != nil {
return fmt.Errorf("%s: Unable to understand list result %#v: %v", r.name, list, err)
}
// == 2.b
resourceVersion = listMetaInterface.GetResourceVersion()
initTrace.Step("Resource version extracted")
// == 2.c
items, err := meta.ExtractList(list)
if err != nil {
return fmt.Errorf("%s: Unable to understand list result %#v (%v)", r.name, list, err)
}
initTrace.Step("Objects extracted")
// == 2.d
if err := r.syncWith(items, resourceVersion); err != nil {
return fmt.Errorf("%s: Unable to sync list result: %v", r.name, err)
}
initTrace.Step("SyncWith done")
// == 2.e
r.setLastSyncResourceVersion(resourceVersion)
initTrace.Step("Resource version updated")
return nil
}(); err != nil {
return err
}
// == 3
resyncerrc := make(chan error, 1)
cancelCh := make(chan struct{})
defer close(cancelCh)
go func() {
resyncCh, cleanup := r.resyncChan()
defer func() {
cleanup() // Call the last one written into cleanup
}()
for {
select {
case <-resyncCh:
case <-stopCh:
return
case <-cancelCh:
return
}
if r.ShouldResync == nil || r.ShouldResync() {
klog.V(4).Infof("%s: forcing resync", r.name)
// == 3.a
if err := r.store.Resync(); err != nil {
resyncerrc <- err
return
}
}
cleanup()
resyncCh, cleanup = r.resyncChan()
}
}()
// == 4
for {
// give the stopCh a chance to stop the loop, even in case of continue statements further down on errors
select {
case <-stopCh:
return nil
default:
}
timeoutSeconds := int64(minWatchTimeout.Seconds() * (rand.Float64() + 1.0))
options = metav1.ListOptions{
ResourceVersion: resourceVersion,
// We want to avoid situations of hanging watchers. Stop any wachers that do not
// receive any events within the timeout window.
TimeoutSeconds: &timeoutSeconds,
// To reduce load on kube-apiserver on watch restarts, you may enable watch bookmarks.
// Reflector doesn't assume bookmarks are returned at all (if the server do not support
// watch bookmarks, it will ignore this field).
AllowWatchBookmarks: true,
}
// == 4.a
w, err := r.listerWatcher.Watch(options)
if err != nil {
switch {
case isExpiredError(err):
// Don't set LastSyncResourceVersionExpired - LIST call with ResourceVersion=RV already
// has a semantic that it returns data at least as fresh as provided RV.
// So first try to LIST with setting RV to resource version of last observed object.
klog.V(4).Infof("%s: watch of %v closed with: %v", r.name, r.expectedTypeName, err)
case err == io.EOF:
// watch closed normally
case err == io.ErrUnexpectedEOF:
klog.V(1).Infof("%s: Watch for %v closed with unexpected EOF: %v", r.name, r.expectedTypeName, err)
default:
utilruntime.HandleError(fmt.Errorf("%s: Failed to watch %v: %v", r.name, r.expectedTypeName, err))
}
// If this is "connection refused" error, it means that most likely apiserver is not responsive.
// It doesn't make sense to re-list all objects because most likely we will be able to restart
// watch where we ended.
// If that's the case wait and resend watch request.
if utilnet.IsConnectionRefused(err) {
time.Sleep(time.Second)
continue
}
return nil
}
// == 4.b
if err := r.watchHandler(w, &resourceVersion, resyncerrc, stopCh); err != nil {
if err != errorStopRequested {
switch {
case isExpiredError(err):
// Don't set LastSyncResourceVersionExpired - LIST call with ResourceVersion=RV already
// has a semantic that it returns data at least as fresh as provided RV.
// So first try to LIST with setting RV to resource version of last observed object.
klog.V(4).Infof("%s: watch of %v closed with: %v", r.name, r.expectedTypeName, err)
default:
klog.Warningf("%s: watch of %v ended with: %v", r.name, r.expectedTypeName, err)
}
}
return nil
}
}
}
watchHandler
概述
watchHandler循环从w取出watch到的资源变化obj,并根据类型调用store不同的方法把obj存入store中,并保持*resourceVersion为最新。
源码分析
- 若stopChan有值,则返回error
- 若errc中有值,则返回error
- 调用watch.ResultChan()取出结果
- 没有结果则break
- watch.Type不为watch.Error,否则返回
- 根据
expectedType
,检查obj是否为指定监控类型- 根据
expectedGVK
,检查资源GroupVersionKind即资源组类别- 检查并返回指定类别接口,若不为指定接口的继承类,则返回err
- 获取最新版本号newResourceVersion
- 根据event.Type向store中添加不同的变更类型
- Added则调用store.Add()
- watch.Modified则调用store.Update()
- watch.Deleted则调用store.Delete()
- 设置最新版本号,eventCount执行次数+1
- 若执行时间小于1s或eventCount(执行次数)为0,则报错
// watchHandler watches w and keeps *resourceVersion up to date.
func (r *Reflector) watchHandler(w watch.Interface, resourceVersion *string, errc chan error, stopCh <-chan struct{}) error {
start := r.clock.Now()
eventCount := 0
// Stopping the watcher should be idempotent and if we return from this function there's no way
// we're coming back in with the same watch interface.
defer w.Stop()
loop:
for {
select {
// == 1
case <-stopCh:
return errorStopRequested
// == 2
case err := <-errc:
return err
// == 3
case event, ok := <-w.ResultChan():
// == 3.a
if !ok {
break loop
}
// == 3.b
if event.Type == watch.Error {
return apierrors.FromObject(event.Object)
}
// == 3.c
if r.expectedType != nil {
if e, a := r.expectedType, reflect.TypeOf(event.Object); e != a {
utilruntime.HandleError(fmt.Errorf("%s: expected type %v, but watch event object had type %v", r.name, e, a))
continue
}
}
// == 3.d
if r.expectedGVK != nil {
if e, a := *r.expectedGVK, event.Object.GetObjectKind().GroupVersionKind(); e != a {
utilruntime.HandleError(fmt.Errorf("%s: expected gvk %v, but watch event object had gvk %v", r.name, e, a))
continue
}
}
// == 3.e
meta, err := meta.Accessor(event.Object)
if err != nil {
utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
continue
}
// == 3.f
newResourceVersion := meta.GetResourceVersion()
// == 3.g
switch event.Type {
// == 3.g.i
case watch.Added:
err := r.store.Add(event.Object)
if err != nil {
utilruntime.HandleError(fmt.Errorf("%s: unable to add watch event object (%#v) to store: %v", r.name, event.Object, err))
}
// == 3.g.ii
case watch.Modified:
err := r.store.Update(event.Object)
if err != nil {
utilruntime.HandleError(fmt.Errorf("%s: unable to update watch event object (%#v) to store: %v", r.name, event.Object, err))
}
// == 3.g.iii
case watch.Deleted:
// TODO: Will any consumers need access to the "last known
// state", which is passed in event.Object? If so, may need
// to change this.
err := r.store.Delete(event.Object)
if err != nil {
utilruntime.HandleError(fmt.Errorf("%s: unable to delete watch event object (%#v) from store: %v", r.name, event.Object, err))
}
case watch.Bookmark:
// A `Bookmark` means watch has synced here, just update the resourceVersion
default:
utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
}
// == 3.g.iv
*resourceVersion = newResourceVersion
r.setLastSyncResourceVersion(newResourceVersion)
eventCount++
}
}
// == 4
watchDuration := r.clock.Since(start)
if watchDuration < 1*time.Second && eventCount == 0 {
return fmt.Errorf("very short watch: %s: Unexpected watch close - watch lasted less than a second and no items received", r.name)
}
klog.V(4).Infof("%s: Watch close - %v total %v items received", r.name, r.expectedTypeName, eventCount)
return nil
}
总过程图示
Run
- 调用wait.Util 即循环定时调用ListAndWatch
ListAndWatch
- 获取api-service所有资源状态放入store中,开启线程定时调用Resync同步并循环生成watch&调用watchHandler
watchHandler
- 循环从watch中取出result,根据event.Type调用store不同的操作方法(Add/Update/Delete),向store储存信息
小结
- 从api-server中获取指定资源的event,存入store中
