4.2.1、创建分支

配置要求：只要是push操作就会自动触发Jenkins的构建操作

4.2、配置gitlab自动提交流水线 - 图1

4.2.2、安装插件

  1. Generic Webhook Trigger

4.2、配置gitlab自动提交流水线 - 图2

4.2.3、jenkins配置

4.2、配置gitlab自动提交流水线 - 图3simple-java-maven-app-master.zip

  1. srcUrl
  2. http://39.105.58.61:9999/root/demo-maven-service.git

4.2、配置gitlab自动提交流水线 - 图4

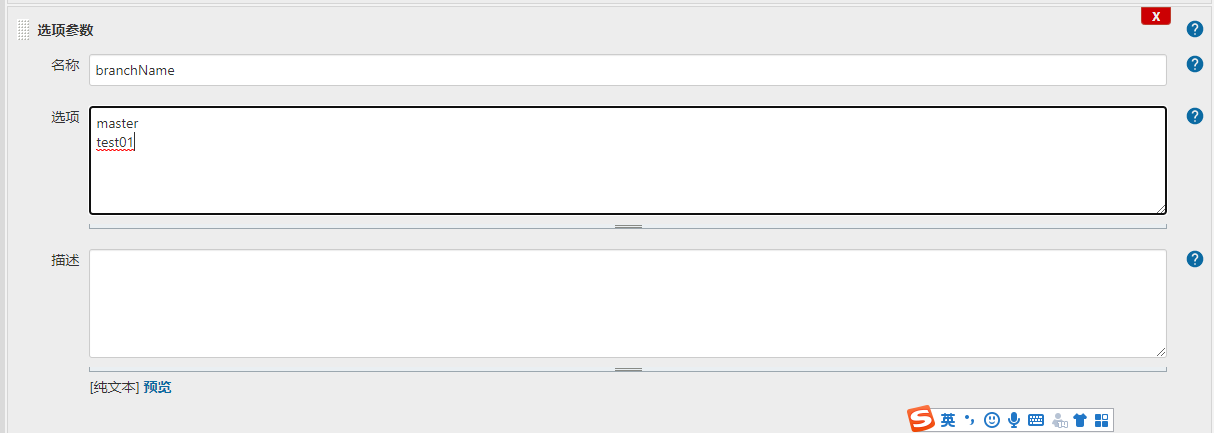

  1. branchName
  2. master
  3. test01

4.2、配置gitlab自动提交流水线 - 图5

  1. buildType
  2. mvn

4.2、配置gitlab自动提交流水线 - 图6

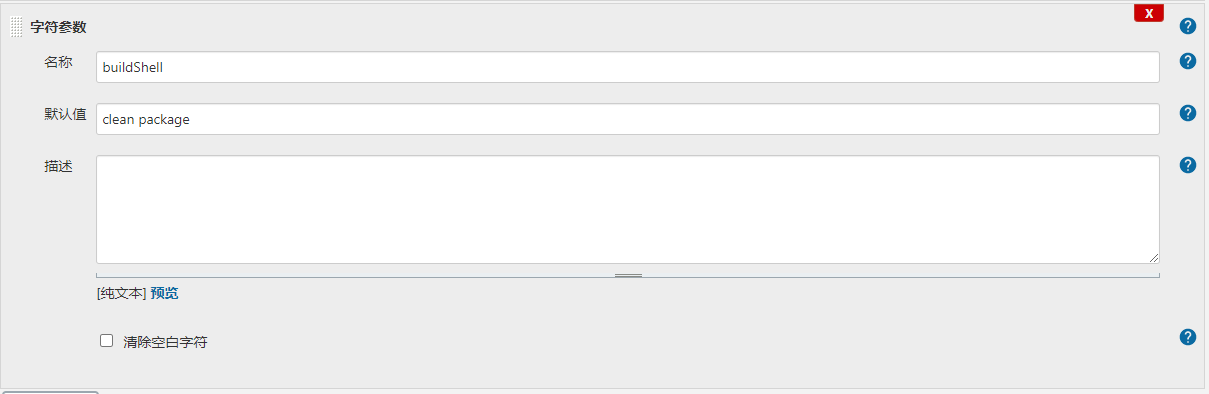

  1. buildShell
  2. clean package

4.2、配置gitlab自动提交流水线 - 图7

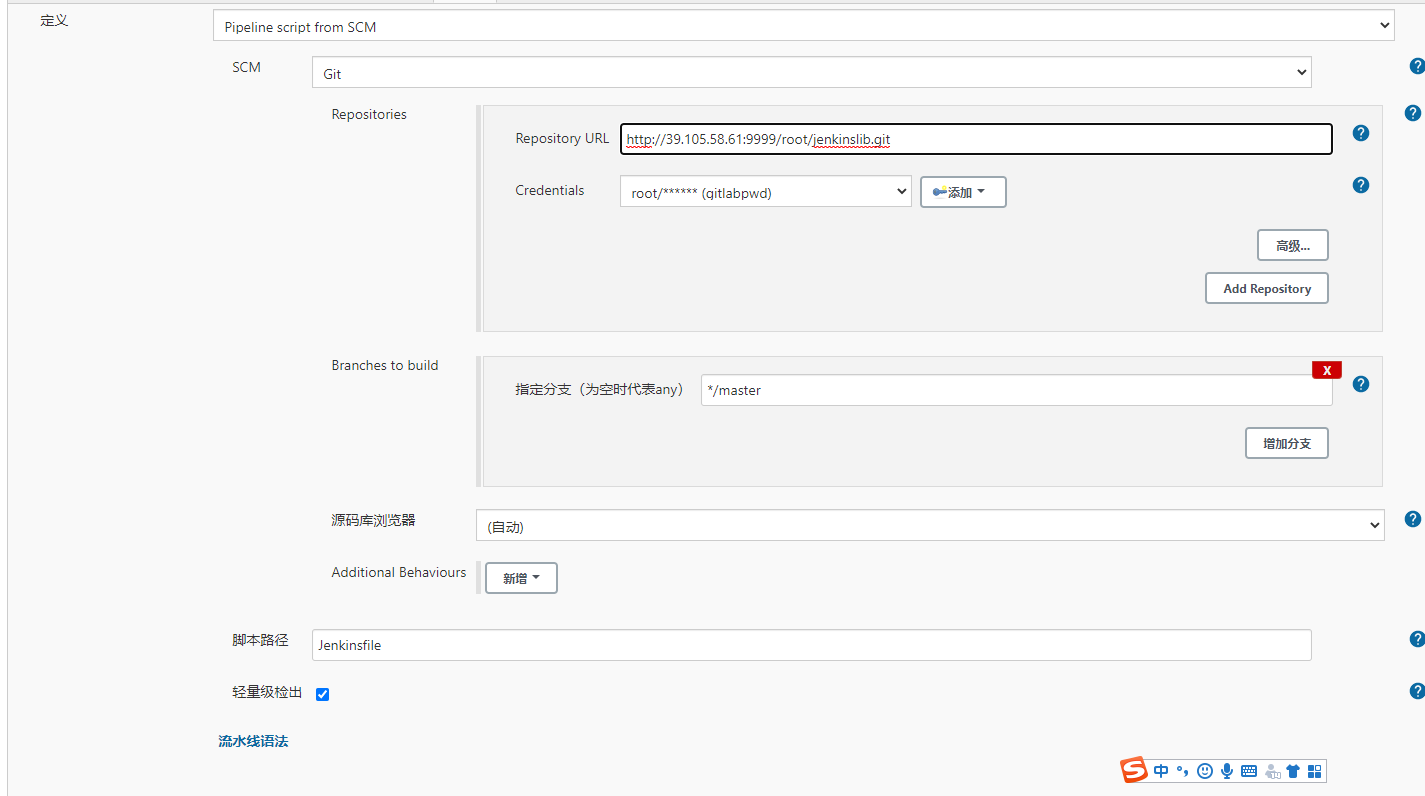

  1. http://39.105.58.61:9999/root/jenkinslib.git
  2. 凭据认证
  3. */master
  4. Jenkinsfile

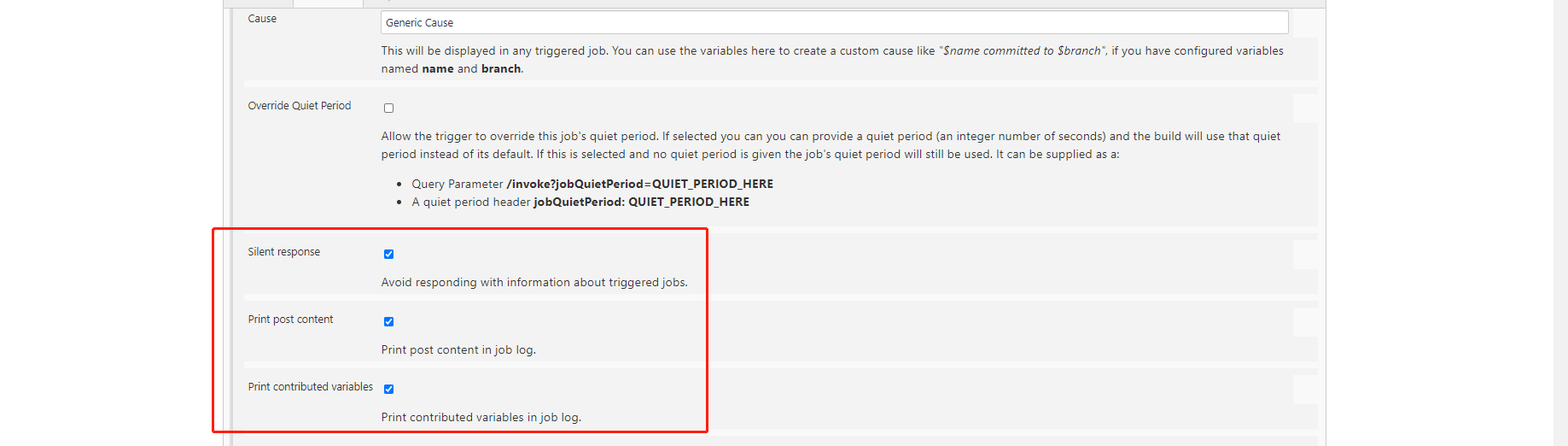

4.2.4、勾选配置触发器

4.2、配置gitlab自动提交流水线 - 图8

4.2、配置gitlab自动提交流水线 - 图9

4.2、配置gitlab自动提交流水线 - 图10

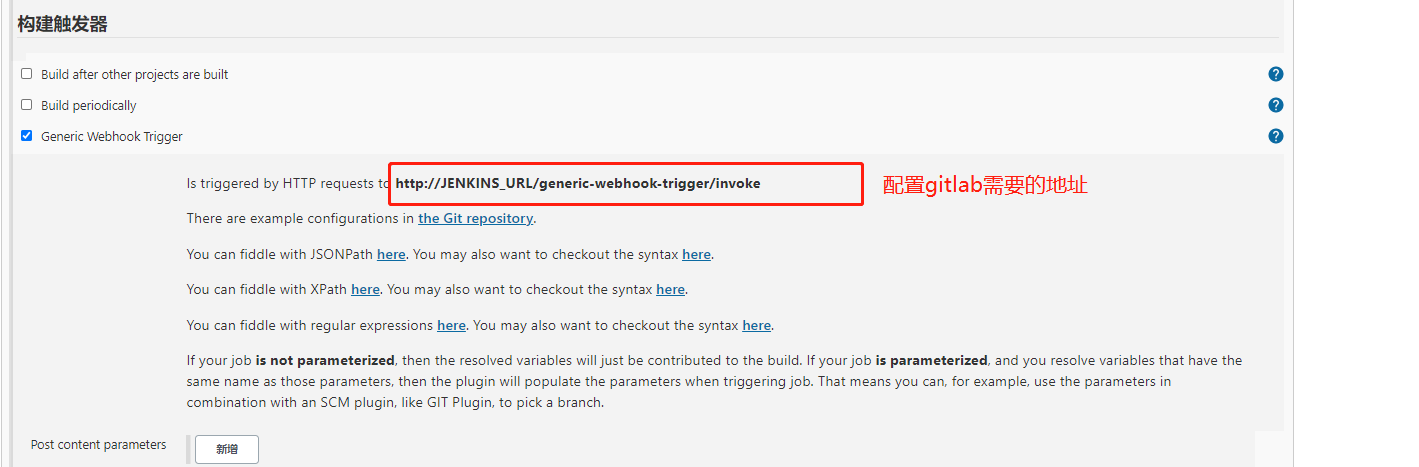

  1. http://JENKINS_URL/generic-webhook-trigger/invoke
  2. runOpts
  3. gitlab-demo-maven-service

4.2.5、配置gitlab

4.2.5.1、报错

  1. http://47.93.249.164:8888/generic-webhook-trigger/invoke?token=gitlab-demo-maven-service&runOpts=GitlabPush

4.2、配置gitlab自动提交流水线 - 图11

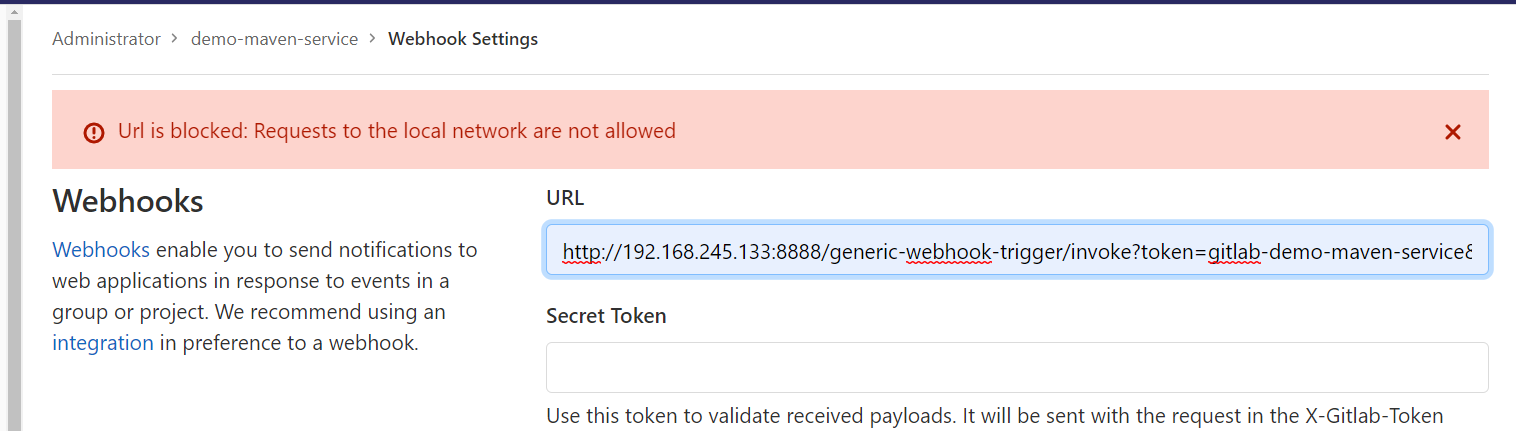

  1.  Url is blocked: Requests to the local network are not allowed

4.2.5.2、报错解决方式

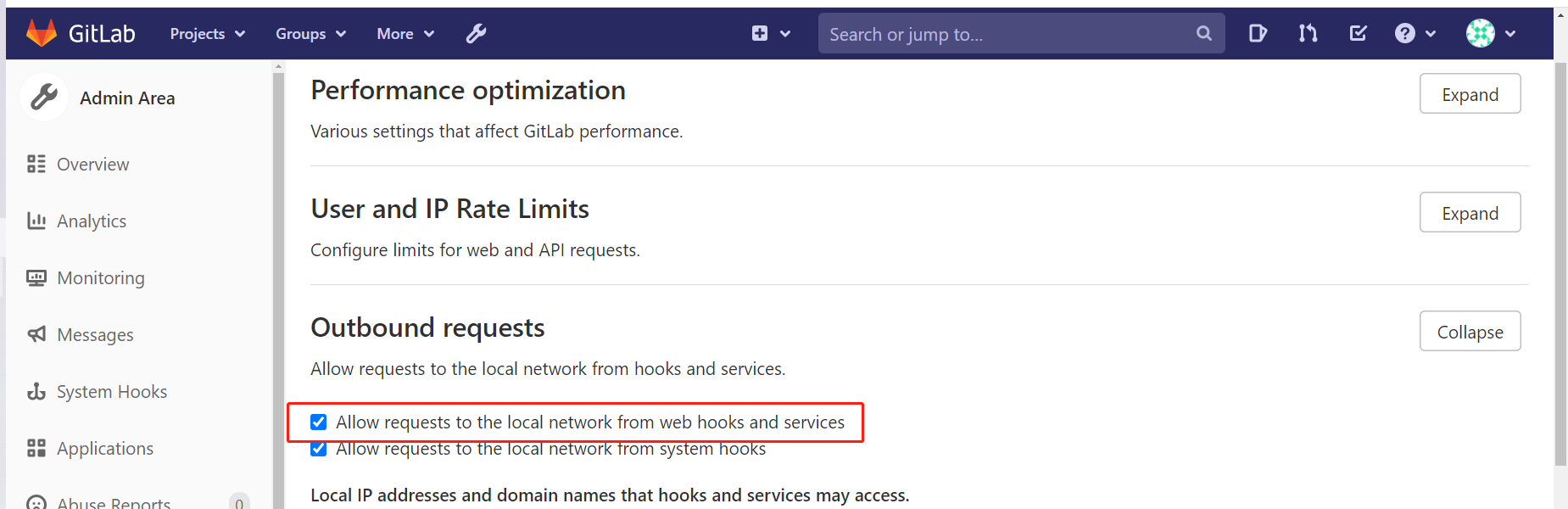

  1. Admin area => Settings => Network
  2. 勾选下面的选项

4.2、配置gitlab自动提交流水线 - 图12

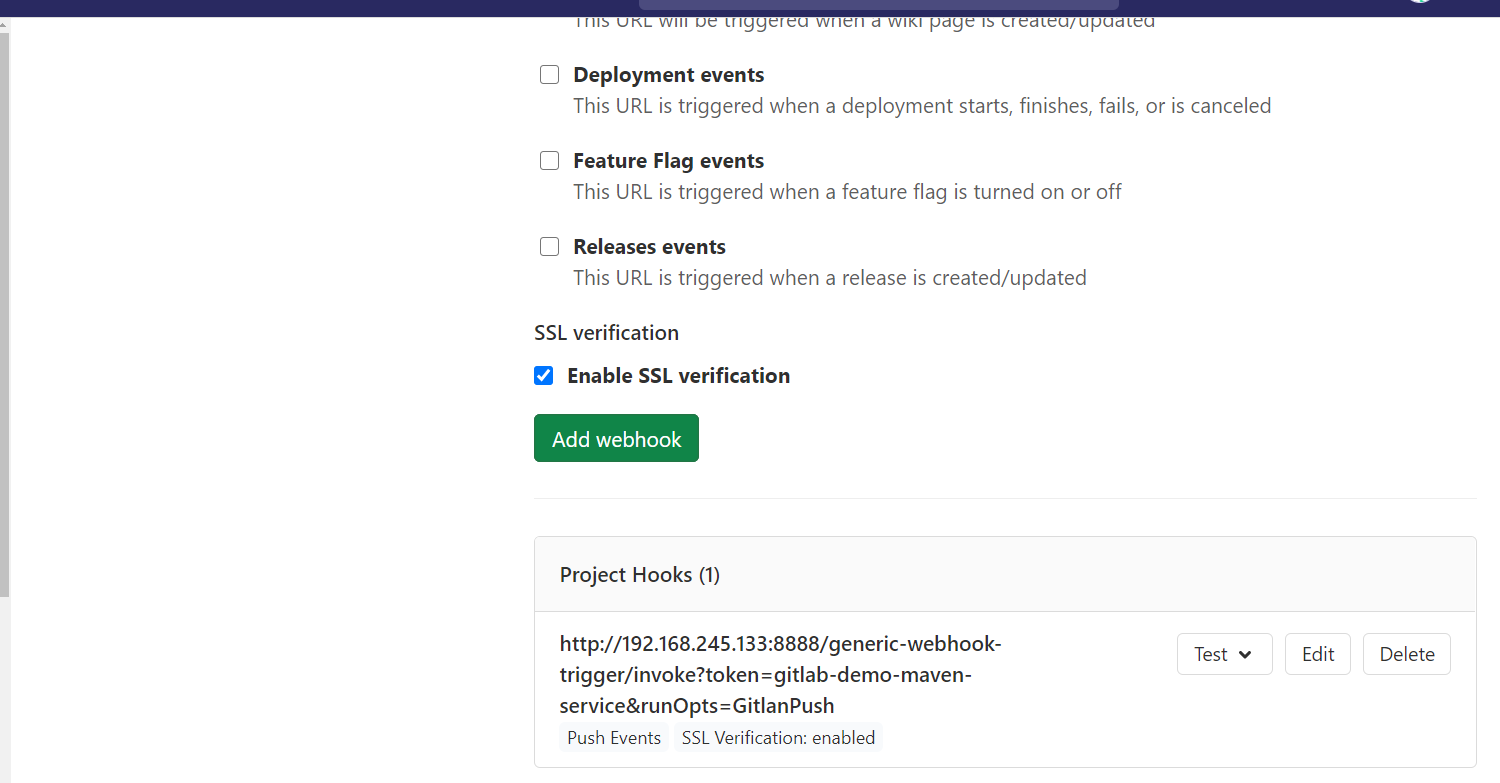

4.2.5.3、在次配置添加jenkins

  1. http://47.93.249.164:8888/generic-webhook-trigger/invoke?token=gitlab-demo-maven-service&runOpts=GitlabPush

4.2、配置gitlab自动提交流水线 - 图13

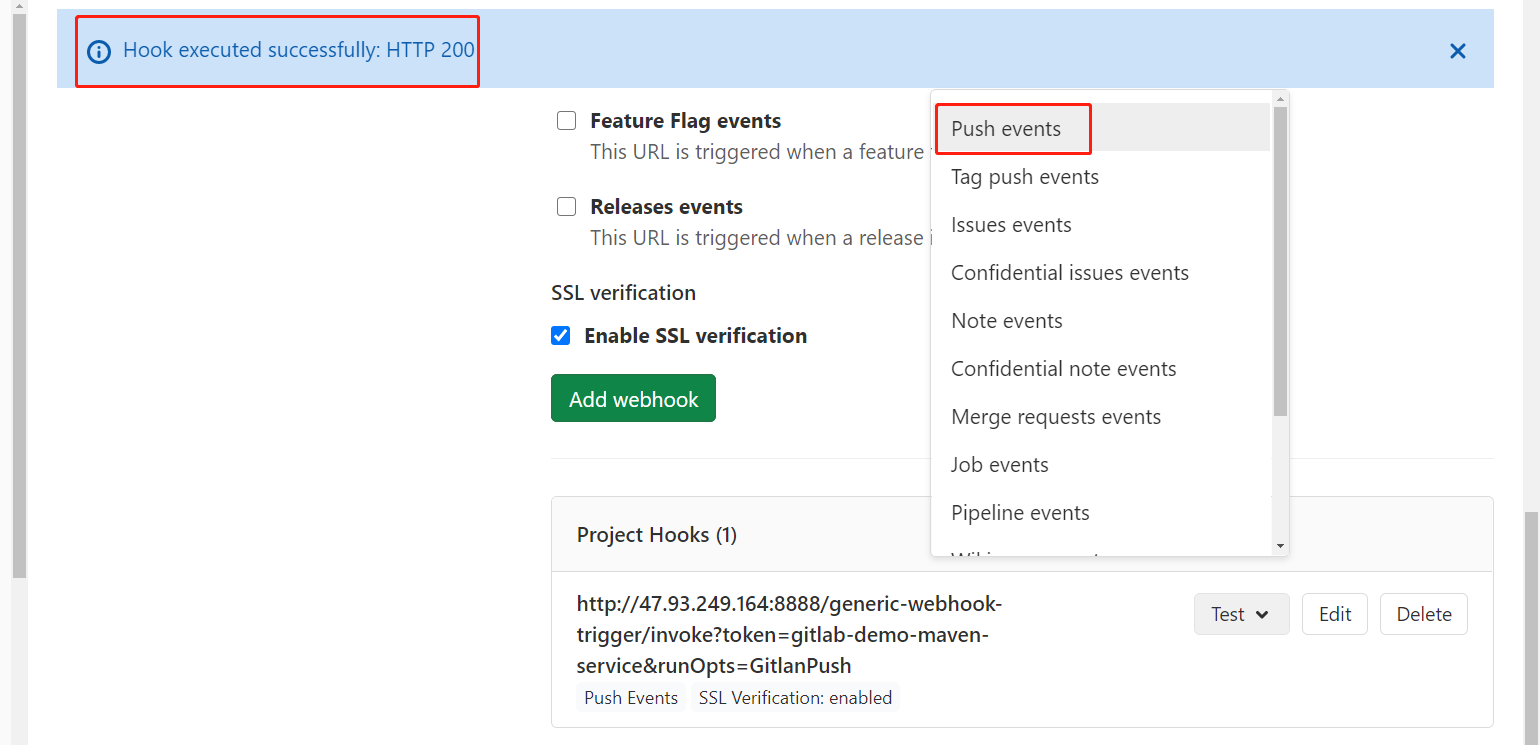

4.2.5.4、测试触发

4.2、配置gitlab自动提交流水线 - 图14

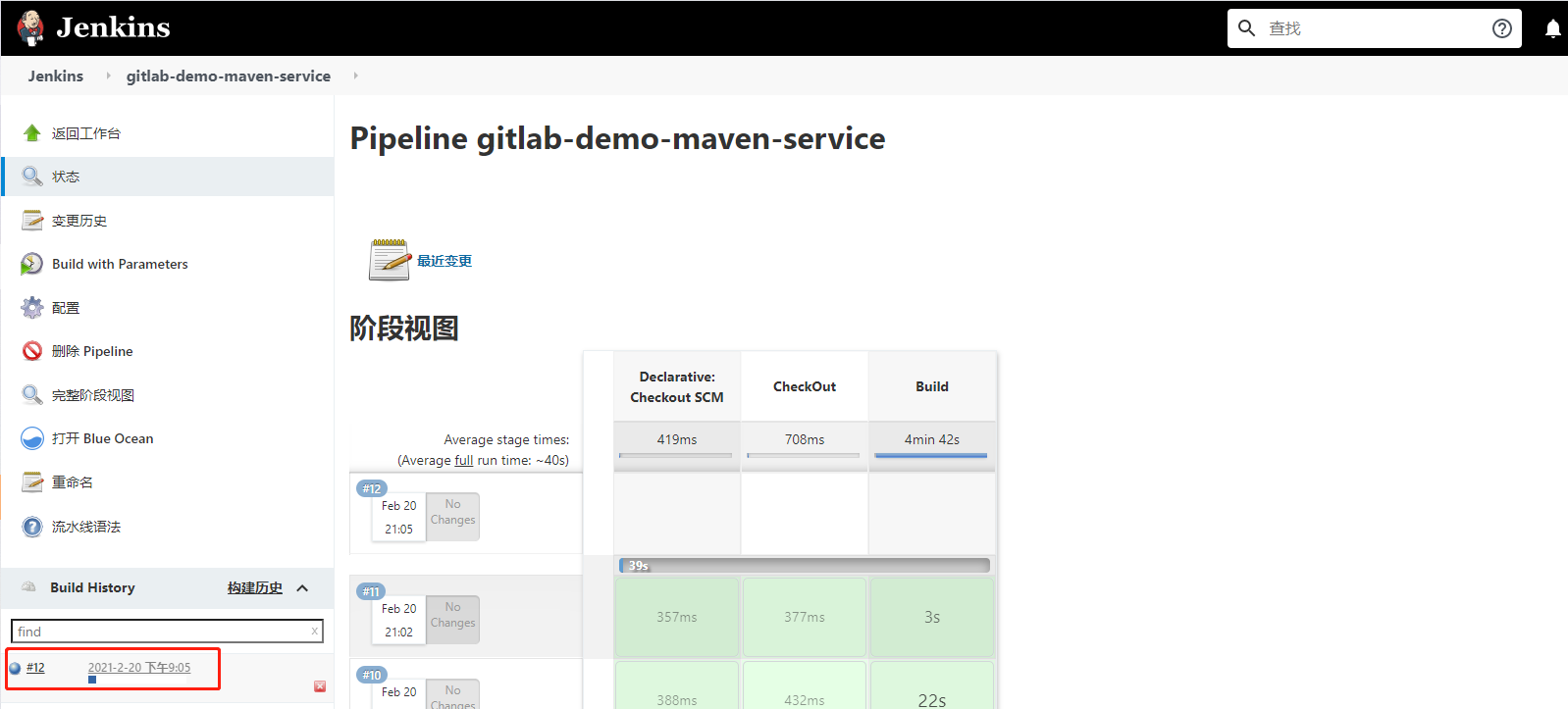

4.2.5.5、测试验证jenkins是否已经自动触发

  1. 已自动触发构建操作

4.2、配置gitlab自动提交流水线 - 图15

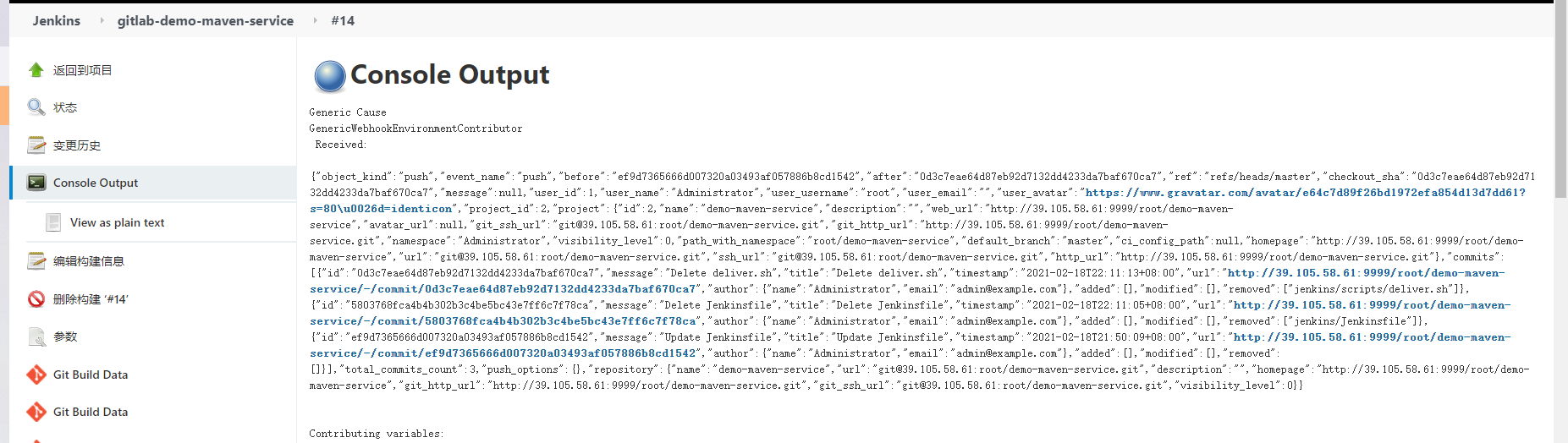

4.2.5.6、分析提交的日志

4.2、配置gitlab自动提交流水线 - 图16

保留该报文有助于后续获取参数。如4.3获取的user_username参数

  1. {
  2.     "object_kind":"push",
  3.     "event_name":"push",
  4.     "before":"ef9d7365666d007320a03493af057886b8cd1542",
  5.     "after":"0d3c7eae64d87eb92d7132dd4233da7baf670ca7",
  6.     "ref":"refs/heads/master",
  7.     "checkout_sha":"0d3c7eae64d87eb92d7132dd4233da7baf670ca7",
  8.     "message":null,
  9.     "user_id":1,
  10.     "user_name":"Administrator",
  11.     "user_username":"root",
  12.     "user_email":"",
  13.     "user_avatar":"https://www.gravatar.com/avatar/e64c7d89f26bd1972efa854d13d7dd61?s=80&d=identicon",
  14.     "project_id":2,
  15.     "project":{
  16.         "id":2,
  17.         "name":"demo-maven-service",
  18.         "description":"",
  19.         "web_url":"http://39.105.58.61:9999/root/demo-maven-service",
  20.         "avatar_url":null,
  21.         "git_ssh_url":"git@39.105.58.61:root/demo-maven-service.git",
  22.         "git_http_url":"http://39.105.58.61:9999/root/demo-maven-service.git",
  23.         "namespace":"Administrator",
  24.         "visibility_level":0,
  25.         "path_with_namespace":"root/demo-maven-service",
  26.         "default_branch":"master",
  27.         "ci_config_path":null,
  28.         "homepage":"http://39.105.58.61:9999/root/demo-maven-service",
  29.         "url":"git@39.105.58.61:root/demo-maven-service.git",
  30.         "ssh_url":"git@39.105.58.61:root/demo-maven-service.git",
  31.         "http_url":"http://39.105.58.61:9999/root/demo-maven-service.git"
  32.     },
  33.     "commits":[
  34.         {
  35.             "id":"0d3c7eae64d87eb92d7132dd4233da7baf670ca7",
  36.             "message":"Delete deliver.sh",
  37.             "title":"Delete deliver.sh",
  38.             "timestamp":"2021-02-18T22:11:13+08:00",
  39.             "url":"http://39.105.58.61:9999/root/demo-maven-service/-/commit/0d3c7eae64d87eb92d7132dd4233da7baf670ca7",
  40.             "author":{
  41.                 "name":"Administrator",
  42.                 "email":"admin@example.com"
  43.             },
  44.             "added":[
  46.             ],
  47.             "modified":[
  49.             ],
  50.             "removed":[
  51.                 "jenkins/scripts/deliver.sh"
  52.             ]
  53.         },
  54.         {
  55.             "id":"5803768fca4b4b302b3c4be5bc43e7ff6c7f78ca",
  56.             "message":"Delete Jenkinsfile",
  57.             "title":"Delete Jenkinsfile",
  58.             "timestamp":"2021-02-18T22:11:05+08:00",
  59.             "url":"http://39.105.58.61:9999/root/demo-maven-service/-/commit/5803768fca4b4b302b3c4be5bc43e7ff6c7f78ca",
  60.             "author":{
  61.                 "name":"Administrator",
  62.                 "email":"admin@example.com"
  63.             },
  64.             "added":[
  66.             ],
  67.             "modified":[
  69.             ],
  70.             "removed":[
  71.                 "jenkins/Jenkinsfile"
  72.             ]
  73.         },
  74.         {
  75.             "id":"ef9d7365666d007320a03493af057886b8cd1542",
  76.             "message":"Update Jenkinsfile",
  77.             "title":"Update Jenkinsfile",
  78.             "timestamp":"2021-02-18T21:50:09+08:00",
  79.             "url":"http://39.105.58.61:9999/root/demo-maven-service/-/commit/ef9d7365666d007320a03493af057886b8cd1542",
  80.             "author":{
  81.                 "name":"Administrator",
  82.                 "email":"admin@example.com"
  83.             },
  84.             "added":[
  86.             ],
  87.             "modified":[
  89.             ],
  90.             "removed":[
  92.             ]
  93.         }
  94.     ],
  95.     "total_commits_count":3,
  96.     "push_options":{
  98.     },
  99.     "repository":{
  100.         "name":"demo-maven-service",
  101.         "url":"git@39.105.58.61:root/demo-maven-service.git",
  102.         "description":"",
  103.         "homepage":"http://39.105.58.61:9999/root/demo-maven-service",
  104.         "git_http_url":"http://39.105.58.61:9999/root/demo-maven-service.git",
  105.         "git_ssh_url":"git@39.105.58.61:root/demo-maven-service.git",
  106.         "visibility_level":0
  107.     }
  108. }

4.2.5.7、共享库

  1. src/org/devops/build.groovy
  3. package org.devops
  5. //构建类型
  6. //传入参数构建类型，构建命令
  7. def Build(buildType,buildShell){
  8.     //页面传入的buildType匹配mvn、ant、gradle、npm
  9.     //m2、ant、Gradle、NPM为Global Tool Configuration配置变量名称
  10.     def buildTools=["mvn":"m2","ant":"ant","gradle":"Gradle","npm":"NPM"]
  11.         println("当前选择的构建类型为 ${buildType}")
  12.         buildHome = tool buildTools[buildType]
  13.         sh "${buildHome}/bin/${buildType} ${buildShell}"
  14. }

4.3.5.7、jenkinsfile

  1. #!groovy
  2. //引用Library库
  3. @Library('jenkinslib@master') _
  5. //引用构建共享库
  6. def build = new org.devops.build()
  7. //引入发布共享库
  8. def deploy = new org.devops.deploy()
  9. //引入参数
  12. String srcUrl = "${env.srcUrl}" //引用参数
  13. String branchName = "${env.branchName}" //引用参数
  14. String buildType = "${env.buildType}" //引用参数
  15. String buildShell = "${env.buildShell}" //引用参数
  17. pipeline {
  18.     agent {
  19.         node {
  20.             label "master" //构建主机
  21.         }
  22.     }
  23.     stages {
  24.         //下载代码
  25.         stage("CheckOut") {
  26.             steps {
  27.                 script {
  28.                     checkout([$class: 'GitSCM', branches: [[name: "${branchName}"]], doGenerateSubmoduleConfigurations: false, extensions: [], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'gitlabpwd', url: "${srcUrl}"]]])
  29.                 }
  30.             }
  31.         }
  32.         stage("Build") {
  33.             steps {
  34.                 script {
  35.                     //引入构建共享库内函数
  36.                     build.Build(buildType,buildShell)
  37.                     //引用发布共享库内函数
  38.                 }
  39.             }
  40.         }
  41.     }
  42. }
