K8S集群搭建 - 《Kubernetes》

一、虚拟机搭建和网络配置
1、第一步创建4个虚拟机
vagrant up
2、修改虚拟机，能够以用户名密码登录
vagrant ssh k8s-node1

vagrant ssh k8s-node1
su root
vagrant
vi /etc/ssh/sshd_config
PasswordAuthentication no  改成 PasswordAuthentication yes
保存
service sshd restart
exit;
exit;

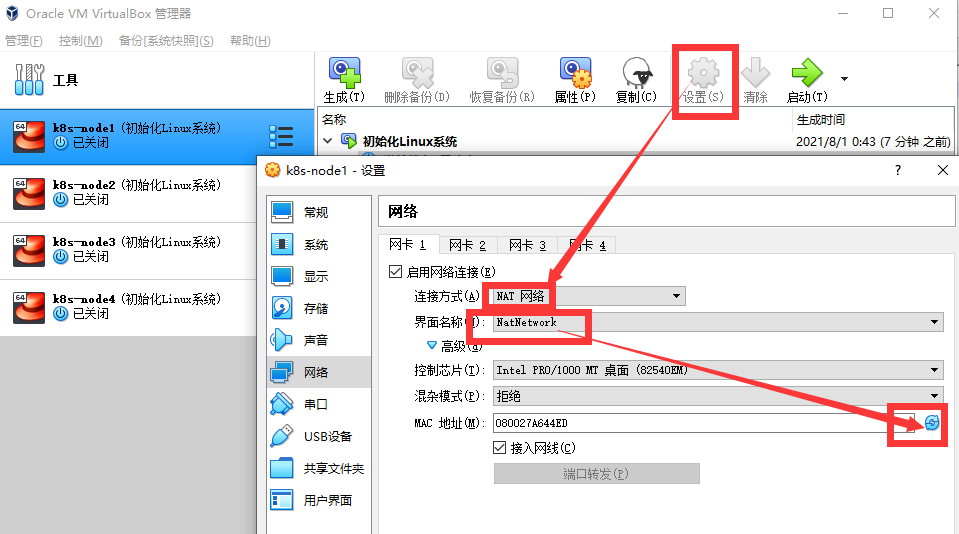

3、修改网络

当前4节点
k8s-node1 10.0.2.10
k8s-node2 10.0.2.7
k8s-node3 10.0.2.8
k8s-node4 10.0.2.9

ping 内网外网都可以通

4、环境设置

关闭防火墙

systemctl stop firewalld
systemctl disable firewalld

关闭selinux

sed -i 's/enforcing/disabled/' /etc/selinux/config # 永久关闭
setenforce 0 # 临时关闭

关闭 swap

swapoff -a # 临时关闭
vi /etc/fstab # 永久关闭
#注释掉swap这行
# /dev/mapper/centos-swap swap swap defaults 0 0

systemctl reboot

主机名和id的对应关系
hostnamectl set-hostname k8s-master1
hostnamectl set-hostname k8s-node1
hostnamectl set-hostname k8s-node2
hostnamectl set-hostname k8s-node3
hostnamectl set-hostname k8s-node4
hostnamectl set-hostname k8s-node5

vi /etc/hosts

10.0.2.10 k8s-node1
10.0.2.7 k8s-node2
10.0.2.8 k8s-node3
10.0.2.9 k8s-node4

cat >> /etc/hosts <<EOF
192.168.1.20 k8s-master1
192.168.1.21 k8s-node1
192.168.1.22 k8s-node2
192.168.1.23 k8s-node3
192.168.1.24 k8s-node4
192.168.1.25 k8s-node5
EOF

桥接ipv4流量到iptables

cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF

sysctl --system

docker
yum-config-manager —add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache fast
yum install -y docker-ce-3:19.03.9-3.el7.x86_64

systemctl start docker && systemctl enable docker

yum install ntpdate -y
ntpdate time.windows.com

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

二、软件安装
安装 docker、kubeadm、kubelet、kubectl

1、卸载系统之前的docker

sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine

2、安装docker-ce的求前置依赖

yum install -y yum-utils \
device-mapper-persistent-data \
lvm2

3、更新yum源
echo “export LC_ALL=en_US.UTF-8” >> ~/.bashrcsource ~/.bashrc

sudo yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

4、装docker

yum install -y docker-ce-19.03.6 docker-ce-cli-19.03.6 containerd.io

5、docker 镜像加速

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": [
"https://kfwkfulq.mirror.aliyuncs.com",
"https://2lqq34jg.mirror.aliyuncs.com",
"https://pee6w651.mirror.aliyuncs.com",
"https://registry.docker-cn.com",
"http://hub-mirror.c.163.com"
]
}
EOF

6、docker开机自启动

sudo systemctl daemon-reload
sudo systemctl restart docker
开机自启动
systemctl enable docker

7、设置kube的yum源

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

8、安装 kubeadm、kubelet、kubectl

yum install -y kubelet-1.17.3 kubeadm-1.17.3 kubectl-1.17.3

yum install -y kubelet-1.18.0 kubeadm-1.18.0 kubectl-1.18.0
开启
systemctl enable kubelet
systemctl start kubelet
kubectl describe pod tiller-deploy-cf88b7d9-zlb7s -n kube-system
三、部署

1、部署k8s-master(只有主节点需要)
（1）将k8s文件夹考入、并进入
chmod 700 master_images.sh
./master_images.sh
（2）初始化
kubeadm init —apiserver-advertise-address=192.168.1.20 —image-repository registry.aliyuncs.com/google_containers —kubernetes-version v1.18.0 —service-cidr=10.96.0.0/12 —pod-network-cidr=10.244.0.0/16

kubeadm init \
--apiserver-advertise-address=10.0.2.10 \
--image-repository registry.aliyuncs.com/google_containers \
--kubernetes-version v1.17.3 \
--service-cidr=10.96.0.0/12 \
--pod-network-cidr=10.244.0.0/16

成功结果

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 10.0.2.10:6443 --token uywvoc.51wrihk2goxutb2n \
    --discovery-token-ca-cert-hash sha256:0b95892643c549ffacf41fd08d0ed52e98f76312cb8febebd7eaab0d27f79997

To start using your cluster, you need to run the following as a regular user:

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.
Run “kubectl apply -f [podnetwork].yaml” with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.1.20:6443 —token l06y4p.poz0fzexjxyhik0c \
—discovery-token-ca-cert-hash sha256:63825b1fbbb8aafda582de529336615b00f4d209d303bcff2089d8759466fd56
（3）master执行

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kubeflannel.yml

kubectl apply -f https://docs.projectcalico.org/manifests/calico.yaml

（4）部署网络

kubectl apply -f kube-flannel.yml

（5）、从节点执行加入集群

kubeadm join 10.0.2.10:6443 --token uywvoc.51wrihk2goxutb2n \
    --discovery-token-ca-cert-hash sha256:0b95892643c549ffacf41fd08d0ed52e98f76312cb8febebd7eaab0d27f79997

监控pod进度
watch kubectl get pod -n kube-system -o wide

四、KubeSphere安装

前提条件
版本验证
helm 和tiller

helm version

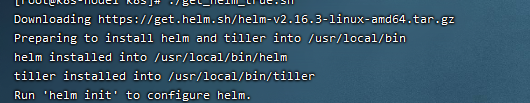

1、 ./get_helm_true.sh

2、权限文件
helm_rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: tiller
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: tiller
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
  - kind: ServiceAccount
    name: tiller
    namespace: kube-system

kubectl apply -f helm_rbac.yaml

3、初始化

helm init --service-account=tiller --tiller-image=registry.cn-hangzhou.aliyuncs.com/google_containers/tiller:v2.16.3   --history-max 300

或
helm init —service-account=tiller —stable-repo-url=https://charts.helm.sh/stable —tiller-image=sapcc/tiller:v2.16.3

helm init —service-account=tiller —stable-repo-url=https://charts.helm.sh/stable —tiller-image=sapcc/tiller:v2.16.3 —upgrade
安装 OpenEBS 创建 LocalPV 存储类型
1、查看节点名称：

kubectl get node -o wide

2、确认 master 节点是否有 Taint，如下看到 master 节点有 Taint。

kubectl describe node k8s-node1 | grep Taint

3、去掉 master 节点的 Taint：

kubectl taint nodes k8s-node1 node-role.kubernetes.io/master:NoSchedule-

安装 OpenEBS
1、创建 OpenEBS 的 namespace，OpenEBS 相关资源将创建在这个 namespace 下：

kubectl create ns openebs

2、安装 OpenEBS

kubectl apply -f https://openebs.github.io/charts/openebs-operator-1.5.0.yaml

3、安装 OpenEBS 后将自动创建 4 个 StorageClass，查看创建的 StorageClass：

kubectl get sc --all-namespaces

4、如下将 openebs-hostpath设置为 默认的 StorageClass：

kubectl patch storageclass openebs-hostpath -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'

5、恢复污点

kubectl taint nodes k8s-node1 node-role.kubernetes.io/master=:NoSchedule

重启
kubectl rollout restart deploy -n kubesphere-system ks-installer
http://192.168.56.100:30880/
Console: http://10.0.2.10:30880
Account: admin
Password: P@88w0rd
Cjxcjx1997

五、后续安装
安装后如何开启 Metrics-server 安装
1、

kubectl edit cm -n kubesphere-system ks-installer

参考如下修改 ConfigMap

···
metrics-server:
     enabled: True

You should now deploy a pod network to the cluster.
Run “kubectl apply -f [podnetwork].yaml” with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.1.8:6443 —token c073zc.z3sooodoxtm2w3h1 \
—discovery-token-ca-cert-hash sha256:2e5f5cd608198b0985a0f928574d55359f6da7385e678d9fa7b95ef4c53abb1c

/dev/sdb3 /root xfs defaults 0 0
