流程图 (bui-flow | bui-timeline)
bui-flow
固定布局

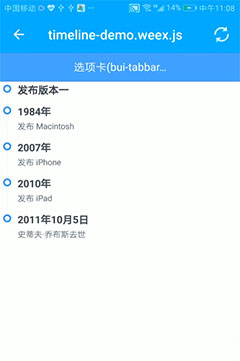

bui-timeline
可扩展布局
用法
<bui-flow
:items="testData"></bui-flow>
<bui-flow
:items="testData"
:customStyles="customStyles"
@click='_click'></bui-flow>
<bui-timeline>
<bui-timeline-item first=true></bui-timeline-item>
<bui-timeline-item>
<text class="time">1984年</text>
<text class="content">发布 Macintosh</text>
</bui-timeline-item>
<bui-timeline-item>
<text class="time">2007年</text>
<text class="content">发布 iPhone</text>
</bui-timeline-item>
<bui-timeline-item>
<text class="time">2010年</text>
<text class="content">发布 iPad</text>
</bui-timeline-item>
<bui-timeline-item last=true>
<text class="time">2011年10月5日</text>
<text class="content">史蒂夫·乔布斯去世</text>
</bui-timeline-item>
</bui-timeline>
data: function () {
return {
testData: [
{
'date': '2017-05-24 21:10:29',
'desc': '结束',
'highlight': true,
'title': '页面交互输出'
},
{
'date': '2017-05-24 21:10:29',
'desc': '回流到客户确认',
'title': '设计稿上传'
},
{
'date': '2017-05-24 19:54:28',
'desc': '产品经理需跟业务与设计相关人员确认',
'title': '产品经理确认'
},
{
'date': '2017-05-24 19:50:21',
'desc': '以需求方案输出产品原型,需要客户确认',
'title': '产品原型图'
},
{
'date': '2017-05-24 19:49:03',
'desc': '业务员根据客户的需要制定产品解决方案',
'title': '客户提出需求方案'
}
],
customStyles: {
'highlightTitleColor': '#EE9900',
'highlightPointInnerColor': '#EE9900',
'highlightPointBorderColor': '#FFE78D'
},
}
},
methods: {
_click(index){
this.$toast(index);
},
}
Example:bui-flow
属性
bui-flow
Prop | Type | Required | Default | Description |
---|---|---|---|---|
items |
array |
Y |
流程图数据项 | |
customStyles |
object |
N |
自定义属性 |
bui-timeline
Prop | Type | Required | Default | Description |
---|---|---|---|---|
color |
string |
N |
blue |
圆圈颜色,可选值为blue``red``green ,或自定义色值 |
title |
string |
N |
发布版本一 |
默认时间轴文本 |
last |
boolean |
Y |
false |
指定最后一个节点 |
first |
boolean |
Y |
false |
指定第一个节点 |
items
: 赋值单选组数据列表,传一个数组,单个数组的属性如下:
- title :节点文本
- date :节点时间
- desc :节点描述
- highlight :表明该选项是否为节点高亮, true为流程图节点高亮、false为流程图节点不高亮、默认值为false
customStyles
: 自定义属性,传一个对象,属性如下:
- lineColor :线条色
- pointInnerColor :正常节点背景色
- pointBorderColor :正常节点边框色
- highlightTitleColor :高亮状态文字色
- highlightPointInnerColor :高亮状态节点背景色
- highlightPointBorderColor :高亮状态节点边框色
事件
@click
:点击某项触发的事件,返回索引。bui-flow
特有
bui-timeline
的扩展
自定义时间轴点内容,参考如下:
<bui-timeline title="">
<bui-icon name="trophy" slot="dot"></bui-icon>
<text class="time">1984年</text>
<text class="content">发布 Macintosh</text>
</bui-header>
