学习目标

1、能够描述超卖问题

2、理解redission的AtomicLong如何初始化库存

3、实现菜品库存的优化

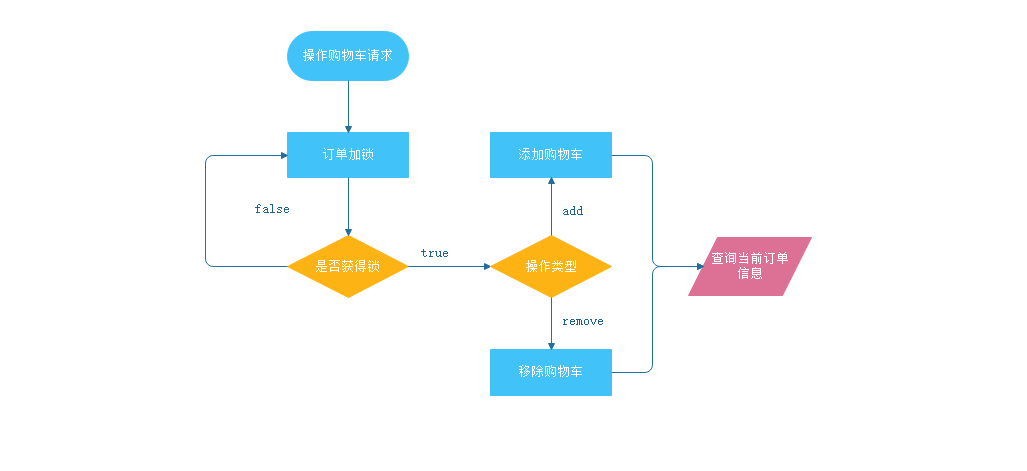

4、能够描述购物车操作流程【添加购物车、移除购物车】

5、理解购物车操作中订单锁的意义，及对菜品库存使用redission的AtomicLong操作

6、能够描述下单操作流程【订单加锁，合并购物车订单项到可核算订单项】

第一章 点餐平台-点餐

1、库存超卖设置

1.1、什么是超卖

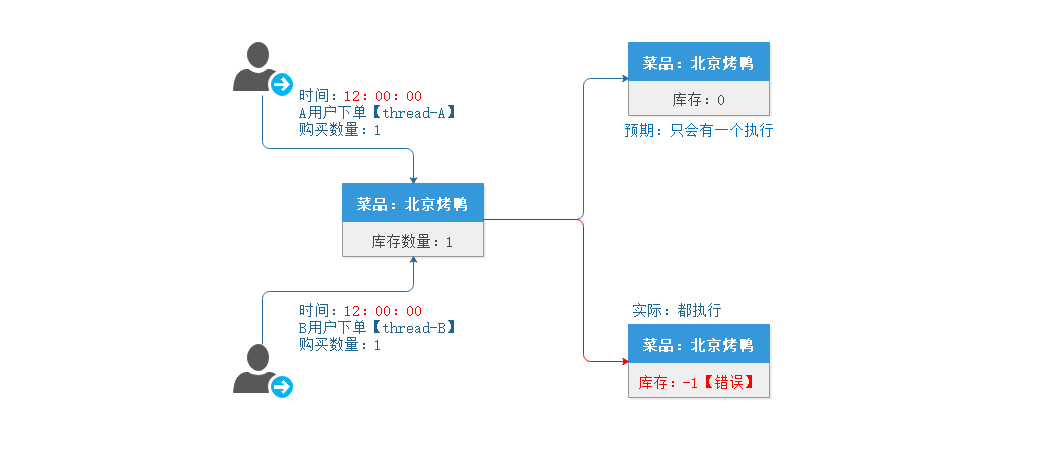

当前菜品库存只有1个，当有两个线程过来后，都执行成功了，生成了两个订单，这就是超卖，如图所示：


方案一：乐观锁机制

使用mybatis plus 里面的@version注解：

  1. @Version
  2. private Integer version;
  • 取出记录时，获取当前 version select version from tab_dish===>thead-A：1，thead-B：2
  • 更新时，带上这个 version
    update tab_dish d set d.dish_num =d.dish_num-1 ,version = 3 where version = 1 and d.dish_num>=0 ,
    update tab_dish d set d.dish_num =d.dish_num-1 ,version = 3 where version = 2 and d.dish_num>=0 ,
  • 执行更新时， set version = newVersion where version = oldVersion
  • 如果 version 不对，就更新失败

方案二：比较替换

  • 先查询当前库存数量

thead-A：select d.dish_num from tab_dish where id =’10101’===》old_dish_num=1

thead-B：select d.dish_num from tab_dish where id =’10101’===》old_dish_num=1

  • 执行对应的修改

thead-A：update tab_dish d set d.dish_num =d.dish_num-1 where d.dish_num = #{old_dish_num} and d.dish_num-1>=0 and id =’10101’

thead-B：update tab_dish d set d.dish_num =d.dish_num-1 where d.dish_num = #{old_dish_num} and d.dish_num-1>=0 and id =’10101’

方案三：加lock锁处理

使用redisson分布式锁给当前业务值加锁，保证同一时间只有一个线程执行当前的方法

———-加锁———————

thead-A：select d.dish_num from tab_dish where id =’10101’===》1

thead-A：判断当前库存1>0

thead-A：update tab_dish d set d.dish_num =d.dish_num-1 where id =’10101’

———-解锁———————

方案四：加lock锁，使用atomicLong的方式处理库存

使用reis的单线程特点解决库存的超卖问题

1.2、Redis初始化库存

解决超卖问题关键就是库存的控制，前面我们在讲解redisson的时候，讲解过AtomicLong【原子整长型】，它有如下方法：

  1. `//获得原子性整长形
  2. RAtomicLong atomicLongOper=redissonClient.getAtomicLong("AtomicLongOper");
  4. //添加库存：在餐掌柜项目中：1、项目启动时mysql->redis 2、对菜品进行增删修时改动redis中的库存
  5. atomicLongOper.set(dishNum);
  7. //先递减1，然后返回元素：购物车添加菜品
  8. flag=atomicLongOper.decrementAndGet();
  9. log.info("先递减1，然后返回元素:{}",flag);
  11. //先递增1，然后返回元素：购物车取消菜品
  12. flag=atomicLongOper.incrementAndGet();
  13. log.info("先递增1，然后返回元素:{}",flag);

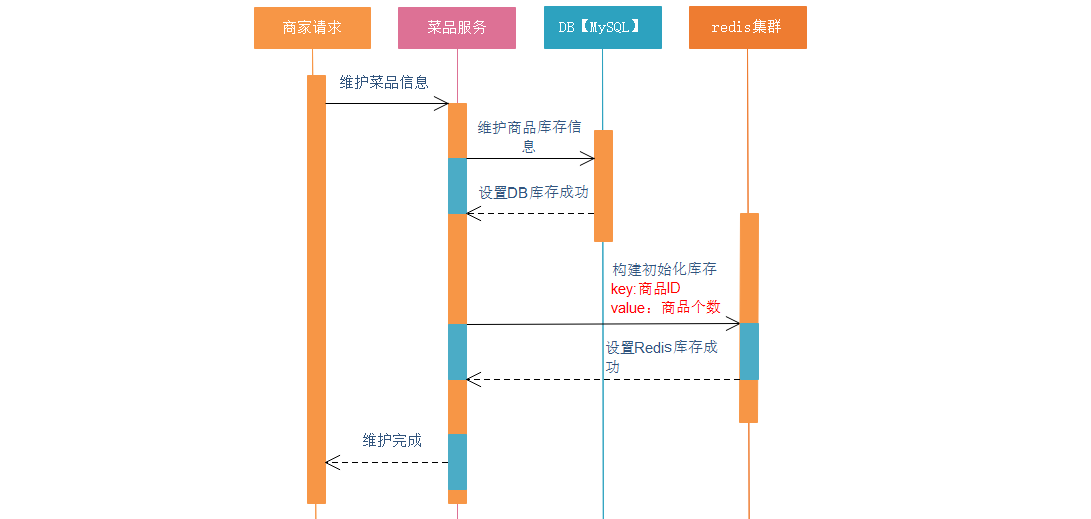

AtomicLong操作是原子性的，我们可以使用它来初始化、减库存、增库存等操作，我们先看下Redis初始化流程


1.3、优化-菜品功能

找到DishFaceImpl类做如下优化：

  1. package com.itheima.restkeeper.face;
  3. import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
  4. import com.itheima.restkeeper.AffixFace;
  5. import com.itheima.restkeeper.DishFace;
  6. import com.itheima.restkeeper.constant.AppletCacheConstant;
  7. import com.itheima.restkeeper.enums.DishEnum;
  8. import com.itheima.restkeeper.exception.ProjectException;
  9. import com.itheima.restkeeper.pojo.Dish;
  10. import com.itheima.restkeeper.pojo.DishFlavor;
  11. import com.itheima.restkeeper.req.AffixVo;
  12. import com.itheima.restkeeper.req.DishVo;
  13. import com.itheima.restkeeper.service.IDishFlavorService;
  14. import com.itheima.restkeeper.service.IDishService;
  15. import com.itheima.restkeeper.utils.BeanConv;
  16. import com.itheima.restkeeper.utils.EmptyUtil;
  17. import com.itheima.restkeeper.utils.ExceptionsUtil;
  18. import lombok.extern.slf4j.Slf4j;
  19. import org.apache.dubbo.config.annotation.DubboReference;
  20. import org.apache.dubbo.config.annotation.DubboService;
  21. import org.apache.dubbo.config.annotation.Method;
  22. import org.redisson.api.RAtomicLong;
  23. import org.redisson.api.RLock;
  24. import org.redisson.api.RedissonClient;
  25. import org.springframework.beans.factory.annotation.Autowired;
  26. import org.springframework.transaction.annotation.Transactional;
  28. import java.util.ArrayList;
  29. import java.util.List;
  30. import java.util.concurrent.TimeUnit;
  31. import java.util.stream.Collectors;
  33. /**
  34.  * @ClassName DishFaceImpl.java
  35.  * @Description 菜品接口实现
  36.  */
  37. @Slf4j
  38. @DubboService(version = "${dubbo.application.version}",timeout = 5000,
  39.         methods ={
  40.                 @Method(name = "findDishVoPage",retries = 2),
  41.                 @Method(name = "createDish",retries = 0),
  42.                 @Method(name = "updateDish",retries = 0),
  43.                 @Method(name = "deleteDish",retries = 0)
  44.         })
  45. public class DishFaceImpl implements DishFace {
  47.     @Autowired
  48.     IDishService dishService;
  50.     @Autowired
  51.     IDishFlavorService dishFlavorService;
  53.     @Autowired
  54.     RedissonClient redissonClient;
  56.     @DubboReference(version = "${dubbo.application.version}",check = false)
  57.     AffixFace affixFace;
  59.     @Override
  60.     public Page<DishVo> findDishVoPage(DishVo dishVo,
  61.                                        int pageNum,
  62.                                        int pageSize)throws ProjectException {
  63.         try {
  64.             //查询菜品分页
  65.             Page<Dish> page = dishService.findDishVoPage(dishVo, pageNum, pageSize);
  66.             Page<DishVo> pageVo = new Page<>();
  67.             BeanConv.toBean(page,pageVo);
  68.             //结果集转换
  69.             List<Dish> dishList = page.getRecords();
  70.             List<DishVo> dishVoList = BeanConv.toBeanList(dishList,DishVo.class);
  71.             if (!EmptyUtil.isNullOrEmpty(dishVoList)){
  72.                 dishVoList.forEach(n->{
  73.                     //处理附件
  74.                     List<AffixVo> affixVoList = affixFace.findAffixVoByBusinessId(n.getId());
  75.                     if (!EmptyUtil.isNullOrEmpty(affixVoList)){
  76.                         n.setAffixVo(affixVoList.get(0));
  77.                     }
  78.                     //处理口味1
  79.                     List<DishFlavor> dishFlavors = dishFlavorService.findDishFlavorByDishId(n.getId());
  80.                     List<String> dishFavorList = new ArrayList<>();
  81.                     for (DishFlavor dishFlavor : dishFlavors) {
  82.                         dishFavorList.add(String.valueOf(dishFlavor.getDataKey()));
  83.                     }
  84.                     String[] dishFlavorDataKey = new String[dishFavorList.size()];
  85.                     dishFavorList.toArray(dishFlavorDataKey);
  86.                     n.setHasDishFlavor(dishFlavorDataKey);
  87.                 });
  88.             }
  89.             pageVo.setRecords(dishVoList);
  90.             //返回结果
  91.             return pageVo;
  92.         } catch (Exception e) {
  93.             log.error("查询菜品列表异常：{}", ExceptionsUtil.getStackTraceAsString(e));
  94.             throw new ProjectException(DishEnum.PAGE_FAIL);
  95.         }
  96.     }
  98.     @Override
  99.     @Transactional
  100.     public DishVo createDish(DishVo dishVo) throws ProjectException{
  101.         try {
  102.             //创建菜品
  103.             DishVo dishVoResult = BeanConv.toBean(dishService.createDish(dishVo), DishVo.class);
  104.             dishVoResult.setHasDishFlavor(dishVo.getHasDishFlavor());
  105.             //绑定附件
  106.             if (!EmptyUtil.isNullOrEmpty(dishVoResult)){
  107.                 affixFace.bindBusinessId(AffixVo.builder()
  108.                         .businessId(dishVoResult.getId())
  109.                         .id(dishVo.getAffixVo().getId())
  110.                         .build());
  111.             }
  112.             dishVoResult.setAffixVo(AffixVo.builder()
  113.                     .pathUrl(dishVo.getAffixVo().getPathUrl())
  114.                     .businessId(dishVoResult.getId())
  115.                     .id(dishVo.getAffixVo().getId()).build());
  116.             //构建初始化库存
  117.             String key = AppletCacheConstant.REPERTORY_DISH+dishVoResult.getId();
  118.             RAtomicLong atomicLong = redissonClient.getAtomicLong(key);
  119.             atomicLong.set(dishVoResult.getDishNumber());
  120.             return  dishVoResult;
  121.         } catch (Exception e) {
  122.             log.error("保存菜品异常：{}", ExceptionsUtil.getStackTraceAsString(e));
  123.             throw new ProjectException(DishEnum.CREATE_FAIL);
  124.         }
  125.     }
  127.     @Override
  128.     @Transactional
  129.     public Boolean updateDish(DishVo dishVo) throws ProjectException {
  130.         Boolean flag = false;
  131.         //修改菜品
  132.         flag = dishService.updateDish(dishVo);
  133.         //处理菜品图片
  134.         if (flag){
  135.             List<AffixVo> affixVoList = affixFace.findAffixVoByBusinessId(dishVo.getId());
  136.             List<Long> affixIds = affixVoList.stream()
  137.                     .map(AffixVo::getId)
  138.                     .collect(Collectors.toList());
  139.             if (!affixIds.contains(dishVo.getAffixVo().getId())){
  140.                 //删除图片
  141.                 flag = affixFace.deleteAffixVoByBusinessId(dishVo.getId());
  142.                 //绑定新图片
  143.                 affixFace.bindBusinessId(AffixVo.builder()
  144.                         .businessId(dishVo.getId())
  145.                         .id(dishVo.getAffixVo().getId())
  146.                         .build());
  147.             }
  148.         }
  149.         //构建redis库存
  150.         String key = AppletCacheConstant.REPERTORY_DISH+dishVo.getId();
  151.         RAtomicLong atomicLong = redissonClient.getAtomicLong(key);
  152.         atomicLong.set(dishVo.getDishNumber());
  153.         return flag;
  155.     }
  157.     @Override
  158.     @Transactional
  159.     public Boolean deleteDish(String[] checkedIds)throws ProjectException {
  160.         try {
  161.             Boolean flag = dishService.deleteDish(checkedIds);
  162.             for (String checkedId : checkedIds) {
  163.                 //删除图片
  164.                 affixFace.deleteAffixVoByBusinessId(Long.valueOf(checkedId));
  165.                 //删除菜品库存
  166.                 String key = AppletCacheConstant.REPERTORY_DISH+checkedId;
  167.                 RAtomicLong atomicLong = redissonClient.getAtomicLong(key);
  168.                 atomicLong.delete();
  170.             }
  171.             return flag;
  172.         } catch (Exception e) {
  173.             log.error("删除菜品异常：{}", ExceptionsUtil.getStackTraceAsString(e));
  174.             throw new ProjectException(DishEnum.DELETE_FAIL);
  175.         }
  176.     }
  178.     @Override
  179.     public DishVo findDishByDishId(Long dishId)throws ProjectException {
  180.         try {
  181.             //按菜品ID查找菜品
  182.             Dish dish = dishService.getById(dishId);
  183.             if (!EmptyUtil.isNullOrEmpty(dish)){
  184.                 return BeanConv.toBean(dish,DishVo.class);
  185.             }
  186.             return null;
  187.         } catch (Exception e) {
  188.             log.error("查找菜品所有菜品异常：{}", ExceptionsUtil.getStackTraceAsString(e));
  189.             throw new ProjectException(DishEnum.SELECT_DISH_FAIL);
  190.         }
  191.     }
  193. }

项目启动时InitDish类自动初始化所有起售且有效状态的菜品库存

  1. package com.itheima.restkeeper.init;
  3. import com.itheima.restkeeper.constant.AppletCacheConstant;
  4. import com.itheima.restkeeper.pojo.Dish;
  5. import com.itheima.restkeeper.service.IDishService;
  6. import org.redisson.api.RAtomicLong;
  7. import org.redisson.api.RedissonClient;
  8. import org.redisson.client.RedisClient;
  9. import org.springframework.beans.factory.annotation.Autowired;
  10. import org.springframework.stereotype.Component;
  12. import javax.annotation.PostConstruct;
  13. import java.util.List;
  15. /**
  16.  * @ClassName InitDish.java
  17.  * @Description 初始化菜品库存
  18.  */
  19. @Component
  20. public class InitDish {
  22.     @Autowired
  23.     IDishService dishService;
  25.     @Autowired
  26.     RedissonClient redissonClient;
  28.     @PostConstruct
  29.     public void initDishNumber(){
  30.         //查询所有有效的且起售状态的菜品
  31.         List<Dish> dishList = dishService.findDishVos();
  32.         for (Dish dish : dishList) {
  33.             //构建初始化库存
  34.             String key = AppletCacheConstant.REPERTORY_DISH+dish.getId();
  35.             RAtomicLong atomicLong = redissonClient.getAtomicLong(key);
  36.             atomicLong.set(dish.getDishNumber());
  37.         }
  38.     }
  39. }

2、购物车操作

2.1、功能区拆解

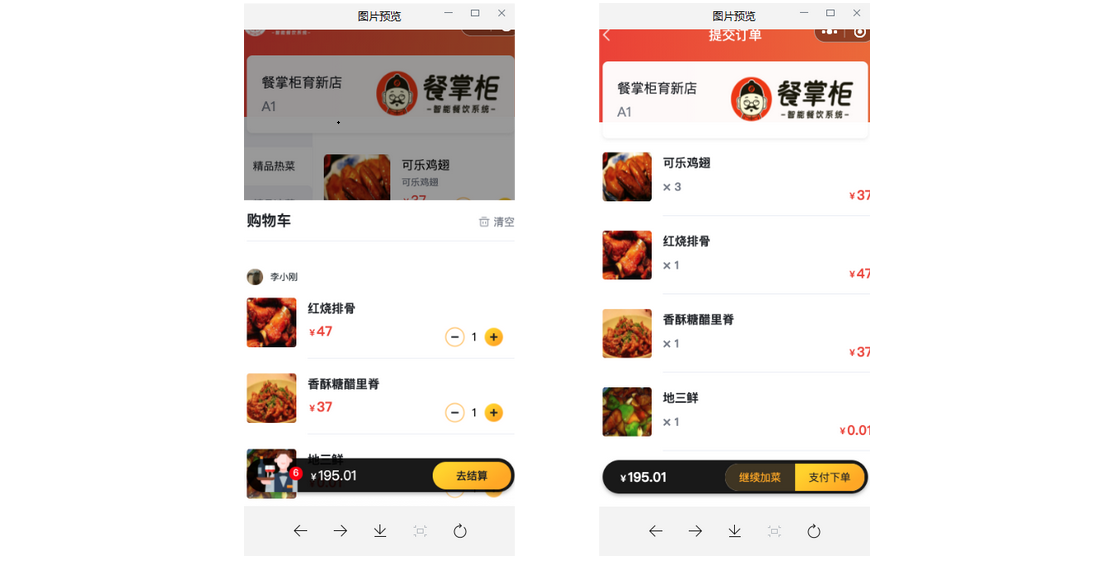

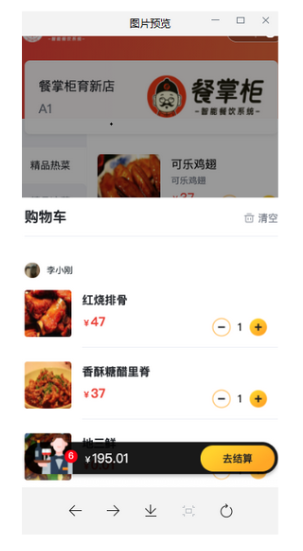

开桌之后用户可以在H5首页选购菜品，及菜品的数量，如图所示：

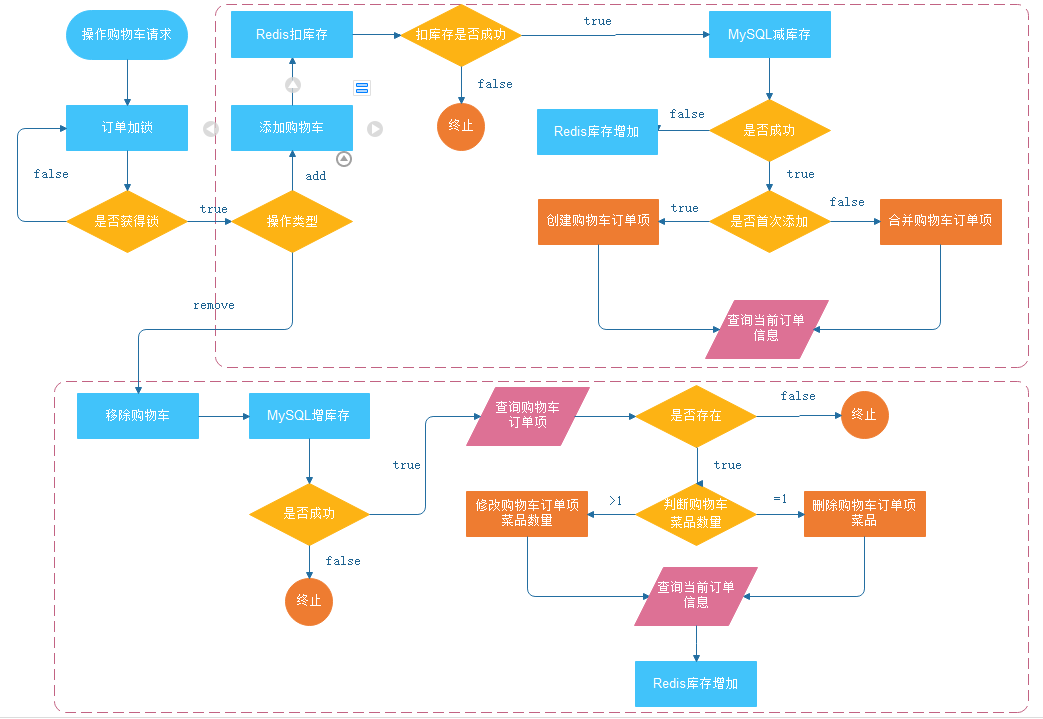

下图为整个购物车操作的流程图，我们首先进行下流程分析：


2.2、数据结构

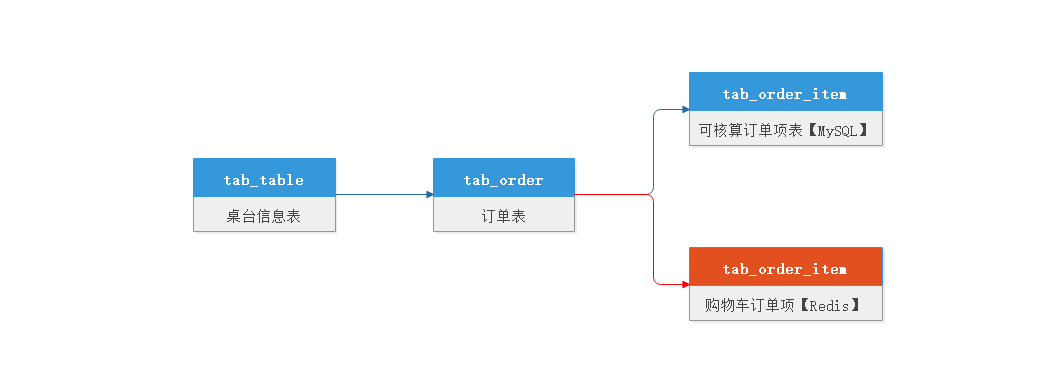

购物车：在Redis中临时存储选购的菜品、选购的数量

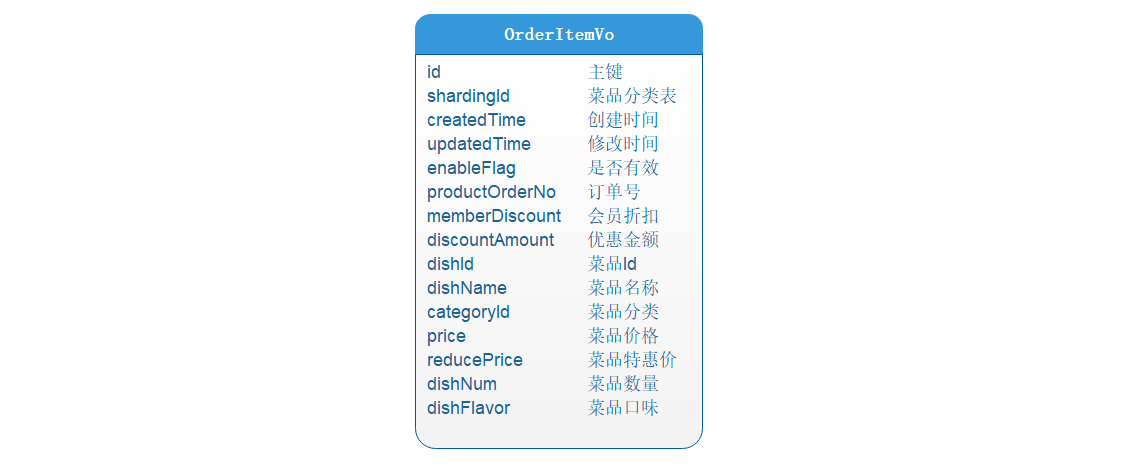

其中数据结构就是OrderItemVo的json字符串，其结构如下：


2.3、功能开发


  • AppletController
    传入菜品ID、订单编号、菜品口味、操作动作请求opertionShoppingCart方法

    1. @PostMapping("opertion-shopping-cart/{dishId}/{orderNo}/{dishFlavor}/{opertionType}")
    2.  @ApiOperation(value = "操作购物车",notes = "每次点击添加或减少1，则添加或减少购物车订单项1，同时增减库存1")
    3.  @ApiImplicitParams({
    4.      @ApiImplicitParam(paramType = "path",name = "dishId",value = "菜品ID",dataType = "Long"),
    5.      @ApiImplicitParam(paramType = "path",name = "orderNo",value = "订单编号",dataType = "Long"),
    6.      @ApiImplicitParam(paramType = "path",name = "dishFlavor",value = "菜品口味",dataType = "String"),
    7.      @ApiImplicitParam(paramType = "path",name = "opertionType",value = "操作动作",dataType = "String")
    8.  })
    9.  public ResponseWrap<OrderVo> opertionShoppingCart(
    10.      @PathVariable("dishId") Long dishId,
    11.      @PathVariable("orderNo") Long orderNo,
    12.      @PathVariable("dishFlavor") String dishFlavor,
    13.      @PathVariable("opertionType") String opertionType) {
    14.      OrderVo orderVoResult = appletFace.opertionShoppingCart(dishId,orderNo,dishFlavor,opertionType);
    15.      return ResponseWrapBuild.build(BrandEnum.SUCCEED,orderVoResult);
    16.  }

  • AppletFace

    1. /***
    2. * @description 每次点击添加或减少，则添加或减少购物车订单项，同时增减库存
    3. * 【1】加入购物车逻辑：
    4. * 首先进行库存判定，如果库存够，则减库存，新增购物车订单项，如果库存不够则给出相对应提示信息，且回滚库存
    5. * 【2】减少购物车逻辑：
    6. * 首先从购物车订单项中移除菜品信息，回滚库存
    7. * @param dishId 菜品ID
    8. * @param orderNo 订单Id
    9. * @param dishFlavor 口味
    10. * @param opertionType 操作方式：移除购物车：REMOVE，加入购物车：ADD
    11. * @return
    12. */
    13. OrderVo opertionShoppingCart(Long dishId,
    14.                           Long orderNo,
    15.                           String dishFlavor,
    16.                           String opertionType) throws ProjectException;

  • AppletFaceImpl
    购物车功能-总述

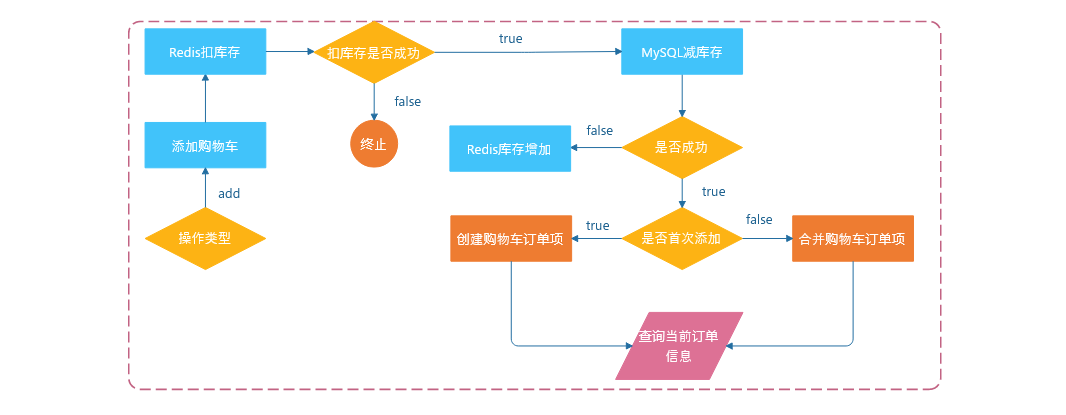

    购物车功能-添加

    1、获得订单加锁

    2、是否获得到锁

    3、操作购物车订单项

    1.     3.1、添加到购物车订单项
    3.     3.2、移除购物车订单项

    4、查询当前订单信息，并且处理订单项

  1. @Override
  2. @Transactional
  3. public OrderVo opertionShoppingCart(Long dishId,
  4.                                     Long orderNo,
  5.                                     String dishFlavor,
  6.                                     String opertionType) throws ProjectException {
  7.     //1、获得订单加锁：此处多余：因为此业务中使用atomicLong本身就是原子性的，所以不需要加锁
  8.     String keyOrder = AppletCacheConstant.ADD_TO_ORDERITEM_LOCK + orderNo;
  9.     RLock lockOrder = redissonClient.getLock(keyOrder);
  10.     OrderVo orderVoResult = null;
  11.     try {
  12.         //2、因为此业务中使用atomicLong本身就是原子性的，所以不需要加锁
  13.         if (lockOrder.tryLock(
  14.             AppletCacheConstant.REDIS_WAIT_TIME,
  15.             AppletCacheConstant.REDIS_LEASETIME,
  16.             TimeUnit.SECONDS)) {
  17.             String keyDish = AppletCacheConstant.REPERTORY_DISH + dishId;
  18.             RAtomicLong atomicLong = redissonClient.getAtomicLong(keyDish);
  19.             //3.1、添加到购物车订单项
  20.             if (opertionType.equals(SuperConstant.OPERTION_TYPE_ADD)) {
  21.                 this.addToShoppingCart(dishId, orderNo,dishFlavor, atomicLong);
  22.             }
  23.             //3.2、移除购物车订单项
  24.             if (opertionType.equals(SuperConstant.OPERTION_TYPE_REMOVE)) {
  25.                 this.removeToShoppingCart(dishId, orderNo, atomicLong);
  26.             }
  27.             //4、查询当前订单信息，并且处理订单项
  28.             orderVoResult = orderService.findOrderByOrderNo(orderNo);
  29.             return handlerOrderVo(orderVoResult);
  30.         }
  31.     } catch (InterruptedException e) {
  32.         log.error("===编辑dishId：{}，orderNo：{}进入购物车加锁失败：{}",
  33.                   dishId, orderNo, ExceptionsUtil.getStackTraceAsString(e));
  34.         throw  new ProjectException(OpenTableEnum.TRY_LOCK_FAIL);
  35.     } finally {
  36.         lockOrder.unlock();
  37.     }
  38.     return orderVoResult;
  39. }


6

  1. /**
  2.   * @param dishId     菜品ID
  3.   * @param orderNo    订单编号
  4.   * @param atomicLong 原子计数器
  5.   * @return
  6.   * @description 添加购物车订单项
  7.   */
  8. private void addToShoppingCart(Long dishId,
  9.                                Long orderNo,
  10.                                String dishFlavor,
  11.                                RAtomicLong atomicLong)  {
  12.     //1、如果库存够，redis减库存
  13.     if (atomicLong.decrementAndGet() >= 0) {
  14.         //2、mysql菜品表库存
  15.         Boolean flag = dishService.updateDishNumber(-1L, dishId);
  16.         if (!flag) {
  17.             //减菜品库存失败，归还redis菜品库存
  18.             atomicLong.incrementAndGet();
  19.             throw new ProjectException(ShoppingCartEnum.UPDATE_DISHNUMBER_FAIL);
  20.         }
  21.         //3、查询redis缓存的购物车订单项
  22.         String key = AppletCacheConstant.ORDERITEMVO_STATISTICS + orderNo;
  23.         RMapCache<Long, OrderItemVo> orderItemVoRMap = redissonClient.getMapCache(key);
  24.         OrderItemVo orderItemHandler = orderItemVoRMap.get(dishId);
  25.         //4.1、如果以往购物车订单项中无则新增
  26.         if (EmptyUtil.isNullOrEmpty(orderItemHandler)) {
  27.             Dish dish = dishService.getById(dishId);
  28.             List<AffixVo> affixVoList = affixFace.findAffixVoByBusinessId(dish.getId());
  29.             OrderVo orderVo = orderService.findOrderByOrderNo(orderNo);
  30.             OrderItemVo orderItemVo = OrderItemVo.builder()
  31.                 .productOrderNo(orderNo)
  32.                 .categoryId(dish.getCategoryId())
  33.                 .dishId(dishId)
  34.                 .dishName(dish.getDishName())
  35.                 .dishFlavor(dishFlavor)
  36.                 .dishNum(1L)
  37.                 .price(dish.getPrice())
  38.                 .reducePrice(dish.getReducePrice())
  39.                 .build();
  40.             orderItemVo.setAffixVo(affixVoList.get(0));
  41.             //沿用订单中的分库键
  42.             orderItemVo.setShardingId(orderVo.getShardingId());
  43.             orderItemVoRMap.put(dishId, orderItemVo);
  44.             //4.2、如果以往购物车订单项中有此菜品，则进行购物车订单项数量递增
  45.         } else {
  46.             orderItemHandler.setDishNum(orderItemHandler.getDishNum() + 1);
  47.             orderItemVoRMap.put(dishId, orderItemHandler);
  48.         }
  50.     } else {
  51.         //5、redis库存不足，虽然可以不处理，但建议还是做归还库存
  52.         atomicLong.incrementAndGet();
  53.         throw new ProjectException(ShoppingCartEnum.UNDERSTOCK);
  54.     }
  55. }

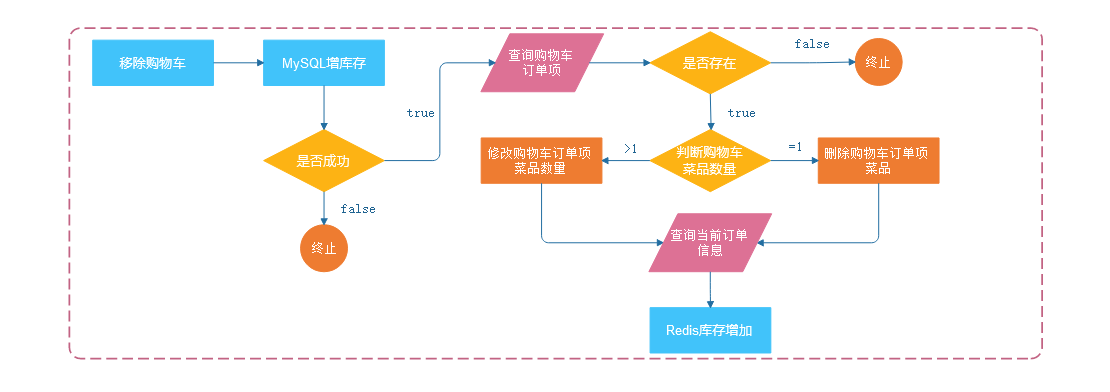

购物车功能-移除


1、菜品库存增加

2、查询redis缓存的购物车订单项

3、购物车订单项存在

  1.     3.1、购物车订单项的数量大于1，修改当前数量
  3.     3.2购物车订单项的数量等于1，则删除此订单项

4、redis菜品库存增加

  1. /**
  2.   * @param dishId     菜品ID
  3.   * @param orderNo    订单编号
  4.   * @param atomicLong 原子计数器
  5.   * @return
  6.   * @description 移除购物车订单项
  7.   */
  8. private void removeToShoppingCart(Long dishId, Long orderNo, RAtomicLong atomicLong)  {
  9.     boolean flag = true;
  10.     //1、菜品库存增加
  11.     flag = dishService.updateDishNumber(1L, dishId);
  12.     if (!flag) {
  13.         throw new ProjectException(ShoppingCartEnum.UPDATE_DISHNUMBER_FAIL);
  14.     }
  15.     //2、查询redis缓存的购物车订单项
  16.     String key = AppletCacheConstant.ORDERITEMVO_STATISTICS + orderNo;
  17.     RMapCache<Long, OrderItemVo> orderItemVoRMap = redissonClient.getMapCache(key);
  18.     OrderItemVo orderItemHandler = orderItemVoRMap.get(dishId);
  19.     //3、购物车订单项存在
  20.     if (!EmptyUtil.isNullOrEmpty(orderItemHandler)) {
  21.         //3.1、购物车订单项的数量大于1，修改当前数量
  22.         if (orderItemHandler.getDishNum().intValue() > 1) {
  23.             orderItemHandler.setDishNum(orderItemHandler.getDishNum() - 1);
  24.             orderItemVoRMap.put(dishId, orderItemHandler);
  25.         } else {
  26.             //3.2购物车订单项的数量等于1，则删除此订单项
  27.             orderItemVoRMap.remove(dishId, orderItemHandler);
  28.         }
  29.         //4、redis菜品库存增加
  30.         atomicLong.incrementAndGet();
  31.     }else {
  32.         throw new ProjectException(ShoppingCartEnum.UPDATE_DISHNUMBER_FAIL);
  33.     }
  34. }

第二章 点餐平台-下订单

1、功能区拆解


用户在选择好菜品及数量后，点击去结算按钮，则会把购物车的订单项菜品同步到可核算订单项中，操作如下：


2、功能开发

  • AppletController
    传入当前要进行下单的订单号orderNo
  1. @PostMapping("placeOrder/{orderNo}")
  2. @ApiOperation(value = "下单操作",notes = "添加购物车订单项到可结算订单项")
  3. @ApiImplicitParam(paramType = "path",name = "orderNo",value = "订单编号",dataType = "Long")
  4. public ResponseWrap<OrderVo> placeOrder(@PathVariable("orderNo") Long orderNo) {
  5.     OrderVo orderVoResult = appletFace.placeOrder(orderNo);
  6.     return ResponseWrapBuild.build(BrandEnum.SUCCEED,orderVoResult);
  7. }
  • AppletFace
  1. /***
  2.  * @description 下单操作：添加购物车订单项到可结算订单项
  3.  * @param orderNo 订单编号
  4.  * @return
  5.  */
  6. OrderVo placeOrder(Long orderNo) throws ProjectException;

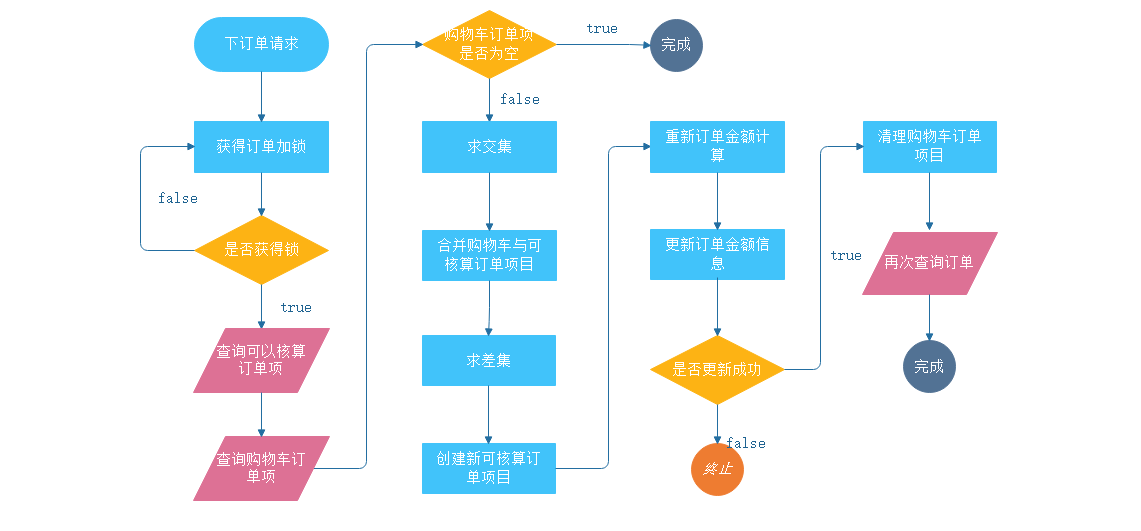

  • AppletFaceImpl


1、锁定订单

2、查询可以核算订单项

3、查询购物车订单项

4、购物车订单项不为空才合并

5、求交集:购物车订单项与核算订单项合并

6、求差集:保存购物车订单项到可核算订单项

7、计算更新订单金额

9、清理redis购物车订单项目

9、再次查询订单

  1. @Override
  2. @Transactional
  3. public OrderVo placeOrder(Long orderNo) throws ProjectException {
  4.     try {
  5.         //1、锁定订单
  6.         String key = AppletCacheConstant.ADD_TO_ORDERITEM_LOCK + orderNo;
  7.         RLock lock = redissonClient.getLock(key);
  8.         OrderVo orderVoResult = null;
  9.         try {
  10.             if (lock.tryLock(
  11.                 AppletCacheConstant.REDIS_WAIT_TIME,
  12.                 AppletCacheConstant.REDIS_LEASETIME,
  13.                 TimeUnit.SECONDS)) {
  14.                 Boolean flag = true;
  15.                 orderVoResult = orderService.findOrderByOrderNo(orderNo);
  16.                 //2、查询可以核算订单项
  17.                 List<OrderItem> orderItemList = orderItemService
  18.                     .findOrderItemByOrderNo(orderVoResult.getOrderNo());
  19.                 List<OrderItemVo> orderItemVoStatisticsList = BeanConv
  20.                     .toBeanList(orderItemList, OrderItemVo.class);
  21.                 if (EmptyUtil.isNullOrEmpty(orderItemVoStatisticsList)) {
  22.                     orderItemVoStatisticsList = new ArrayList<>();
  23.                 }
  24.                 //3、查询购物车订单项
  25.                 key = AppletCacheConstant.ORDERITEMVO_STATISTICS + orderNo;
  26.                 RMapCache<Long, OrderItemVo> orderItemVoRMap = redissonClient.getMapCache(key);
  27.                 List<OrderItemVo> orderItemVoTemporaryList = (List<OrderItemVo>)orderItemVoRMap
  28.                     .readAllValues();
  29.                 //4、购物车订单项不为空才合并
  30.                 if (!EmptyUtil.isNullOrEmpty(orderItemVoTemporaryList)) {
  31.                     //5、求交集:购物车订单项与核算订单项合并
  32.                     flag = this.intersection(flag,orderItemVoStatisticsList,orderItemVoTemporaryList);
  33.                     if (!flag) {
  34.                         throw new ProjectException(OrderItemEnum.UPDATE_ORDERITEM_FAIL);
  35.                     }
  36.                     //6、求差集:保存购物车订单项到可核算订单项
  37.                     flag = this.difference(flag,orderItemVoStatisticsList,orderItemVoTemporaryList);
  38.                     if (!flag) {
  39.                         throw new ProjectException(OrderItemEnum.UPDATE_ORDERITEM_FAIL);
  40.                     }
  41.                     //7、计算更新订单信息
  42.                     flag = this.calculateOrderAmount(orderNo,orderVoResult);
  43.                     if (!flag) {
  44.                         throw new ProjectException(OrderItemEnum.SAVE_ORDER_FAIL);
  45.                     }
  46.                     //8、清理redis购物车订单项目
  47.                     orderItemVoTemporaryList.forEach(n->{
  48.                         orderItemVoRMap.remove(n.getDishId());
  49.                     });
  50.                 }
  51.             }
  52.         } catch (InterruptedException e) {
  53.             log.error("合并订单出错：{}",ExceptionsUtil.getStackTraceAsString(e));
  54.             throw new ProjectException(OrderItemEnum.LOCK_ORDER_FAIL);
  55.         } finally {
  56.             lock.unlock();
  57.         }
  58.         //9、再次查询订单
  59.         return handlerOrderVo(orderVoResult);
  60.     }catch (Exception e){
  61.         log.error("下单操作异常：{}", ExceptionsUtil.getStackTraceAsString(e));
  62.         throw new ProjectException(OrderEnum.PLACE_ORDER_FAIL);
  63.     }
  64. }
  1. /***
  2.   * @description 求交集:购物车订单项与核算订单项合并
  3.   * @param flag 是否操作成功
  4.   * @param orderItemVoStatisticsList 可核算订单项
  5.   * @param orderItemVoTemporaryList 购物车订单项
  6.   * @return 是否操作成功
  7.   */
  8. private Boolean intersection(boolean flag,
  9.                              List<OrderItemVo> orderItemVoStatisticsList,
  10.                              List<OrderItemVo> orderItemVoTemporaryList){
  11.     //1、求交集
  12.     List<OrderItemVo> listIntersection = new ArrayList<>();
  13.     listIntersection.addAll(orderItemVoTemporaryList);
  14.     listIntersection.retainAll(orderItemVoStatisticsList);
  15.     if (!EmptyUtil.isNullOrEmpty(listIntersection)) {
  16.         //2、获得核算订单项中需要增加的订单项
  17.         List<OrderItemVo> orderItemVoHandler = orderItemVoStatisticsList
  18.             .stream().filter(n ->
  19.                              listIntersection.contains(n)).collect(Collectors.toList());
  20.         List<OrderItem> orderItemHandler = BeanConv
  21.             .toBeanList(orderItemVoHandler, OrderItem.class);
  22.         //3、循环累加当前核算订单的菜品数量
  23.         List<OrderItem> orderItems = new ArrayList<>();
  24.         orderItemHandler.forEach(n -> {
  25.             listIntersection.forEach(k -> {
  26.                 if (n.getDishId().longValue() == k.getDishId().longValue()) {
  27.                     OrderItem orderItem = OrderItem.builder()
  28.                         .id(n.getId())
  29.                         .dishNum(n.getDishNum() + k.getDishNum()).build();
  30.                     orderItems.add(orderItem);
  31.                 }
  32.             });
  33.         });
  34.         //4、批量修改可结算订单项目
  35.         flag = orderItemService.updateBatchById(orderItems);
  36.     }
  37.     return flag;
  38. }
  1. /***
  2.  * @description 求差集:保存购物车订单项到可核算订单项
  3.  * @param flag 是否操作成功
  4.  * @param orderItemVoStatisticsList 可核算订单项
  5.  * @param orderItemVoTemporaryList 购物车订单项
  6.  * @return 是否操作成功
  7.  */
  8. private Boolean difference(boolean flag,
  9.                            List<OrderItemVo> orderItemVoStatisticsList,
  10.                            List<OrderItemVo> orderItemVoTemporaryList){
  11.     //1、求差集
  12.     List<OrderItemVo> listDifference = new ArrayList<>();
  13.     listDifference.addAll(orderItemVoTemporaryList);
  14.     listDifference.removeAll(orderItemVoStatisticsList);
  15.     //2、处理订单项
  16.     if (!EmptyUtil.isNullOrEmpty(listDifference)) {
  17.         List<OrderItem> orderItems = BeanConv
  18.                 .toBeanList(listDifference, OrderItem.class);
  19.         flag = orderItemService.saveBatch(orderItems);
  20.     }
  21.     return flag;
  22. }
  1. /***
  2.  * @description 计算更新订单信息
  3.  * @param orderNo   订单编号
  4.  * @param orderVoResult 计算结果
  5.  * @return
  6.  * @return: java.lang.Boolean
  7.  */
  8. private Boolean calculateOrderAmount(Long orderNo,OrderVo orderVoResult){
  9.     //1、计算订单金额
  10.     List<OrderItem> orderItemListResult = orderItemService
  11.             .findOrderItemByOrderNo(orderNo);
  12.     BigDecimal sumPrice = orderItemListResult.stream()
  13.         .map(n -> {
  14.                 BigDecimal price = n.getPrice();
  15.                 BigDecimal reducePrice = n.getReducePrice();
  16.                 Long dishNum = n.getDishNum();
  17.                 //如果有优惠价格以优惠价格计算
  18.                 if (EmptyUtil.isNullOrEmpty(reducePrice)) {
  19.                     return price.multiply(new BigDecimal(dishNum));
  20.                 } else {
  21.                     return reducePrice.multiply(new BigDecimal(dishNum));
  22.                 }
  23.             }
  24.         ).reduce(BigDecimal.ZERO, BigDecimal::add);
  25.     //2、更新订单金额信息
  26.     orderVoResult.setPayableAmountSum(sumPrice);
  27.     OrderVo orderVoHandler = OrderVo.builder()
  28.             .id(orderVoResult.getId())
  29.             .payableAmountSum(sumPrice)
  30.             .build();
  31.     return orderService.updateById(BeanConv.toBean(orderVoHandler, Order.class));
  32. }

课堂讨论

1、什么是库存超卖？餐掌柜中是如何解决超卖问题的？

2、除了使用atomicLong来处理库存，你还有什么样的解决方案？

3、简述添加购物车的流程？

4、多人同时点餐，你是怎么做到让大家看到的信息都是同步的？

5、点餐后不下单，你如何同步归还库存，有哪些方案？

6、简述下订单的流程【如何合并购物车订单项到可核算订单项】？

7、为什么你们的项目在操作购物车的时候就扣库存呢？有没有更好的方案？

课后任务

1、完成点餐、下订单开发，同步到git【☆☆☆☆☆】

2、完成当天课堂讨论，同步到git【☆☆☆☆☆】

3、完成2-5道sql练习【☆☆☆☆】

4、梳理项目二-点餐、下订单业务，同步到git【☆☆☆】
