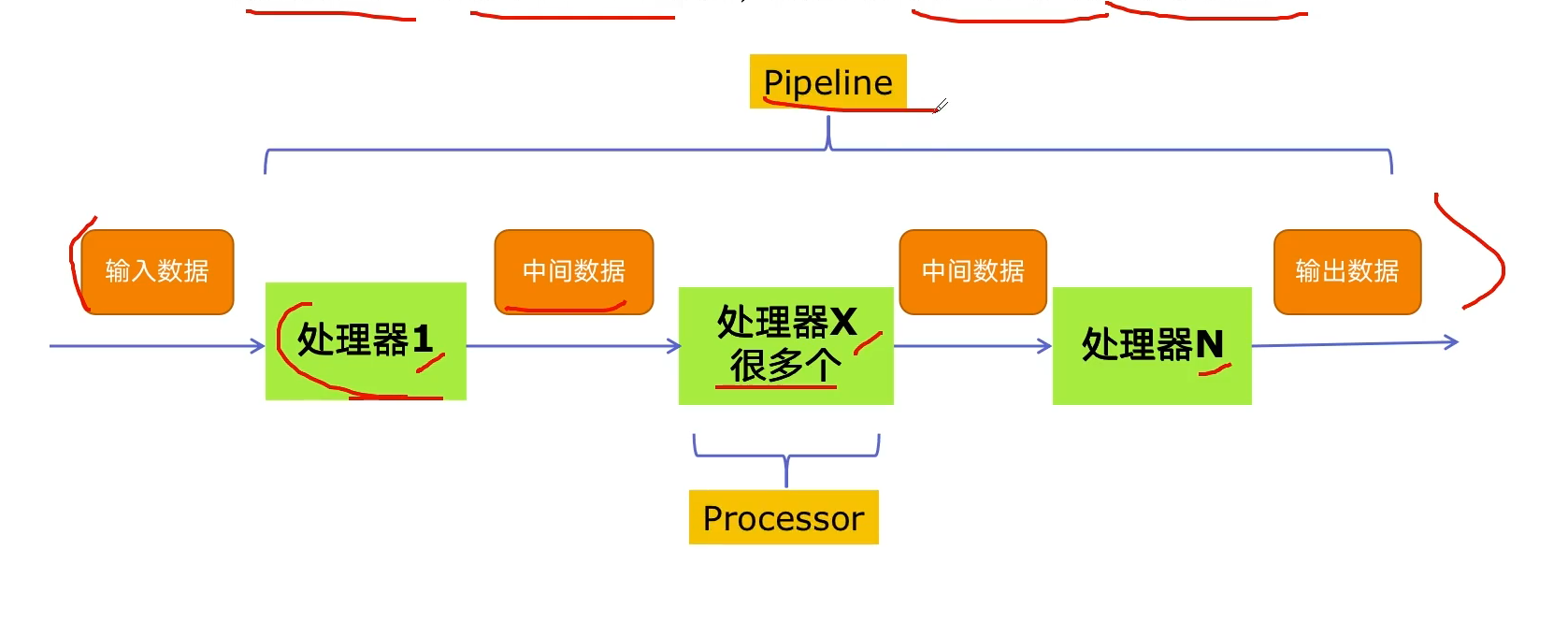

1.多组件的pipline技术架构

• 背景
  • 很多事都不会一次性完成，都会分成很多中间步骤一步步完成

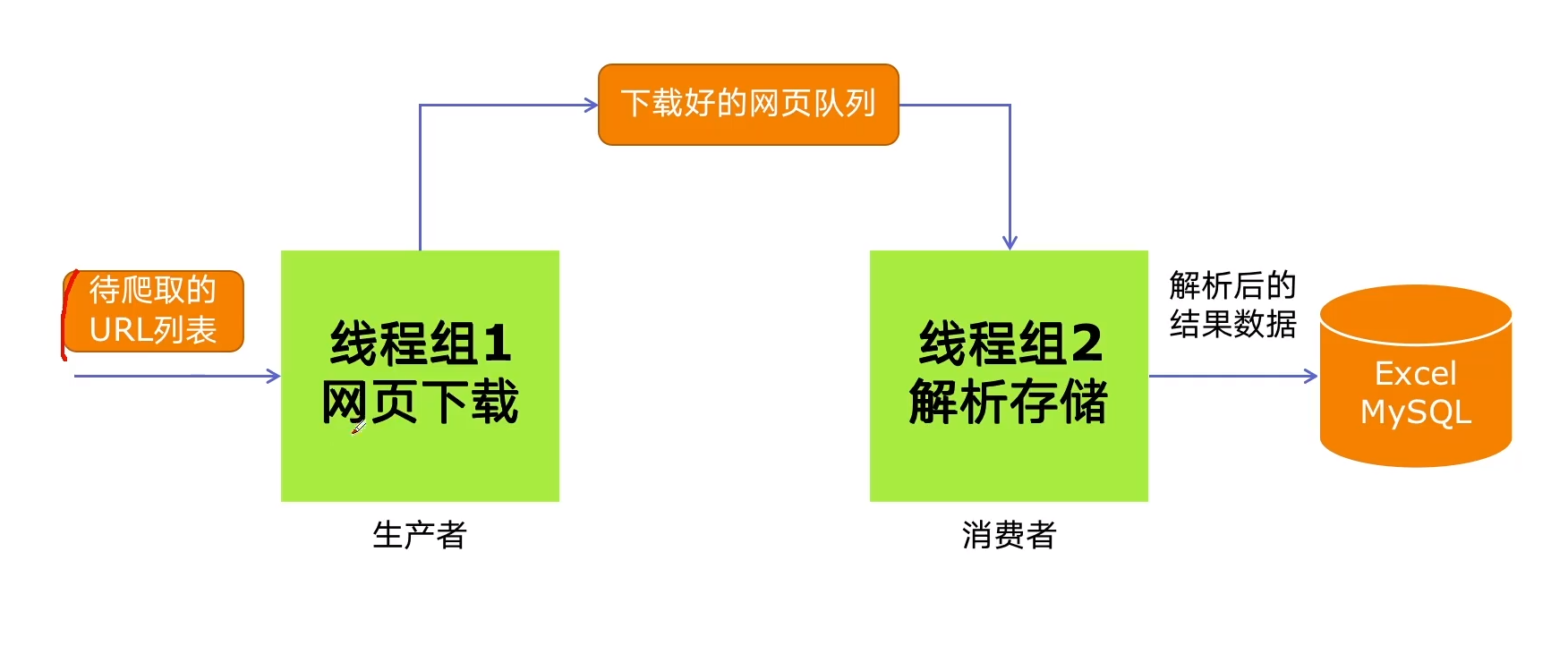

2. 生产者、消费者爬虫架构

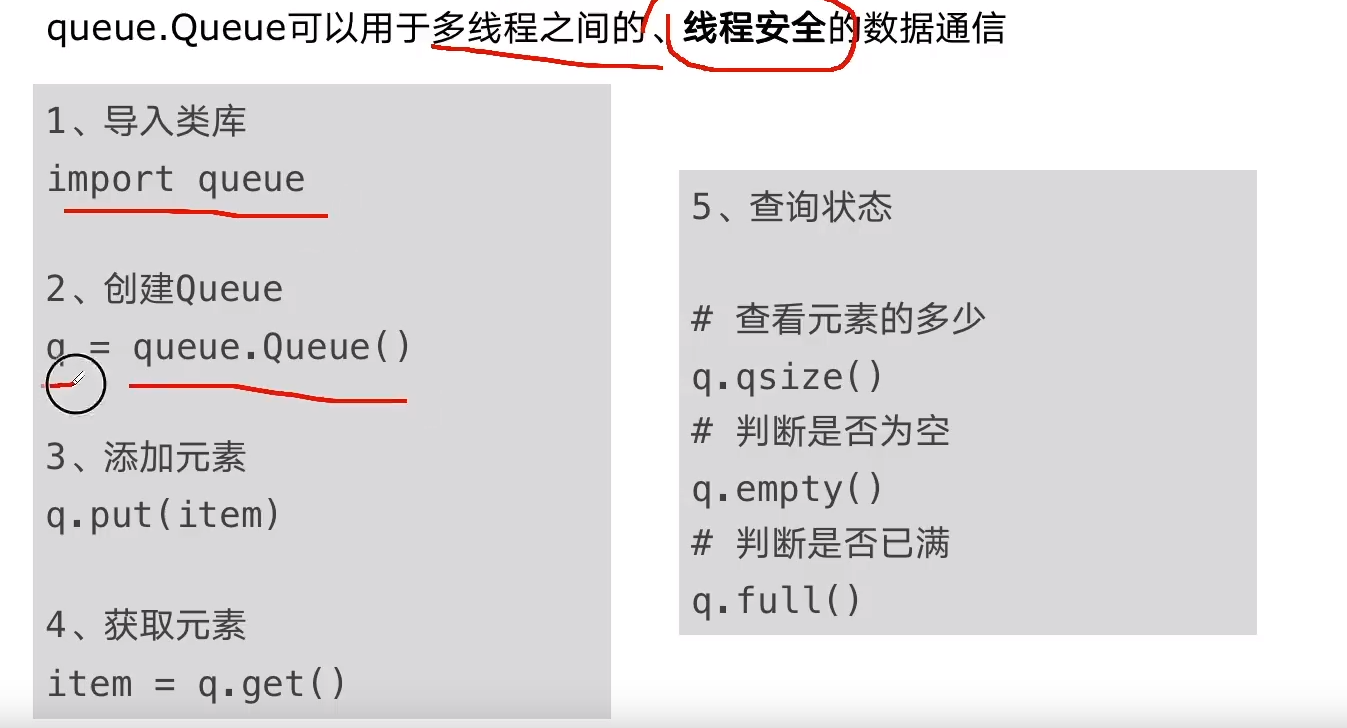

3. 多线程数据通信

4.代码编写实现生产者消费者爬虫

# -*- coding: utf-8 -*-
# 生产者、消费者
from queue import Queue
import threading
import random, time
class Producer(threading.Thread):
    def __init__(self, q, name):
        super(Producer, self).__init__()
        self.q = q
        self.name = name
        print(self.name + "：Producer-init 完成: ")
    def run(self):
        while True:
            time.sleep(random.randint(6, 10))
            if self.q.full():  # 队列满
                print(self.name + ':Producer-Queue is full')
            else:
                value = random.randint(0, 10)
                print(self.name+': put value:' + str(value) + '-into queue')
                self.q.put((self.name + ":" + str(value)))  # 放入队列
class Consumer(threading.Thread):
    def __init__(self, q, name):
        super(Consumer, self).__init__()
        self.q = q
        self.name = name
        print(self.name + ":Consumer-init 完成:")
    def run(self):
        while True:
            time.sleep(random.randint(6, 10))
            if self.q.empty():
                # with write_lock:
                print(self.name + ':Consumer-Queue-empty')
            else:
                value = self.q.get()
                print(self.name + ':Consumer：取值消费：get Queue-' + str(value))
if __name__ == "__main__":
    q = Queue(10)
    p1 = Producer(q, 'P1')
    p2 = Producer(q, 'P2')
    p1.start()
    p2.start()
    c1 = Consumer(q, 'C1')
    # c2 = Consumer(q, 'C2')
    # c3 = Consumer(q, 'C3')
    c1.start()
    # c2.start()
    # c3.start()

5.多线程锁实现

• 一个线程处理自己的http请求，不需要加锁。但是如果你线程会有全局操作，比如全局变量的统计计数等就需要加锁 ```

  -- coding: utf-8 --

  import threading import time from decimal import Decimal

condition = threading.Condition() num = 0 box_size = 15

class GoodsProduce(threading.Thread): def init(self, companyname, producespeed, info): super(GoodsProduce, self).__init() self.companyName = company_name self.produceSpeed = Decimal(2 / produce_speed).quantize(Decimal(‘0.00’)) self.info = info

def run(self):
    global num
    while True:
        if condition.acquire():  # 获取锁对象
            if num < box_size:  # 商品小于最大数量
                time.sleep(self.produceSpeed)
                num += 1
                print("GoodsProduce : {} Produce one , 现有数量 :{}".format(self.companyName, num))
                # condition.notify()  # 通知消费者
                condition.notifyAll()  # 通知消费者
                condition.release()  # 释放锁对象
            else:
                print("NOTE: BOX is full , size -{} ,生产完成后数量： - {}".format(box_size, num))
                condition.wait()  # 线程挂起
def show(self):
    print("show companyName -- {} ,produceSpeed -- {}, info -- {}".format(self.companyName, self.produceSpeed, self.info))

class GoodsConsume(threading.Thread): def init(self, cname, area, info): super(GoodsConsume, self).init() self.cname = cname self.area = area self.info = info

def run(self):
    global num
    while True:
        if condition.acquire():  # 获取锁对象
            if num >= 1:
                num -= 1
                print("GoodsConsumer {} Consume one , 现有数量:{}".format(self.cname, num))
                # condition.notify()  # 通知生产者
                condition.notifyAll()  # 通知生产者
                condition.release()  # 释放锁对象
            else:
                print("NOTE: BOX is null ,please wait ...  size {} ,消费完后数量： {}".format(box_size, num))
                time.sleep(1)
                condition.wait()  # 线程挂起
            time.sleep(1)
def show(self):
    print("show GoodsConsume {} area -- {} ,info -- {}".format(self.cname, self.area, self.info))

if name == “main“: produce_0 = GoodsProduce(“Prd-{}”.format(0), 1, “this is {} prd company”.format(0)) produce_1 = GoodsProduce(“Prd-{}”.format(1), 2, “this is {} prd company”.format(1)) produce_0.start() produce_1.start() produce_0.show() produce_1.show()

customer_0 = GoodsConsume("cus-{}".format(0), "area-{}".format(0), "this is {} customer".format(0))
customer_1 = GoodsConsume("cus-{}".format(1), "area-{}".format(1), "this is {} customer".format(1))
customer_2 = GoodsConsume("cus-{}".format(2), "area-{}".format(2), "this is {} customer".format(2))
customer_3 = GoodsConsume("cus-{}".format(3), "area-{}".format(3), "this is {} customer".format(3))
customer_0.start()
customer_0.show()
customer_1.start()
customer_1.show()
customer_2.start()
customer_2.show()
customer_3.start()
customer_3.show()

```
