西南财经大学《数据库原理》实验报告
2021年11月5日

完成矩阵乘法的Map函数和Reduce函数
设计两个矩阵（3050，50100），在每个单元格中填入一个0-99的随机数，并写入两个文件中，作为Map函数的输入
测试运行矩阵乘法的MapReduce框架，并将结果输出到新的结果文件中
完成实验报告

完成倒排索引的MapReduce程序代码，最终输出以下键值对形式：
词,（文件名@位置，次数）。
自定义Combine方法，用于压缩Map输出数量。
自定义Partition方法，对“词”进行Hash值计算并以此进行分区。
自定义停词表，用于筛选合理词汇。
生成一个input文件夹，搜索一个文本文件的集合，拷贝到input文件夹中。
运行MapReduce框架将生成的倒排文档索引放入目标文件中。
完成实验报告。

| | | | | | 实验操作步骤：
WordCount.java:
import java.io.IOException;
import java.util.StringTokenizer;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Partitioner;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.util.GenericOptionsParser;
public class WordCount {
public static class TokenizerMapper
extends Mapper{
private final static IntWritable one =new IntWritable(1);
private Text word =new Text();

public void map(Object key, Text value, Context context) throws IOException, InterruptedException {
StringTokenizer itr =new StringTokenizer(value.toString());
while (itr.hasMoreTokens()) {
String words = itr.nextToken();
if(words.matches(“^[A-Za-z]+$”)) {
word.set(words);
context.write(word, one);
}

}
}
}

public static class IntSumReducer extends Reducer {
private IntWritable result =new IntWritable();

public void reduce(Text key, Iterable values, Context context) throws IOException, InterruptedException {
int sum =0;
StringBuffer b = new StringBuffer(“”);
for (IntWritable val : values) {
sum += val.get();
for(int i = 0;i b.append(“+”); //以“+”代替单词出现的次数
}

}
if(sum >3) {
context.write(key, new Text(b.toString())); //输出出现次数大于3的单词
}

}
}

public static class MyCombiner extends Reducer {

@Override
protected void reduce(Text key, Iterable value, Reducer.Context context)
throws IOException, InterruptedException {
int sum = 0;
for (IntWritable val : value) {
sum += val.get();
}
context.write(key, new IntWritable(sum2)); //自定义Combiner，实现词频统计结果2
}

}

public static class MyPartitioner extends Partitioner {
@Override
public int getPartition(Text key, IntWritable value, int numPartitions) {
String preNum = key.toString();
int partition = 2;
char c = preNum.charAt(0);
if(c>=’A’ && c<=’Z’) {
partition = 0;
} //第一个词大写输出part-r-00000
if(c>=’a’ && c<=’z’) {
partition = 1;
} //第一个词为小写输出part-r-00001
return partition;
}
}

public static void main(String[] args) throws Exception {
Configuration conf =new Configuration();
String[] otherArgs =new GenericOptionsParser(conf, args).getRemainingArgs();

Job job =new Job(conf, “word count”); //设置一个用户定义的job名称
job.setJarByClass(WordCount.class);
job.setMapperClass(TokenizerMapper.class); //为job设置Mapper类
job.setCombinerClass(MyCombiner.class); //为job设置Combiner类
job.setReducerClass(IntSumReducer.class); //为job设置Reducer类
job.setOutputKeyClass(Text.class); //为job的输出数据设置Key类
job.setOutputValueClass(IntWritable.class); //为job输出设置value类
job.setPartitionerClass(MyPartitioner.class);
job.setNumReduceTasks(2);
FileInputFormat.addInputPath(job, new Path(args[0])); //为job设置输入路径
FileOutputFormat.setOutputPath(job, new Path(args[1]));//为job设置输出路径
System.exit(job.waitForCompletion(true) ?0 : 1); //运行job
}
}

运行步骤：
pscp D:/PuTTY/WordCount.java root@47.100.188.84:/usr/local/hadoop/wordcount
通过cmd和putty远程上传至服务器

编译：javac -classpath /usr/local/hadoop/share/hadoop/common/hadoop-common-2.9.2.jar:/usr/local/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-core-2.9.2.jar:/usr/local/hadoop/share/hadoop/common/lib/commons-cli-1.2.jar -d /usr/local/hadoop/wordcount/ /usr/local/hadoop/wordcount/WordCount.java

打包：jar -cvf WordCount.jar ./wordcount/.class

运行：hadoop jar ./wordcount/WordCount.jar WordCount input output
*注：打包和运行的路径都需要使用相对路径，否则会提示找不到主类main函数的报错！

查看输出文件：hadoop fs -ls output 可判断运行输出是否成功以及选择结果集
选择结果集：hadoop fs -cat output/part-r-00000
删除输出文件：hadoop fs -rmr output 一定要进行的步骤，以免报错

运行结果截图：

MatrixMultiply.java:
import java.io.IOException;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.input.FileSplit;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

public class MatrixMultiply {
/ mapper和reducer需要的三个必要变量，由conf.get()方法得到 /
public static int rowM = 0;
public static int columnM = 0;
public static int columnN = 0;

public static class MatrixMapper extends Mapper {
private Text mapKey = new Text();
private Text mapValue = new Text();
/
执行map()函数前先由conf.get()得到main函数中提供的必要变量， 这也是MapReduce中共享变量的一种方式
/
public void setup(Context context) throws IOException {
Configuration conf = context.getConfiguration();
columnN = Integer.parseInt(conf.get(“columnN”));
rowM = Integer.parseInt(conf.get(“rowM”));
};

public void map(Object key, Text value, Context context)
throws IOException, InterruptedException {
/ 得到输入文件名，从而区分输入矩阵M和N /
FileSplit fileSplit = (FileSplit) context.getInputSplit();
String fileName = fileSplit.getPath().getName();
String line = value.toString();
String[] tuple = line.split(“,”);
if (tuple.length != 2) {
throw new RuntimeException(“MatrixMapper tuple error”);
}
int row = Integer.parseInt(tuple[0]);
String[] tuples = tuple[1].split(“\t”);
if (tuples.length != 2) {
throw new RuntimeException(“MatrixMapper tuples error”);
} //
if (fileName.contains(“M”)) {
matrixM(row, Integer.parseInt(tuples[0]), Integer.parseInt(tuples[1]), context);
//TODO:行号i，列号j,数字Mij，根据矩阵N的任意列号k，输出（i,k）->(M,j,Mij)
}

else if (fileName.contains(“N”)) {
matrixN(row, Integer.parseInt(tuples[0]), Integer.parseInt(tuples[1]), context);
//TODO:行号j，列号k,数字Njk，根据矩阵M的任意行号i，输出（i,k）->(N,j,Njk)
}
};

private void matrixM(int row, int column, int value, Context context) throws IOException, InterruptedException {
for (int i = 1; i < columnN + 1; i++) {
mapKey.set(row + “,” + i);
mapValue.set(“M,” + column + “,” + value);
context.write(mapKey, mapValue);
}
}

private void matrixN(int row, int column, int value, Context context) throws IOException, InterruptedException {
for (int i = 1; i < rowM + 1; i++) {
mapKey.set(i + “,” + column);
mapValue.set(“N,” + row + “,” + value);
context.write(mapKey, mapValue);
}
}
}

public static class MatrixReducer extends Reducer {
private int sum = 0;

public void setup(Context context) throws IOException {
Configuration conf = context.getConfiguration();
columnM = Integer.parseInt(conf.get(“columnM”));
};

public void reduce(Text key, Iterable values, Context context)
throws IOException, InterruptedException {
int sum = 0;
int[] M = new int[columnM + 1];
int[] N = new int[columnM + 1];
for (Text val : values) {
String[] tuple = val.toString().split(“,”);
if (tuple.length != 3) {
throw new RuntimeException(“MatrixReducer tuple error”);
}
if (“M”.equals(tuple[0])) {
M[Integer.parseInt(tuple[1])] = Integer.parseInt(tuple[2]);
} else {
N[Integer.parseInt(tuple[1])] = Integer.parseInt(tuple[2]);
}
}
//获取同一个key=(i,k)下，Mij=M[j]和Njk=N[j]

/ 根据j值，对M[j]和N[j]进行相乘累加得到乘积矩阵的数据 /
for (int j = 1; j < columnM + 1; j++) {
sum += M[j] * N[j];
}
context.write(key, new Text(Integer.toString(sum)));
sum = 0;
}
}

/
main函数

Usage:

MatrixMultiply inputPathM inputPathN outputPath

从输入文件名称中得到矩阵M的行数和列数，以及矩阵N的列数，作为重要参数传递给mapper和reducer

@param args 输入文件目录地址M和N以及输出目录地址

@throws Exception
/

public static void main(String[] args) throws Exception {

if (args.length != 3) {
System.err
.println(“Usage: MatrixMultiply “);
System.exit(2);
} else {
String[] infoTupleM = args[0].split(““);
rowM = Integer.parseInt(infoTupleM[1]);
columnM = Integer.parseInt(infoTupleM[2]);
String[] infoTupleN = args[1].split(““);
columnN = Integer.parseInt(infoTupleN[2]);
}

Configuration conf = new Configuration();
/ 设置三个全局共享变量 /
conf.setInt(“rowM”, rowM);
conf.setInt(“columnM”, columnM);
conf.setInt(“columnN”, columnN);

Job job = new Job(conf, “MatrixMultiply”);
job.setJarByClass(MatrixMultiply.class);
job.setMapperClass(MatrixMapper.class);
job.setReducerClass(MatrixReducer.class);
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(Text.class);
FileInputFormat.setInputPaths(job, new Path(args[0]), new Path(args[1]));
FileOutputFormat.setOutputPath(job, new Path(args[2]));
System.exit(job.waitForCompletion(true) ? 0 : 1);
}
}
编译运行步骤同上，但需提前建好题目所需矩阵：
1.sudo chmod +x ./genMatrix.sh （添加执行权限）
2./genMatrix.sh 30 50 100 （生成3050和50100的两个矩阵文件：M_30_50, N_50_100）
3.将两个矩阵文件从本地发送至hdfs文件系统：hdfs dfs -put ./M_30_50 input
注：有两个输入hadoop jar MatrixMultiply.jar MatrixMultiply input/M_30_50 input/N_50_100 output

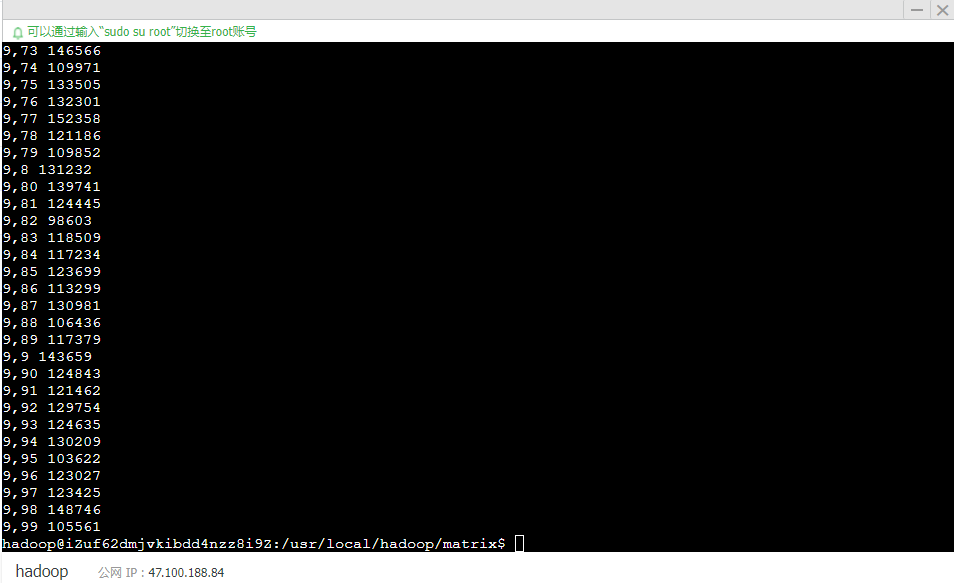

运行结果截图：

SimpleInvertedIndex.java:
import java.io.IOException;
import java.util.StringTokenizer;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.input.FileSplit;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.util.GenericOptionsParser;

public class SimpleInvertedIndex {

public static class Map extends Mapper {
private Text keyInfo = new Text(); // 存储单词和URL组合
private Text valueInfo = new Text(); // 存储词频
private FileSplit split; // 存储Split对象
// 实现map函数
public void map(Object key, Text value, Context context)
throws IOException, InterruptedException {
split = (FileSplit) context.getInputSplit();
StringTokenizer itr = new StringTokenizer(value.toString());
while (itr.hasMoreTokens()) {
int splitIndex = split.getPath().toString().indexOf(“test”);
keyInfo.set(itr.nextToken() + “:”
+ split.getPath().toString().substring(splitIndex));
valueInfo.set(“1”);
context.write(keyInfo, valueInfo);
}
}
}
public static class Combine extends Reducer {
private Text info = new Text();
// 实现reduce函数
public void reduce(Text key, Iterable values, Context context)
throws IOException, InterruptedException {
// System.out.println(key);
// 统计词频
int sum = 0;
for (Text value : values) {
sum += Integer.parseInt(value.toString());
}
int splitIndex = key.toString().indexOf(“:”);
// 重新设置value值由URL和词频组成
info.set(key.toString().substring(splitIndex + 1) + “,” + sum);
// 重新设置key值为单词
key.set(key.toString().substring(0, splitIndex));
context.write(key, info);
//System.out.println(key+” “+info);
}
}
public static class Reduce extends Reducer {
private Text result = new Text();
// 实现reduce函数
public void reduce(Text key, Iterable values, Context context)
throws IOException, InterruptedException {
// System.out.println(key);
// 生成文档列表
String fileList = new String();
for (Text value : values) {
fileList += value.toString() + “;”;
}
result.set(fileList);
context.write(key, result);
System.out.println(key+” “+result);
}
}



public static void main(String[] args) throws Exception {
Configuration conf = new Configuration();

Job job = new Job(conf, “Inverted Index”);
job.setJarByClass(SimpleInvertedIndex.class);
job.setMapperClass(Map.class);
job.setCombinerClass(Combine.class);
job.setReducerClass(Reduce.class);
job.setMapOutputKeyClass(Text.class);
job.setMapOutputValueClass(Text.class);
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(Text.class);
FileInputFormat.addInputPath(job, new Path(args[0]));
FileOutputFormat.setOutputPath(job, new Path(args[1]));
System.exit(job.waitForCompletion(true) ? 0 : 1);
}
}


编译运行步骤同上

运行结果截图：


| | | | | | 教师评语 |
| | | | | 成 绩 |
| | | |
