5、状态机模式

为什么要用状态机呢？说到底就是限制我们在程序中的硬编码，避免随便的去update某一个状态。
例如一个审核系统，状态的流转只能是A->B-C，为了避免我们在某一个地方人为疏忽将A->C，我们需要借助状态机来操作状态变化。

package com.clubfactory.tms.bill.core.service.fsm;
import com.clubfactory.tms.bill.core.enums.OrderAuditState;
import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.springframework.beans.factory.BeanInitializationException;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.Arrays;
import java.util.List;
import java.util.Map;
import java.util.Optional;
/**
 * 参考：https://zhuanlan.zhihu.com/p/97442825

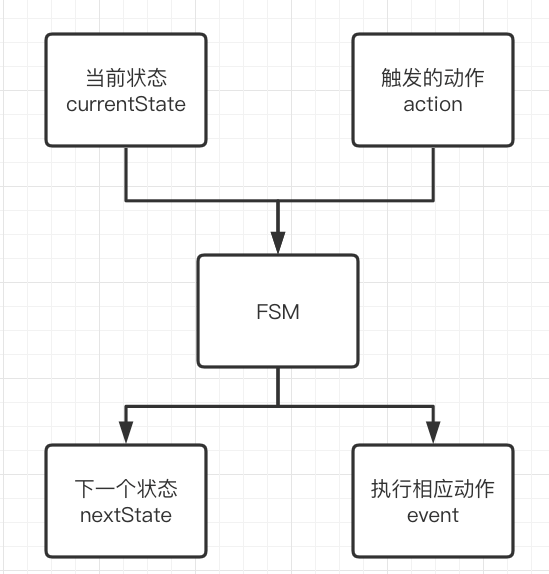

 * 当（主动）执行了某个动作，某条数据的状态要流转到下一个状态。通过状态机的方式来update状态
 */
@Service
public class OrderAuditFSM implements InitializingBean {
    @Autowired
    private UpdateAuditStateEvent updateAuditStateEvent;
    private static List<MachineTransaction> fsmList = null;
    @Override
    public void afterPropertiesSet() throws Exception {
        fsmList = Arrays.asList(
                //待比对->待确认
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_COMPARED)
                        .action(Action.SYSTEM_CHECK_EXIST_DIFF_CONFIRMED)
                        .nextState(OrderAuditState.TO_BE_CHECKED)
                        .event(updateAuditStateEvent).build(),
                //待比对->待复核
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_COMPARED)
                        .action(Action.SYSTEM_CHECK_NO_DIFF_CONFIRMED)
                        .nextState(OrderAuditState.TO_BE_REVIEWED)
                        .event(updateAuditStateEvent).build(),
                //待确认->待复核
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_CHECKED)
                        .action(Action.CLICK_CHECK_CONFIRMED)
                        .nextState(OrderAuditState.TO_BE_REVIEWED)
                        .event(updateAuditStateEvent).build(),
                //待复核->待支付
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_REVIEWED)
                        .action(Action.CLICK_REVIEW_CONFIRMED)
                        .nextState(OrderAuditState.TO_BE_PAID)
                        .event(updateAuditStateEvent).build(),
                //待复核->待确认
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_REVIEWED)
                        .action(Action.CLICK_REVIEW_REJECTED)
                        .nextState(OrderAuditState.TO_BE_CHECKED)
                        .event(updateAuditStateEvent).build(),
                //待支付->支付完成
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_PAID)
                        .action(Action.CLICK_PAY_CONFIRMED)
                        .nextState(OrderAuditState.PAID)
                        .event(updateAuditStateEvent).build(),
                //(批量)待审核->待支付
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_REVIEWED)
                        .action(Action.BATCH_REVIEW_CONFIRMED)
                        .nextState(OrderAuditState.TO_BE_PAID)
                        .event(updateAuditStateEvent).build(),
                //(批量)待支付->支付完成
                MachineTransaction.builder()
                        .currentState(OrderAuditState.TO_BE_PAID)
                        .action(Action.BATCH_PAY_CONFIRMED)
                        .nextState(OrderAuditState.PAID)
                        .event(updateAuditStateEvent).build()
        );
    }
    public void execute(String action, OrderAuditState currentState, Long carrierOrderId) {
        Optional<MachineTransaction> transactionOptional =
                fsmList.stream().filter(transaction -> transaction.getAction().equals(action) && transaction.getCurrentState().equals(currentState)).findFirst();
        if (!transactionOptional.isPresent()) {
            throw new InvalidActionException();
        }
        MachineTransaction transaction = transactionOptional.get();
        transaction.getEvent().doUpdate(transaction.getNextState(), carrierOrderId);
    }
    //批量流转
    public void batchExecute(String action, Map<OrderAuditState, List<Long>> map){
        for (Map.Entry<OrderAuditState, List<Long>> orderAuditStateEntry : map.entrySet()) {
            OrderAuditState currentState = orderAuditStateEntry.getKey();
            Optional<MachineTransaction> transactionOptional =
                    fsmList.stream().filter(transaction -> transaction.getAction().equals(action) && transaction.getCurrentState().equals(currentState)).findFirst();
            if (transactionOptional.isPresent()) {
                MachineTransaction transaction = transactionOptional.get();
                transaction.getEvent().doBatchUpdate(transaction.getNextState(), orderAuditStateEntry.getValue());
            }
        }
    }
}
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
class MachineTransaction{
    private OrderAuditState currentState;
    private String action;
    private OrderAuditState nextState;
    private Event event;
}
class InvalidActionException extends RuntimeException{}

package com.clubfactory.tms.bill.core.service.fsm;
import com.clubfactory.tms.bill.core.enums.OrderAuditState;
import java.util.List;
public interface Event {
    public void doUpdate(OrderAuditState nextState, Long id);
    public void doBatchUpdate(OrderAuditState nextState, List<Long> ids);
}

package com.clubfactory.tms.bill.core.service.fsm;
import com.clubfactory.tms.bill.core.dao.CarrierOrderMapper;
import com.clubfactory.tms.bill.core.dataobject.CarrierOrderDO;
import com.clubfactory.tms.bill.core.enums.OrderAuditState;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.List;
@Service
public class UpdateAuditStateEvent implements Event{
    @Autowired
    private CarrierOrderMapper carrierOrderMapper;
    @Override
    public void doUpdate(OrderAuditState nextState, Long id) {
        CarrierOrderDO updateDO = CarrierOrderDO.builder().id(id).auditState(nextState.getCode()).build();
        carrierOrderMapper.update(updateDO);
    }
    @Override
    public void doBatchUpdate(OrderAuditState nextState, List<Long> ids) {
        if(!ids.isEmpty()){
            carrierOrderMapper.updateStateByIds(nextState.getCode(), ids);
        }
    }
}

package com.clubfactory.tms.bill.core.service.fsm;
public class Action {
    public final static String SYSTEM_CHECK_NO_DIFF_CONFIRMED="SYSTEM_CHECK_NO_DIFF_CONFIRMED";
    public final static String SYSTEM_CHECK_EXIST_DIFF_CONFIRMED="SYSTEM_CHECK_EXIST_DIFF_CONFIRMED";
    public final static String CLICK_CHECK_CONFIRMED="CLICK_CHECK_CONFIRMED";
    public final static String CLICK_REVIEW_CONFIRMED="CLICK_REVIEW_CONFIRMED";
    public final static String CLICK_REVIEW_REJECTED="CLICK_REVIEW_REJECTED";
    public final static String CLICK_PAY_CONFIRMED="CLICK_PAY_CONFIRMED";
    public final static String BATCH_REVIEW_CONFIRMED="BATCH_REVIEW_CONFIRMED";
    public final static String BATCH_PAY_CONFIRMED="BATCH_PAY_CONFIRMED";
}
