什么是helm

我们在实际操作k8s的时候，会发现要部署一个应用必须先编写deployment，daemonset，service的资源文件，非常麻烦。项目多的时候，非常难于管理，这个时候helm就出现了，他的作用可以看作类似于centos的yum工具，或者ubuntu的apt。都是包管理器。他的作用就是对应用程序做封装，进行版本管理和依赖检查，然后对应用程序进行分发。helm主要由两部分组成，一个是elm客户端、一个是Tiller服务端。
helm有三个主要概念：
1.chart：定义应用所需要的资源。
2.Repository：在仓库中下载chart
3.release：k8s中的chart实例，每个实例都是一个版本。

安装helm

现在我们来安装helm
系统约定

  • kubernetes1.18.6
  • 可访问镜像仓库
  • helm安装在k8s集群的机器中

我们先去官网下载下来
https://get.helm.sh/helm-v3.2.4-linux-amd64.tar.gz
[root@adm-master ~]# tar -zxvf helm-v3.2.4-linux-amd64.tar.gz
linux-amd64/
linux-amd64/helm
linux-amd64/README.md
linux-amd64/LICENSE
[root@adm-master ~]# cp linux-amd64/helm /usr/local/bin/
[root@adm-master ~]# chmod +x /usr/local/bin/helm
[root@adm-master ~]# he
head helm helm2 help hexdump
[root@adm-master ~]# helm version
version.BuildInfo{Version:”v3.2.4”, GitCommit:”0ad800ef43d3b826f31a5ad8dfbb4fe05d143688”, GitTreeState:”clean”, GoVersion:”go1.13.12”}
由于helm3比helm2方便很多，不再需要安装tiller，所以这样就算安装好了
那么helm怎么用呢？
创建一个chart、

  1. helm create testnginx

查看里面的结构
为了方便测试，改一下暴露方式。
安装这个chart

  1. [root@adm-master ~]# helm install ./testnginx --generate-name
  2. NAME: testnginx-1598707352
  3. LAST DEPLOYED: Sat Aug 29 21:22:32 2020
  4. NAMESPACE: default
  5. STATUS: deployed
  6. REVISION: 1
  7. NOTES:
  8. 1. Get the application URL by running these commands:
  9.   export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services testnginx-1598707352)
  10.   export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
  11.   echo http://$NODE_IP:$NODE_PORT

查看是否安装成功
我们访问一下
至此，我们用helm安装一个应用就成功了。
当然这个是我们自己自定义的一个应用，现在网上有很多成熟的应用，我们也可以直接拿来用，下面简单说一说用法。
添加仓库

  1. helm repo add stable http://aliacs-k8s-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/app/charts/
  2. helm repo add incubator http://aliacs-k8s-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/app/charts-incubator/

查看仓库

  1. helm repo list

查找应用

  1. [root@adm-master ~]# helm search repo nginx
  2. NAME                        CHART VERSION   APP VERSION DESCRIPTION
  3. incubator/ack-ingress-nginx 1.34.2          0.30.0      An Nginx Ingress Controller that uses ConfigMap

拉取应用

  1. helm pull incubator/ack-ingress-nginx

修改配置文件

  1. [root@adm-master ~]# cd ack-ingress-nginx/
  2. [root@adm-master ack-ingress-nginx]# ls
  3. Chart.yaml  ci  README.md  templates  values.yaml
  4. [root@adm-master ack-ingress-nginx]# vim values.yaml

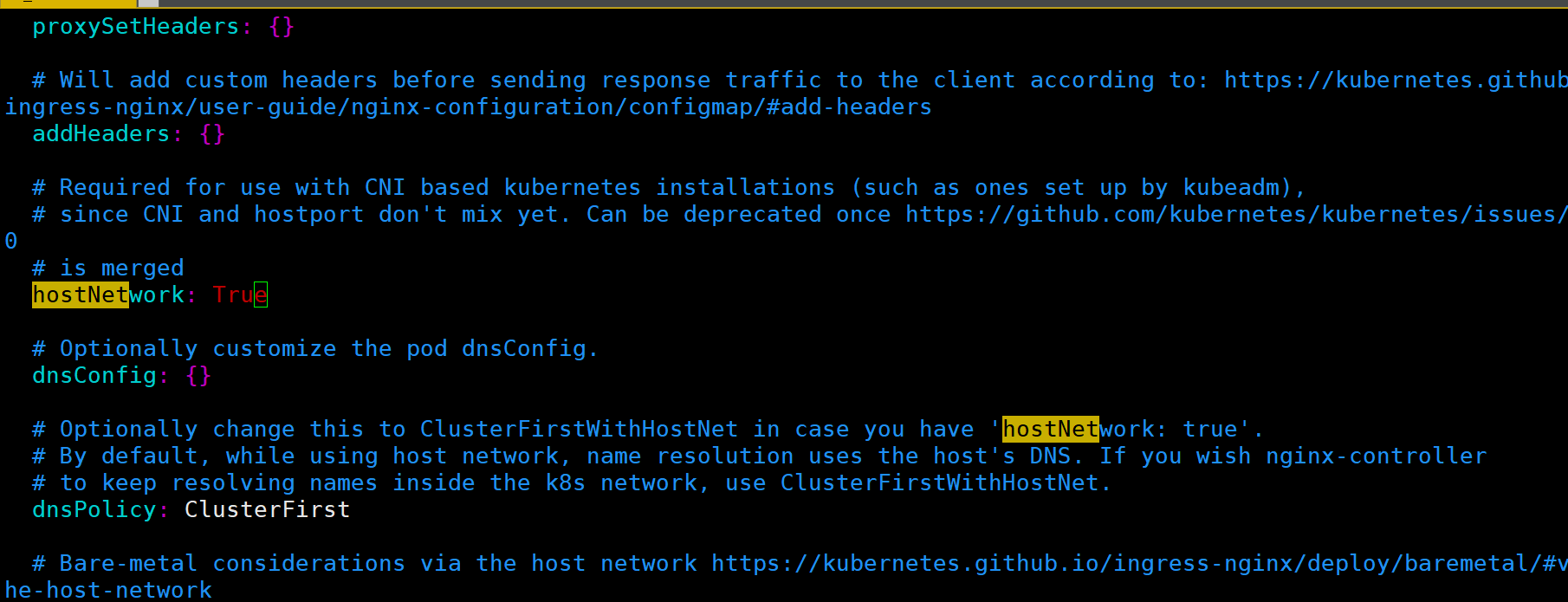

启用宿主机网络
安装

  1. [root@adm-master ~]# helm install ./ack-ingress-nginx --generate-name
  2. NAME: ack-ingress-nginx-1598707957
  3. LAST DEPLOYED: Sat Aug 29 21:32:37 2020
  4. NAMESPACE: default
  5. STATUS: deployed
  6. REVISION: 1
  7. TEST SUITE: None
  8. NOTES:
  9. The nginx-ingress controller has been installed.
  10. It may take a few minutes for the LoadBalancer IP to be available.
  11. You can watch the status by running ‘kubectl --namespace default get services -o wide -w ack-ingress-nginx-1598707957-controller‘
  12. An example Ingress that makes use of the controller:
  13.   apiVersion: extensions/v1beta1
  14.   kind: Ingress
  15.   metadata:
  16.     annotations:
  17.       kubernetes.io/ingress.class: nginx
  18.     name: example
  19.     namespace: foo
  20.   spec:
  21.     rules:
  22.       - host: www.example.com
  23.         http:
  24.           paths:
  25.             - backend:
  26.                 serviceName: exampleService
  27.                 servicePort: 80
  28.               path: /
  29.     # This section is only required if TLS is to be enabled for the Ingress
  30.     tls:
  31.         - hosts:
  32.             - www.example.com
  33.           secretName: example-tls
  34. If TLS is enabled for the Ingress, a Secret containing the certificate and key must also be provided:
  35.   apiVersion: v1
  36.   kind: Secret
  37.   metadata:
  38.     name: example-tls
  39.     namespace: foo
  40.   data:
  41.     tls.crt: <base64 encoded cert>
  42.     tls.key: <base64 encoded key>
  43.   type: kubernetes.io/tls

创建好了
安装helm - 图7
除了上面的一些命令，下面再介绍一些常用的几个命令。
查看安装的应用

  1. [root@adm-master ~]# helm list
  2. NAME                            NAMESPACE   REVISION    UPDATED                                 STATUS      CHART                       APP VERSION
  3. ack-ingress-nginx-1598707957    default     1           2020-08-29 21:32:37.485600339 +0800 CST deployed    ack-ingress-nginx-1.34.2    0.30.0
  4. ack-ingress-nginx-1598748240    default     1           2020-08-30 08:44:00.160214613 +0800 CST deployed    ack-ingress-nginx-1.34.2    0.30.0
  5. nginx-1598703649                default     1           2020-08-29 20:20:49.161478619 +0800 CST deployed    nginx-0.1.0                 1.16.0
  6. test-1598706678                 default     1           2020-08-29 21:11:18.658604777 +0800 CST deployed    test-0.1.0                  1.16.0
  7. test1-1598706774                default     1           2020-08-29 21:12:54.102423232 +0800 CST deployed    test1-0.1.0                 1.16.0
  8. testnginx-1598707352            default     1           2020-08-29 21:22:32.666499735 +0800 CST deployed    testnginx-0.1.0             1.16.0

查看应用状态

  1. [root@adm-master ~]# helm status testnginx-1598707352
  2. NAME: testnginx-1598707352
  3. LAST DEPLOYED: Sat Aug 29 21:22:32 2020
  4. NAMESPACE: default
  5. STATUS: deployed
  6. REVISION: 1
  7. NOTES:
  8. 1. Get the application URL by running these commands:
  9.   export NODE_PORT=$(kubectl get --namespace default -o jsonpath="{.spec.ports[0].nodePort}" services testnginx-1598707352)
  10.   export NODE_IP=$(kubectl get nodes --namespace default -o jsonpath="{.items[0].status.addresses[0].address}")
  11.   echo http://$NODE_IP:$NODE_PORT

应用更新升级

  1. [root@adm-master ~]# helm upgrade ack-ingress-nginx-1598748240 ./ack-ingress-nginx
  2. Release "ack-ingress-nginx-1598748240" has been upgraded. Happy Helming!
  3. NAME: ack-ingress-nginx-1598748240
  4. LAST DEPLOYED: Sun Aug 30 09:15:31 2020
  5. NAMESPACE: default
  6. STATUS: deployed
  7. REVISION: 2
  8. TEST SUITE: None
  9. NOTES:
  10. The nginx-ingress controller has been installed.
  11. Get the application URL by running these commands:
  12.   export HTTP_NODE_PORT=32080
  13.   export HTTPS_NODE_PORT=32443
  14.   export NODE_IP=$(kubectl --namespace default get nodes -o jsonpath="{.items[0].status.addresses[1].address}")
  15.   echo "Visit http://$NODE_IP:$HTTP_NODE_PORT to access your application via HTTP."
  16.   echo "Visit https://$NODE_IP:$HTTPS_NODE_PORT to access your application via HTTPS."
  17. An example Ingress that makes use of the controller:
  18.   apiVersion: extensions/v1beta1
  19.   kind: Ingress
  20.   metadata:
  21.     annotations:
  22.       kubernetes.io/ingress.class: nginx
  23.     name: example
  24.     namespace: foo
  25.   spec:
  26.     rules:
  27.       - host: www.example.com
  28.         http:
  29.           paths:
  30.             - backend:
  31.                 serviceName: exampleService
  32.                 servicePort: 80
  33.               path: /
  34.     # This section is only required if TLS is to be enabled for the Ingress
  35.     tls:
  36.         - hosts:
  37.             - www.example.com
  38.           secretName: example-tls
  39. If TLS is enabled for the Ingress, a Secret containing the certificate and key must also be provided:
  40.   apiVersion: v1
  41.   kind: Secret
  42.   metadata:
  43.     name: example-tls
  44.     namespace: foo
  45.   data:
  46.     tls.crt: <base64 encoded cert>
  47.     tls.key: <base64 encoded key>
  48.   type: kubernetes.io/tls

应用回滚

  1. [root@adm-master ~]# helm hist ack-ingress-nginx-1598748240
  2. REVISION    UPDATED                     STATUS      CHART                       APP VERSION DESCRIPTION
  3. 1           Sun Aug 30 08:44:00 2020    superseded  ack-ingress-nginx-1.34.2    0.30.0      Install complete
  4. 2           Sun Aug 30 09:15:31 2020    deployed    ack-ingress-nginx-1.34.2    0.30.0      Upgrade complete
  5. [root@adm-master ~]# helm rollback ack-ingress-nginx-1598748240 1
  6. Rollback was a success! Happy Helming!

应用删除

  1. [root@adm-master ~]# helm delete ack-ingress-nginx-1598707957
  2. release "ack-ingress-nginx-1598707957" uninstalled
