docker swarm

https://www.udemy.com/share/101u3o/ https://github.com/BretFisher/dogvscat https://labs.play-with-docker.com/

docker swarm init
docker swarm init --advertise-addr
docker swarm join --token SWMTKN-1-82i5lntwh2p1oyeotu68dgz6k ip:2377
docker node ls
docker node update --role manger node1
docker node ps
docker service create --replicas 3 alpine ping 8.8.8.8
docker service ls
docker service ps name
docker network create --driver overlay acdiostdrupal
docker service create --name psql --network acdiostdrupal -e POSTGRES_PASSWORD=acdiost postgres
docker container logs psql*
docker service create --name drupal --network acdiostdrupal -p 80:80 drupal
# 网络负载均衡
docker service create --name es --replicas 3 -p 9200:9200 elasticsearch:2

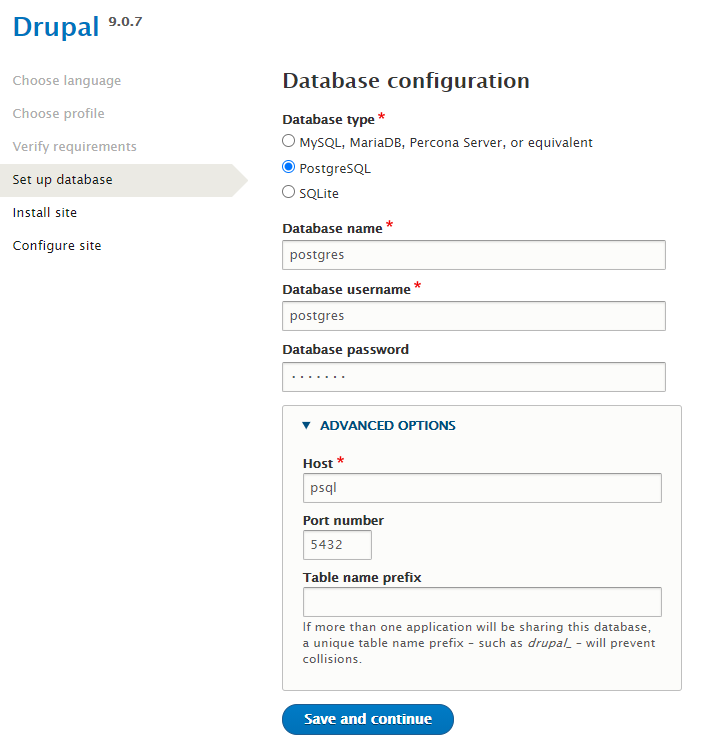

Drupal安装配置

docker stack deploy -c filename.yml name
docker stack ls
docker stack ps name
docker stack services name
docker stack rm name

投票app配置文件

version: "3"
services:
  redis:
    image: redis:alpine
    networks:
      - frontend
    deploy:
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure
  db:
    image: postgres:9.6
    environment:
      POSTGRES_USER: "postgres"
      POSTGRES_PASSWORD: "postgres"
      POSTGRES_HOST_AUTH_METHOD: trust
    networks:
      - backend
    deploy:
      placement:
        constraints: [node.role == manager]
  vote:
    image: dockersamples/examplevotingapp_vote:before
    ports:
      - 5000:80
    networks:
      - frontend
    depends_on:
      - redis
    deploy:
      replicas: 2
      update_config:
        parallelism: 2
      restart_policy:
        condition: on-failure
  result:
    image: dockersamples/examplevotingapp_result:before
    ports:
      - 5001:80
    networks:
      - backend
    depends_on:
      - db
    deploy:
      replicas: 1
      update_config:
        parallelism: 2
        delay: 10s
      restart_policy:
        condition: on-failure
  worker:
    image: dockersamples/examplevotingapp_worker
    networks:
      - frontend
      - backend
    depends_on:
      - db
      - redis
    deploy:
      mode: replicated
      replicas: 1
      labels: [APP=VOTING]
      restart_policy:
        condition: on-failure
        delay: 10s
        max_attempts: 3
        window: 120s
      placement:
        constraints: [node.role == manager]

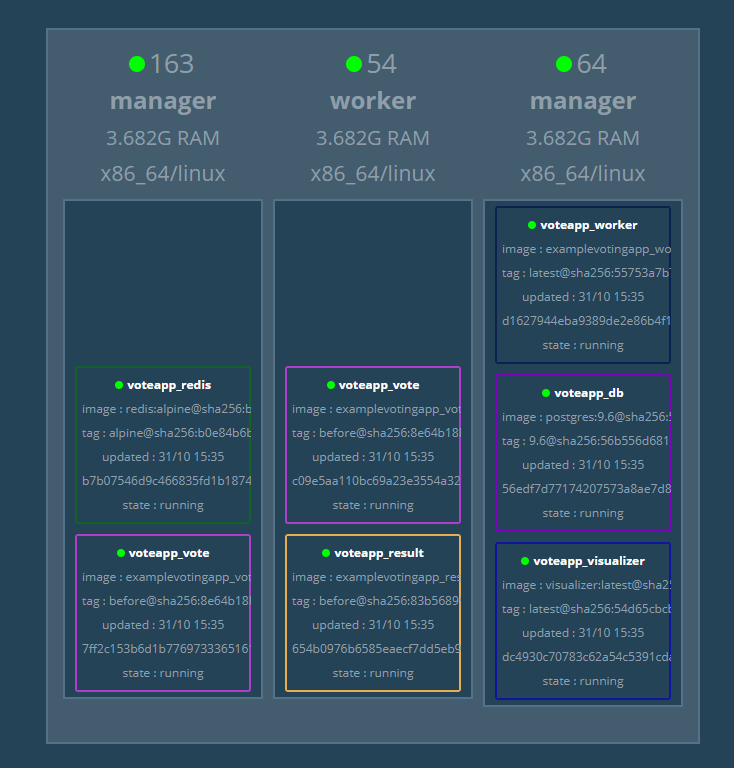

  visualizer:
    image: dockersamples/visualizer
    ports:
      - "8080:8080"
    stop_grace_period: 1m30s
    volumes:
      - "/var/run/docker.sock:/var/run/docker.sock"
    deploy:
      placement:
        constraints: [node.role == manager]
networks:
  frontend:
  backend:

version: "3.1"

services:
  psql:
    image: postres
    secrets:
      - psql_user
      - psql_password
    environment:
      POSTGRES_PASSWORD_FILE: /run/secrets/psql_password
      POSTGRES_USER_FILE: /run/sectests/psql_user

secrets:
  psql_user:
    file: ./psql_user.txt
  psql_password:
    file: ./psql_password.txt

# secret 限制大小为 500kb ，版本为 3.1 以上
docker secret create psql_user psql_user.txt

echo 'password' | docker secret create psql_pass -

docker secret ls
docker secret inspect name

docker service create --name psql \
--secret psql_user --secret psql_pass \
-e POSTGRES_PASSWORD_FILE=/run/secrets/psql_password \
-e POSTGRES_USER_FILE=/run/sectests/psql_user

docker service update --secret-rm

docker-compose -f name1.yml -f name2.yml up -d
docker-compose -f name1.yml -f name2.yml config > output.yml

# 创建服务
docker service create -p 80:80 --name web nginx:1.13.7
# 扩容
docker service scale web=5
# 版本更新
docker service update --image nginx:1.13.6 web
# 更新端口
docker service update --publish-rm 80 --publish-add 8090:80 web
# 重新分配节点，作用是可以利用空闲的服务器
docker service update --force web

健康检查

# 基于命令的健康检查
docker container run --name p2 -d --health-cmd="pg_isready -U postgres || exit 1" postgres
# 审查容器可以看到健康检查的返回结果
docker inspect 容器
# 基于服务的健康检查
docker service create --name p2 --health-cmd="pg_isready -U postgres || exit 1" postgres

服务约束

docker service create --constraint=node.role==manager nginx
docker service create --constraint=node.role!=work nginx

# 添加标签
docker node update --label-add=dmz=true node2
docker service create --constraint=node.labels.dmz==true nginx

# 修改约束
docker service update --constraint-rm node.role==worker --constraint-add node.role==manager app1

服务模式

docker service create --mode=global nginx
docker service create --mode=global --constraint=node.role==work nginx

放置首选项

docker service create --placement-pref spread=node.labels.xxx --replicas 3 nginx
--placement-pref-add spread=
--placement-pref-rm spread=
